Description
SMALLRIG CAGE KIT FOR BLACKMAGIC PYXIS 6K / 12K 5281
- Modular Design for PYXIS 6K / 12K: The top plate, baseplate, and right side plate can be used independently or combined, adapting to various shooting scenarios.
- Compatible with DJI Focus Pro LiDAR: Supports quick mounting and adjustment of the LiDAR, optimizing focus performance for smoother, more stable shooting.

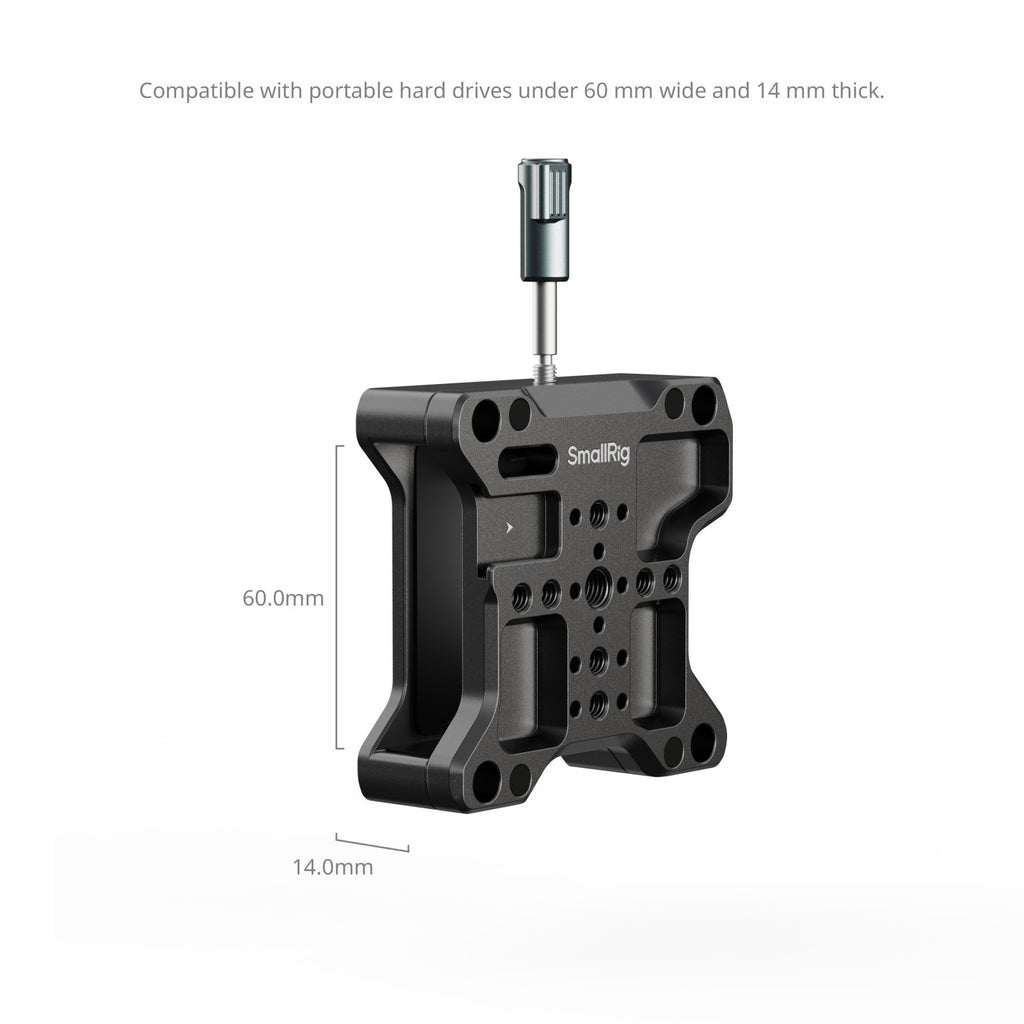

- Expandable Side Plate: Compatible with SSDs and features additional mounting points for enhanced stability in vertical shooting.
- Versatile Expansion Options: Easily accommodates a wide range of accessories to meet the demands of diverse shooting environments.
- Built-In Allen Wrench: A handy tool for quick assembly and on-the-fly adjustments.

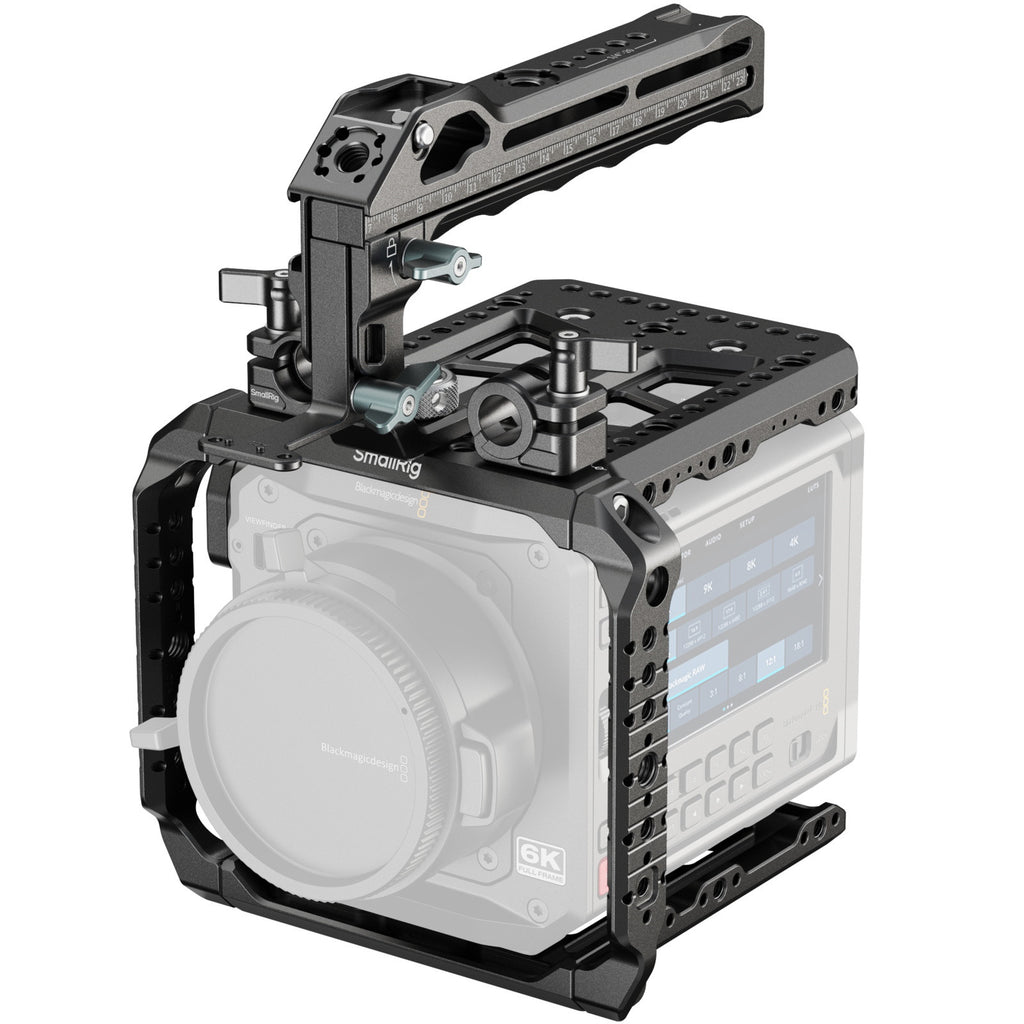

SmallRig Cage Kit for Blackmagic PYXIS 6K / 12K 5281 is a modular cage kit designed specifically for the PYXIS 6K / 12K. Its top plate, baseplate, and right side plate can be used independently or in combination, adapting to various shooting scenarios. It is compatible with the DJI Focus Pro LiDAR, supporting quick mounting and adjustment to optimize focus performance for smoother, more stable shooting. The expandable side plate is compatible with SSDs and features additional mounting points for enhanced stability in vertical shooting.

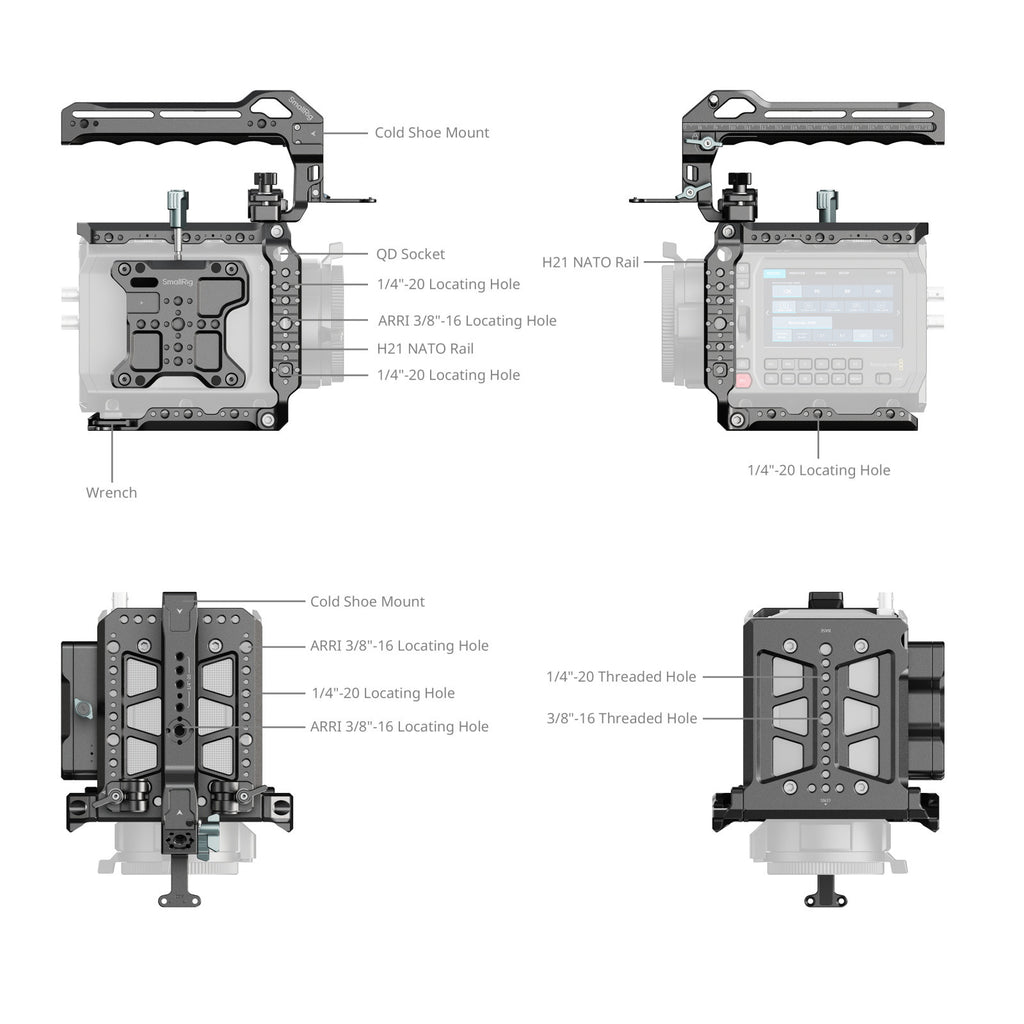

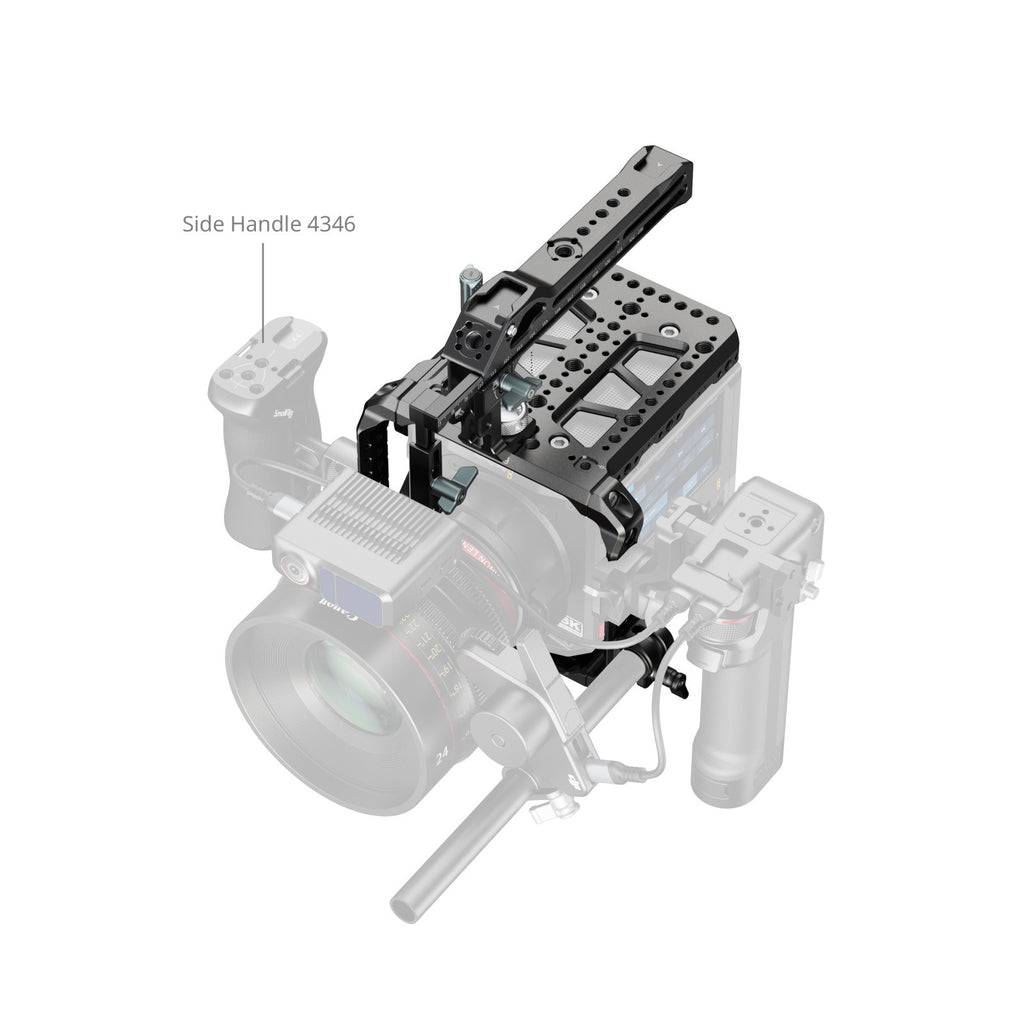

The cage kit is equipped with 1/4"-20 threaded holes, 1/4"-20 locating holes, 3/8"-16 threaded holes, ARRI 3/8"-16 locating holes, and a "HawkLock" quick release NATO rail, allowing for the expansion of accessories such as side handles (ID 4015), monitor mounts (ID 2903B), tripods (ID 3989), single rod clamps (ID 3598), magic arms (ID 3873), and top handles (ID 5632). It also feature a built-in cold shoe mount for the integration of microphones, video lights, and more, as well as a QD socket compatible with QD quick release shoulder straps (ID 4118B). An integrated Allen wrench at the bottom facilitates easy assembly and disassembly.
SPECIFICATIONS
Product Dimensions: 228.3 x 204.4 x 147.0mm / 9.0 x 8.1 x 5.8in
Package Dimensions: 320.0 x 183.5 x 75.0mm / 12.6 x 7.2 x 3.0in
Net Weight: 838.0 ± 5.0g / 29.6 ± 0.2oz
Package Weight: 1063.0 ± 5.0g / 37.5 ± 0.2oz
Material(s): Aluminum Alloy, Silicone
COMPATIBILITY
Blackmagic PYXIS 6K / 12K

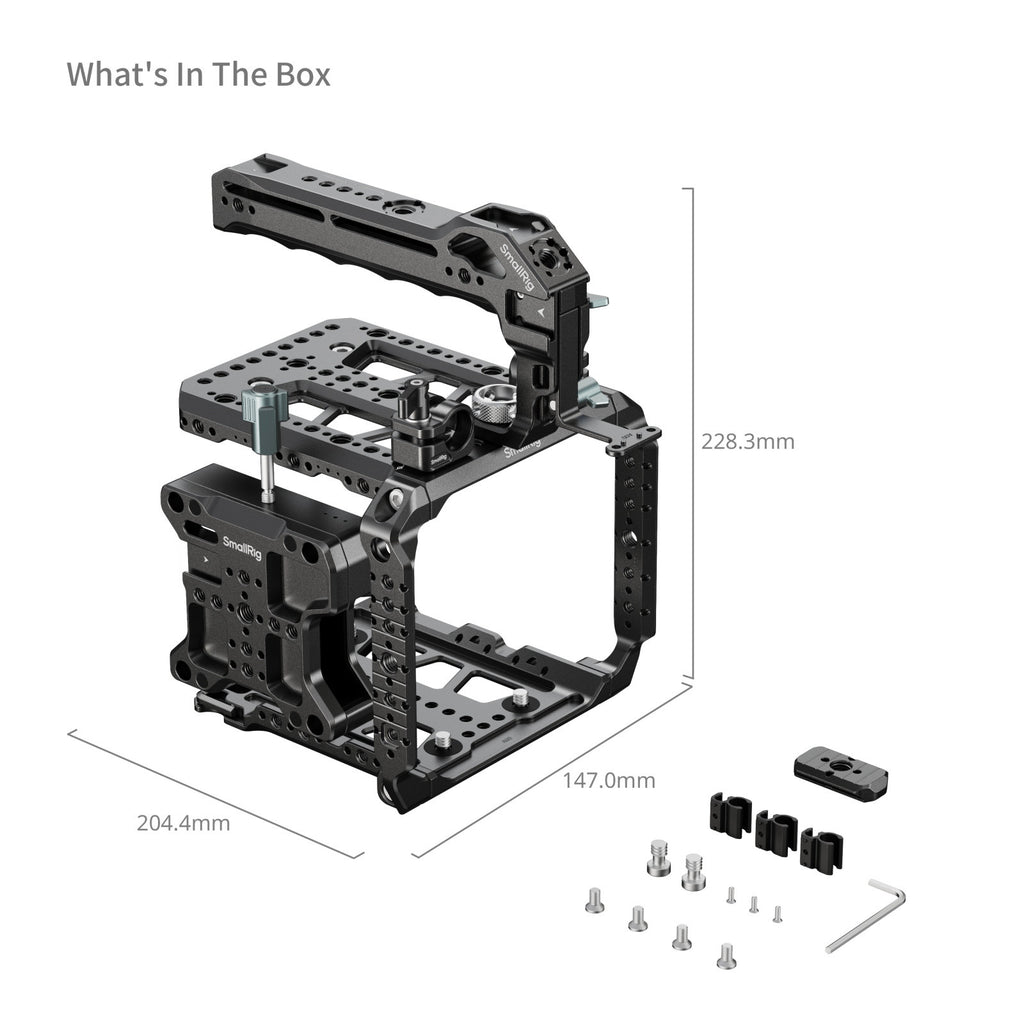

WHAT IS INCLUDED
1x Top Plate
1x Left Side NATO Rail
1x Right Side NATO Rail
1x Baseplate
1x Side Plate
1x NATO Rail
3x Cable Clamp
2x 15mm Rod Clamp
1x Top Handle
1x Allen Wrench
2x 1/4"-20 Screw
4x M4 Screw
3x M2 Screw
1x Locking Knob
1x Gasket
1x Mounting Bracket for DJI Focus Pro LiDAR
1x Operating Instruction
1x Guarantee Card
