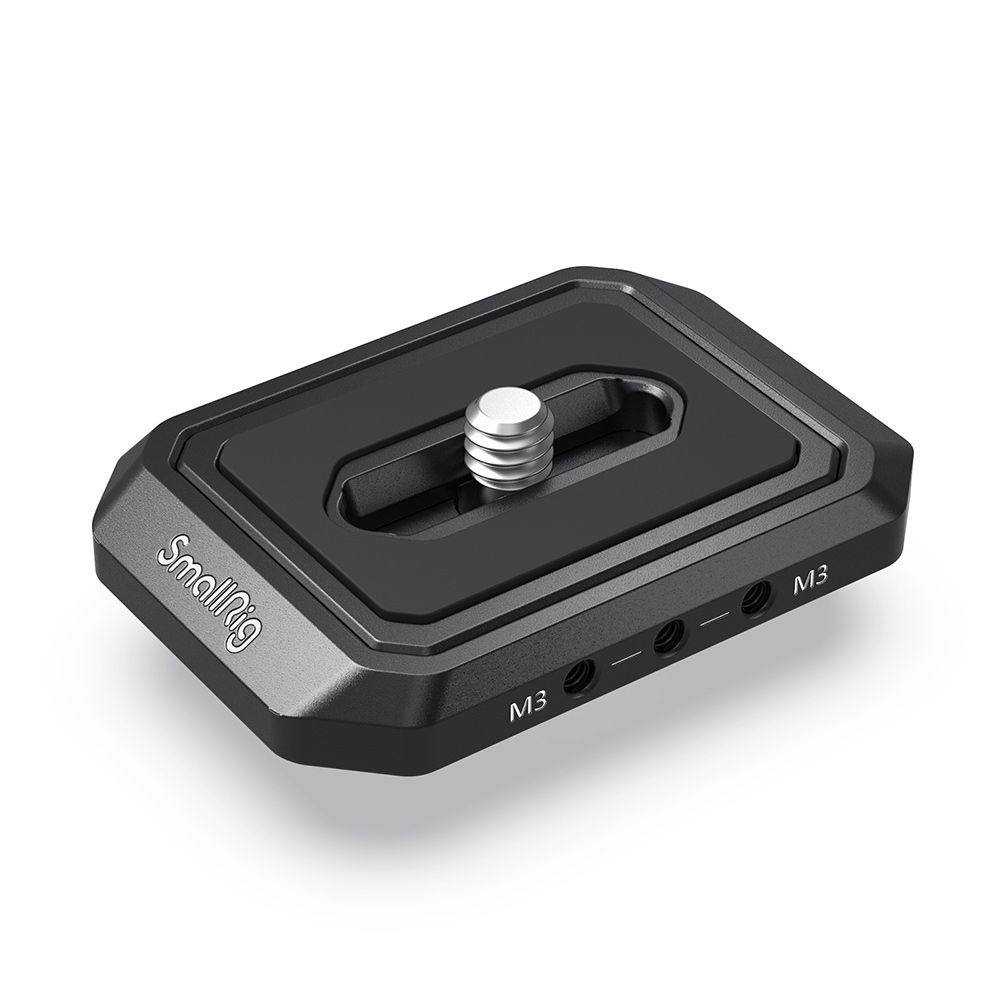

SMALLRIG CAMERA RISER PLATE FOR MOZA AIRCROSS 2 2827
- Designed for Moza AirCross 2.
- Balance Camera from Horizontal Adjustment on Gimbal.

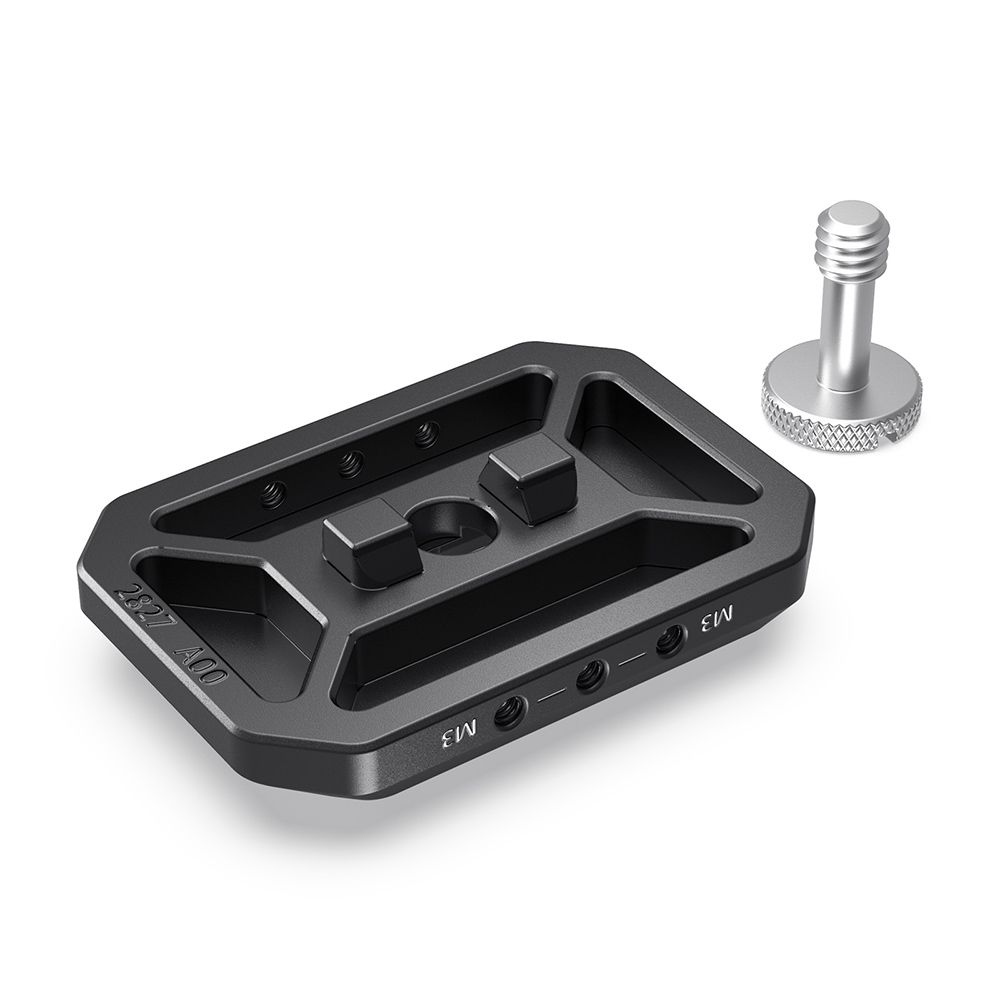

- Connects to the L bracket and Baseplate with 1/4”-20 Screw & Anti-Twist Pin.
- Protective Rubber Pads.

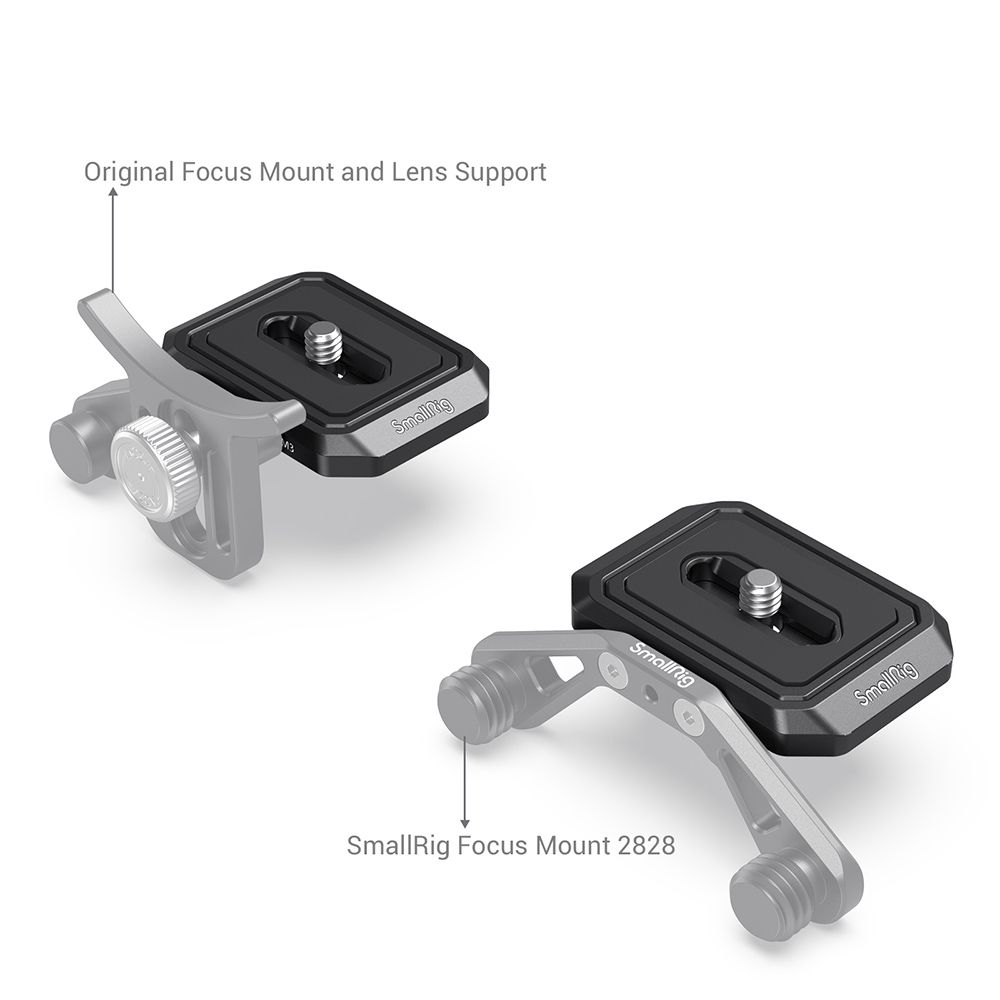

- Compatible with Original Focus Rod Mount and Lens Support.

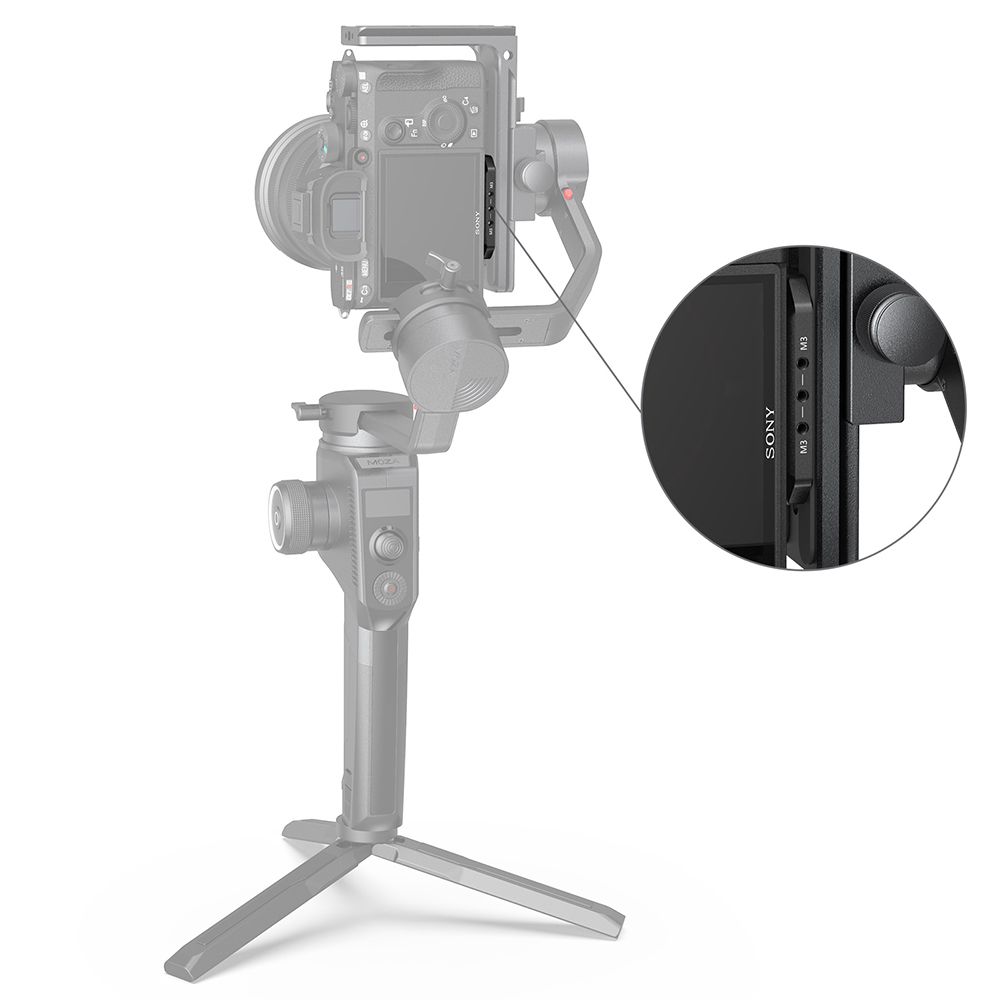

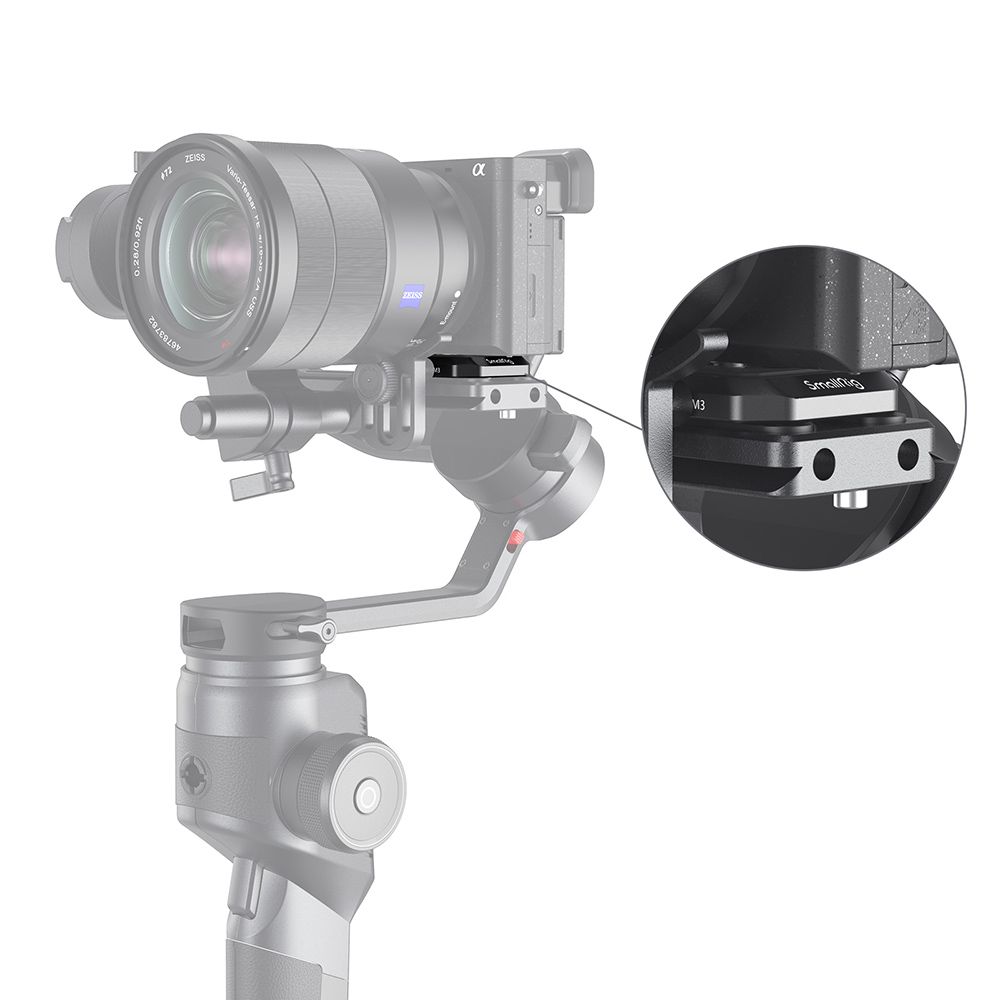

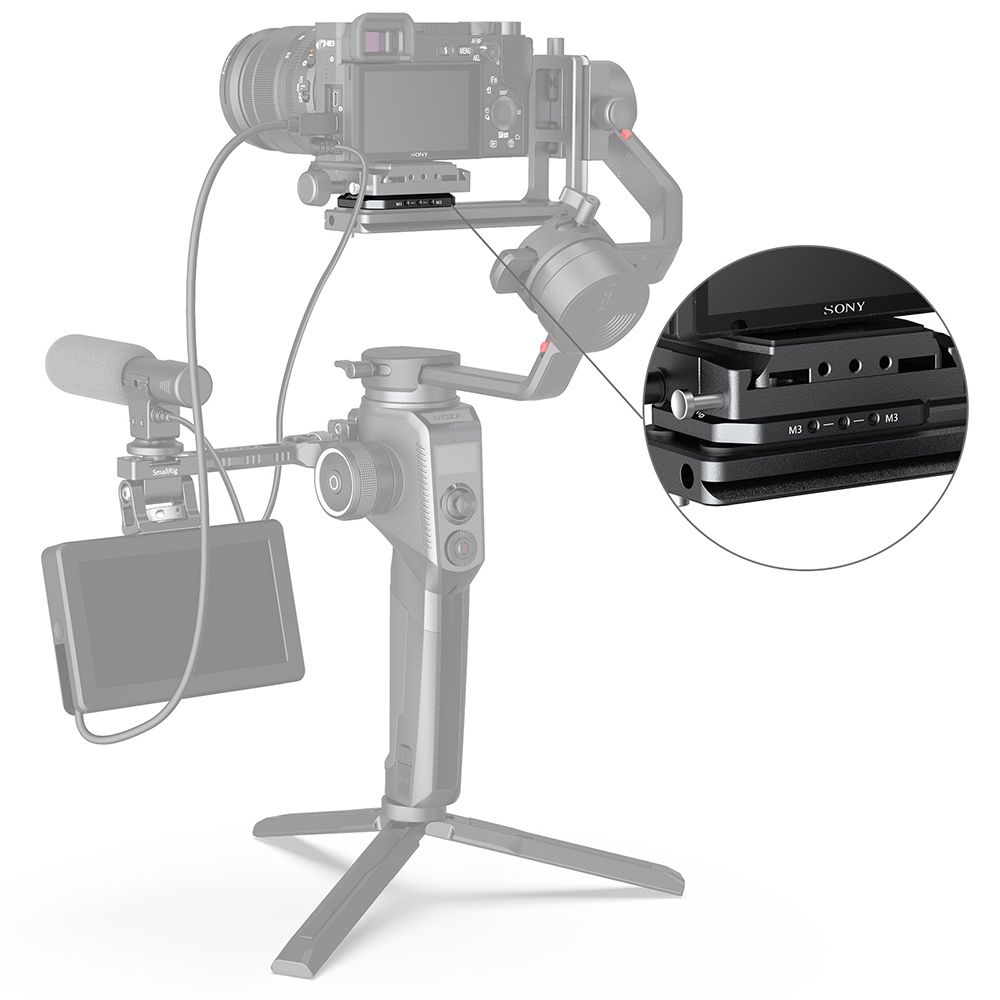

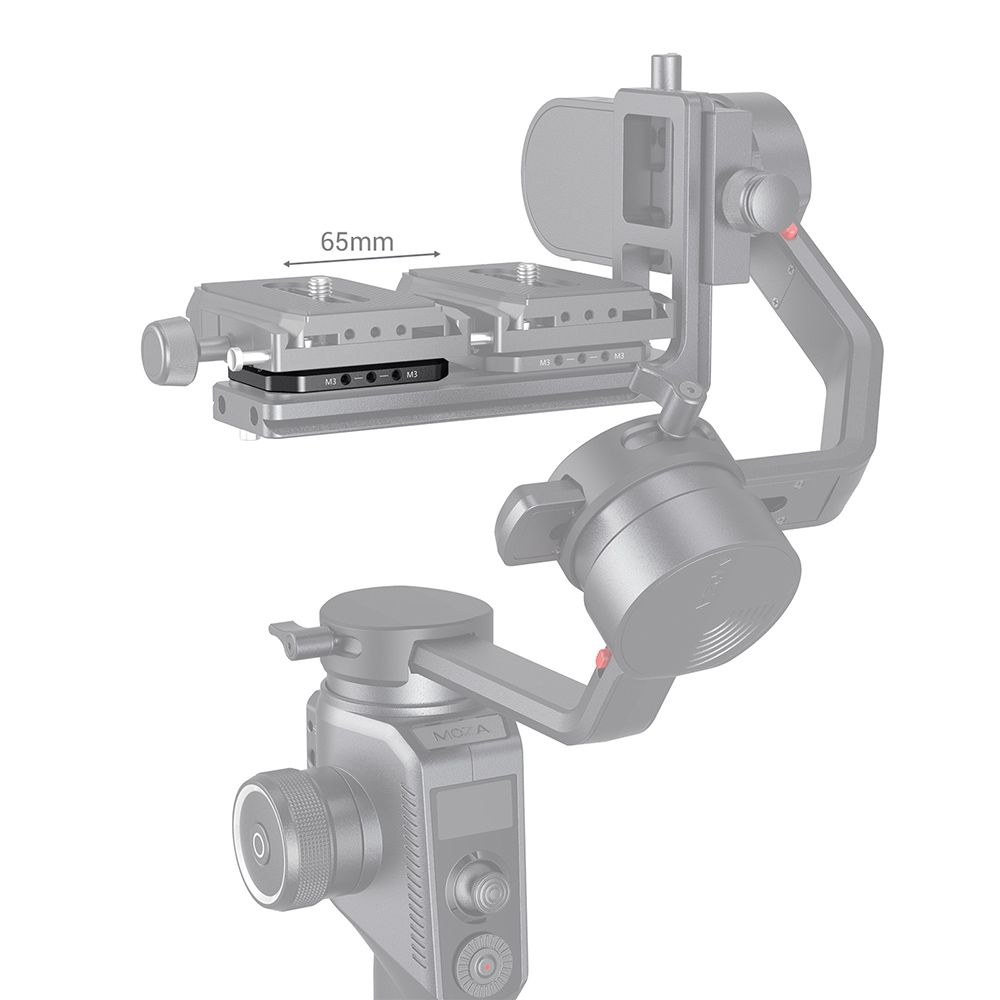

SmallRig Camera Riser Plate for Moza AirCross 2 2827 is designed to help balance the camera baseplate from the horizontal direction on AirCross 2 gimbal, as well as increase the distance between the lens center and the pitch axis when vertical shooting. The plate secures to the middle of the L bracket and baseplate with an included long 1/4"-20 screw and locating pins to prevent twisting. Featuring three m3 threads in front which is compatible with SmallRig Focus Rod Mount 2828, the original single focus rod mount and lens support. It comes with a rubber pad to prevent the baseplate from scratching. The original baseplate is able to adjust 64mm on the horizontal direction after attaching the riser plate. Besides, when using a small, lightweight camera with a wide, heavy lens, you can also use this camera riser for additional support to increase the compatibility.

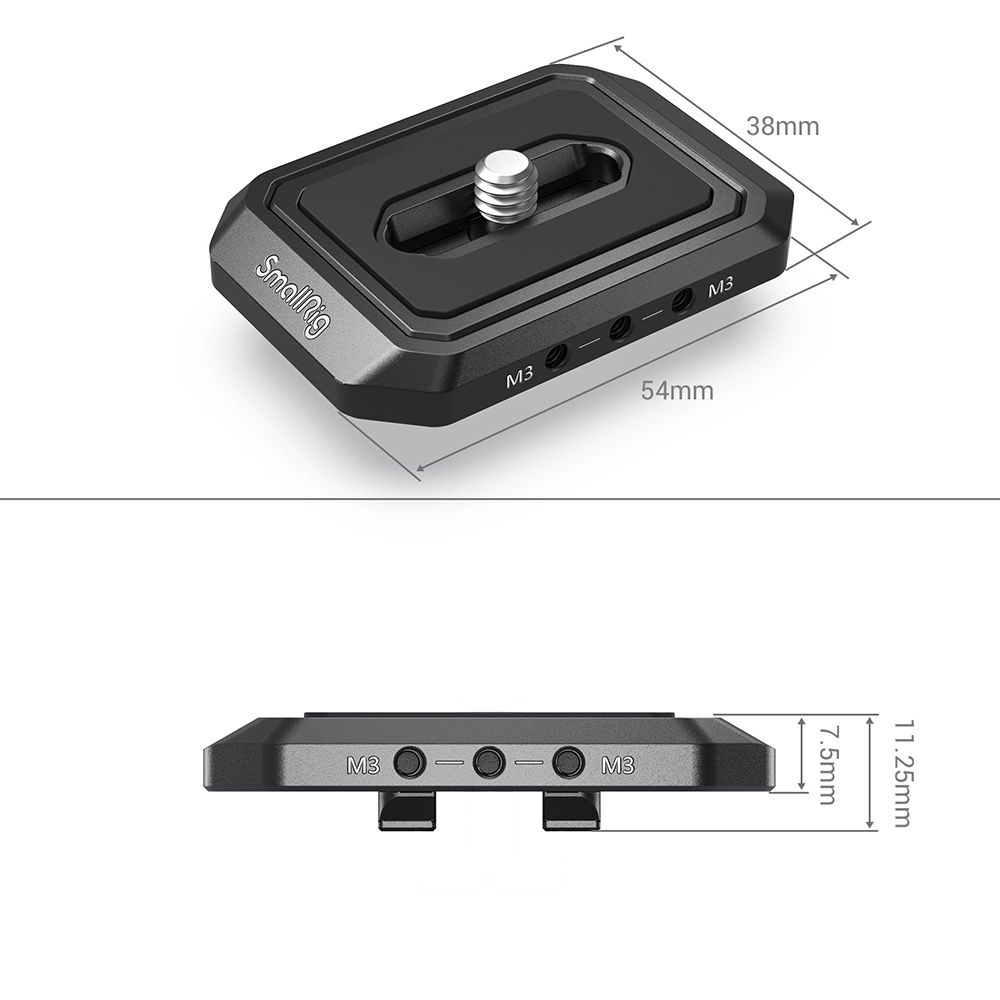

Product Dimensions: 54mm x 38mm x 11.25mm
Package Dimensions: 76mm x 63mm x 40mm
Net Weight: 28g±5g
Package Weight: 46g±5g
Material(s): Aluminum Alloy
Moza AirCross 2 Gimbal
WHAT IS INCLUDED
1x Riser Plate
