Description

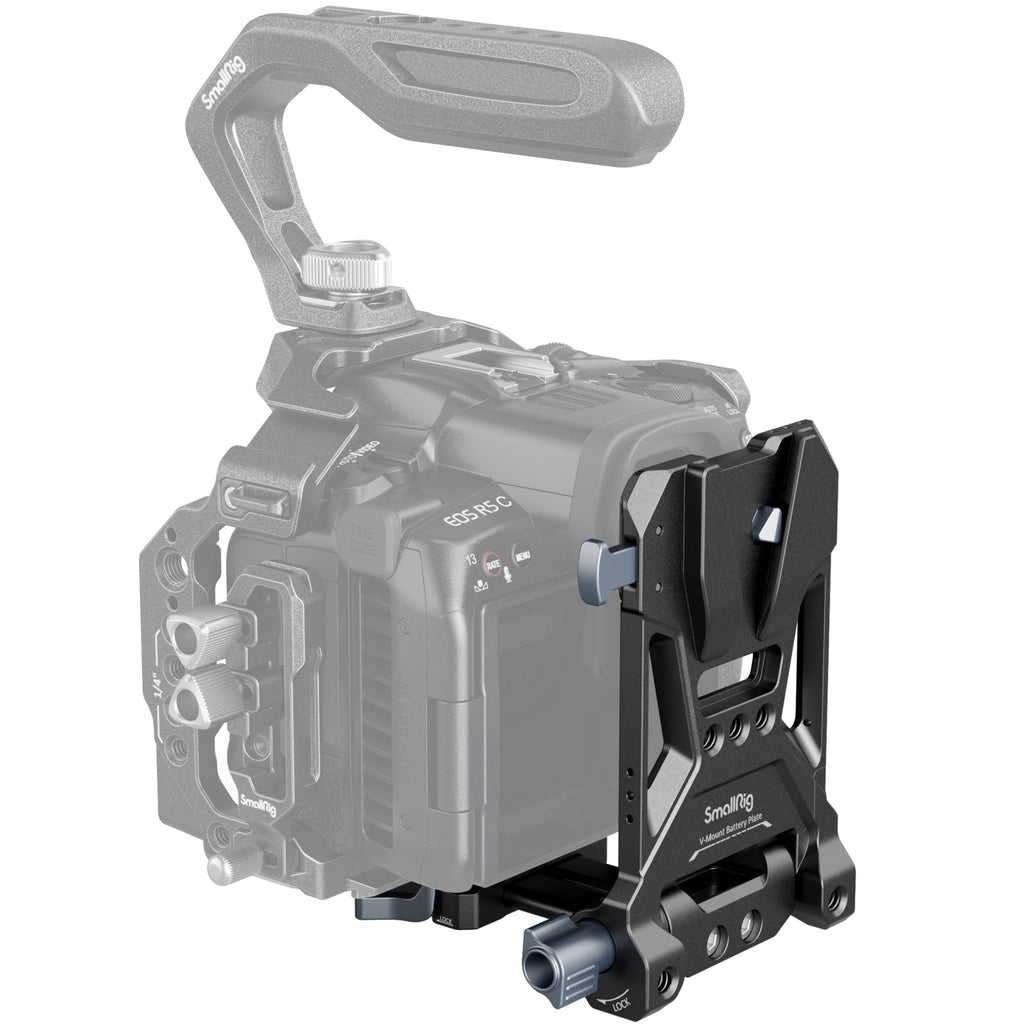

SMALLRIG COMPACT V-MOUNT BATTERY MOUNTING SYSTEM 4064B
- Portable, compact, and lightweight kit with modular design.
- Supports multiple camera models and fits into different usage scenarios.
- Tool-free installation and quick release system.
- Arca-Swiss quick-release plate for quick switch between handheld and tripod modes.

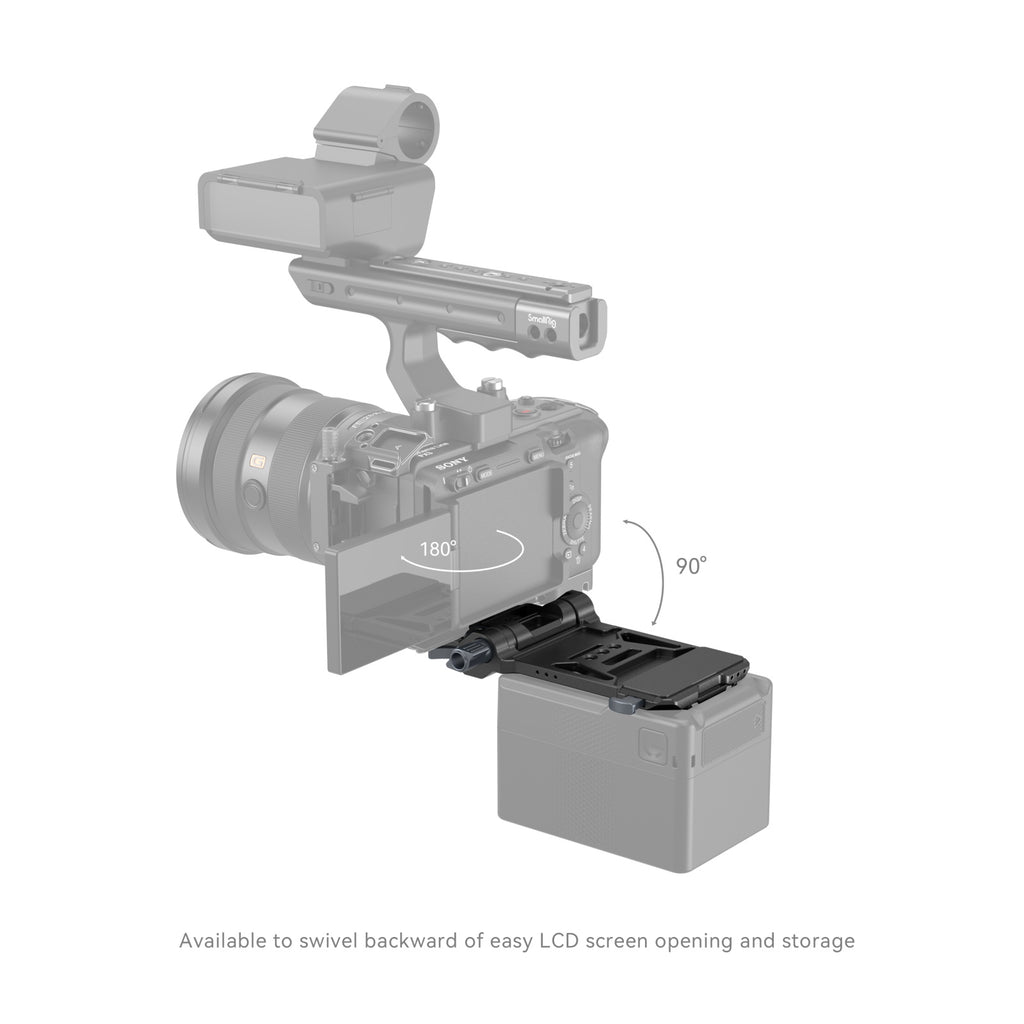

- A 90° rotatable structure provides easy access to flip a screen.
- Folding design for convenient storage.

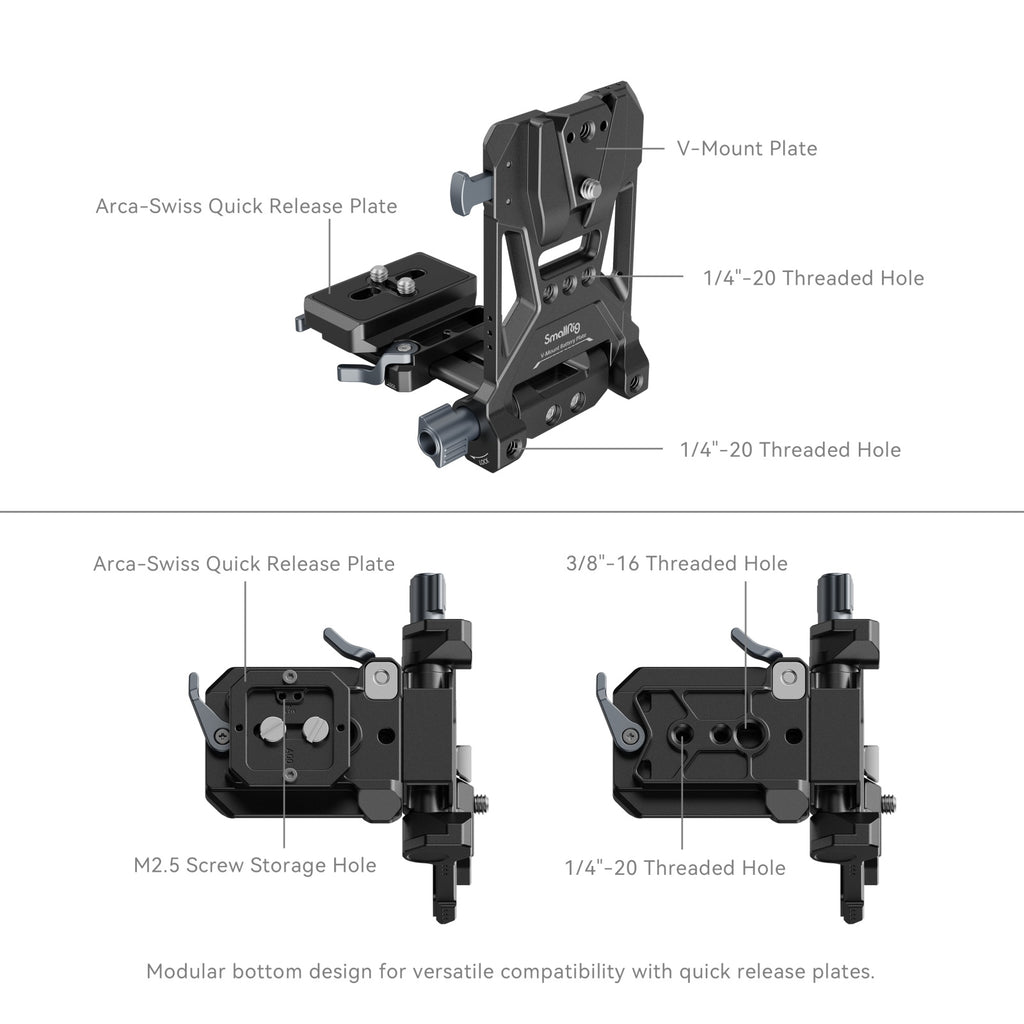

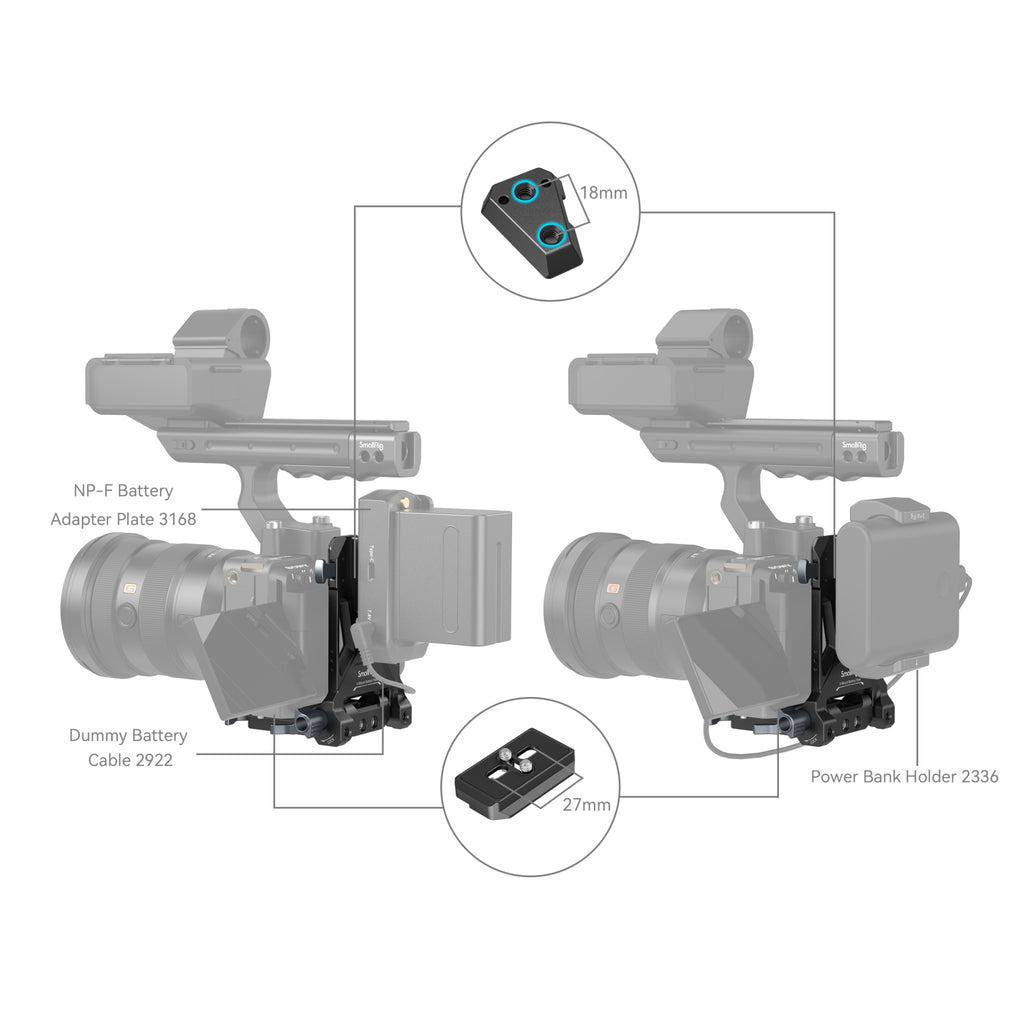

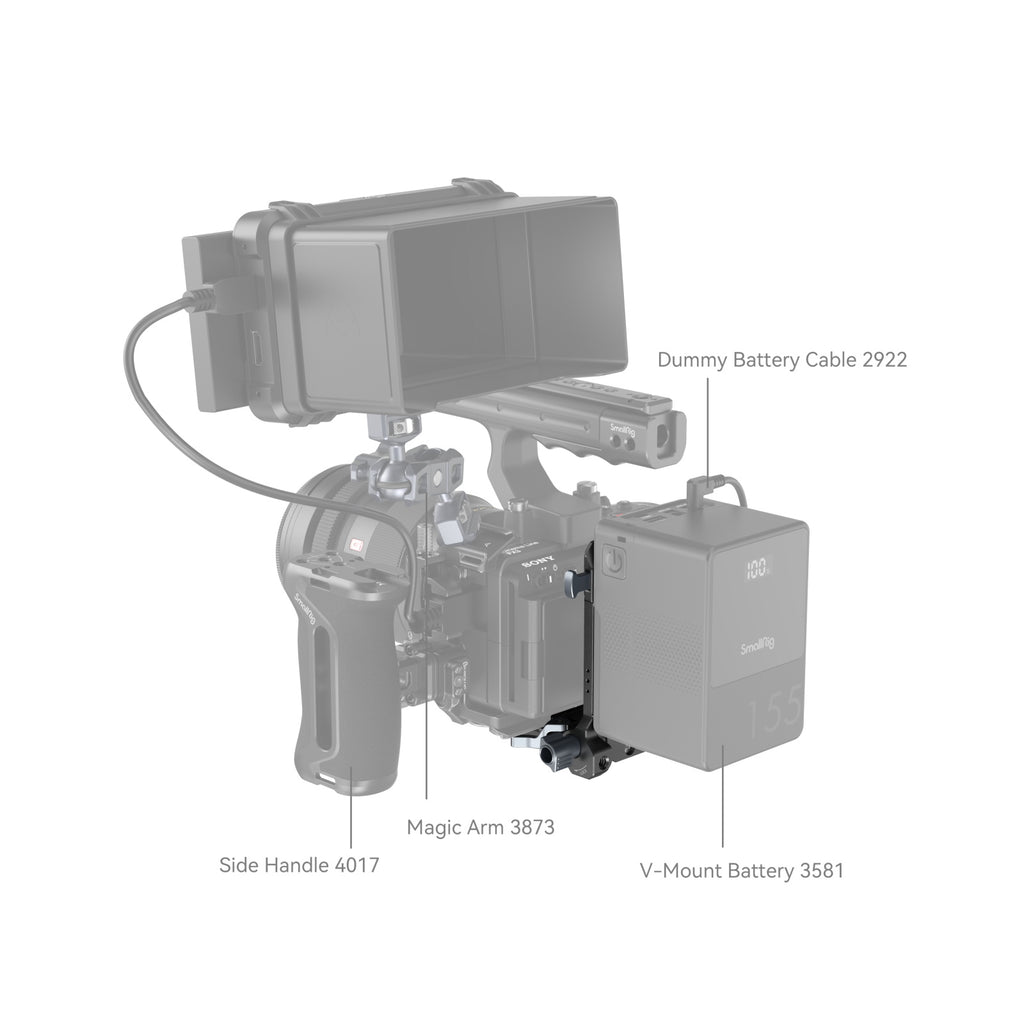

SmallRig Compact V-Mount Battery Mounting System 4064B is a compact, lightweight, convenient, all-in-one mounting solution for V-mount batteries. The kit includes a V-mount battery plate, an Arca-Swiss quick-release plate, and a V-mount plate. The baseplate can be stretched to fit mirrorless / DSLR cameras of various sizes. Tool-free installation and adjustment make the process quick and time-saving. Beyond any cage with a built-in Arca-type mount, it can directly support cameras and DJI RS series gimbals via the Arca-Swiss quick-release plate. The built-in 1/4"-20 threaded holes and a V-Mount plate provide more power supply solutions by attaching a Battery Adapter Plate Professional Edition (3168), Mounting Clamp for Portable Power Banks BUB2336, etc. A detachable Arca-type plate at the bottom allows quick switching between handheld and tripod shooting and is interchangeable with other quick-release plates. The rotatable structure of the V-Mount battery plate allows 90° backward rotation facilitating screen usage and adopts damping to prevent your device from falling. The folding design of the V-Mount plate increases compactness and portability. The included aluminum-alloy V-Mount Backplate can replace the plastic V-Mount Plate on the back of other V-mount batteries.
IMPORTANT
Load-bearing capacity: 5kg / 11.0lb.
SPECIFICATIONS

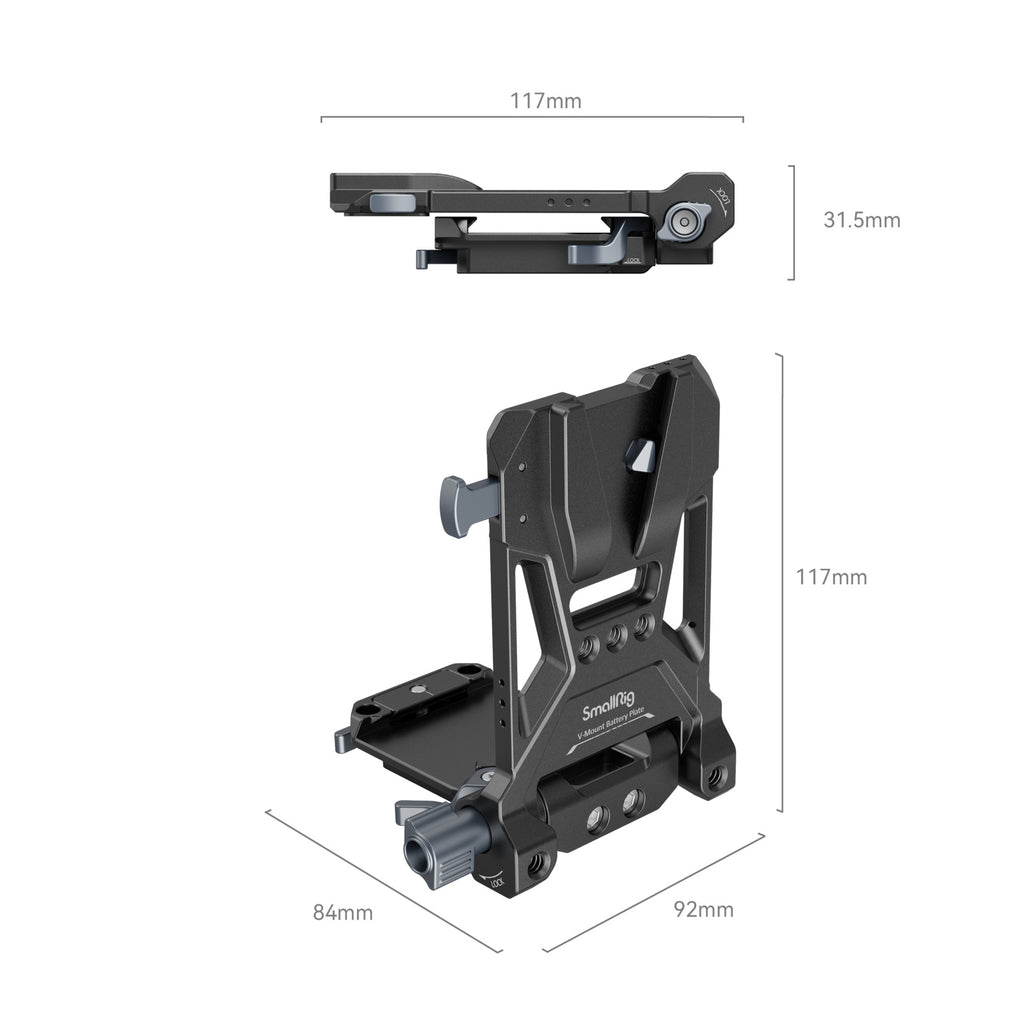

Product Dimensions: 113.5x 91.5x 41.8 mm / 4.5x 3.6 x 1.7in
Package Dimensions: 145.0 x 104.0 x 57.0 mm / 5.7 x 4.1x 2.2in
Product Weight: 258.0 ± 5g / 9.1 ± 0.2oz
Package Weight: 313.0 ± 5g / 11.0 ± 0.2oz
Material(s): Aluminum Alloy, Stainless Steel
COMPATIBILITY

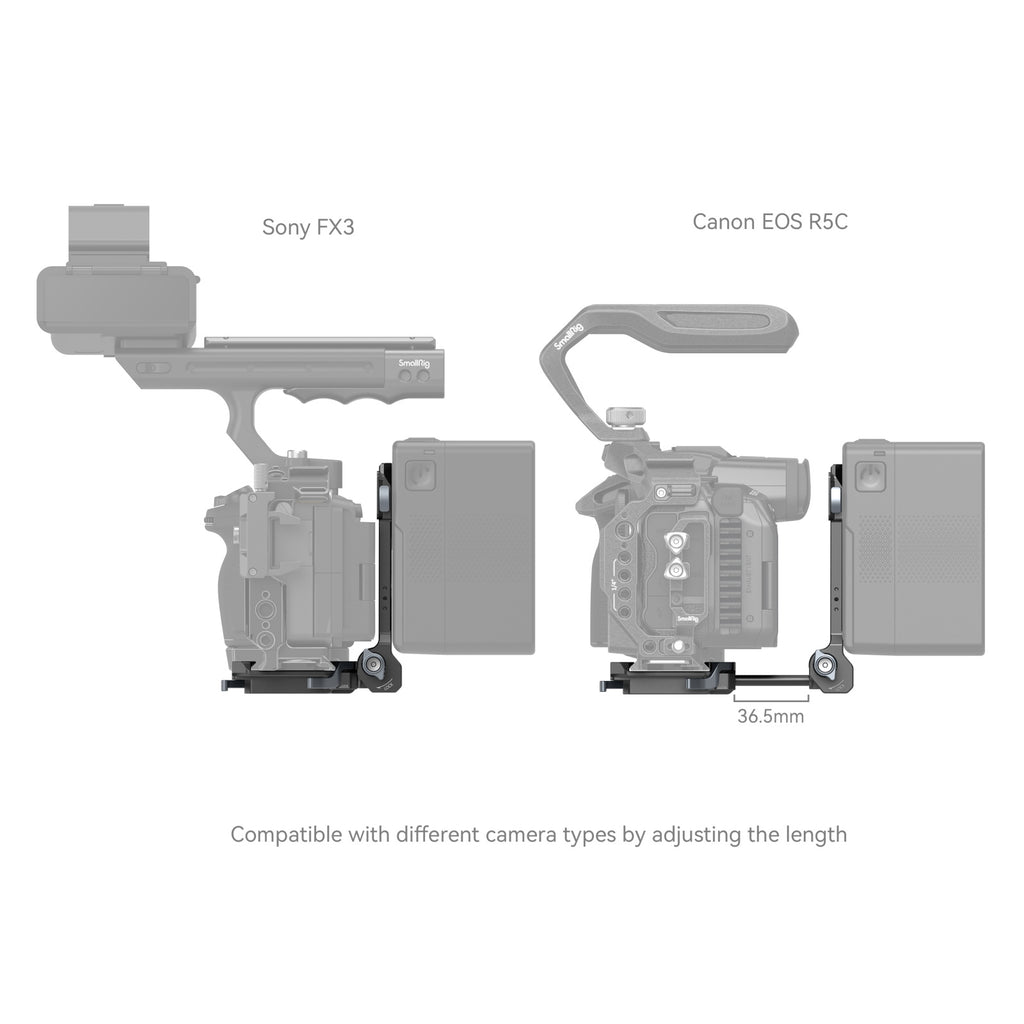

Mirrorless / DSLR cameras less than 111mm thick, for example:
Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 7C / FX3 / FX30
Canon EOS R5C / R5 / R6 / R6 Mark II / R7 / R10 / R / RP
Panasonic LUMIX S1H / S1R / S1 / S5 / S5 II / GH6 / GH5

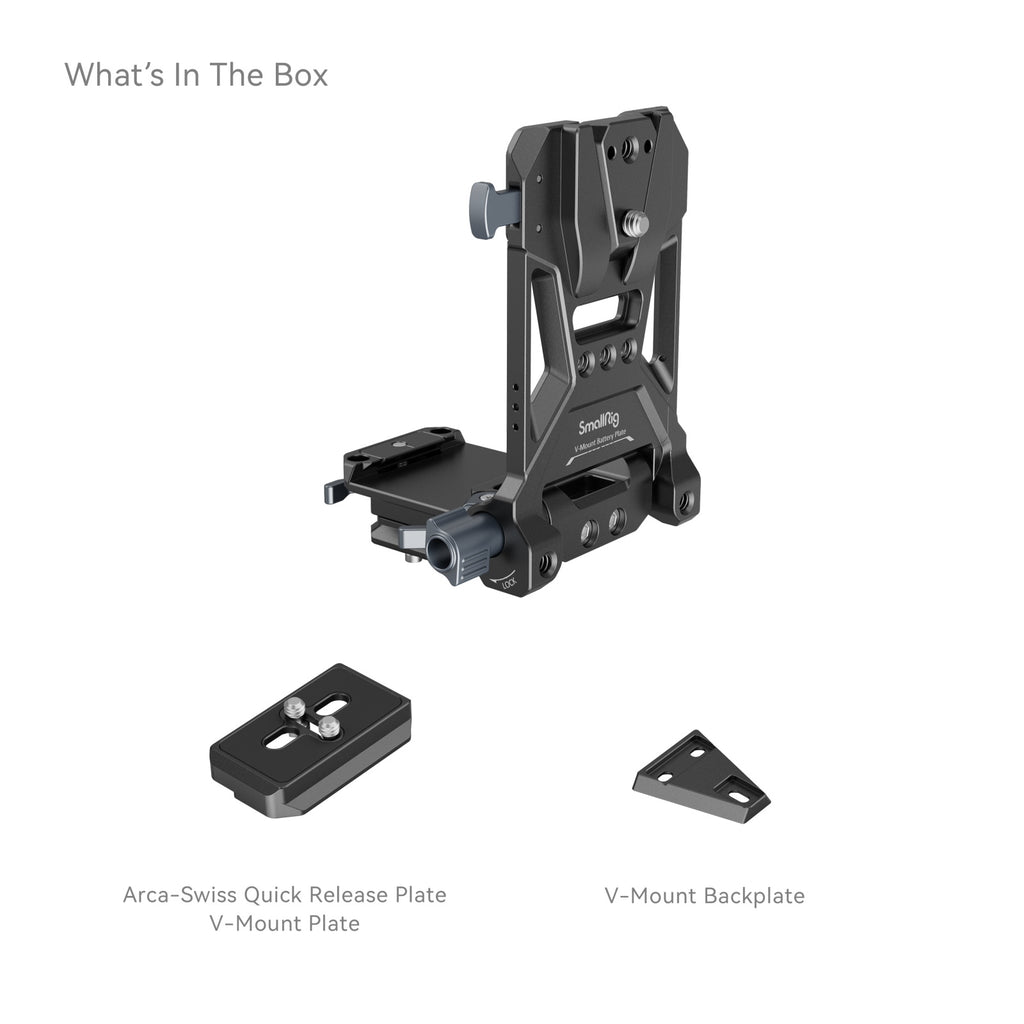

WHAT IS INCLUDED
1x V-Mount Battery Plate
1x Arca-Swiss Quick Release Plate
1x V-Mount Backplate
