Description
SMALLRIG MODULAR FOLLOW FOCUS F60 5163

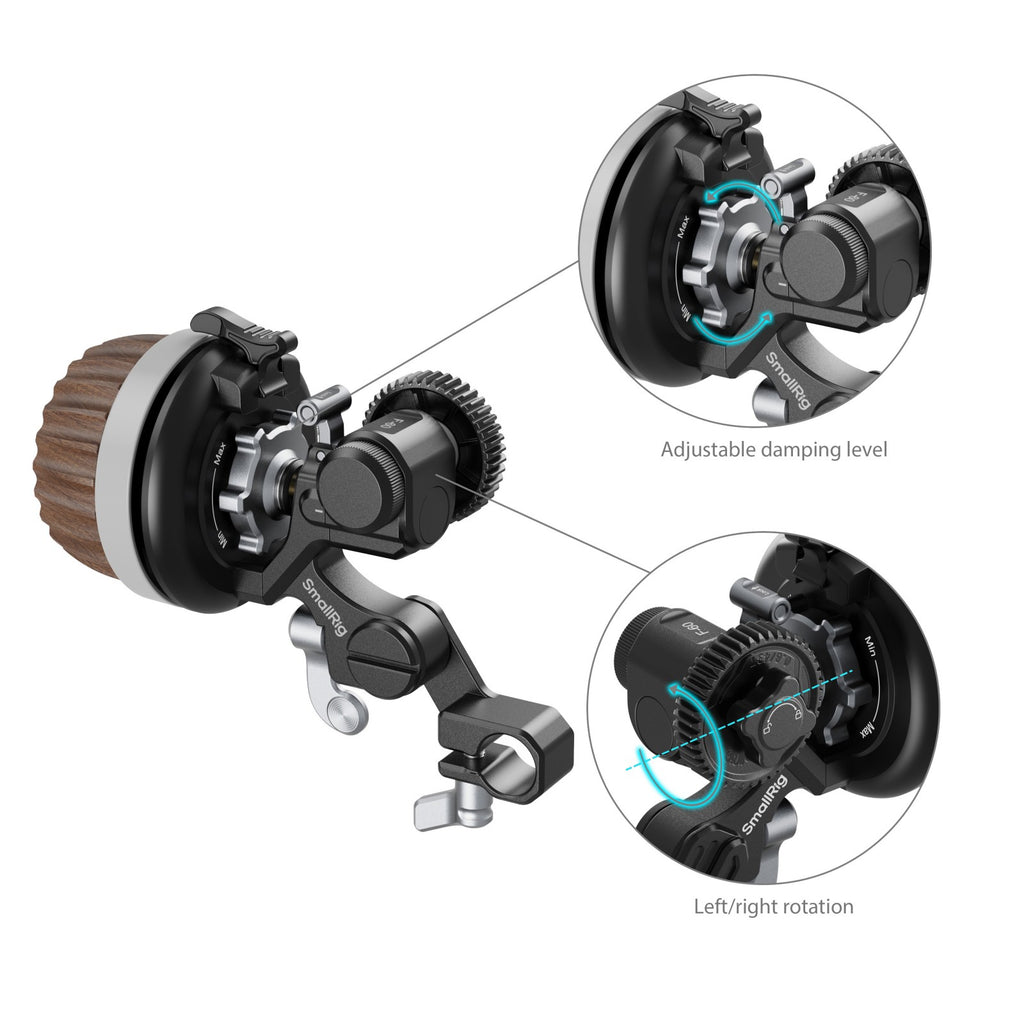

- Wide-range stepless damping adjustment: 0.6kgf-1.8kgf.
- Zero-backlash sync drive for precise focus control.
- 3-step quick switch to reversible rotation.
- Classic style with wooden texture.

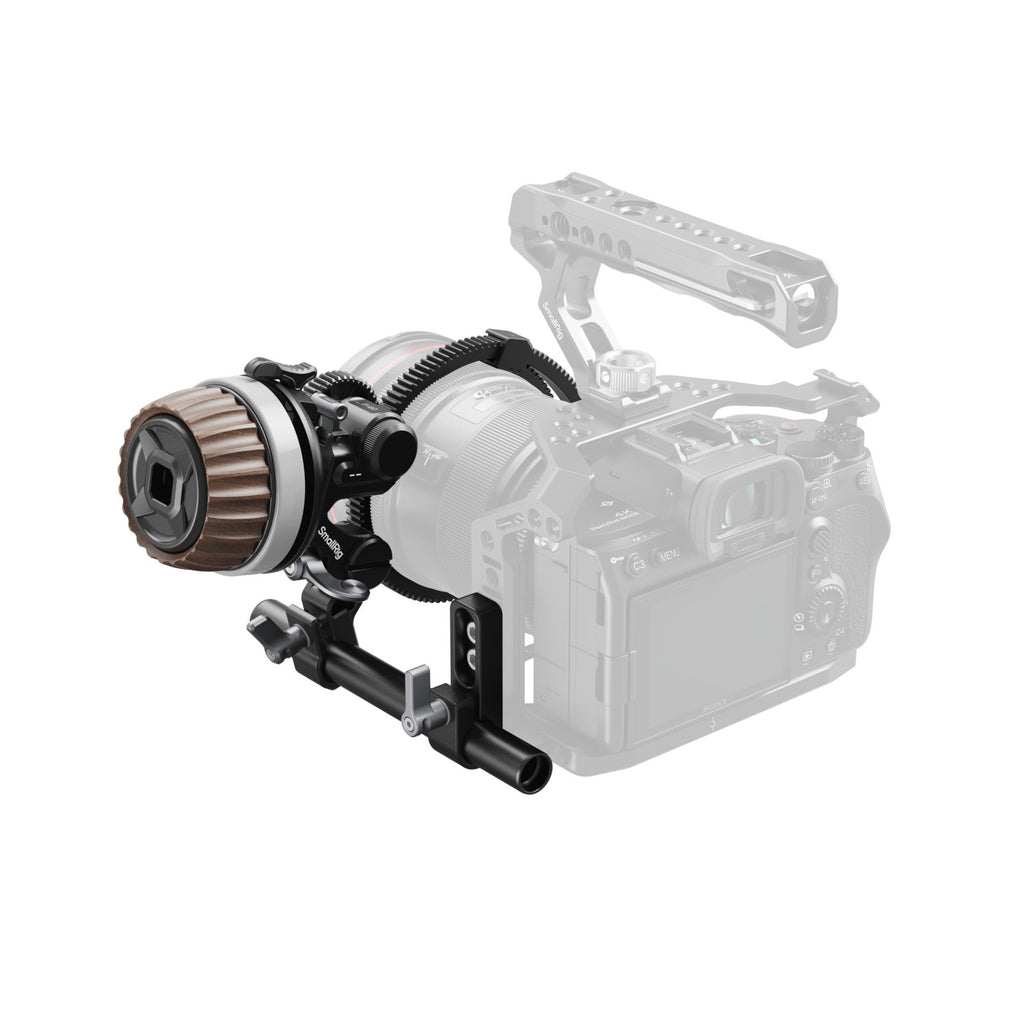

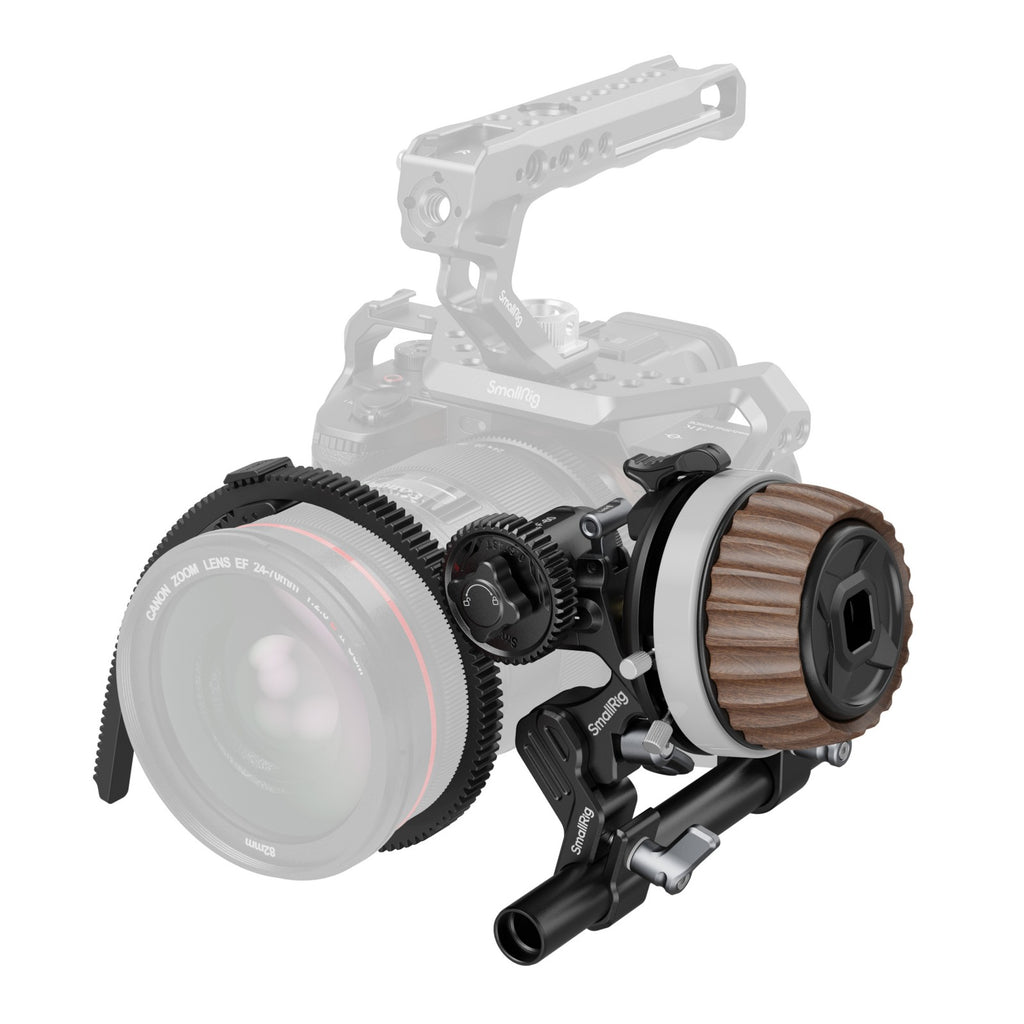

SmallRig Modular Follow Focus F60 5163 is engineered for precise and smooth lens focus control during video shooting. Notably, its optimized core drive mechanism ensures zero-backlash focus tracking for exceptional accuracy. The innovative stepless damping adjustment allows dynamic damping control within a range of 0.6kgf-1.8kgf, catering to users' preferences for different lens damping levels. It also supports 3-step quick lens reversal switching and 2-step A / B stops setting and release, along with 360° quick push-pull zoom. This modular follow focus includes a silicon gear (ID: 3852) that directly drives focusing on mirrorless camera lenses through friction. Redesigned for a refined appearance, it offers improved damping adjustment and a wider range of focus angles, significantly enhancing the overall user experience.
IMPORTANT
1. Variations in wood grain color may occur compared to promotional images.
2. Ensure the silicone gear fits tightly with the lens ring. If slippage occurs with high-damping zoom lenses, check for looseness between the silicone gear and the lens.
3. The silicone gear is compatible only with DSLR and mirrorless lenses. Please remove it before using cinema lenses.
SPECIFICATIONS
Product Dimensions: 132.0 x 85.0 x 67.0mm / 5.2 x 3.3 x 2.6in
Package Dimensions: 180.0 x 129.5 x 75.0mm / 7.1 x 5.1 x 2.9in
Product Weight: 335.0 ± 5.0g / 11.8 ± 0.2oz
Package Weight: 464.0 ± 5.0g / 16.4 ± 0.2oz
Material(s): AL6061, ABS, PC, POM9044, Wood, Silicone, Stainless Steel 304

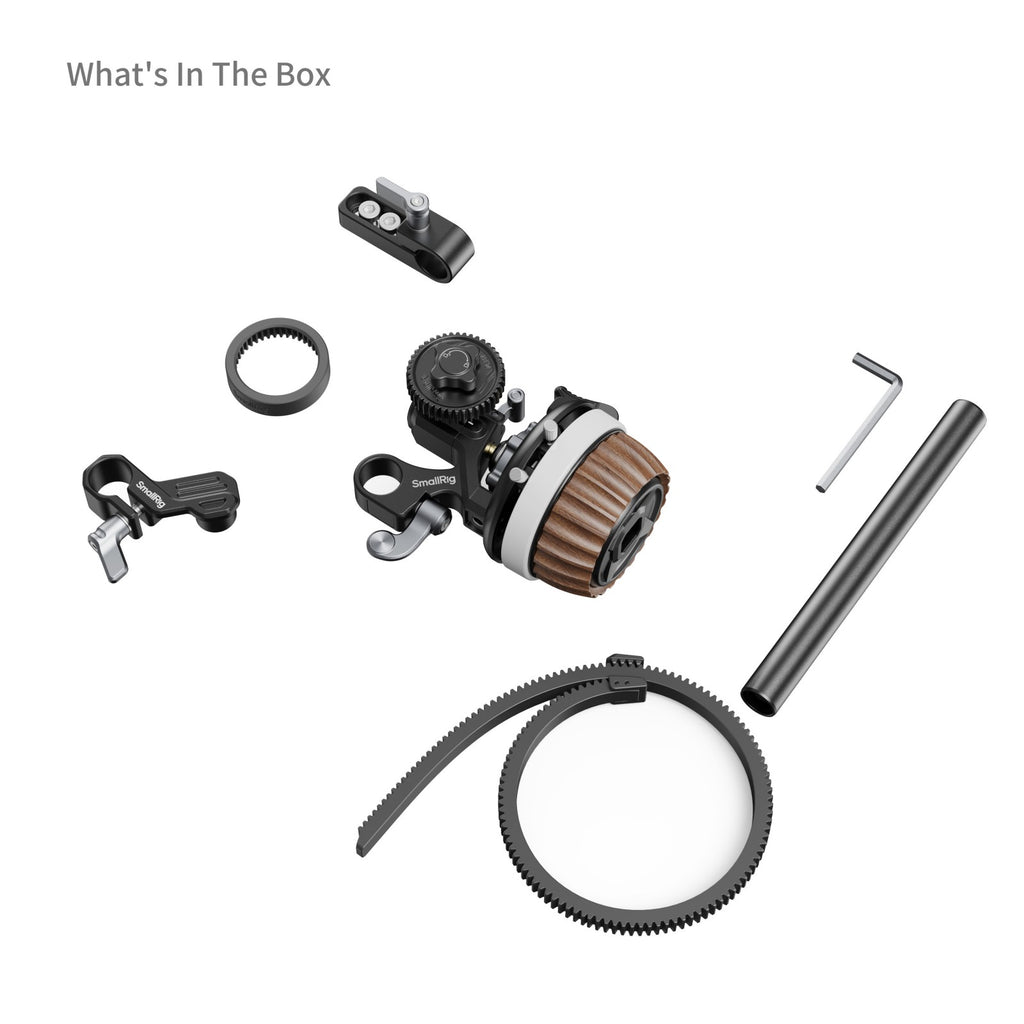

WHAT IS INCLUDED
1x Modular Follow Focus F60
1x Φ15mm Rod
1x 15mm Single Rod Clamp
1x Snap-on Gear Ring
1x Allen Wrench
1x Carrying Bag
1x Operating Instruction
1x Use Manual
1x Guarantee Card
