Description

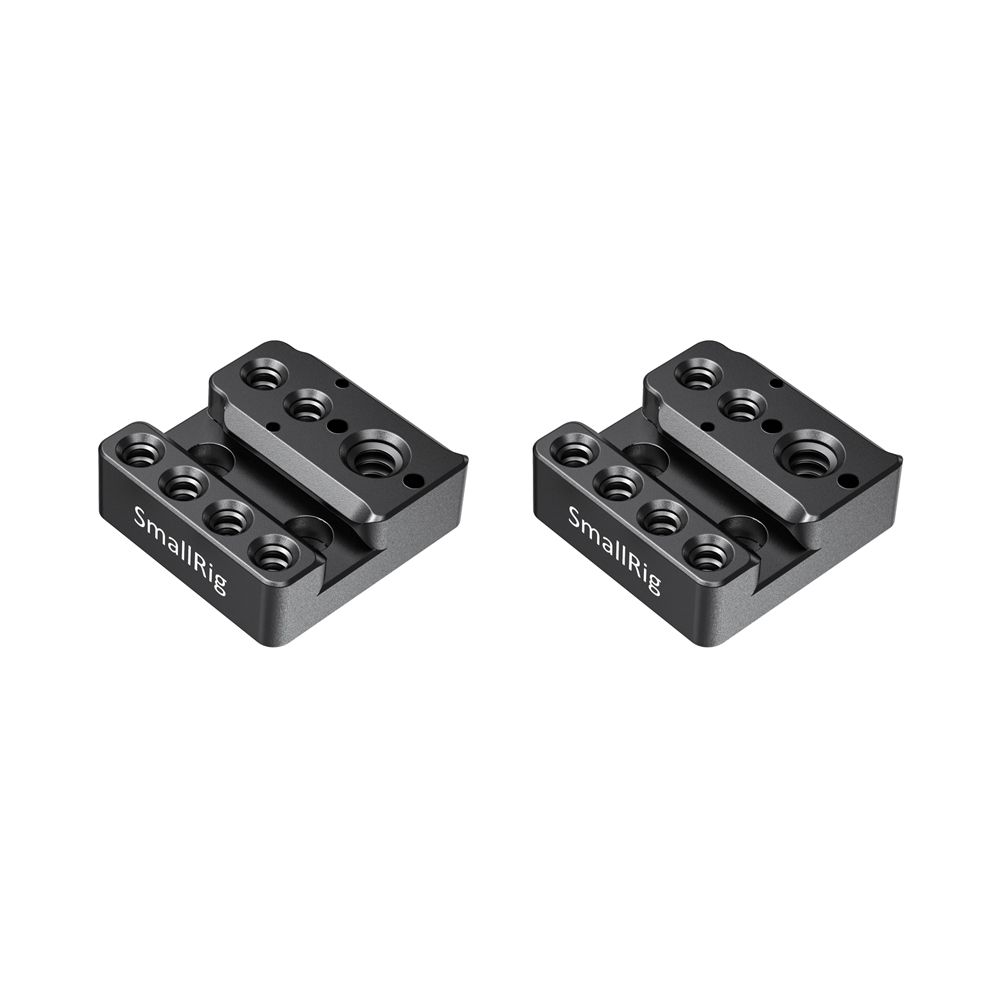

SMALLRIG MOUNTING PLATE FOR DJI RONIN S (PAIR) 2234B
- Compatible with DJI Ronin S Handheld Gimbal.
- Multiple 1/4"-20 threaded holes for accessory attachment.
- Features a nato rail allows for mounting nato clamp accessories.
- Arri 3/8"holes for mounting products with arri locating pins.
- Lightweight and multifunctional design

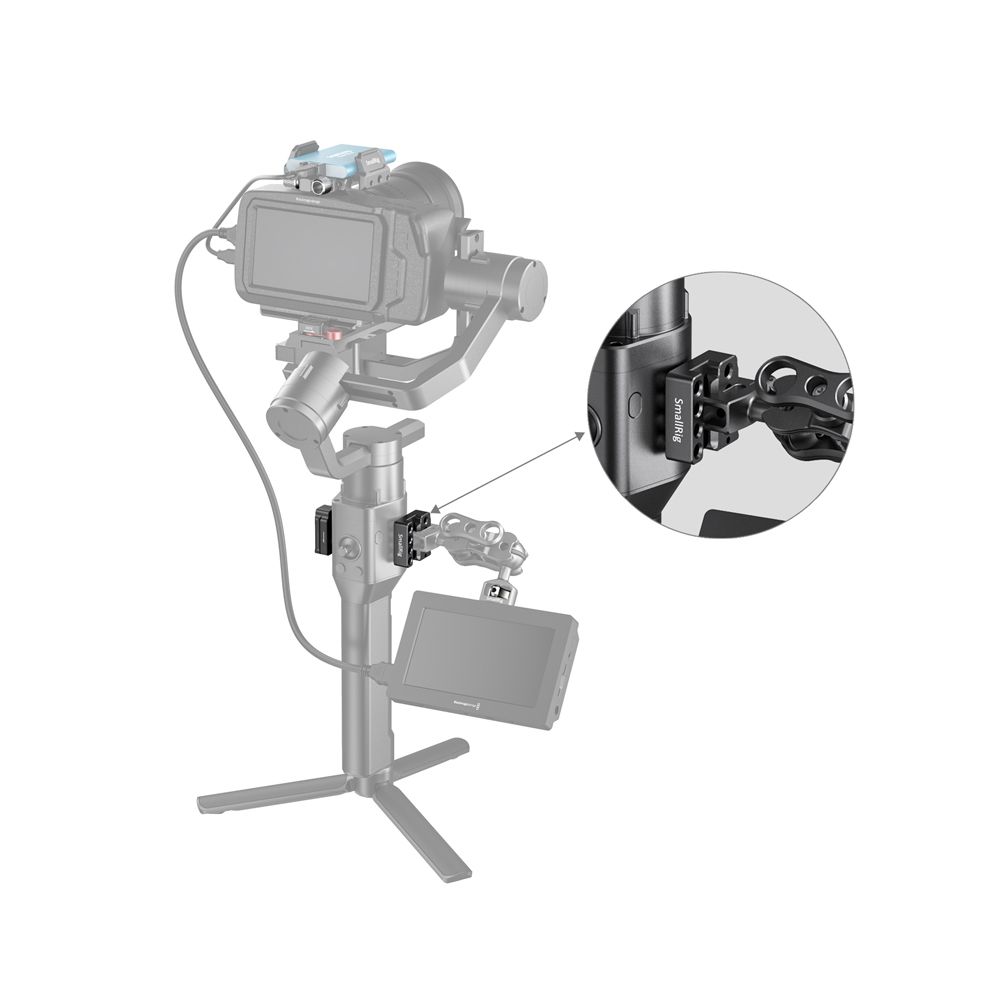

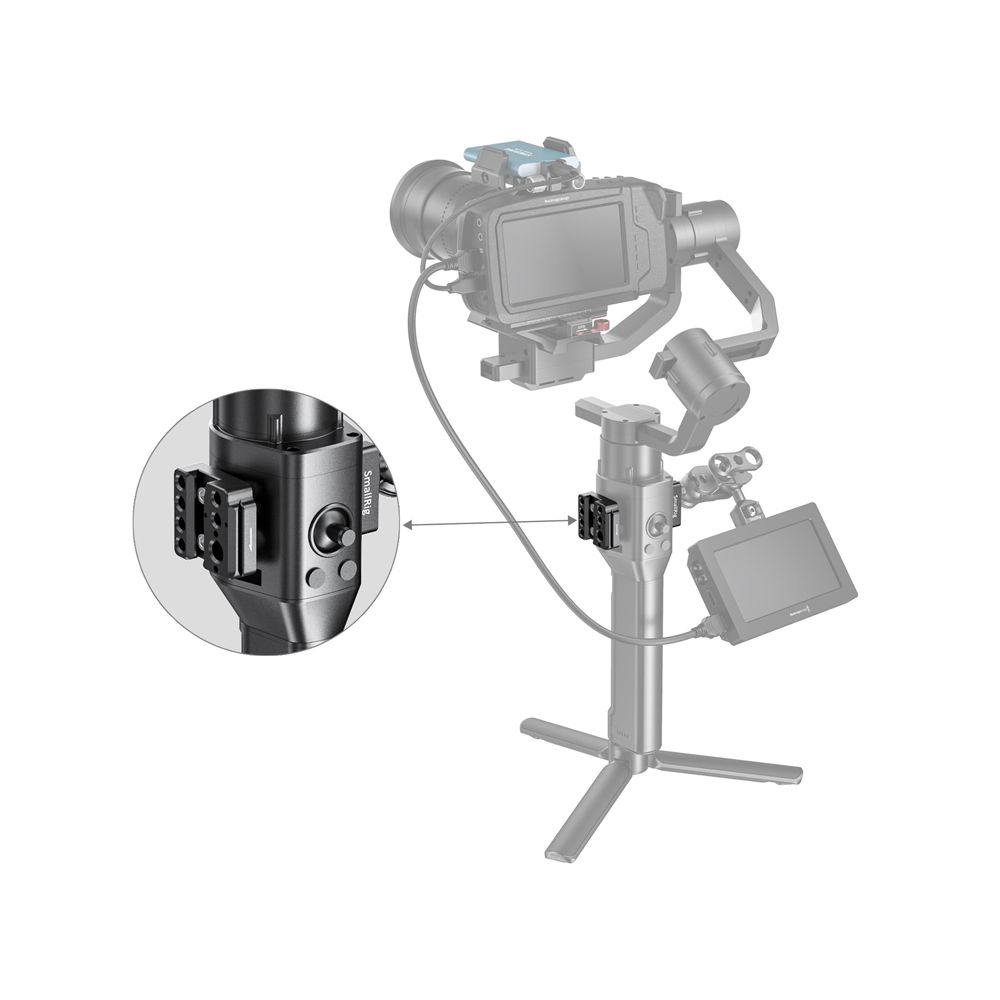

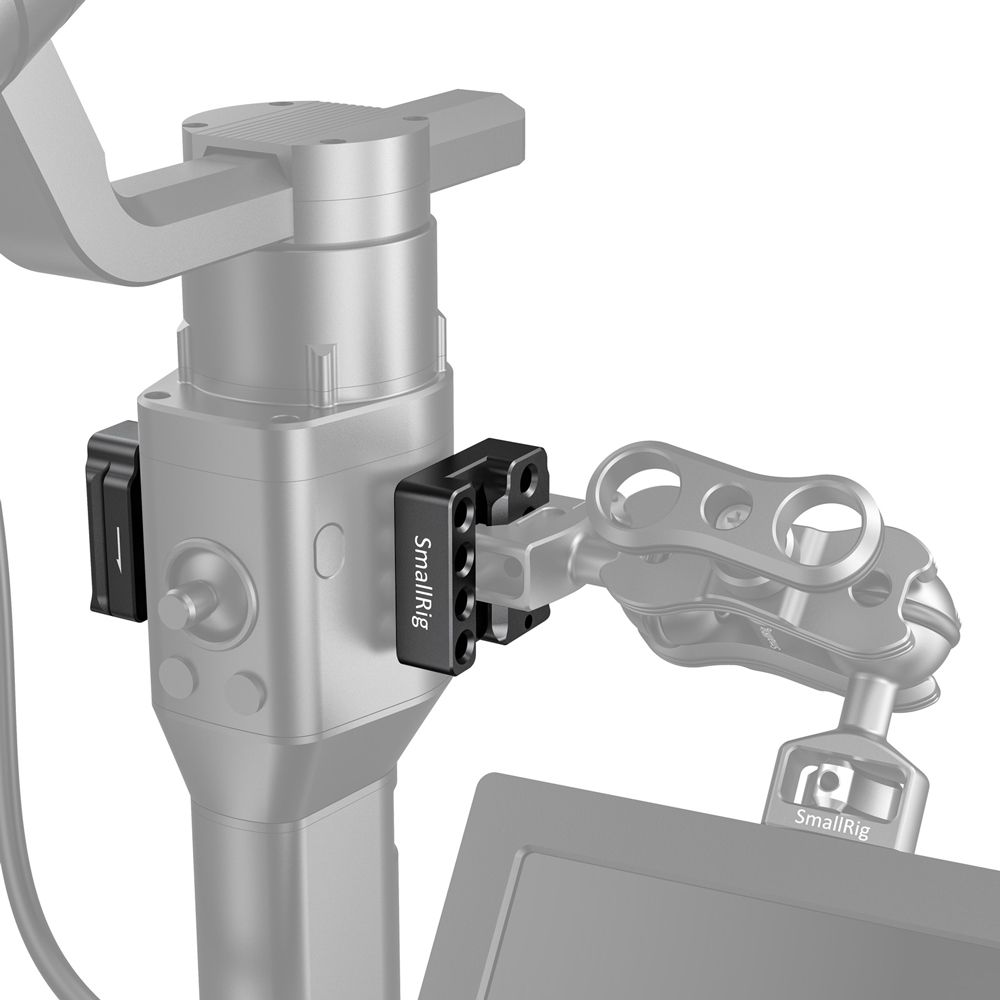

SmallRig Mounting Plate for DJI Ronin S (pair) 2234B is designed to provide multiple mounting points for accessories attachment. It is fixed on the side of Ronin S via two M4 screws after taking off the small DJI plate which covers the electronic contacts or focus wheel. There are multiple 1/4"-20 threaded holes and one 3/8"-16 threaded hole for magic arm or cold shoe mount for monitor and microphone. It also allows for mounting any accessories with nato rail directly because there is a nato rail on the plate.
SPECIFICATIONS

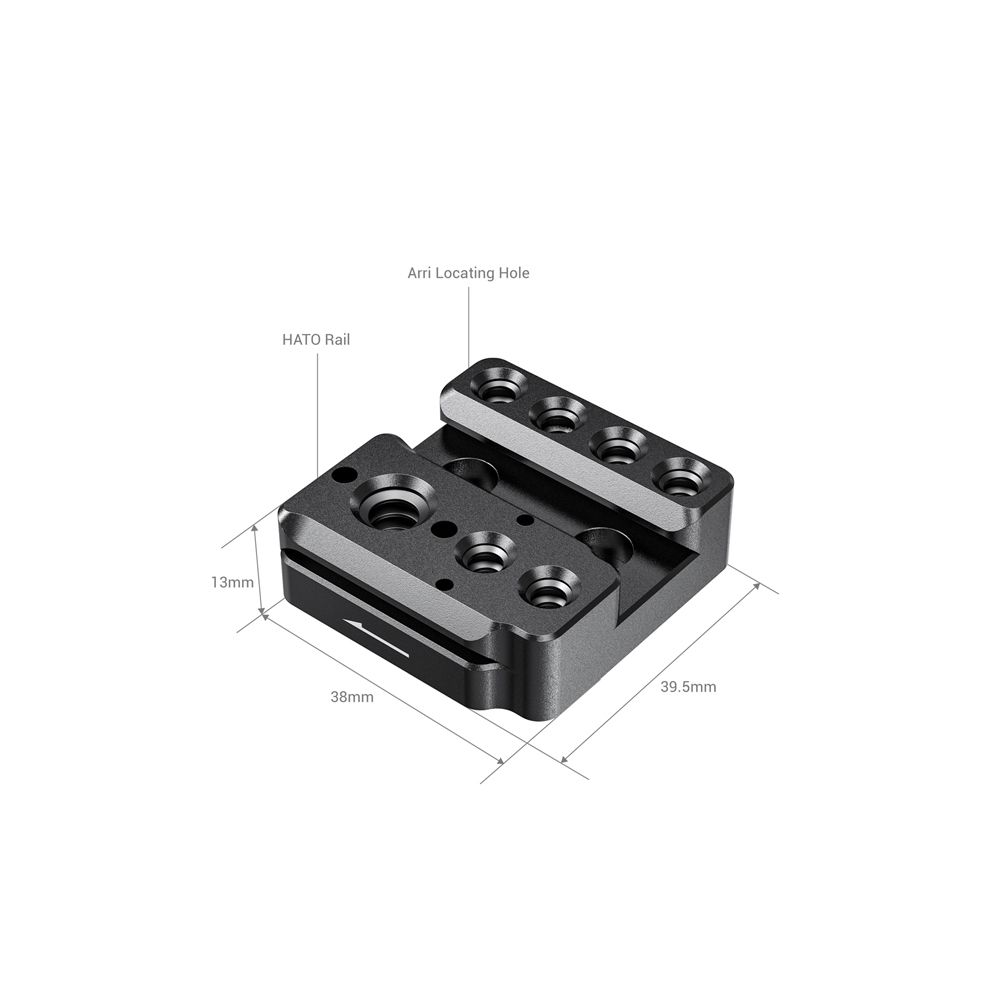

Product Dimensions: 39.5mm x 44mm x 13mm
Net Weight: 72g
Package Weight: 90g
Material(s): Aluminum Alloy
COMPATIBILITY

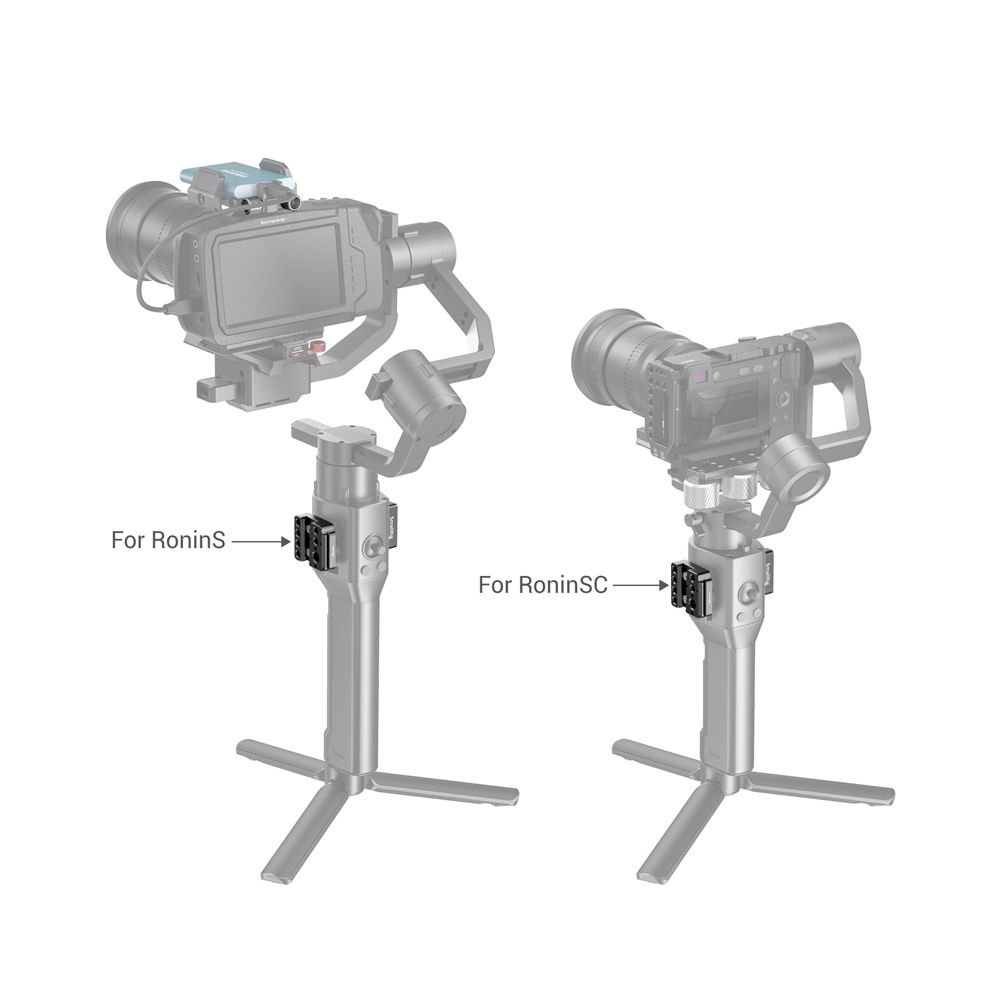

DJI Ronin S

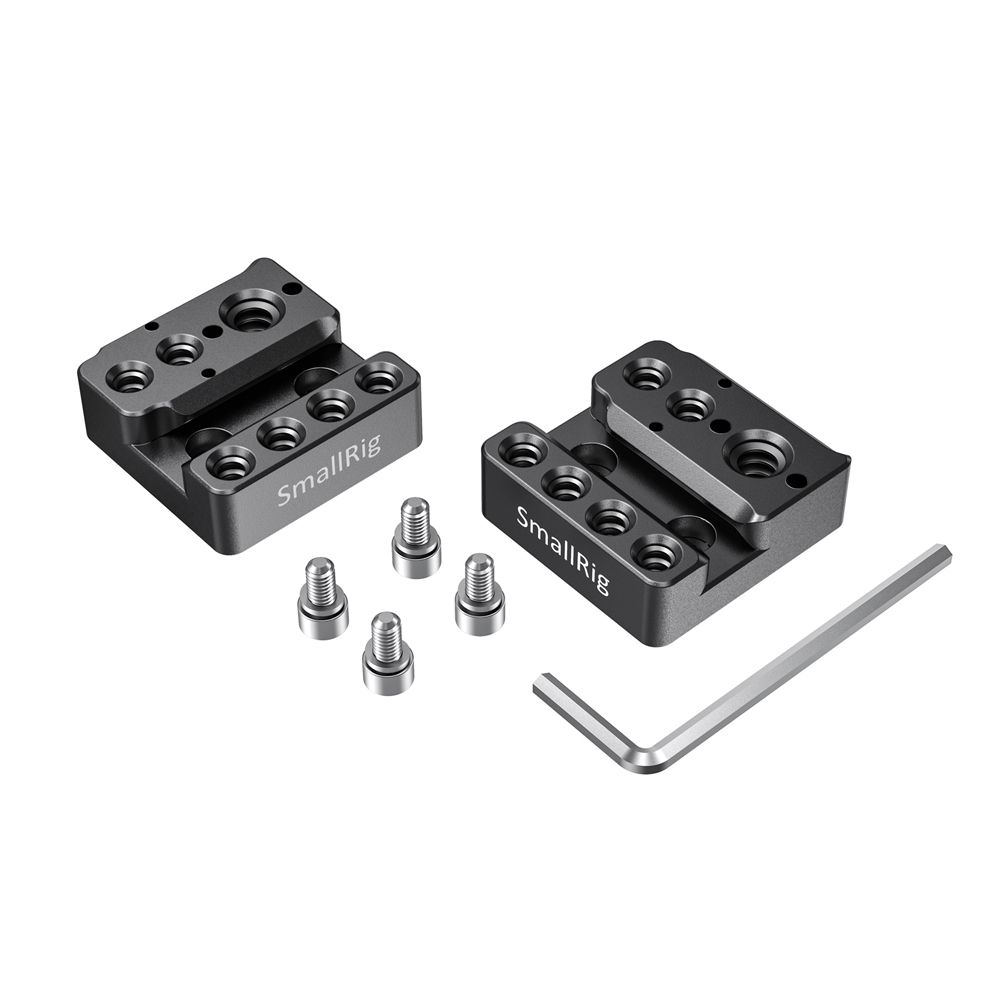

WHAT IS INCLUDED
2x Mounting Plate
1x Hex Spanner
2x M4 Screw
4x Washer
