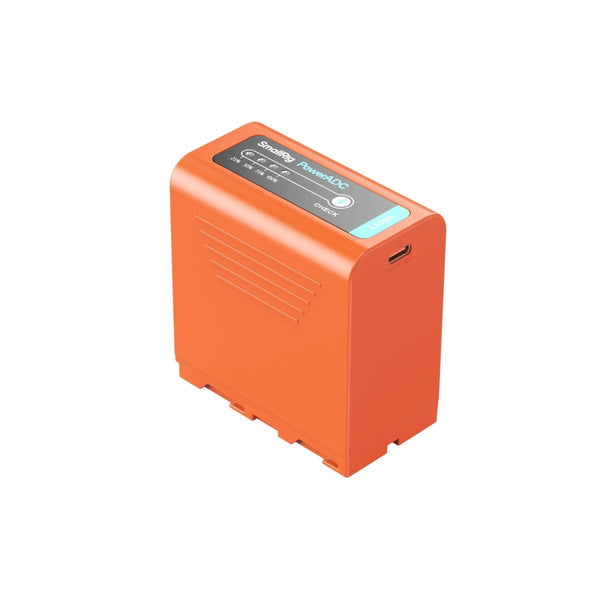

SMALLRIG NP-F970 USB-C RECHARGEABLE CAMERA BATTERY (ORANGE) 4972
- USB-C input/output port and USB-A output port (as a power bank).
- Supports 20W USB PD to be fully charged in 6 hours.
- 10500mAh nominal capacity for longer run time.
- LED battery indicators.
- Visually distinctive color.
- Quality battery cell, with a safe and reliable circuit for stable voltage and current output.
SmallRig NP-F970 USB-C Rechargeable Camera Battery comes with a USB-C input/output port to be charged via a portable charger, power strip, car charger, or dedicated charger and with a USB-A output port to turn itself into a power bank, which can power up a smartphone, iPad and other devices. Its USB-C port supports PD 3.0 protocol, making the battery full in just 6 hours. 10500mAh large capacity ensures equipment runs for a prolonged time; indicators help check battery status. Highly compatible and versatile, this item also supports such rigs as a camera, LED video light, monitor, slider, etc. It features a fire-resistant, durable ABS and PC shell, frosted to have a delicate touch.
Certifications: FCC / UL / UKCA / CE / RoHS / ISED
SPECIFICATIONS
Product Weight: 338±10g

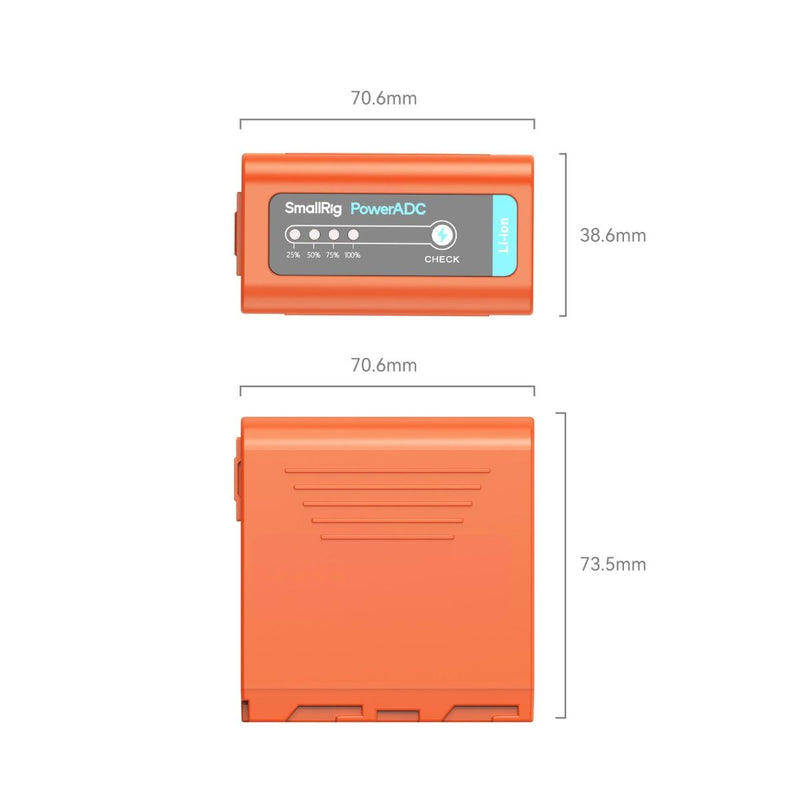

Product Dimensions: 70.6 × 73.5 × 38.6mm
Package Weight: 392±10g
Package Dimensions: 135 × 109.5 × 52mm
Battery Type: Lithium-Ion Battery
Battery Specification: 10500mAh 7.27V 76.3Wh
Input Voltage: 8.4V
Nominal Voltage: 7.27V
Cell Nominal Capacity: 10500mAh
Battery Nominal Capacity: 9970mAh
Input Current: Slow Charging: 0.2C (2100mA)
Fast Charging: 0.5C (5250mA)
Maximum Input Current: 0.5C
USB-C Input/Output: 5V/3A, 9V/2.22A, 12V/1.67A
USB-C Protocol: PD3.0 / QC2.0 / QC3.0 / FCP / AFC / SCP / SSCP / PPS
USB-A Output: 4.7~5.25V / 2.1A
USB-C / USB-A Overcurrent Protection Range: 3.4~4A
Maximum Output Current: 10A
Over-discharge Protection Range: 12~18A
Cut-off Voltage: 5.0V
Operating Temperature: 0℃~45℃
Battery Weight: 338±10g
Material(s): PC+ABS
Indicator Button: Short-press to check the power status, when LED lights stay on for the 30s and the USB port supplies power; double-press to turn it off.
Status Indicator: Power status: 4 LED lights display power percentage—one for 1-25%, two for 25%-50%, three for 50%-75%, and four for 75%-100%; blinking light means low battery; lights keep flashing when charging and stay on when discharging.
COMPATIBILITY
Camera, LED video light, monitor, slider, etc.

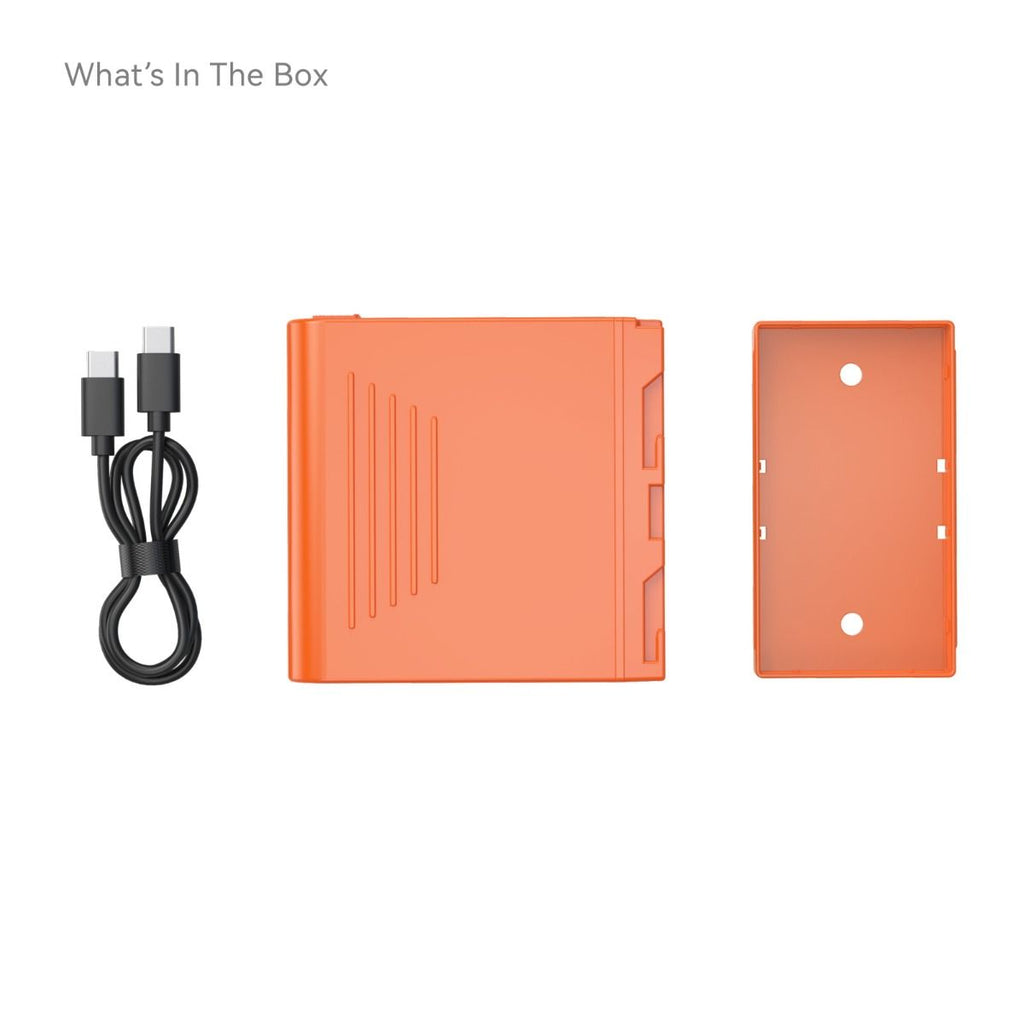

WHAT IS INCLUDED
1x NP-F970 USB-C Rechargeable Camera Battery
1x Battery Cover
1x USB-C to USB-C Charging Cable
1x User Manual
