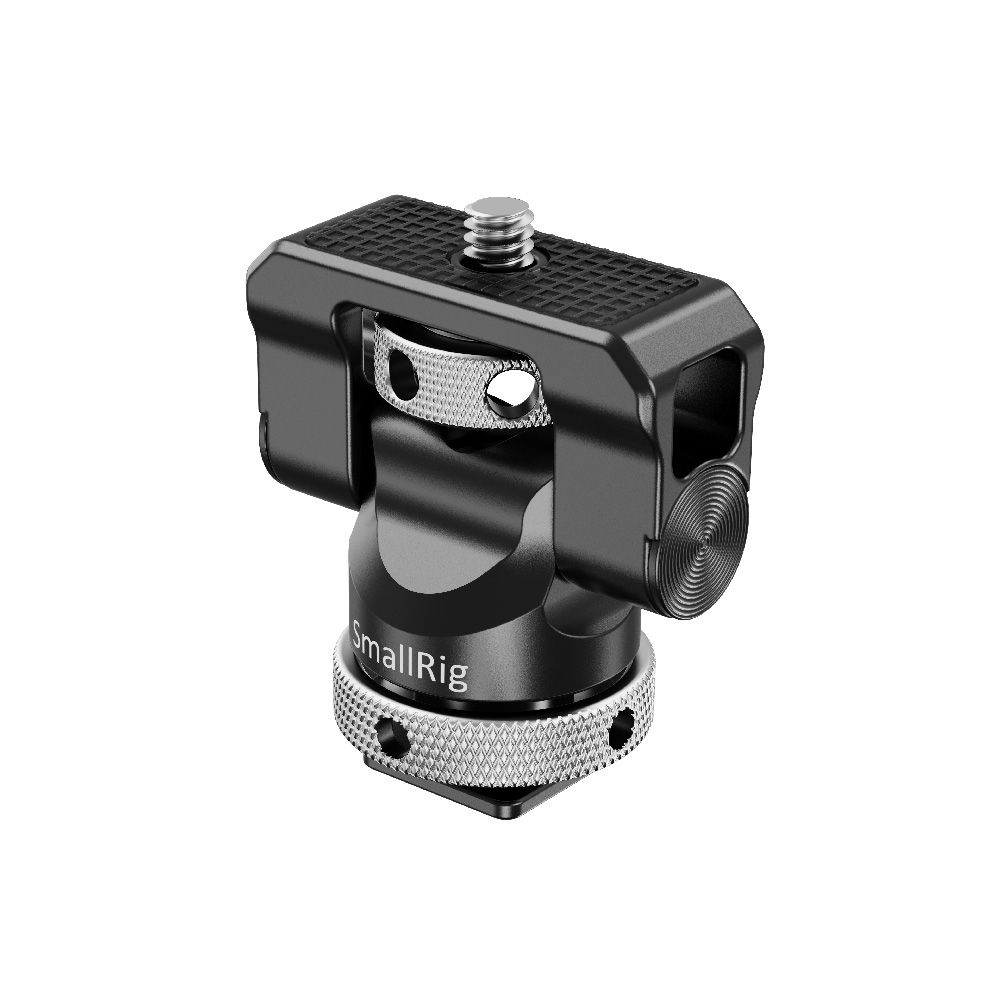

SMALLRIG SWIVEL AND TILT MONITOR MOUNT WITH COLD SHOE BSE2346B
- Supports 5” and 7” monitor up to 1.2kg.

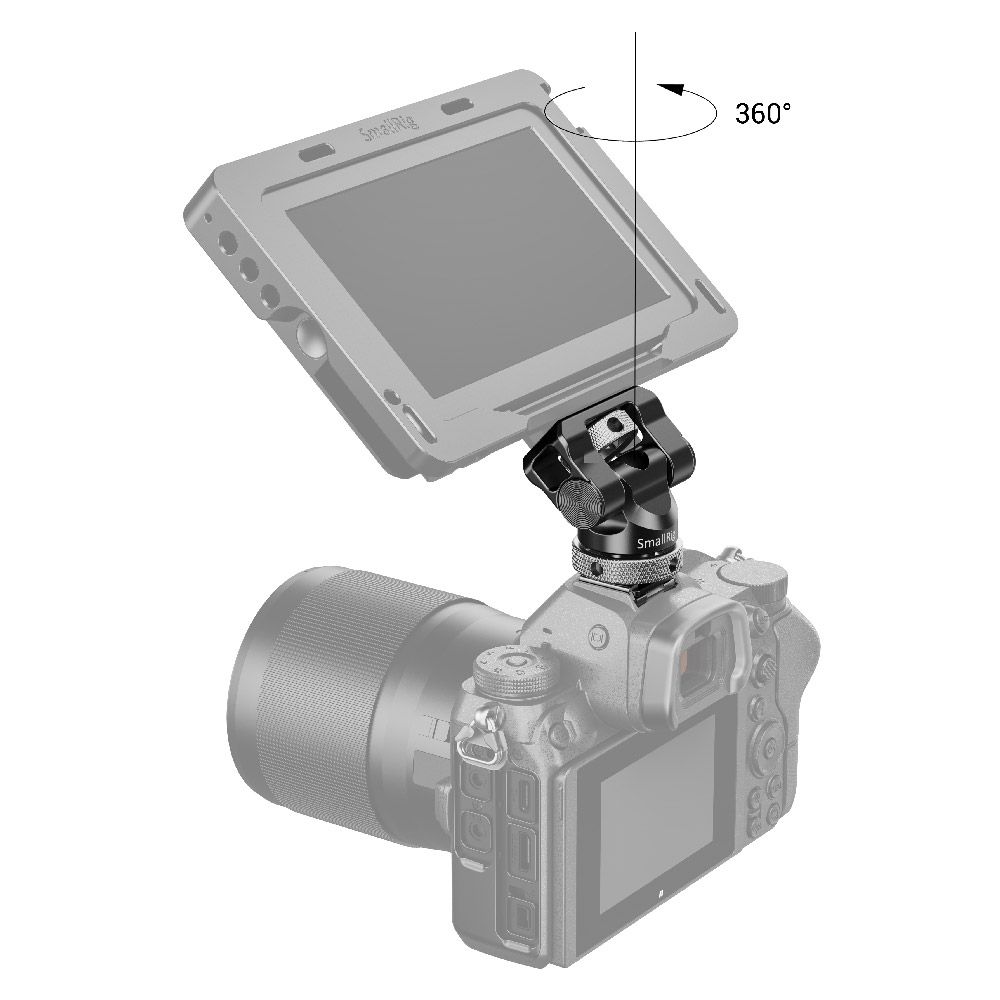

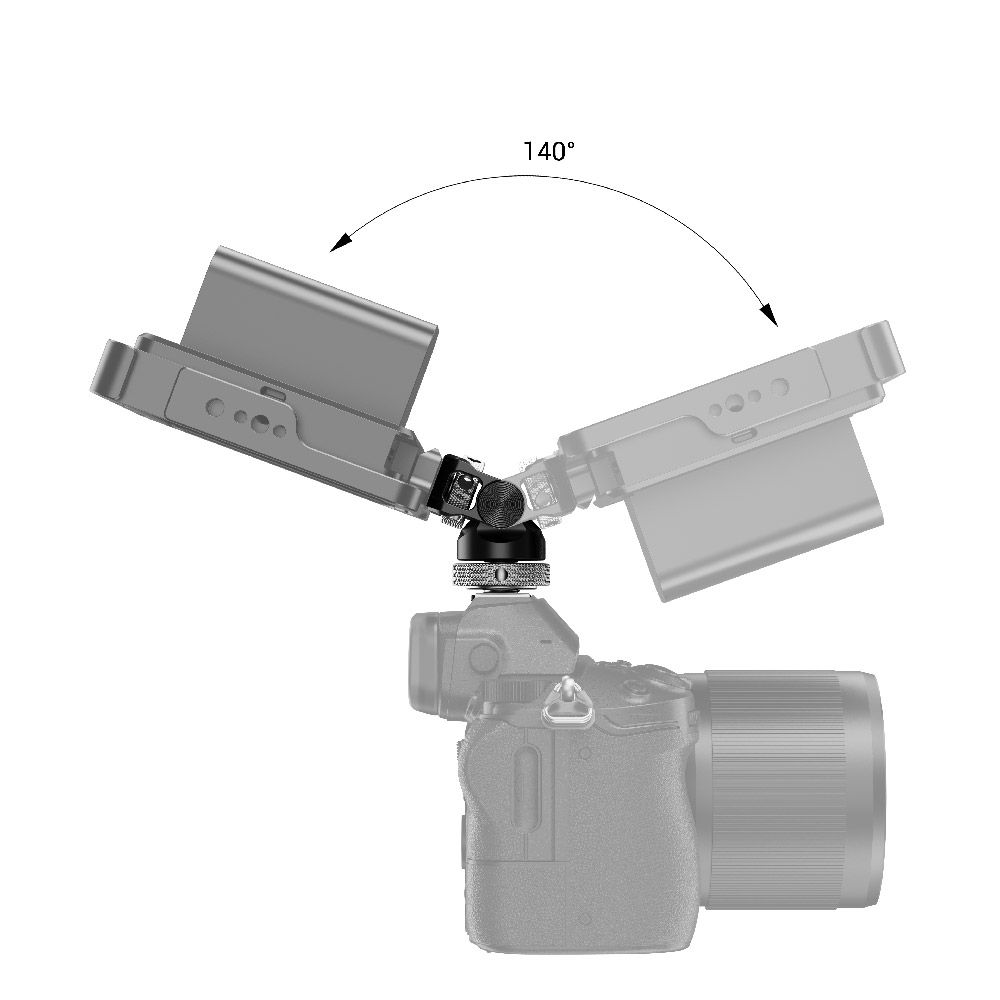

- Swivel 360° and tilt 140° with free-stop in any position.
- Features holes on thumbscrews for hex spanner.
- Rubber pad on the top to prevent scratch.
- CNC-Machined aluminum construction, robust & durable.

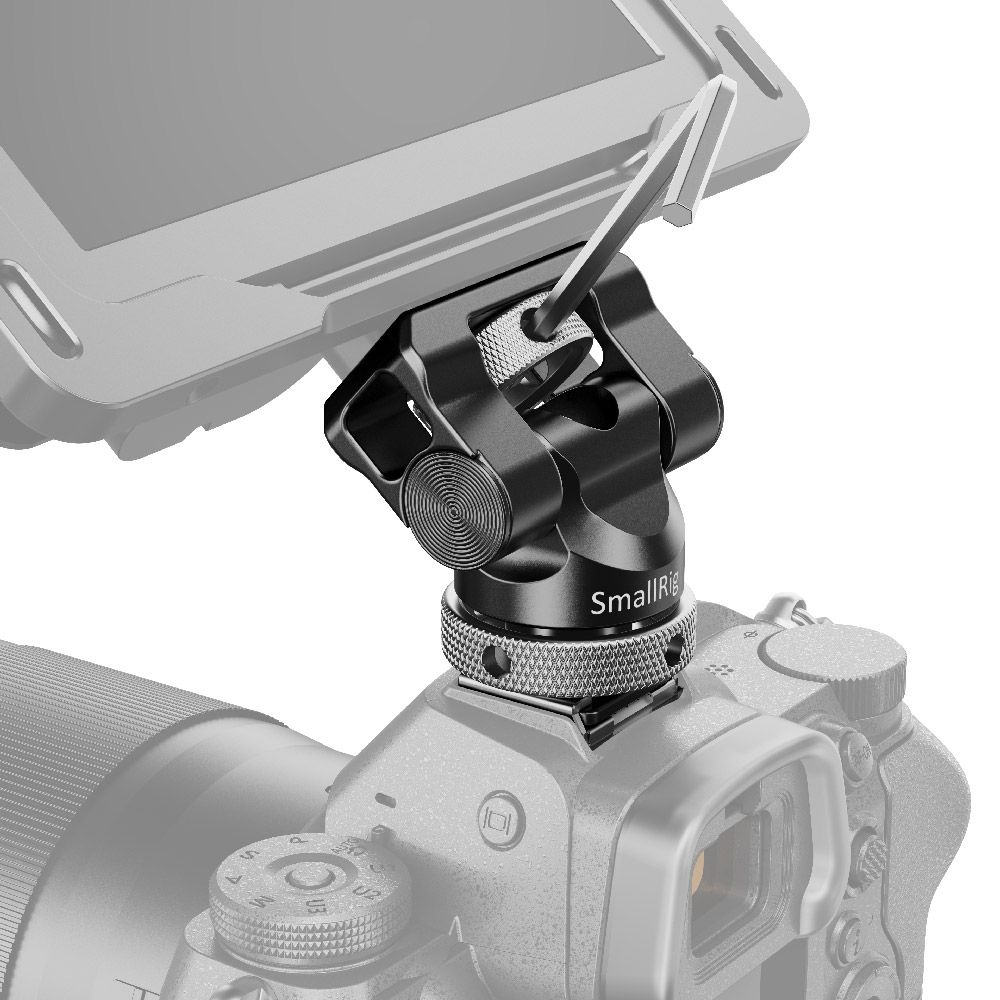

SmallRig Swivel and Tilt Monitor Mount with Cold Shoe BSE2346 is designed to hold your monitor onto the top of a camera or other mounting gears via the cold shoe adapter. The holder enables cameramen to swivel 360° sideways and tilt 140° so that they can hold a monitor onto any position without using tools. The robust mount is CNC-Machined aluminum and can support 5” or 7” monitor up to 1.2kg. At the top of the monitor mount features a rubber pad to protect your monitor or light from scratch. The size of the thumbscrew head is increased so that it’s easy to install. Both thumbscrews feature holes for hex spanner to ensure your monitor safe.
Note1: Maximum payload is 1.2kg.
Note2: Please do use the hex spanner to re-tighten the thumbscrew to ensure safe.
Product Dimensions: 46 x 49.9 x 30mm
Package Dimensions: 76 x 63 x 40mm
Net Weight: 82g
Package Weight: 94g
Material(s): Aluminum Alloy
SmallHD Focus Series
SmallHD Focus OLED Series
SmallHD UltraBright Series
SmallHD 500 Series, 700 Series
Atomos Ninja Series
Atomos Shogun Flame
Blackmagic Video Assist 5”
Other 5” or 7” Monitor Kit Weights less than 1.2kg

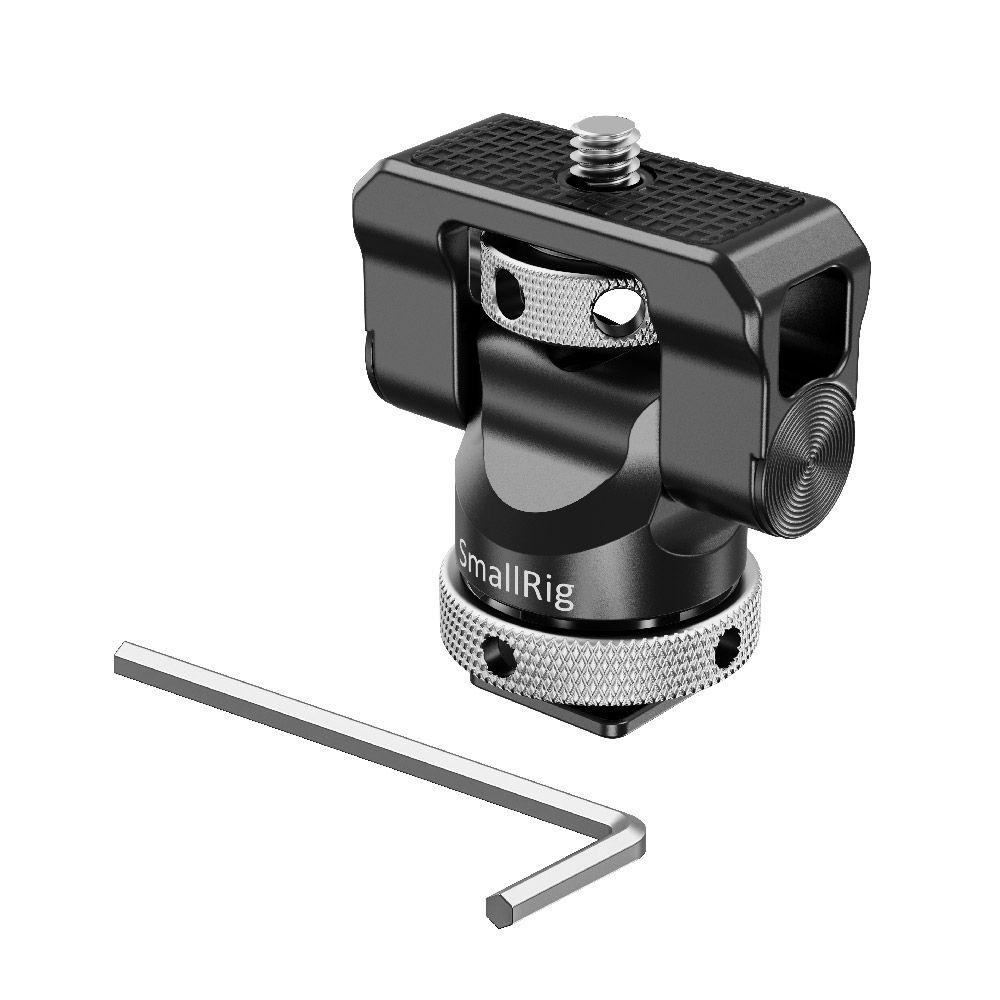

WHAT IS INCLUDED
1x Monitor Mount
1x Hex Spanner
