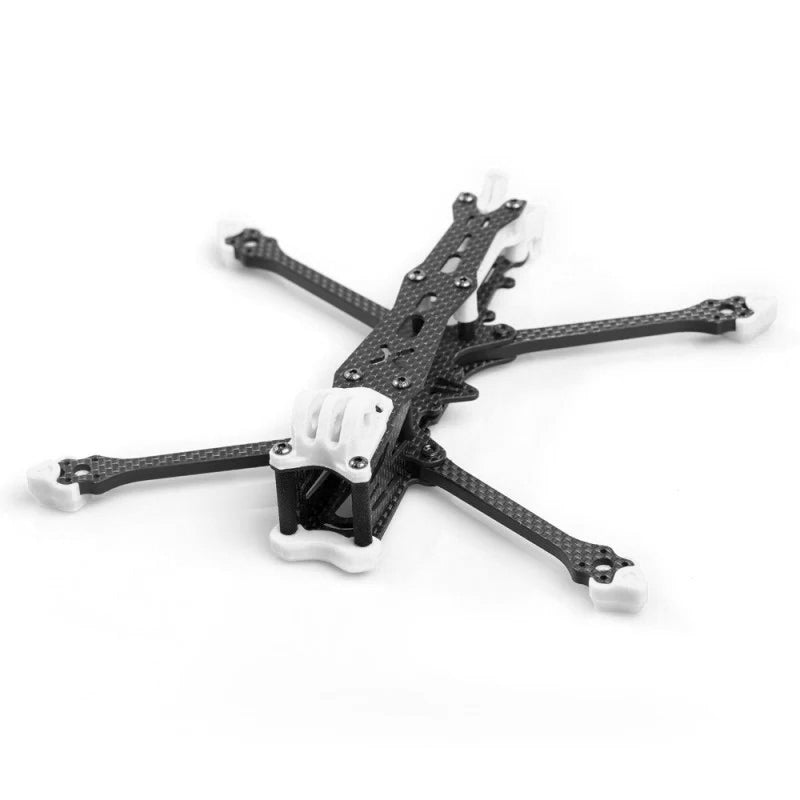

FOXEER AURA 5" FREESTYLE FRAME T700 (GREY)
SPECIFICATIONS
Product Code: FR1111-GY
Colour: Grey
Material: Toray T700 green carbon with silky coating
FC Mouting Holes: 20x20/25.5x25.5 M2
Camera size: 19x19mm Micro Size
Video System: Analog Cam/ HD Vista digital system
GPS Mount: BN220
Weight: Around 71g(excluded TPU Kit)
Recommend Motor: 2104~2105.5
Motor mounting Pattern: 12x12mm

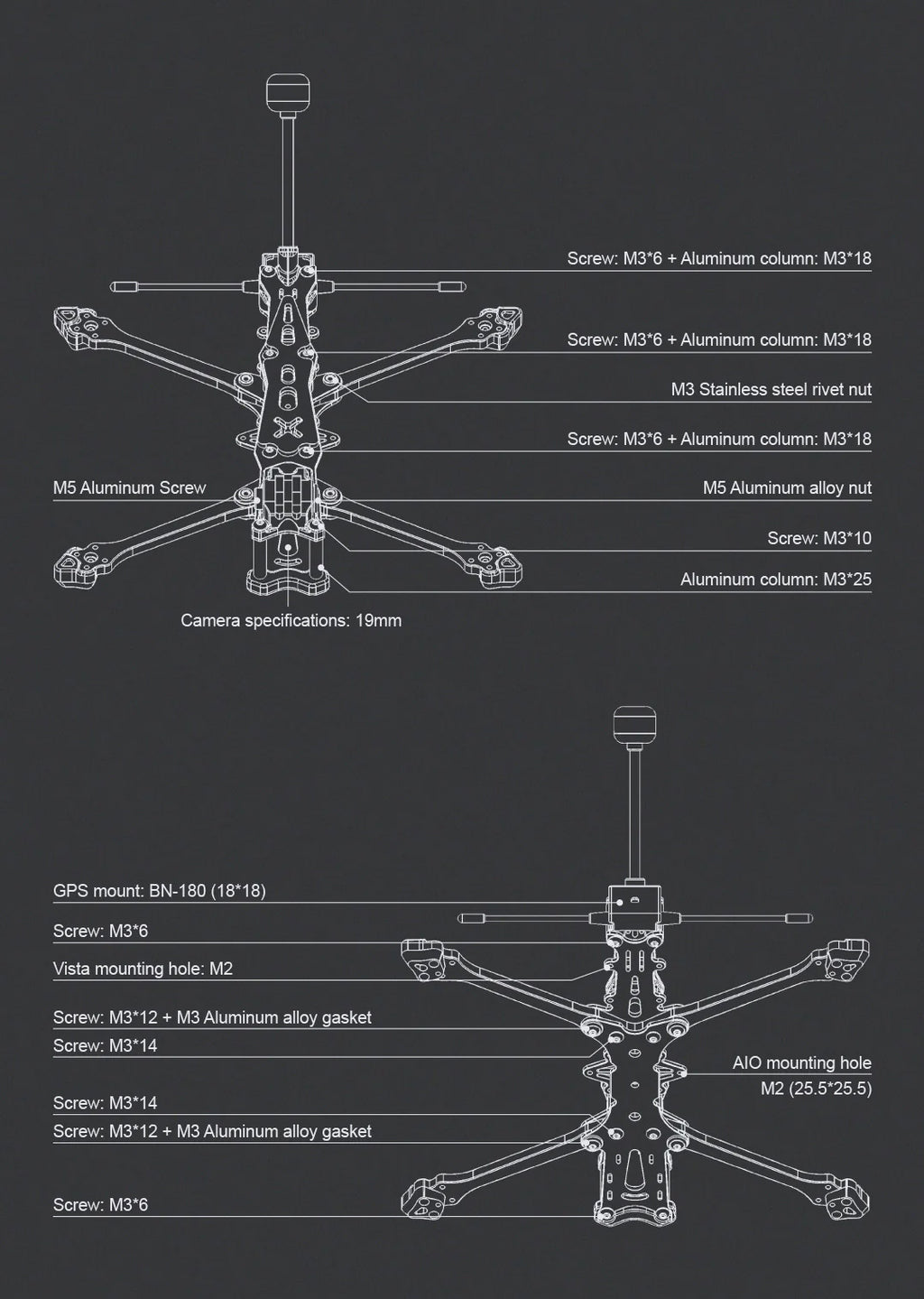

WHAT IS INCLUDED
4x 5mm Arm
1x 1.5mm Top Plate
2x 1.5mm Cam Mount
1x 2mm middle plate
1x 2mm Bottom Plate
1x Aluminum Column M3*18
2x Aluminum Column M3*25
1x TPU Cam Mount
1x TPU Receiver & Antenna Mount
4x TPU Arm guard/Motor Mount
1x TPU Bottom Plate Front Protective Mount
1x TPU GPS Mount
10x M3*6 Screw
2x M3*10 Screw
4x M3*12 Screw
4x M3*14 Screw
4x M3 Spacer Screw
4x M3 Self-clinching Nut
1x M5*20 7075 column
1x M5 Nut
1x Battery Anti-slip Mat
1x 220*20mm Strap
