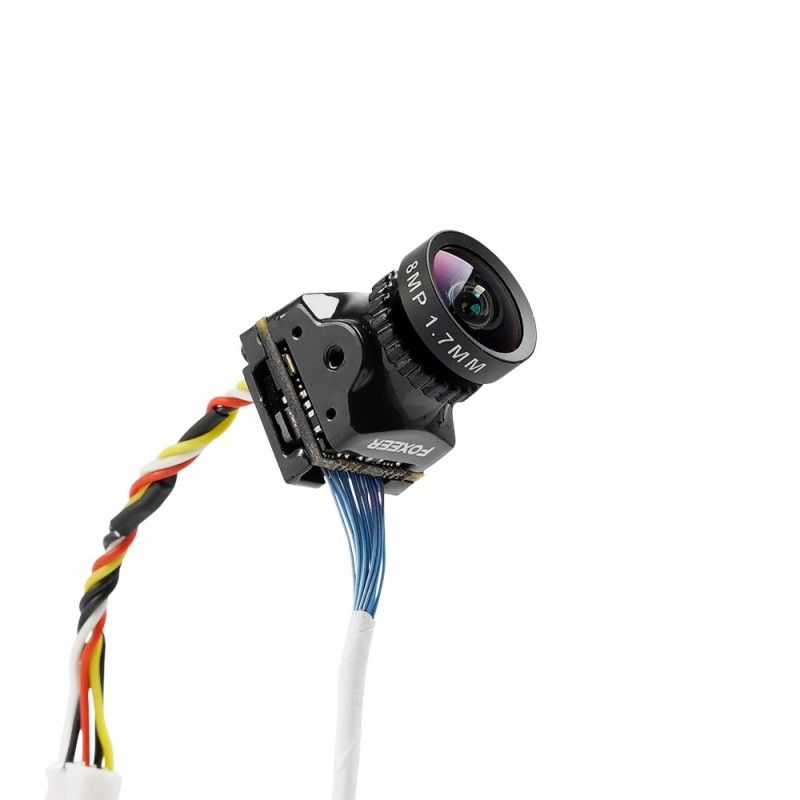

Foxeer DigiSightV2 HS1260 720P Digital Analog SharkByte HD FPV Camera (Black)

FoxeerSKU: HS1260-BLK

Price:
Sale price$79.90 AUD
Stock:
In stock

Description

FOXEER DIGISIGHTV2 HS1260 720P DIGITAL ANALOG SHARKBYTE HD FPV CAMERA (BLACK)

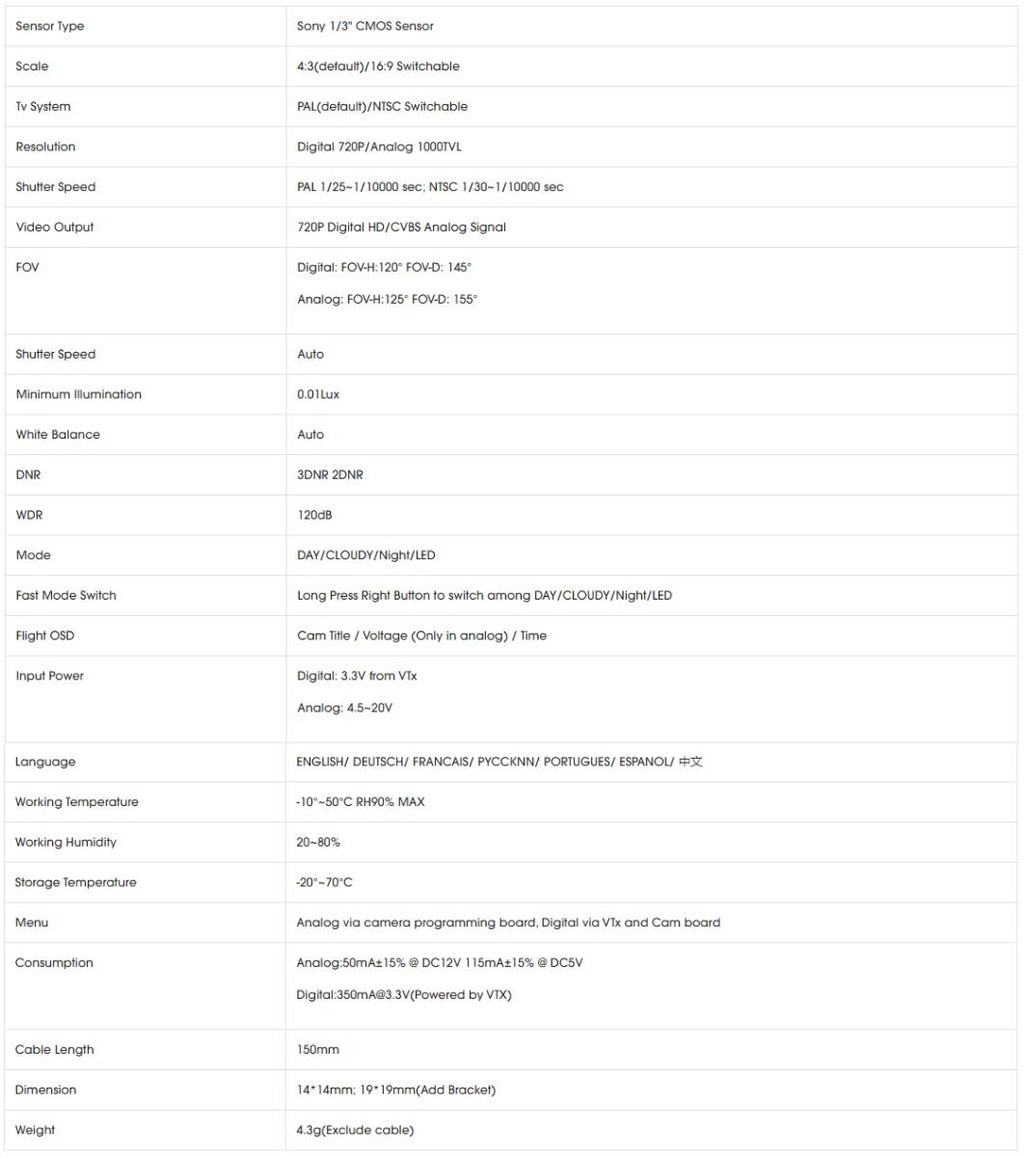

SPECIFICATIONS
Sensor Type: Sony 1/3" CMOS Sensor
Scale: 4:3(default)/16:9 Switchable
Tv System: PAL(default)/NTSC Switchable
Resolution: Digital 720P/Analog 1000TVL
Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
Video Output: 720P Digital HD/CVBS Analog Signal
FOV : Digital: FOV-H:120° FOV-D: 145°; Analog: FOV-H:125° FOV-D: 155°
Shutter Speed: Auto
Minimum Illumination: 0.01Lux
White Balance: Auto
DNR: 3DNR 2DNR
WDR: 120dB
Mode: DAY/CLOUDY/Night/LED
Fast Mode Switch: Long Press Right Button to switch among DAY/CLOUDY/Night/LED
Flight OSD: Cam Title / Voltage (Only in analog) / Time
Input Power: Digital: 3.3V from VTx; Analog: 4.5~20V
Language: ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文
Working Temperature: -10°~50°C RH90% MAX
Working Humidity: 20~80%
Storage Temperature: -20°~70°C

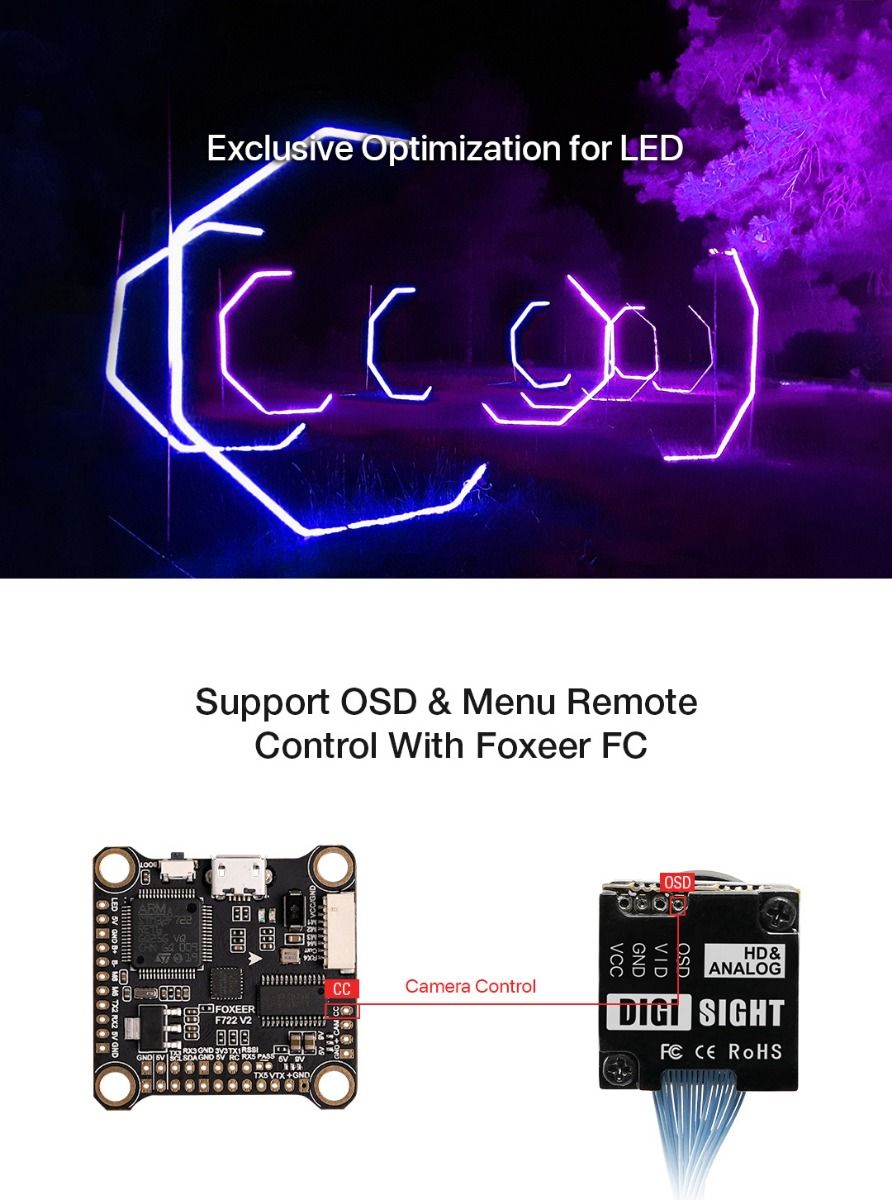

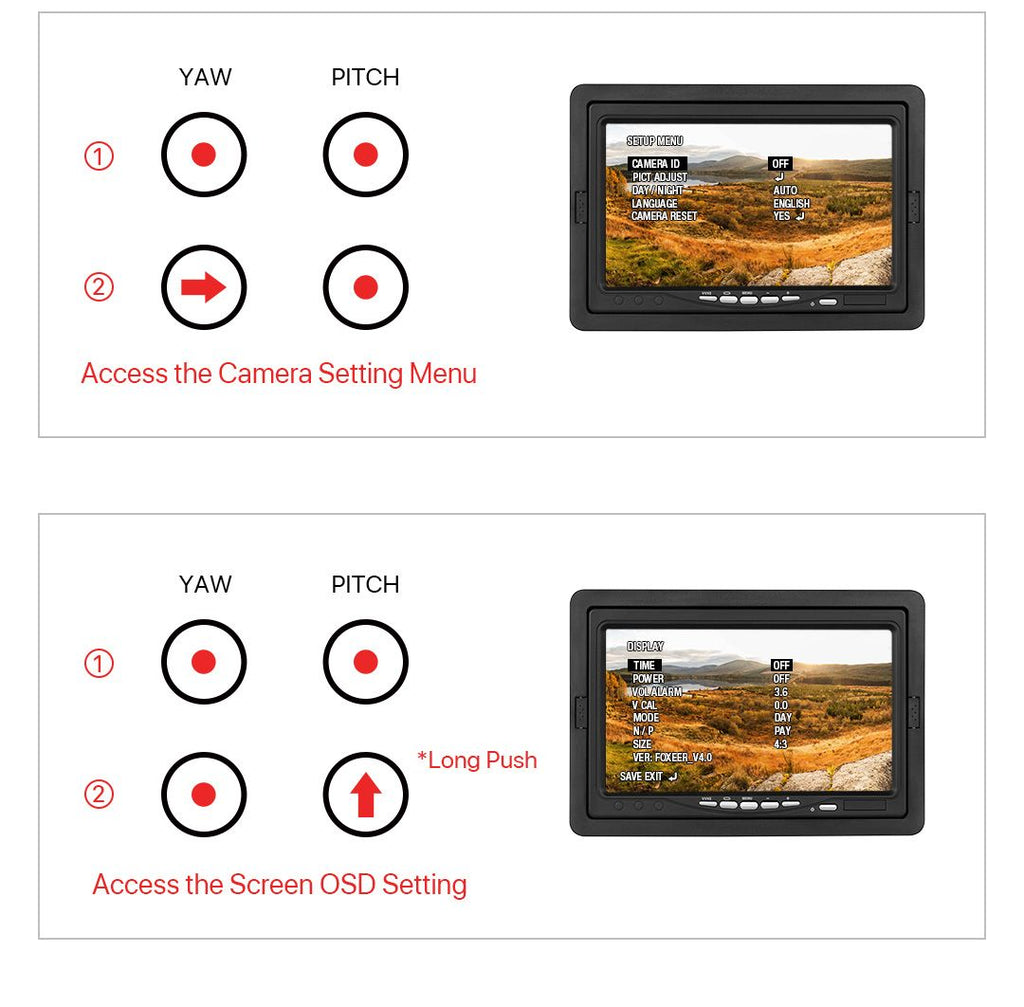

Menu: Analog via camera programming board, Digital via VTx and Cam board
Consumption: Analog:50mA±15% @ DC12V 115mA±15% @ DC5V; Digital:350mA@3.3V(Powered by VTX)
Cable Length: 150mm

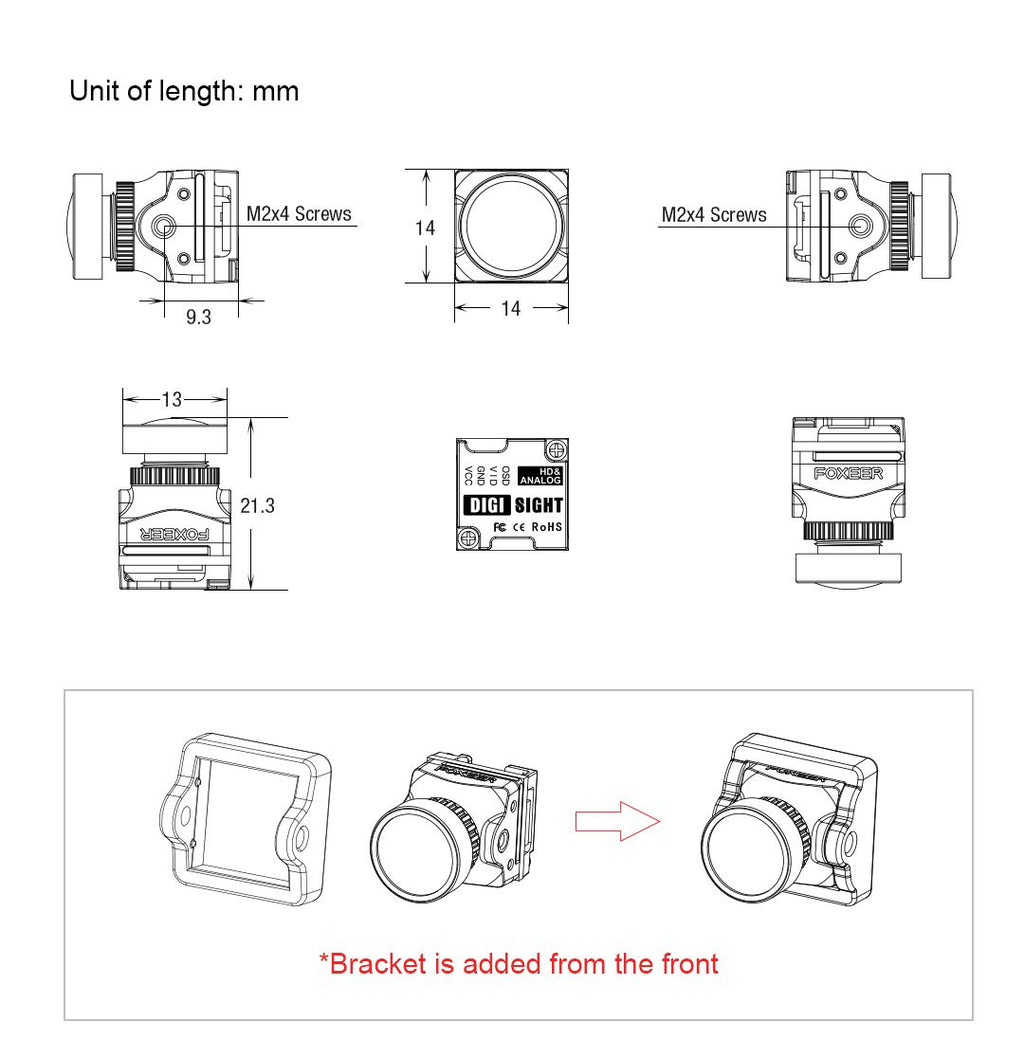

Dimension: 14*14mm; 19*19mm(Add Bracket)
Weight: 4.3g(Exclude cable)

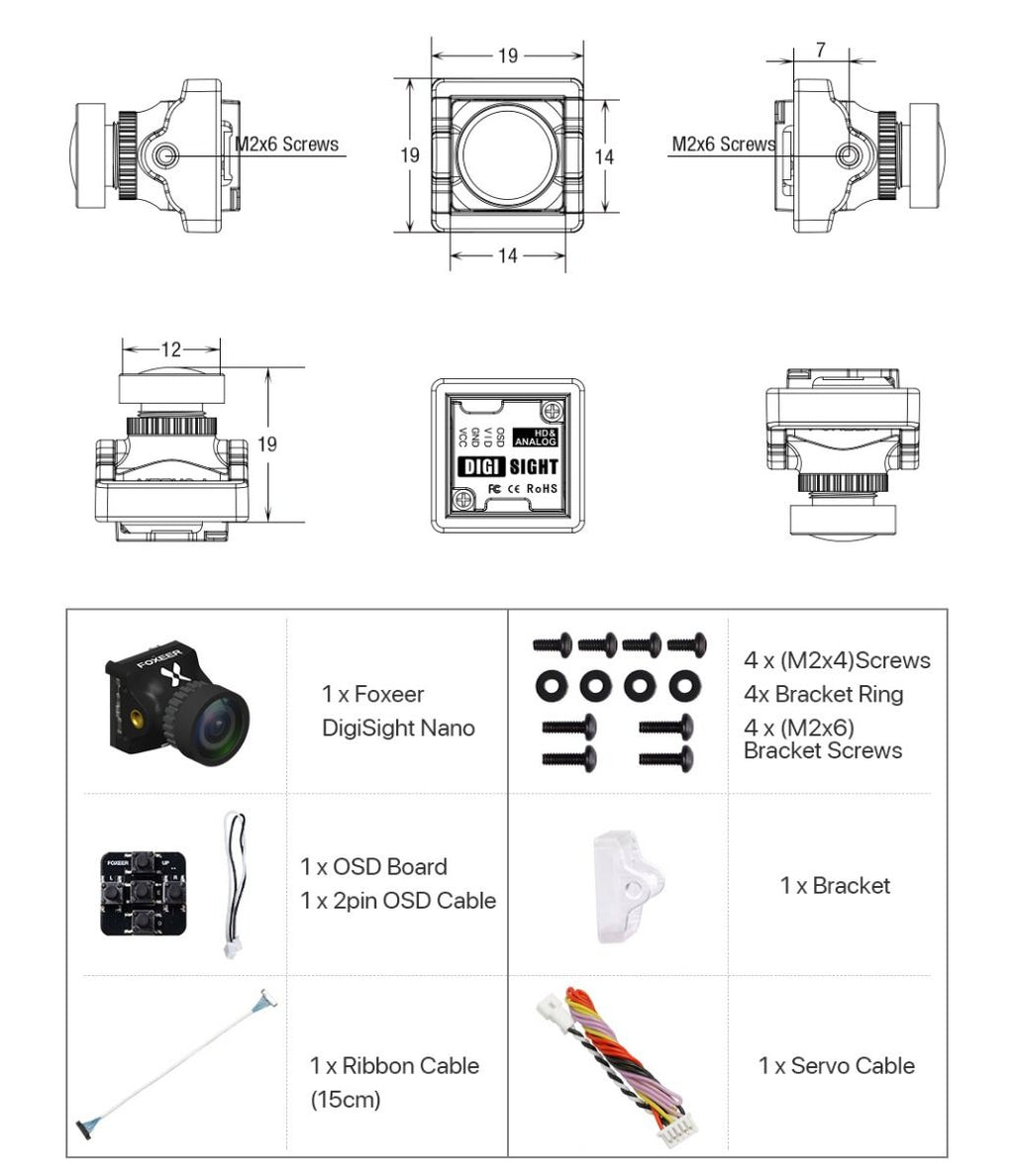

WHAT IS INCLUDED
1x Foxeer DigiSight Nano
1x OSD Board
1x 2-pin OSD Cable
1x Ribbon Cable (15cm)
4x (M2x4) Screws
4x Bracket Ring
4x (M2x6) Bracket Screws
1x Bracket
1x Servo Cable
