Description

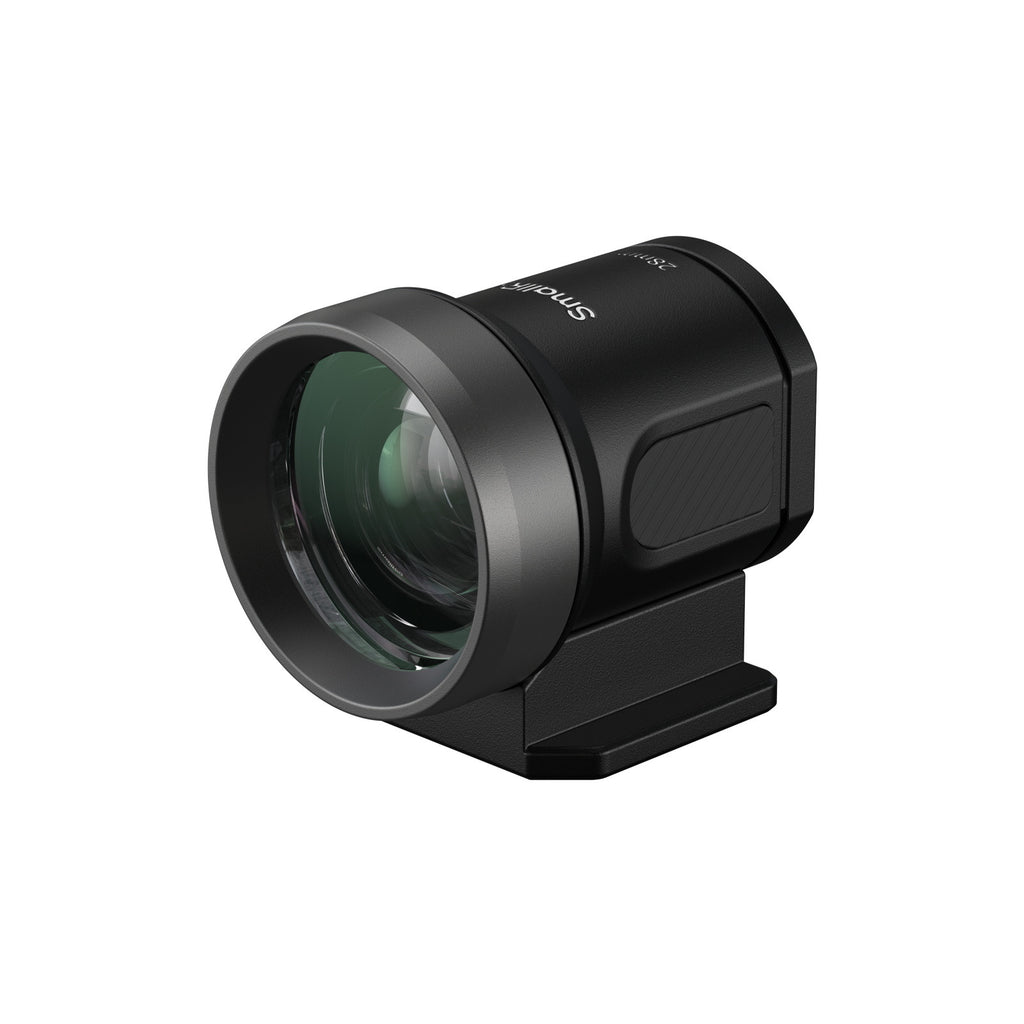

SMALLRIG 28MM EXTERNAL OPTICAL VIEWFINDER 5873
- Retro-Inspired Design: Recreates the classic shooting experience of the film era.
- 28mm Full-Frame Equivalent View: Offers a wide field of view equivalent to a 28mm focal length on a full-frame camera, ideal for street photography.
- High-Quality Optical System: Features five groups of optical glass for a clear, bright view with minimal distortion.
- Built-in 3:2 Frame Lines: Helps guide composition during framing.
SmallRig 28mm External Optical Viewfinder 5873 is designed to assist with camera framing while recreating the retro shooting experience of the film era. It provides a more natural optical view and helps reduce color shifts caused by glare or reflections.

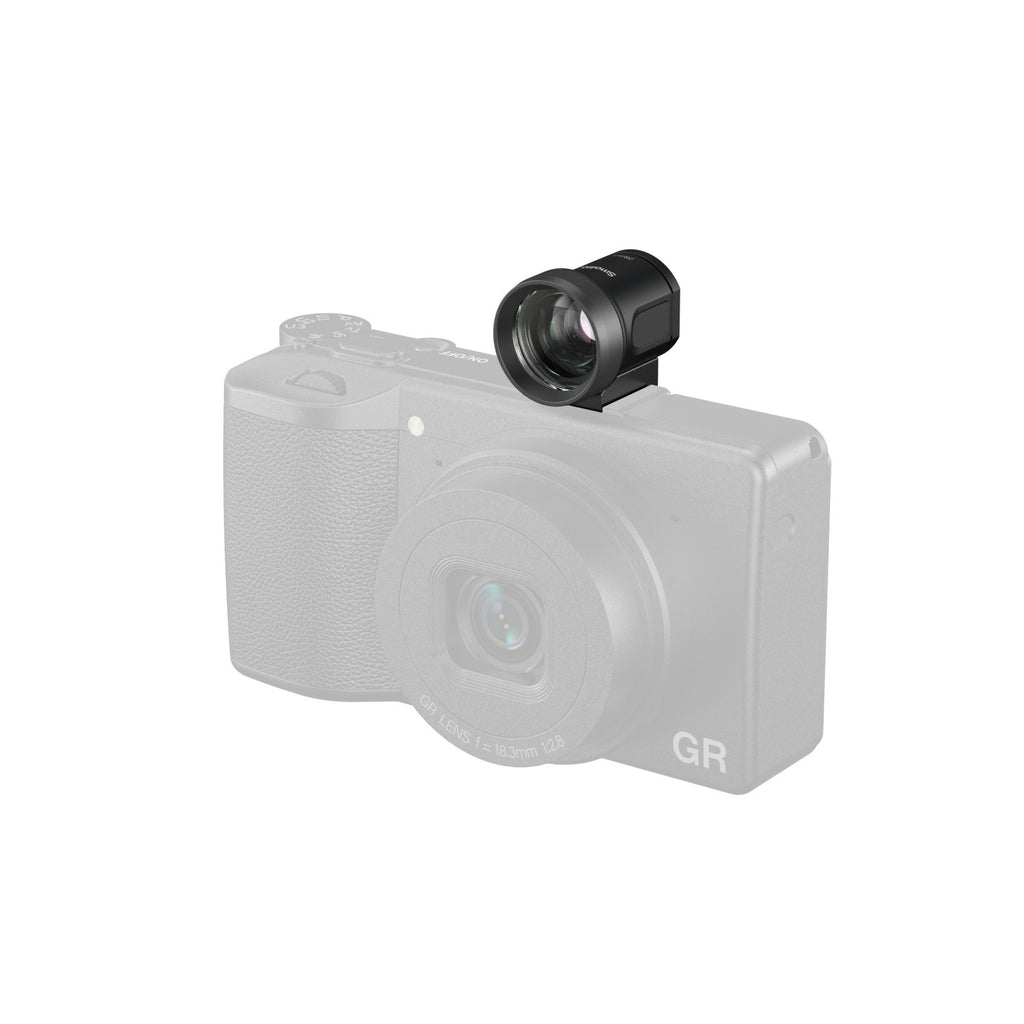

The viewfinder mounts to the camera hot shoe via a cold shoe mount and features a built-in silicone pad on the bottom to help protect the hot shoe contacts. It provides a field of view equivalent to a 28mm focal length on a full-frame camera. For APS-C cameras, an 18mm lens is recommended for a matching framing experience.
Its optical system uses five groups of high-quality optical glass with a light transmission rate of up to 98%, delivering a clear, bright image with minimal distortion. Built-in 3:2 frame lines help define the framing area for easier composition.
IMPORTANT
This product uses a fixed-diopter optical design with a nominal value of -0.52D and is intended to provide a comfortable viewing experience at an approximate viewing distance of 2.0m.
1. Users with normal vision or mild myopia: Can achieve the best viewing experience.
2. Users with myopia, hyperopia, or presbyopia:
* When wearing glasses: Regular corrective eyewear is recommended for the clearest view. The product has an eye relief of 13.0mm.
* When not wearing glasses: Users with vision around -0.50D may achieve the clearest naked-eye viewing. Users with more severe myopia or hyperopia may experience blurred vision.
3. Viewing recommendation: To ensure an 85% field of view and optimal clarity, keep your eye as close as possible to the eyepiece and maintain a centered line of sight.
SPECIFICATIONS
Product Dimensions: 29.0 × 25.9 × 21.0mm / 1.1 × 1.0 × 0.8in
Package Dimensions: 78.9 × 55.0 × 30.0mm / 3.1 × 2.2 × 1.2in
Product Weight: 22.6 ± 5.0g / 0.8 ± 0.2oz
Package Weight: 40.6 ± 5.0g / 1.4 ± 0.2oz
Material(s): Optical Glass, Aluminum Alloy
COMPATIBILITY
1. Fujifilm: X-Pro3, X-E4, X-E5, X half, X-M5, X100VI, X100V, X-S20, X-T30, X-T30III, X-T4, X-T5, X-H2S, X-T50
2. Nikon: Z30, Z50ii, Z fc, Z f
3. Canon: R50, R50V, Powershot V1, M6, M6ii, M50
4. Sony: FX3, A7C II, ZV-E10 II, ZV-1F, A7C, ZV-E10, A6600, A6700
5. Ricoh: GR III, GR III HDF, GR IV, GR IV HDF
6. Leica: Q3

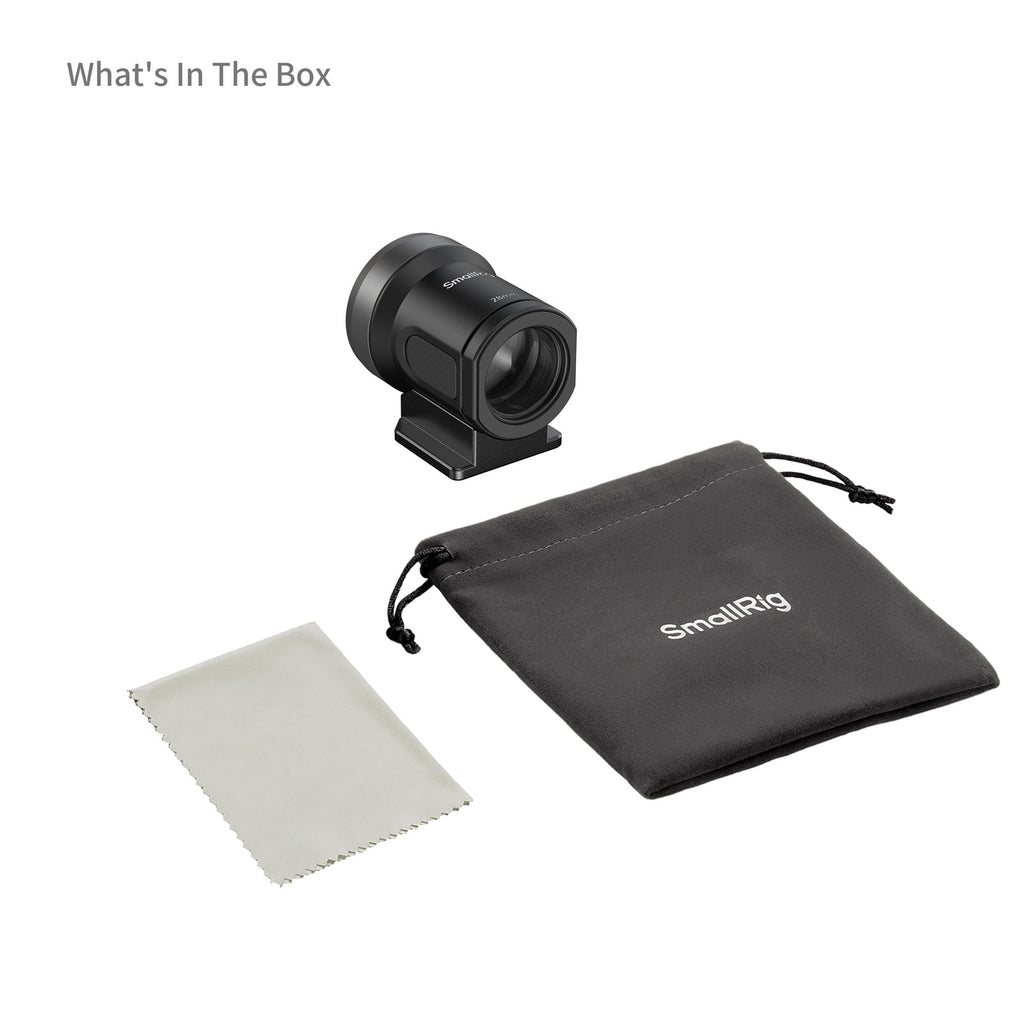

WHAT IS INCLUDED
1x Viewfinder
1x Cleaning Cloth
