Description

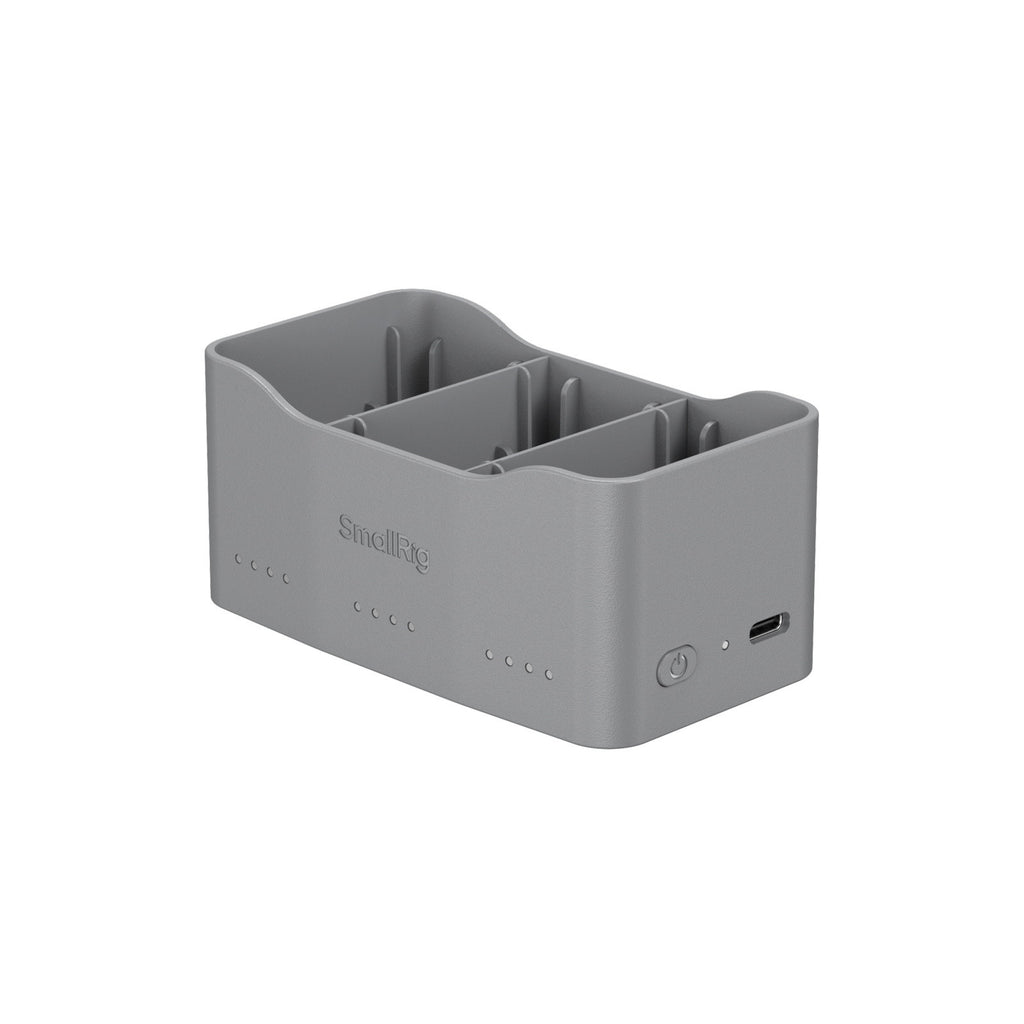

SMALLRIG 65W DRONE CHARGING HUB 6501
- Faster Charging at a Lower Price: With a 65W input, it can charge up to three batteries simultaneously, delivering up to 230% faster charging than the original charging hub and fully charging three Intelligent Flight Battery Plus units in 1.5 hours.
- Multiple Charging Modes: Includes 60% Storage Mode for travel and long-term storage, 95% Fast Charge Mode for faster charging and longer battery life, Maintenance Mode for lower-power battery care, 100% Mode (Default) for full charging, and USB Output Mode for powering external devices.
- Comprehensive Safety Protection: Each output port features protection against short circuit, overcurrent, overtemperature, overvoltage, and undervoltage.
- Compact and Portable Design: Half the size of the original charging hub, it is perfect for travelling and daily use.
SmallRig 65W Drone Charging Hub 6501 is designed for DJI Mini 5 / 4 / 3 Pro series batteries. It supports up to 65W input and can charge up to three batteries simultaneously. It is also compatible with 5.0V / 9.0V / 12.0V power adapters and supports intelligent sequential charging, prioritizing the battery with the highest voltage. Multiple charging modes are available for different charging needs, and the charger can also provide emergency power to external devices. Each output port features multiple protections and a smart temperature control system for stable charging. With a compact and lightweight design, it is convenient for travel and everyday use.
IMPORTANT

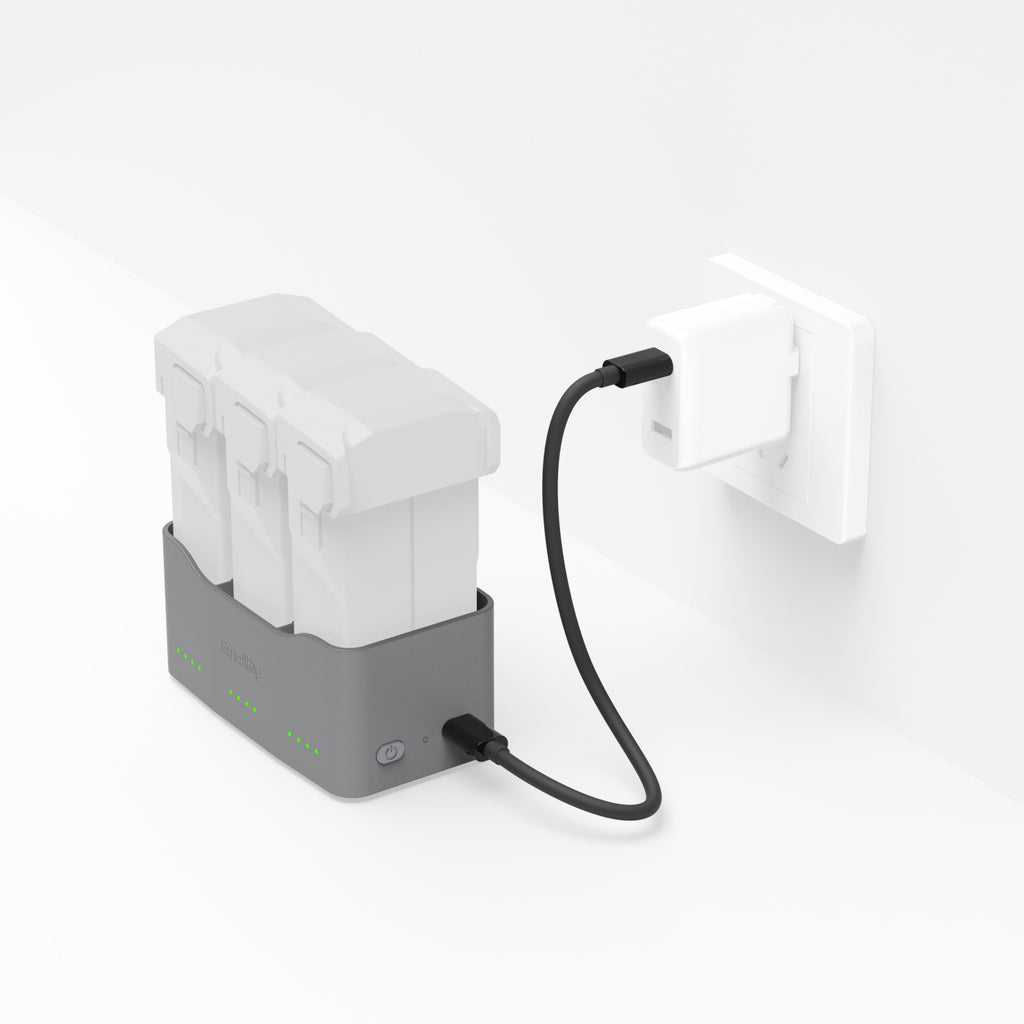

1. A 65W or higher USB-C charger is recommended.

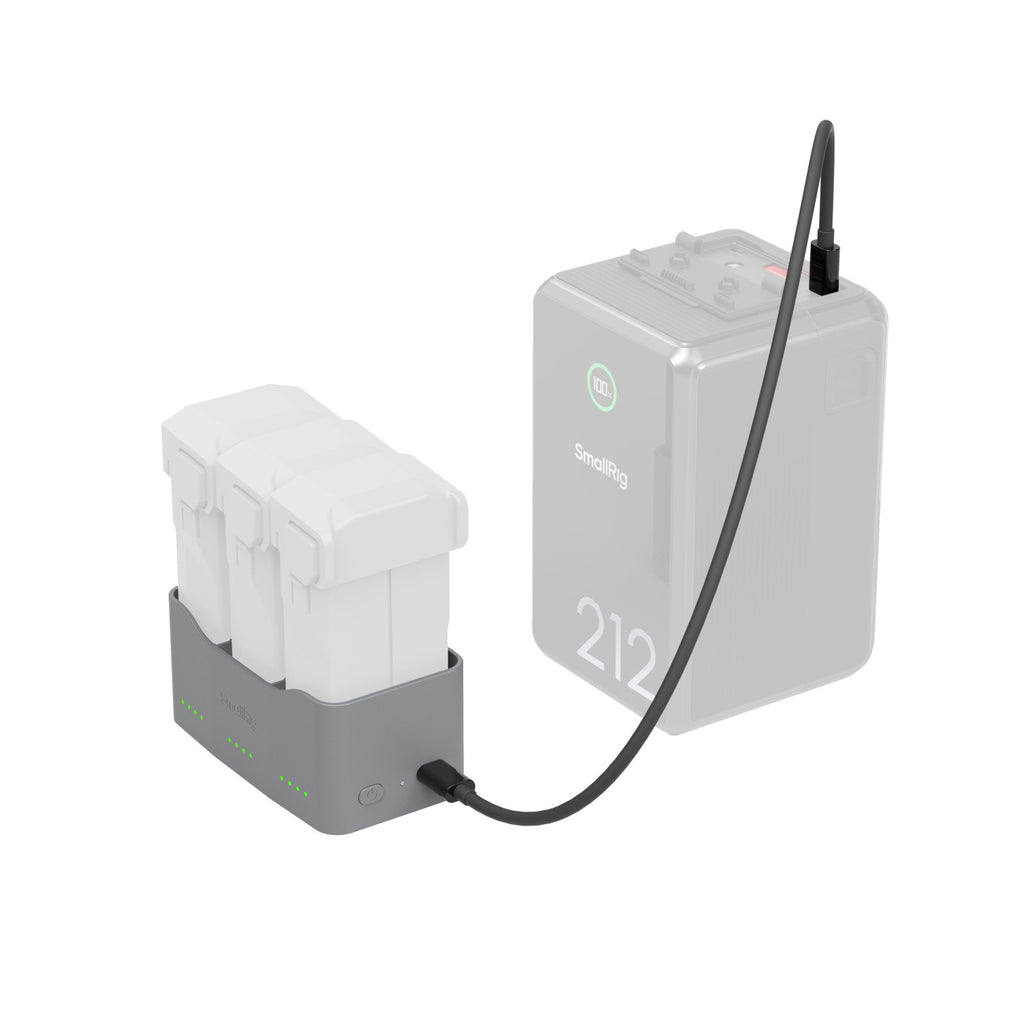

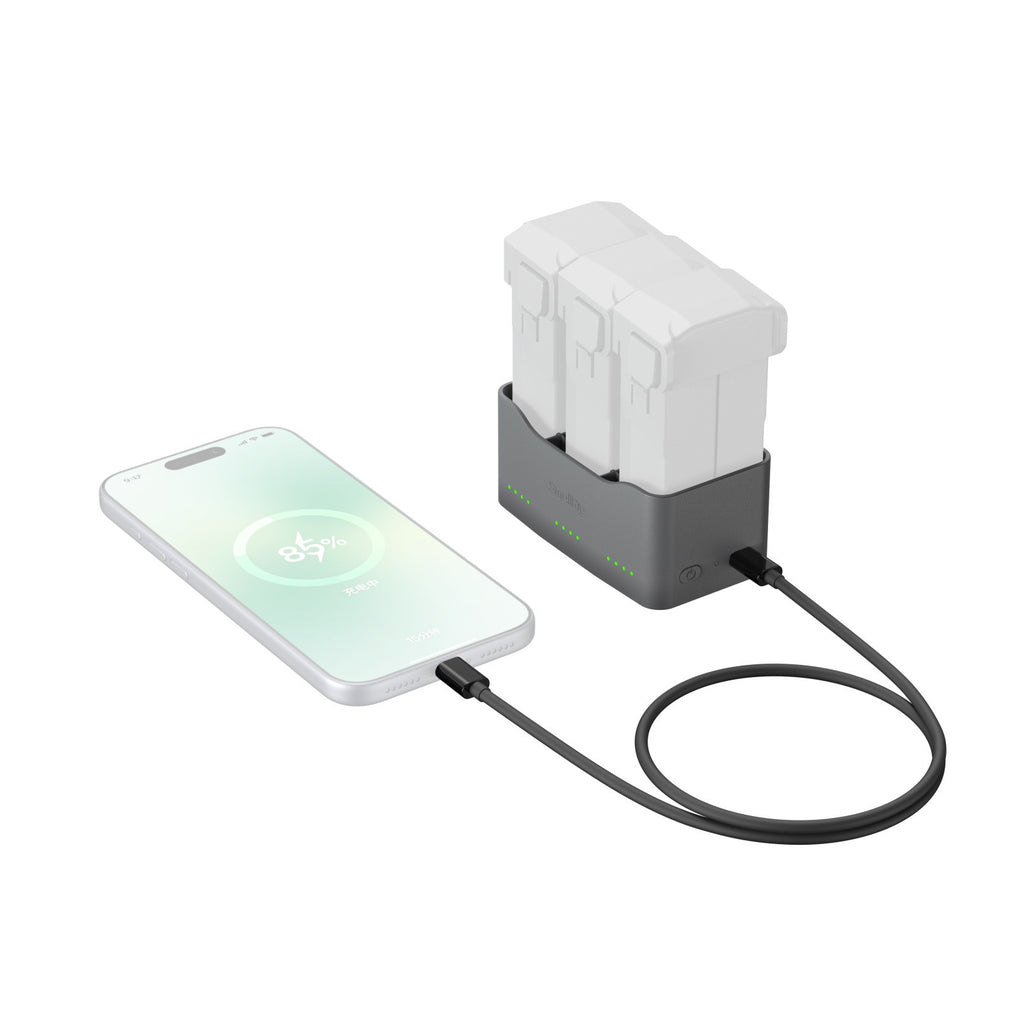

2. In USB Output Mode, insert the batteries, connect an external device to the charger’s USB-C port, and short-press the function button to start output. The batteries discharge in order from the lowest remaining power to the highest. To stop output, disconnect the external device from the charger.
Certifications: Quality Inspection Report / CCC / FCC / CE / PSE / RCM / ISED

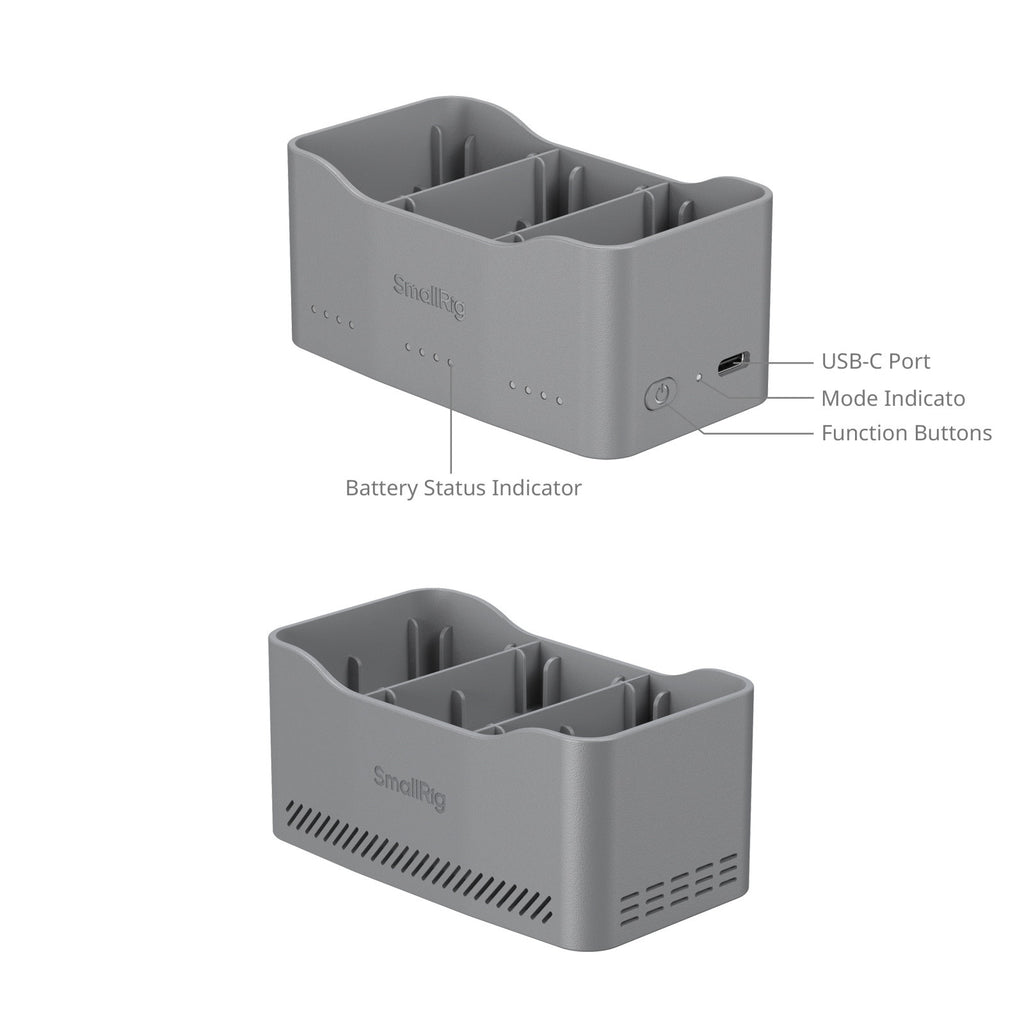

Battery Level Indicator:
Four LEDs On: 100% > Battery Level > 75%
Three LEDs On: 75% > Battery Level > 50%
Two LEDs On: 50% > Battery Level > 25%
One LED On: 25% > Battery Level > 0%
Charging Modes:
Function
Operation
Status Indicator
Mode Indicator
Battery Level Display
Short press
Displays the current battery level
N/A
60% Mode
Press and hold for more than 2 seconds during charging
The first three LEDs flash three times simultaneously
Yellow
95% Mode
After 60% Mode is enabled, short press once
All four LEDs flash three times simultaneously
Green
100% Mode
Default mode during charging
Displays the current battery level
Off
Maintenance Mode
After 60% Mode is enabled, short press twice
All four LEDs flash three times simultaneously
Flashing Green
USB Output Mode
With a battery inserted, short press, then press and hold for more than 2 seconds
Displays the current battery level of the discharging battery
Off
SPECIFICATIONS

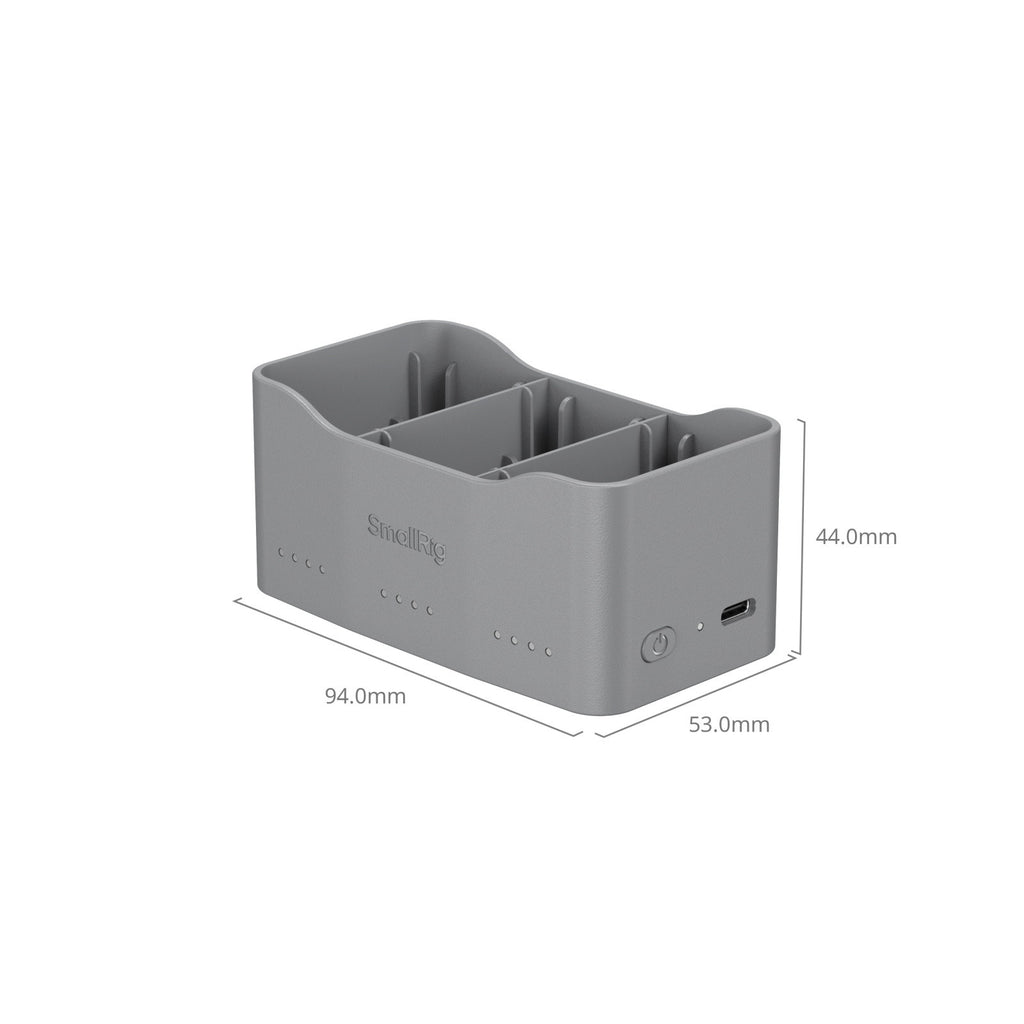

Product Dimensions: 94.0 × 53.0 × 44.0mm / 3.7 × 2.1 × 1.7in
Package Dimensions: 75.0 × 54.0 × 101.0mm / 3.0 × 2.1 × 4.0in
Product Weight: 90.0 ± 5.0g / 3.2 ± 0.2oz
Package Weight: 150.0 ± 5.0g / 5.3 ± 0.2oz
Model: Mini65
Material(s): ABS, PC
USB-C Input: 5.0V⎓3.0A, 9.0V⎓3.0A, 12.0V⎓3.0A, 15.0V⎓4.3A, 20.0V⎓3.25A, 65.0W (Max)
USB-C Output: 5.0V⎓2.0A, 9.0V⎓2.0A, 12.0V⎓2.0A, 24.0W (Max)
Charging Temperature: 0.0°C to 45.0°C / 32.0°F to 113.0°F
COMPATIBILITY
DJI Mini 3 Series Intelligent Flight Battery
DJI Mini 4 Pro Intelligent Flight Battery
DJI Mini 4 Pro / Mini 3 Series Intelligent Flight Battery Plus
DJI Mini 5 Pro Intelligent Flight Battery
DJI Mini 5 Pro Intelligent Flight Battery Plus

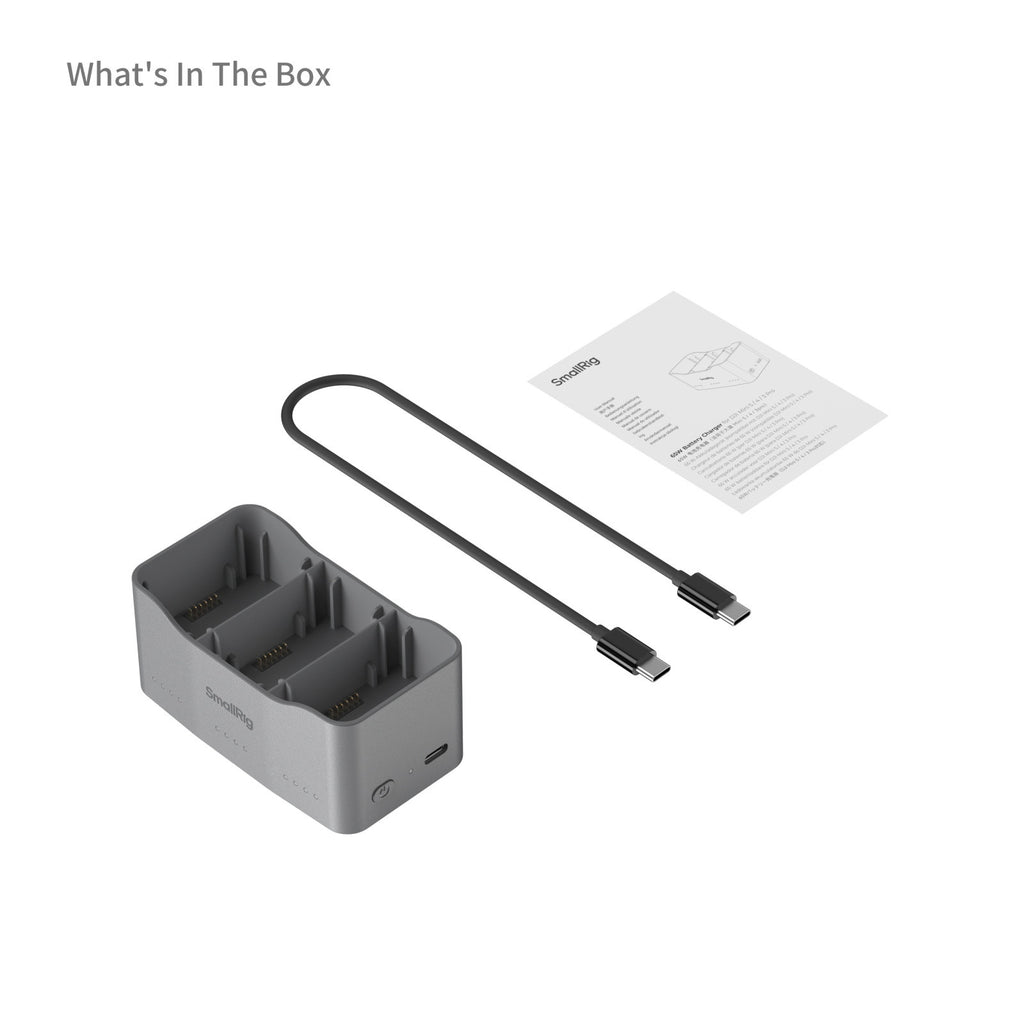

WHAT IS INCLUDED
1x Charger for DJI Mini 5 / 4 / 3 Pro
1x USB-C to USB-C Charging Cable
1x User Manual
