SMALLRIG ADJUSTABLE MONITOR MOUNT FOR DJI RONIN-S/RONIN-SC & ZHIYUN CRANE 3/CRANE 3S/WEEBILL-S & MOZA AIRCROSS 2 GIMBALS 2889
- Mounts Monitor or Accessory on Handheld Gimbal.
- Supports Monitor up to 1kg.
- 360° Tilt Adjustment via Knob.
- Three 1/4"-20 Accessory Mount Threads.
- Features Slots on Each Thumbscrew for Allen Wrench.

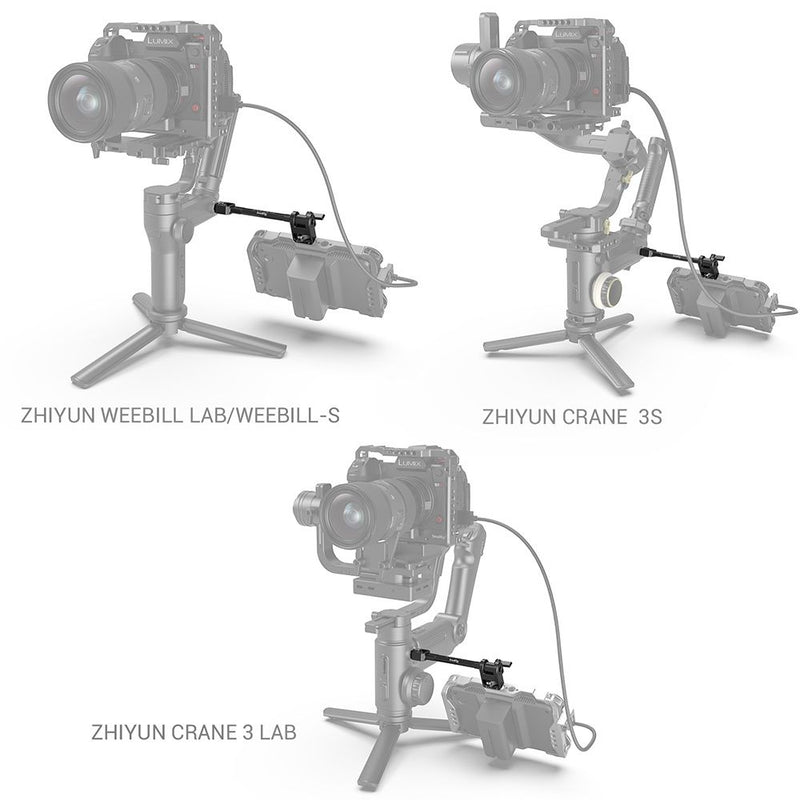

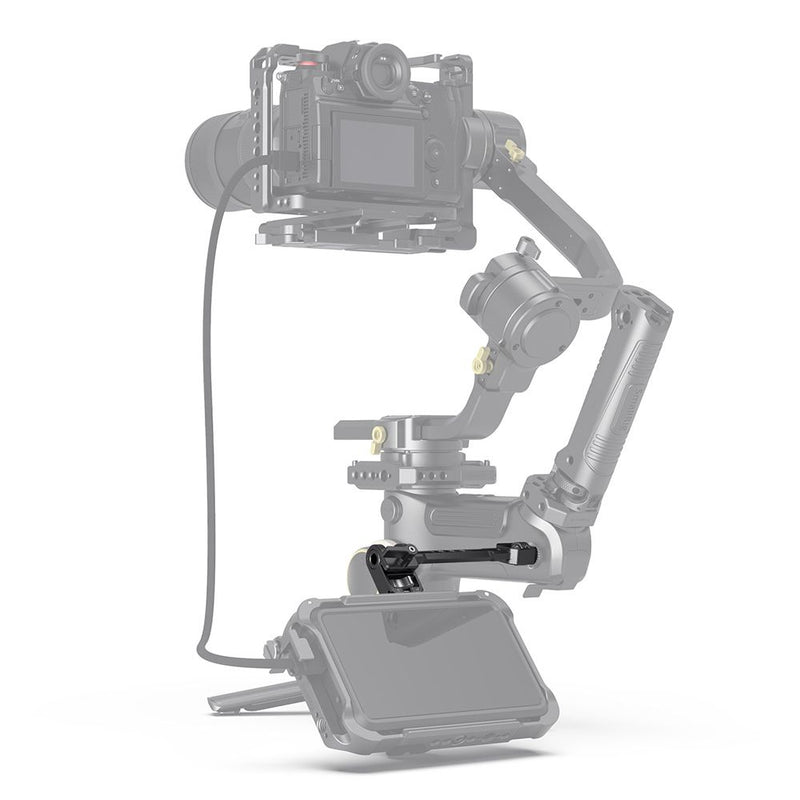

SmallRig Adjustable Monitor Mount for DJI RONIN-S/RONIN-SC & ZHIYUN CRANE 2S/CRANE 3/3S/WEEBILL-S & MOZA AirCross 2 Gimbals 2889 is designed to hold monitor or accessory onto the handheld stabilizers. The mount attaches to the mounting threads of the ZHIYUN CRANE 3, CRANE 3S, WEEBILL-S, or WEEBILL LAB with a built-in thumbscrew, and a rosette adapter plate is included to attach the mount to the DJI Ronin-S or Ronin-SC with two included M4 screws. Featuring three 1/4”-20 threads for additional accessories such as Cold Shoe 1241 for microphone or sound receiver. The monitor bracket features 360° tilt and can hold a monitor rig up to 2.2 lb. The robust mount features a rubber pad to protect your monitor from scratching. Each thumbscrew features slots for Allen wrench to tighten the mounting screws.
Note1: Maximum payload: 1kg
Note2: Please use the hex spanner to re-tighten the thumbscrew to ensure safe.
Note 3: For Moza AirCross2, please do attach the Mounting Plate 2826 first before attaching the monitor mount.
Product Dimensions: 134mm x 33mm x 44mm
Package Dimensions: 155mm x 80mm x 40mm
Net Weight: 86g±5g
Package Weight: 126g±5g
Material(s): Aluminum Alloy
DJI Ronin-S, Ronin-SC
ZHIYUN CRANE 2S
ZHIYUN WEEBILL-S, WEEBILL LAB, CRANE 3 LAB, CRANE 3S
WHAT IS INCLUDED
1 x Monitor Mount
1 x Rosette Plate
2 x M4 Screw
1 x Allen Wrench
