Description
SMALLRIG ADVANCED V-MOUNT BATTERY MOUNT PLATE WITH CRAB-SHAPED CLAMP 3202B
- Standard V-mount, compatible with most V-mount batteries.
- PD protocol compatible USB-C input/output (65W Max.) port and QC protocol compatible USB-A output (36W Max.) port for powering cell phones, image transmitters, etc.
- D-Tap (14.8V x 1) and DC (8V x 1 / 12V x 2) power port.

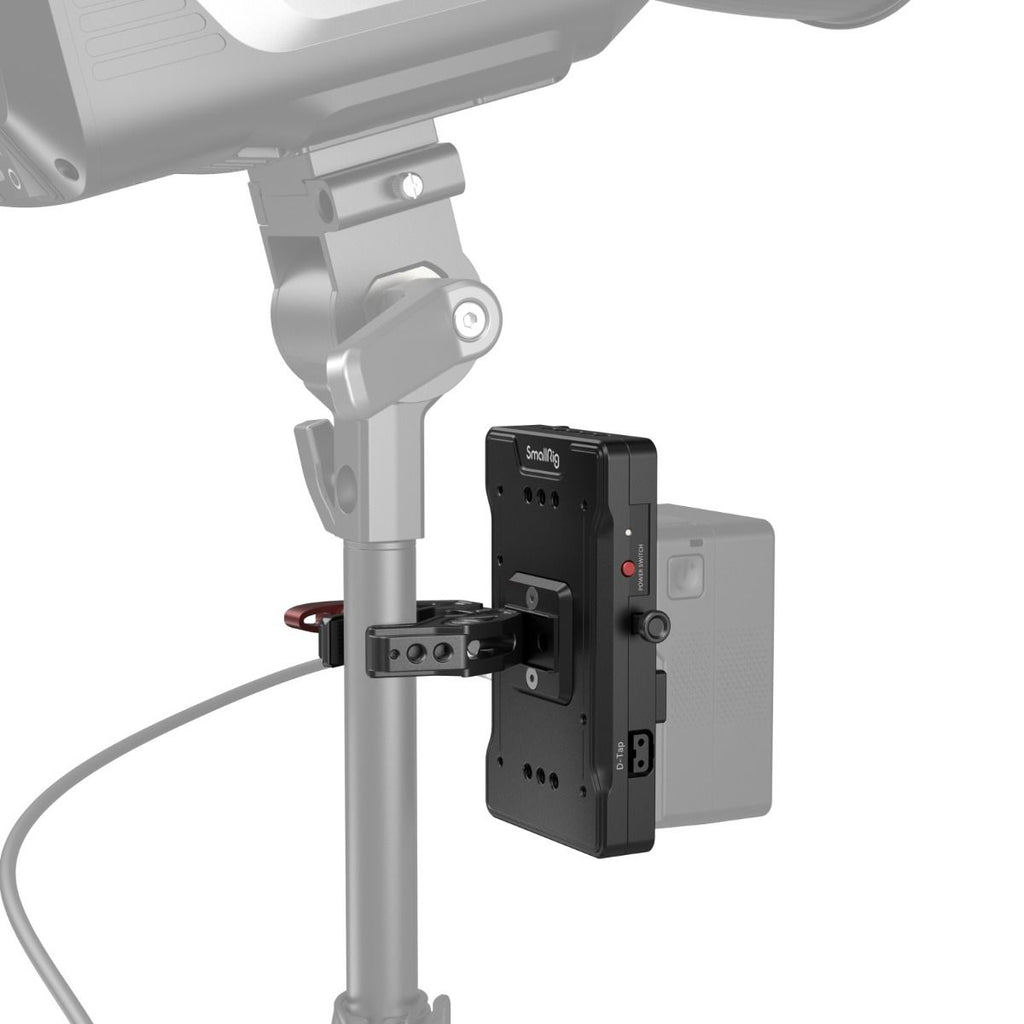

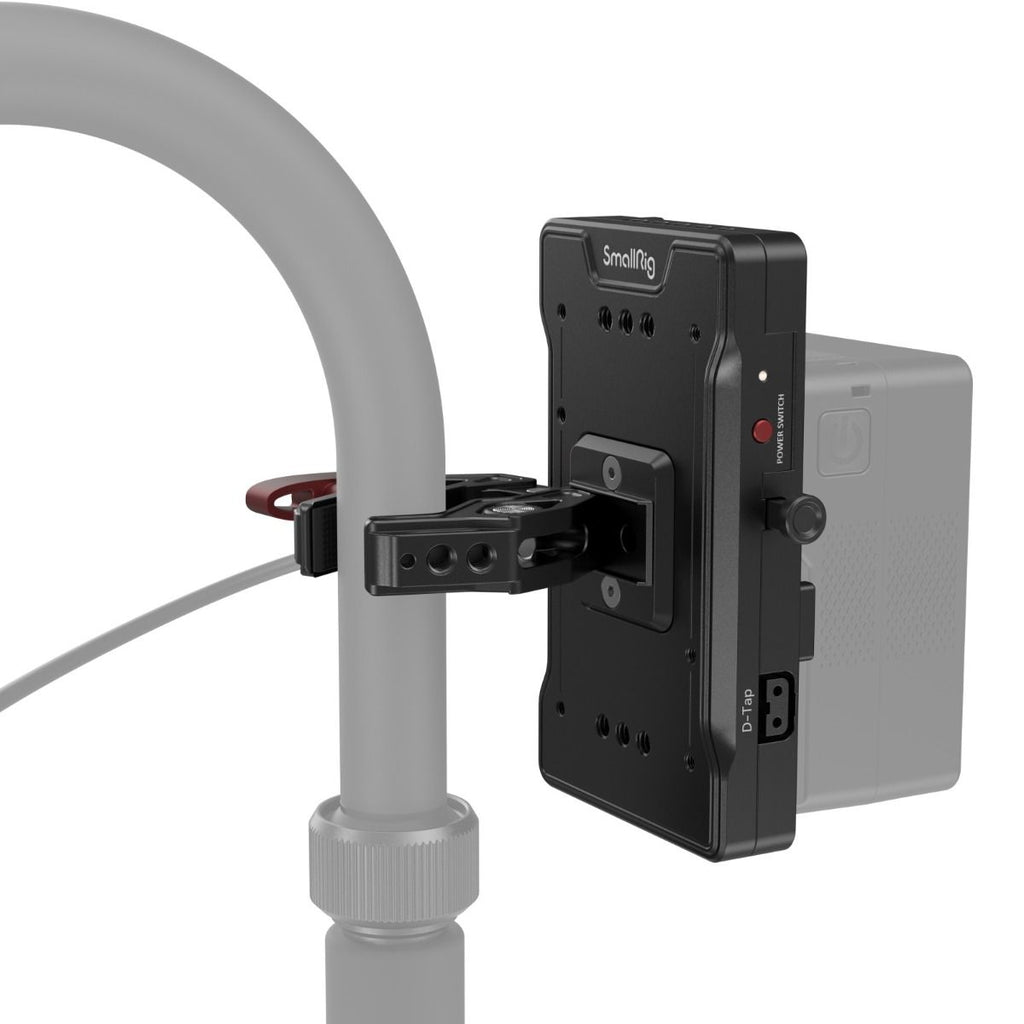

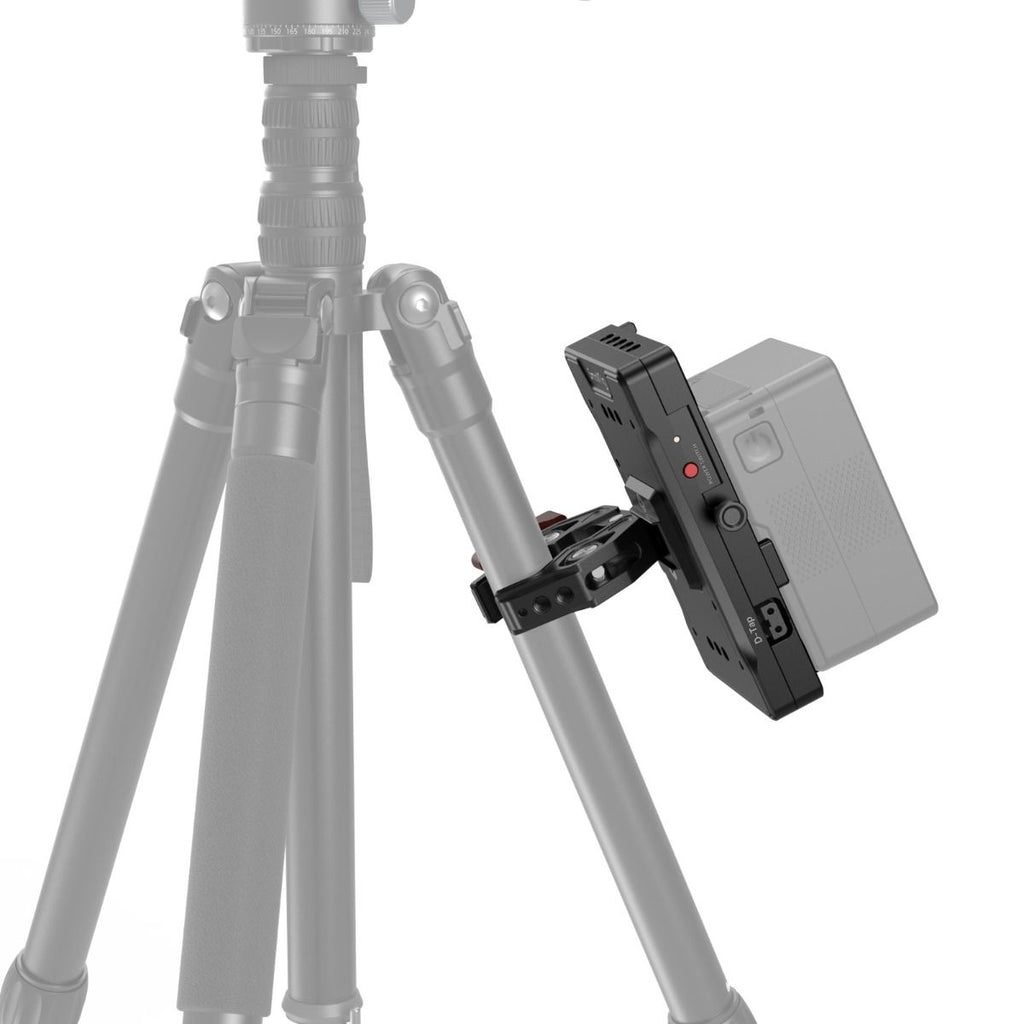

- Supports Φ15-40mm rod for tripod, light stand, hand-held ring, etc.
- 1/4"-20 threaded holes for dual rod clamp, magic arm, etc.

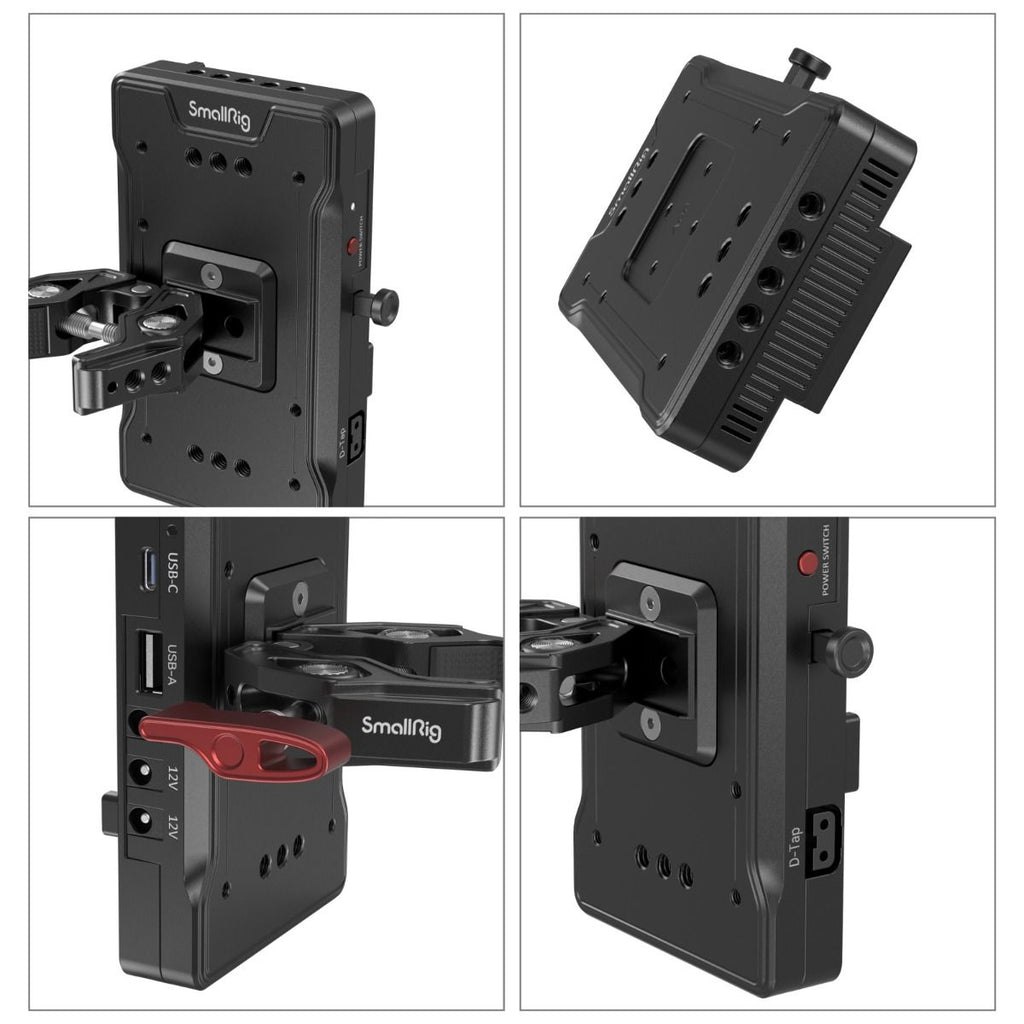

SmallRig Advanced V-Mount Battery Mount Plate with Crab-Shaped Clamp 3202B features a standard V-mount, compatible with most V-mount batteries on the market, six 1/4"-20 threaded holes, and ten M4 threaded holes on the back, five 1/4"-20 threaded holes on the top and bottom, which support crab-shaped clamp, dual rod clamp, magic arm, etc. It comes with a PD protocol compatible USB-C input/output (65W Max.) port and a QC protocol compatible USB-A output (36W Max.) port for fast charging/discharging; a D-Tap input/output (14.8V) ports; and three DC output ports (DC5521 8V x 1 / DC5525 12V x 2). The power indicator light and charging/discharging indicator light indicates the working status and fast/slow charging mode; the power on / off button can simultaneously control multiple ports. Besides, the aluminum alloy plate has a comfortable texture, with wonderful heat dissipation performance and durability.
IMPORTANT
Product weight and dimensions may have measurement errors.
SPECIFICATIONS
Battery Compatibility: V-Mount Battery
Crab-Shaped Clamp Compatibility: Φ15-40mm rod; V-mount battery weighing not more than 1700g
Battery Voltage: 11.0V~16.8V
Battery Rated Capacity: 3500mAh~20000mAh / 14.8V
Cut-off Voltage: 11.0V
Input Voltage (Max.): 16.8V
Working Power (Max.): ≤ battery power (subject to battery capacity)
Total Maximum Power : Discharging: 271W (Max.)
D-Tap Rated Input / Output Current: 5A
D-Tap Input / Output Current (Max.): 10A (subject to power adapter)
D-Tap Input Voltage: 11.0V~16.8V
USB-A Output Power: 36W (Max.)
USB-A Output Protocol: QC2.0 / QC3.0 / AFC / DCP-1.5A / APPLE-2.4A
USB-C Input Power: 65W (Max.)
USB-C Output Power: 65W (Max.)
USB-C Input/Output Protocol: PD3.0 / QC2.0 / QC3.0 / PPS / AFC /DCP-1.5A / APPLE-2.4A
DC1 Output: 8.0V / 3A (Max.)
DC2 Output: 12V / 3A (Max.)
DC3 Output: 12V / 3A (Max.)
DC Overcurrent Protection: ≥4.1A
Product Dimensions: 16 × 9.3 × 9.5cm
Package Dimensions: 24.4 × 13.1 × 6.2cm
Product Weight: 413 ± 5g
Package Weight:542 ± 5g
Material(s): Aluminum Alloy
COMPATIBILITY
V-mount Battery

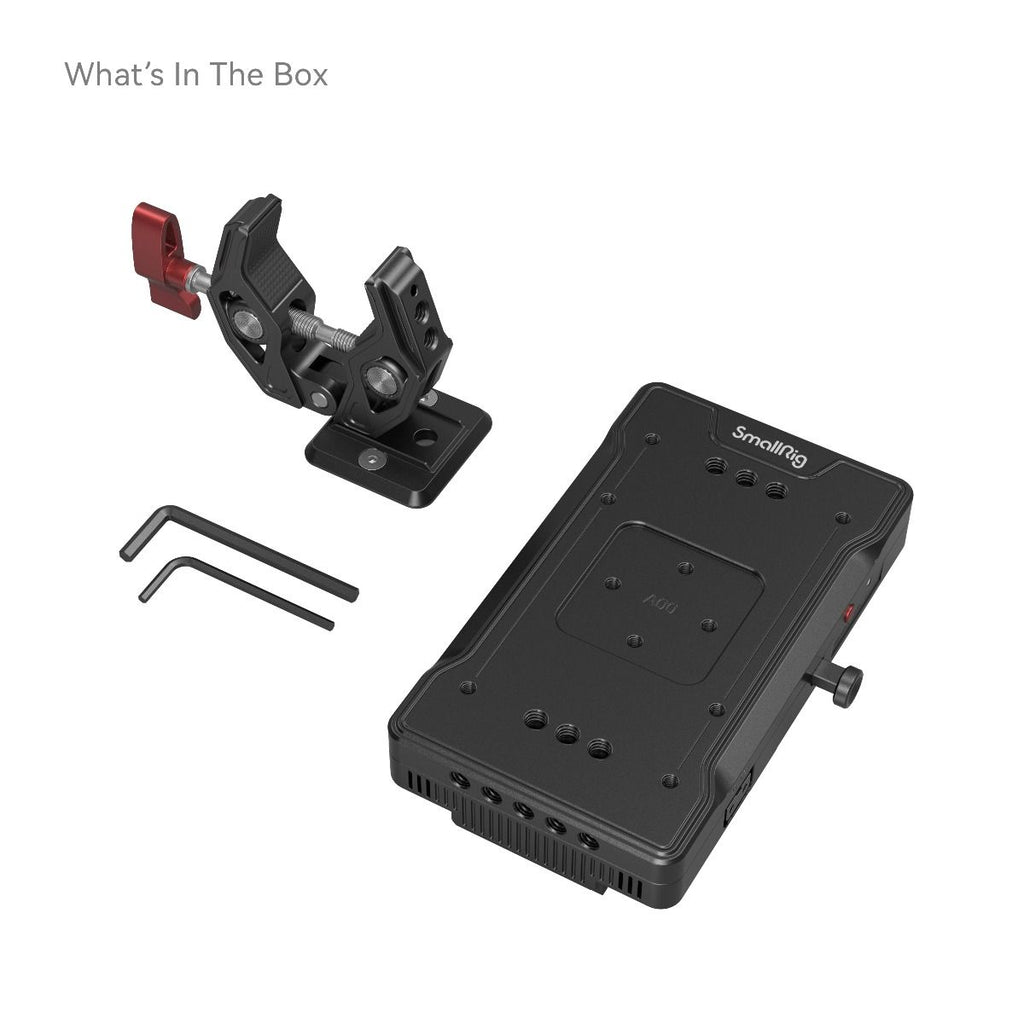

WHAT IS INCLUDED
1x Advanced V-Mount Battery Adapter Plate
1x Crab-Shaped Clamp
2x Hex Spanner
1x User Manual
