Description

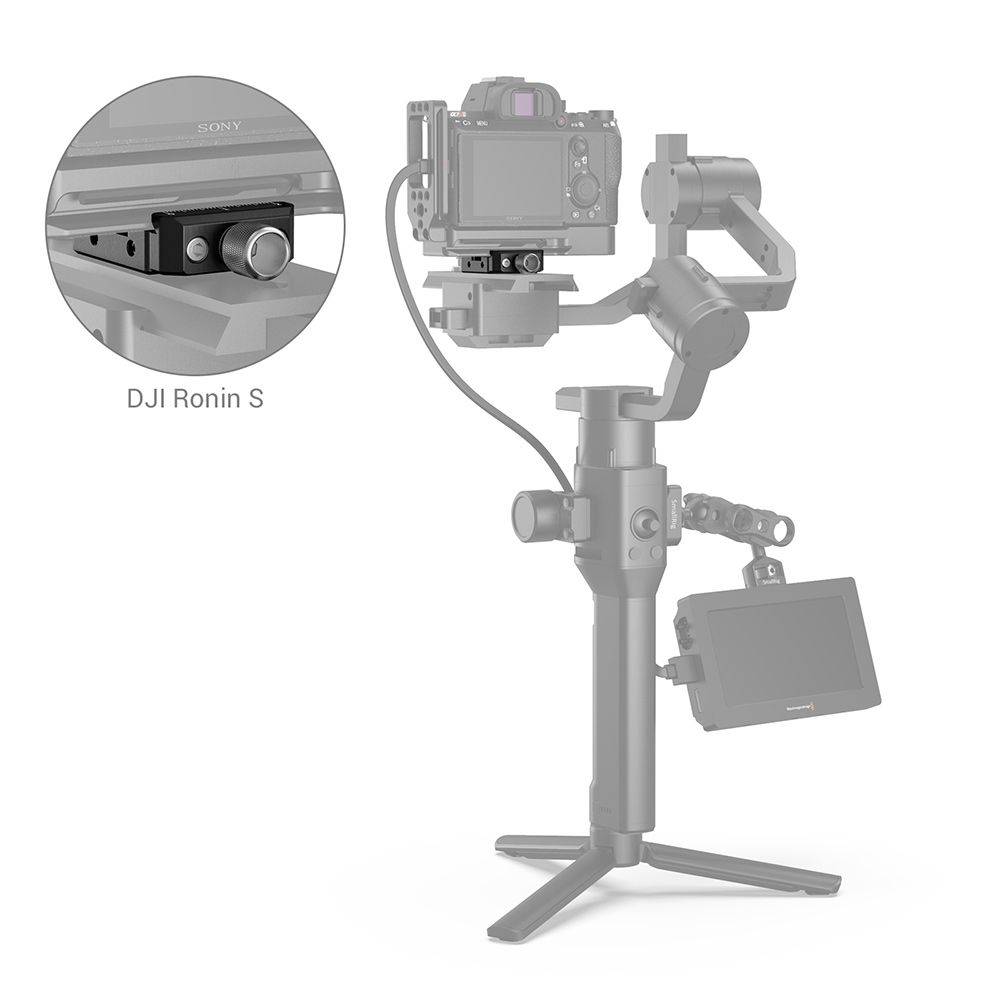

SMALLRIG ARCA-TYPE QUICK RELEASE CLAMP FOR DJI RONIN S/RONIN SC AND ZHIYUN CRANE SERIES 2S /WEEBILL S GIMBALS DBC2506B
- Arca-Type Compatible Clamp for Gimbals
- Quick Release the Camera using an Arca Plate Between Gimbals and Tripods
- Install on the Gimbals Camera Plate via two 1/4”Screws
- Degree Markings on Each Side
- Vertical or Horizontal Installation
- Features M4 Threaded Holes for DJI Ronin S/ Ronin SC Follow Focus Motor
SmallRig Arca-Type Quick Release Clamp for DJI Ronin S/Ronin SC and ZHIYUN Crane Series 2S/ Weebill S Gimbals DBC2506B is designed to quick remove the camera using an Arca L bracket or Arca plate from Arca-type fluid head to gimbals. The clamp attaches to the camera plate of gimbal via two 1/4”-20 screws in both vertical and horizontal direction. Featuring degree marks and M4 threads for DJI Ronin S/ Ronin SC Follow Focus Motor. You can also use it as a riser plate when using large diameter lens.
SPECIFICATIONS
Product Dimensions: 64.6 x37.40 x 15mm
Package Dimensions: 110 x 130 x 40mm
Net Weight: 69g
Package Weight: 75g
Material(s): Aluminum Alloy
COMPATIBILITY
DJI RoninS
RoninSC
Zhiyun Crane2
Zhiyun Crane3
Zhiyun Crane 2S
Zhiyun Weebill Lab
Zhiyun Weebill S
Moza Air2
WHAT IS INCLUDED
1x Arca Baseplate
2x 1/4”Screw
1x Hex Spanner
