SmallRig Arca-Type Quick Release Plate for DJI RS 2 and RSC 2 Gimbal 3154

SmallRigSKU: SR-3154

Price:
Sale price$28.00 AUD
Stock:
In stock

Description

SMALLRIG ARCA-TYPE QUICK RELEASE PLATE FOR DJI RS 2 AND RSC 2 GIMBAL 3154

- Designed for SmallRig cages & DJI RS 2 and RSC 2 gimbal.
- Locks camera cage via two captive 1/4”-20 screws to prevent twists.
- Extended 10mm to increases the range for horizontal adjustments.
- Work with SmallRig BMPCC 4K cage for balance.
- Open access to most camera cage mounting screw.

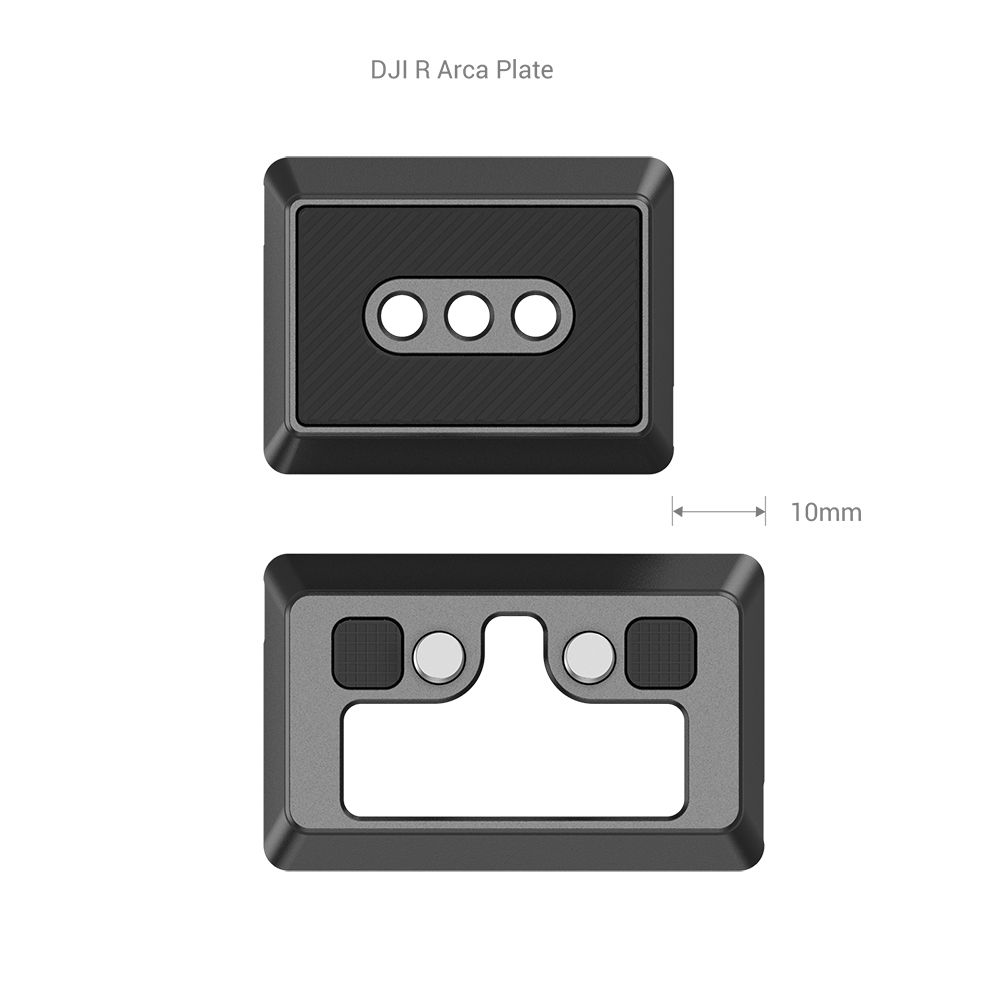

SmallRig Arca-Type Quick Release Plate for DJI RS 2 and RSC 2 Gimbal 3154 is designed to attach to camera cage with two 1/4”-20 screws to fit in RS 2 and RSC 2 Gimbals, and solve the twisting issue that the original Arca Plate only allows being attached onto the cage through one 1/4 screw. Compared with the original Arca plate, the plate 3154 is extended 10mm longer and increases the range for left and right adjustments to mount cameras in special shapes, such as BMPCC 4K camera equipped with a cage. The distance between the two locking 1/4 screws is 18mm which is compatible with most SmallRig cages like Sony A7S III cage 2999, Canon R5/R6 cage 2982, Nikon cage 2926 for Z series cameras, etc. Moreover, the plate features an open-middle design so you can access most camera mounting screw through the plate and easily unmount the camera from the cage to move it to a tripod or other mounts. The plate also features rubber pads to protect the cage.

Designer: Kevin Wong

SPECIFICATIONS
Product Dimensions: 60 x 38x 12mm
Package Dimensions: 76 x 63x 40mm
Net Weight: 20g
Package Weight: 50g
Material(s): Aluminum Alloy

COMPATIBILITY
DJI RS 2
DJI RSC 2

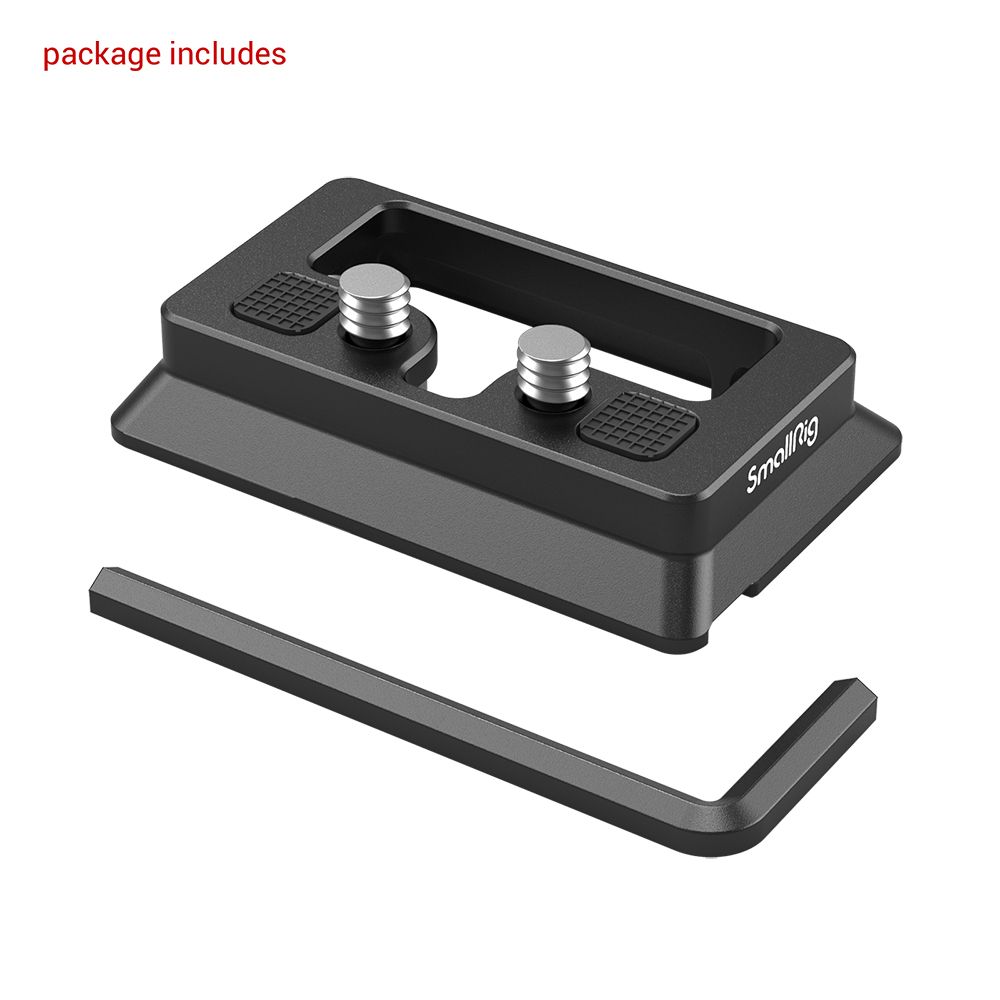

WHAT IS INCLUDED
1x Plate
1x Allen Wrench
