Description

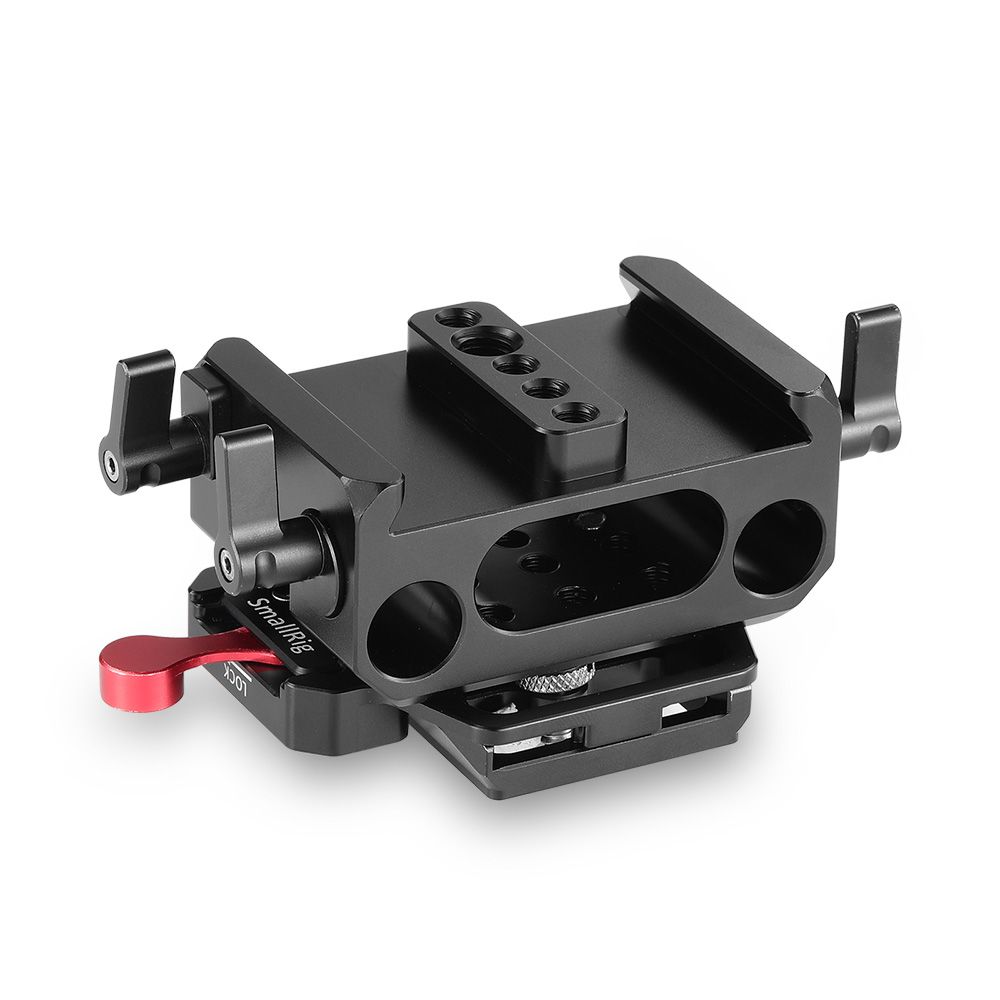

SMALLRIG BASEPLATE FOR BMPCC 4K/6K (MANFROTTO 501PL COMPATIBLE) DBM2266B
- A dedicated baseplate designed for BMPCC 4K & 6K.

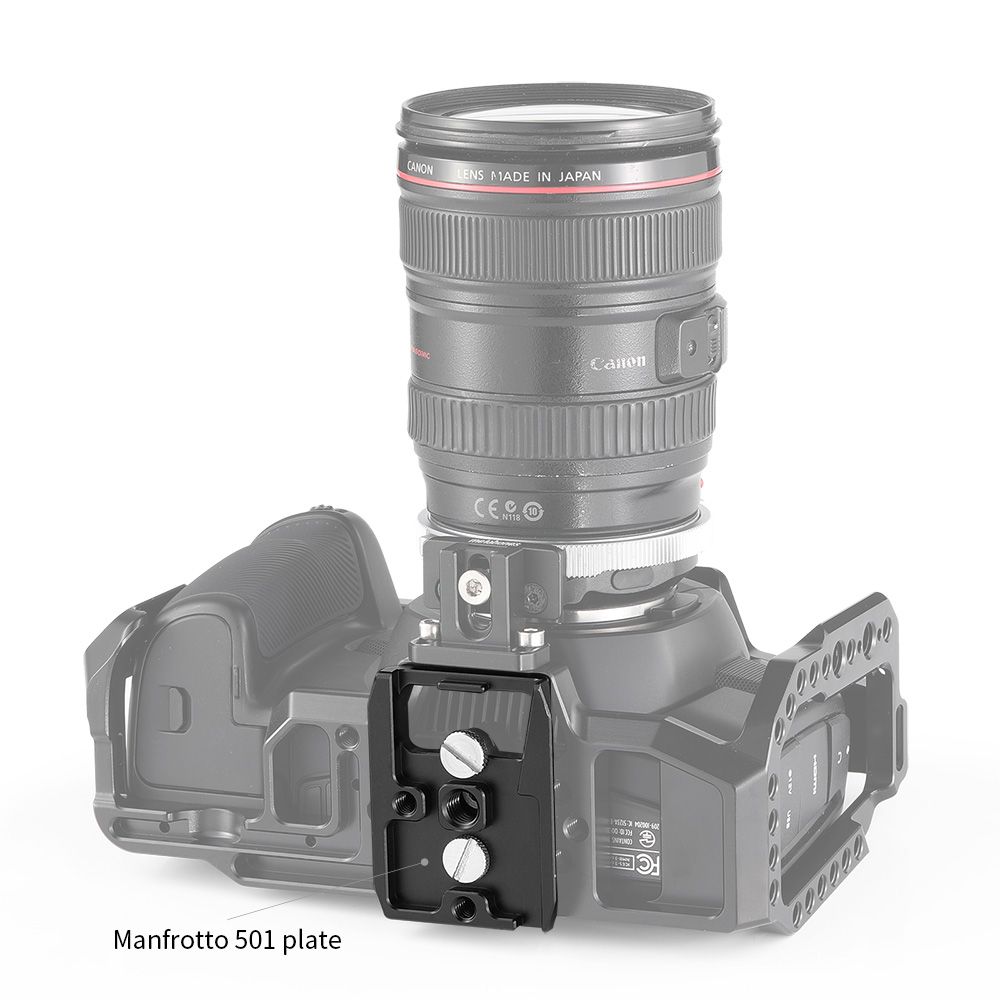

- Manfrotto 501PL compatible QR plate and receiver on the top and secured by a lever.

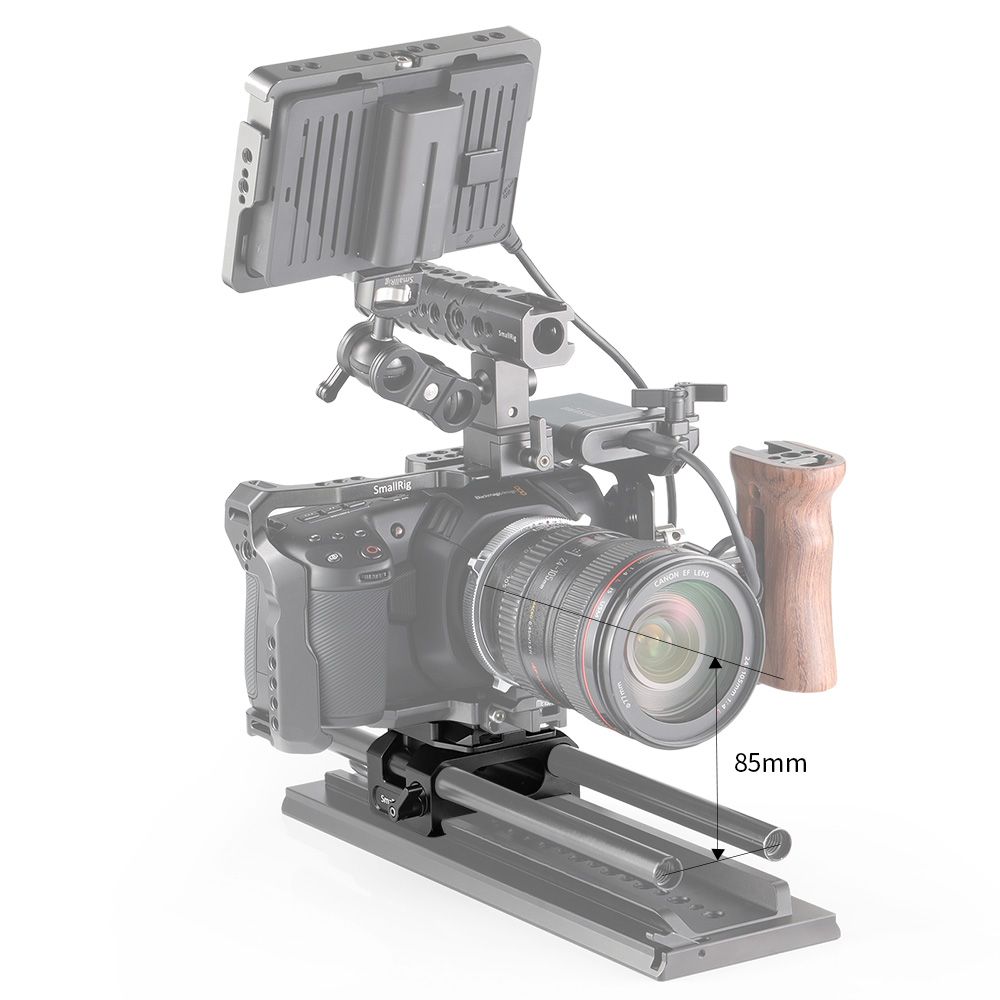

- 15mm rail support at 85mm rod height.
- Arri standard dovetail on the bottom.
- 1/4"-20 and 3/8"-16 threaded holes on the bottom for attachment of other plates.

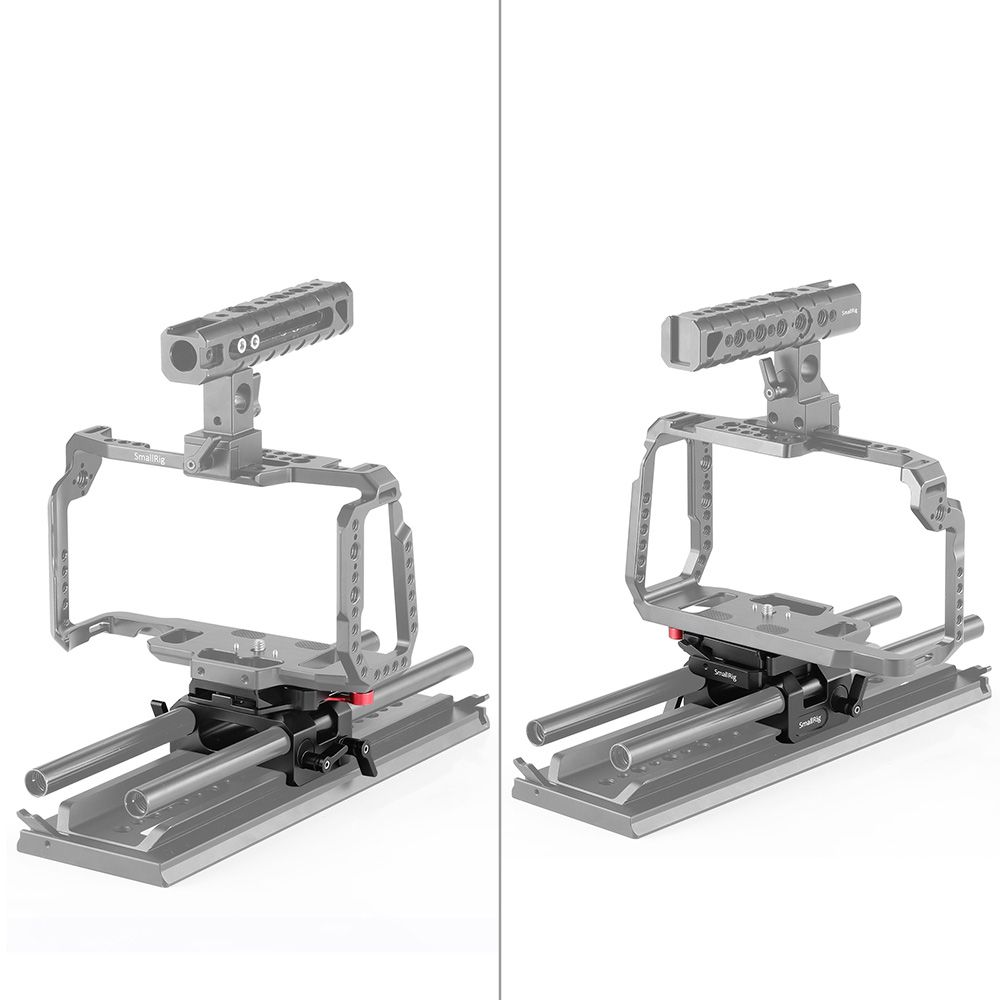

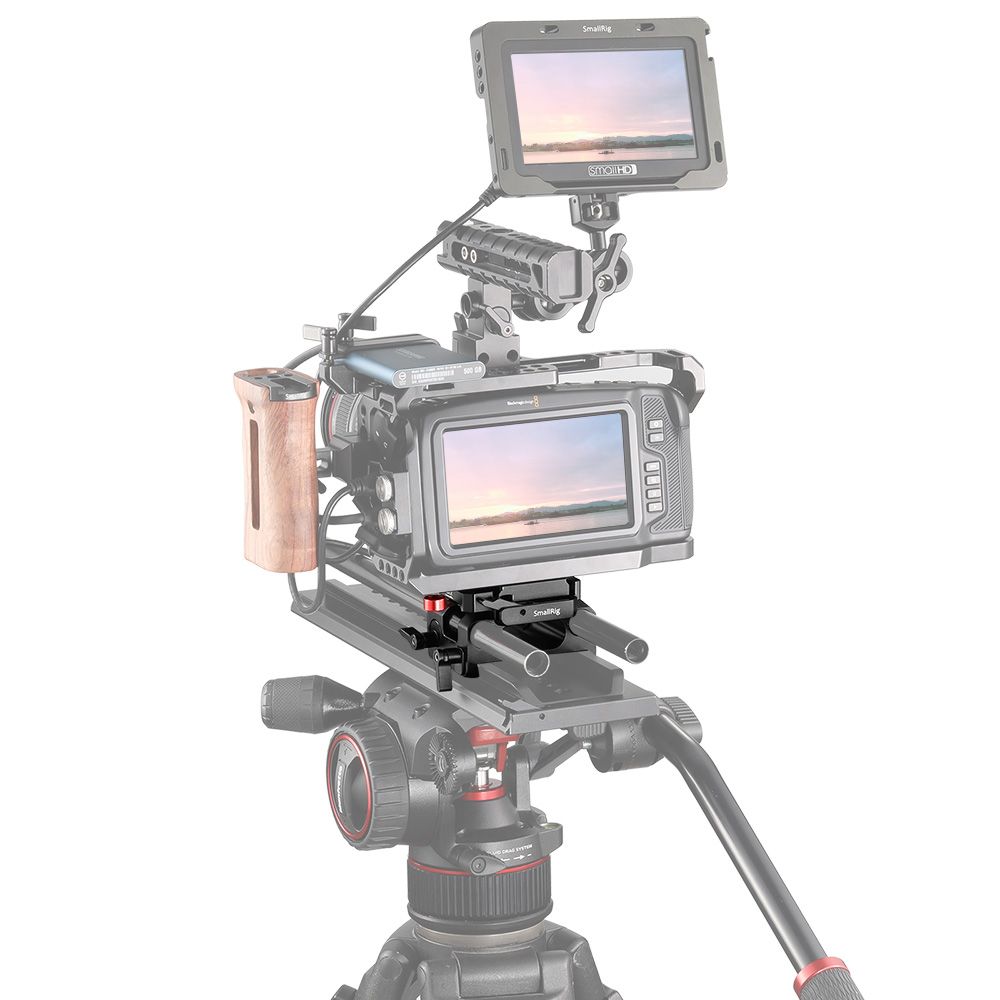

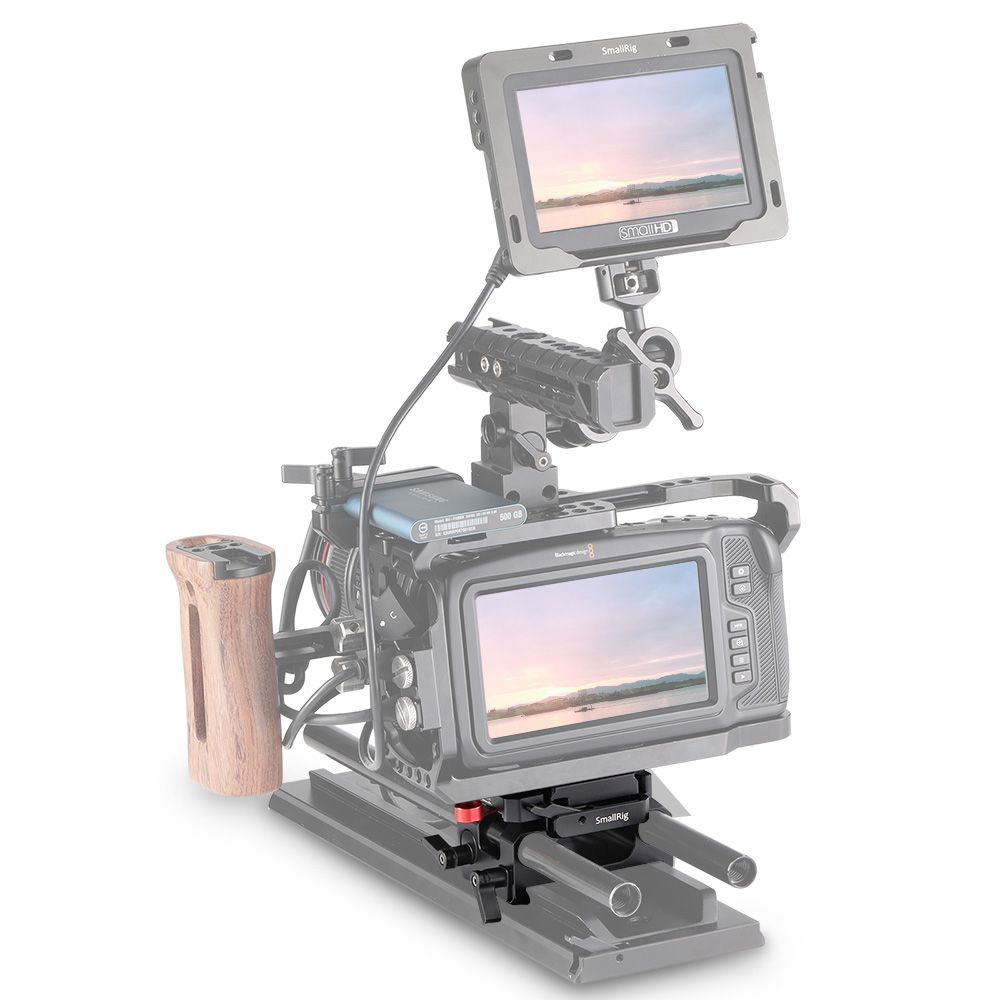

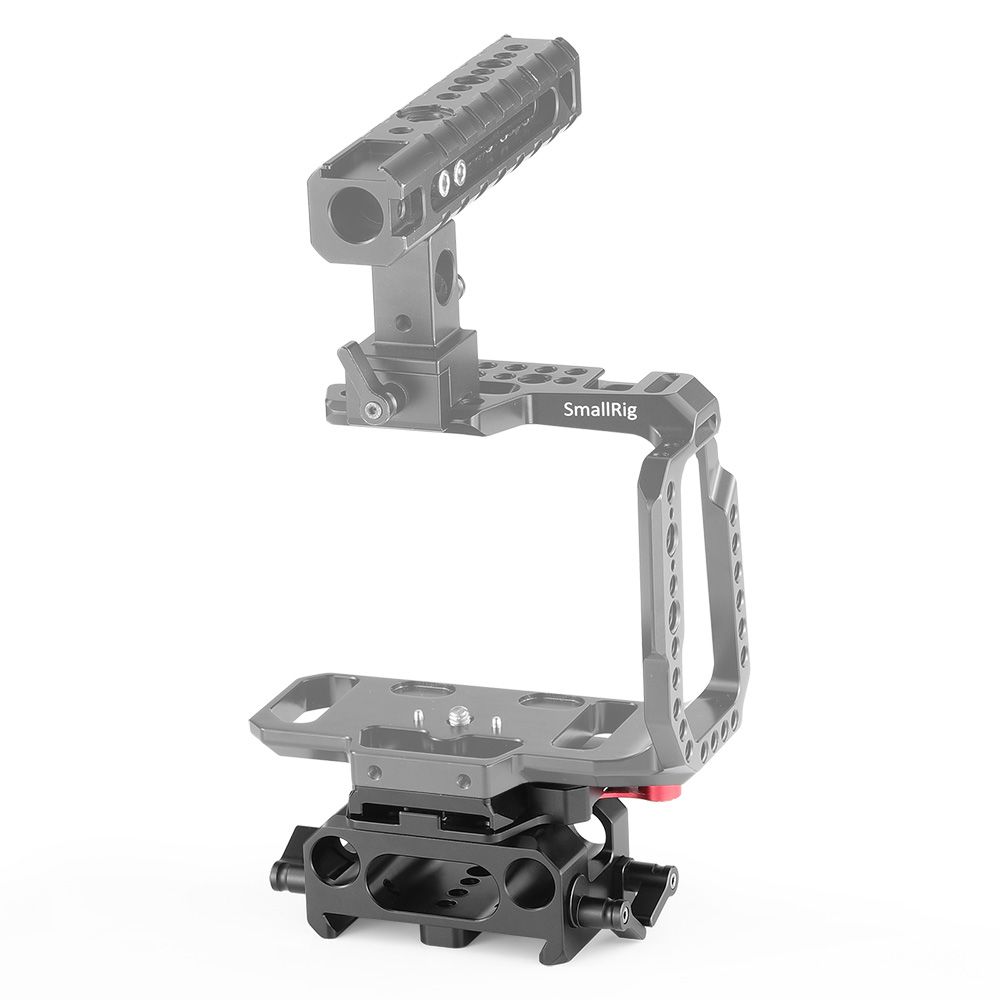

SmallRig Baseplate for Blackmagic Design Pocket Cinema Camera 4K & 6K (Manfrotto 501PL Compatible) DBM2266 is a dedicated baseplate that provides 15mm rail support at 85mm rod height. It is designed to work with SmallRig Cage 2203 and CVB225- On the top is Manfrotto compatible QR plate and receiver, where the cage can be quickly mounted. On the middle is 15mm rail clamp for SmallRig 15mm Rods 1053, where accessories like SmallRig Shoulder Pad Kit 2077, SmallRig Lens Support 2152, Matte Box, follow focus and SmallRig Shoulder Rig Handle Kit 998 can be attached. It comes with an integrated ARRI dovetail on the bottom which can directly mount to SmallRig ARRI Standard Dovetail Plate 146- Additionally, there are multiple 1/4 and 3/8 threaded holes on the bottom of the baseplate so other tripod plates could be attached.
IMPORTANT
SmallRig Baseplate for Blackmagic Design Pocket Cinema Camera 4K & 6K (Manfrotto 501PL Compatible) DBM2266 is a dedicated baseplate that provides 15mm rail support at 85mm rod height. It is designed to work with SmallRig Cage 2203 and CVB225- On the top is Manfrotto compatible QR plate and receiver, where the cage can be quickly mounted. On the middle is 15mm rail clamp for SmallRig 15mm Rods 1053, where accessories like SmallRig Shoulder Pad Kit 2077, SmallRig Lens Support 2152, Matte Box, follow focus and SmallRig Shoulder Rig Handle Kit 998 can be attached. It comes with an integrated ARRI dovetail on the bottom which can directly mount to SmallRig ARRI Standard Dovetail Plate 146- Additionally, there are multiple 1/4 and 3/8 threaded holes on the bottom of the baseplate so other tripod plates could be attached.
IMPORTANT
If you prefer Arca compatible quick release on the top, please take a look at SmallRig Baseplate DBC2261.
Designer: Yetta White
SPECIFICATIONS
Designer: Yetta White
SPECIFICATIONS

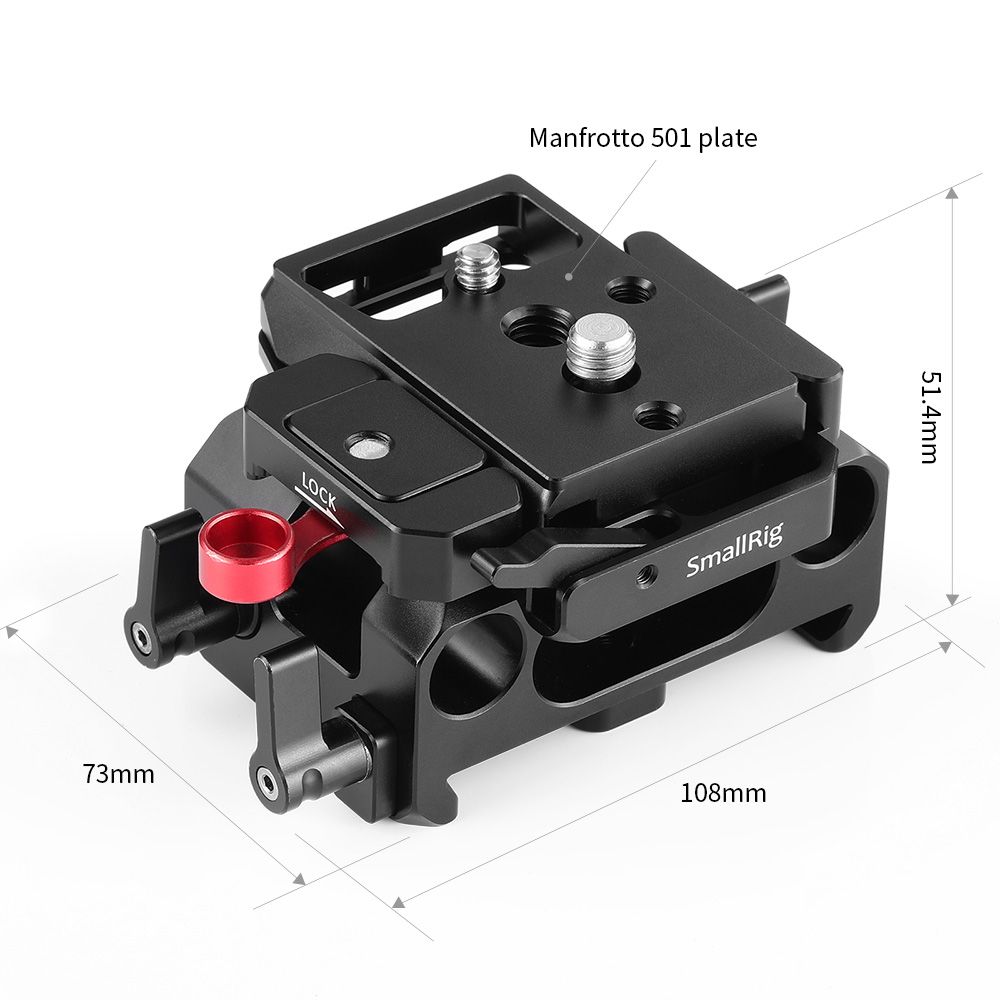

Product Dimensions: 108x 73x 51.5mm
Package Dimensions: 125x 108x 90mm
Net Weight: 321g
Package Weight: 388g
Material(s): Aluminum Alloy
COMPATIBILITY
COMPATIBILITY
Blackmagic Design Pocket Cinema Camera 4K & 6K
SmallRig cage 2203
SmallRig cage CVB2254
WHAT IS INCLUDED
WHAT IS INCLUDED

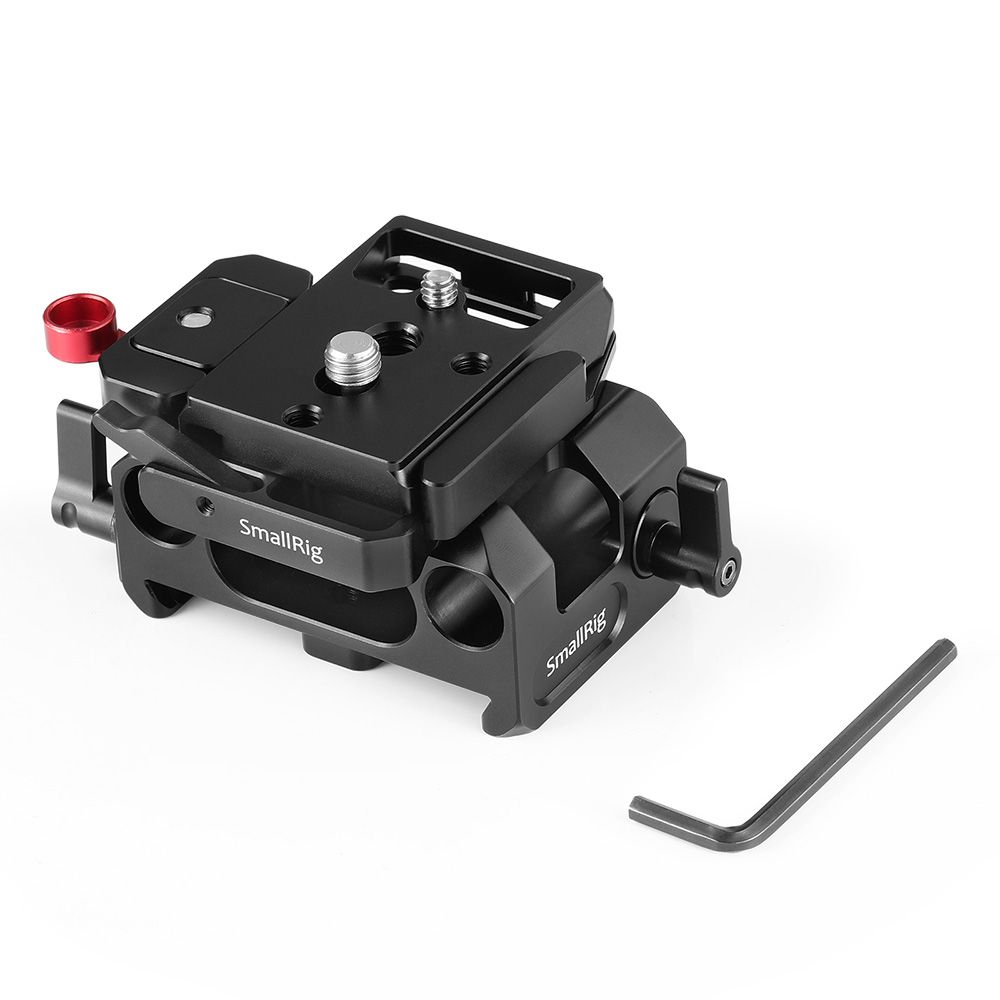

1x Baseplate
1x Hex Spanner
