Description
SMALLRIG CAGE FOR SIGMA FP2 6505
- Secure Fit: Helps protect the camera with a secure three-point locking design that resists twisting during use.
- Multiple Expansion Options: Features a wide range of mounting points for flexible accessory attachment.
- Built-In Wooden Grip: Combines a comfortable, secure hold with a premium look and feel.
- Precise Cutouts: Maintain convenient access to buttons, ports, and original accessories.
- HDMI Cable Clamp Included: Helps protect the port and maintain stable signal transmission during use.

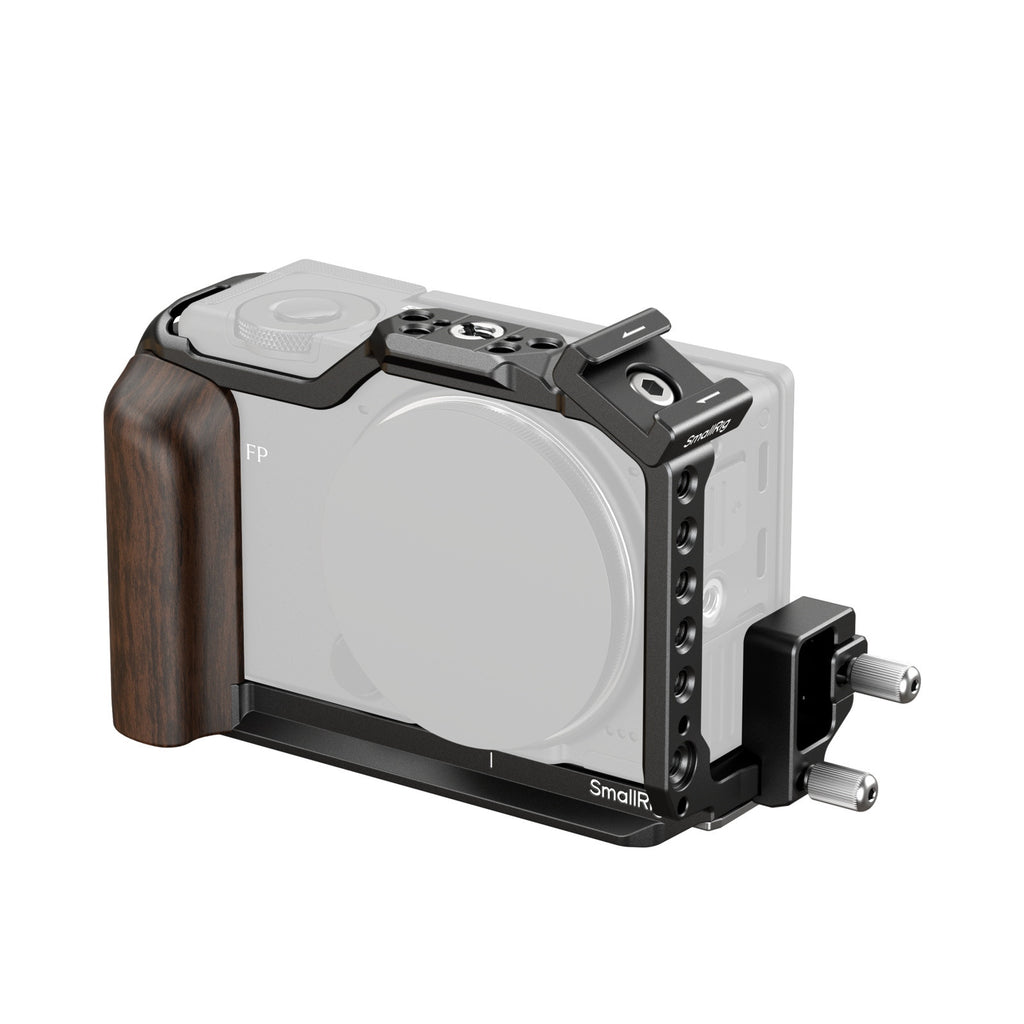

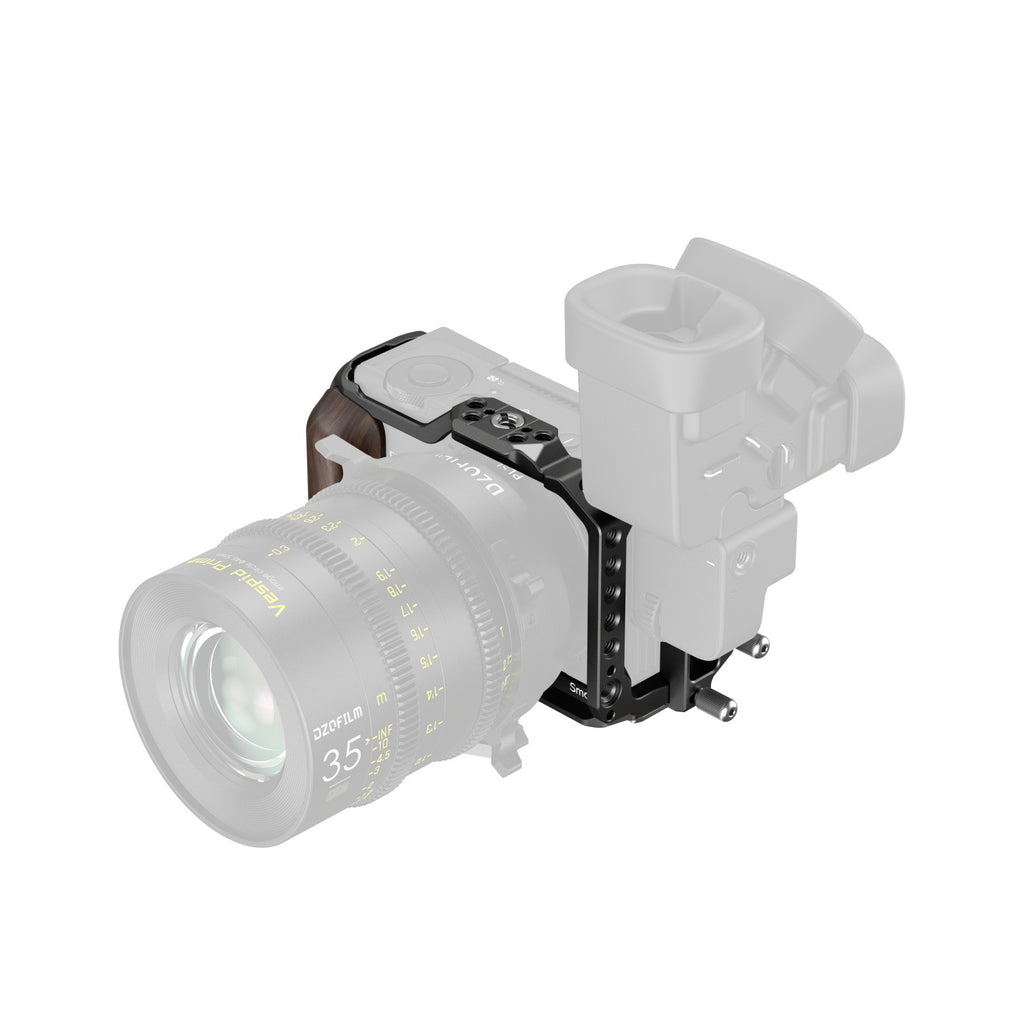

SmallRig Cage for Sigma FP2 6505 is designed to provide camera protection, improved handling, and multiple mounting options. It features a built-in ergonomic wooden grip for stable, comfortable handling during extended use. Precise cutouts maintain convenient access to the camera’s buttons, ports, and original accessories.

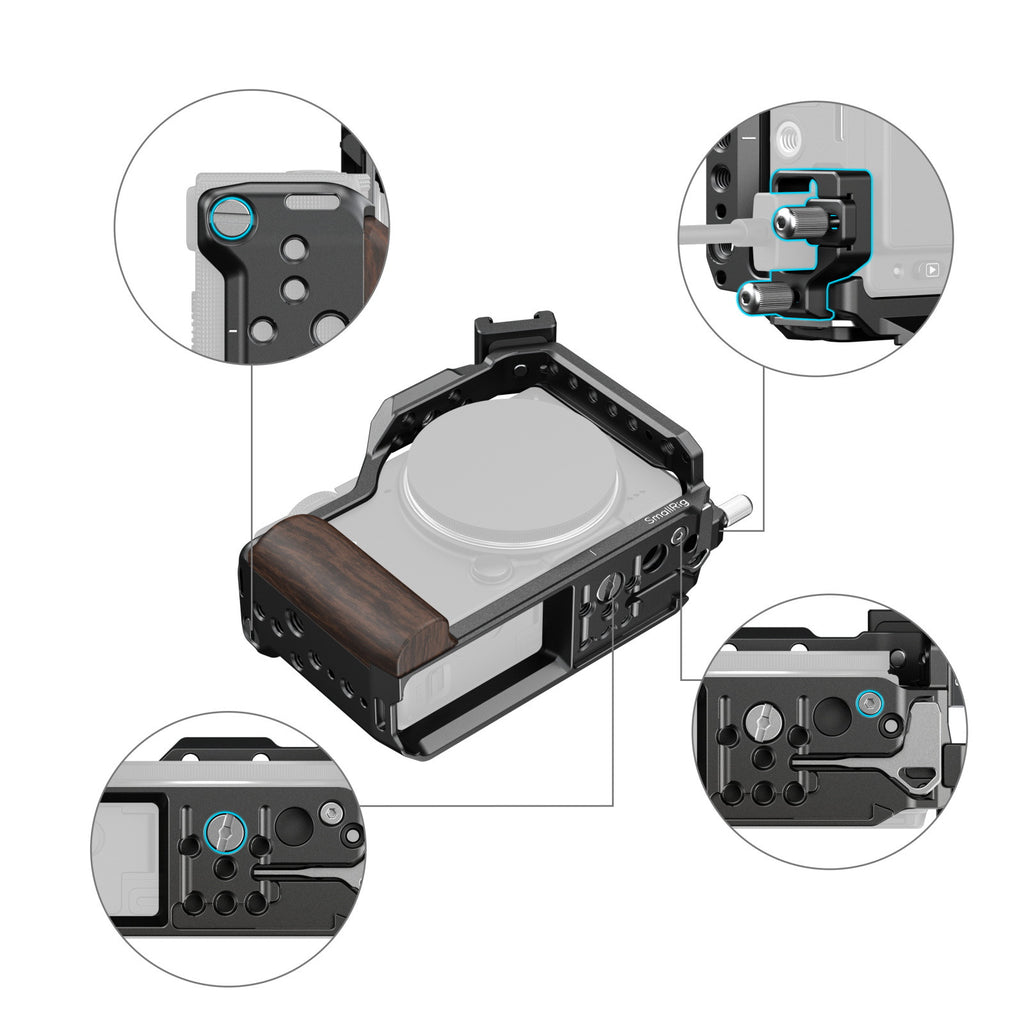

The cage secures the camera with one 1/4"-20 screw and one locating pin on the bottom, plus one 1/4"-20 screw on the right side, forming a three-point locking system that resists twisting during use. An clamp for HDMI cable is included to protect the port and maintain a stable signal, reducing interruptions caused by cable loosening.

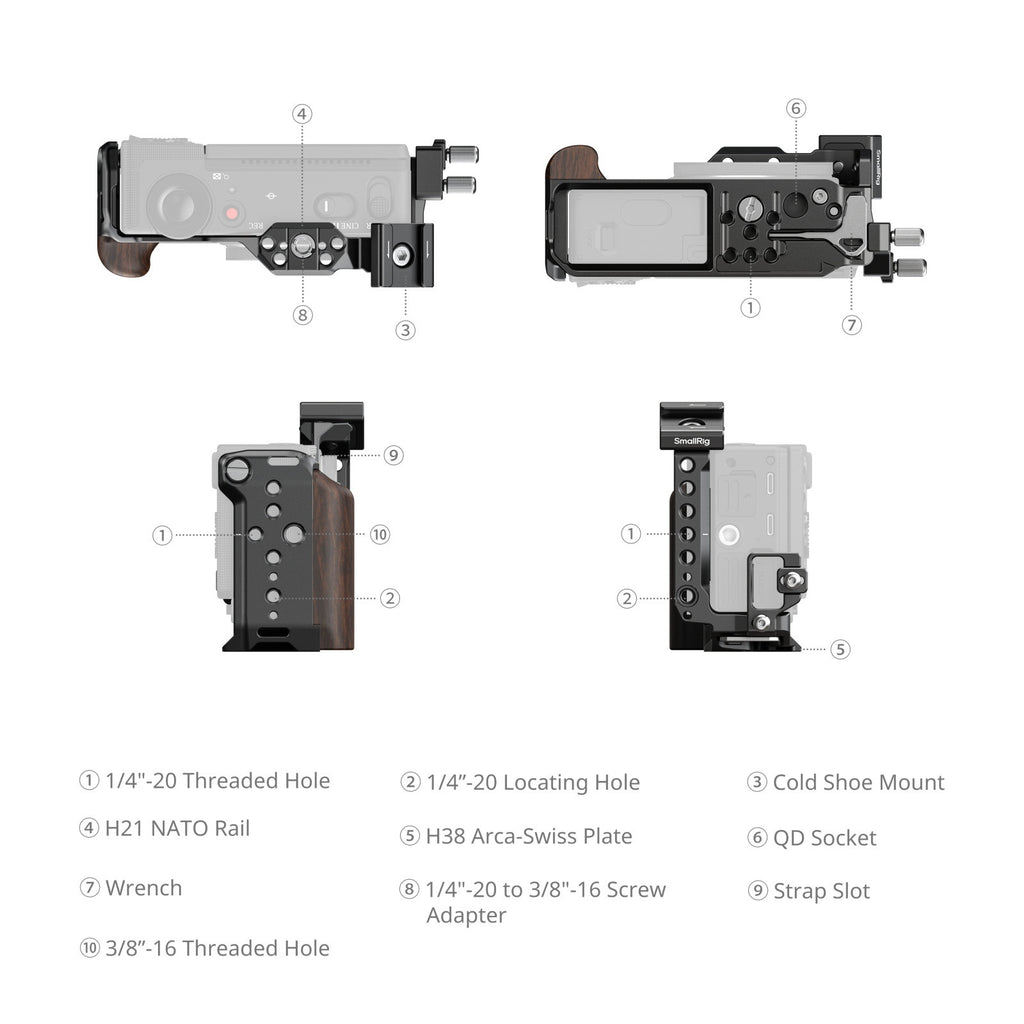

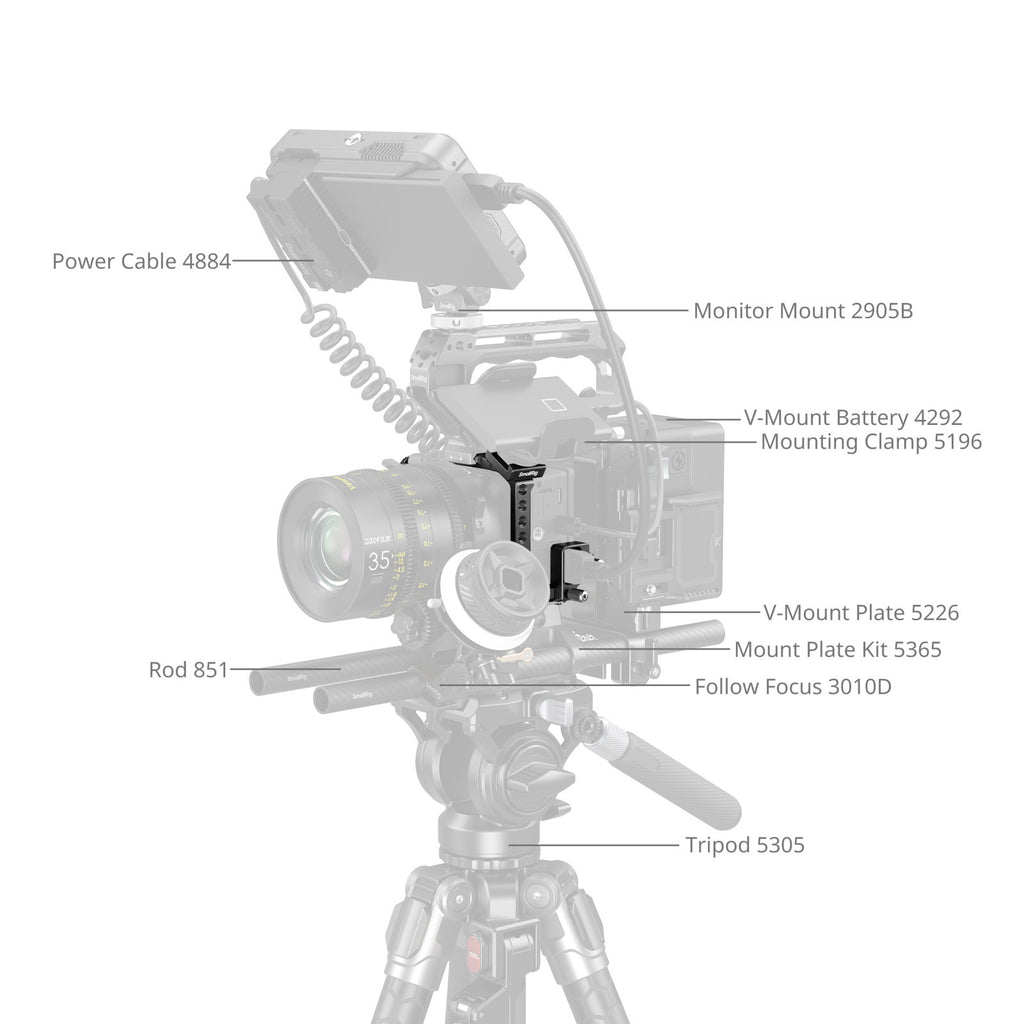

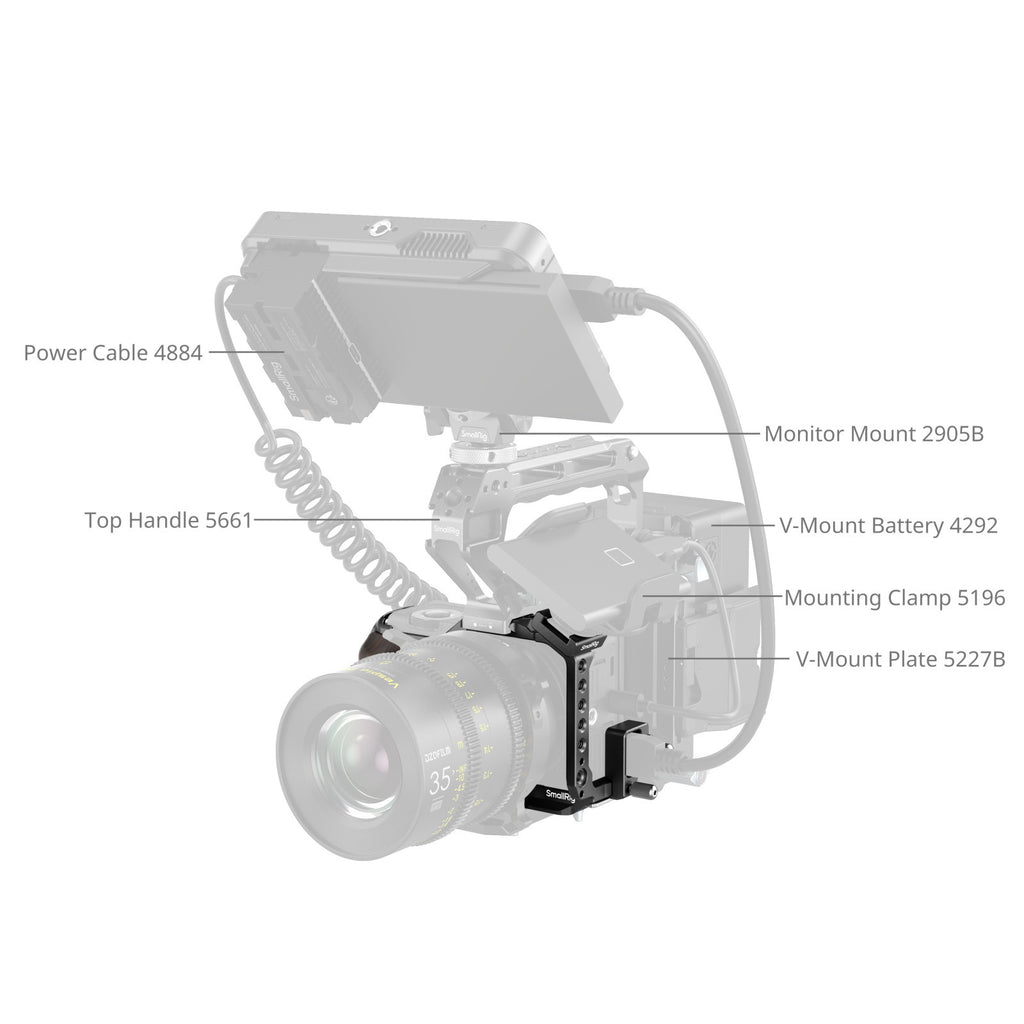

The cage features built-in 1/4"-20 threaded holes, 1/4"-20 locating holes, ARRI locating holes, a “HawkLock” NATO rail, a wrist strap slot, and a QD socket. It supports accessories such as the magic arm (ID 3873), monitor mount (ID 2903B), top handle (ID 5632), and QD shoulder strap (ID 4118B) for more flexible shooting setups.
The modular cold shoe mount can be installed to attach accessories such as the DJI Mic 2 and the LED light (ID 4660). When the cold shoe mount is removed, the cage remains compatible with the original electronic viewfinder.

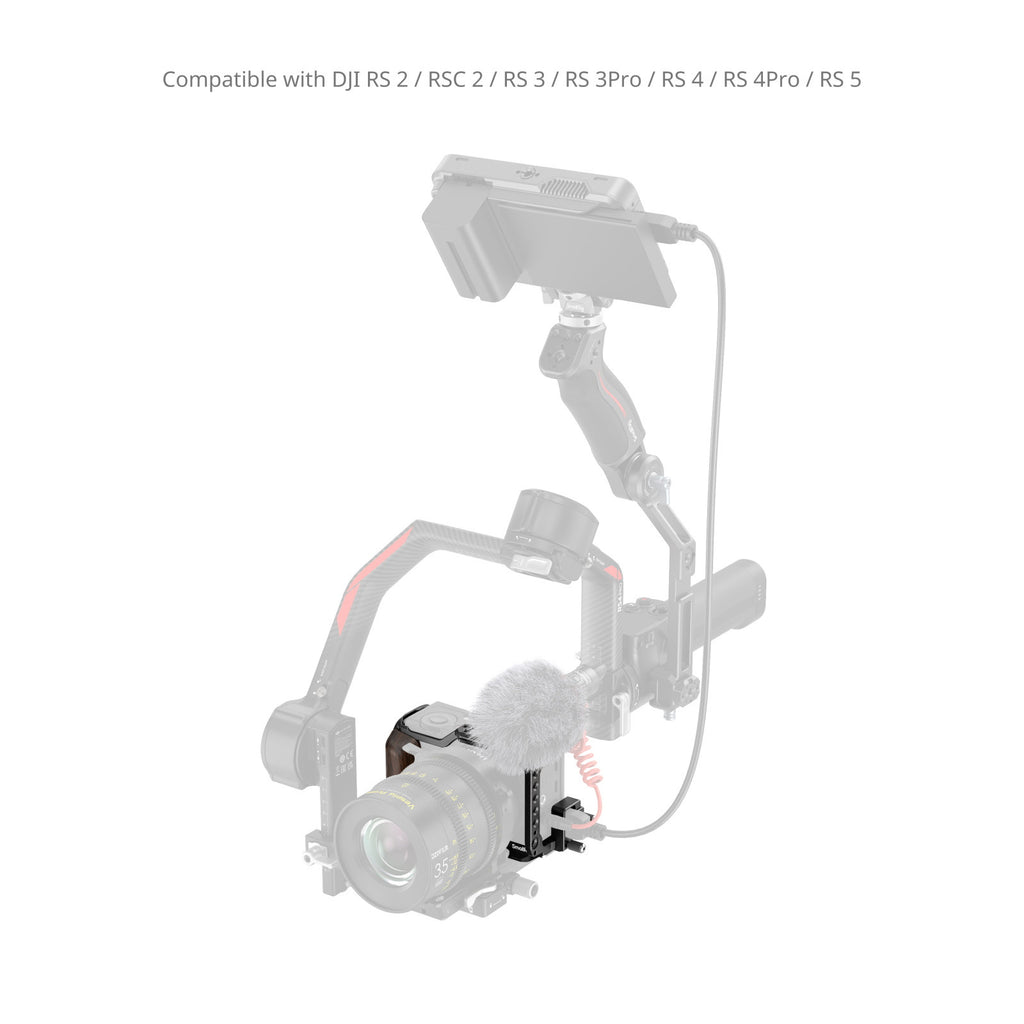

A built-in Arca-type quick release plate on the bottom allows direct mounting to compatible Arca-type tripod clamps (ID 5290 and 4222B), as well as DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro / RS 5 gimbals. This enables quick switching between Arca-type tripod systems and DJI RS series gimbals for more efficient shooting.
A magnetic wrench is integrated into the bottom for quick access and easier installation and removal.
SPECIFICATIONS

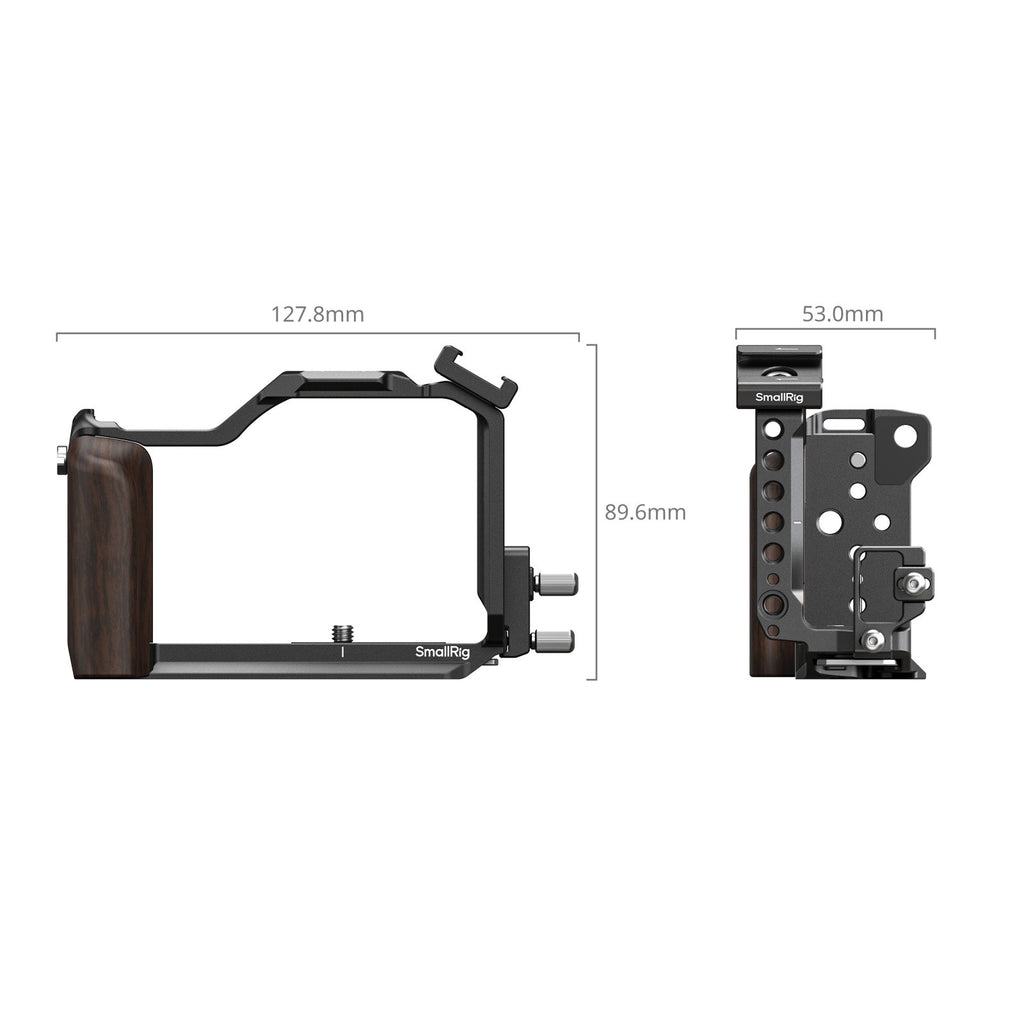

Product Dimensions: 127.8 × 53.0 × 89.6mm / 5.0 × 2.1 × 3.5in
Package Dimensions: 162.0 × 122.5 × 69.0mm / 6.4 × 4.8 × 2.7in
Product Weight: 174.0 ± 5.0g / 6.1 ± 0.2oz
Package Weight: 290.0 ± 5.0g / 10.2 ± 0.2oz
Material(s): Aluminum Alloy, Wood, Stainless Steel, Silicone
COMPATIBILITY
Sigma FP2

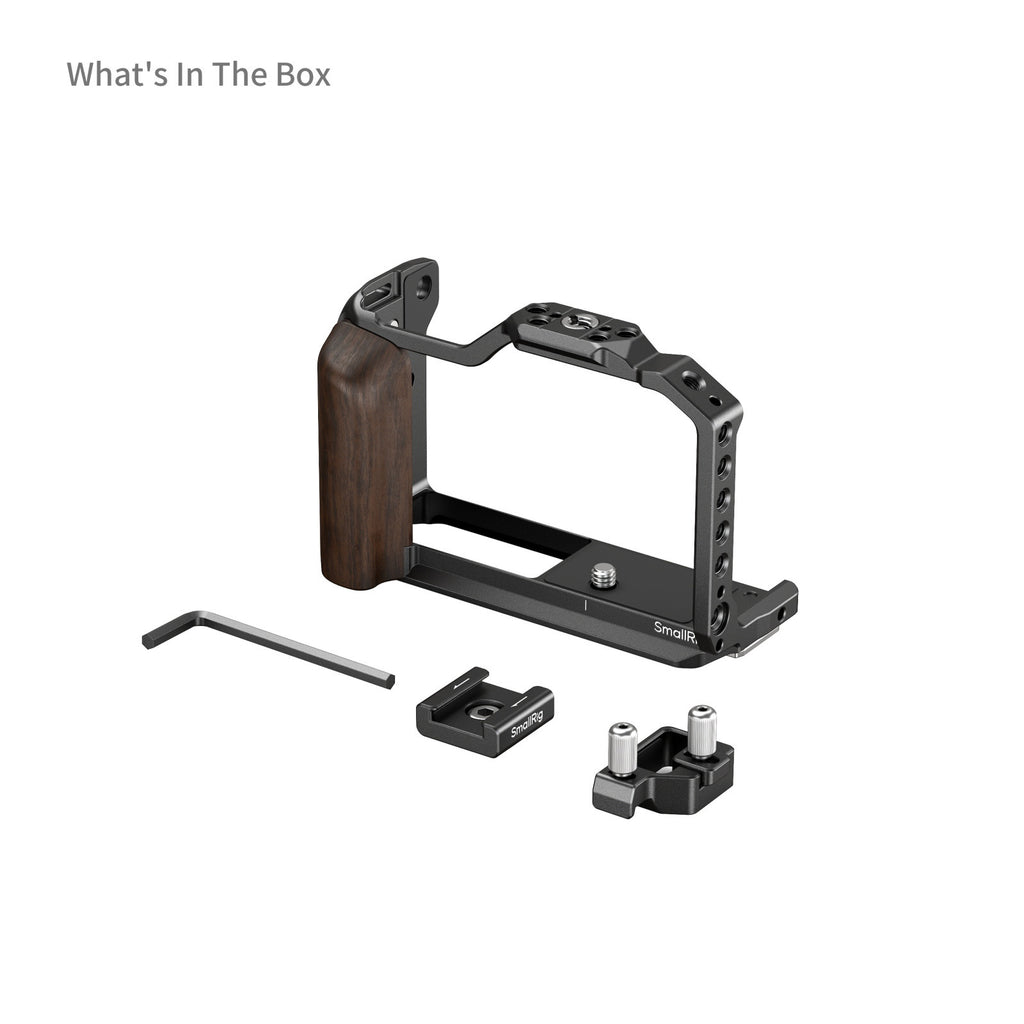

WHAT IS INCLUDED
1x Cage
1x Clamp for HDMI Cable
1x Cold Shoe Support
1x User Manual
