Description
SMALLRIG CAGE KIT FOR SONY ALPHA 7 V / 7R V / 7 IV 6025
- Portable Cage Kit with Top Handle: Facilitates effortless low-angle shooting.
- Unlimited Expansion: Accommodates handles, mics, monitor mounts, and other accessories. Built-in "HawkLock" NATO rail allows for quick attachment of "HawkLock" accessories such as side handles (ID 4485), top handles (ID 4483), and monitor mounts (ID 4487).
- Secure 3-Point Locking: Ensures secure camera mounting for stable footage.
- Integrated Arca-Swiss Quick Release Plate: Effortlessly switch between handheld, tripod, and gimbal setups (compatible with DJI RS 2 / RSC 2 / RS 3 Mini / RS 3 / RS 3 Pro / RS 4 Mini / RS 4 / RS 4 Pro).
- Included HDMI Cable Clamp: Secures cable connection for stable data transmission.

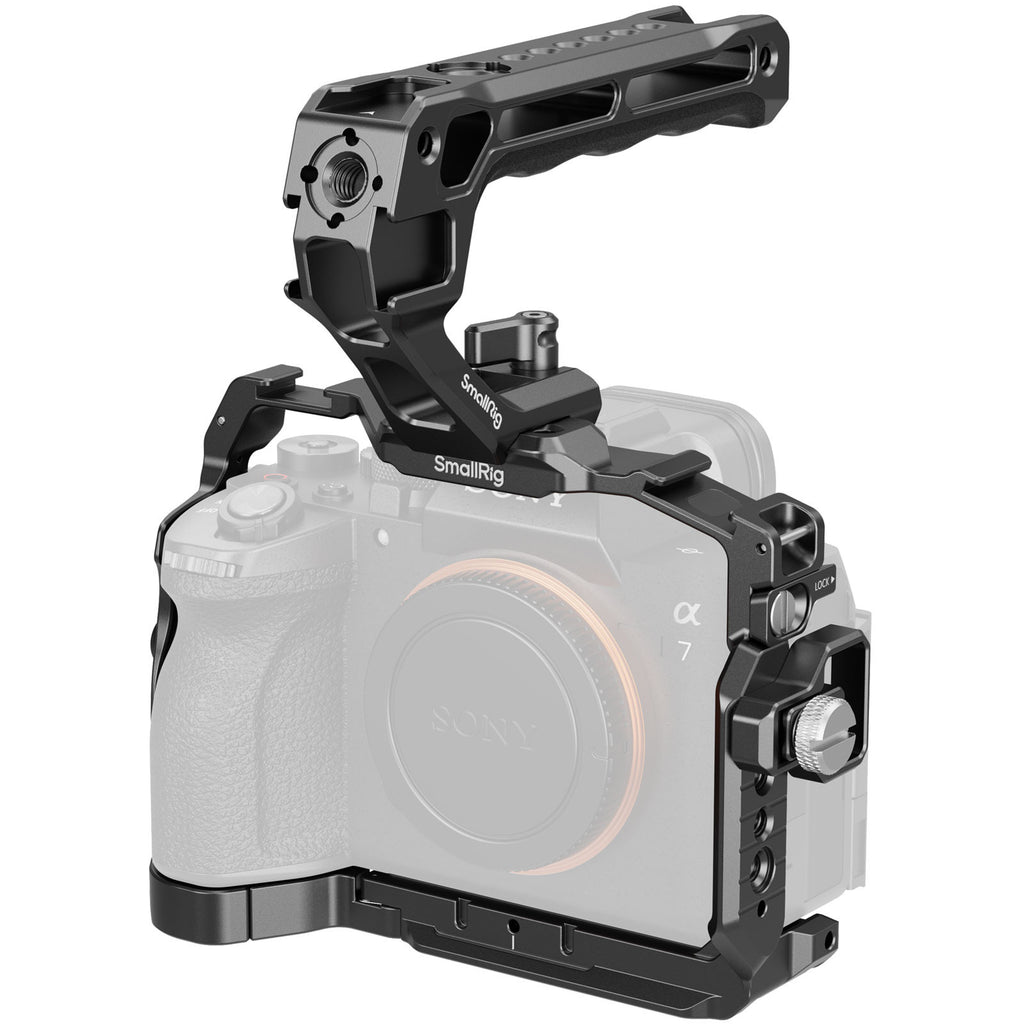

SmallRig Cage Kit for Sony Alpha 7 V / 7R V / 7 IV 6025 is expertly crafted to enhance your low-angle shooting experience while offering robust camera protection and versatile mounting options. This kit includes a cage, an HDMI cable clamp, and a top handle. The top handle provides a comfortable grip, facilitating easy transport, low-angle control, and fluid camera movement.
The cage utilizes a three-point locking system for secure mounting without deflection. Built-in pads offer comprehensive protection and prevent scratches, while precision cutouts provide unobstructed access to camera ports, dials, buttons, and the battery compartment.

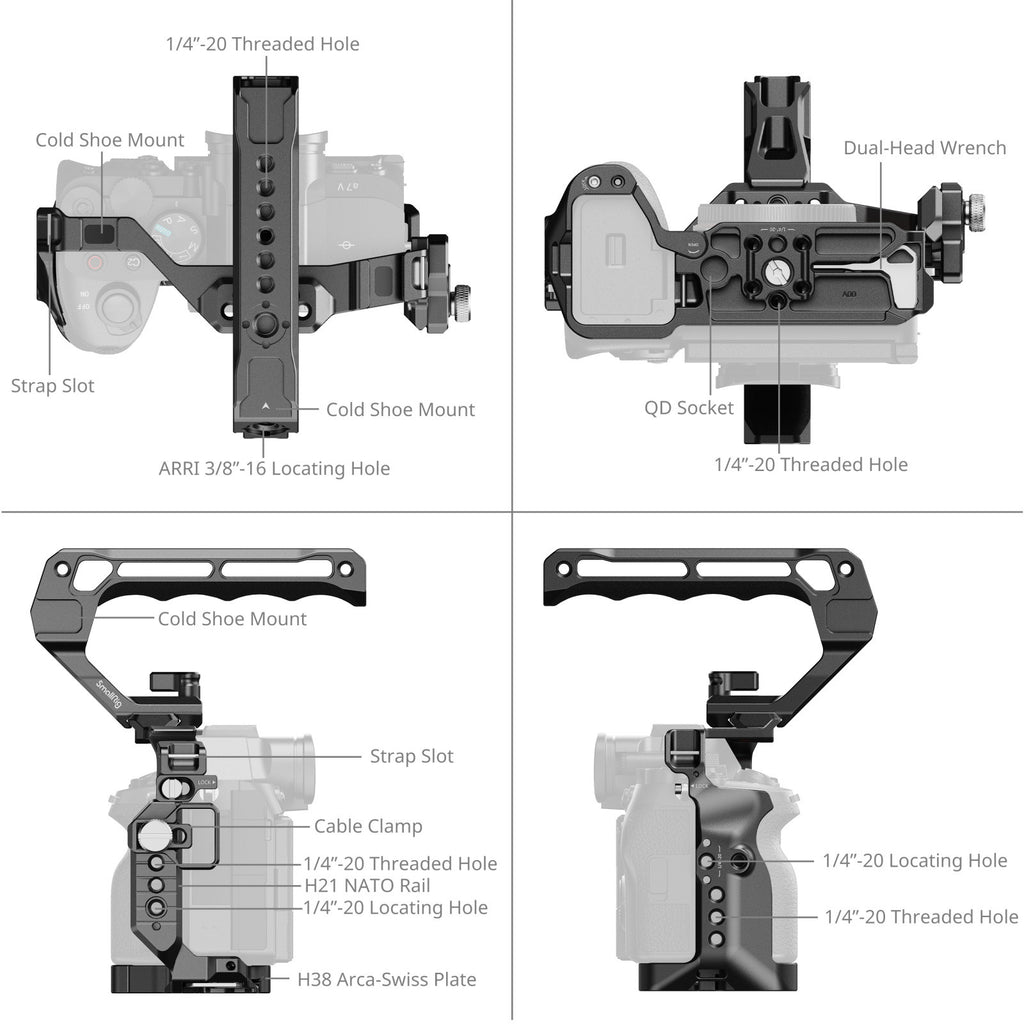

Multiple mounting points are incorporated, including 1/4"-20 threaded holes, ARRI 3/8"-16 locating holes, and a "HawkLock" NATO rail for quick attachment of accessories like side handles (ID 4485) and top handles (ID 4483). A built-in cold shoe mount allows for attaching devices like the DJI Mic 2 and lights, while a QD socket at the base accommodates shoulder straps for enhanced portability. The base is also equipped with a magnetic Allen wrench for easy assembly and disassembly.
Additionally, the bottom quick release plate, paired with the "HawkLock" H38 Arca-Swiss quick release mount plate (ID 4486), enables rapid slide-in attachment with an auto-locking mechanism. The integrated Arca-Swiss quick release plate at the bottom enables seamless transitions between handheld, tripod, and gimbal setups (compatible with Arca-type tripods and DJI RS 2 / RSC 2 / RS 3 Mini / RS 3 / RS 3 Pro / RS 4 Mini / RS 4 / RS 4 Pro stabilizers).
Furthermore, a hinged door at the battery compartment adds grip support for the little finger, while the included HDMI cable clamp secures the cable for stable data transmission.
IMPORTANT
1. After fastening the base 1/4"-20 screw, remove the anti-twist locating pins from the storage hole at the battery compartment and secure them in the designated position.
2. Before installing the HDMI cable clamp, open the camera’s HDMI port cover.
SPECIFICATIONS

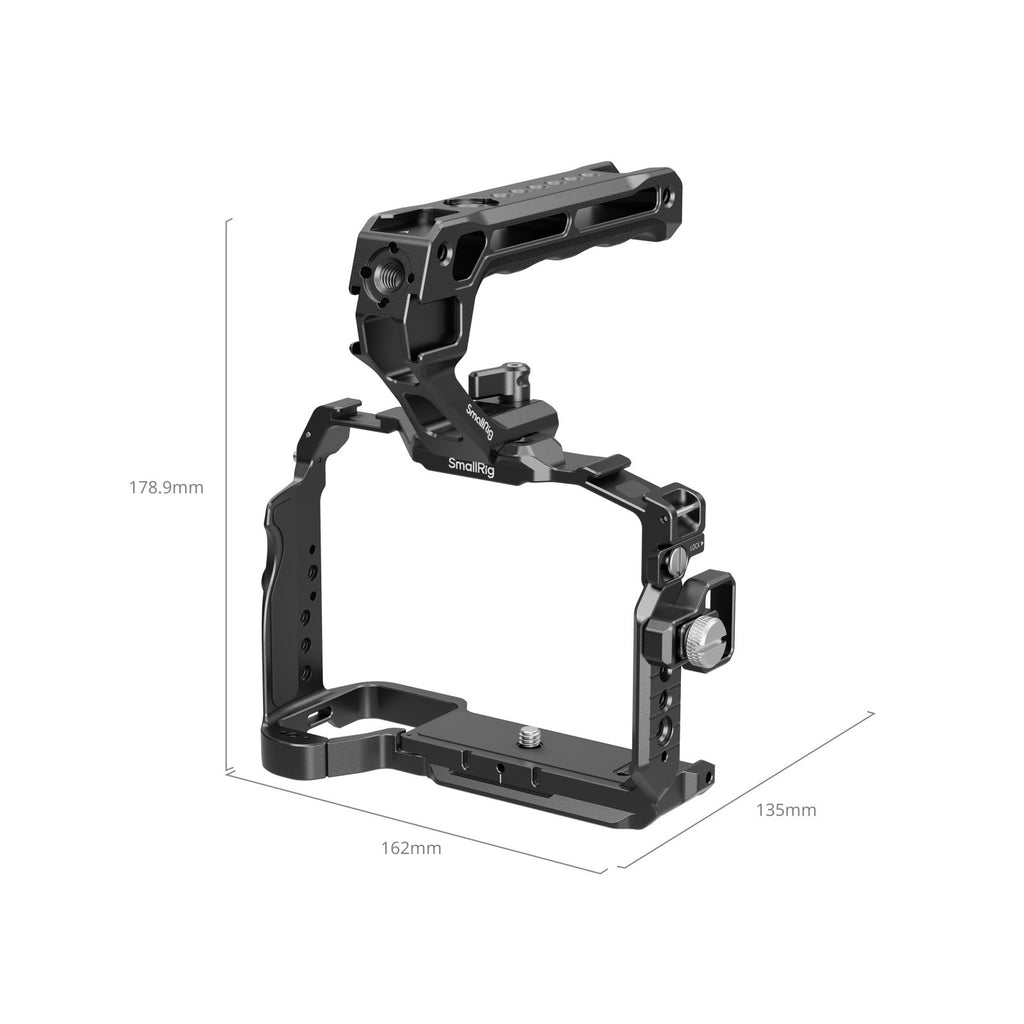

Product Dimensions: 162.0 × 135.0 × 178.9mm / 6.4 × 5.3 × 7.0in
Package Dimensions: 167.0 × 157.5 × 86.0mm / 6.6 × 6.2 × 3.4in
Product Weight: 305.0 ± 5.0g / 10.8 ± 0.2oz
Package Weight: 434.0 ± 5.0g / 15.3 ± 0.2oz
Material(s): Aluminum Alloy, Stainless Steel, Silicone
COMPATIBILITY
Sony Alpha 7 V / 7R V / 7 IV

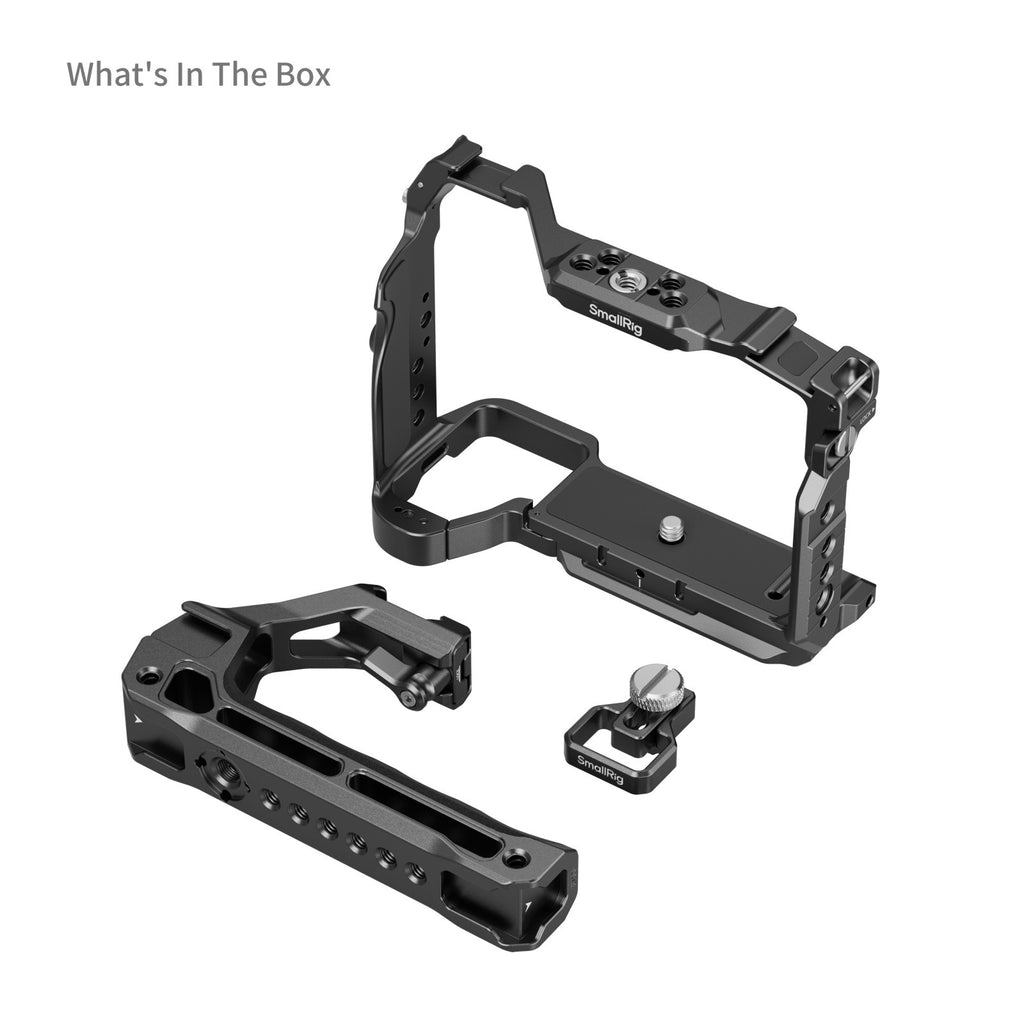

WHAT IS INCLUDED
1x Cage
1x Top Handle
1x HDMI Cable Clamp
1x Operating Instruction
1x Guarantee Card
