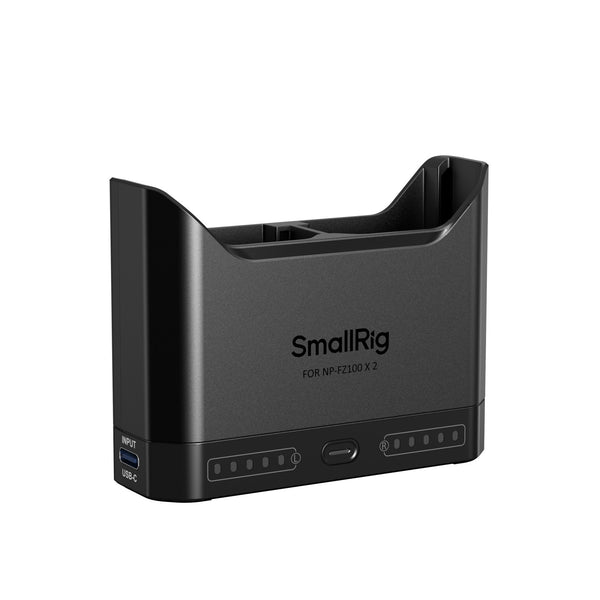

SMALLRIG CAMERA BATTERY CHARGER FOR NP-FZ100 5489
- Full Compatibility: Compatible with Sony NP-FZ100 batteries, capable of charging both original and third-party batteries.
- Efficient Dual Charging: Dual-slot design allows for simultaneous charging of two batteries or single-battery charging, fully charging two batteries in approximately 2 hours for optimal efficiency.
- Clear Power Indicators: Each charging channel features 5 LED lights that provide real-time battery level and charging status at a glance.
- Versatile Charging Options: Equipped with a USB-C fast-charging port (22.5W), compatible with wall adapters, car chargers, and power banks for convenient charging anywhere.
- Smart Safety Protection: Built-in over-temperature and over-voltage protections automatically slow down or halt charging when necessary to ensure battery safety and longevity.
SmallRig Camera Battery Charger for NP-FZ100 5489 guarantees full compatibility with Sony NP-FZ100 batteries and is capable of charging both original and third-party batteries.
The charger’s dual-slot design allows for simultaneous charging of two batteries or single-battery charging, fully charging two batteries in approximately 2 hours for optimal efficiency.
Intelligent circuitry offers multiple safety protections, including over-temperature and over-voltage safeguards. It monitors temperature and voltage, automatically slowing down charging during overheating, cutting off power in case of overvoltage, and employing trickle charging near full capacity to preserve battery health.
Each charging channel features five LED indicators that display power levels in 20% increments, even without external power. A red warning light activates when battery levels are critically low. Additionally, the charger incorporates a universal USB-C input port and comes with a fast-charging cable, making it compatible with wall adapters, car chargers, and power banks for versatile charging options.
Certifications: FCC, CE, RoHS, ISED, RCM
IMPORTANT
1. Recommended to use a power adapter with 22.5W or higher output.
2. Not compatible with 5V / 1A power adapters.
3. When using a 5V / 2.4A adapter, the charger operates in slow-charge mode, prioritizing the charging of the battery in Channel 1 first. It automatically switches to Channel 2 once Channel 1 is fully charged.
Buttons / Indicator Lights
Function
Power Display Button
Press to check battery level
Battery Indicator
Idle Mode
(Battery level display when not charging)
0-10%: 1 red LED (steady)
10-20%: 1 white LED
20-40%: 2 white LEDs
40-60%: 3 white LEDs
60-80%: 4 white LEDs
80-100%: 5 white LEDs
Charging Mode
White LEDs flash to show current charge level; steady white LEDs indicate fully charged level
Error Mode
First LED of both channels flash red and white alternately if overheated (auto-resumes when temperature returns to safe range)
SPECIFICATIONS
Product Dimensions: 83.2 x 63.9 x 26.8mm / 3.3 x 2.5 x 1.1in
Package Dimensions: 120.0 x 102.5 x 43.0mm / 4.7 x 4.0 x 1.7in
Product Weight: 45 ± 5g / 1.8 ± 0.2oz
Package Weight: 122 ± 10g / 4.3 ± 0.4oz
Material(s): PC + ABS
USB-C Input: 5V / 2.4A, 9V / 2A, 12V / 1.75A, 15V / 1.5A; 22.5W (Max)
USB-C Protocol: PD3.0, QC2.0, QC3.0
Rated Output (Per Channel): 8.4V / 1A
Operating Temperature: 0°C to 45°C / 32°F to 113°F
COMPATIBILITY
Compatible with Sony NP-FZ100 batteries, capable of charging both OEM and third-party batteries
WHAT IS INCLUDED
1x Camera Battery Charger for NP-FZ100
1x 60W USB-C to USB-C Cable (1m / 3.3ft)
