Description
SMALLRIG CAMERA BATTERY FOR NP-F970 5729
- Extreme Cold Weather Operation: Engineered to discharge at temperatures as low as -40°C, providing reliable power without the need for external heating solutions.
- High-Capacity Battery: With a rated capacity of 7500mAh, this battery delivers extended operational time.

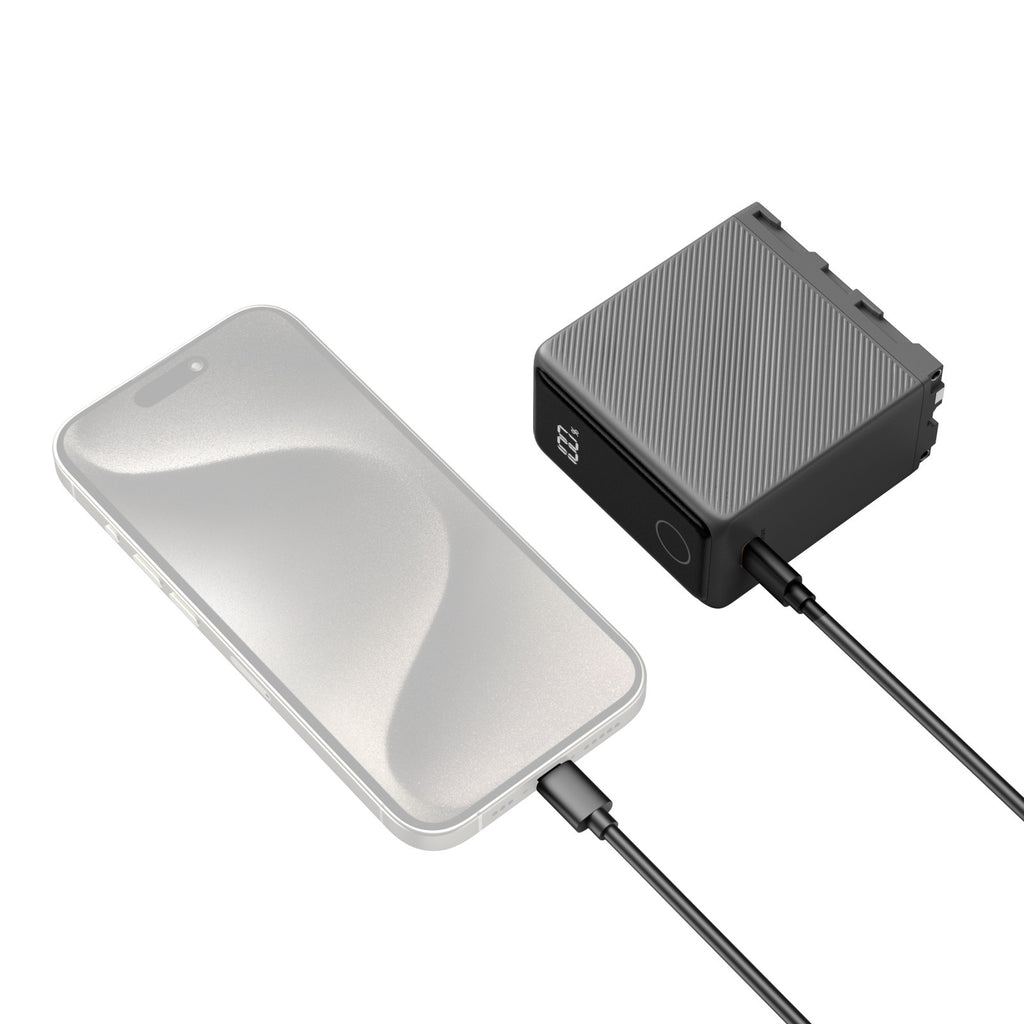

- Dual-Port Power Bank Functionality: Features both USB-C (input/output) and USB-A (output) ports, allowing the unit to charge external devices like smartphones and tablets.
- USB-C PD Fast Charging: The USB-C port supports 36W PD input, enabling a full recharge of the battery in 2 hours.
- Independent Circuitry: The USB-A and USB-C output circuits operate independently, allowing simultaneous fast charging of two devices (total combined output not to exceed 54W).

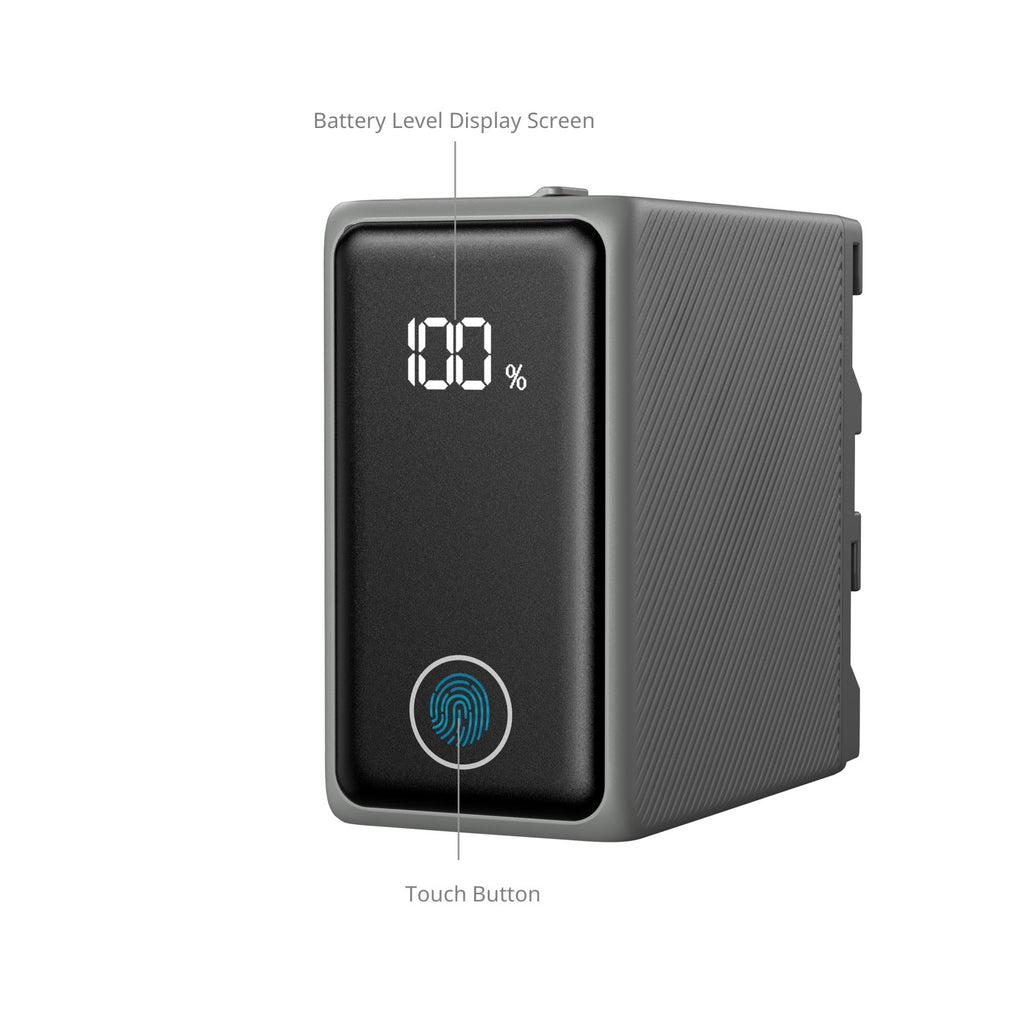

- Smart Display & Touch Control: Equipped with touch buttons and an OLED screen display for precise, real-time monitoring of remaining battery percentage.
- Modern Aesthetic: Boasts a sleek, minimalist design available in multiple trendy color options, blending a premium look with a distinct tech-inspired style.
- Built-in Safety & Durability: Utilizes high-quality battery cells and an integrated intelligent management system with comprehensive circuit protection for enhanced safety and long-term durability.

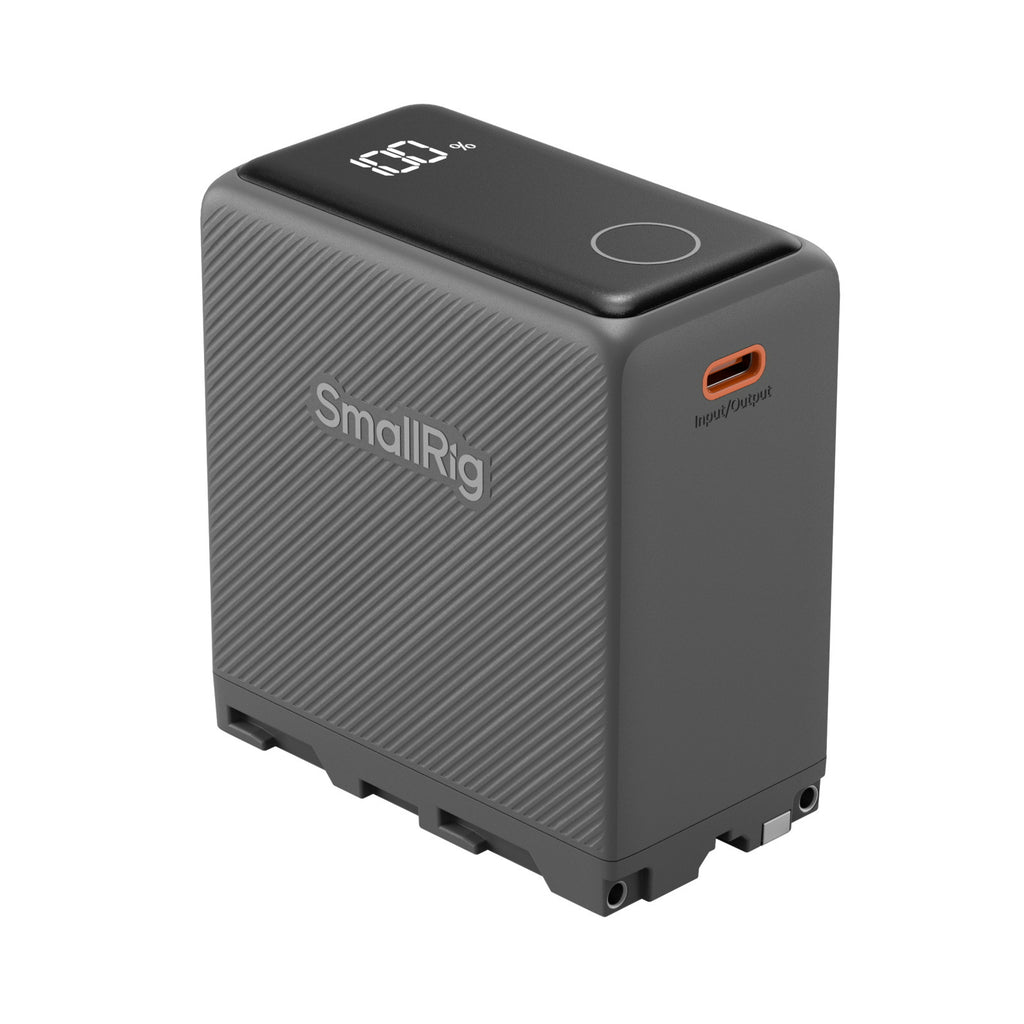

SmallRig Camera Battery for NP-F970 5729 is a low-temperature-resistant, high-capacity, high-performance, and intelligent USB-C direct-charge battery. With a rated capacity of 7500mAh (55.5Wh), it provides extended runtime to meet the power demands of prolonged shooting sessions, while supporting reliable discharge in temperatures as low as -40°C.

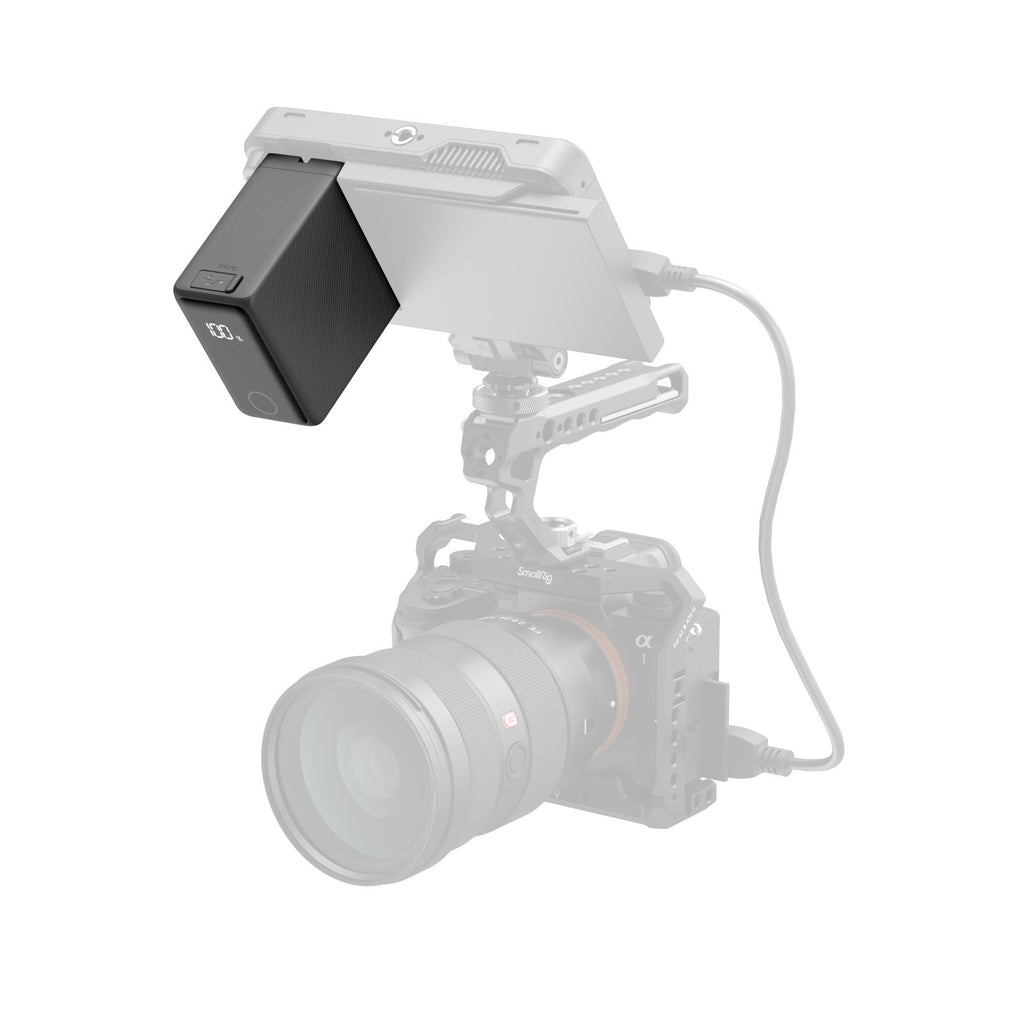

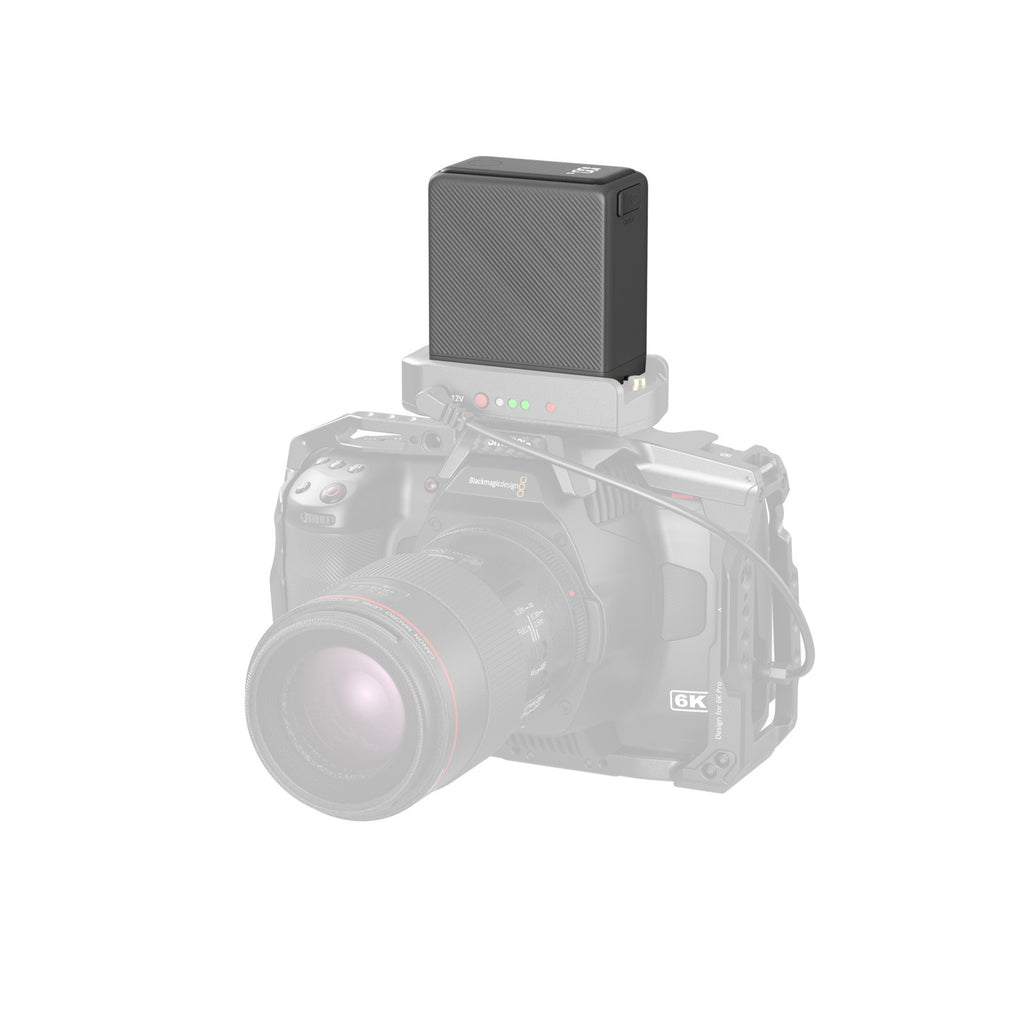

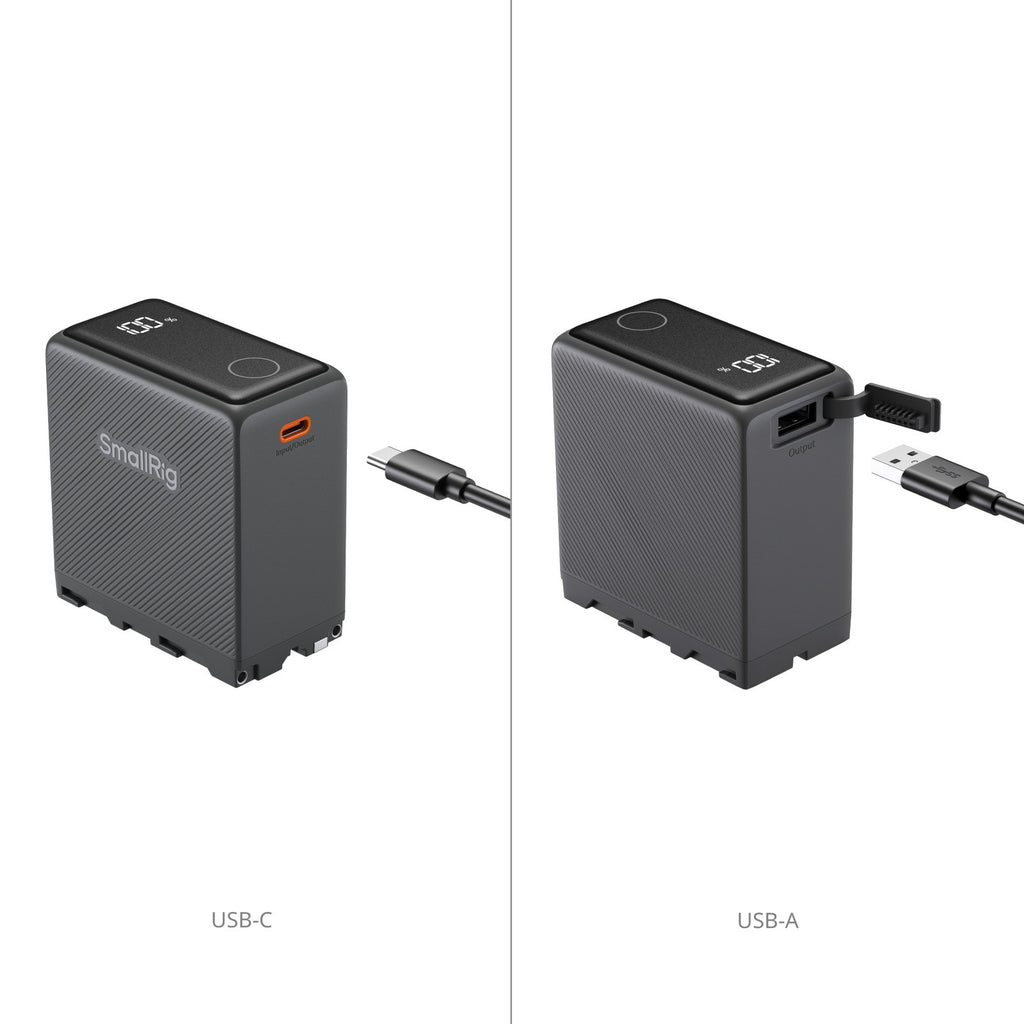

The main port on the base powers a wide range of equipment, including cameras, LED lights, monitors, and motorized sliders. It is also equipped with one USB-C (input/output) port and one USB-A output port (Max 27W) for charging devices like smartphones and tablets. The USB-C port supports 36W Power Delivery fast charging, enabling the battery to be fully recharged in only 2 hours. The USB-C and USB-A ports utilize independent circuitry, allowing for simultaneous high-speed charging of two devices.
Additionally, the battery features touch buttons and a screen display for precise, real-time monitoring of remaining battery percentage. Its design incorporates modern, tech-inspired aesthetics with a multi-color selection for a distinctive and professional appearance. Built with high-quality battery cells and an advanced intelligent management system, it includes comprehensive circuit protection for enhanced safety, durability, and reliable performance in diverse shooting conditions.
Certifications:
SmallRig USB-C Rechargeable Camera Battery for NP-F970 5729
Available in: Europe, UK, USA, Canada, Australia
Certifications: FCC / CE / ISED / RCM
SmallRig F970-LT Power Bank for NP-F970 5729AC
Available in: China
Certifications: CCC
IMPORTANT
Press four times consecutively to disable USB-C and USB-A ports (entering sleep mode); Single press or replug to wake the ports ( Sleep / wake function is intended for emergency recovery only when the battery becomes unresponsive, and is not designed for regular user operation).
OLED Display Screen: While charging: a lightning icon is shown, and the units digit of the battery percentage flashes; When a load is connected to USB-C or USB-A port: the battery level is displayed for 3 seconds; When battery level is below 10%: the percentage blinks for 3 seconds.
SPECIFICATIONS

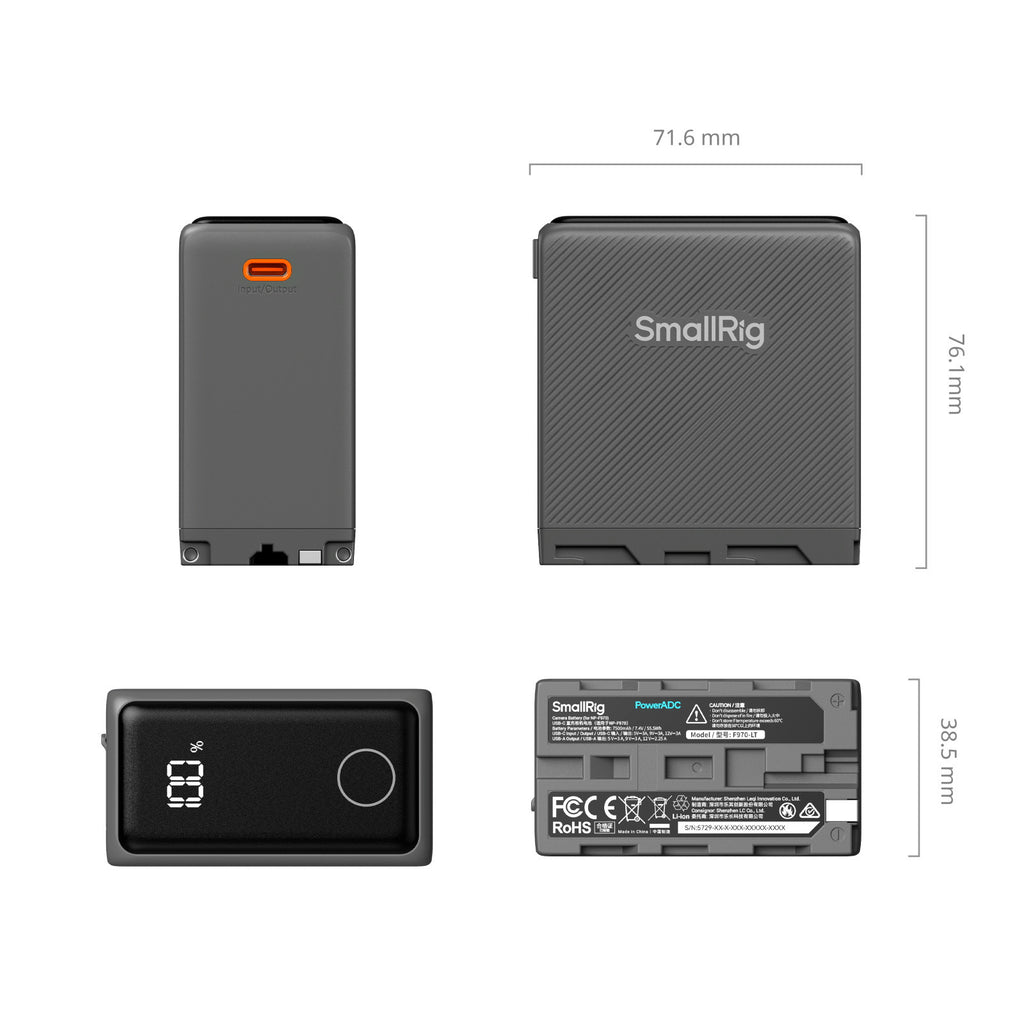

Product Dimensions: 76.2 × 71.6 × 38.6mm / 3.0 × 2.8 × 1.5in
Package Dimensions: 118.0 × 116.0 × 54.0mm / 4.7 × 4.6 × 2.1in
Product Weight (including cable and cover): 387.0 ± 10.0g / 13.7 ± 0.4oz
Package Weight: 540.0 ± 10.0g / 19.1 ± 0.4oz
Battery Type: Lithium-Ion Battery
Battery Capacity Parameters: 7500mAh / 7.4V / 55.5Wh
Charging Voltage: 8.4V
Nominal Voltage: 7.3V
USB-C Input / Output: 5V / 3A, 9V / 3A, 12V / 3A
USB-C Protocols: PD3.0 / QC3.0 / QC2.0 / FCP / AFC / PPS
USB-A Output: 5V / 3A, 9V / 3A, 12V / 2.25A
USB-A Protocols: QC3.0 / QC2.0 / FCP / AFC
USB-C Overcurrent Protection: ≥3.5A
USB-A Overcurrent Protection: 5V / 9V≥3.5A; 12V≥2.6A
Max Discharge Current (Main Port): 10A
Over-discharge Protection Threshold (Main Port): 11A
Discharge Cut-off Voltage: 5.2V
Operating Temperature: Charging: 0℃ to 45℃ / 32°F to 113°F
Discharging: -40℃ to 45℃ / -40°F to 113°F
Battery Weight: 372.0 ± 10.0g / 13.1 ± 0.4oz
Housing Material(s): PC + ABS
Product Dimensions: 76.2 × 71.6 × 38.6mm / 3.0 × 2.8 × 1.5in
Button Function: When not charging: single press to show remaining battery percentage;
Press four times consecutively to disable USB-C and USB-A ports (entering sleep mode); Single press or replug to wake the ports (Note: Sleep / wake function is intended for emergency recovery only when the battery becomes unresponsive, and is not designed for regular user operation).
OLED Display Screen: While charging: a lightning icon is shown, and the units digit of the battery percentage flashes; When a load is connected to USB-C or USB-A port: the battery level is displayed for 3 seconds; When battery level is below 10%: the percentage blinks for 3 seconds.
COMPATIBILITY

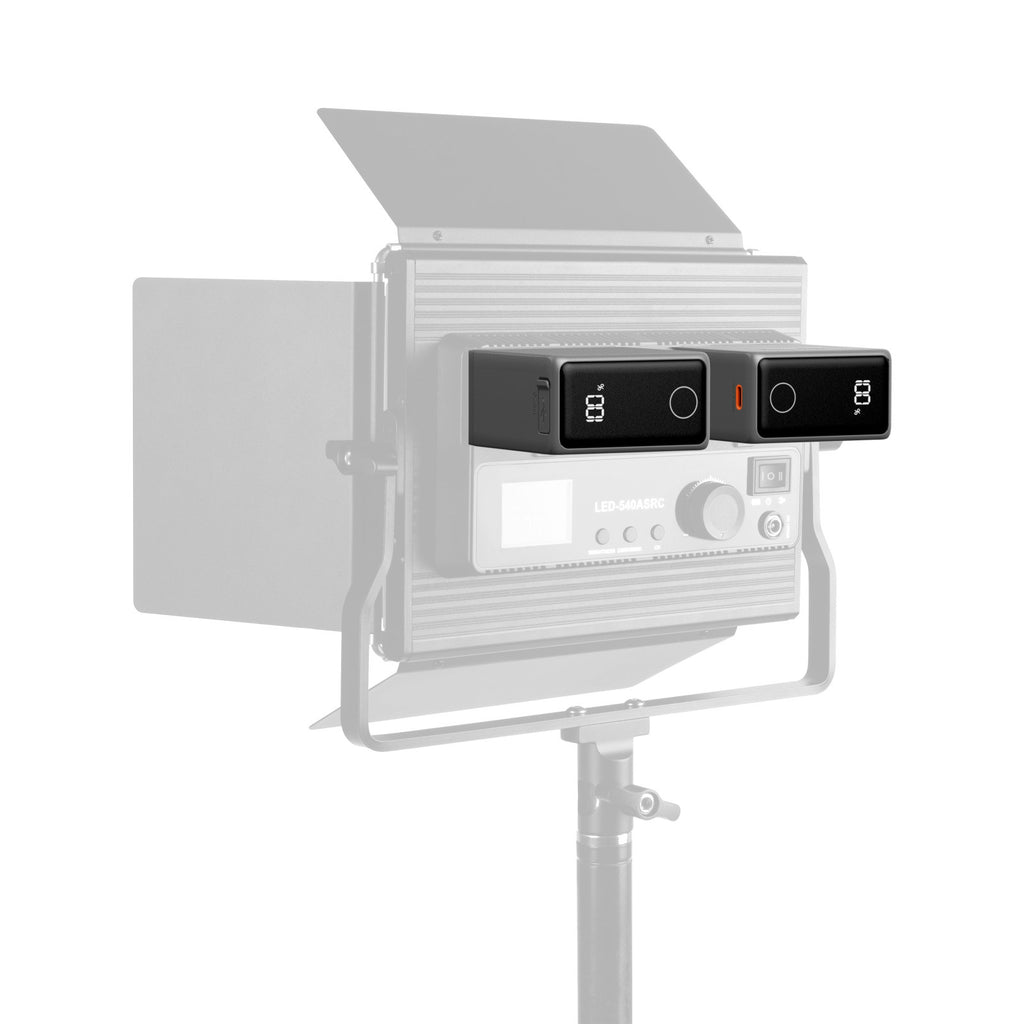

Cameras, LED video lights, monitors, motorized sliders, etc.

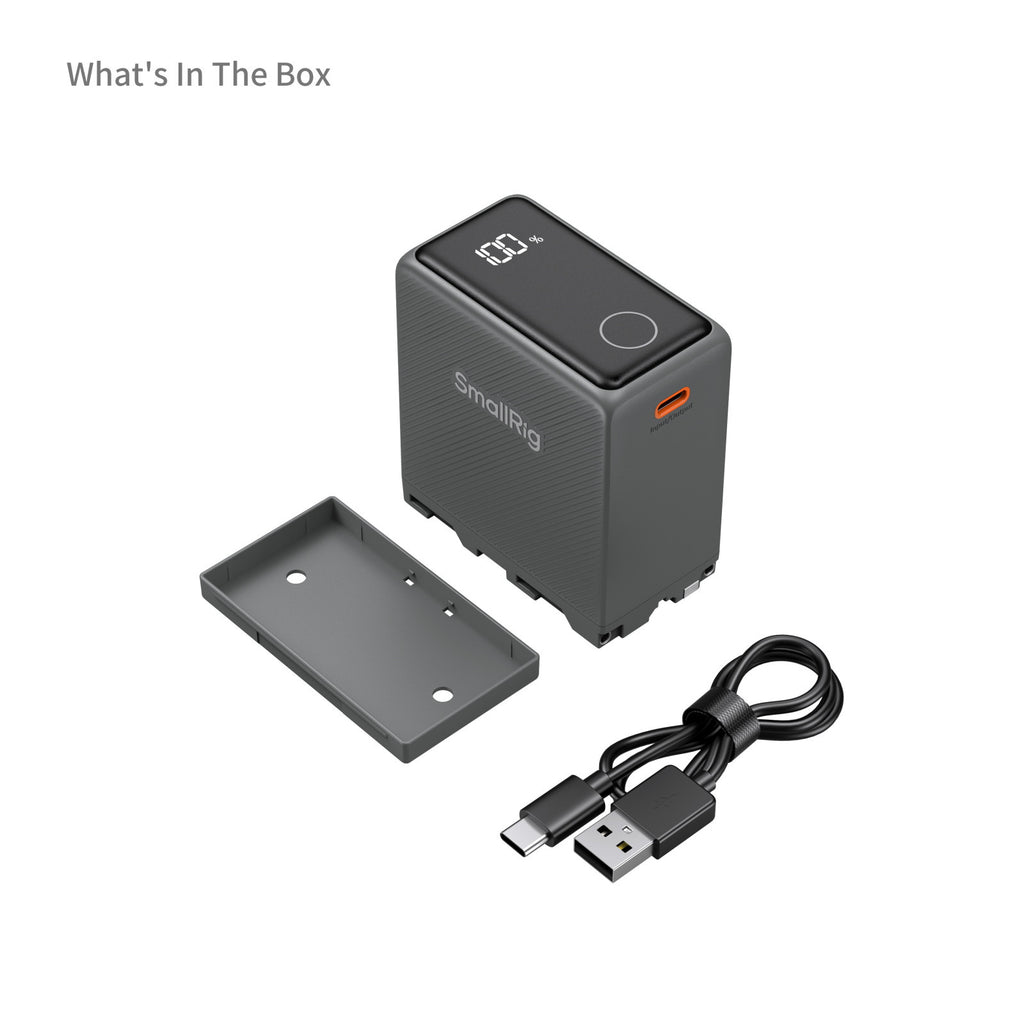

WHAT IS INCLUDED
1x F970-LT Power Bank
1x Battery Cover
1x USB-C to USB-C Charging Cable
1x Operating Instruction
1x User Manual
1x Guarantee Card
