Description

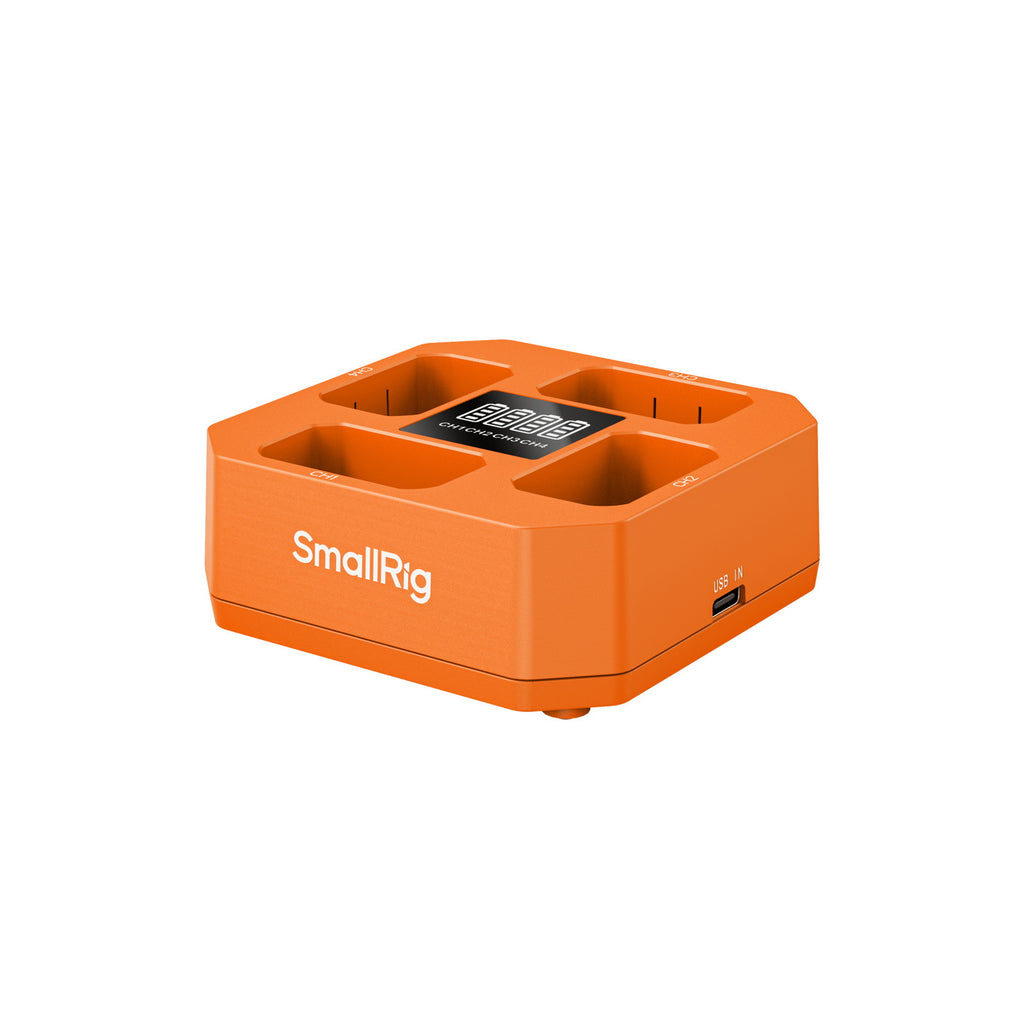

SMALLRIG FOUR-CHANNEL CAMERA BATTERY CHARGER FOR NP-FW50 5749
- 4-Channel Fast Charging: With 45W PD protocol input, this charger significantly boosts efficiency—fully charging 4 batteries in just 2 hours—keeping your devices ready at all times.

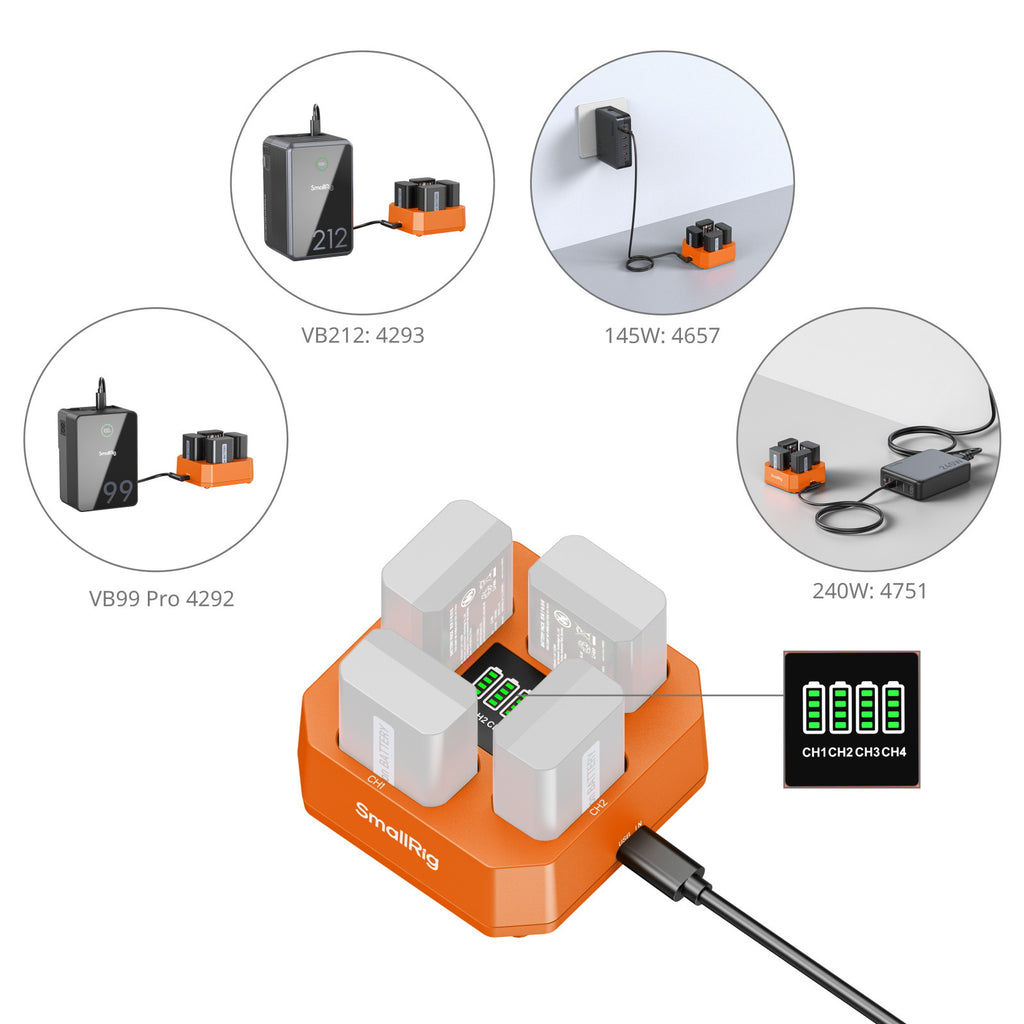

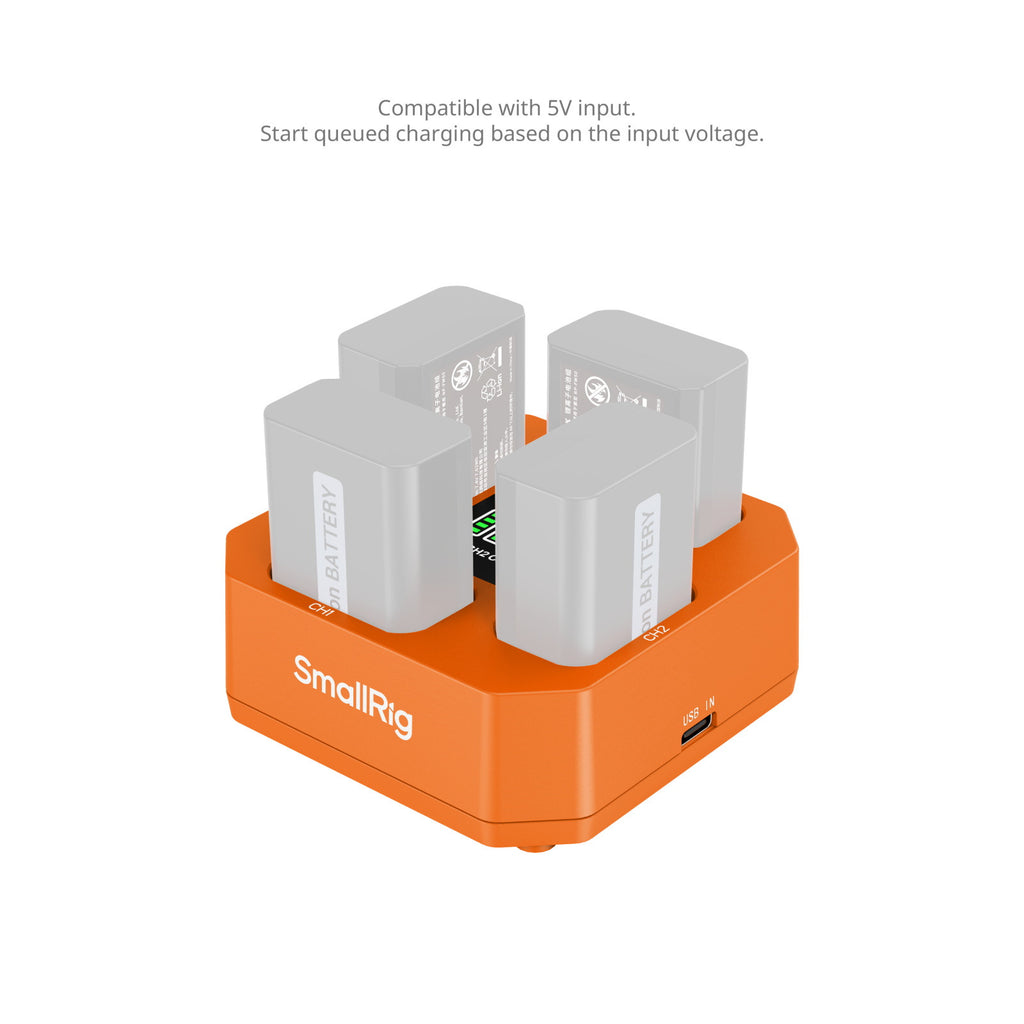

- Universal Protocol Compatibility: Supports 5V, 9V, 12V, and 15V inputs, including 5V/1A adapters. Smart queued charging activates based on voltage: 5V⎓1A activates 1 channel; 5V⎓2A activates 2 channels; 9V activates 3 channels; and 12V-15V can charge 4 channels simultaneously.
- Comprehensive Safety Protection: Each output port features short-circuit and overcurrent protection, ensuring safe and dependable charging.
- Compact and Portable Design: Lightweight and portable, this charger is ideal for both travel and daily use—your ultimate charging companion.
SmallRig Four-Channel Camera Battery Charger for NP-FW50 5749 is a high-efficiency, high-power charger designed for NP-FW50 batteries. With a 24W max input and full protocol compatibility (including 5V/1A adapters), it intelligently queues charging based on the adapter’s power.
The four dedicated channels allow for simultaneous charging of four NP-FW50 batteries, delivering efficient fast charging to meet demanding shooting schedules.
Each output port is equipped with short-circuit and overcurrent protection, ensuring safe operation at all times.
Its compact and portable design makes it ideal for both travel and daily use, providing reliable battery charging wherever you go.
Charging Time:
Battery Capacity: 1030mAh (e.g., ID 4965, 4330, 4330AC)
Full Charge: 4 batteries in 2 hours
IMPORTANT
It is recommended to use a USB-C power adapter supporting Power Delivery (PD) with an output of 27W or higher for optimal performance.
Certifications: Quality Inspection Report / FCC / CE / KC / RCM / ISED
SPECIFICATIONS
Product Dimensions: 78.0 × 78.0 × 31.0mm / 3.1 × 3.1 × 1.2in
Package Dimensions: 87.0 × 119.0 × 38.0mm / 3.4 × 4.7 × 1.5in
Product Weight: 97.0 ± 5.0g / 3.4 ± 0.2oz
Package Weight: 104.0 ± 5.0g / 3.7 ± 0.2oz
Material(s): ABS + PC

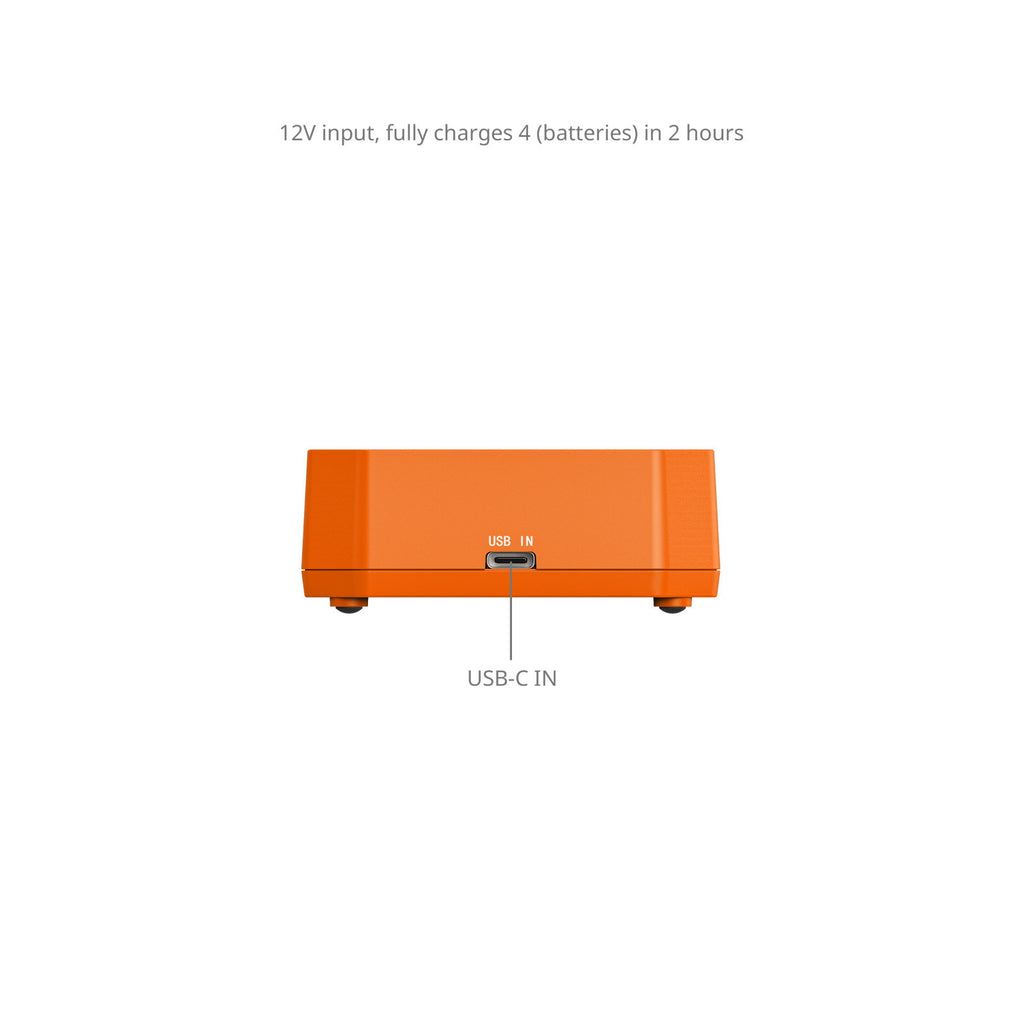

USB-C Input: 5V⎓2A, 9V⎓2A, 12V⎓2A, 15V⎓1.5A (Max 24W)
Output (per channel): 8.4V⎓0.56A
USB-C Protocol: PD
Charge Limit Voltage: 8.45V
Operating Temperature: 0°C – 45°C / 32°F – 113°F
COMPATIBILITY
Alpha 7 II, Alpha 6100, Alpha 6400, ZV-E10, 5000, Alpha 7S II, 7R, 6500, 6000, 7, 5100, 6300, 7S, 7R II, DSC-RX10M2, RX10M3, RX10, RX10M4, ILCE-QX1, and other cameras using NP-FW50 batteries.
WHAT IS INCLUDED
1x NP-FW50 Four-Channel Charger
1x 65W USB-C to USB-C Charging Cable
1x User Manual
1x Guarantee Card
