Description
SMALLRIG FSD16 FREESPEED HEAVY-DUTY ALUMINUM ALLOY TRIPOD 5579
- Maximum Working Height: Approximately 214cm (84.3in).
- Single-Action Leg Deployment Knob: Facilitates quick height adjustments, streamlining your on-site workflow.

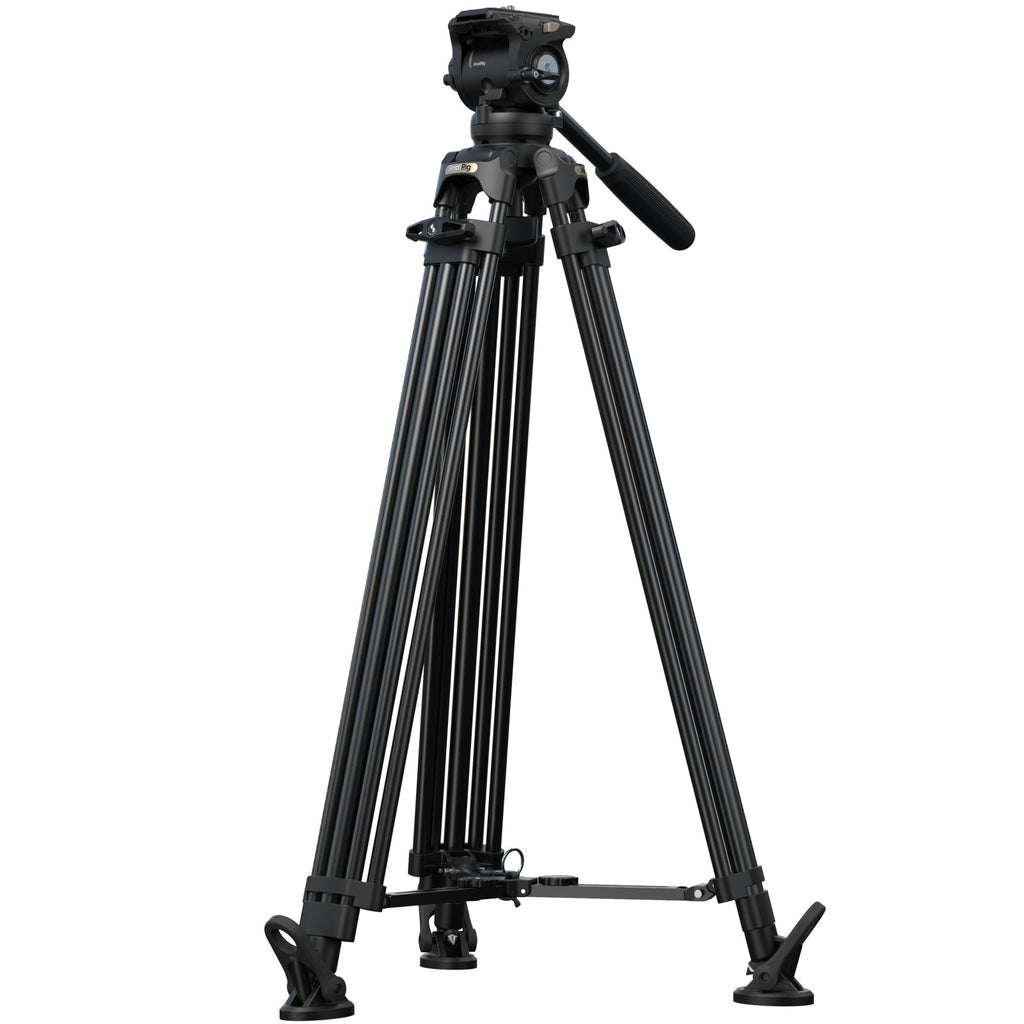

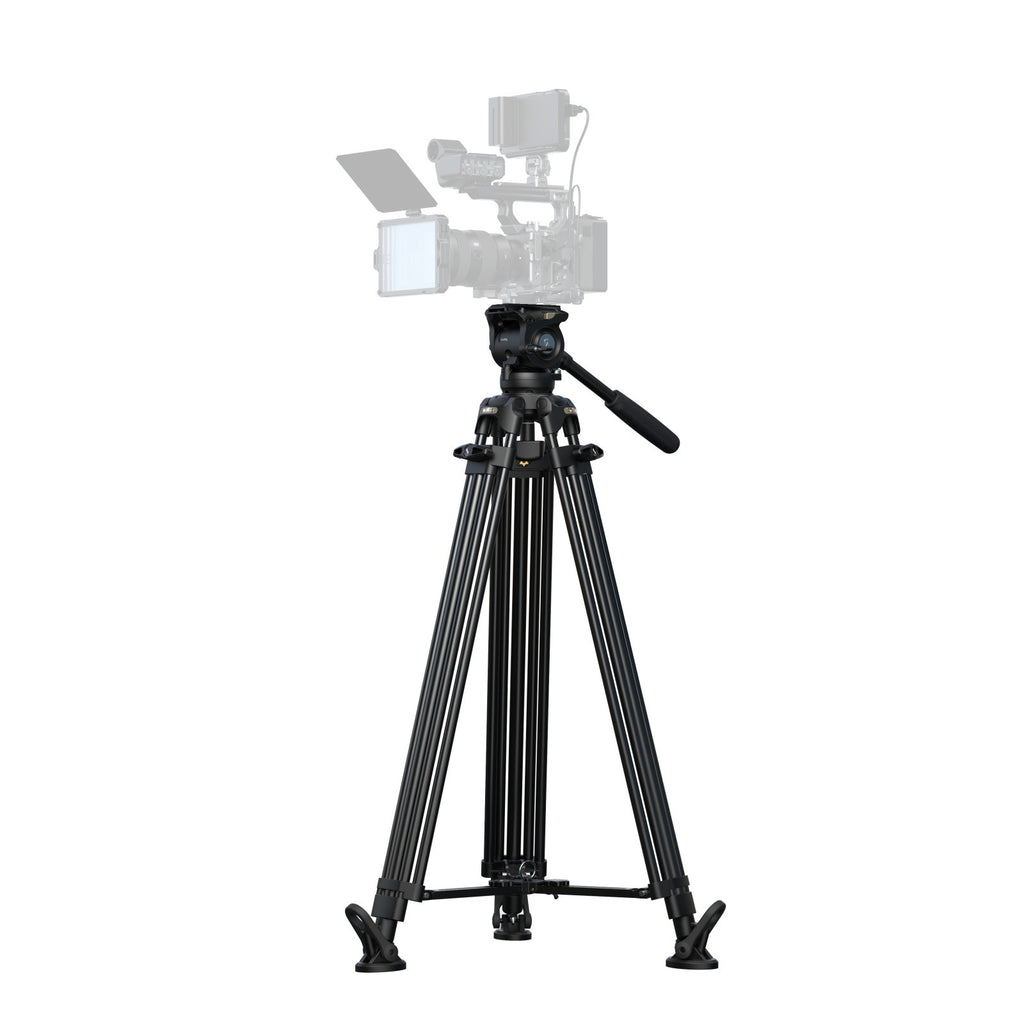

SmallRig FSD16 FreeSpeed Heavy-Duty Aluminum Alloy Tripod 5579 is engineered for professional videography, providing elevated shooting perspectives and rapid tripod deployment. Its one-step leg deployment knob allows for quick height adjustments, streamlining your on-site workflow.
Constructed with aluminum alloy legs (Ø16mm) in a 3-section, 2-2-1 segment configuration and a standard 75mm bowl base, the tripod pairs with a fluid head featuring 6-step counterbalance. The counterbalance mechanism supports loads from 0kg to 6kg (0lb to 13.2lb), while the head offers a safe operational weight of 10kg (22lb) and a maximum load capacity of 15kg (33.1lb). The tripod’s working height ranges from 92.5cm to 214cm (36.4in to 84.3in), ensuring high-load stability and smooth motion for high-angle shooting scenarios.
IMPORTANT
Special Contains Liquid (0.8ml)
Units per Carton: 2
Carton Dimensions: 415.0 x 250.0 x 1100.0mm / 16.3 x 9.8 x 43.3in
Carton Weight: 16.94 ± 0.05kg / 37.34 ± 0.11lb
SPECIFICATIONS
Product Dimensions: 184.0 x 176.0 x 1004.0mm / 7.2 x 6.9 x 39.5in
Package Dimensions: 240.0 x 200.0 x 1085.0mm / 9.4 x 7.9 x 42.7in
Product Weight: 5.95 ± 0.05kg / 13.1 ± 0.11lb
Package Weight: 7.9 ± 0.05kg / 17.4 ± 0.11lb

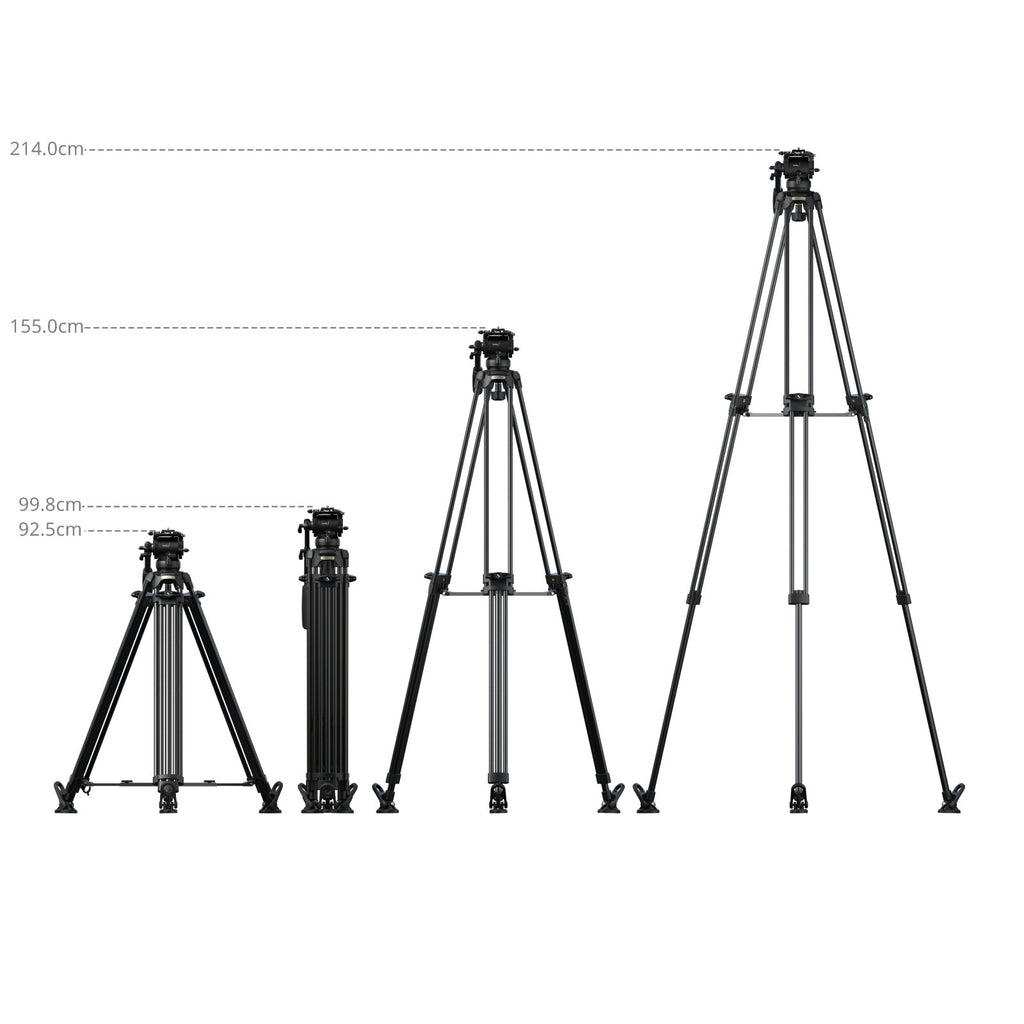

Working Height: 92.5–214.0cm / 36.4–84.3in
Storage Length: 99.8cm / 39.3in
Leg Sections: 3
Leg Diameters: 16mm / 16mm / 22mm
Bowl Diameter: 75mm
Tilt Range: +90° / -60°
Tilt Damping Levels: /
Pan Damping Levels: /
Counterbalance Levels: 6
Counterbalance Load Range: 0–6.0kg / 0–13.2lb
Max Payload: 15kg / 33.1lb
Safe Load Capacity: 10kg / 22.0lb
Handle Length: 38.5–55.0cm / 15.2–21.7in
Quick Release Plate Length: 10.0cm / 3.9in
Material(s): Aluminum Alloy
Special Note: Contains Liquid (0.8ml)
Units per Carton: 2
Carton Dimensions: 415.0 x 250.0 x 1100.0mm / 16.3 x 9.8 x 43.3in
Carton Weight: 16.94 ± 0.05kg / 37.34 ± 0.11lb

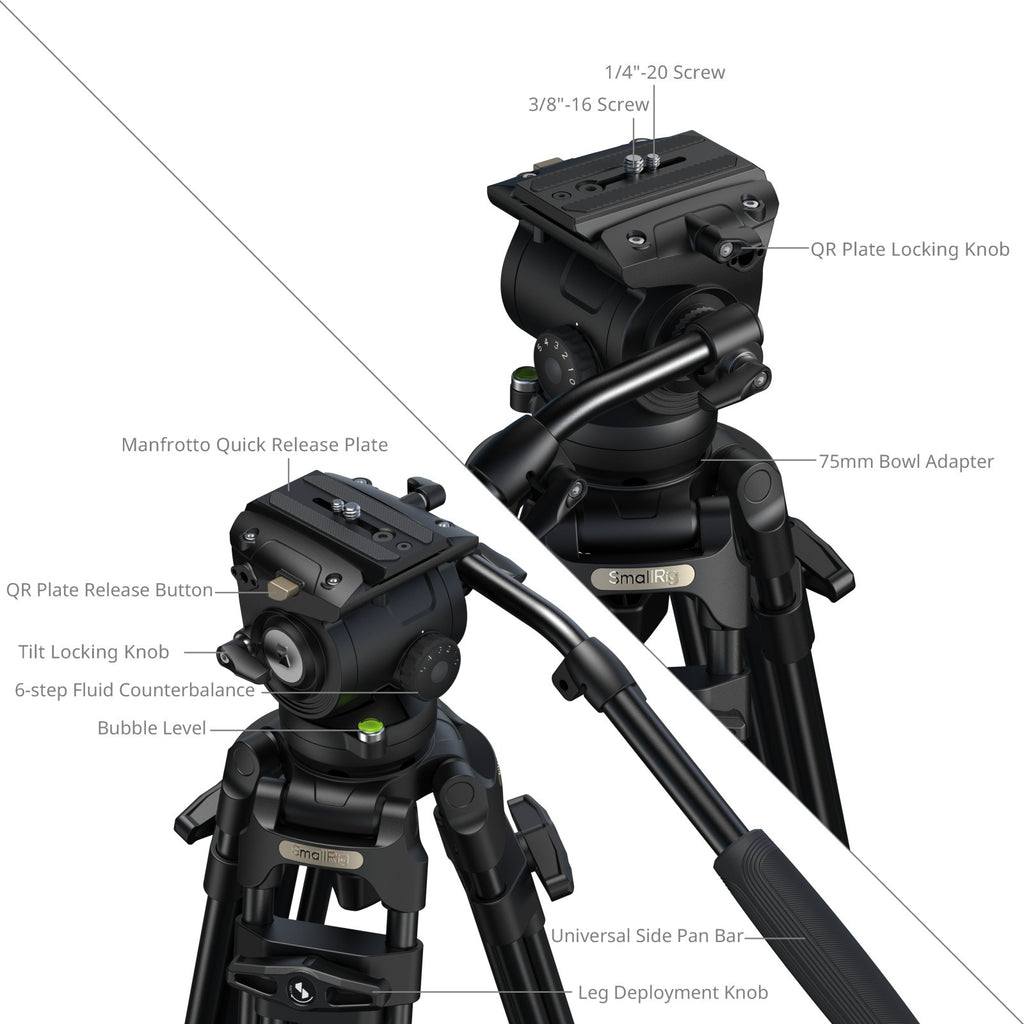

COMPATIBILITY
Standard Manfrotto Quick Release Plates (501PL) and DJI Manfrotto Quick Release Plates
75mm Bowl Base
WHAT IS INCLUDED
1x Tripod
1x Allen Wrench
1x Storage Bag
1x Phone Clamp
1x Guarantee Card
