Description
SMALLRIG FSD18 FREESPEED HEAVY-DUTY ALUMINUM ALLOY TRIPOD 5577

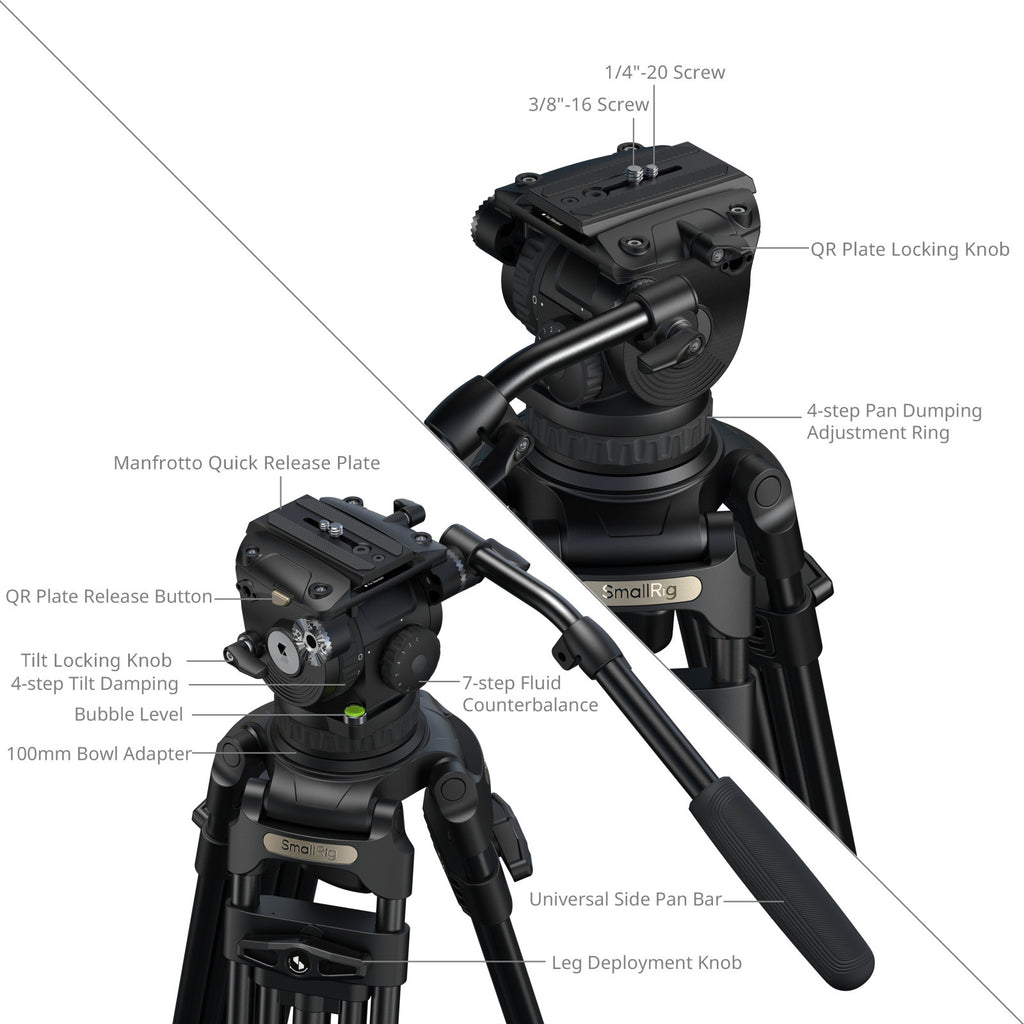

- 7-Step Counterbalance & 4+4 Damping Control Head: Supports a safe load of 15kg (33.1lb) and a maximum load of 17kg (37.5lb).
- Maximum Working Height: Approximately 200.5cm (78.9in).
- Premium Carrying Case: Provides comprehensive protection for convenient storage and transport.

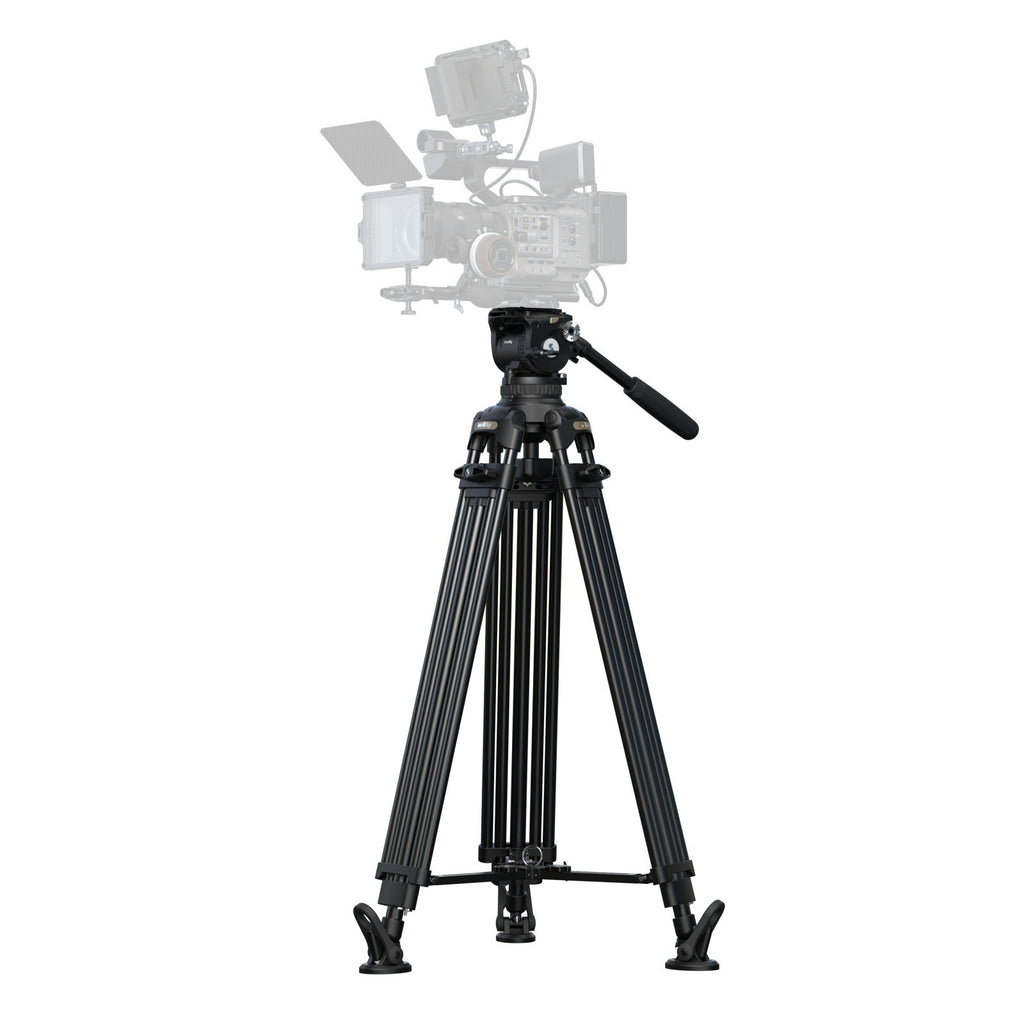

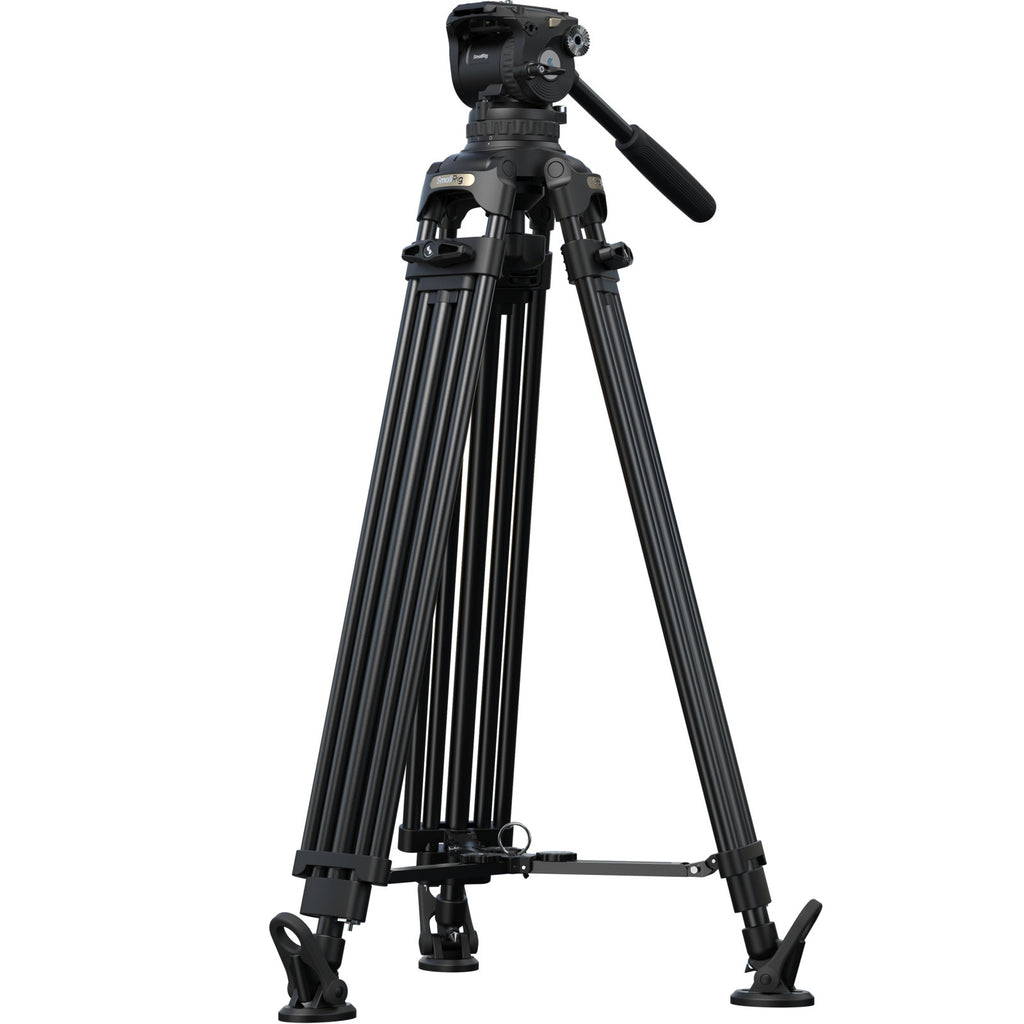

SmallRig FSD18 FreeSpeed Heavy-Duty Aluminum Alloy Tripod 5577 is engineered for professional videography, combining rapid deployment with exceptional stability under heavy loads. Its one-step leg deployment knob allows for quick height adjustments, streamlining your on-site workflow.
Constructed with aluminum alloy legs (Ø18mm) in a 3-section, 2-2-1 segment configuration and a standard 100mm bowl base, the tripod pairs with a fluid head featuring 7-step counterbalance and independent 4-level tilt / pan damping control. The counterbalance mechanism supports loads from 4kg to 10kg (8.8lb to 22lb), while the head offers a safe operational weight of 15kg (33.1lb) and a maximum load capacity of 17kg (37.5lb). The tripod’s working height ranges from 89.8cm to 200.5cm (35.4in to 78.9in), ensuring high-load stability and smooth motion shots while supporting high-angle shooting scenarios.
The included storage case features a two-way YKK zipper and a wide opening for easy packing. Inside, three hook and loop straps secure the tripod, while a reinforced plastic base plate provides comprehensive protection against impacts during transport.
IMPORTANT
Special Contains Liquid (0.8ml)
Units per Carton: 1
Carton Dimensions: 230.0 x 230.0 x 1040.0mm / 9.1 x 9.1 x 40.9in
Carton Weight: 10.4 ± 0.05kg / 22.9 ± 0.11lb
SPECIFICATIONS
Product Dimensions: 186.0 x 186.0 x 976.0mm / 7.3 x 7.3 x 38.4in
Package Dimensions: 230.0 x 230.0 x 1040.0mm / 9.1 x 9.1 x 40.9in
Product Weight: 7.5 ± 0.05kg / 16.5 ± 0.11lb
Package Weight: 10.4 ± 0.05kg / 22.9 ± 0.11lb

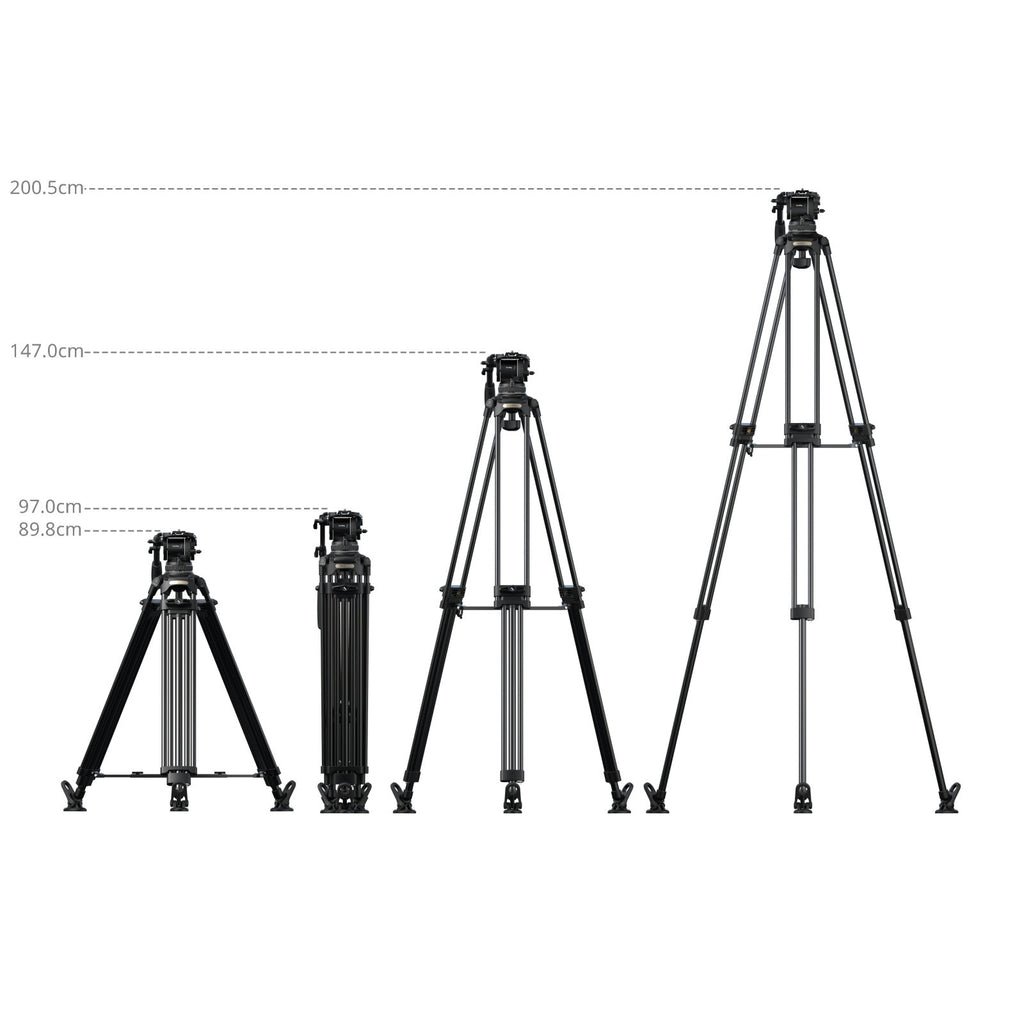

Working Height: 89.8–200.5cm / 35.4–78.9in
Storage Length: 97.0cm / 38.2in
Leg Sections: 3
Leg Diameters: 18mm / 18mm / 24mm
Bowl Diameter: 100mm
Tilt Range: +90° / -60°
Tilt Damping Levels: 4
Pan Damping Levels: 4
Counterbalance Levels: 7
Counterbalance Load Range: 4.0–10.0kg / 8.8–22.0lb
Max Payload: 17kg / 37.5lb
Safe Load Capacity: 15kg / 33.1lb
Handle Length: 38.5–55.0cm / 15.2–21.7in
Quick Release Plate Length: 10.0cm / 3.9in
Material(s): Aluminum Alloy
Special Note: Contains Liquid (0.8ml)
Units per Carton: 1
Carton Dimensions: 230.0 x 230.0 x 1040.0mm / 9.1 x 9.1 x 40.9in
Carton Weight: 10.4 ± 0.05kg / 22.9 ± 0.11lb
COMPATIBILITY
Standard Manfrotto Quick Release Plates (501PL) and DJI Manfrotto Quick Release Plates
100mm Bowl Base
WHAT IS INCLUDED
1x Tripod
1x Allen Wrench
1x Storage Bag
1x Phone Clamp
1x Guarantee Card
