Description
SMALLRIG L-SHAPED MOUNT PLATE WITH AIRTAG SLOT FOR CANON EOS R6 MARK III / R6 MARK II / R5 MARK II 5962
- Built-in Arca-Swiss Quick Release Plates: Features Arca-Swiss quick release plates on both the base and side for rapid switching between horizontal and vertical tripod setups.
- Compatible with Apple AirTag: An integrated AirTag slot allows for easy device tracking.
- Cold Shoe Locating Block: Prevents side-plate flex during vertical shooting, ensuring perfect center-of-gravity stability.
- Secure Three-Point Locking: Secured using a bottom 1/4"-20 screw and two anti-twist locating pins to prevent shifting or wobbling.
- Adjustable Side Plate: Extends up to 22.5mm (0.9in), avoiding port obstruction and simplifying cable routing in vertical mode.

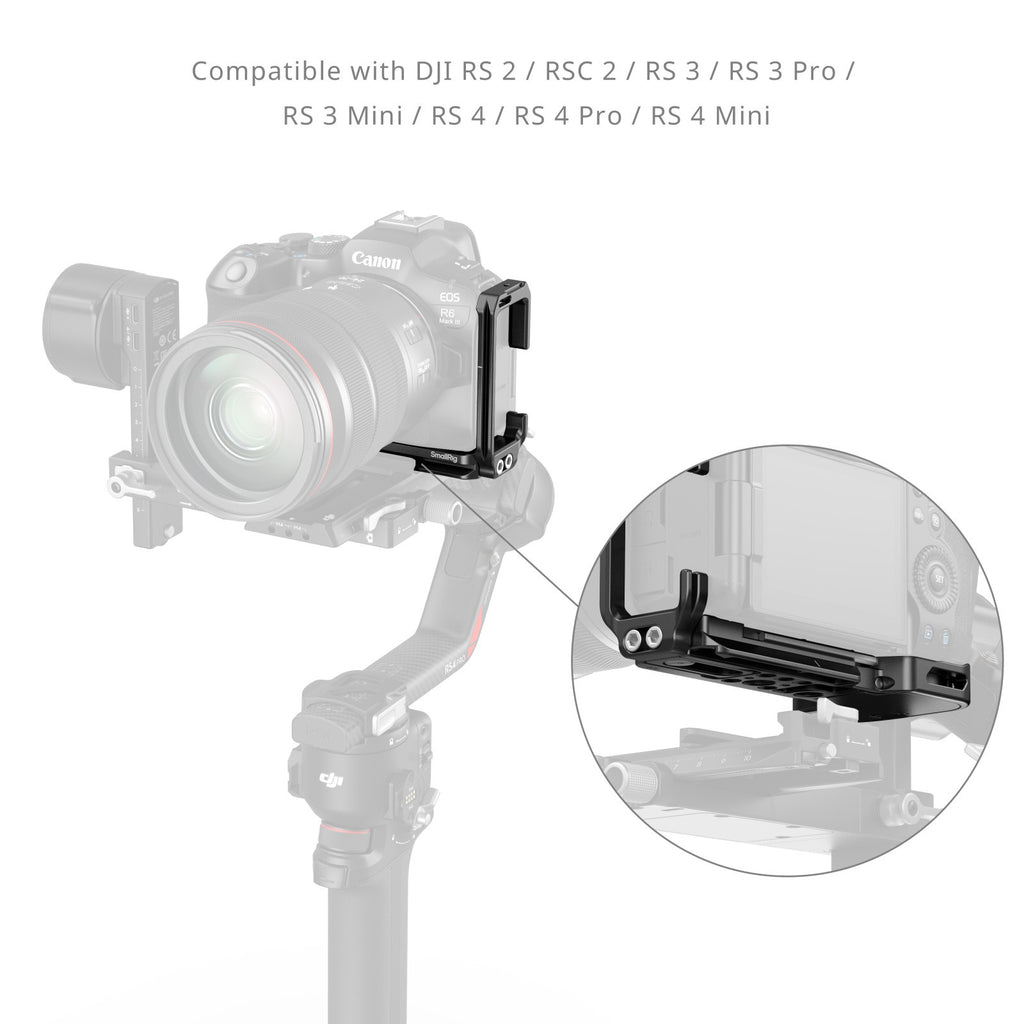

- Built-in Arca-Swiss Quick Release Plate: Compatible with Arca-Type tripods and DJI RS 2 / RSC 2 / RS 3 / RS 3 Mini / RS 3 Pro / RS 4 / RS 4 Pro / RS 4 Mini gimbals.

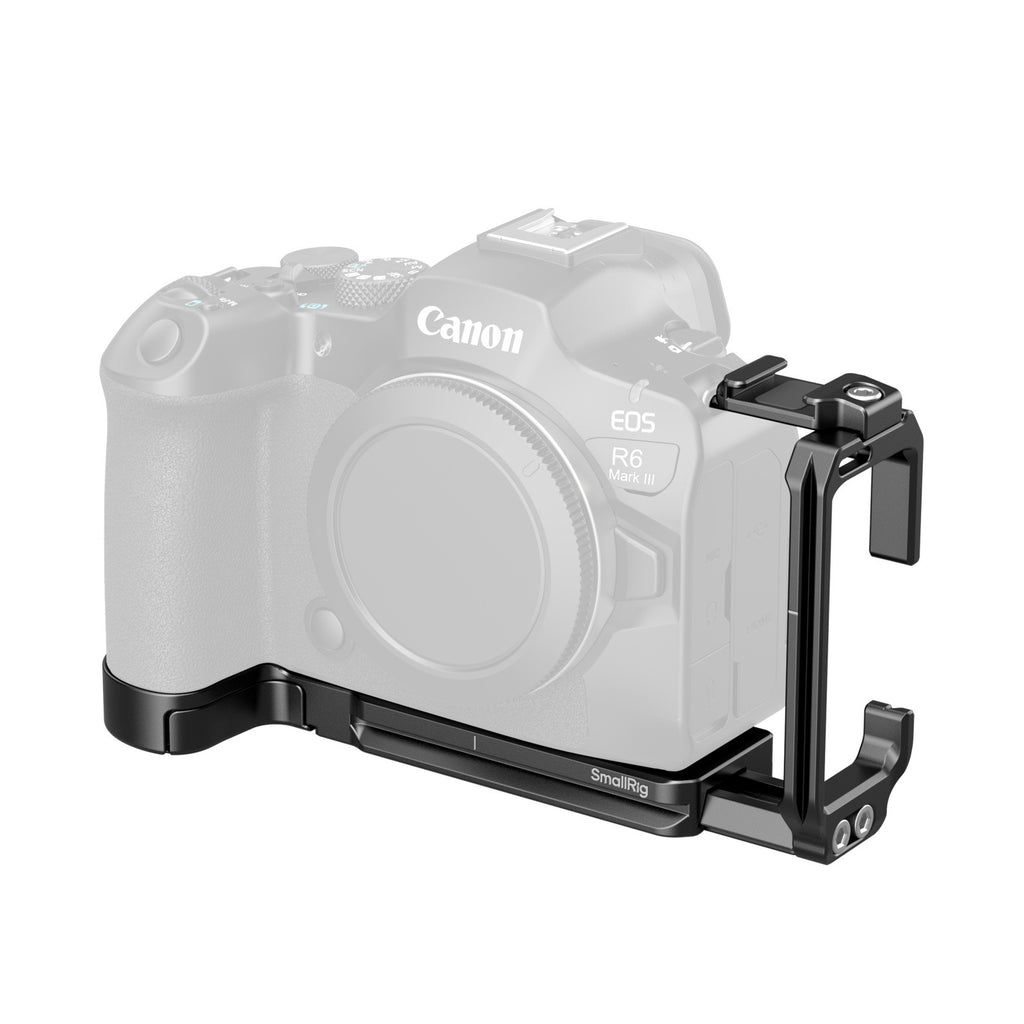

SmallRig L-Shaped Mount Plate with AirTag Slot for Canon EOS R6 Mark III / R6 Mark II / R5 Mark II 5962 is designed to facilitate quick transitions between horizontal and vertical shooting while providing camera tracking functionality.

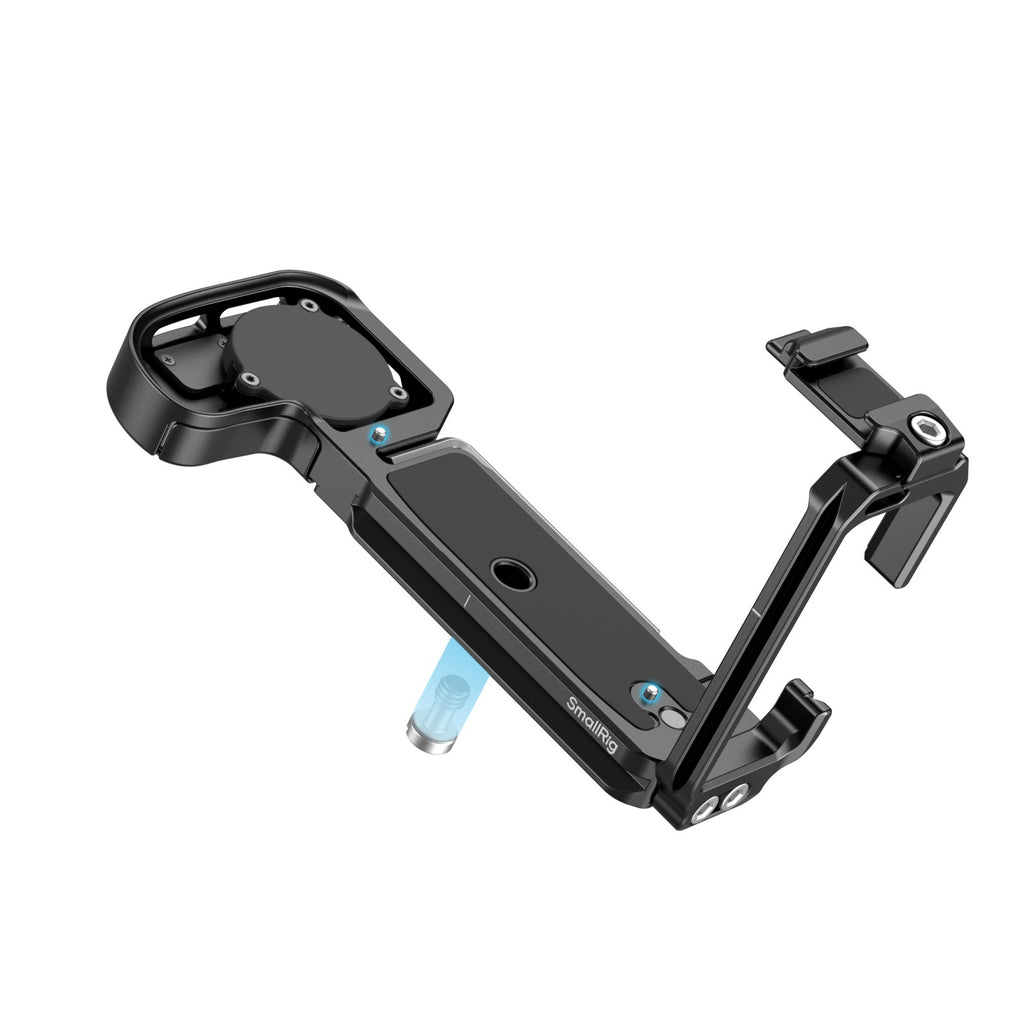

This mount plate attaches to the camera using one bottom 1/4"-20 screw and two anti-twist locating pins, ensuring a stable and secure mounting. Built-in silicone pads protect the camera from scratches.
When extended for vertical shooting, the included cold shoe locating block reinforces the side plate to prevent flex and maintain optical alignment. This locating block accommodates cold shoe accessories such as microphones (ID 3487), LED video lights (ID 3286B), wireless transmitters, flashes, and more—making it ideal for lightweight photo or video setups.
The side plate extends to 22.5mm (0.9in) for improved cable management in vertical orientation. A thoughtfully designed cutout allows the rear screen to tilt up to approximately 95°.

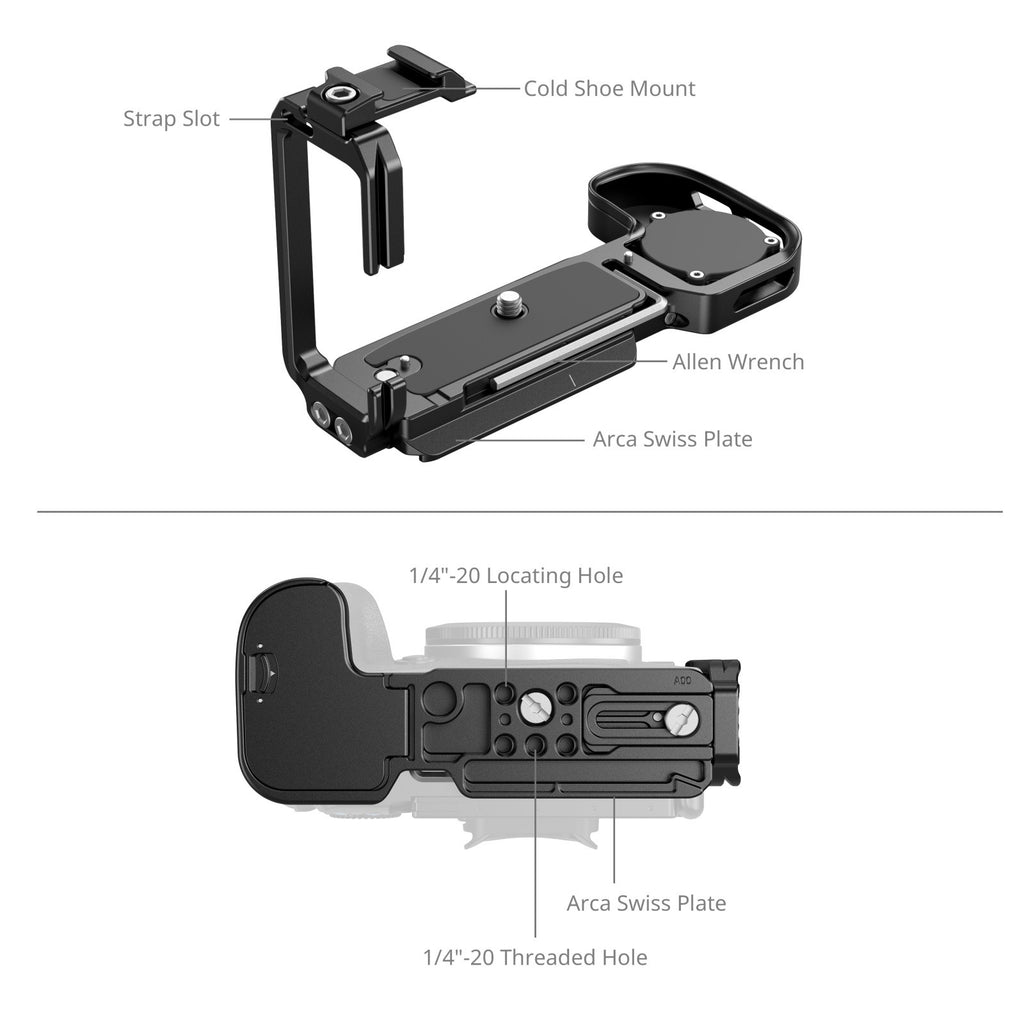

The mount plate maintains full access to all camera controls, including the battery compartment, card slots, and ports—even with angled cables attached. It features multiple mounting points, including 1/4"-20 threaded holes, a QD socket, a cold shoe mount, and strap slots, enabling the attachment of accessories such as QD shoulder straps (ID 4118), microphones (ID 3468), and tripods (ID 3989, 4353) for versatile shooting configurations.

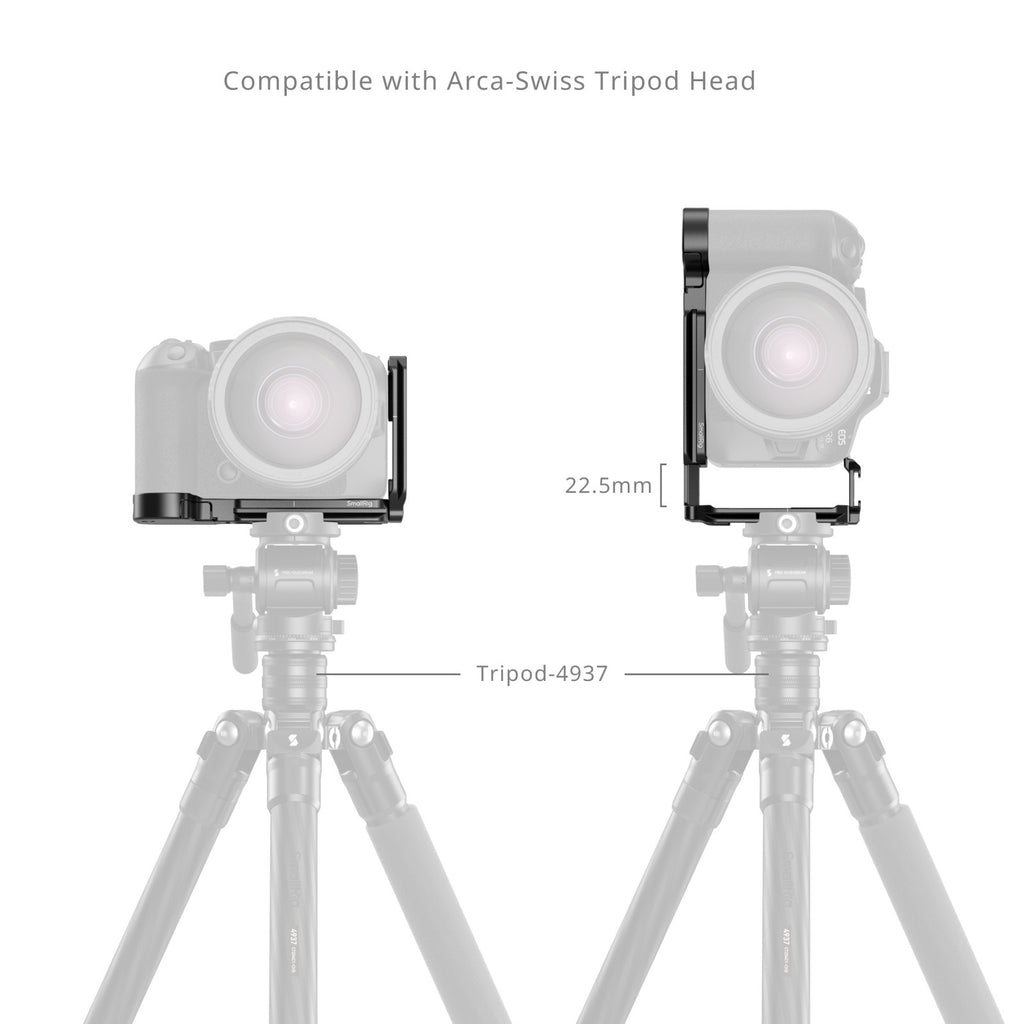

Additionally, the bottom plate integrates an Arca-Swiss quick release plate compatible with Arca-Type tripods (ID 4353, 4060) and DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro / RS 4 Mini gimbals. A magnetic wrench is conveniently stored in the base for quick assembly and adjustment.
SPECIFICATIONS

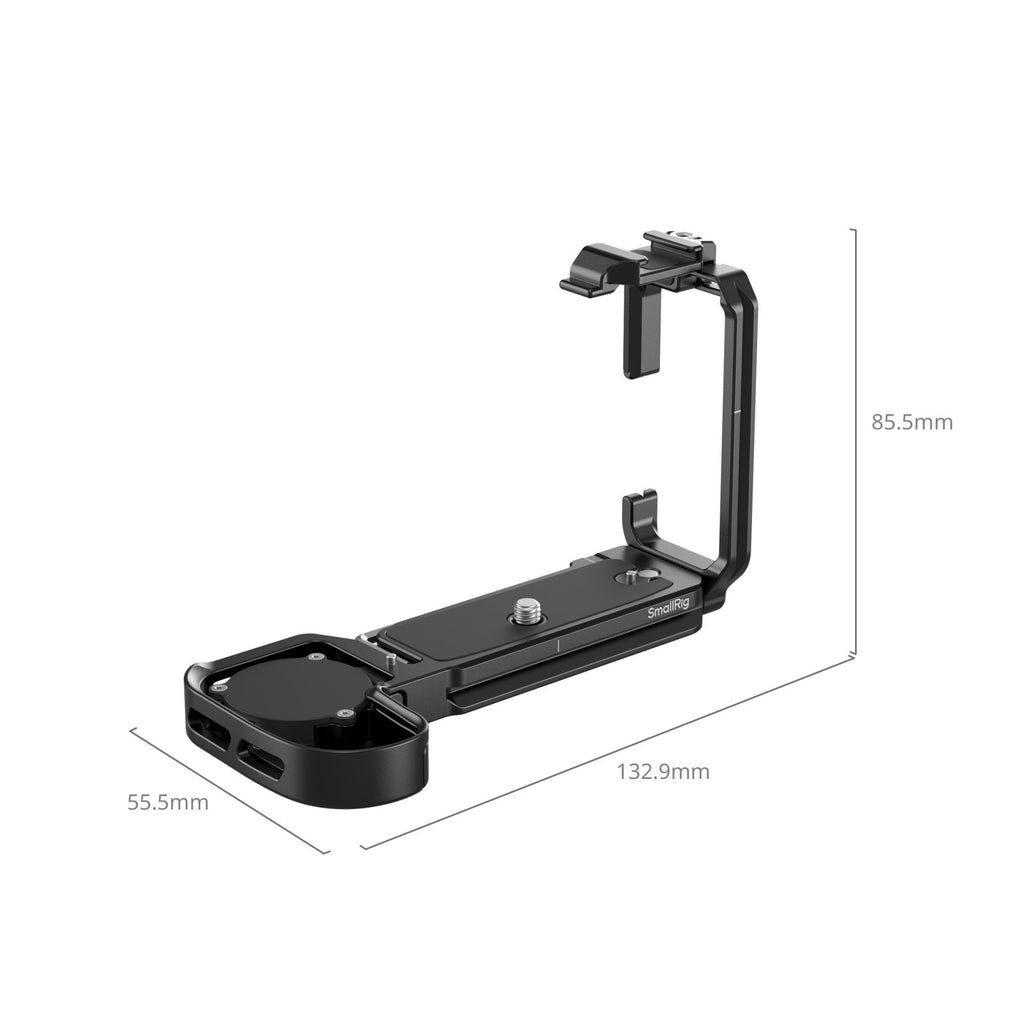

Product Dimensions: 149.2 × 96.9 × 66.4mm / 5.9 × 3.8 × 2.6in
Package Dimensions: 155.0 × 81.5 × 42.0mm / 6.1 × 3.2 × 1.7in
Product Weight: 135.0 ± 5.0g / 4.8 ± 0.2oz
Package Weight: 181.0 ± 5.0g / 6.4 ± 0.2oz
Material(s): Aluminum Alloy
COMPATIBILITY
Canon EOS R6 Mark III / R6 Mark II / R5 Mark II

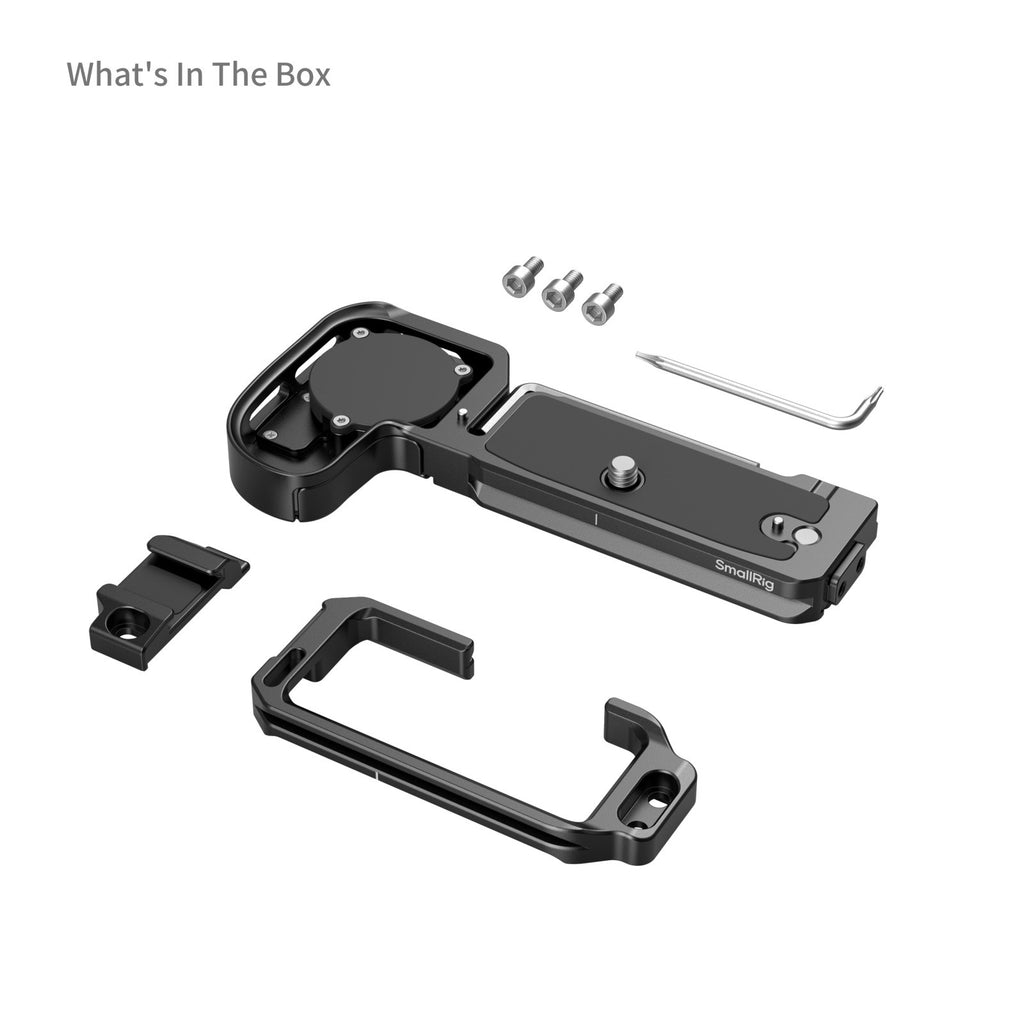

WHAT IS INCLUDED
1x L-Shaped Mount Plate
1x Locating Block with Cold Shoe Mount
3x M4 Screw
1x T6 Torx Wrench
1x Operating Instruction
