Description
SMALLRIG MAGIC ARM WITH CRAB-SHAPED CLAMP 5312
- Features retractable pins to prevent deflection, ensuring stability during shooting.
- Made of aerospace-grade aluminum alloy and stainless steel for enhanced durability.

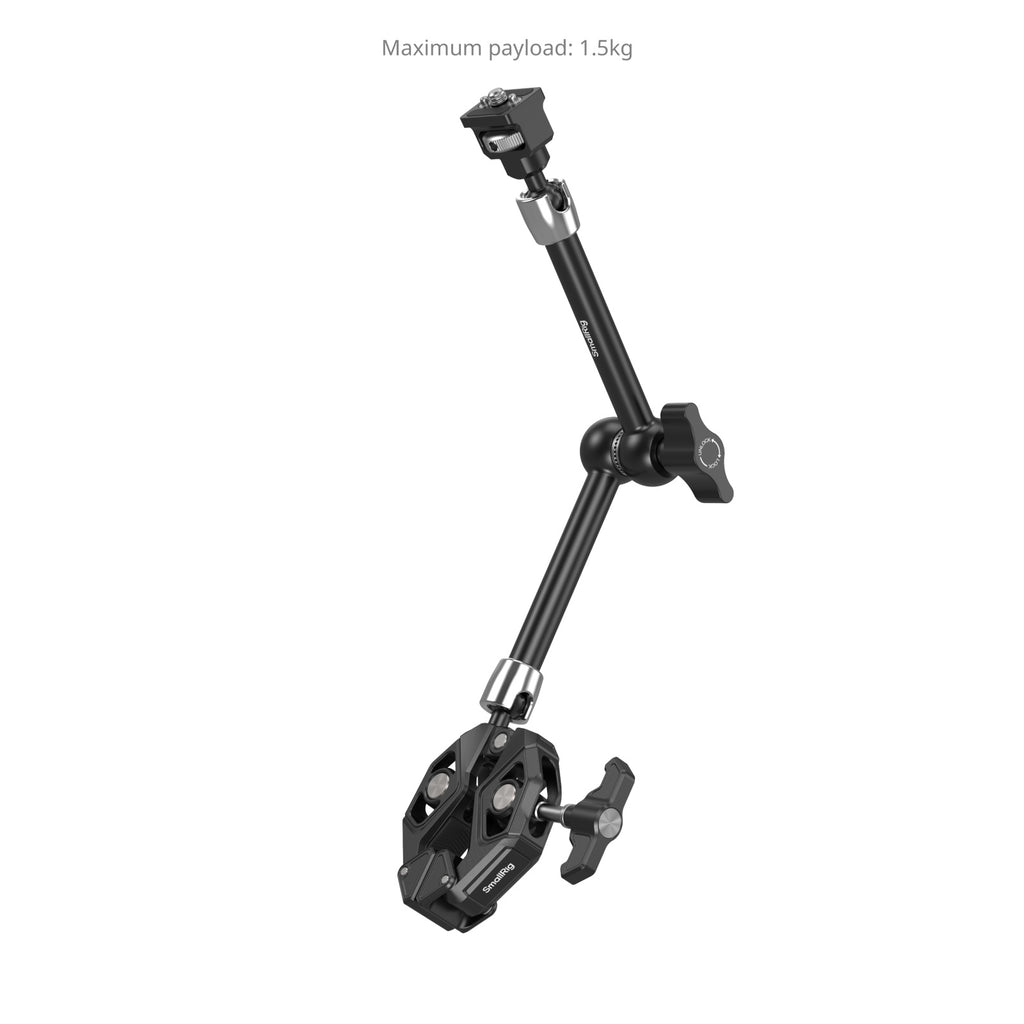

- Supports a maximum payload of 1.5kg (3.3lb).

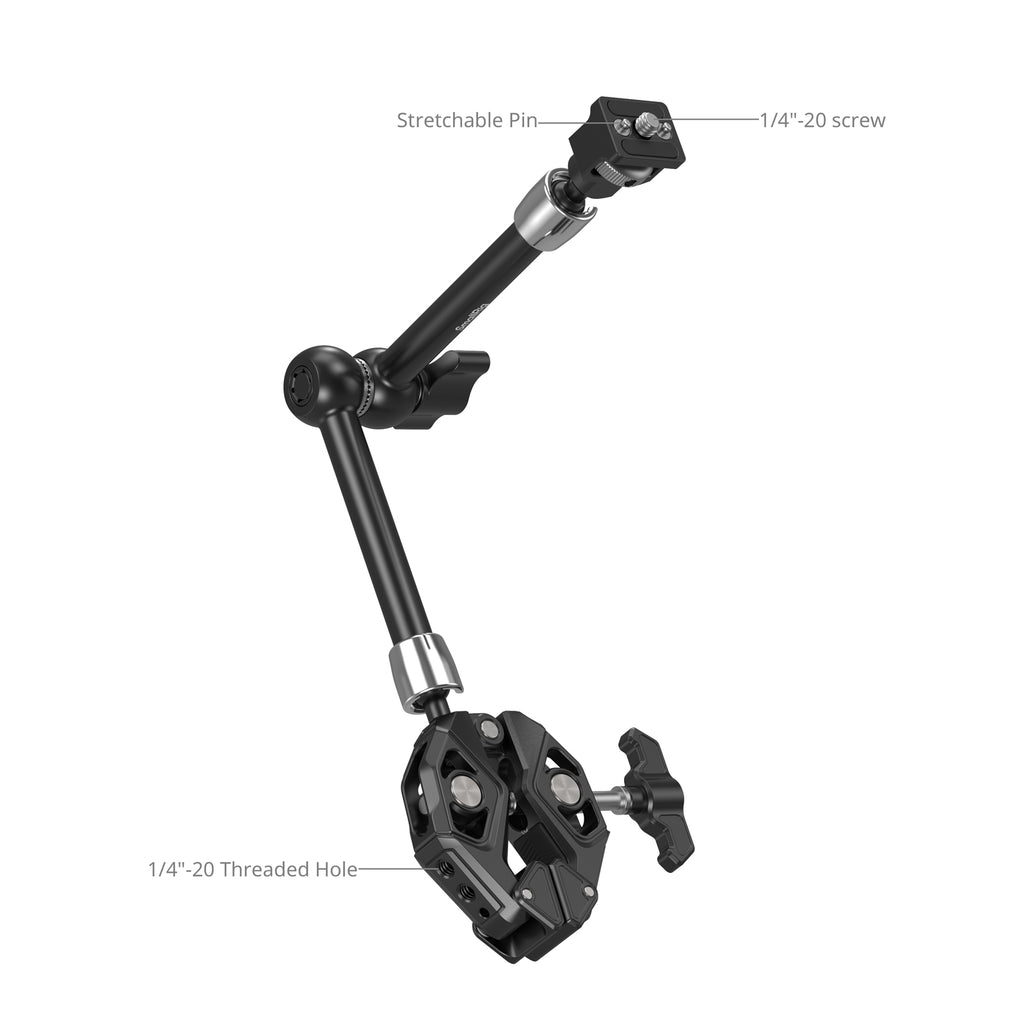

SmallRig Magic Arm with Crab-Shaped Clamp 5312 consists of a magic arm and a crab-shaped clamp. One end features a 1/4"-20 screw and retractable pins, equipped with a knurled thumbscrew for easy manual fastening, along with an additional hole for tightening using the included Allen wrench.

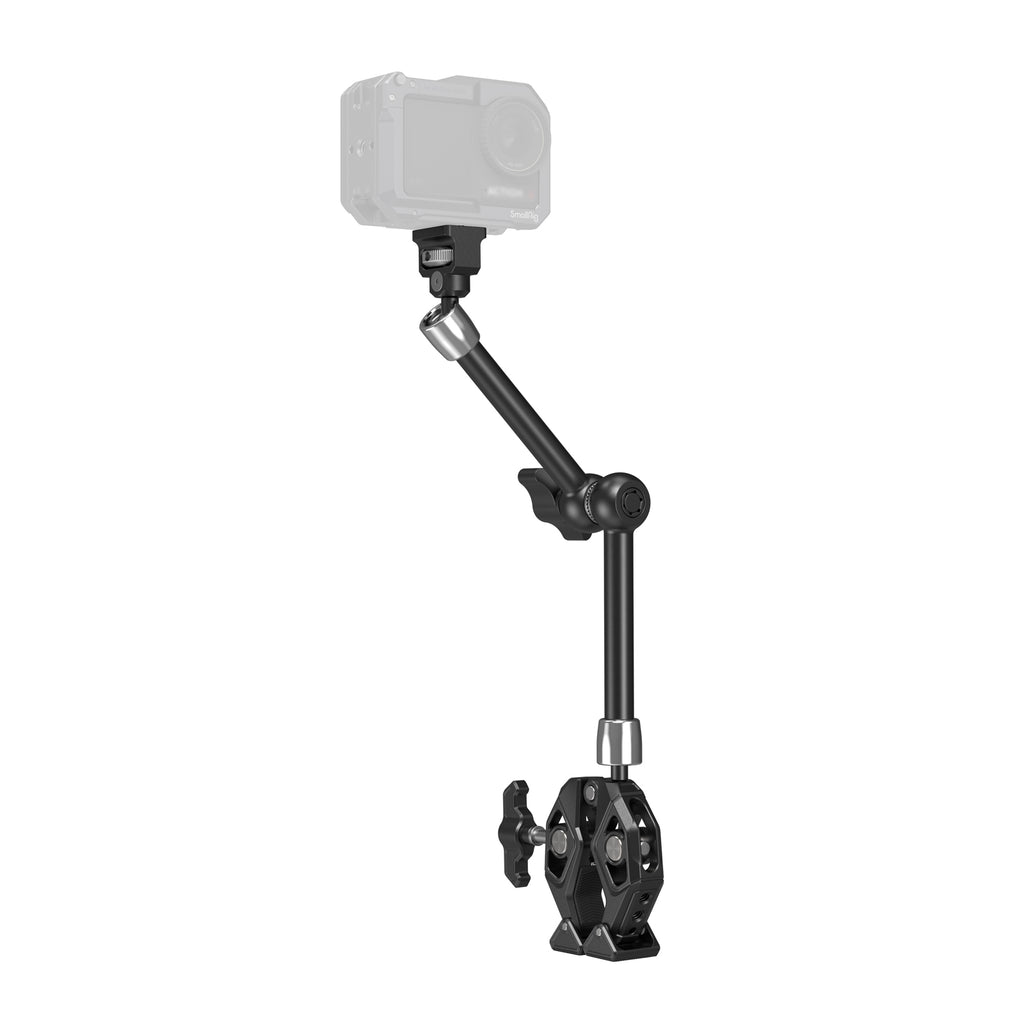

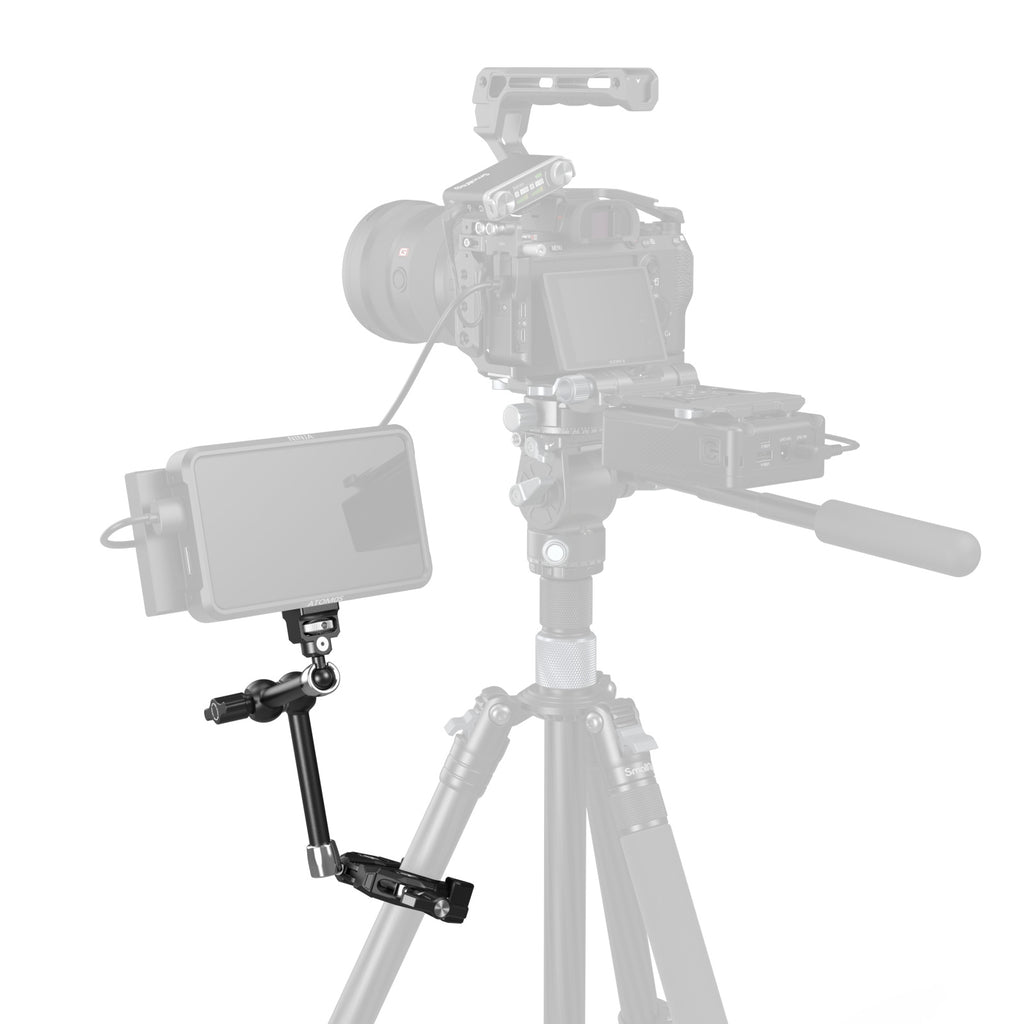

The ball head allows for smooth 360° adjustments, enabling direct mounting of action cameras, monitors, video lights, and microphones. This magic arm effectively prevents twisting of devices—such as cages for GoPro (ID 3084C), cages for Insta360 X4 (ID 4278), and cages for DJI Action 5 Pro (ID 4119C)—that feature anti-twist holes of the same specification, ensuring secure and stable shooting.
The crab-shaped clamp adopts an anti-twist design at the connection point with the magic arm to prevent loosening or detachment. It accommodates tubes, tables, tripod legs, or stabilizer handheld rings. Additionally, it’s designed with a swivel tip at the jaw to enhance compatibility with both flat and rounded surfaces by adjusting the swivel of the clamp tip. The clamp can secure to surfaces up to 50mm (2.0in) wide and is lined with protective pads to prevent scratches and increase clamping stability.
Constructed from CNC-machined aerospace-grade aluminum and stainless steel, this tool supports a maximum payload of up to 1.5kg (3.3lb), offering exceptional durability.
IMPORTANT
Do not disassemble the crab-shaped clamp and magic arm, as it may compromise functions such as the anti-twist design.
SPECIFICATIONS

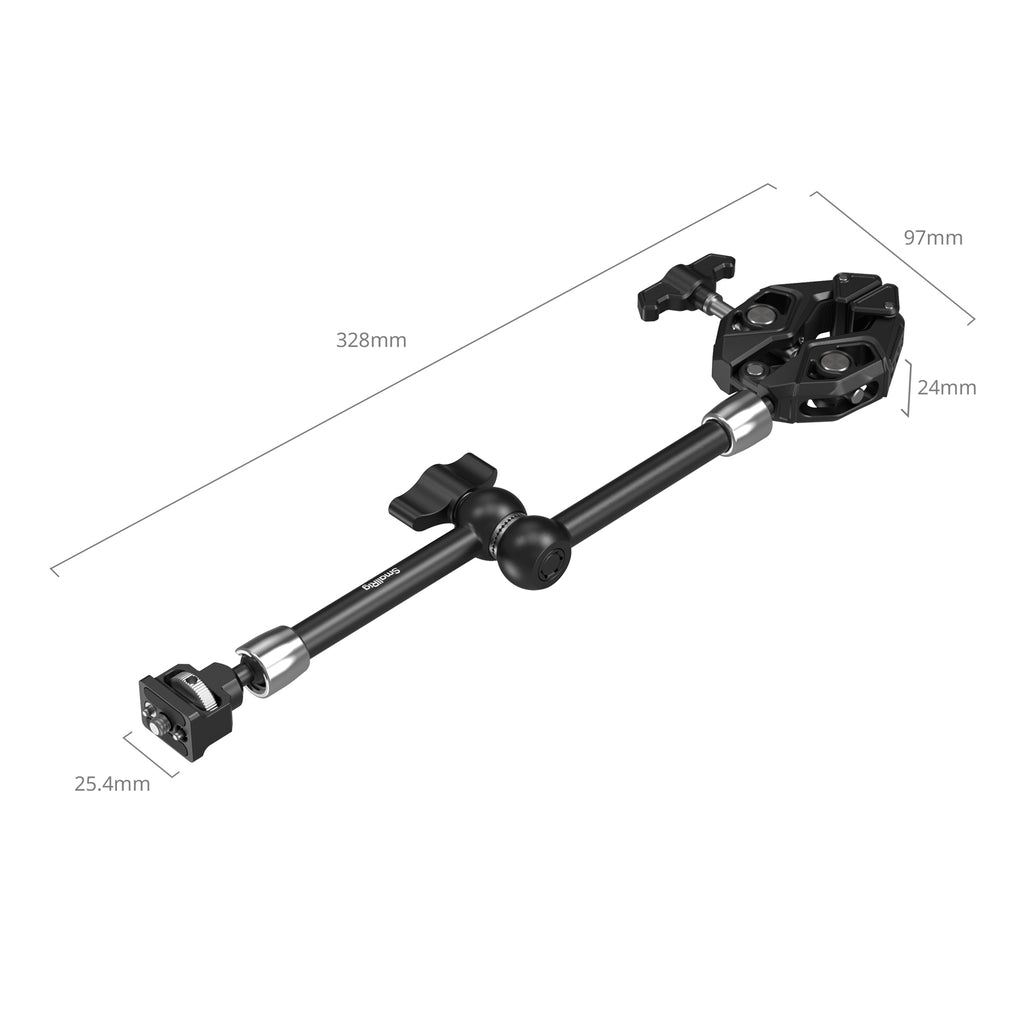

Product Dimensions: 197.0 x 97.0 x 24.0mm / 7.7 x 3.8 x 0.9in
Package Dimensions: 221.0 x 112.5 x 40.0mm / 8.7 x 4.4 x 1.6in
Net Weight: 378.0 ± 5.0g / 13.3 ± 0.2oz
Package Weight: 450.5 ± 5.0g / 15.9 ± 0.2oz
Material(s): Aluminum Alloy

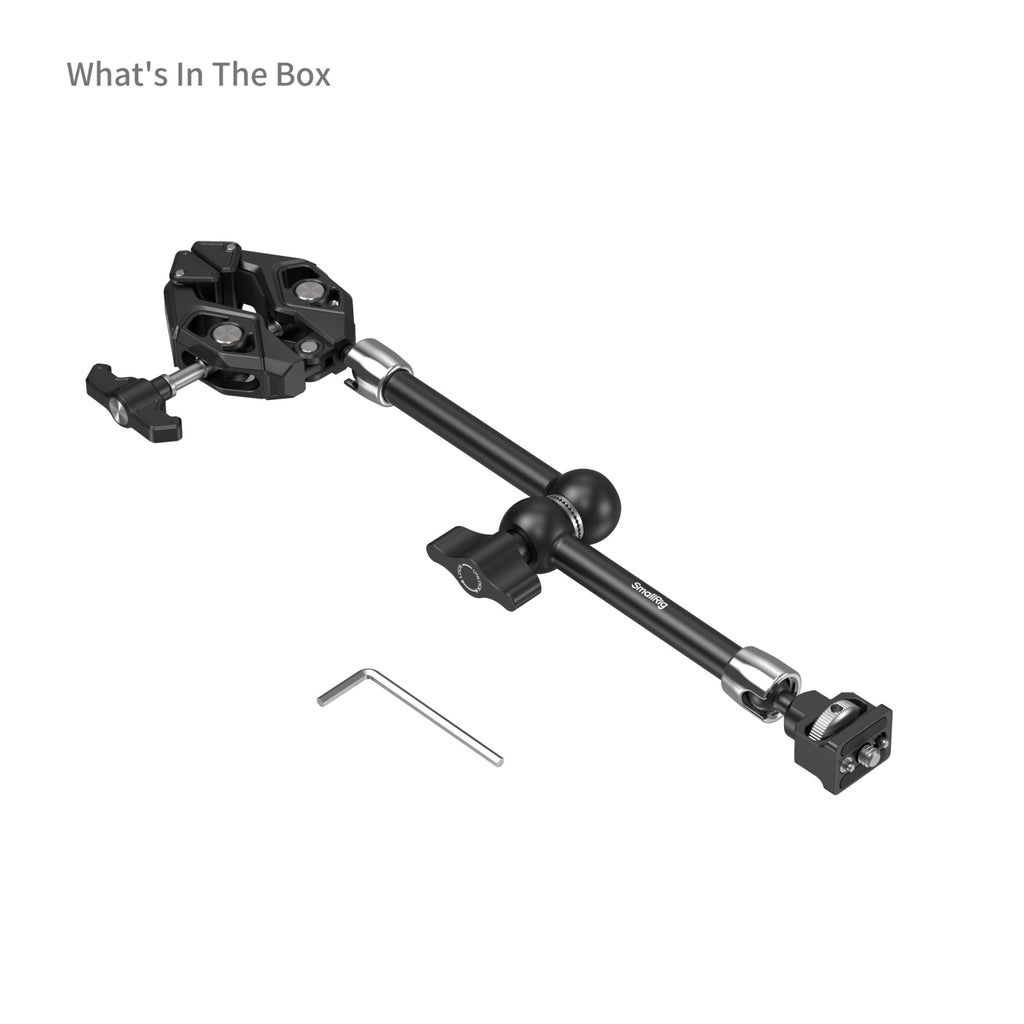

WHAT IS INCLUDED
1x Knurled Magic Arm
1x Crab-Shaped Clamp
1x Allen Wrench
