Description

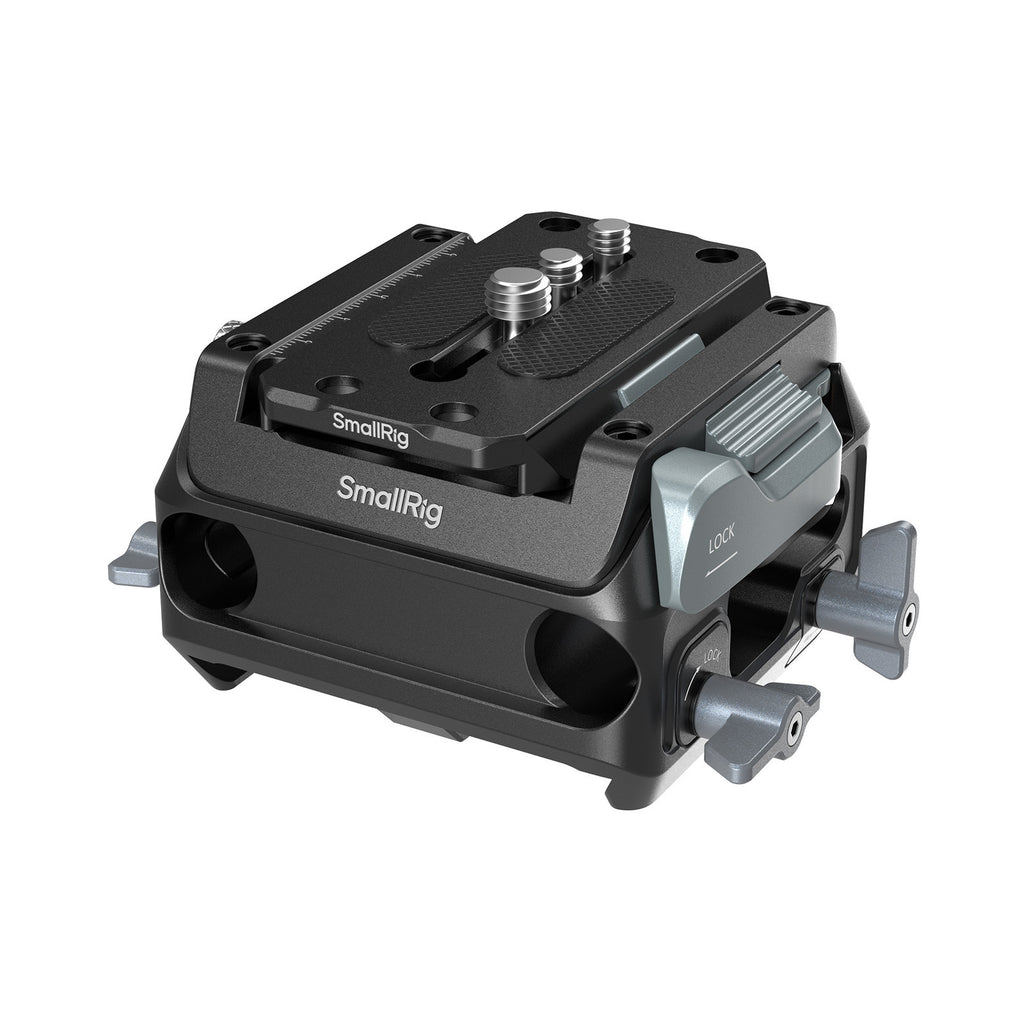

SMALLRIG MANFROTTO-TYPE MOUNT PLATE KIT WITH 15MM DUAL ROD CLAMP 5366
- Enables quick mounting of dual 15mm rods for expanding professional setups with follow focus systems, matte boxes, V-mount battery plates, and other accessories.
- The top new-locking mechanism enables one-second effortless mounting and dismounting.
- Adjustable Manfrotto-style clamp width fits all 501-type quick release plates.
- Includes a complimentary quick release plate, ready to use right out of the box.

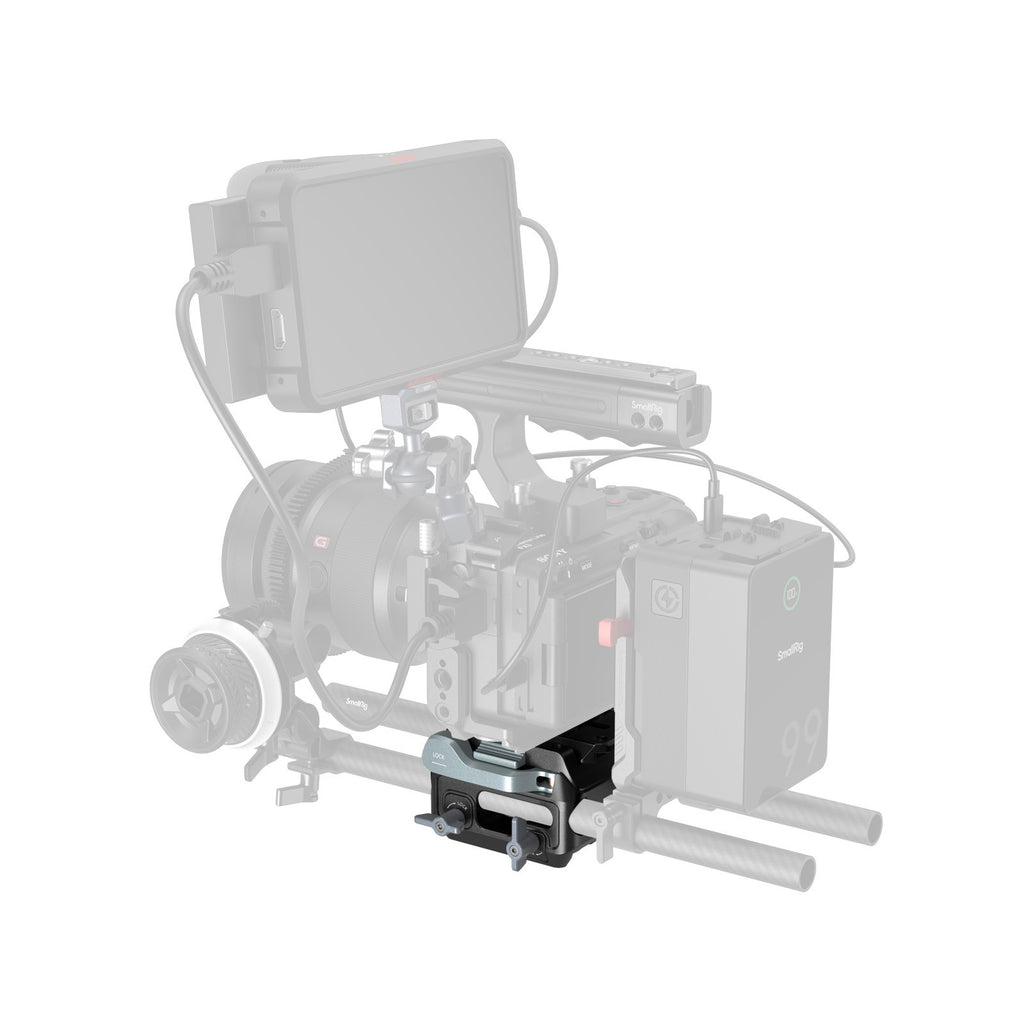

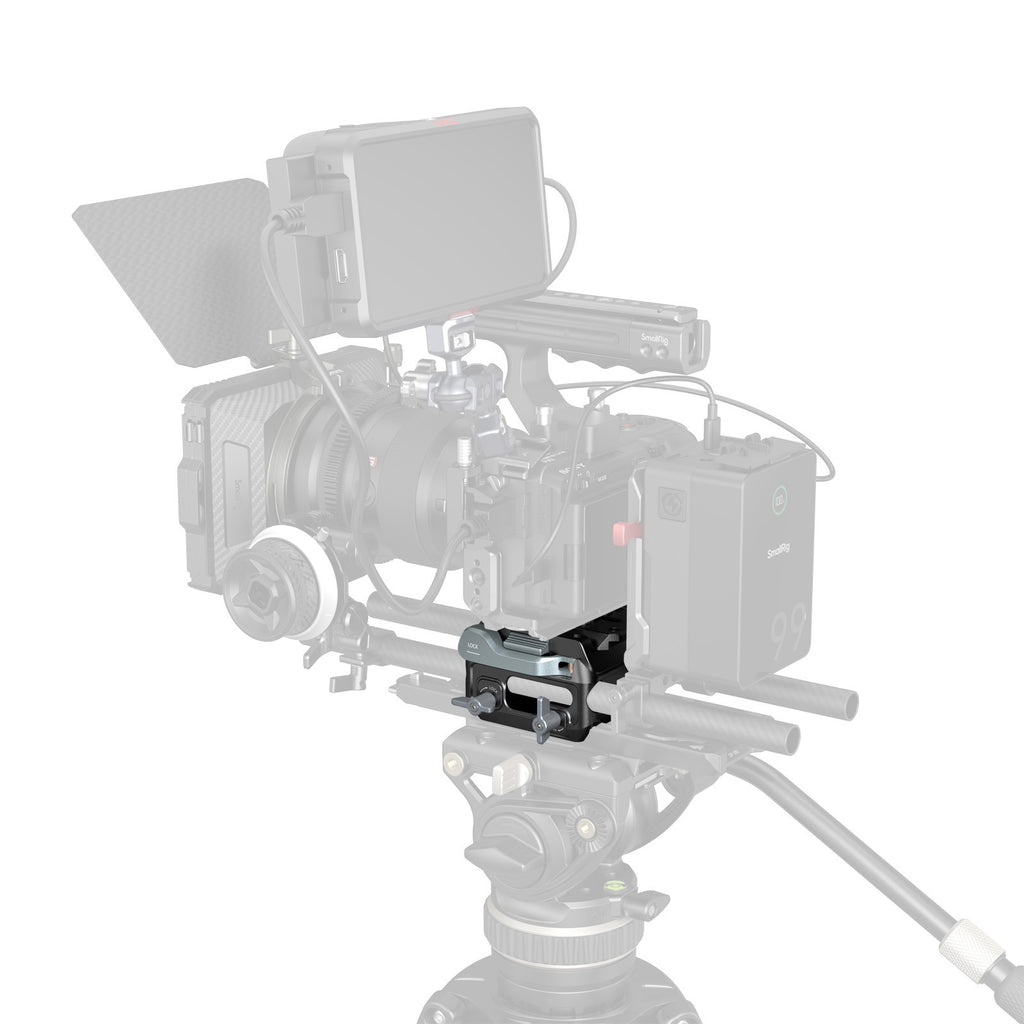

SmallRig Manfrotto-Type Mount Plate Kit with 15mm Dual Rod Clamp 5366 is designed to facilitate accessory expansion with included 15mm rod clamps and enable quick integration into the Manfrotto ecosystem. The mount plate quickly locks dual 15mm rods (center spacing: 60mm), onto which you can mount accessories like lens supports, follow focus units, matte boxes, and V-mount battery plates.

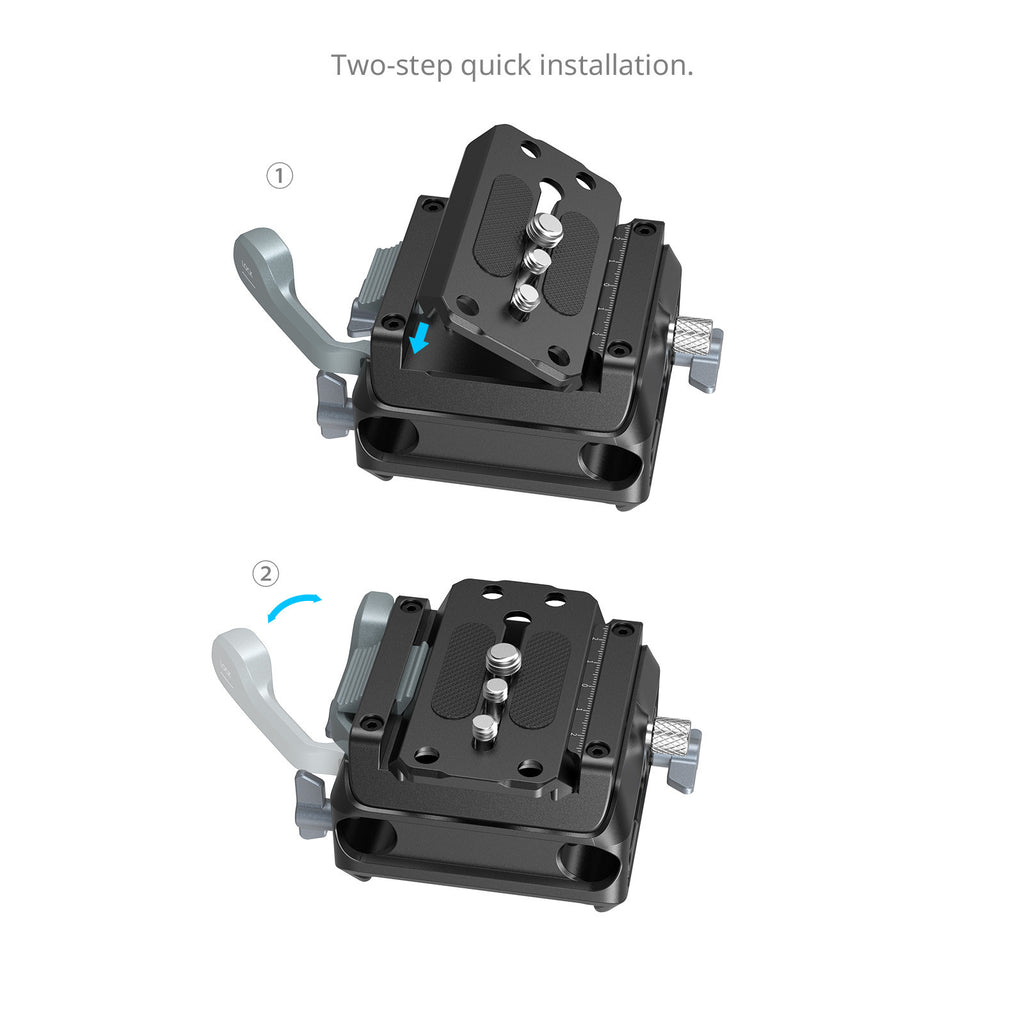

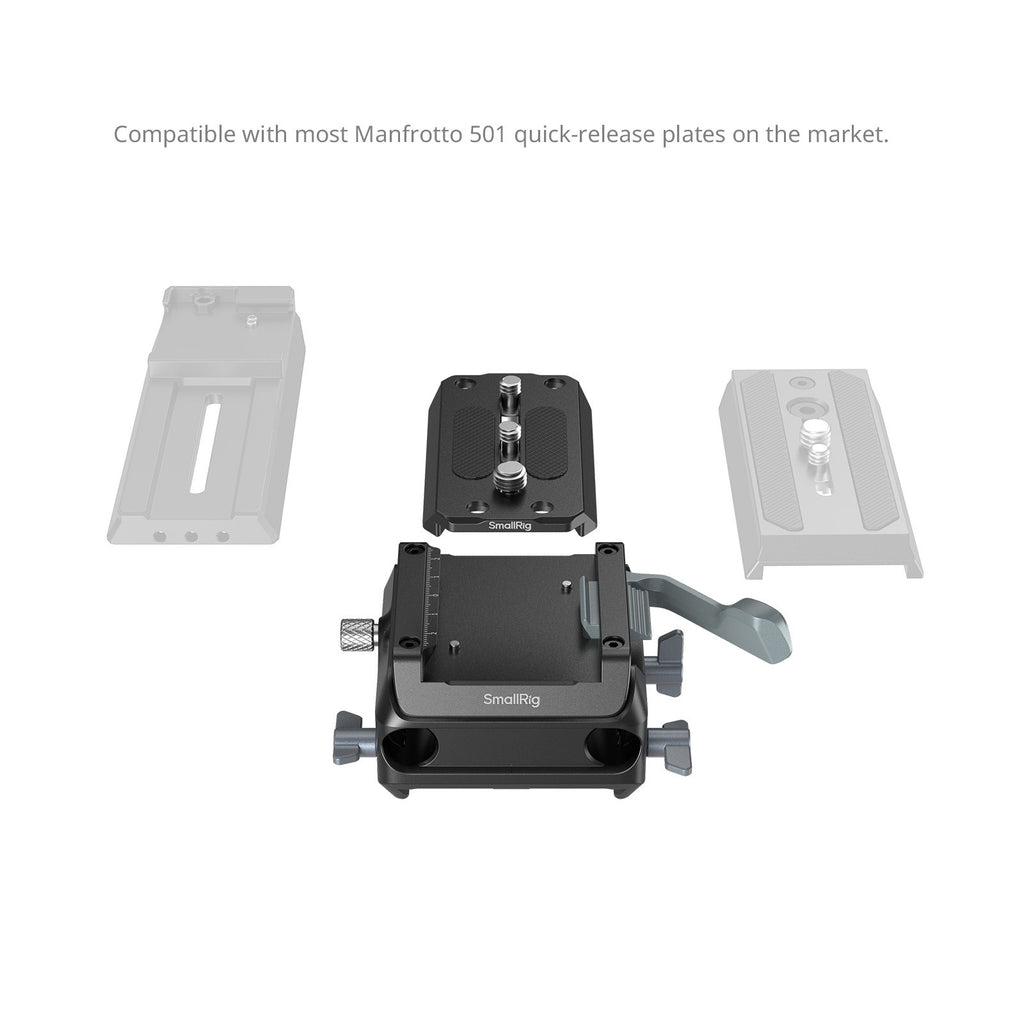

The top features an adjustable quick release clamp with an innovative locking mechanism, fully compatible with most Manfrotto 501 series quick release plates. A simple press seats the plate; flip the lever to lock it firmly in place. This eliminates time-consuming adjustments and enables seamless camera changes—so you can focus on capturing the shot.

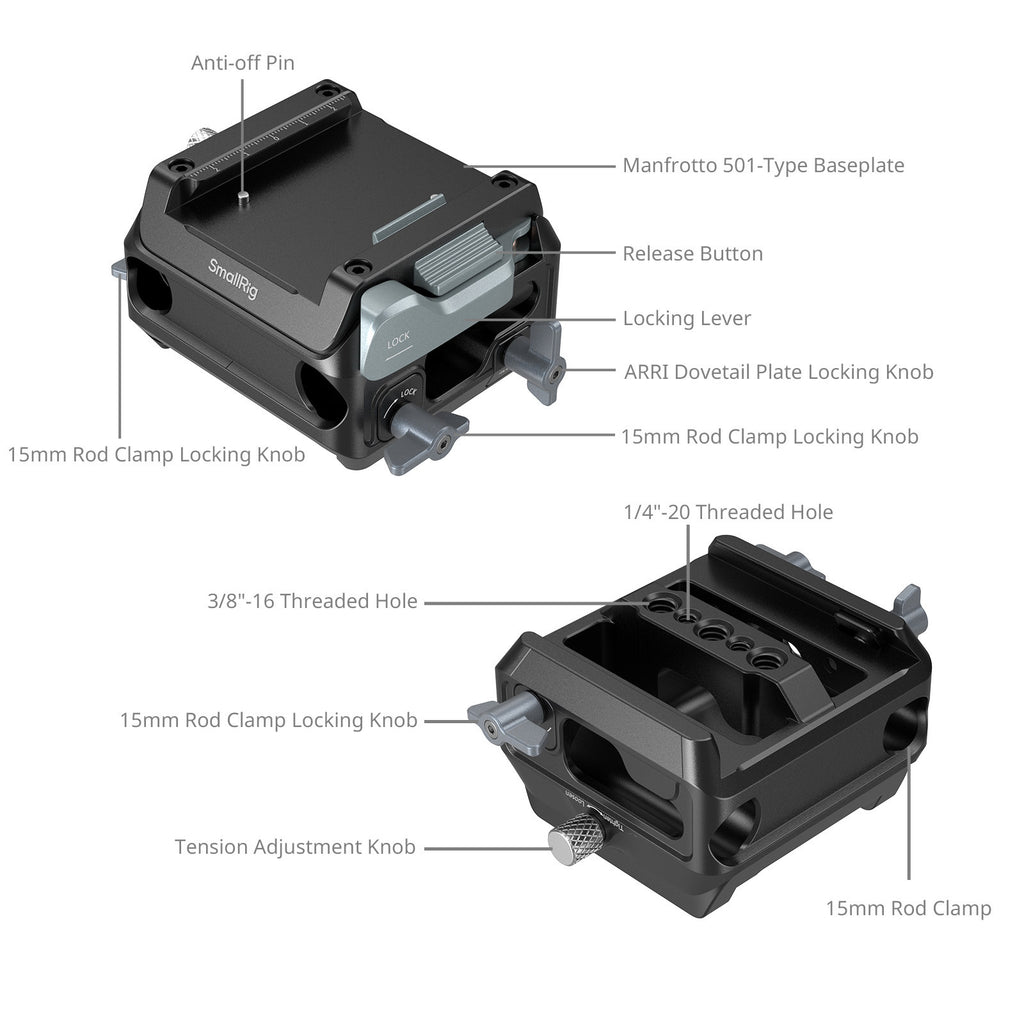

The kit includes a Manfrotto 501 quick-release plate, so no additional purchase is needed. The base is also compatible with ARRI-style dovetail plates (ID 3770) for rapid mounting / dismounting and center-of-gravity adjustment when used in combination. The base of the mount plate is equipped with both 1/4"-20 and 3/8"-16 threaded holes, allowing for dual-screw locking with Manfrotto plates to ensure a secure, wobble-free setup.
SPECIFICATIONS
Product Dimensions: 80.0 x 68.5 x 59.1mm / 4.3 x 3.3 x 2.4in
Package Dimensions: 126.0 x 110.5 x 87.0mm / 5.0 x 4.3 x 3.4in
Product Weight: 173.0 ± 5.0g / 15.0 ± 0.2oz
Package Weight: 253.6 ± 5.0g / 17.8 ± 0.2oz
Material(s): Aluminum Alloy, Stainless Steel, Silicone
COMPATIBILITY
Manfrotto 501 Quick Release Plates
WHAT IS INCLUDED
1x Mount Plate Kit
1x Double Head Wrench
1x User Manual
