Description

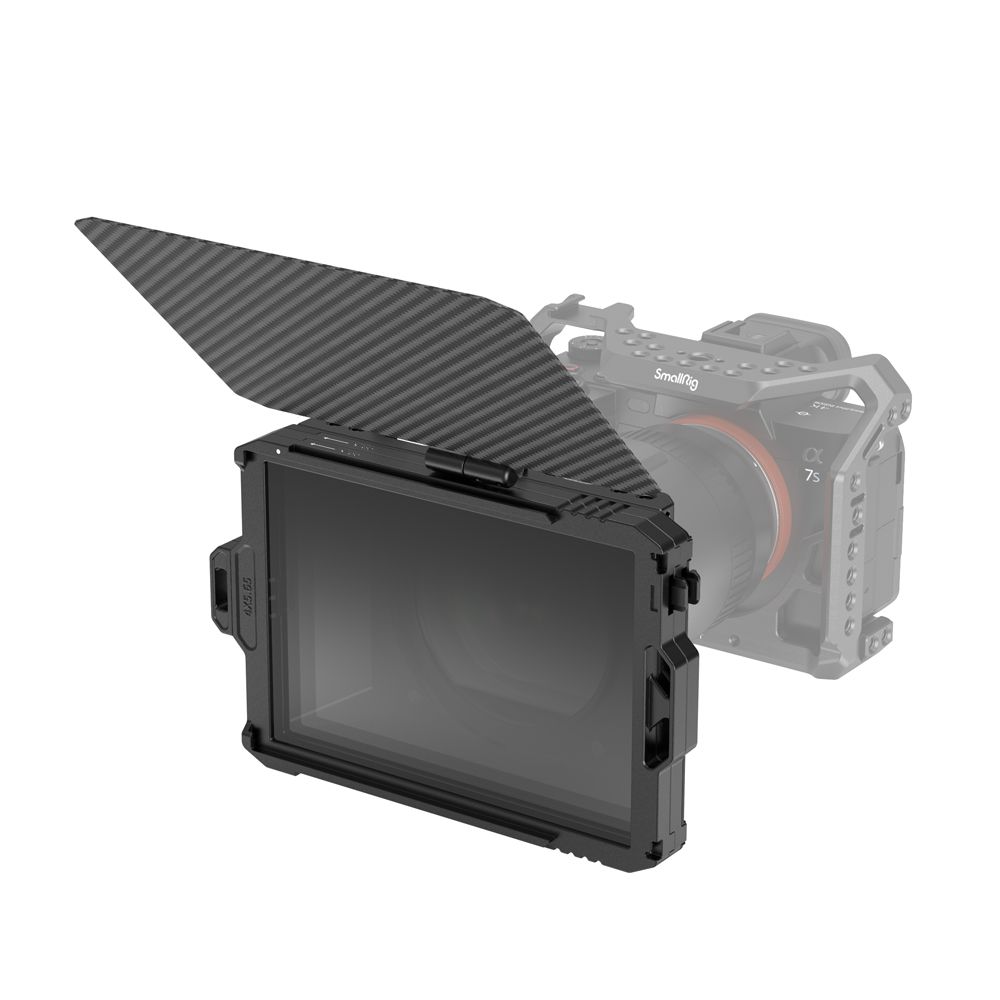

SMALLRIG MINI MATTE BOX 3196
- Portable and compact.

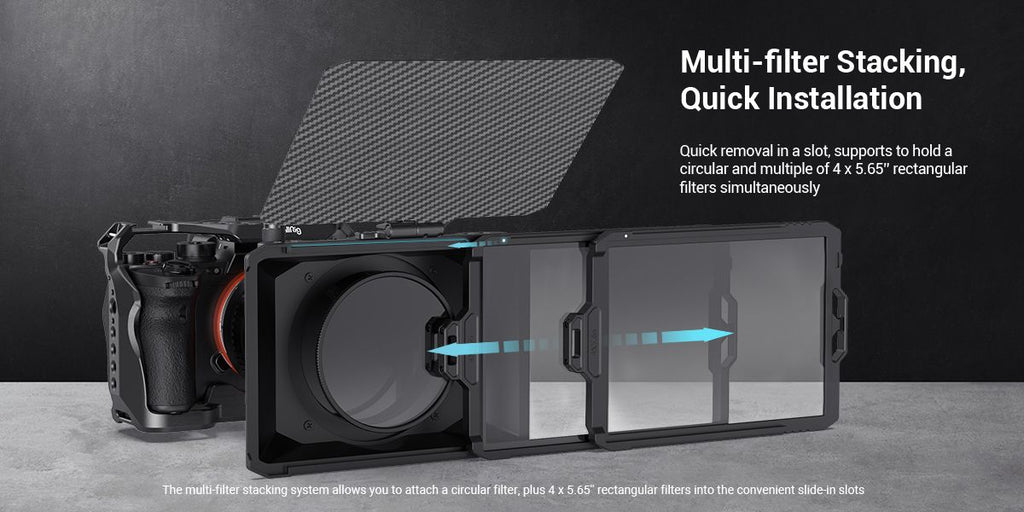

- Holds plug-in filters and round filters at the same time.
- Compatible with CPL, ND filter, etc, easy assembly and disassembly.
- Supports multiple 4x - 65” filters.
- Fits various lenses (52/55/58/62/67/72/77/82/86mm).

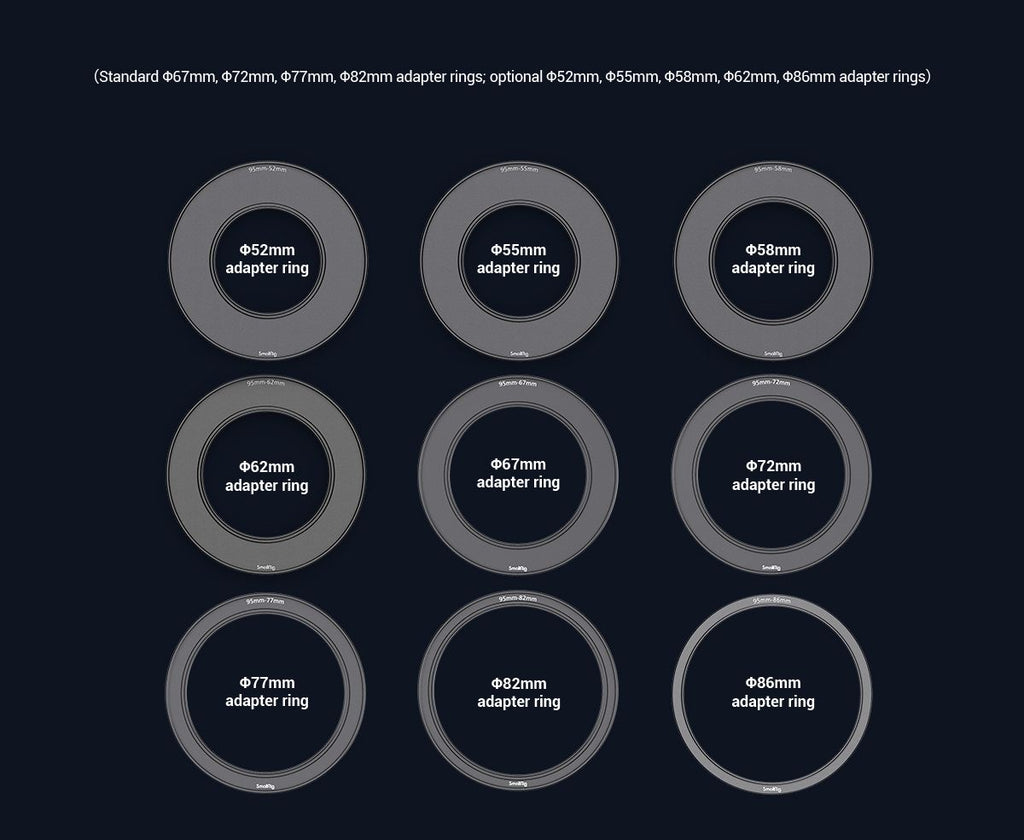

- Comes with 4 adapter rings (67/72/77/82mm), meet users' common shooting needs.
- Features 1/4“-20 threaded holes for additional accessories on the top and anti-twist design on the bottom.

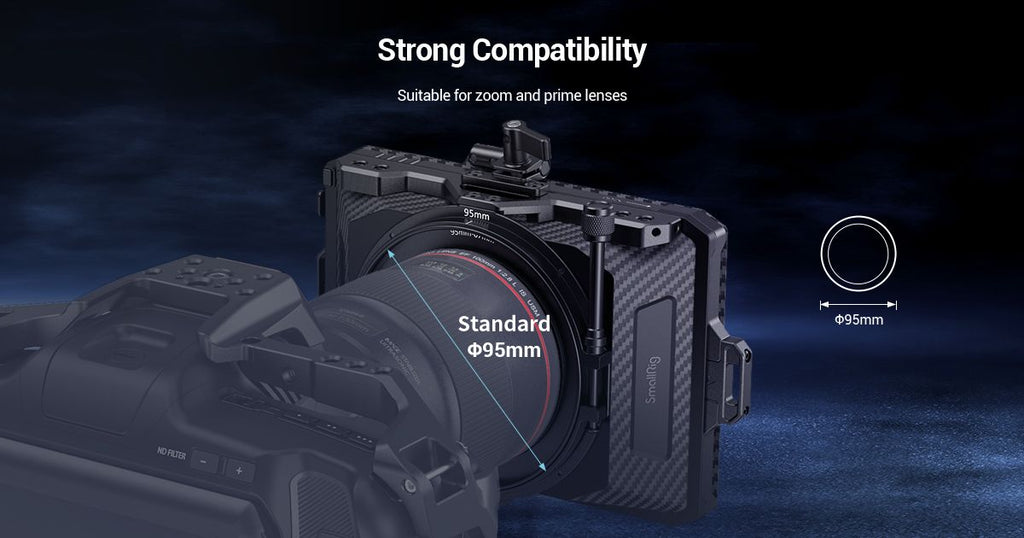

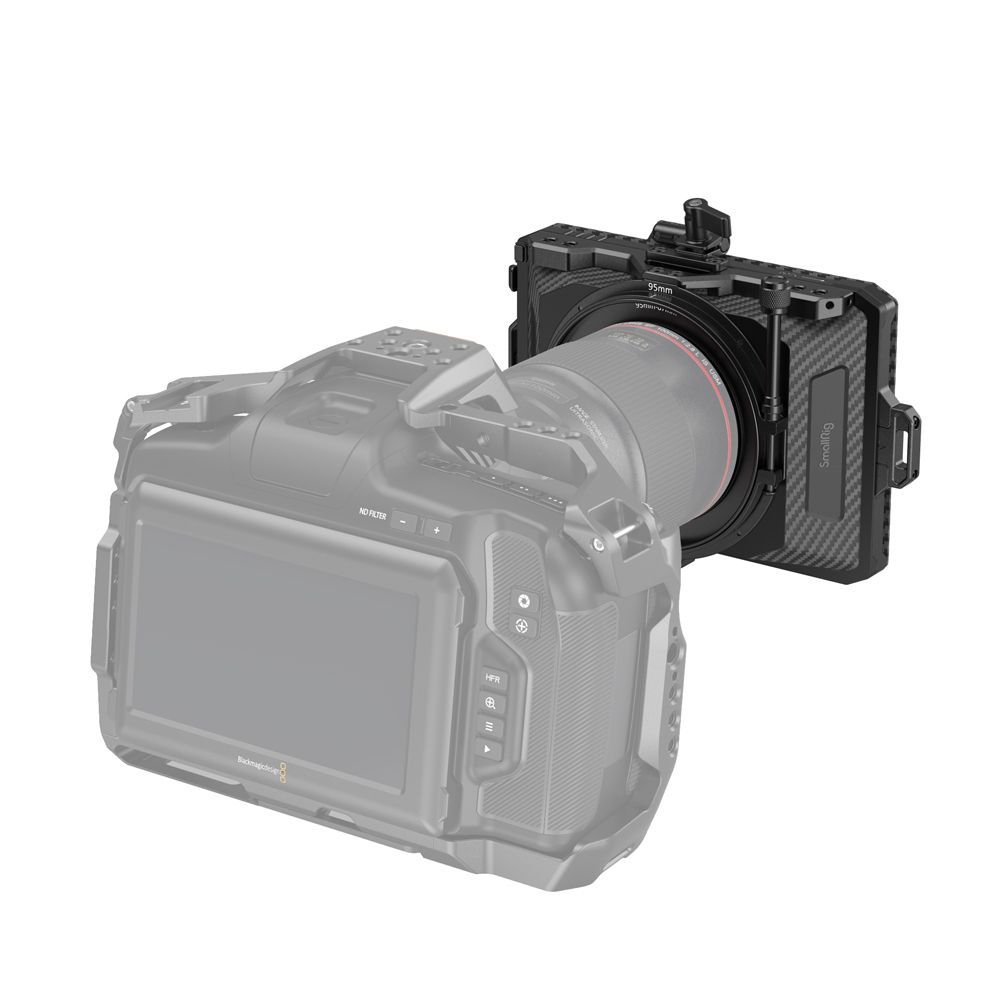

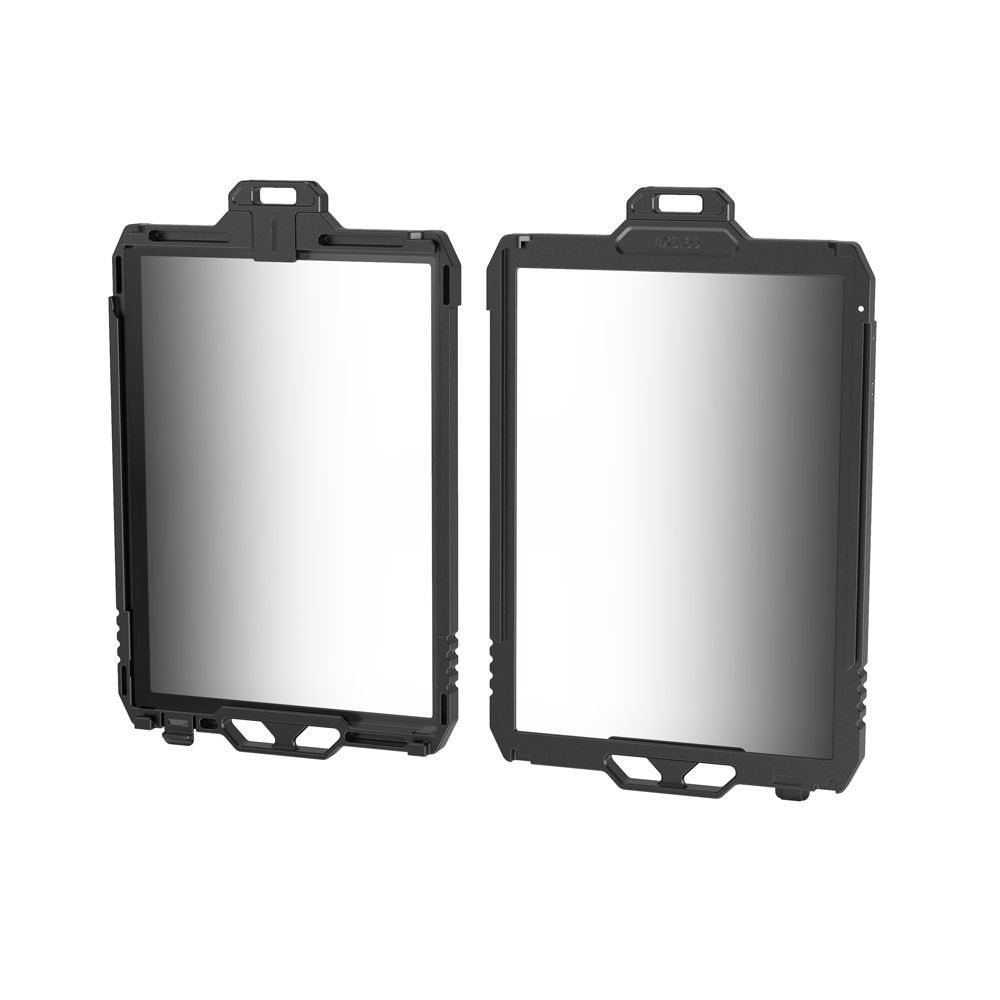

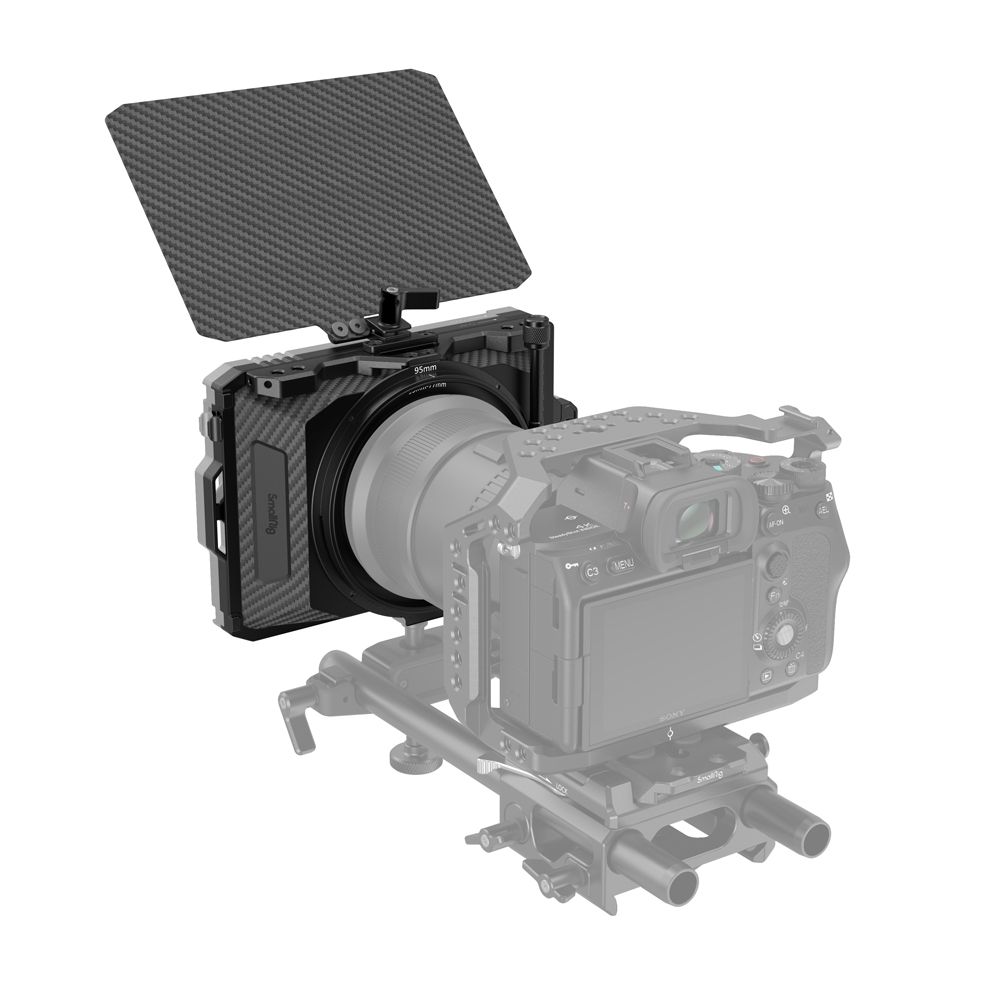

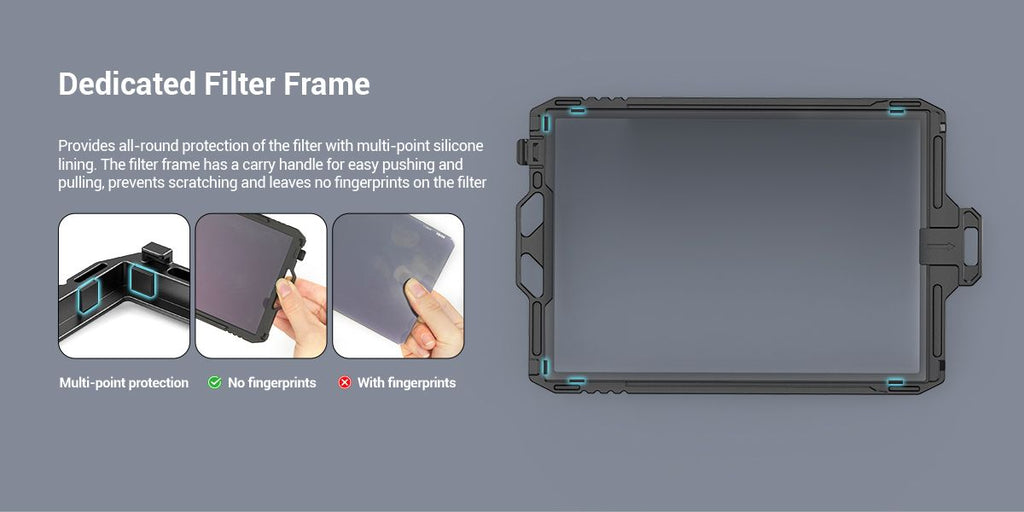

SmallRig Mini Matte Box 3196 is designed for DSLRs and mirrorless cameras to prevent sunlight or other light from causing glare and flare and to control images on the screen. Its clamp connector works with adapter rings of various sizes (Φ52-95mm; Φ55-95mm; Φ58-95mm; Φ62-95mm; Φ67-95mm; Φ72-95mm; Φ77-95mm; Φ82-95mm; Φ86-95mm) or attached directly to Φ95mm lens; its adapter ring fits round CPL, ND filter and other round filters of up to Φ9- 5mm. The filter tray 3319 can be quickly mounted onto the matte box via a NATO clamp and supports multiple 4x - 65" plug-in filters of up to 4mm in thickness at the same time. It is easy to store and prevents scratches and fingerprints while replacing plug-in filters. The adjustable carbon-fiber top flag blocks sunlight or strong light and also prevents internal reflections with its anti-reflective design. Top 1/4"-20 threaded holes enable easy attachment of other accessories and anti-twist 1/4"-20 threaded holes on the bottom suits 15mm LWX Rod Support 266-
Designer: Victor Tang,Jerry Zhang
IMPORTANT
SmallRig Mini Matte Box 3196 is designed for DSLRs and mirrorless cameras to prevent sunlight or other light from causing glare and flare and to control images on the screen. Its clamp connector works with adapter rings of various sizes (Φ52-95mm; Φ55-95mm; Φ58-95mm; Φ62-95mm; Φ67-95mm; Φ72-95mm; Φ77-95mm; Φ82-95mm; Φ86-95mm) or attached directly to Φ95mm lens; its adapter ring fits round CPL, ND filter and other round filters of up to Φ9- 5mm. The filter tray 3319 can be quickly mounted onto the matte box via a NATO clamp and supports multiple 4x - 65" plug-in filters of up to 4mm in thickness at the same time. It is easy to store and prevents scratches and fingerprints while replacing plug-in filters. The adjustable carbon-fiber top flag blocks sunlight or strong light and also prevents internal reflections with its anti-reflective design. Top 1/4"-20 threaded holes enable easy attachment of other accessories and anti-twist 1/4"-20 threaded holes on the bottom suits 15mm LWX Rod Support 266-
Designer: Victor Tang,Jerry Zhang
IMPORTANT
- Not 100 x 100mm filters compatible.
- Adapter rings kit (Φ52/55/58/62/86-95mm) 3383 is separately available.
- Max load capacity: 1kg.

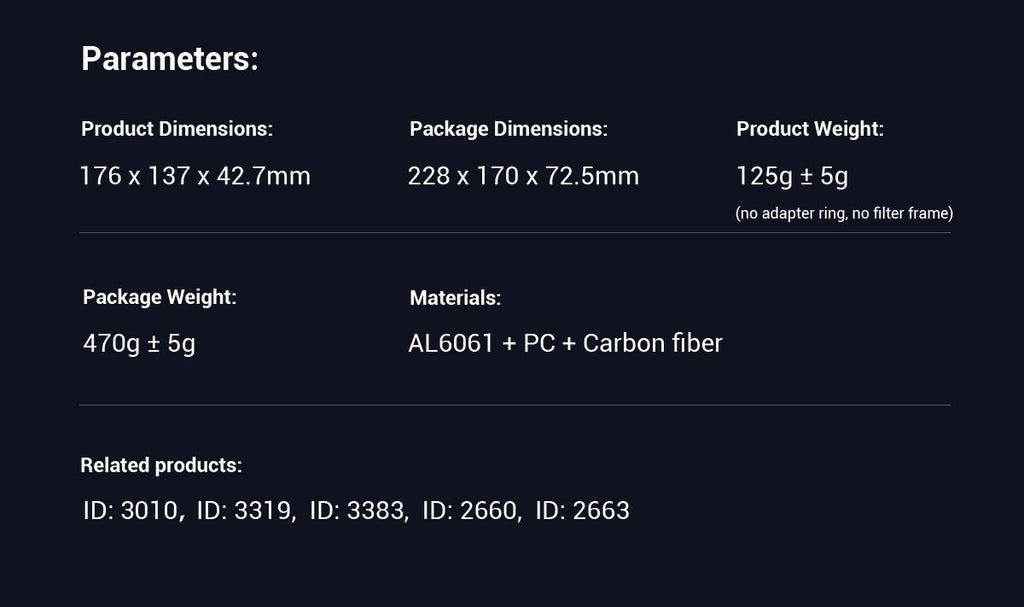

SPECIFICATIONS
SPECIFICATIONS

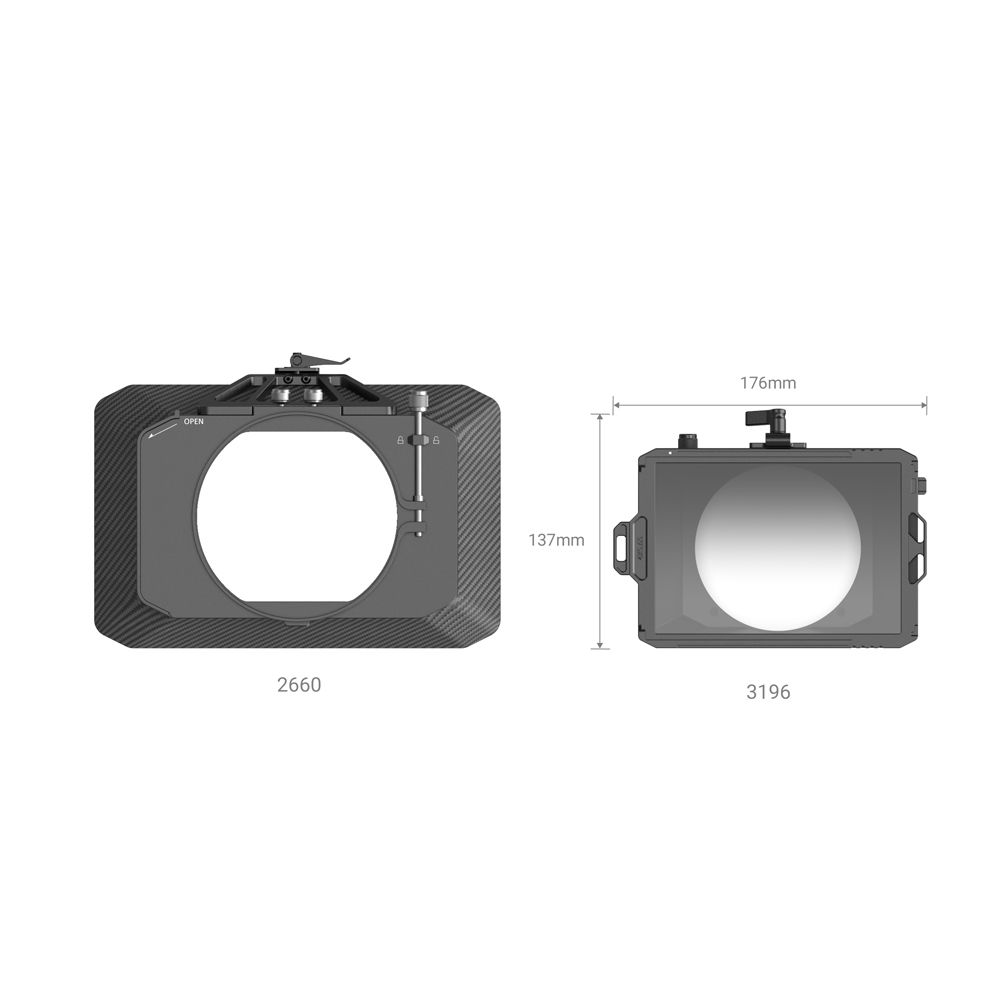

Product Dimensions: 176 x 137 x 4- 7mm
Package Dimensions: 228x 170 x 7- 5mm
Net Weight: 150g±5g (excluding adapter rings)
Package Weight: 470g±5g
Material: AL6061+PC+Carbon Fiber

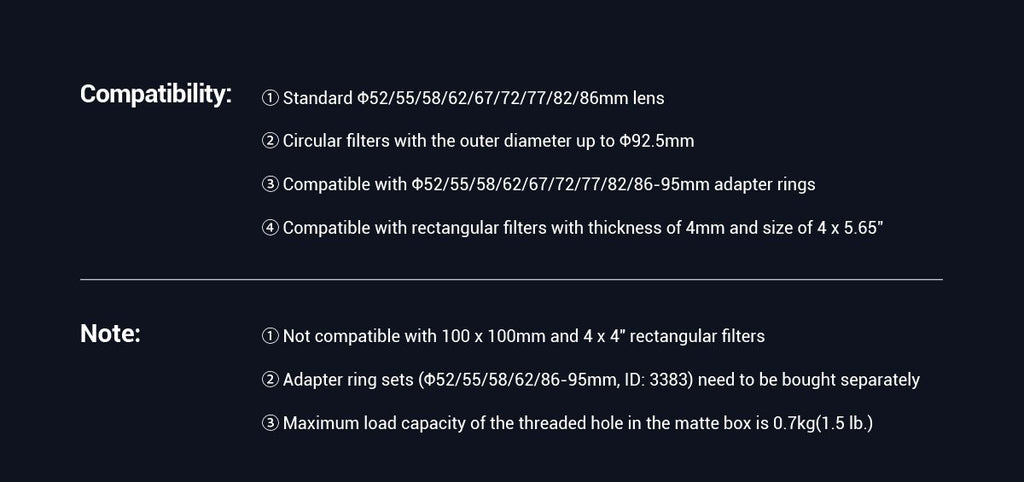

COMPATIBILITY
COMPATIBILITY
1：Standard Φ52/55/58/62/67/72/77/82/86mm lens
2：Round filters of up to Φ9- 5mm
3：Φ52/55/58/62/67/72/77/82/86-95mm adapter ring
4：4x - 65" plug-in filters of 4mm in thickness.

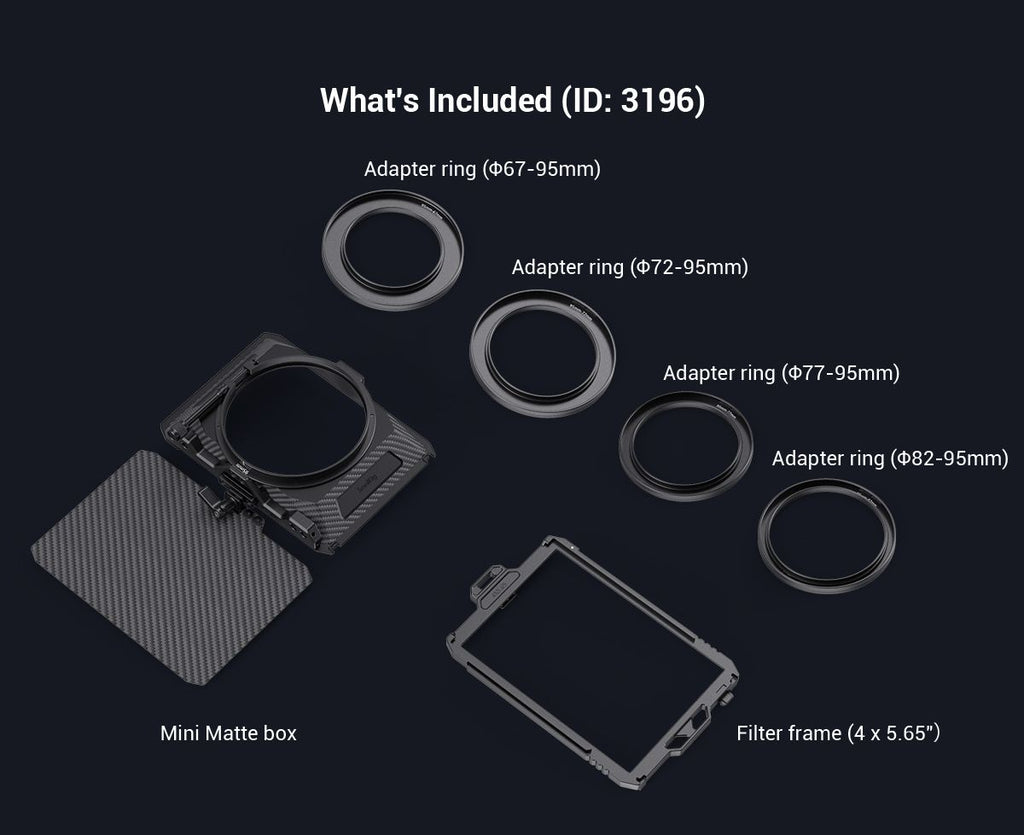

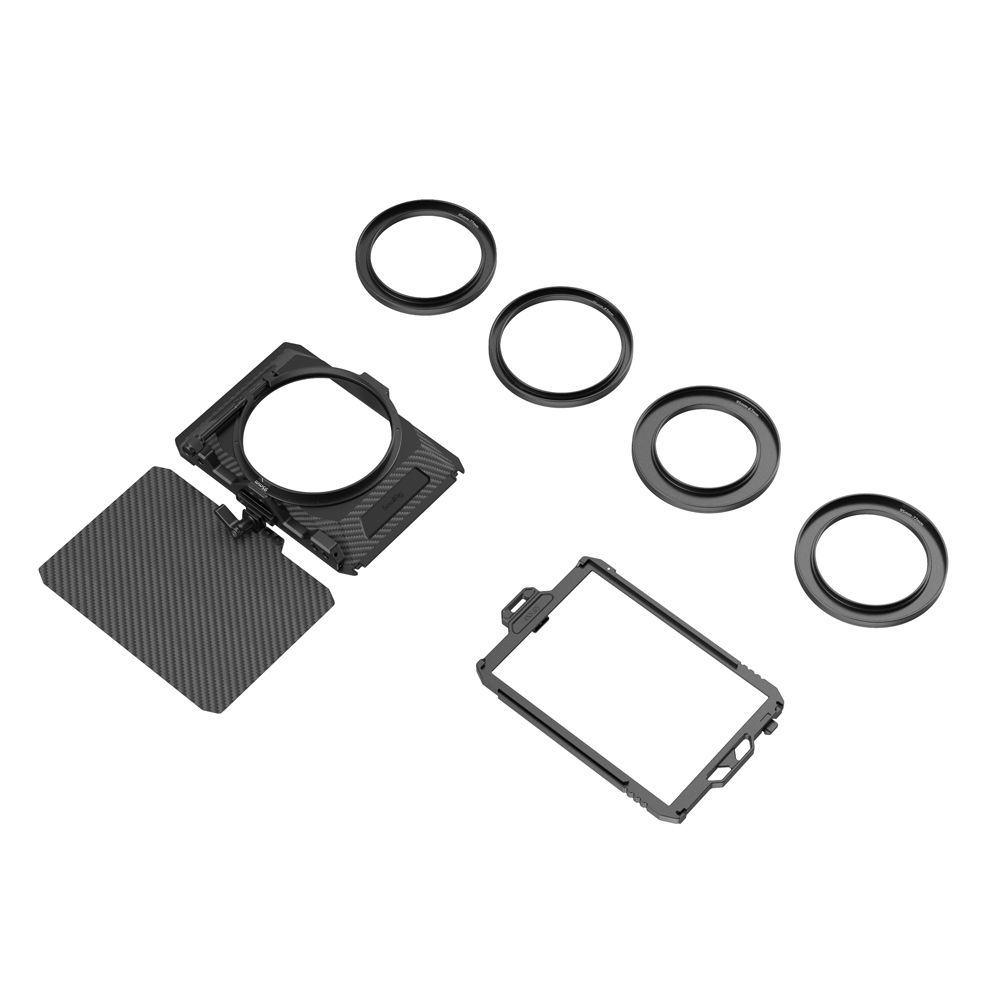

WHAT IS INCLUDED
WHAT IS INCLUDED
1x Mini Matte Box
1x Φ67/72/77/82-95mm Adapter Ring
1x Filter Tray (4x - 65)
