Description
SMALLRIG MONITOR CAGE KIT FOR ATOMOS NINJA TX 5708
- Dedicated Cage Kit for Atomos Ninja TX: Provides protection for both the monitor body and screen.
- Versatile Mounting Options: Includes 1/4"-20 threaded holes, ARRI 3/8''-16 locating holes, a "HawkLock" H21 NATO rail, and strap holes, allowing attachment of accessories such as monitor mounts, magic arms, and shoulder straps.

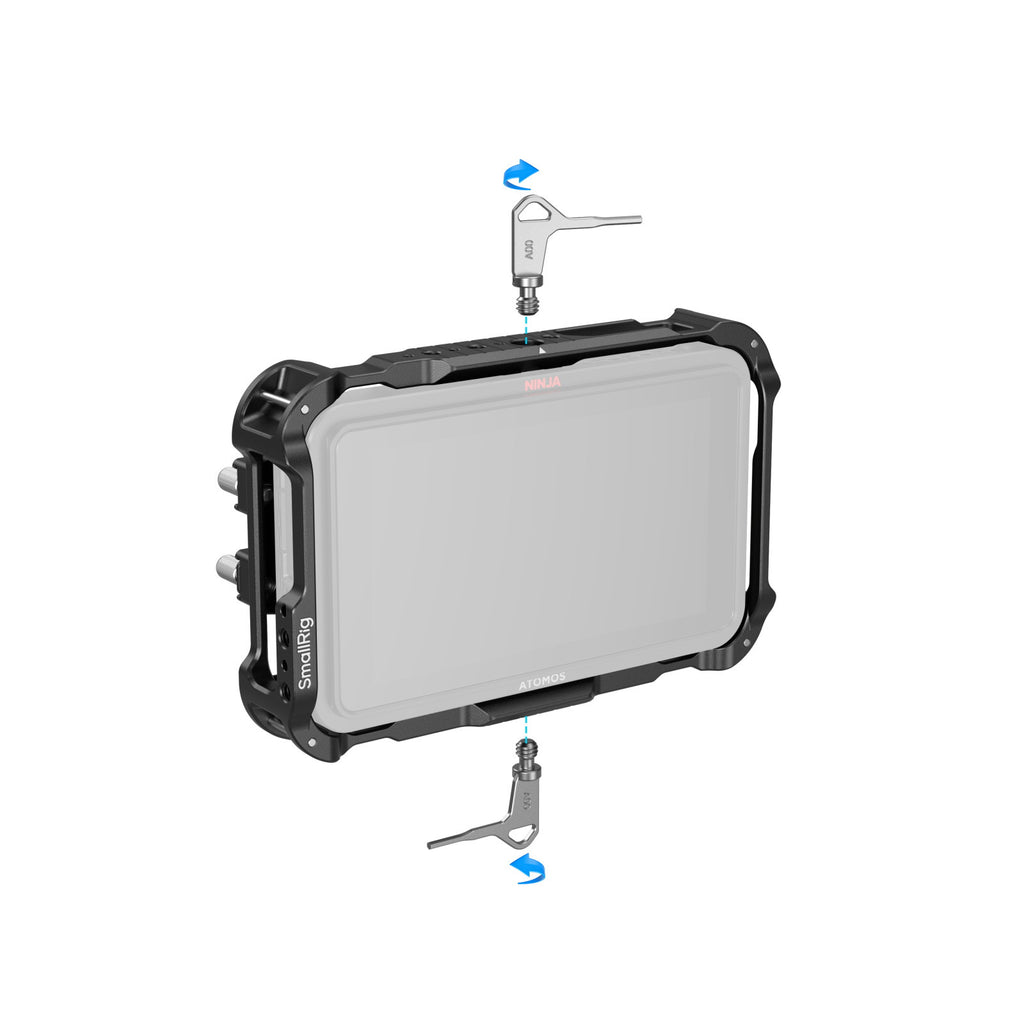

- Reliable and Stable: Features durable construction with a 2-point locking system that minimizes image shake.

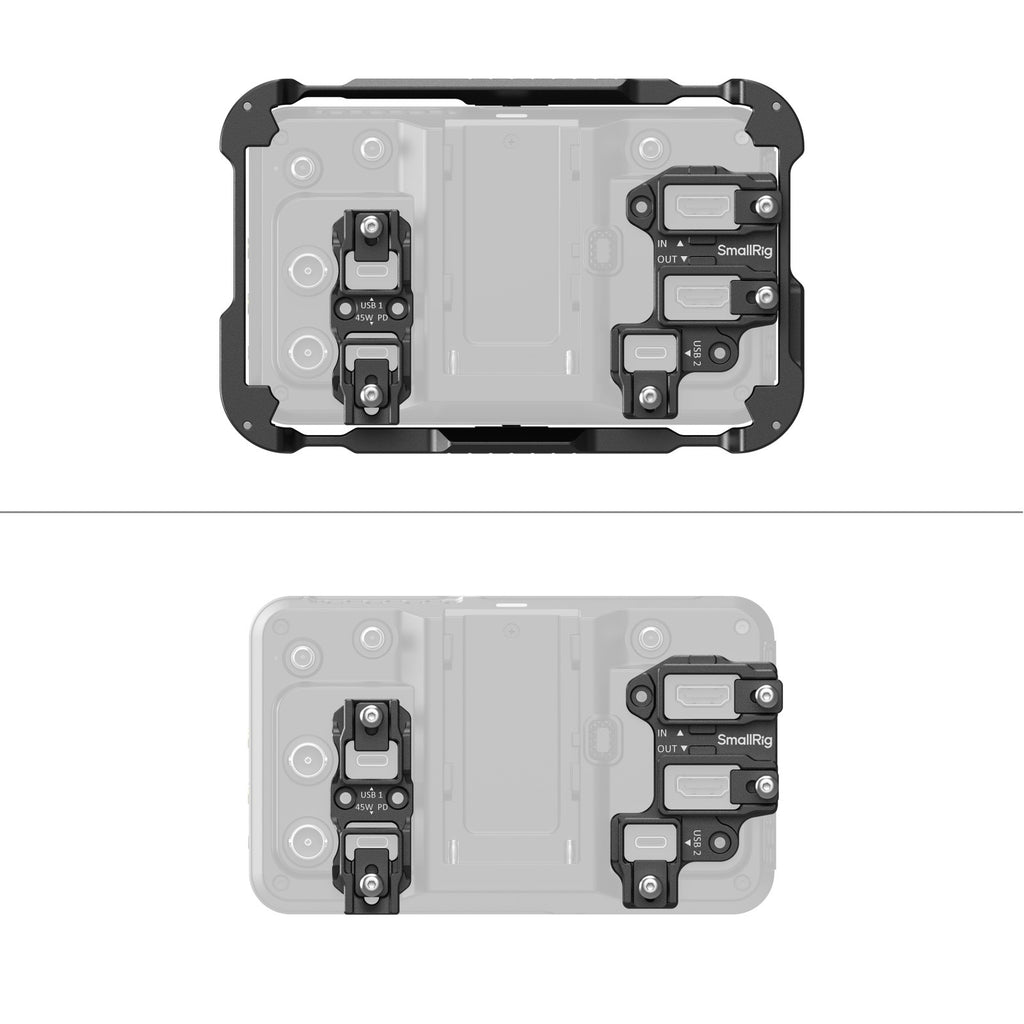

- Dedicated Cable Clamp: Includes an HDMI & USB cable clamp to secure connections, protect ports, and ensure stable data transmission. It can be used independently or with the cage.
- Enhanced Outdoor Monitoring: Comes with a sun hood and screen protector, improving visibility in bright environments and safeguarding against scratches.

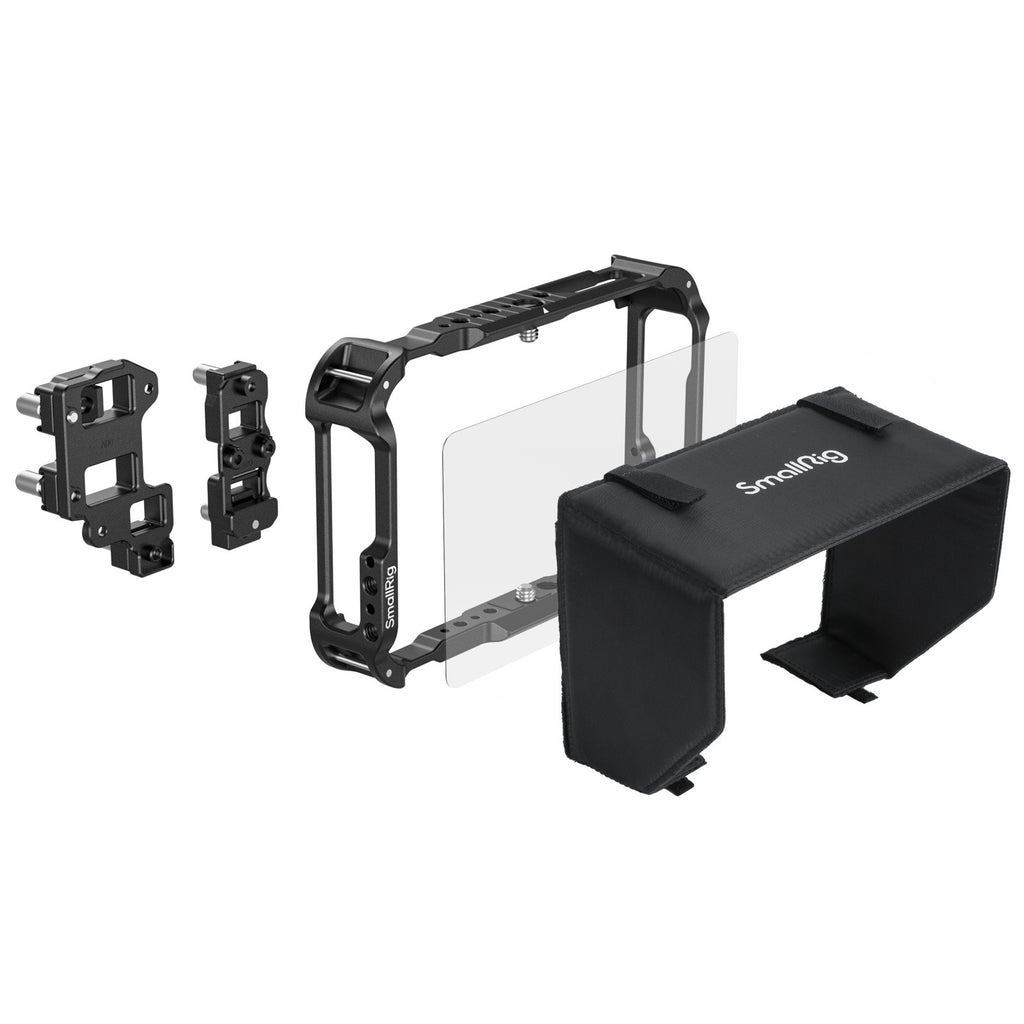

SmallRig Monitor Cage Kit for Atomos Ninja TX 5708 is designed to provide robust protection and versatile mounting options for the device. The kit includes a cage, a sun hood (ID VH2269), an HDMI & USB-C cable clamp, a dedicated USB-C cable clamp, and a screen protector. The integrated sun hood significantly improves screen visibility in bright shooting environments.

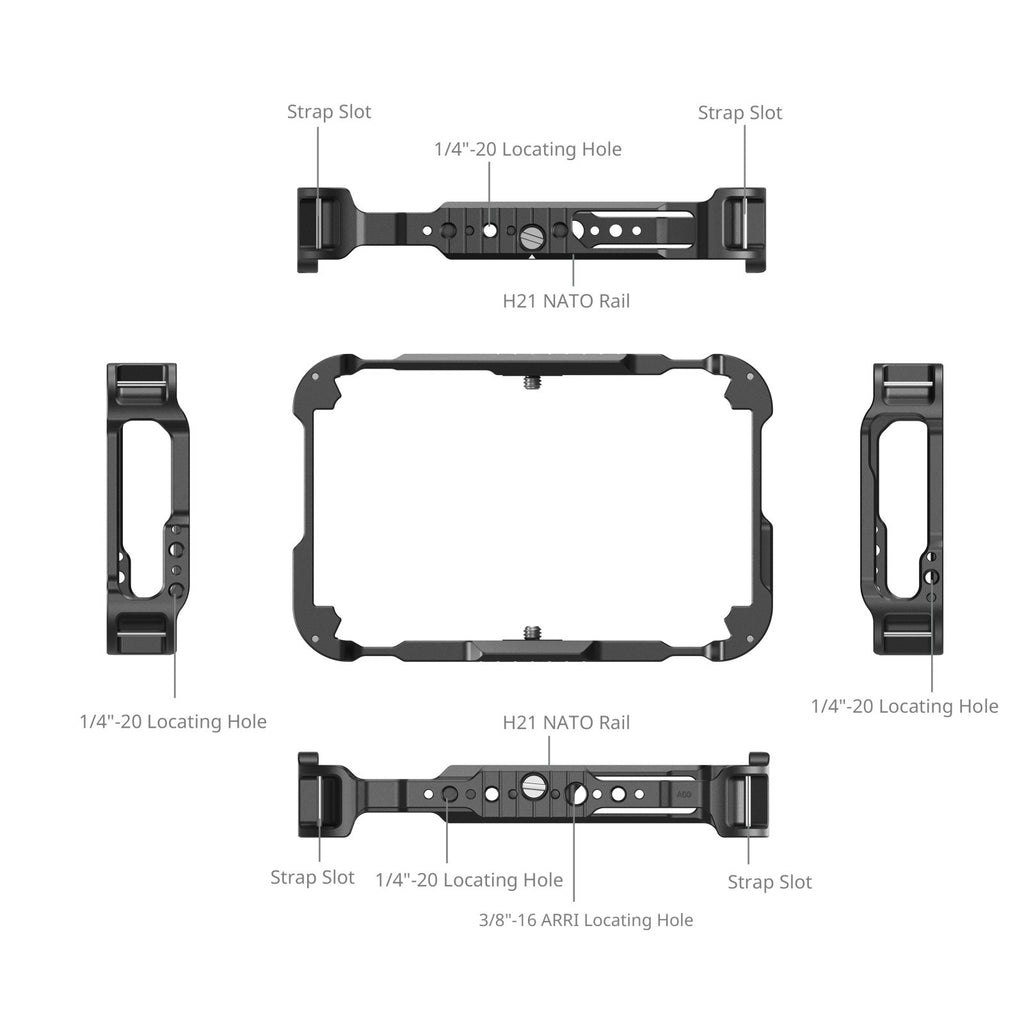

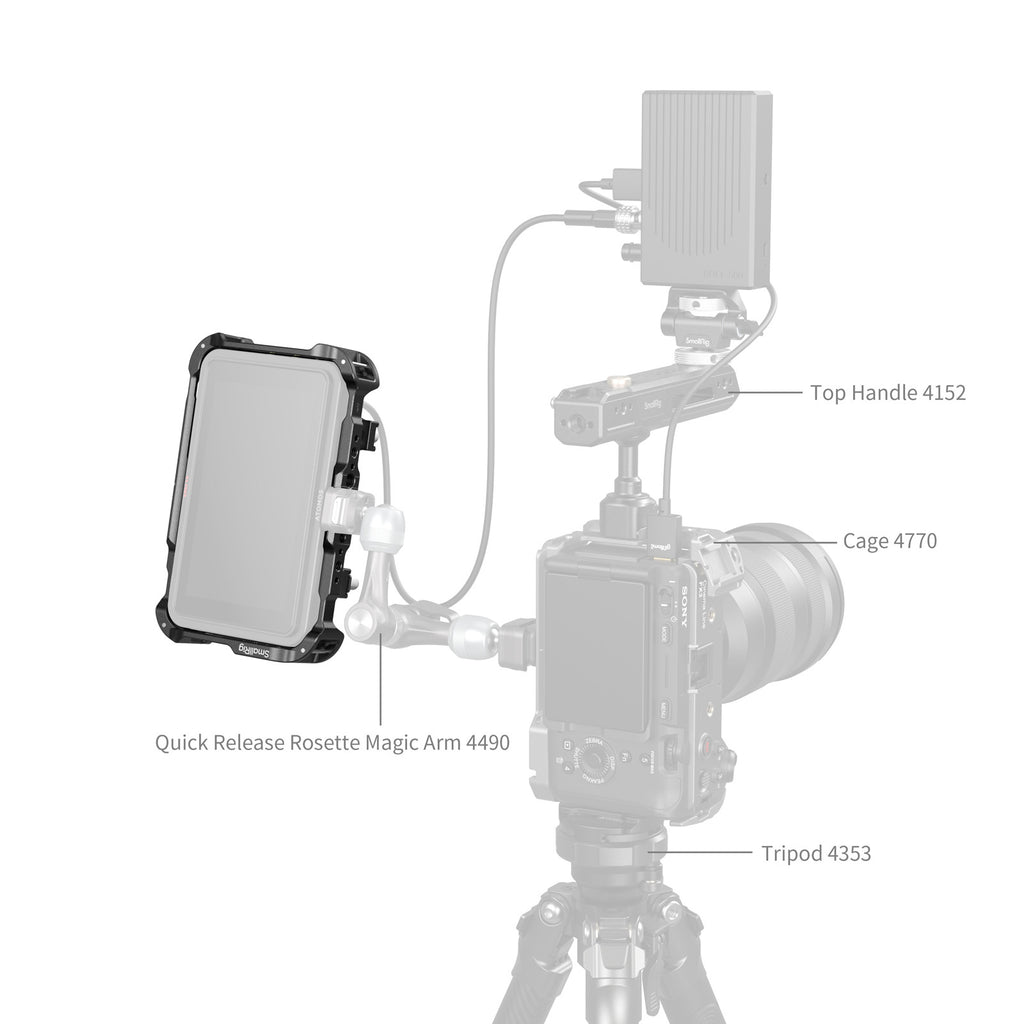

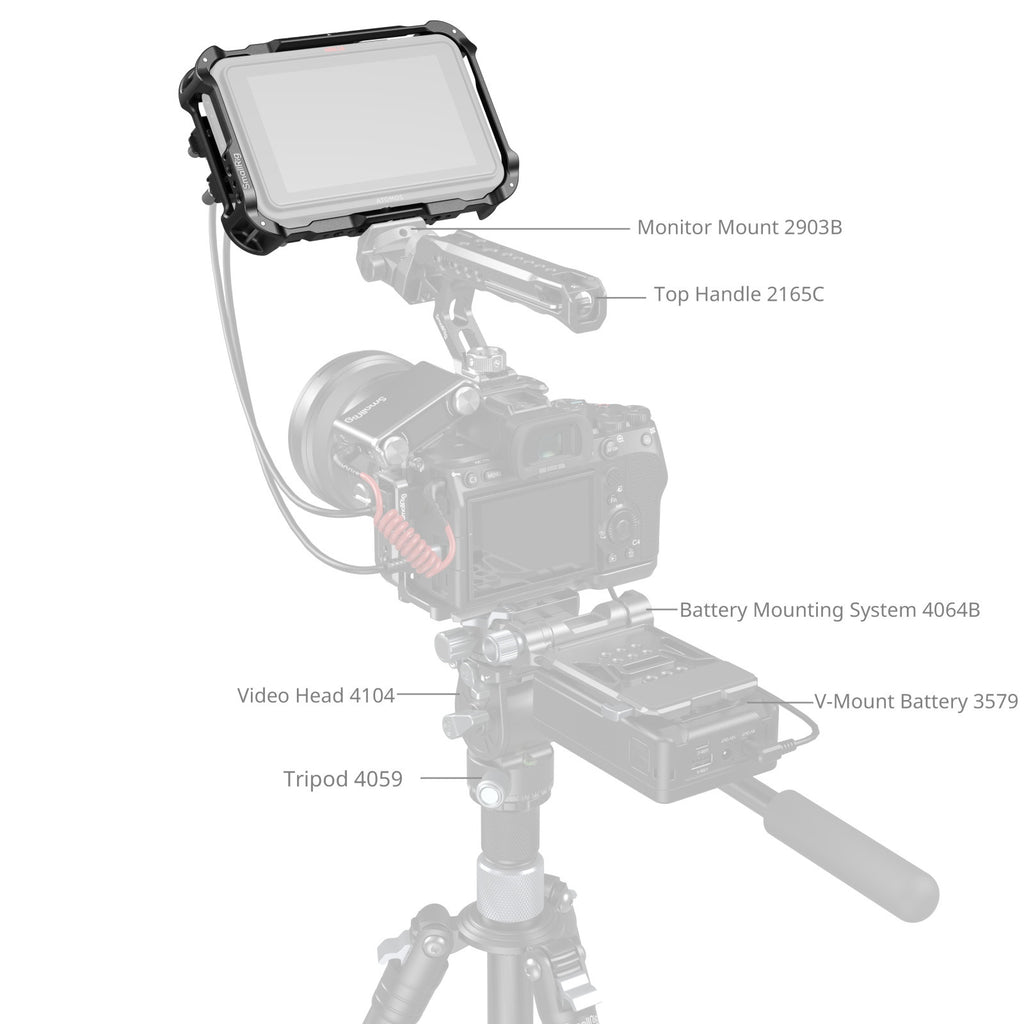

The cage features a built-in "HawkLock" H21 NATO rail, compatible with the "HawkLock" Monitor Support (ID 4888) and the Swivel and Tilt Adjustable Monitor Mount (ID 2906B), enabling quick attachment and detachment. It is equipped with multiple 1/4"-20 threaded holes for attaching accessories such as the Monitor Mount (ID 2903B) and Magic Arm (ID 3873), along with ARRI 3/8"-16 locating holes for mounting the Magic Arm (ID 4900). Strap holes at the top and bottom enable convenient shoulder strap attachment. Engineered for durability and stability, the cage features a two-point locking system that minimizes shake during operation.
The included cable clamps securely fasten both HDMI and USB-C connectors and are compatible with original Atomos cables. They can be mounted directly onto the monitor or attached to the cage, preventing accidental disconnections for stable data transmission. Additionally, the sun hood and screen protector work together to enhance visibility in high-glare conditions while safeguarding the screen from scratches.
IMPORTANT
1. The cable clamps are compatible with original Atomos HDMI and USB-C cables.
2. The cage is compatible with the original Atomos sun hood.
SPECIFICATIONS

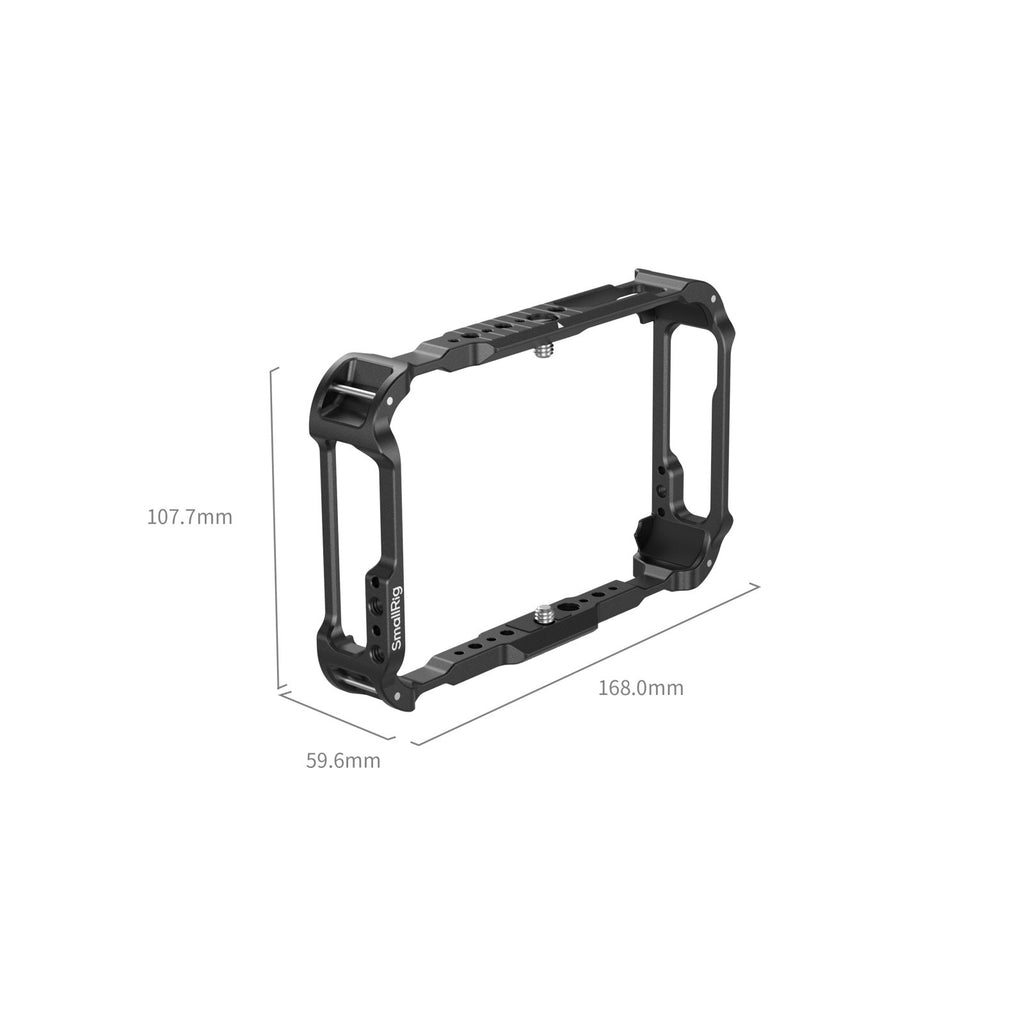

Product Dimensions: 168.0 × 107.7 × 149.8mm / 6.6 × 4.2 × 5.9in
Package Dimensions: 180.0 × 129.5 × 75.0mm / 7.1 × 5.1 × 3.0in
Product Weight: 255.8 ± 5.0g / 9.0 ± 0.2oz
Package Weight: 375.8 ± 5.0g / 13.3 ± 0.2oz
Material(s): Aluminum Alloy, Nylon
COMPATIBILITY
Atomos Ninja TX

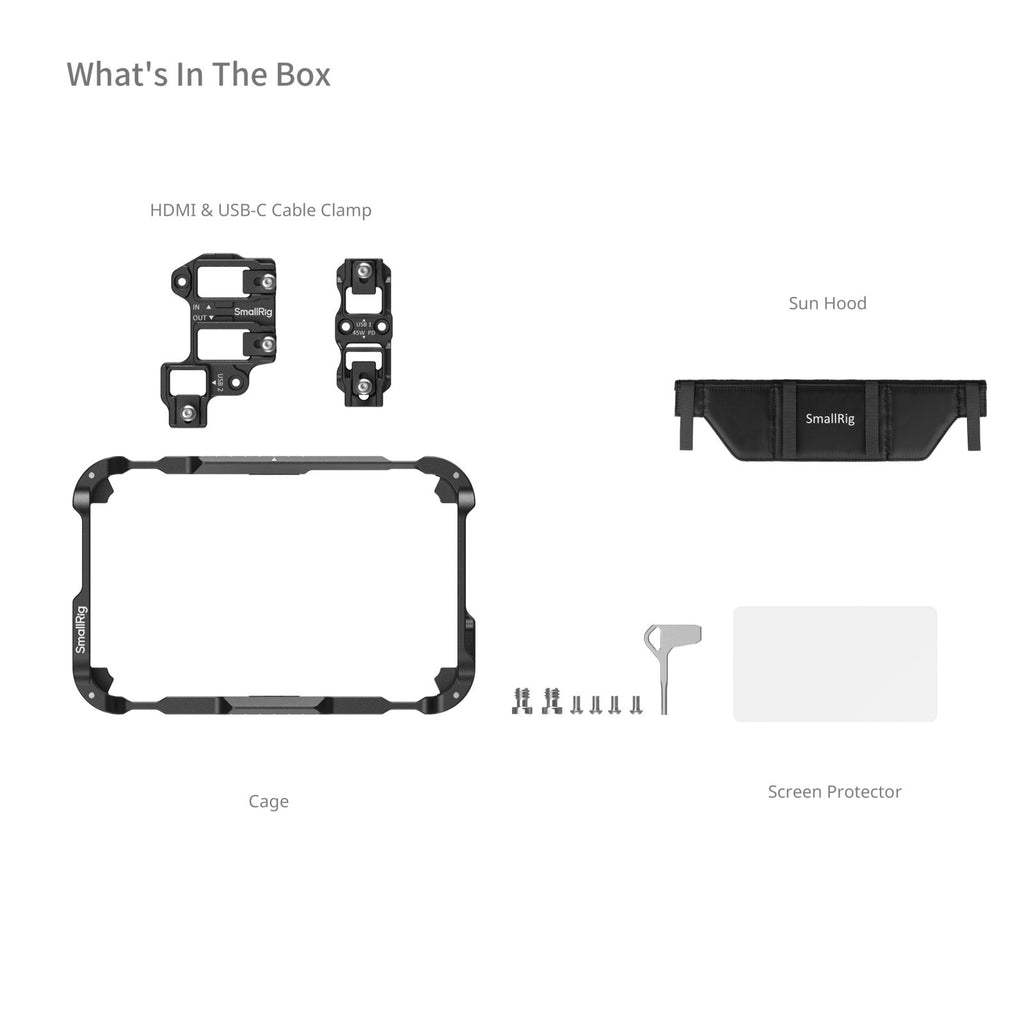

WHAT IS INCLUDED
1x Cage
1x Sun Hood
1x Screen Protector
1x HDMI & USB-C Cable Clamp
1x USB-C Cable Clamp
2x 1/4"-20 Screws
4x M3 Screws
1x Cleaning Tool
1x Double Head Wrench
1x User Manual
