Description

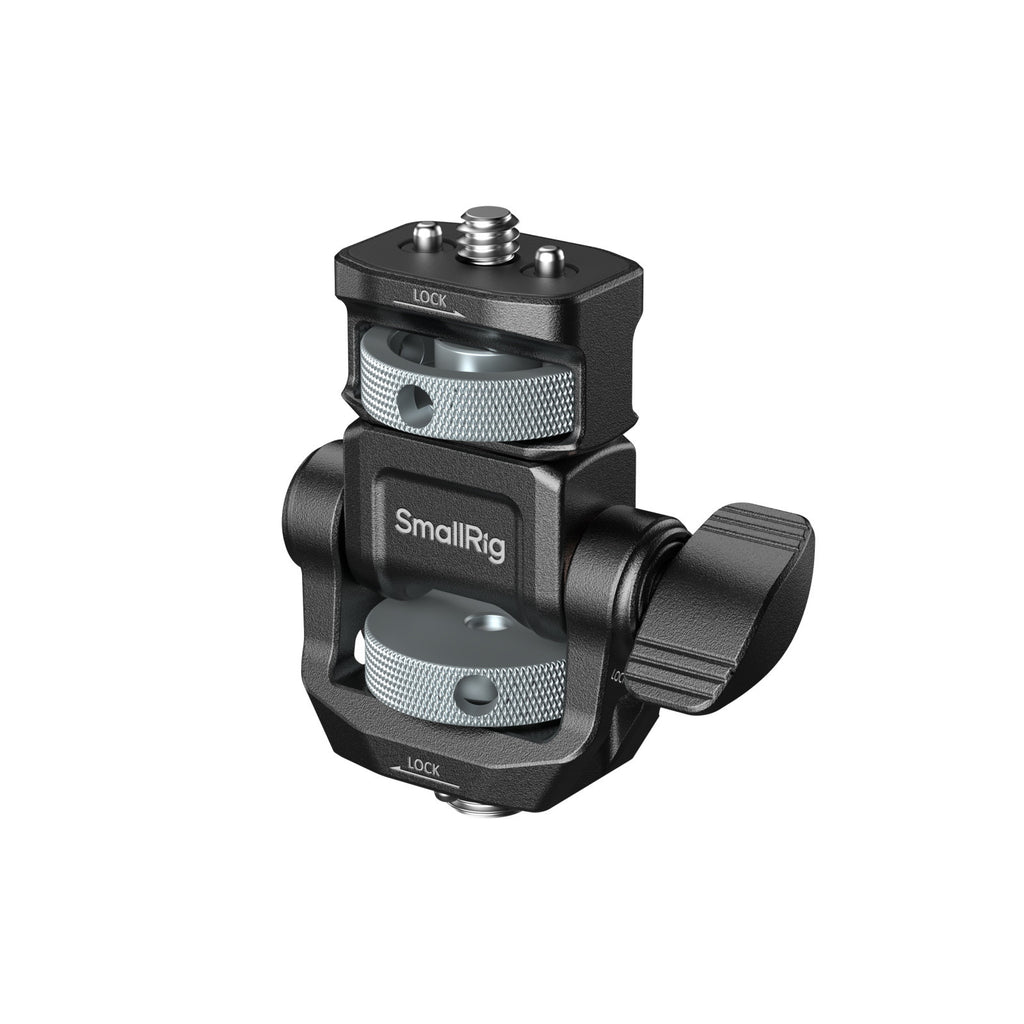

SMALLRIG MONITOR SUPPORT FOR HORIZONTAL & VERTICAL SHOOTING WITH ARRI 3/8"-16 LOCATING SCREW 6314

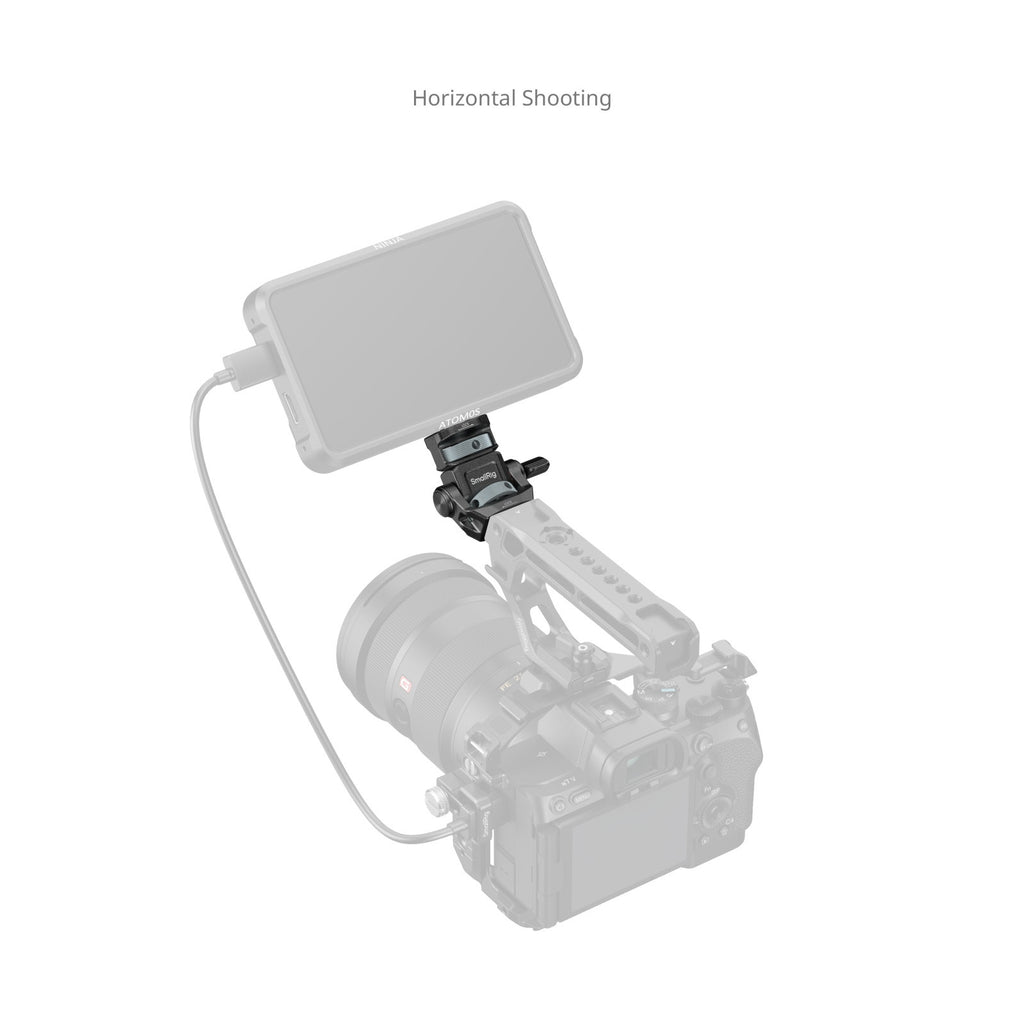

- Supports both horizontal and vertical monitor mounting.
- Offers 180° tilt and 360° pan for easy angle adjustment.
- Features knob-adjustable tilt damping to match devices of different weights.

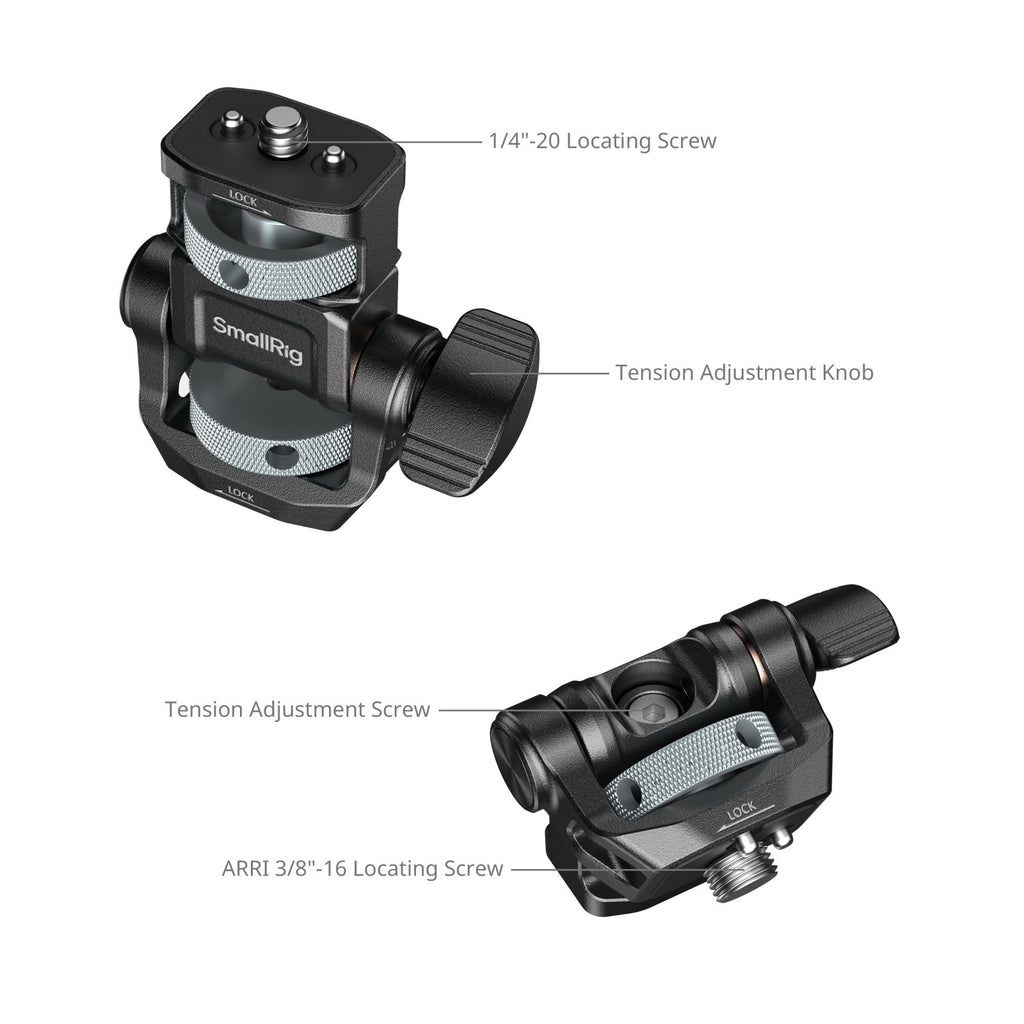

SmallRig Monitor Support for Horizontal & Vertical Shooting with ARRI 3/8"-16 Locating Screw 6314 is designed to mount monitors or other accessories with a 1/4"-20 threaded hole or 1/4"-20 locating hole onto a camera cage, top handle, or other support accessory. The top features a retractable 1/4"-20 locating screw to help secure the mounted accessory. The bottom mounts to an ARRI locating hole for a secure, anti-twist connection.

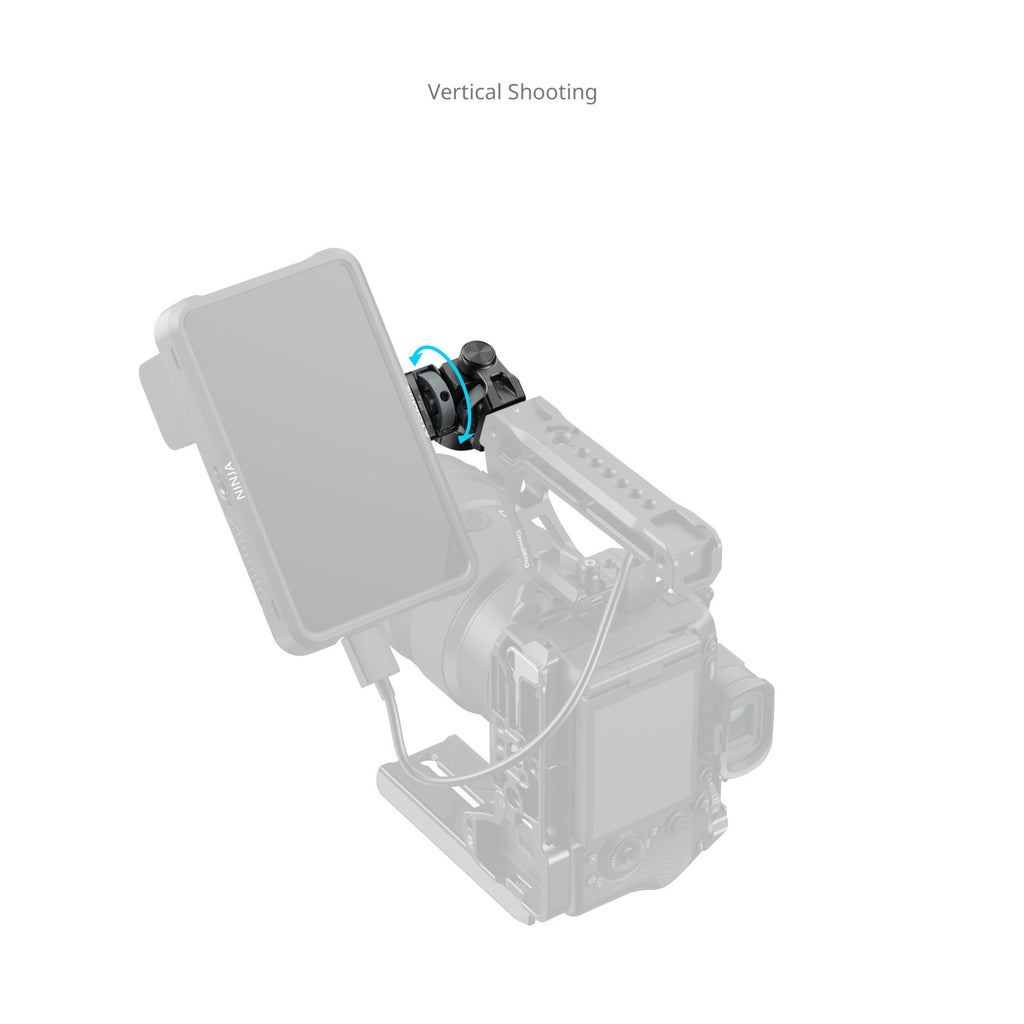

It offers 180° tilt and 360° pan for easy angle adjustment. The tilt damping can be adjusted quickly without tools to support devices of different weights. It also enables vertical monitor mounting while retaining tilt adjustment.
SPECIFICATIONS

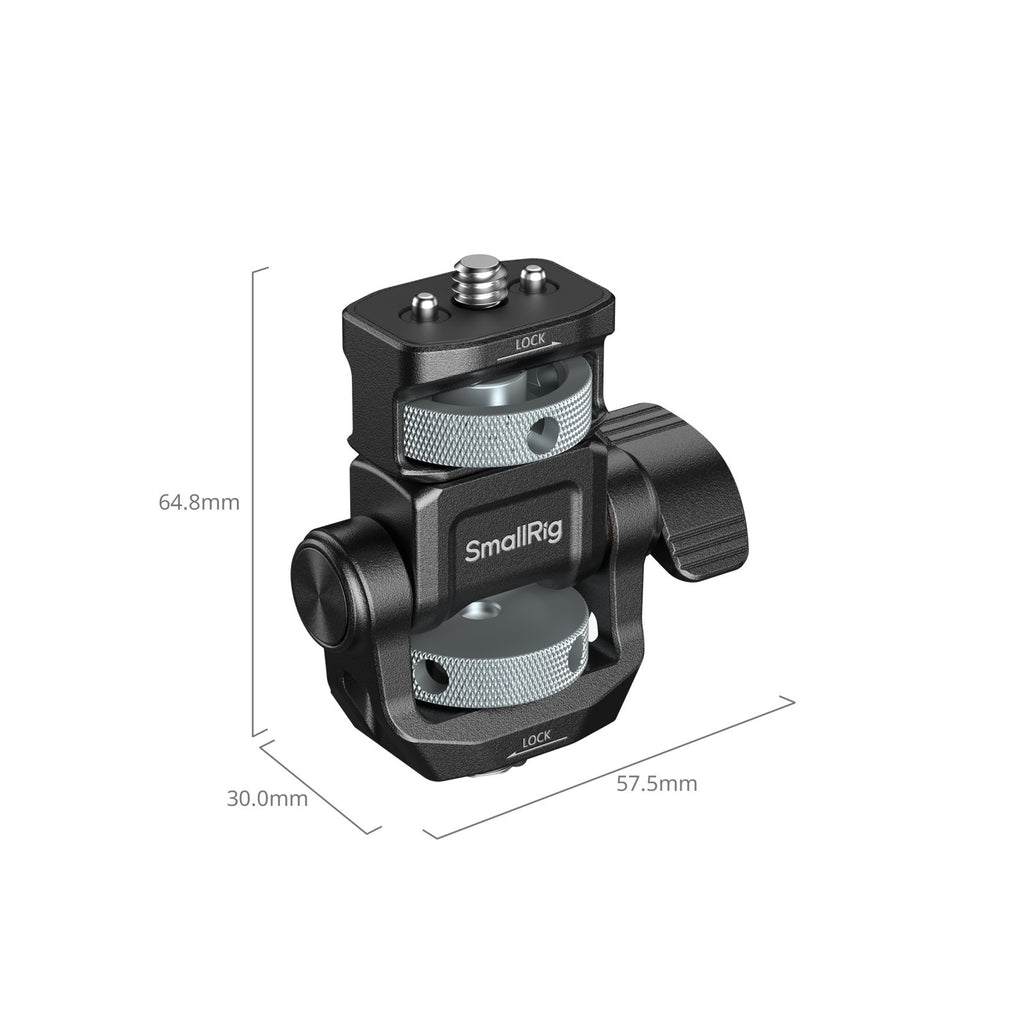

Product Dimensions: 64.8 × 57.5 × 30.0mm / 2.6 × 2.3 × 1.2in
Package Dimensions: 77.0 × 65.5 × 41.0mm / 3.0 × 2.6 × 1.6in
Product Weight: 75.6 ± 5.0g / 2.7 ± 0.2oz
Package Weight: 103.6 ± 5.0g / 3.7 ± 0.2oz
Material(s): Aluminum Alloy, Stainless Steel, Silicone
COMPATIBILITY
Accessories with 1/4“-20 threaded hole or 1/4”-20 locating hole、ARRI 3/8"-16 locating hole

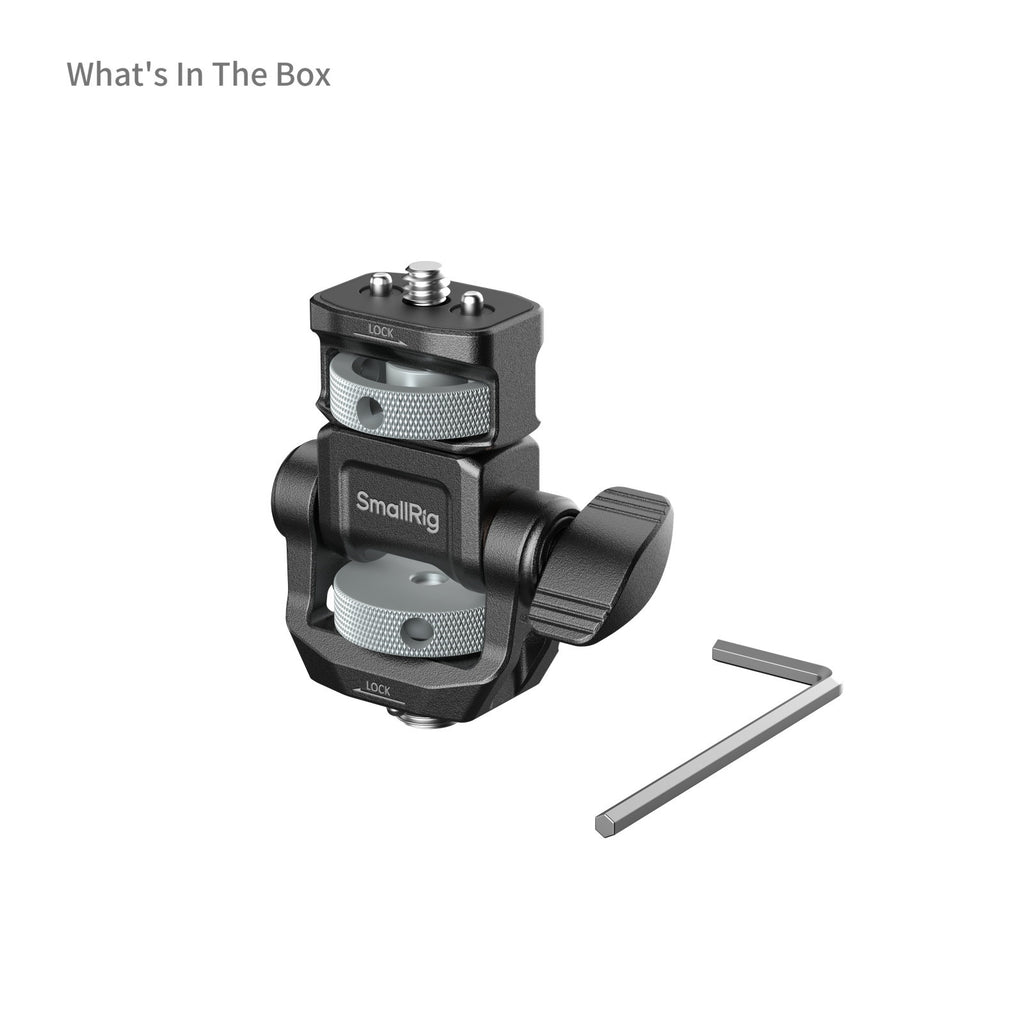

WHAT IS INCLUDED
1x Monitor Support
1x Allen Wrench
