Description
SMALLRIG MOUNTING CLAMP FOR EXTERNAL SSD 5397
- Features a controlled opening to prevent pinching, along with easy two-step installation and removal.
- Widely compatible with SSDs from Samsung, SanDisk, Crucial, WD, and other major brands.
- Two installation methods include 1/4"-20 threaded hole and MagSafe.

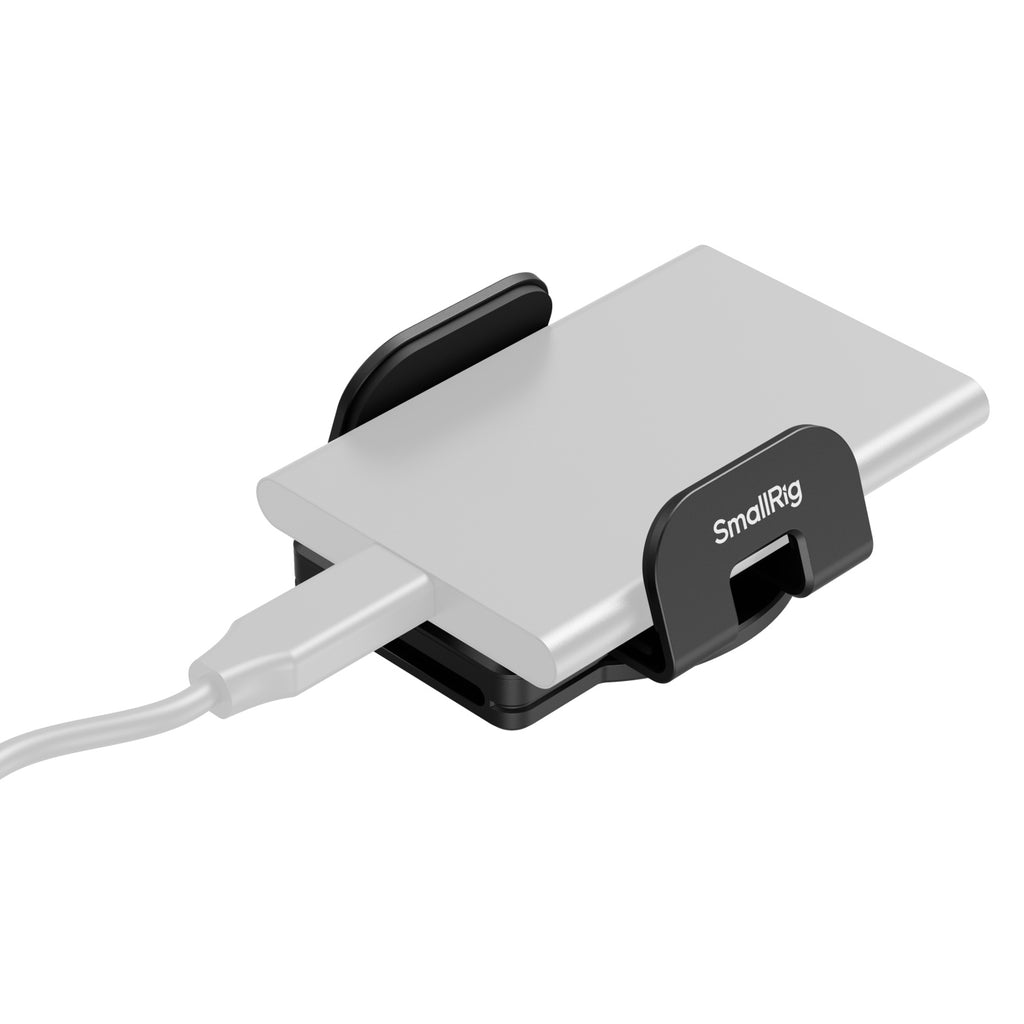

SmallRig Mounting Clamp for External SSD 5397 securely holds portable SSDs (40 -60mm wide x 8 - 17mm thick / 1.6 - 2.4in wide x 0.3-0.7in thick) on camera cages and L-shape mount plates featuring 1/4"-20 threaded holes and MagSafe-compatible iPhones.
Compatible SSD models include: Samsung T5 / T5 EVO / T7 / T7 Shield / T9 / T9 Shield; SanDisk E30 / E61 / E81; Crucial X9 / X9 PRO Mac / X10 PRO; Western Digital WD_BLACK P40 (500GB / 1TB/2TB) ；My Passport (WDBAGF5000AGY-WESN / WDBAGF0010BGY-WESN / WDBAGF0020BGY-WESN / WDBAGF0040BGY-WESN).

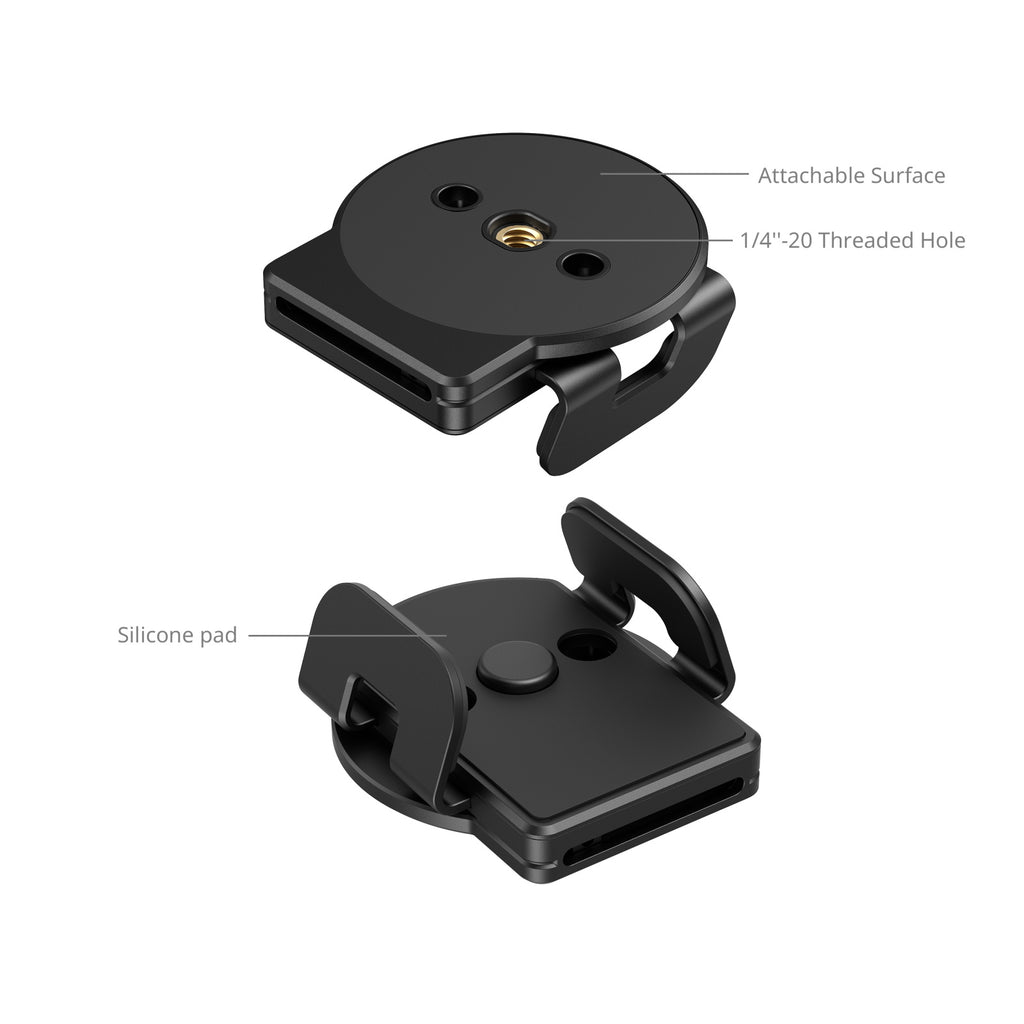

Unlike traditional spring-loaded clamps, this mount features a controlled opening for safe and easy two-step installation. With two installation methods ( 1/4"-20 screw and MagSafe), it offers a versatile SSD support solution for camera rigs or iPhone setups. Additionally, the internal silicone pads protect SSDs from scratches and slippage.
Installation Options:

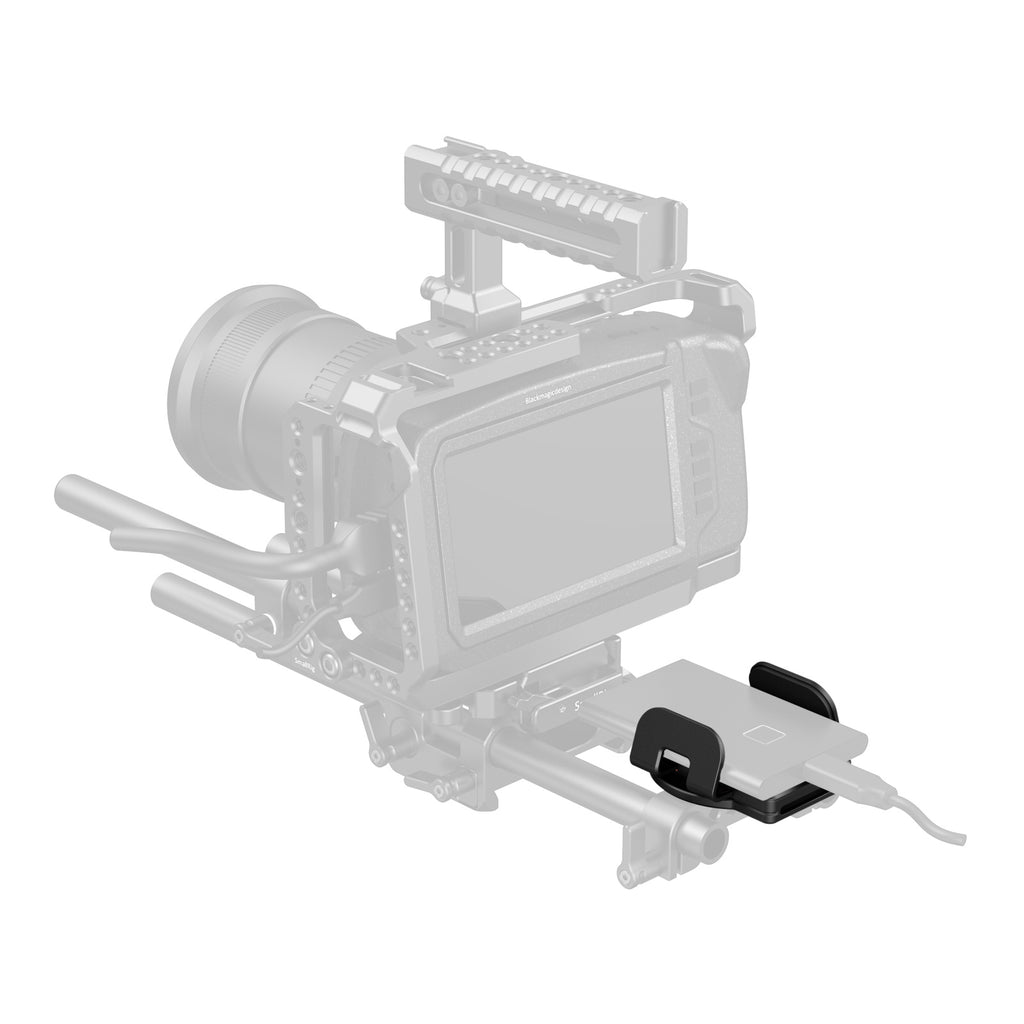

1/4″-20 Screws: Use two 1/4"-20 screws to secure the clamp to the side of the cage

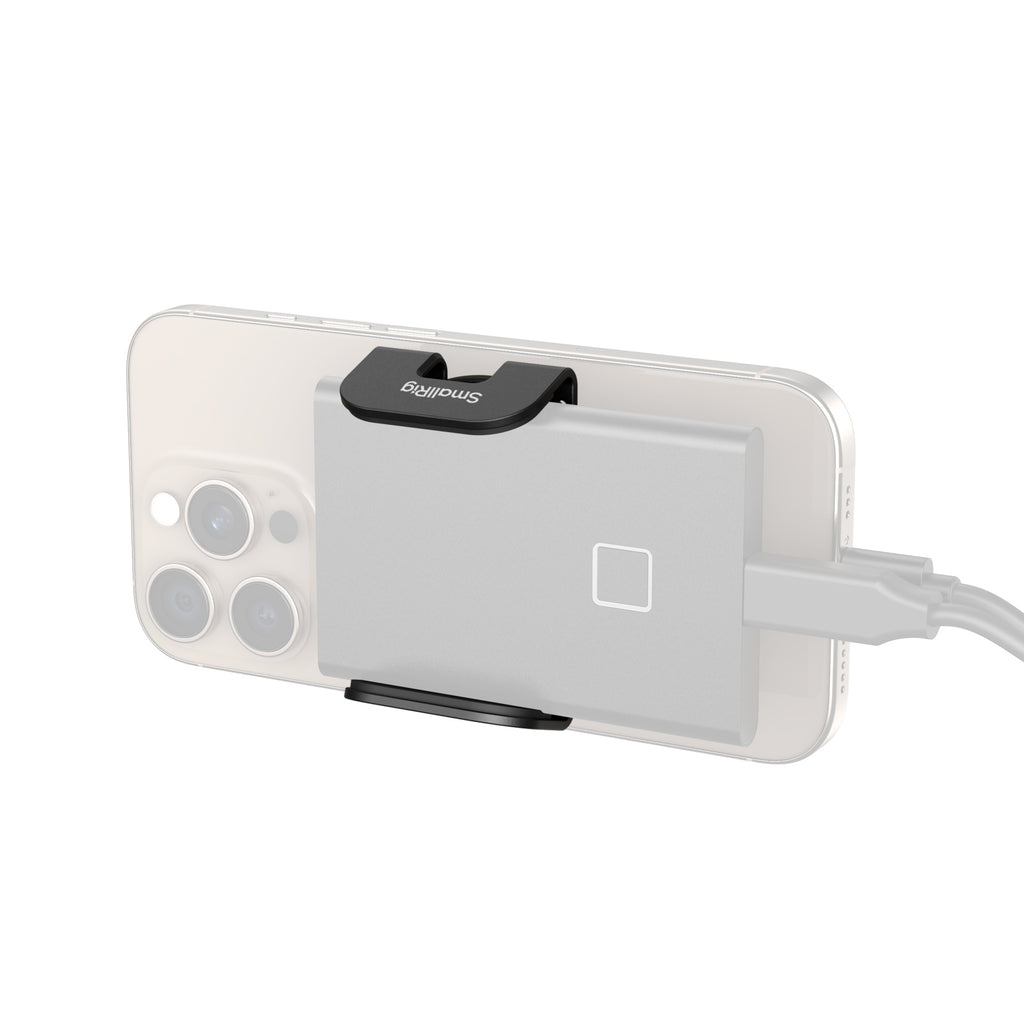

MagSafe: Attach the clamp directly to the back of iPhone 12 - 16 models via MagSafe
IMPORTANT
1. When using with a case, ensure secure attachment between phone and case.

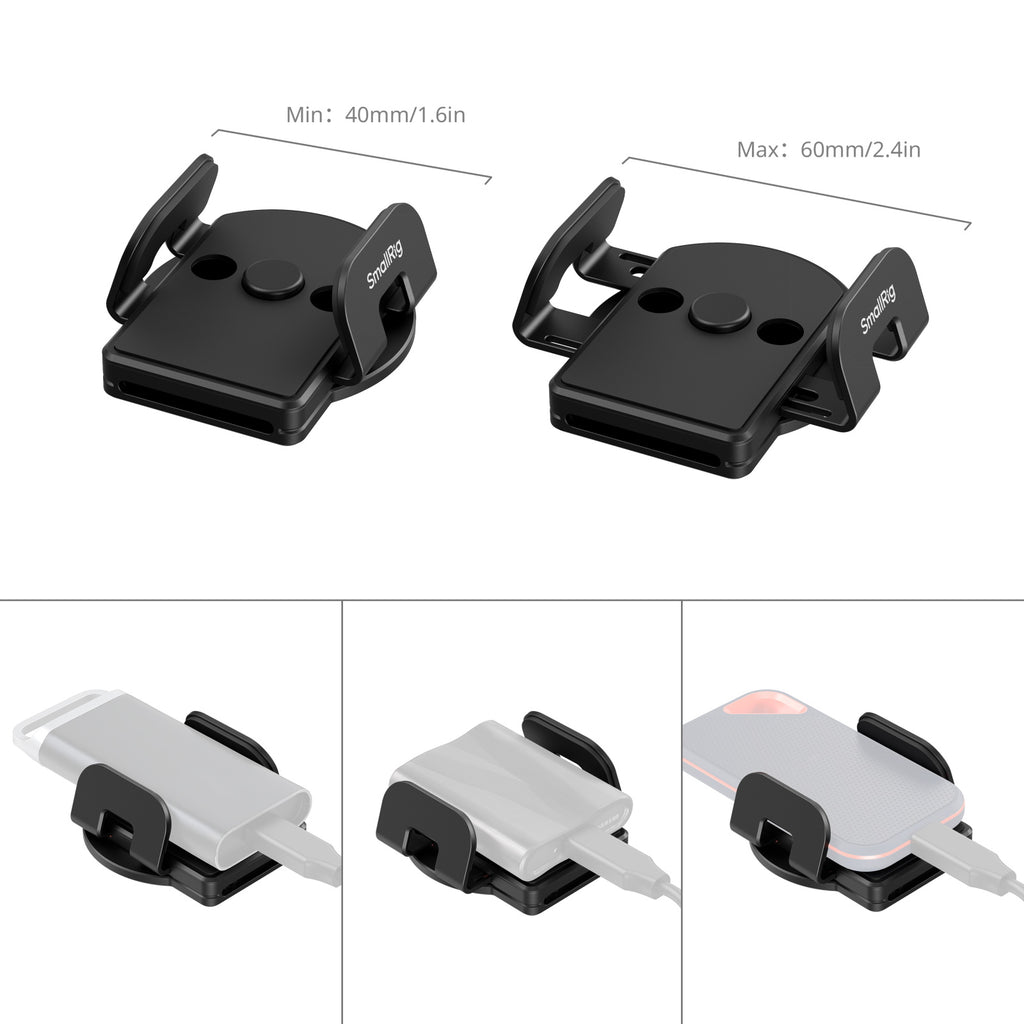

2. Clamping range: SSDs within 40-60mm / 1.6 - 2.4in width and 8-17mm / 0.3 - 0.7in thickness.
3. Non-MagSafe phones can be mounted using a magnetic metal ring (not included).
SPECIFICATIONS

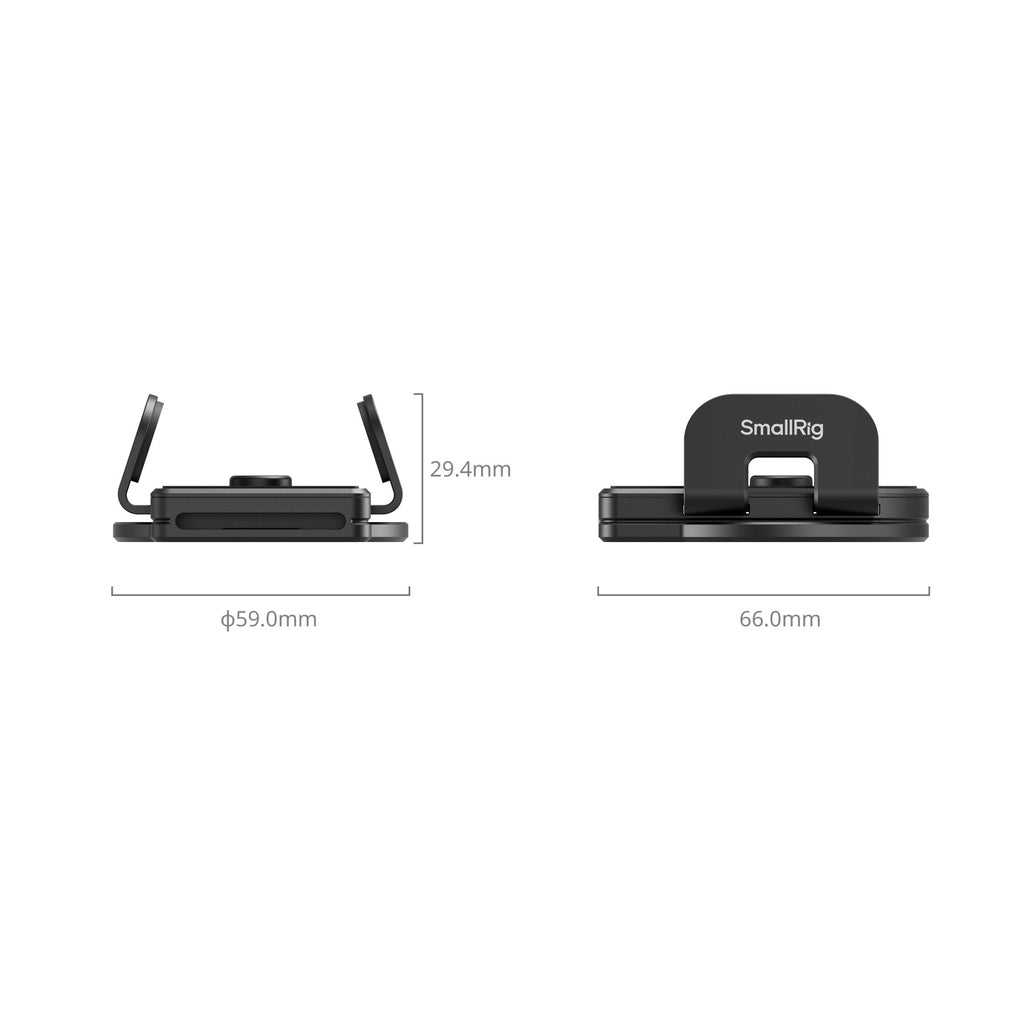

Product Dimensions: 66.0 x 59.0 x 29.4mm / 2.5 x 2.3 x 1.1in
Package Dimensions: 105.0 x 122.0 x 42.0mm / 4.1x 4.8 x1.6in
Product Weight: 50.0 ± 5.0g / 1.7 ± 0.2oz
Package Weight: 100.0 ± 5.0g / 3.5 ± 0.2oz
Material(s): Aluminum Alloy, Stainless Steel, PC+ABS, Silicone
COMPATIBILITY
Compatibility (Main Compatible SSD Models)
Samsung: T5 / T5 EVO / T7 / T7 Shield / T9 / T9 Shield
SanDisk: E30 / E61 / E81
Crucial: X9 / X9 PRO Mac / X10 PRO
WD: WD_BLACK P40 (500GB / 1TB/2TB); My Passport (WDBAGF5000AGY-WESN / WDBAGF0010BGY-WESN / WDBAGF0020BGY-WESN / WDBAGF0040BGY-WESN).
Incompatibility (Main Incompatible SSD Models)
WD: Elements SE（1TB-6TB） / Elements SE（400GB-2TB） / My Passport(WDBYVG0020BBK-WESN / WDBYVG0020BBL-WESN / WDBA2D0020BBL-WESN / WDBYVG0020BRD-WESN / WDBWML0020BGY-WESN) / WD_BLACK P10
Kingston: SXS2000 / SXS1000

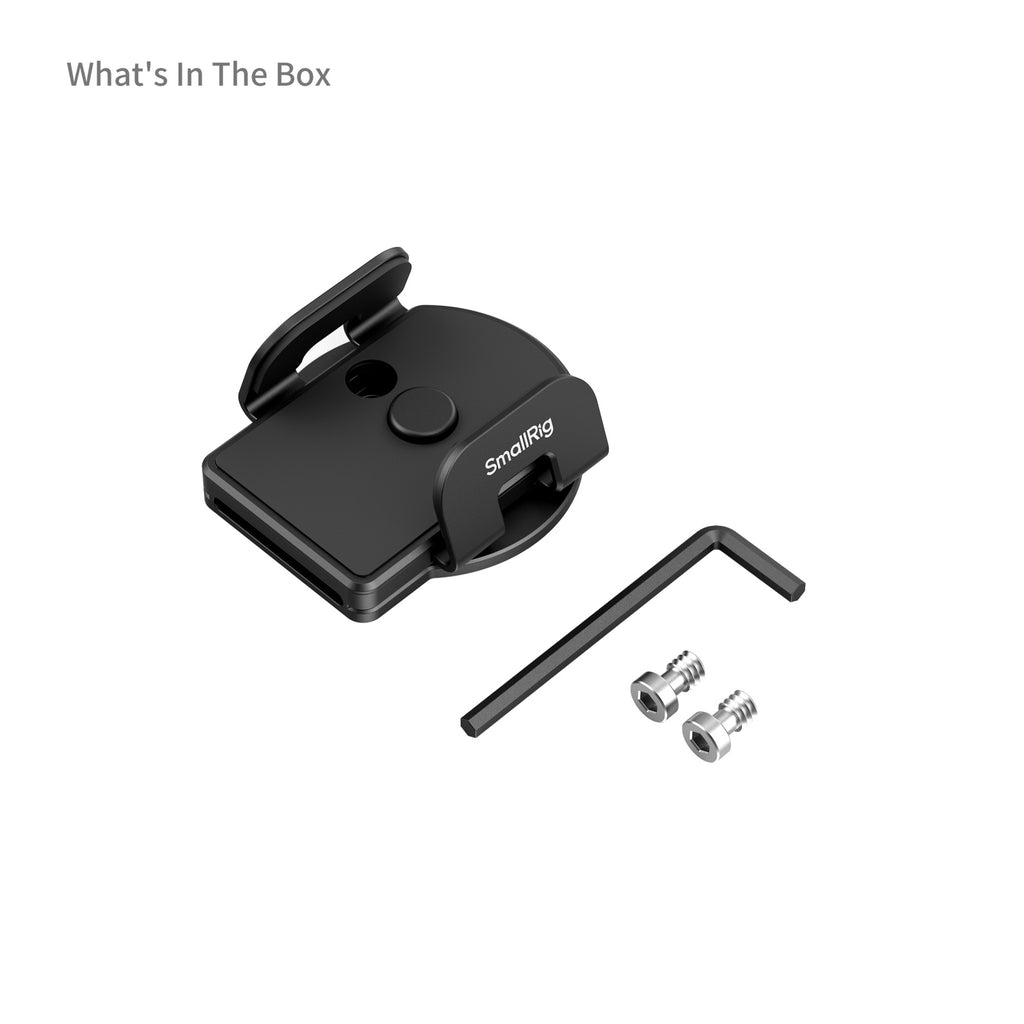

WHAT IS INCLUDED
1x Mounting Clamp
2x 1/4″-20 Screws
1x Allen Wrench
