SMALLRIG MOUNTING PLATE AND HDMI CABLE CLAMP FOR ATOMOS SHOGUN 7 CMA2487
- Custom bottom mounting plate.
- Custom HDMI cable clamp.
- Built-in NATO rail on the plate.
- 1/4”-20 and ARRI locating hole.

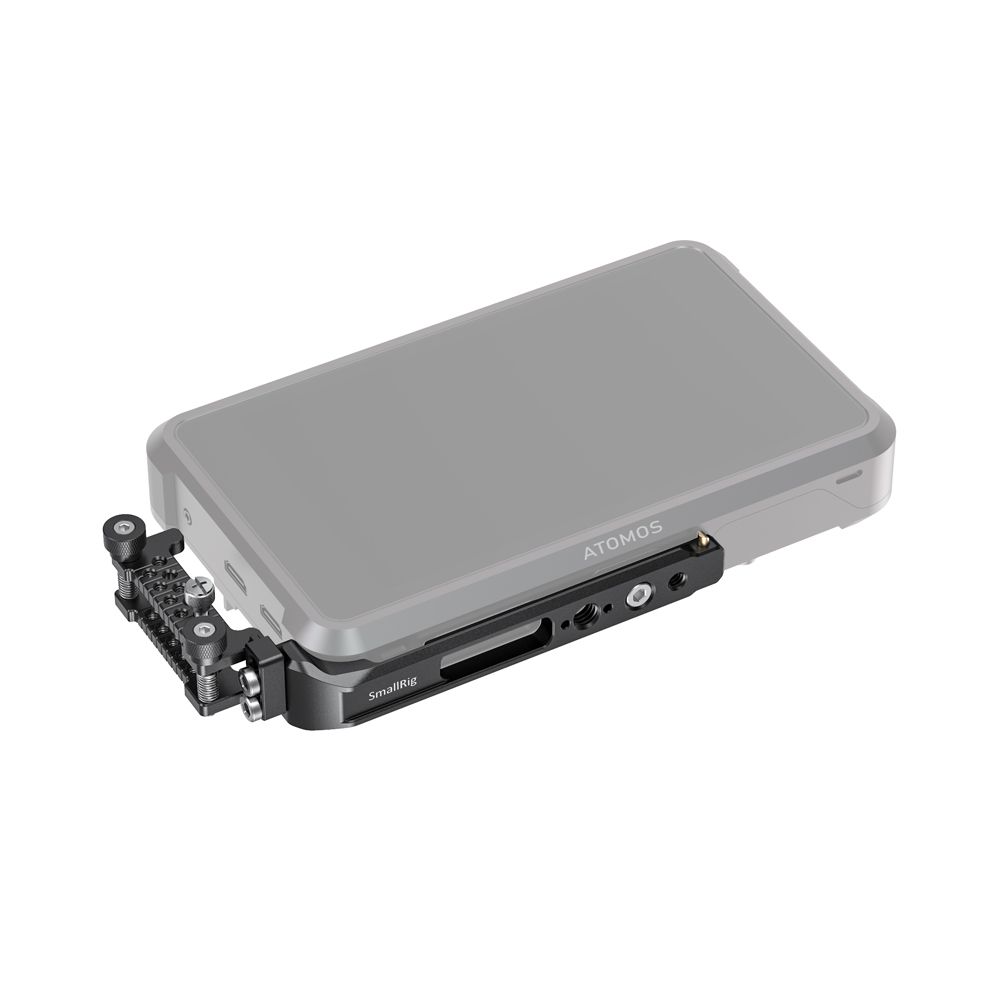

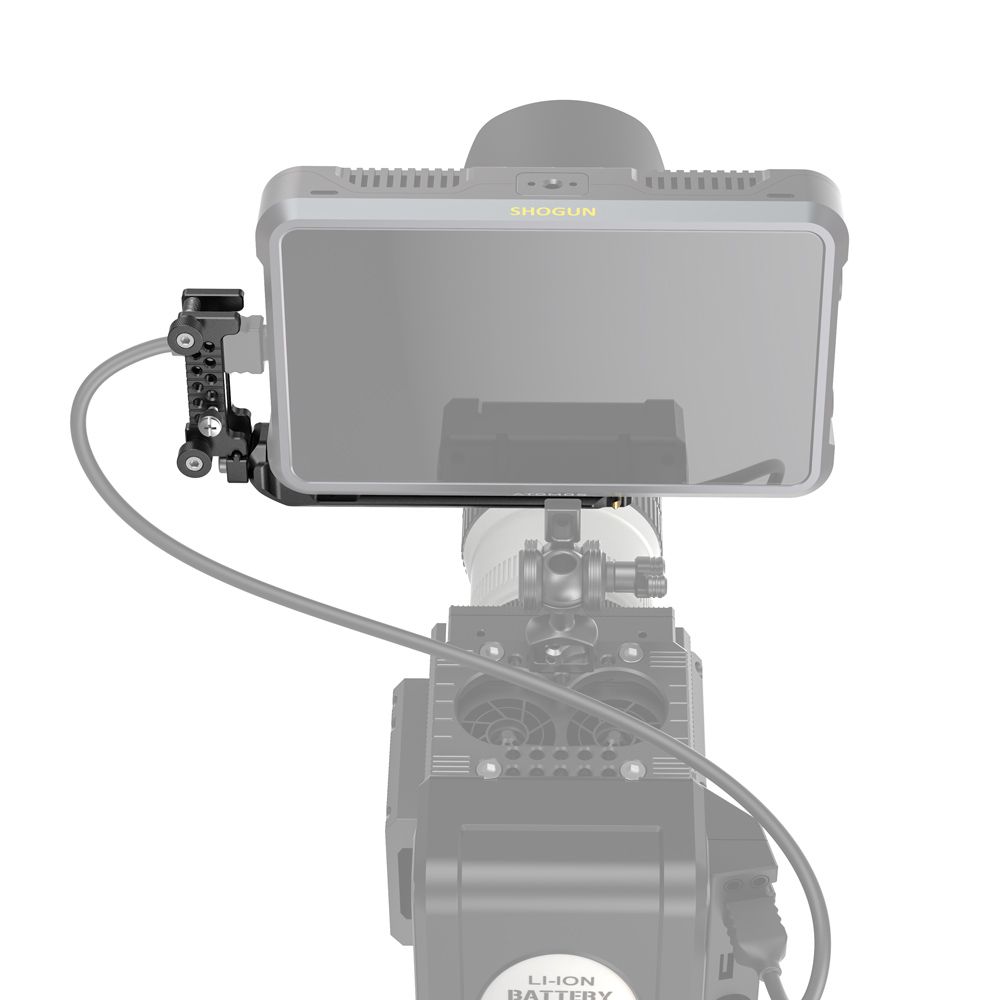

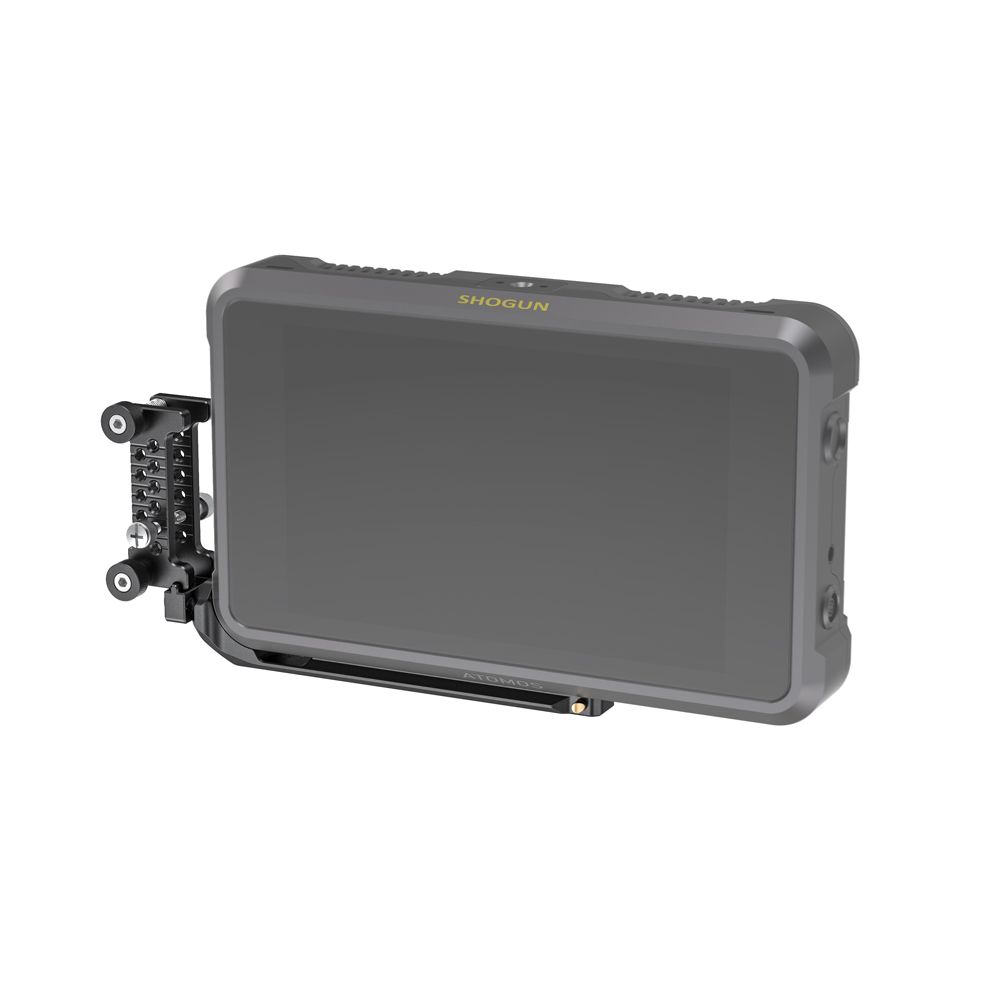

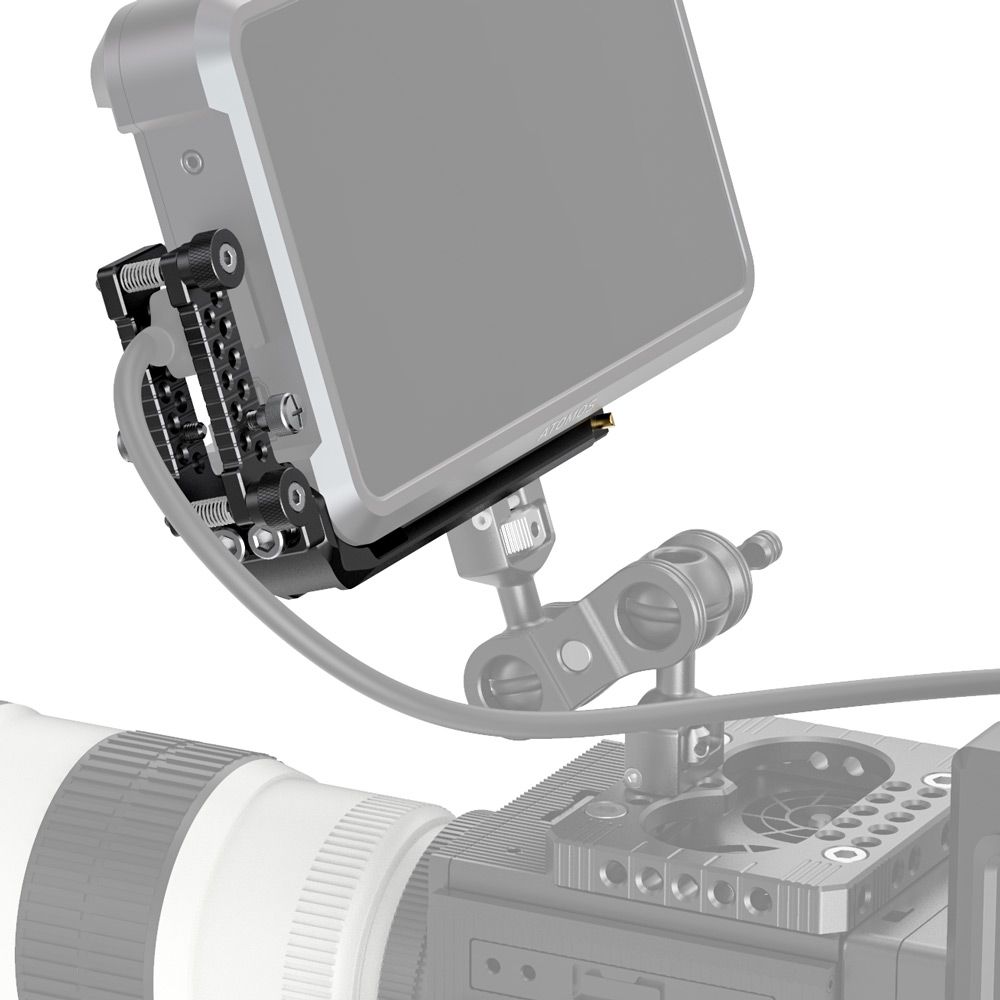

SmallRig Mounting Plate and HDMI Cable Clamp for Atomos Shogun 7 CMA2487 enables you to easily and safely mount the monitor to the camera rig. The plate mounts to the bottom of Shogun 7 using the included 1/4”-20 screw and the locating pins on the plate interface with the monitor’s locating holes to prevent the plate from twisting. It features a built-in NATO rail for quick attachment and releases when used with NATO clamp accessories like SmallRig Ball Head Arm 2071, 2072 or SmallRig Monitor Holder 2205, BSE2385. The included HDMI cable clamp is fixed to the side of the mounting plate, securing the HDMI cable in place. This kit is compatible with the original Atomos Sun hood.
1. This kit is COMPATIBLE with the original Atomos Shogun 7 Sun hood. The Sun hood frame needs to be fitted before fitting the unit into the cage;

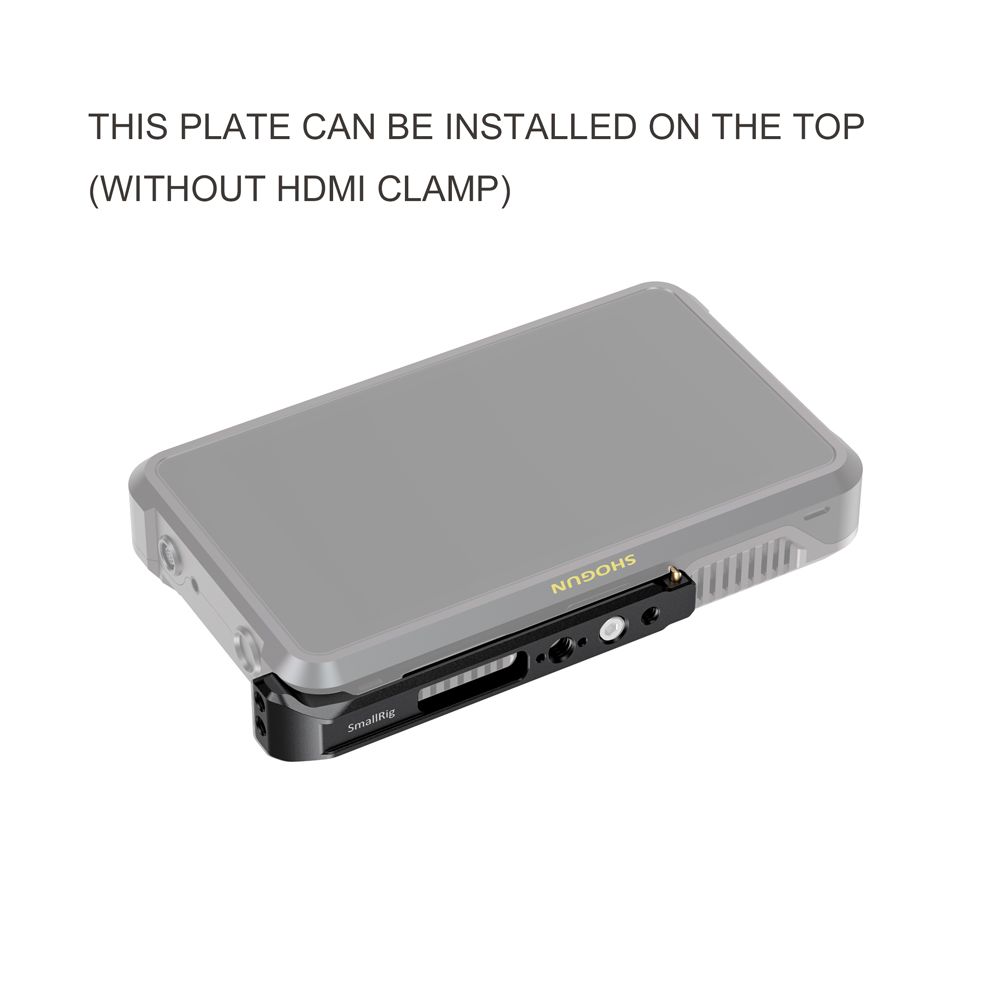

2. If the top plate is needed, SmallRig Mounting Plate CMA2520 is available.
Product Dimensions: 168.5mm x 86mm x 38mm
Package Dimensions: 185mm x 55mm x 55mm
Net Weight: 104g
Package Weight: 158g
Material(s): Aluminum Alloy
Atomos Shogun 7

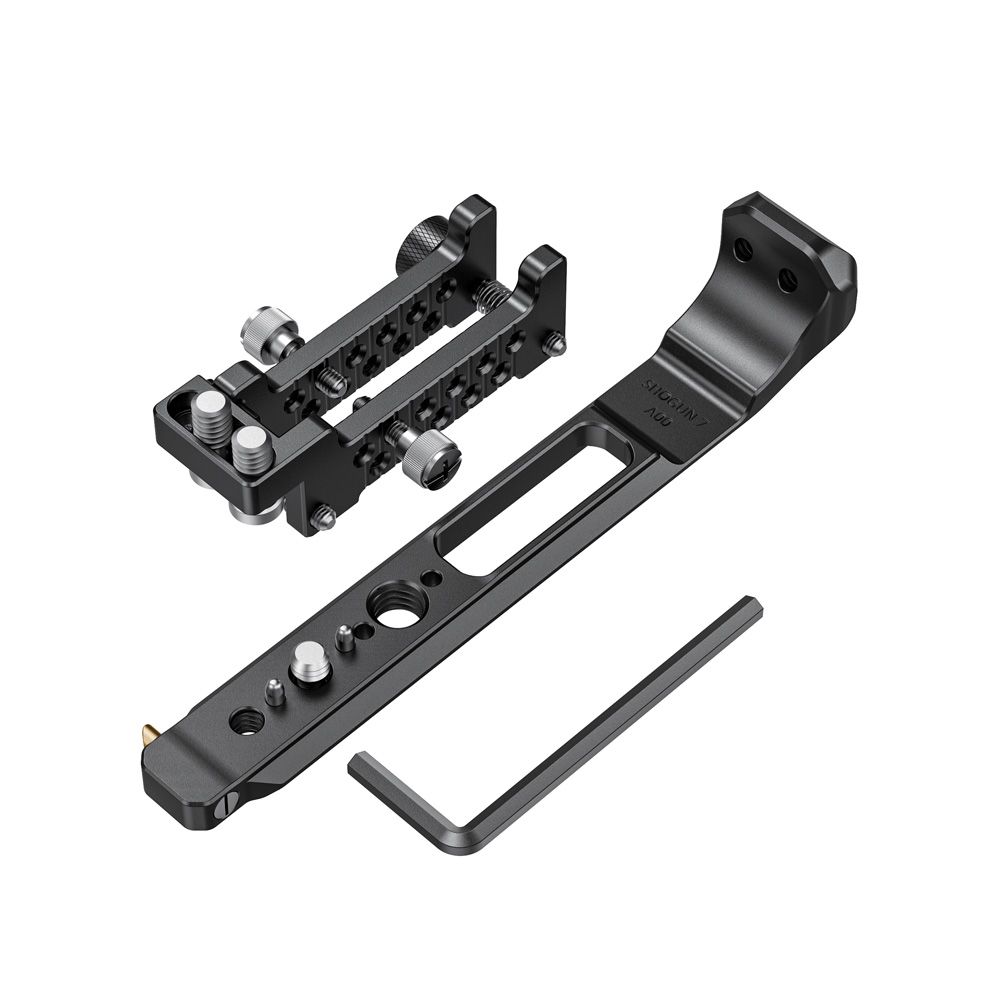

WHAT IS INCLUDED
1x Mounting Plate
1x HDMI Cable Clamp
1x Hex Spanner
