SMALLRIG MOUNTING PLATE FOR ATOMOS SHOGUN 7 CMA2520

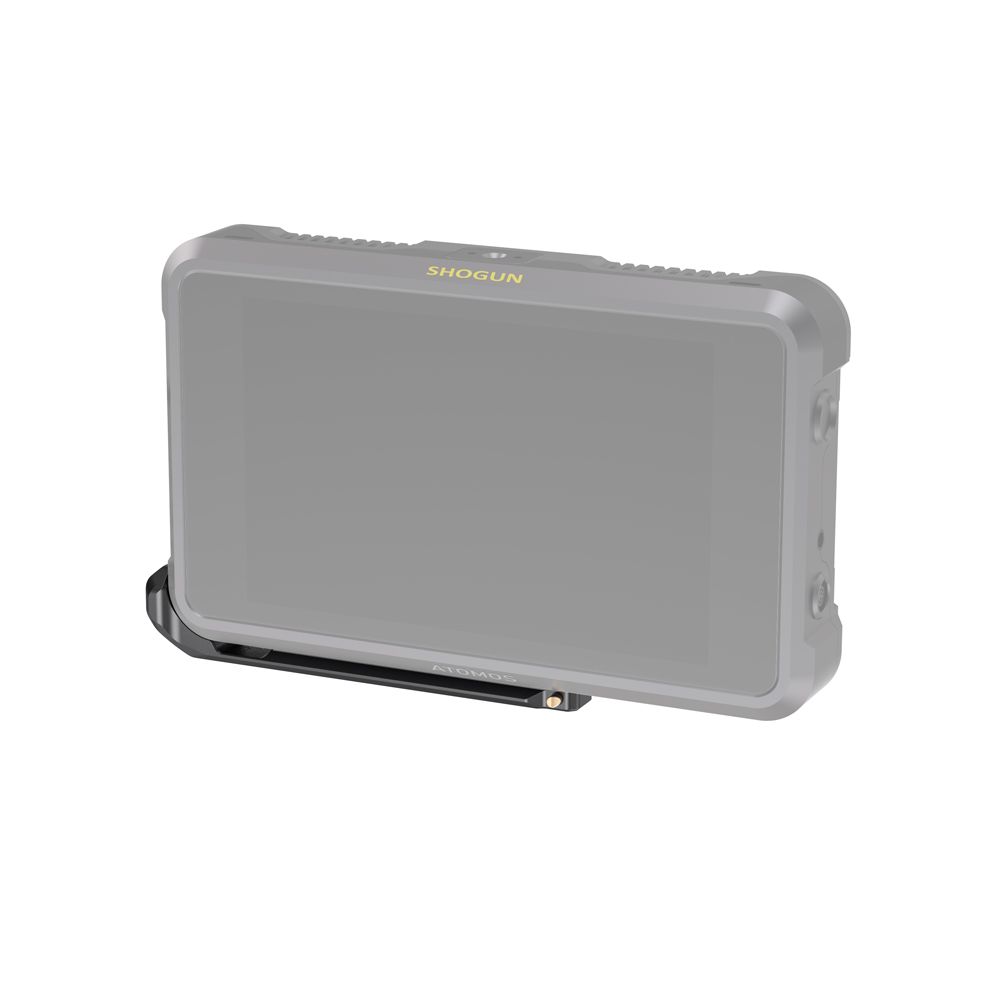

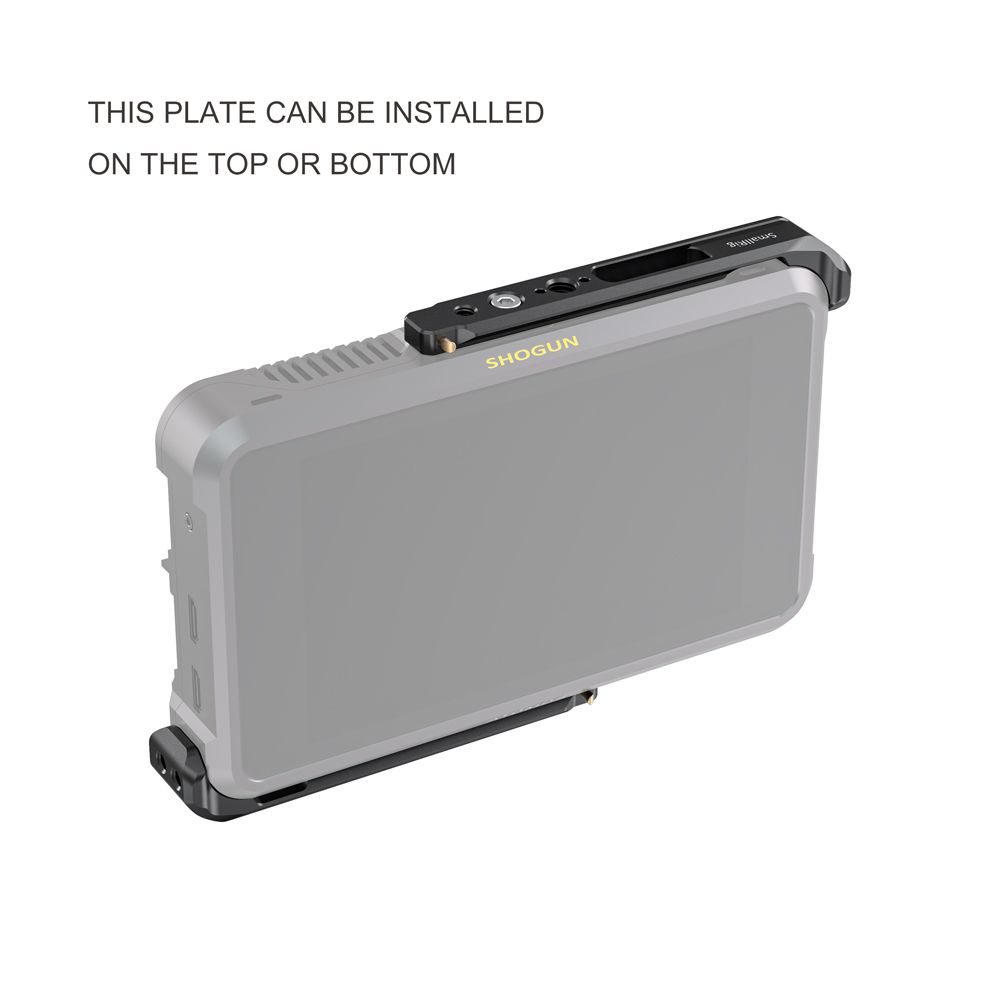

- Mounting on the top or bottom.

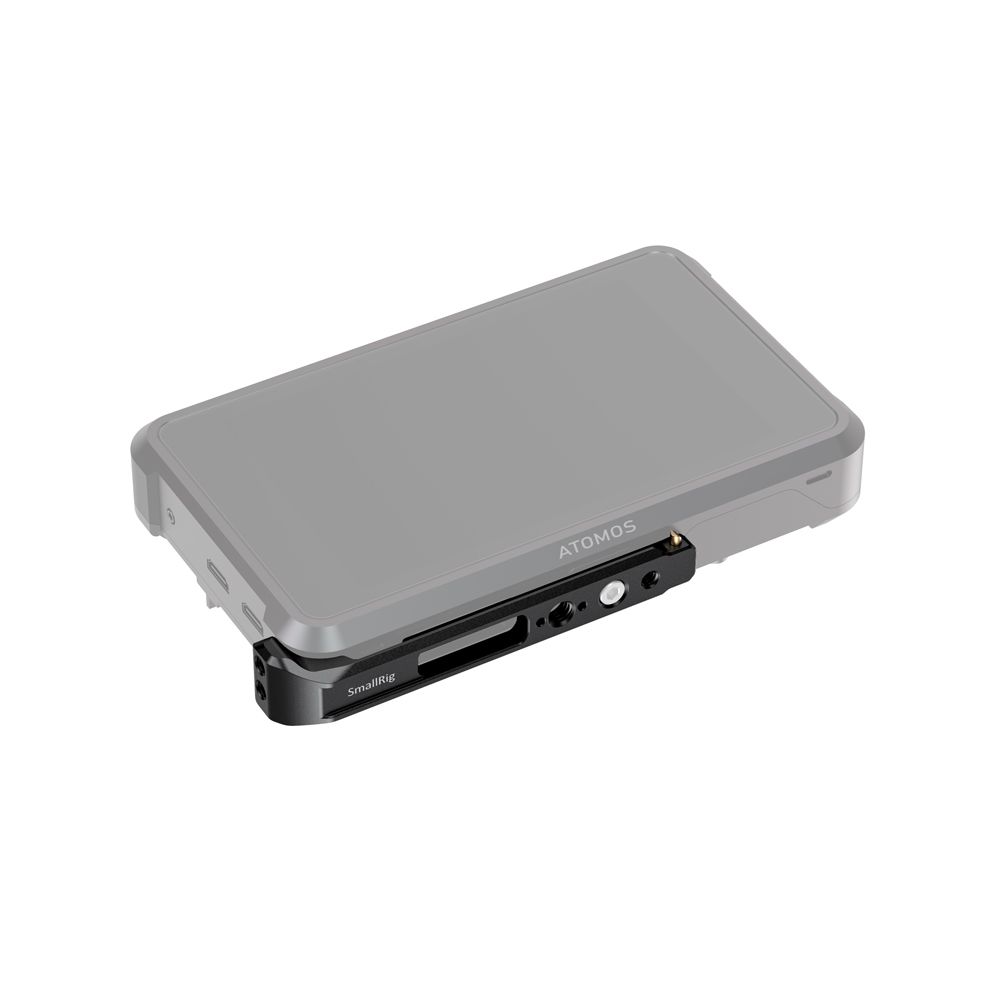

- Fixed by 1/4”-20 screw and two locating pins.
- Built-in NATO rail.
- 1/4”-20 and ARRI locating hole.

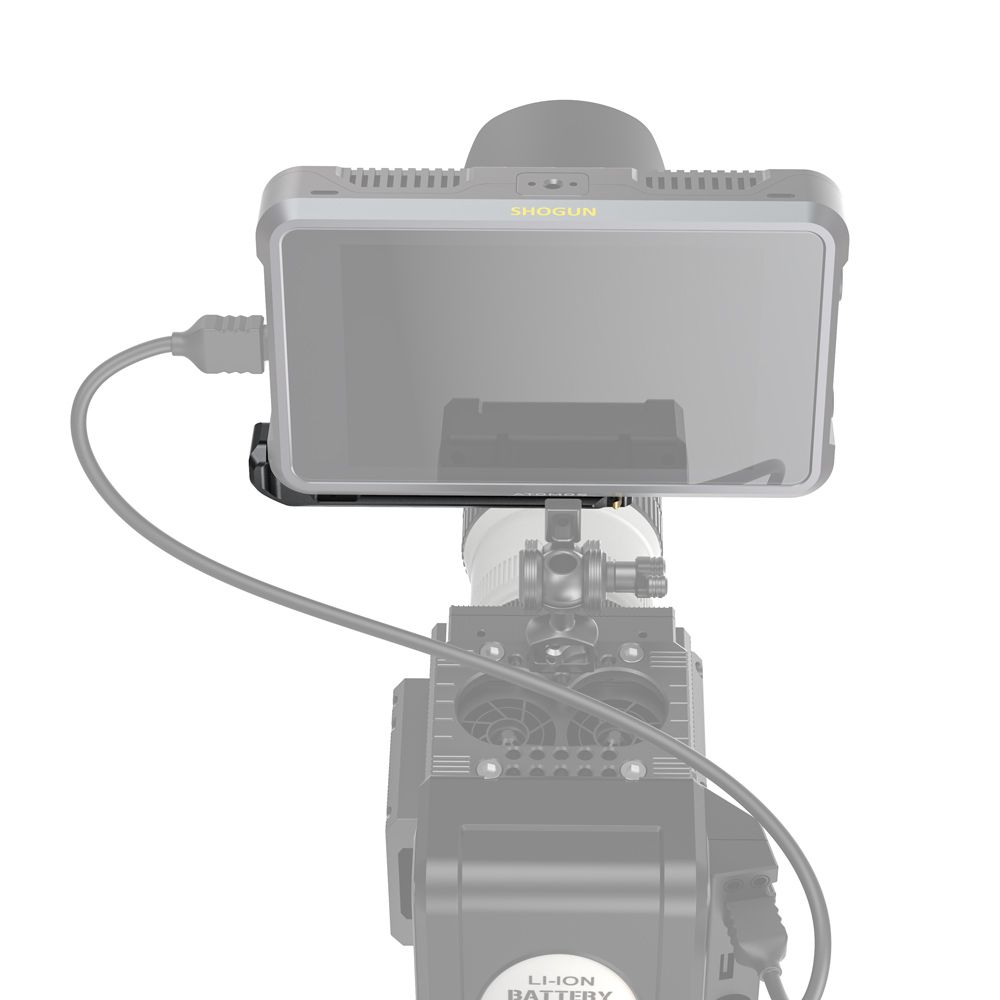

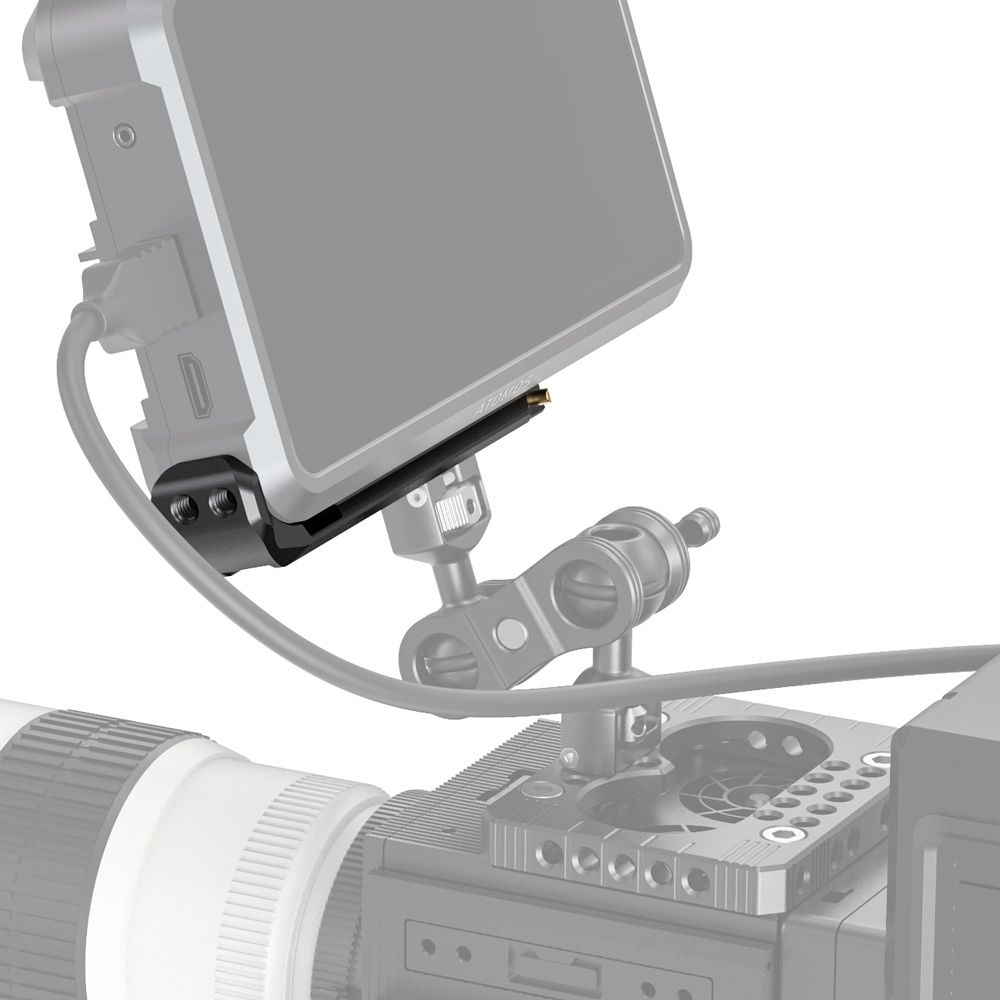

SmallRig Mounting Plate for Atomos Shogun 7 CMA2520 enables you to easily and safely mount the monitor to the camera rig. The plate serves as a top plate or bottom plate, fixed to Atomos Shogun 7 using the included 1/4”-20 screw and the locating pins on the plate interface with the monitor’s locating holes to prevent the plate from twisting. It features a built-in NATO rail for quick attachment and releases when used with NATO clamp accessories like SmallRig Ball Head Arm 2071, 2072 or SmallRig Monitor Holder 2205, BSE2385. This plate is compatible with the original Atomos Sun hood.
1. This plate is COMPATIBLE with the original Atomos Shogun 7 Sun hood. The Sun hood frame needs to be fitted before fitting the unit in to the cage.
2. If the HDMI Clamp is needed, SmallRig Mounting Plate and HDMI Cable Clamp CMA2487 is available.
Product Dimensions: 145.5mm x 28.5mm x 27mm
Package Dimensions: 185mm x 55mm x 55mm
Net Weight: 52g
Package Weight: 104g
Material(s): Aluminum Alloy
Atomos Shogun 7

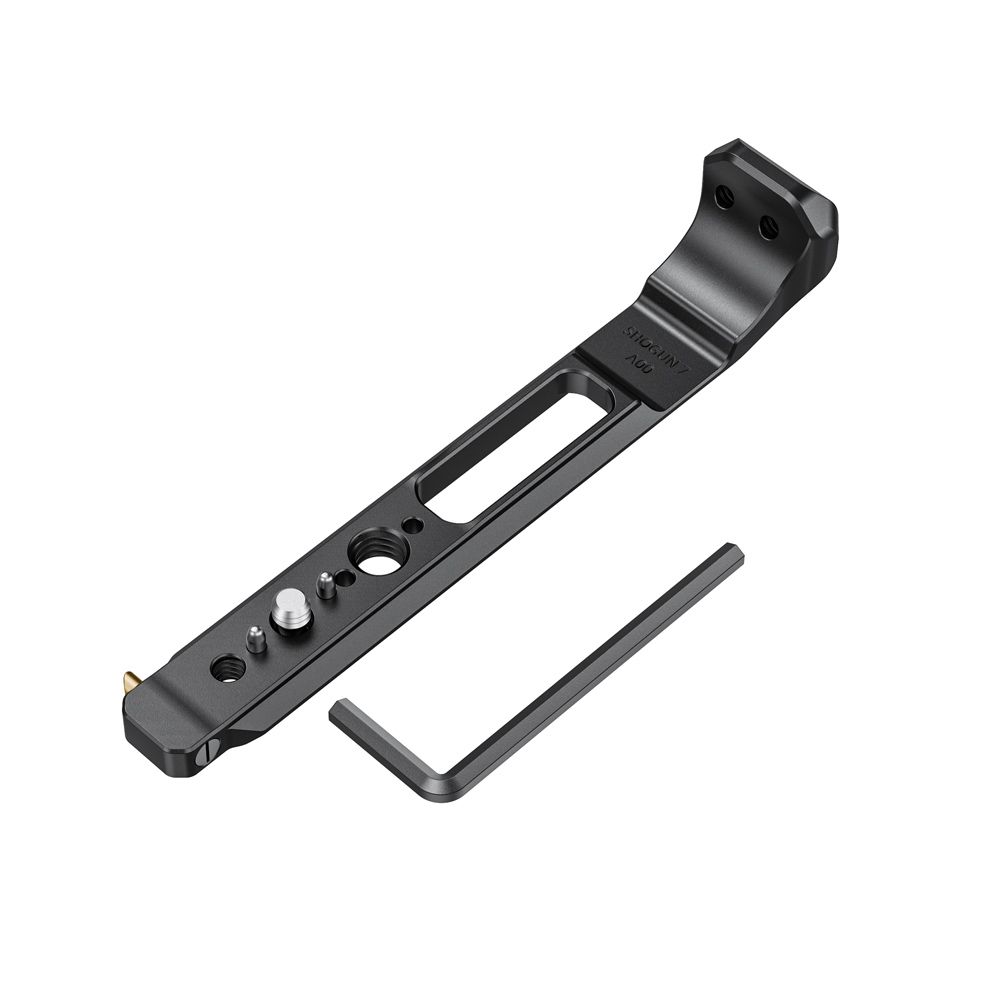

WHAT IS INCLUDED
1x Mounting Plate
1x Hex Spanner
