Description
SMALLRIG NANO72 POWER BANK WITH 1/4"-20 THREADED HOLE 6108
- Detachable V-Mount Plate: Attach the V-mount plate to use it with a V-mount setup, or remove the plate and use the unit as a standard power bank.
- Built-in Retractable Cable: The 70.0cm (27.6in) retractable cable pulls out for use and retracts automatically, helping reduce cable clutter and simplify cable management.

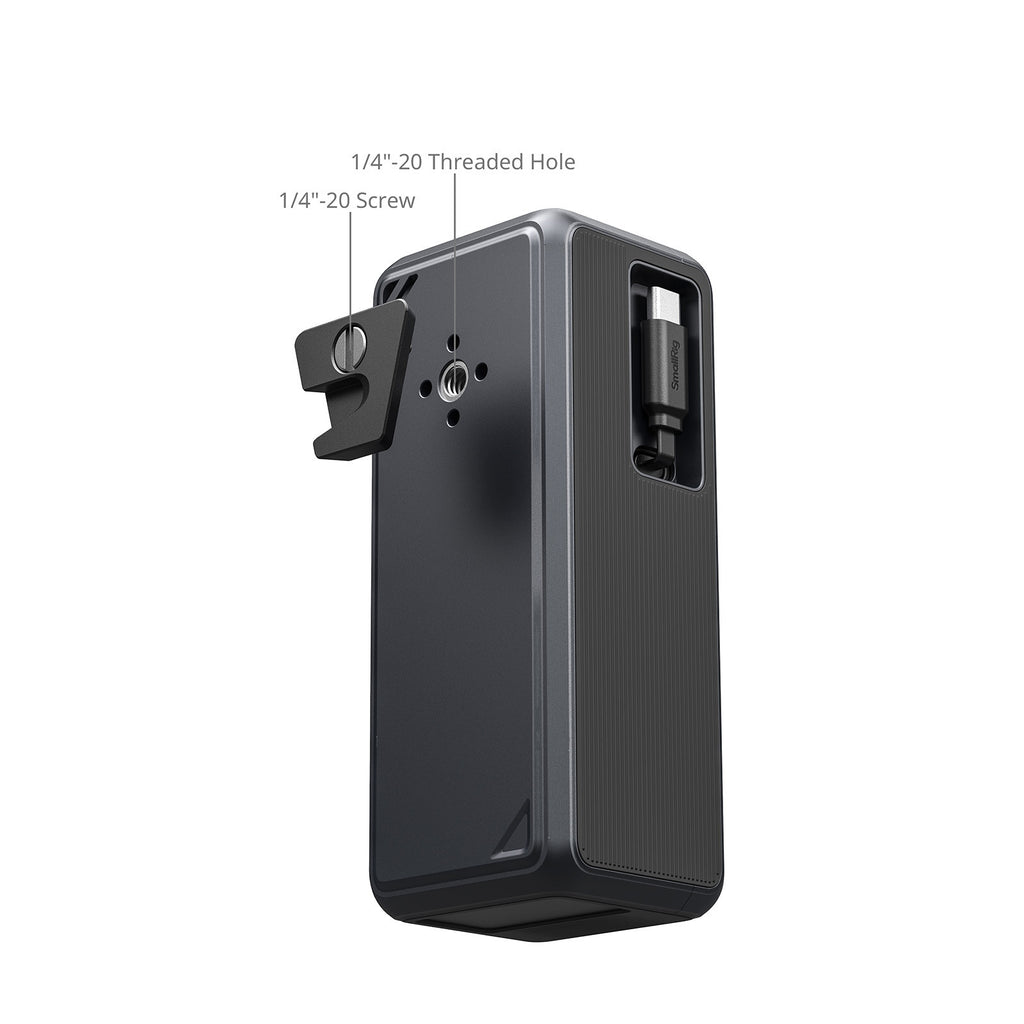

- Standard Mounting Interfaces: The back features a 1/4"-20 threaded hole and a locating hole for attaching the V-mount plate and other compatible accessories, such as a magic arm or crab-shaped clamp.
- TFT Color Display: Clearly shows key battery information, including battery level, input and output power, and battery health.
- Multiple Safety Protections: Includes short-circuit, overcurrent, overtemperature, overvoltage, and undervoltage protection for safer charging and discharging.

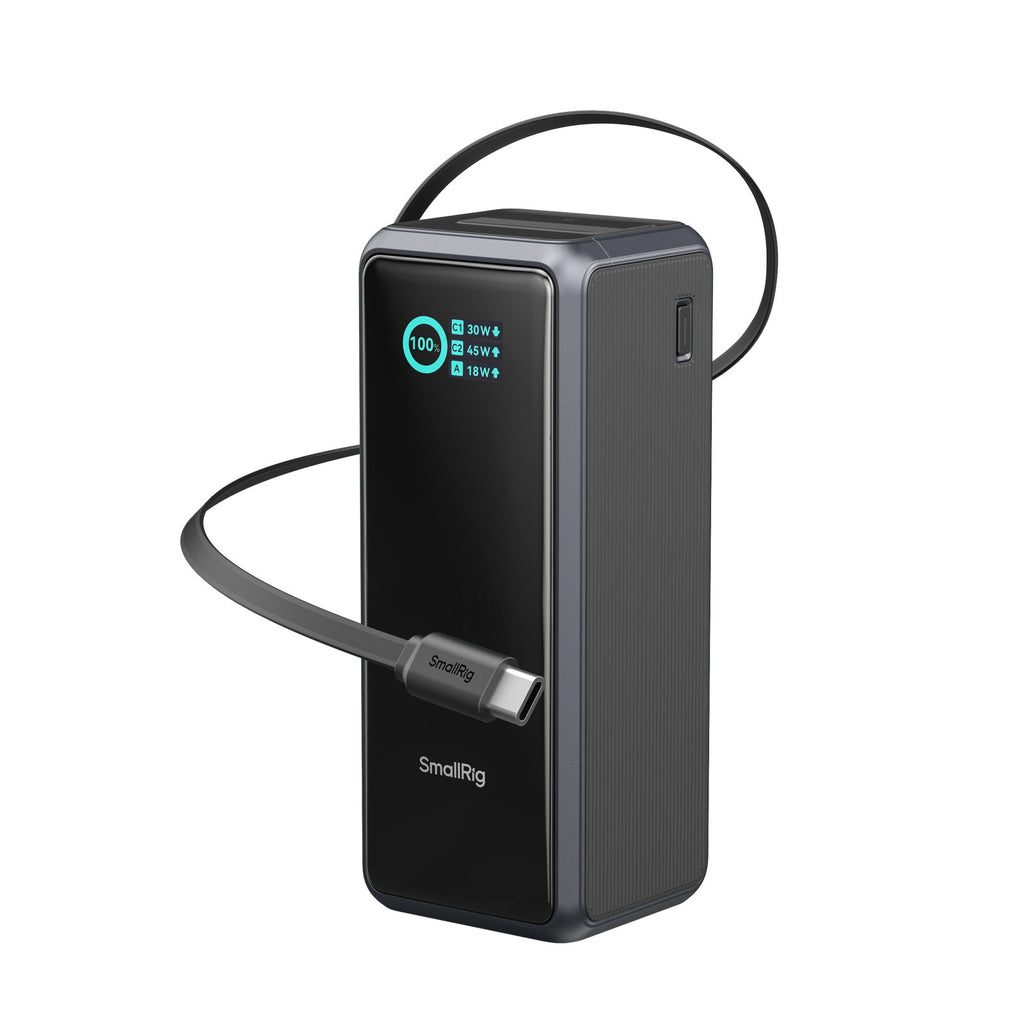

SmallRig Nano72 Power Bank with 1/4"-20 Threaded Hole 6108 is a mini V-mount-style power bank with a built-in retractable cable. The back features a 1/4"-20 threaded hole and a locating hole. A metal V-mount plate can be secured with a 1/4"-20 slotted screw, allowing the unit to be used with V-mount setups.

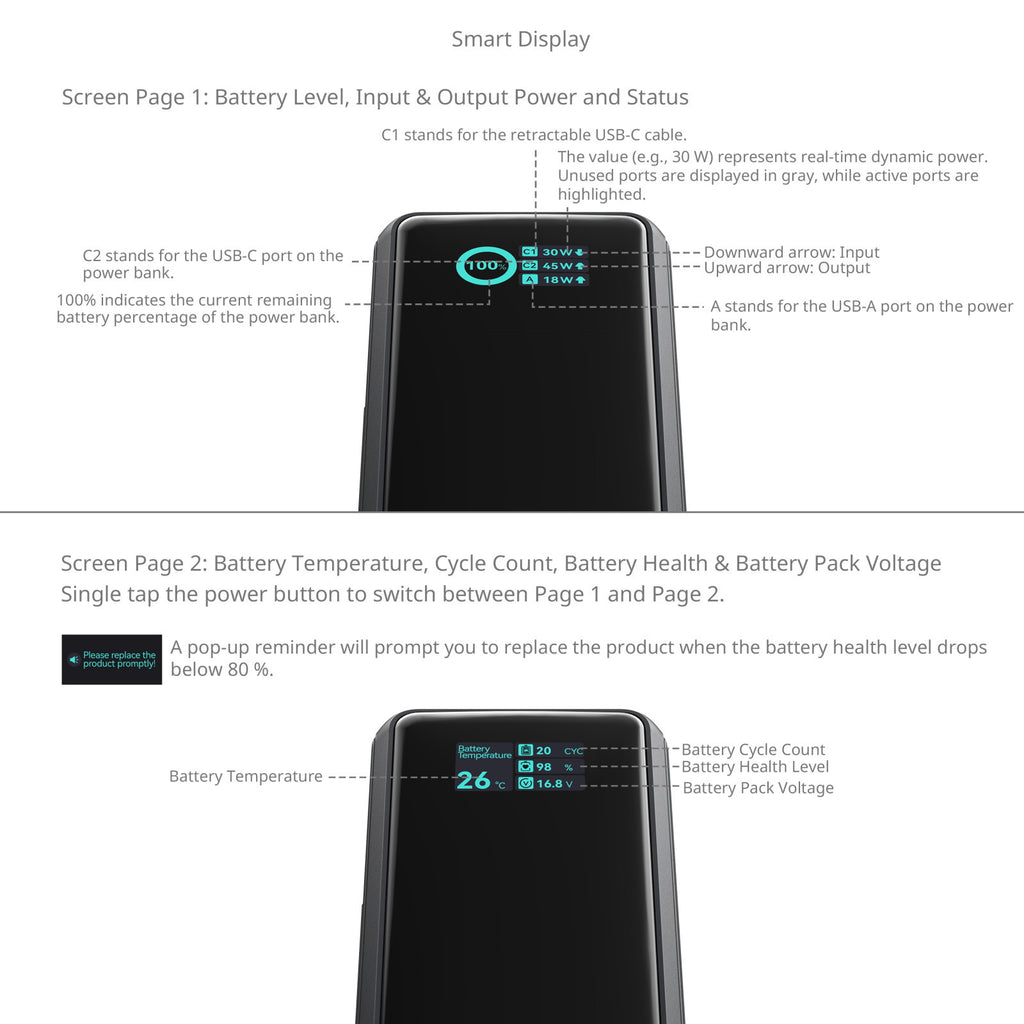

The built-in retractable cable measures approximately 70.0cm (27.6in). It pulls out for use and retracts automatically, helping reduce cable clutter and simplify cable management during mobile shooting. The TFT color display clearly shows battery level and the input and output power of each port. Other key battery information, including battery health, cycle count, remaining cycle life, and temperature, can also be viewed on the screen with a single press of the button.
It supports up to 100.0W input and 100.0W output. With a height similar to that of a V-mount battery and roughly half the size, it is compact and easy to carry. It also features multiple safety protections, including short-circuit, overcurrent, overtemperature, overvoltage, and undervoltage protection for safer charging and discharging.
Certifications: FCC / CE / PSE / RCM / ISED
SPECIFICATIONS
Cell Capacity: 20000mAh (5000mAh × 4, four cells in series)
Lithium Battery Capacity: 5000mAh / 14.6V / 73.0Wh
Input:
USB-C Cable / USB-C Port: 5.0V⎓3.0A; 9.0V⎓3.0A; 12.0V⎓3.0A; 15.0V⎓3.0A; 20.0V⎓5.0A (100.0W Max)
Output (Single Port in Use):
USB-C Cable / USB-C Port: 5.0V⎓3.0A; 9.0V⎓3.0A; 12.0V⎓3.0A; 15.0V⎓3.0A; 20.0V⎓5.0A (100.0W Max)
USB-A Port: 5.0V⎓3.0A; 9.0V⎓2.0A; 10.0V⎓2.25A; 12.0V⎓1.5A (22.5W Max)
Output (Two Ports in Use):
USB-C Cable + USB-C Port: 10.0W + 10.0W
USB-C Cable / USB-C Port + USB-A Port: 10.0W + 10.0W
Output (Three Ports in Use):
USB-C Cable + USB-C Port + USB-A Port: 7.0W + 7.0W + 6.0W
Total Output (Multiple Ports): 5.0V⎓4.0A (20.0W Max)
USB-A Default Low-Current Mode: When the load current on the USB-A port is below 100.0mA, the display and output turn off after 2.0h, and the unit enters sleep mode.

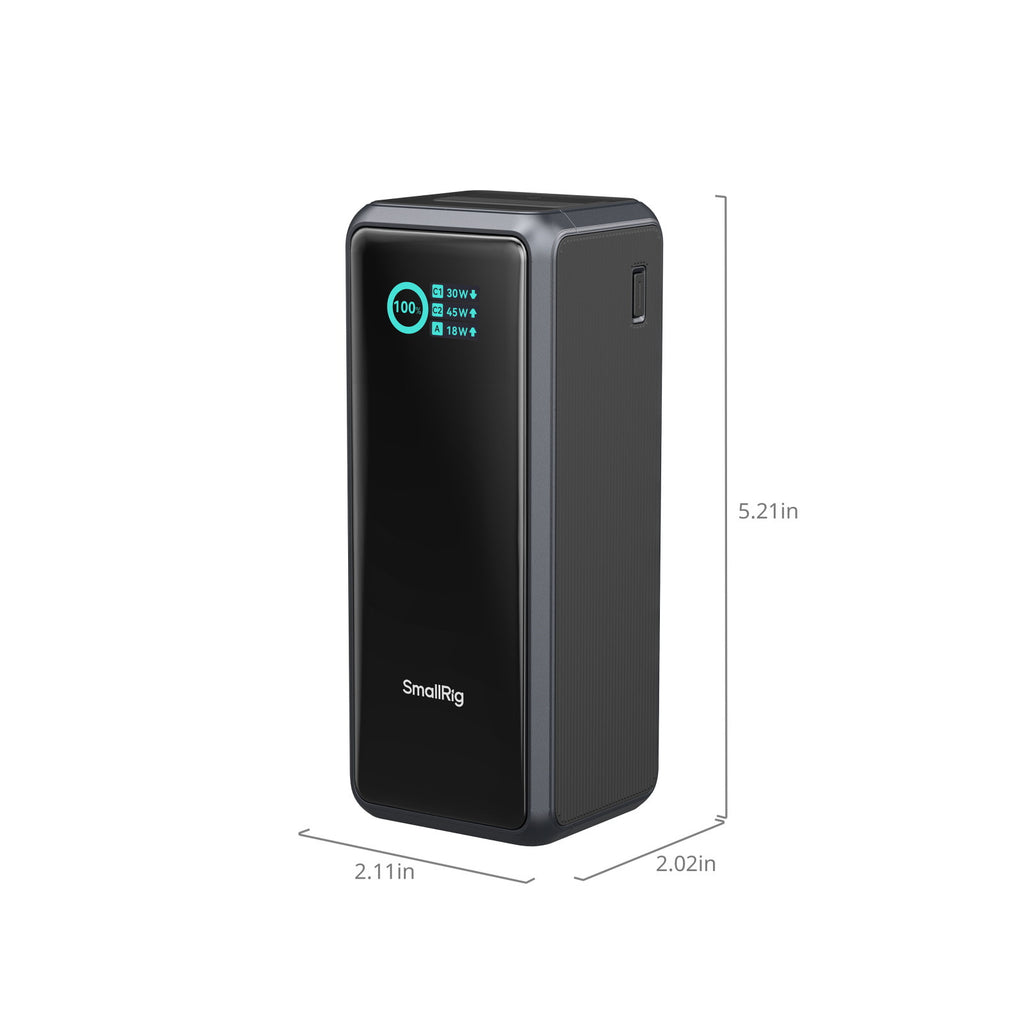

Product Dimensions: 53.7 × 132.5 × 51.5mm / 2.1 × 5.2 × 2.0in
Package Dimensions: 95.0 × 68.0 × 173.0mm / 3.7 × 2.7 × 6.8in
Product Weight: 512.0 ± 10.0g / 18.1 ± 0.4oz
Package Weight: 692.0 ± 10.0g / 24.4 ± 0.4oz
Main material: Aluminum Alloy, Silicone, TPU, PC V0
COMPATIBILITY
Compatible with the following devices, including but not limited to: iPhone models, AirPods models, Apple Watch models, DJI Osmo Action 6 / 5 Pro / 4 / 3, DJI Osmo Pocket 4P / 4 / 3, DJI Osmo 360, Insta360 X5 / Luna Ultra, Canon EOS R5 II, BMPCC 6K Pro, Nikon Z6, and Panasonic GH6.

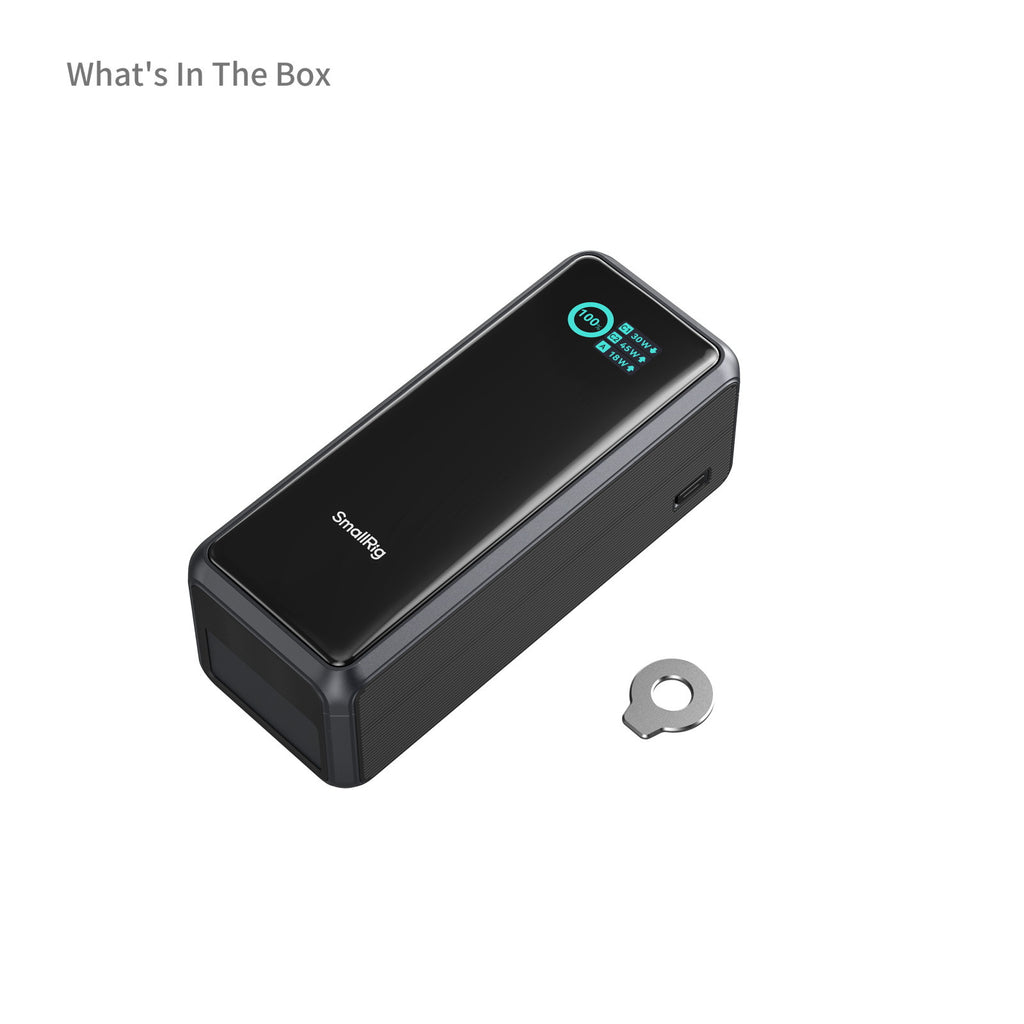

WHAT IS INCLUDED
1x Power Bank
1x Wrench
1x User Manual
