Description
SMALLRIG QUICK RELEASE V-LOCK MOUNT PLATE KIT 6021
- Broad Compatibility: Mounts any accessory equipped with a 1/4"-20 screw or a 1/4"-20 locating screw.
- Rapid Assembly: Enables quick attachment and detachment of accessories via snap-in mounting and an auto-locking mechanism.
- Lightweight & Portable: Features a compact design for easy transport and on-the-go use.

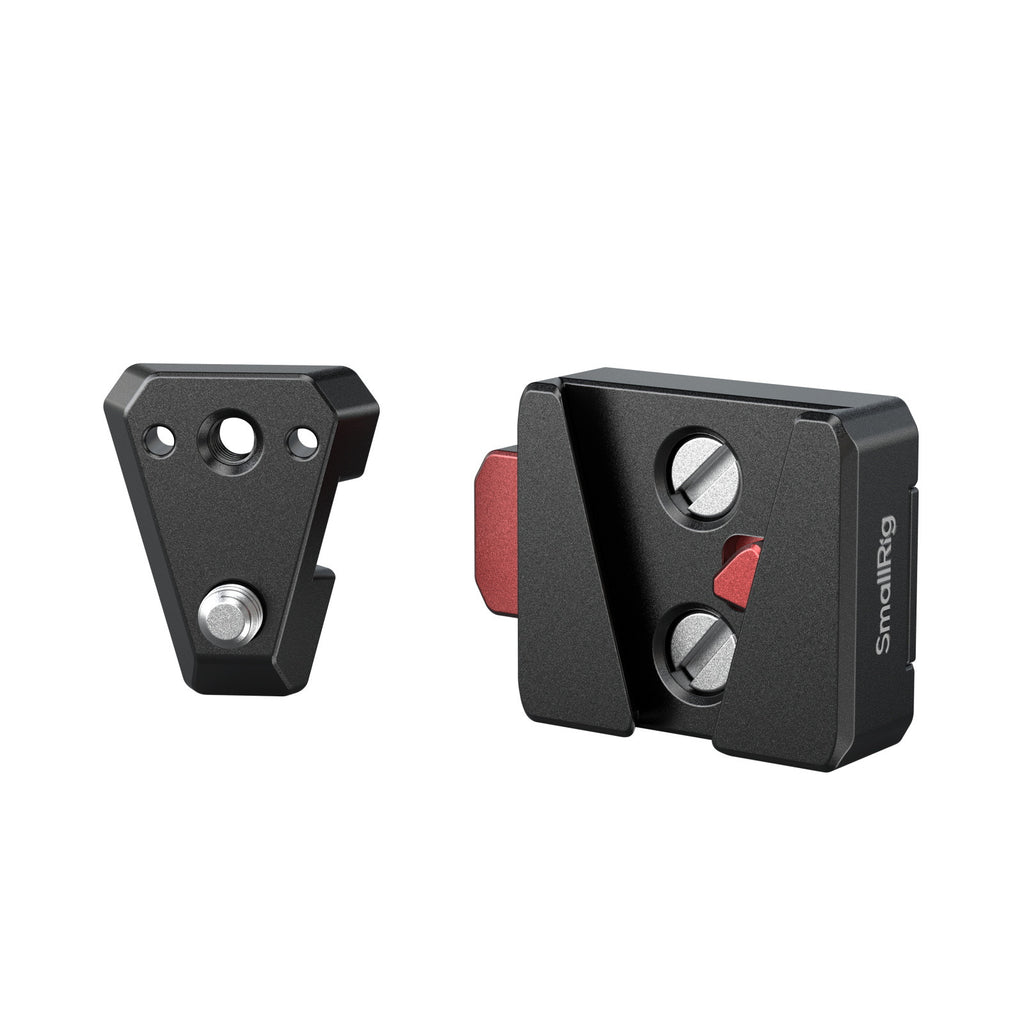

SmallRig Quick Release V-Lock Mount Plate Kit 6021 is a lightweight, portable solution designed to enhance setup flexibility for videographers. The kit includes a V-Lock mount and a V-Lock plate.

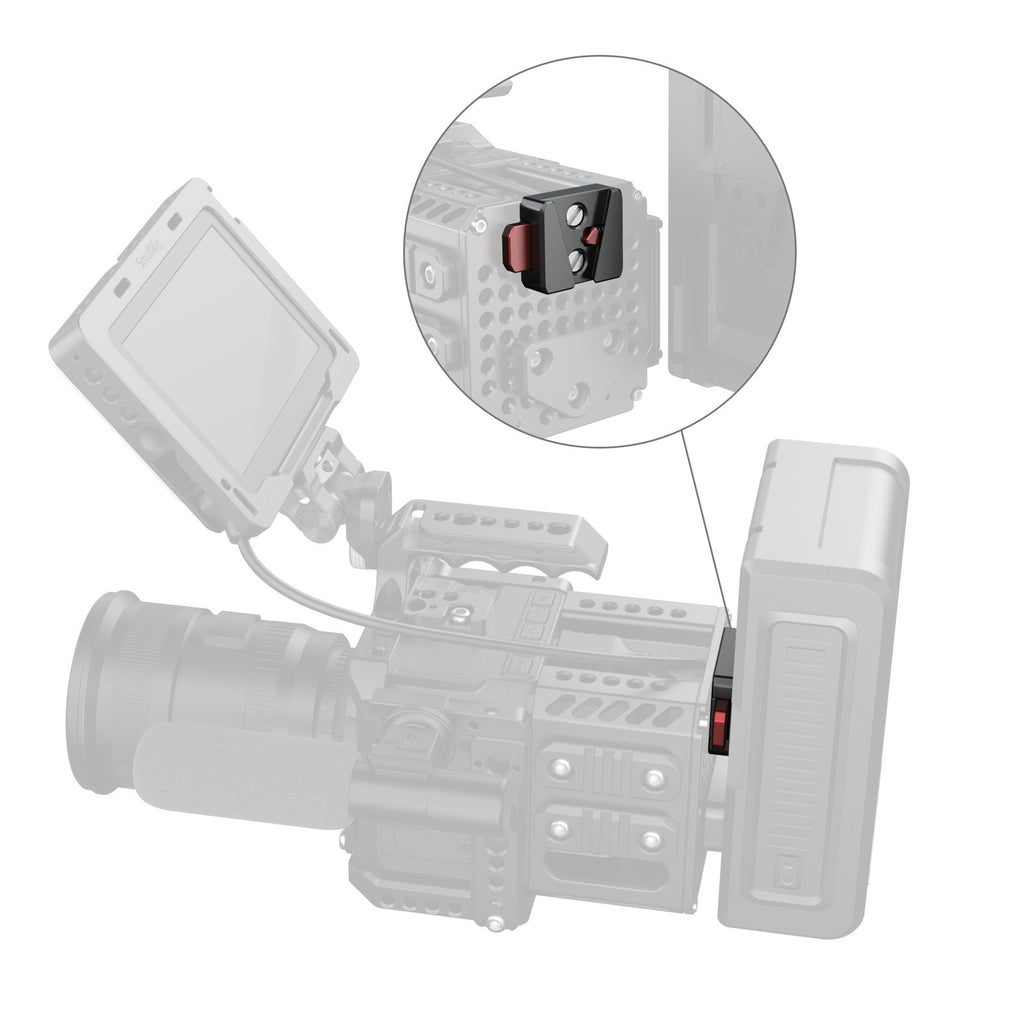

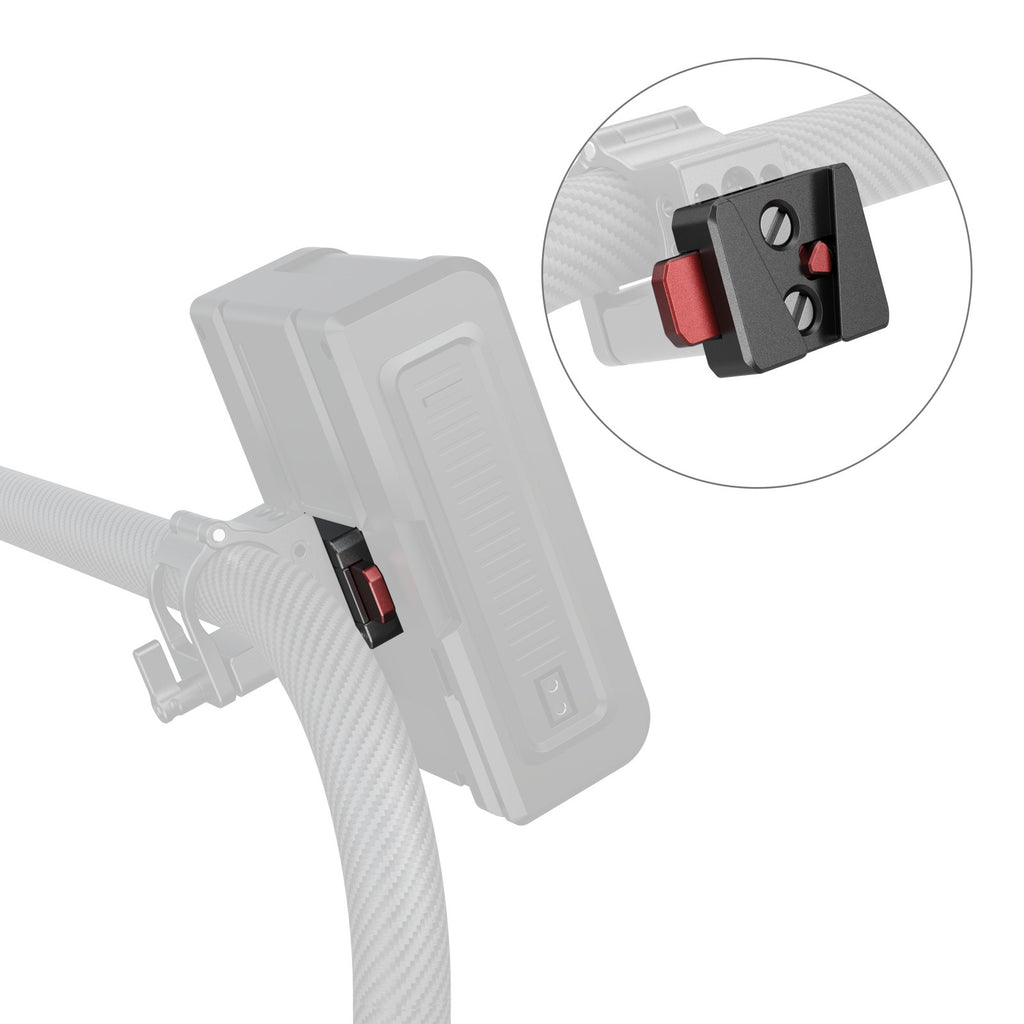

The V-Lock mount can be attached to cages or handles featuring two 1/4"-20 threaded holes with an 18mm (0.7in) spacing. It pairs with the V-Lock plate, which is equipped with one 1/4"-20 threaded hole and one 1/4"-20 locating hole, allowing for the quick attachment and detachment of accessories like magic arms (ID 3873, 3874), wireless video transmitters, and more. Alternatively, it can be used directly with V-Mount batteries (ID 3580B, 3579B).
https://www.smallrigreseller.com/smallrig-magic-arm-with-dual-ball-heads-1-4-20-screws-3873.html
SPECIFICATIONS

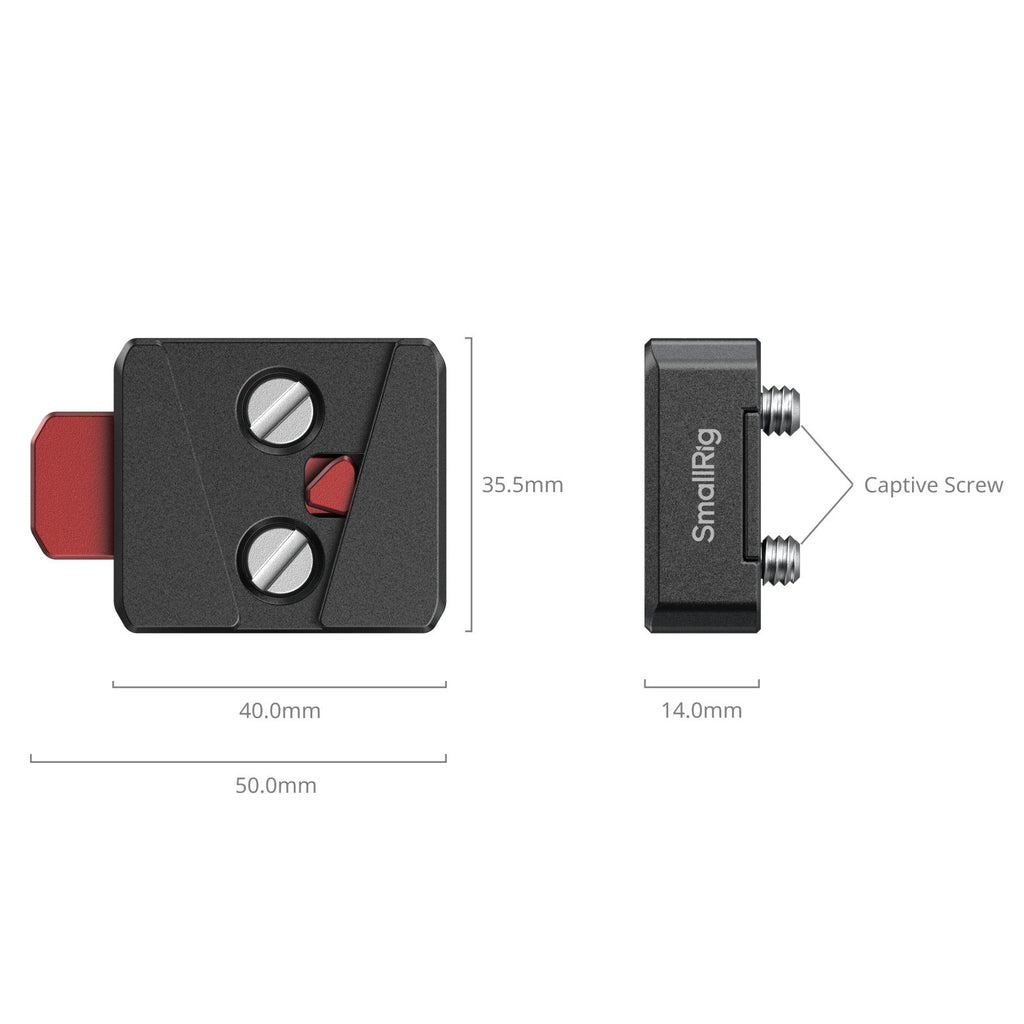

Product Dimensions: 50.0 × 35.5 × 25.0mm / 2.0 × 1.4 × 1.0in
Package Dimensions: 64.0 × 52.5 × 41.0mm / 2.5 × 2.1 × 1.6in
Product Weight: 55.0 ± 5.0g / 1.9 ± 0.2oz
Package Weight: 77.0 ± 5.0g / 2.7 ± 0.2oz
Material(s): Aluminum Alloy, Stainless Steel
COMPATIBILITY

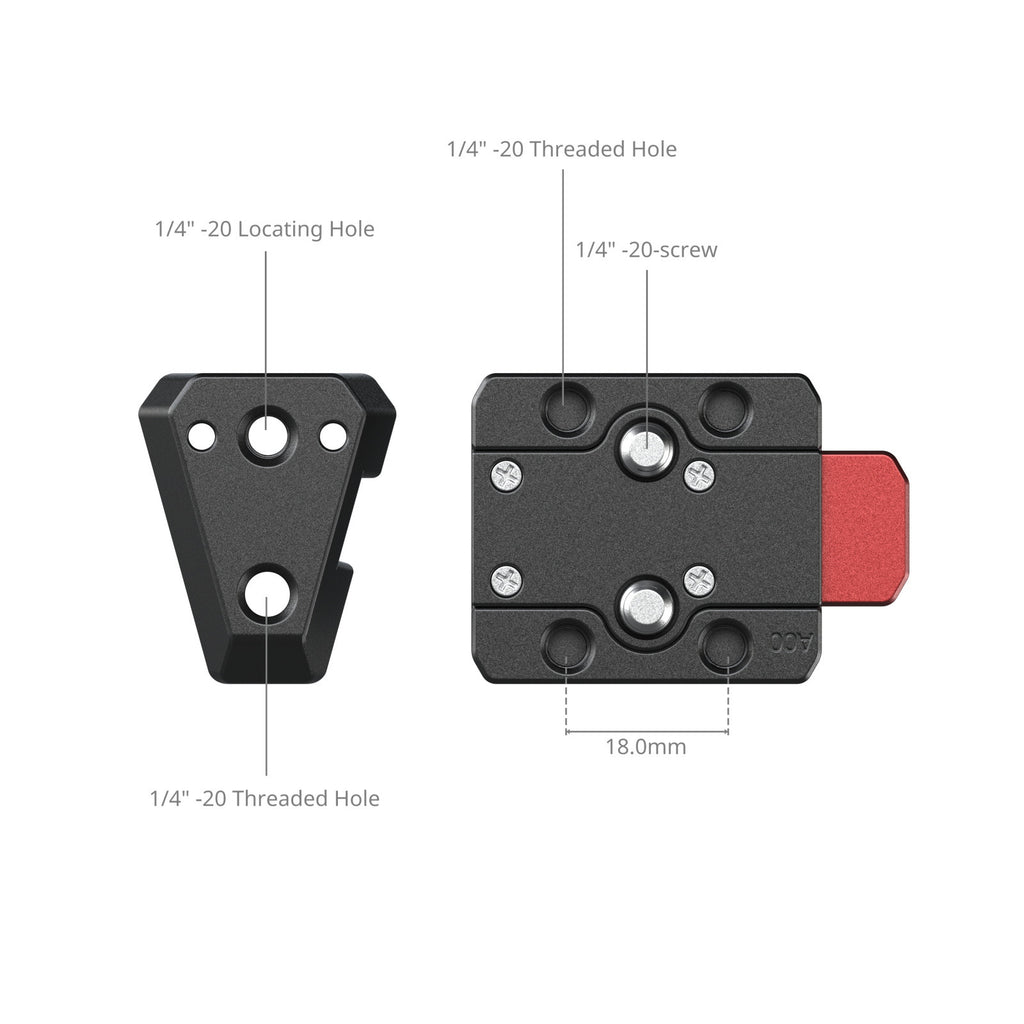

V-Lock Mount: Two 1/4"-20 threaded holes with 18mm (0.7in) spacing
V-Lock Plate: Two 1/4"-20 threaded holes with 18mm (0.7in) spacing / 1/4"-20 screw / 1/4"-20 locating screw

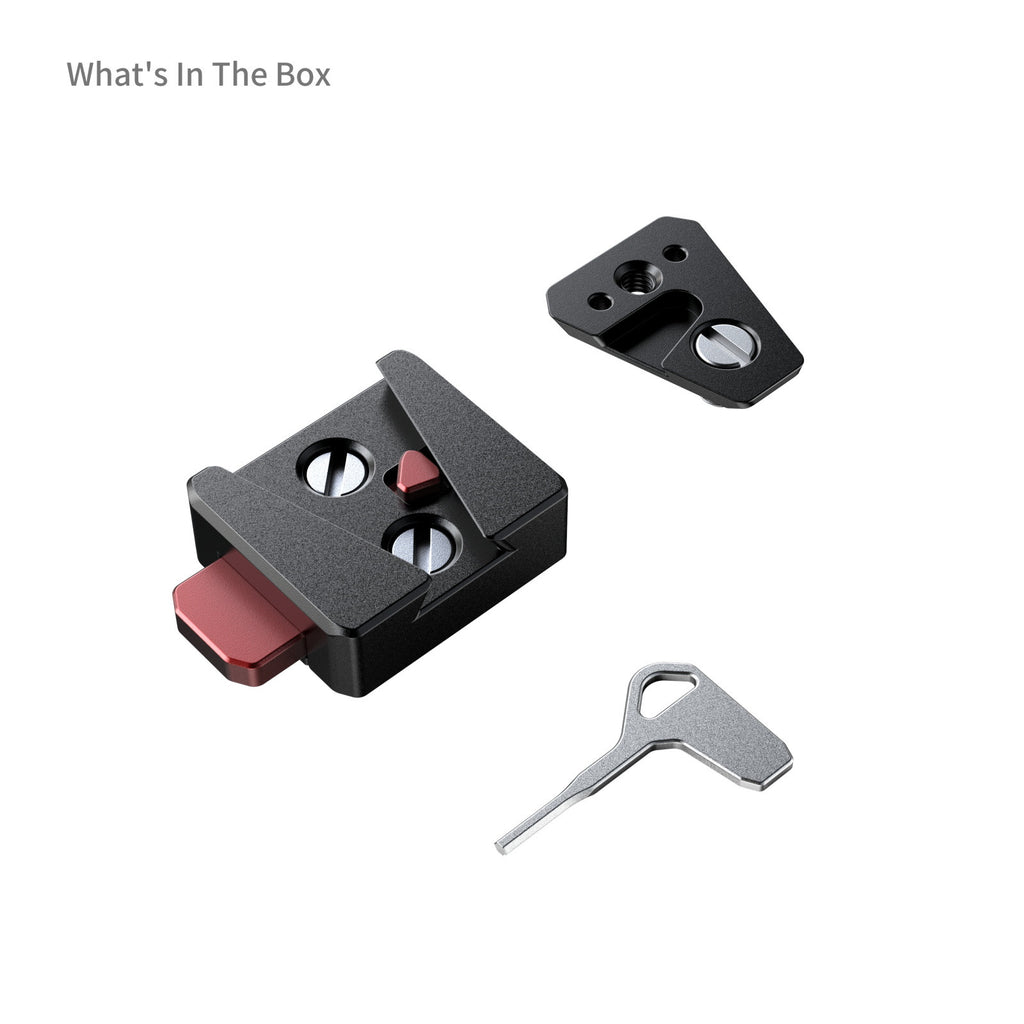

WHAT IS INCLUDED
1x V-Lock Mount
1x V-Lock Plate
1x Double Head Wrench
1x Guarantee Card
