Description

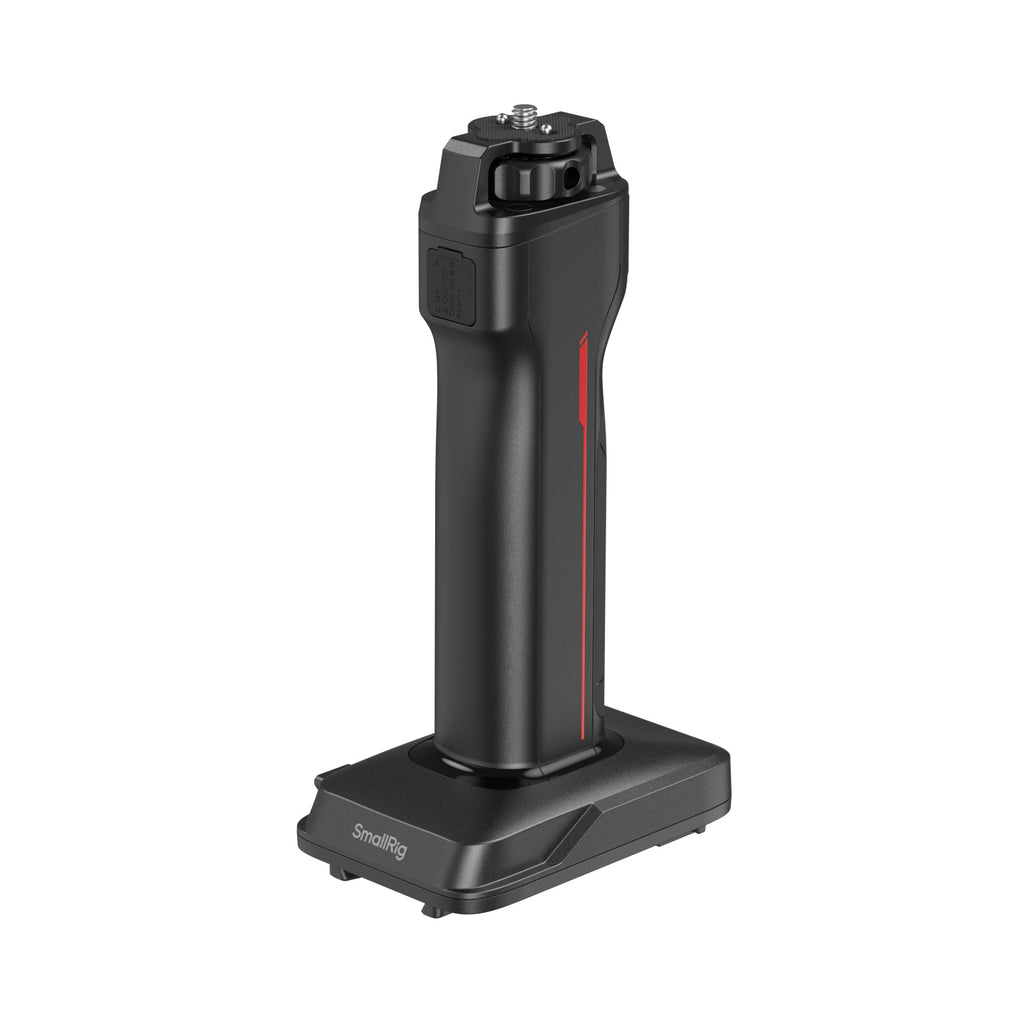

SMALLRIG SH01 CHARGING GRIP HANDLE (COMPATIBLE WITH V-MOUNT BATTERY) 4895
- Split-type design for quick battery replacement and extended usage.
- Dual interfaces, compatible with a wide range of video lights.
- 1/4"-20 screw with locating pins for quick installation and universal compatibility.
- Ergonomic design for comfortable grip and even weight distribution.

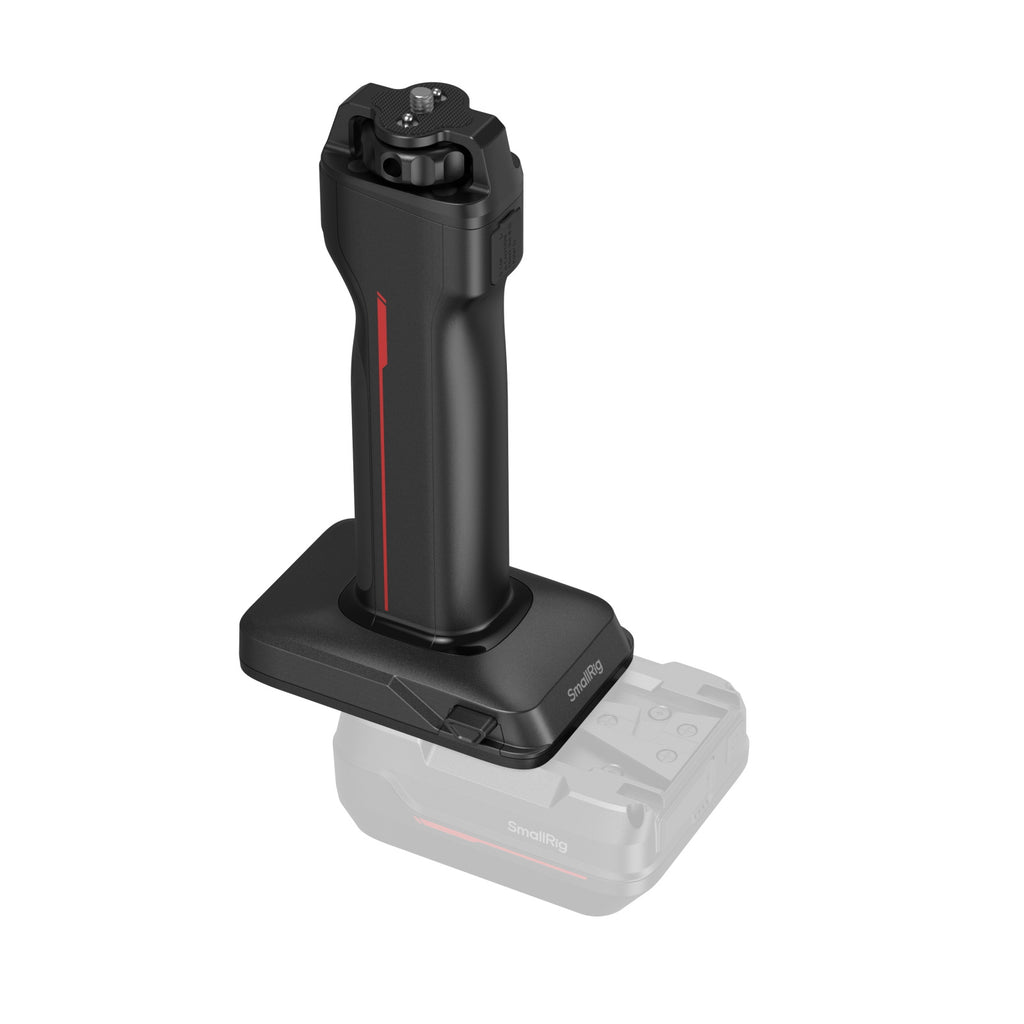

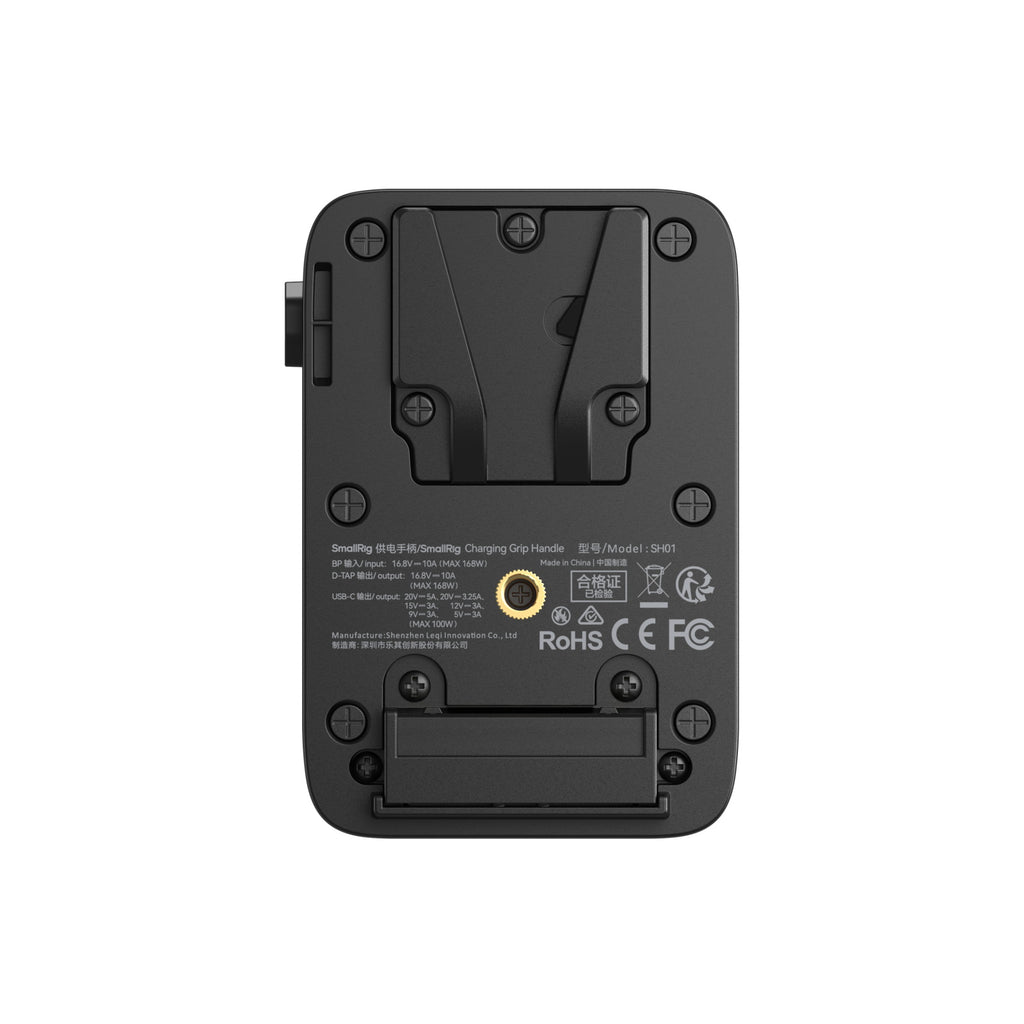

SmallRig SH01 Charging Grip Handle (Compatible with V-Mount Battery) 4895 features a split-type design, differentiating it from other power handles. Its V-mount battery base is universally compatible with standard V-mount batteries, enabling quick battery replacement for extended power supply.

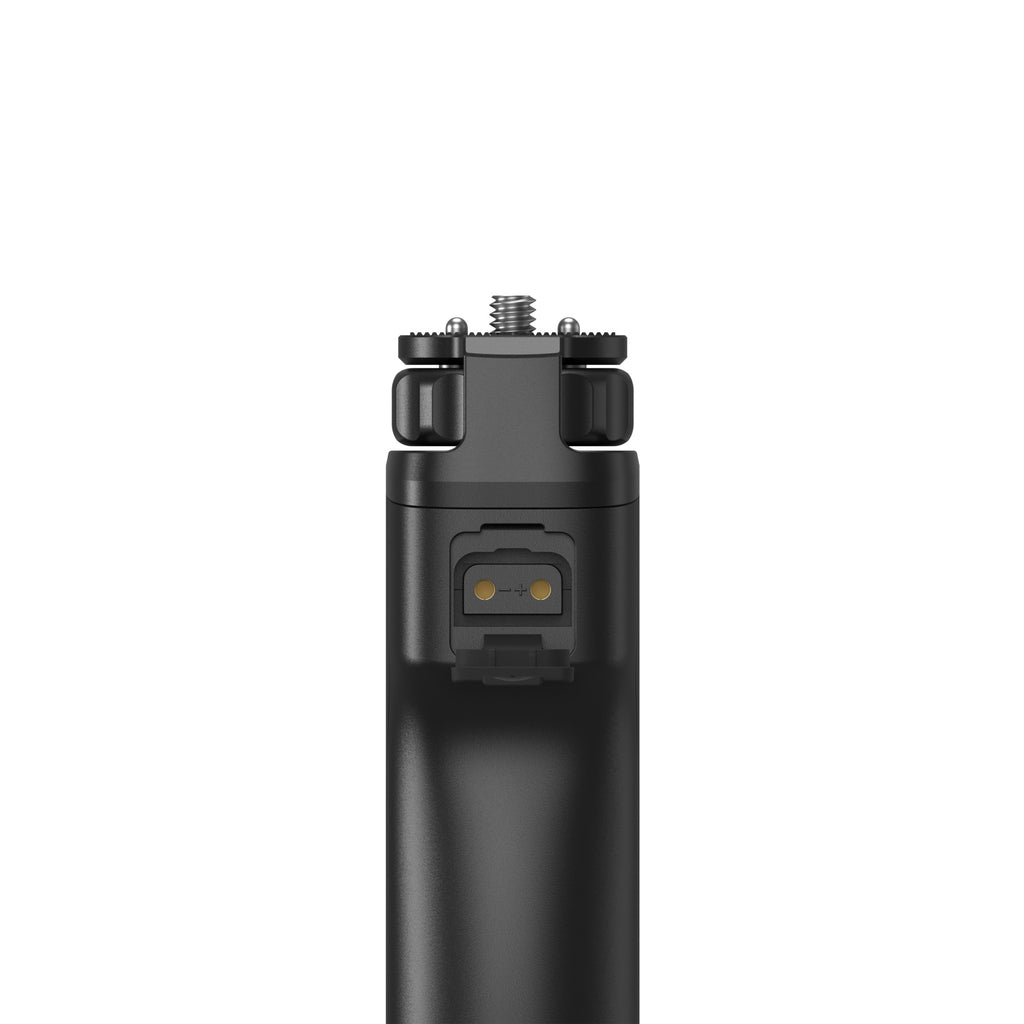

This power handle features an internal conversion circuit that enables V-mount battery BP input to be converted into USB-C PD/DC output. With USB-C and D-TAP interfaces, it supports up to 100W USB-C PD output and up to 168W D-TAP to DC output, making it compatible with most portable video lights on the market.
Additionally, the top of the handle is equipped with anti-twist 1/4"-20 screw and locating pins, allowing compatibility with video lights that feature standard 1/4"-20 locating holes. Its ergonomic design provides a comfortable grip and ensures even weight distribution.
Usage Scenarios: Designed for handheld power supply for video lights, ideal for scenarios such as mobile video shooting (content creation, short videos, short films) and mobile photography (comic conventions, wedding photography, travel photography).
SPECIFICATIONS
Product Dimensions: 200.0 x 102.0 x 70.0mm / 7.9 x 4.0 x 2.8in
Package Dimensions: 208.0 x 108.0 x 77.0mm / 8.2 x 4.3 x 3.0in
Product Weight: 427.0 ± 20.0g / 15.1 ± 0.7oz
Package Weight: 445.0 ± 40.0g / 15.7 ± 1.4oz
Material(s): PC+ABS, Silicone, Aluminum Alloy
D-TAP Output (Handle): 16.8V⎓10A (Max 168W)
USB-C Output (Handle): 20V⎓5A / 20V⎓3.25A / 15V⎓3A / 12V⎓3A / 9V⎓3A / 5V⎓3A (Max 100W)
BP Input (Handle): 16.8V⎓5A (Max 84W)
COMPATIBILITY
RC 100B COB LED Video Light (Standard Version) ID 4893
RC 100B COB LED Video Light (Mobile Version) ID 4894
RC 60B COB LED Video Light (with Power Bank Clamp Edition) ID 4376
RC 60B COB LED Video Light (Lite Edition) ID 4518
RC 60C RGB LED Video Light (with Power Bank Clamp Edition) ID 4810
RC 60C RGB LED Video Light (Lite Edition) ID 4808
WHAT IS INCLUDED
1x SH01 Charging Grip Handle
1x 20cm / 7.9in USB-C to USB-C PD Charging Cable
