Description

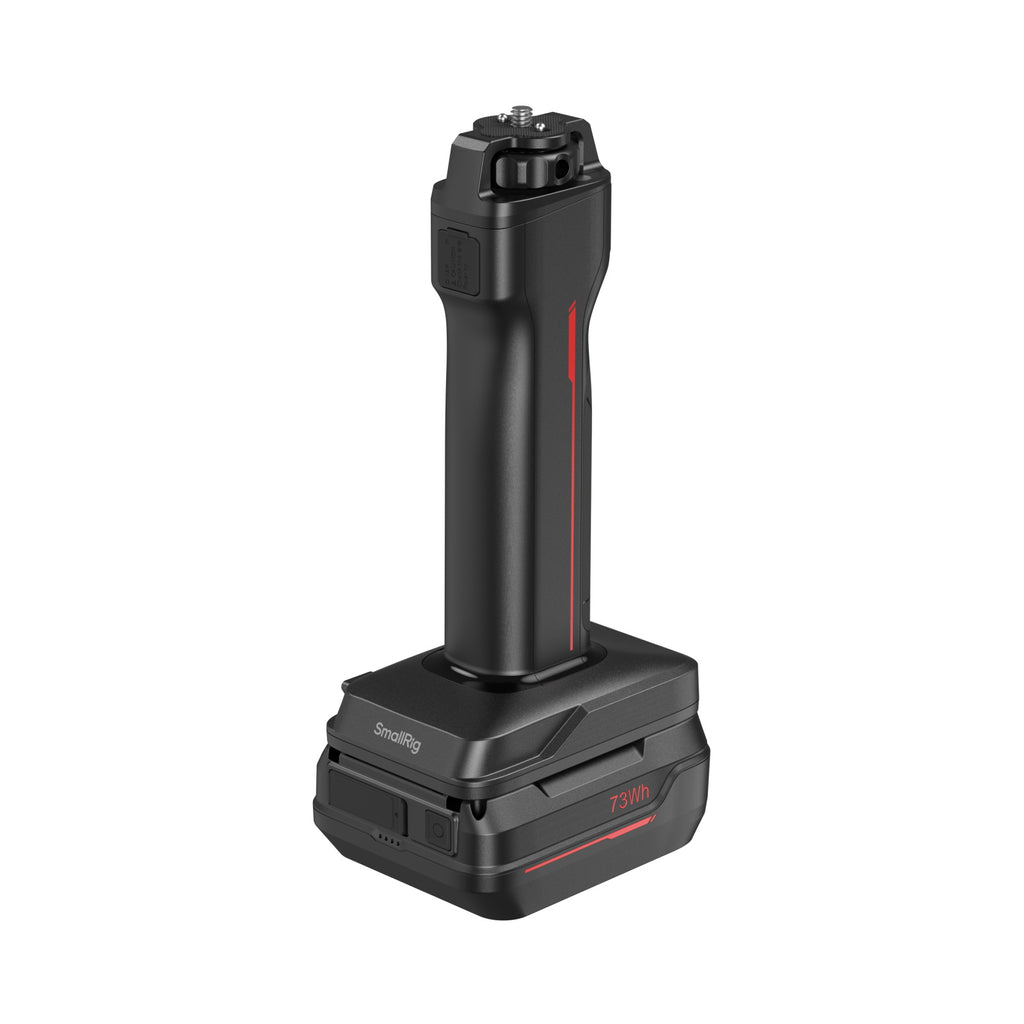

SMALLRIG SH73 GRIP HANDLE DESIGNED POWERBANK 4767
- Split-type design for quick battery replacement and extended usage.
- Dual interfaces, compatible with a wide range of video lights.
- 1/4"-20 screw with locating pins for quick installation and universal compatibility.
- Ergonomic design for comfortable grip and even weight distribution.
- Includes a 73Wh battery module that supports 45 minutes of 100W PD output.

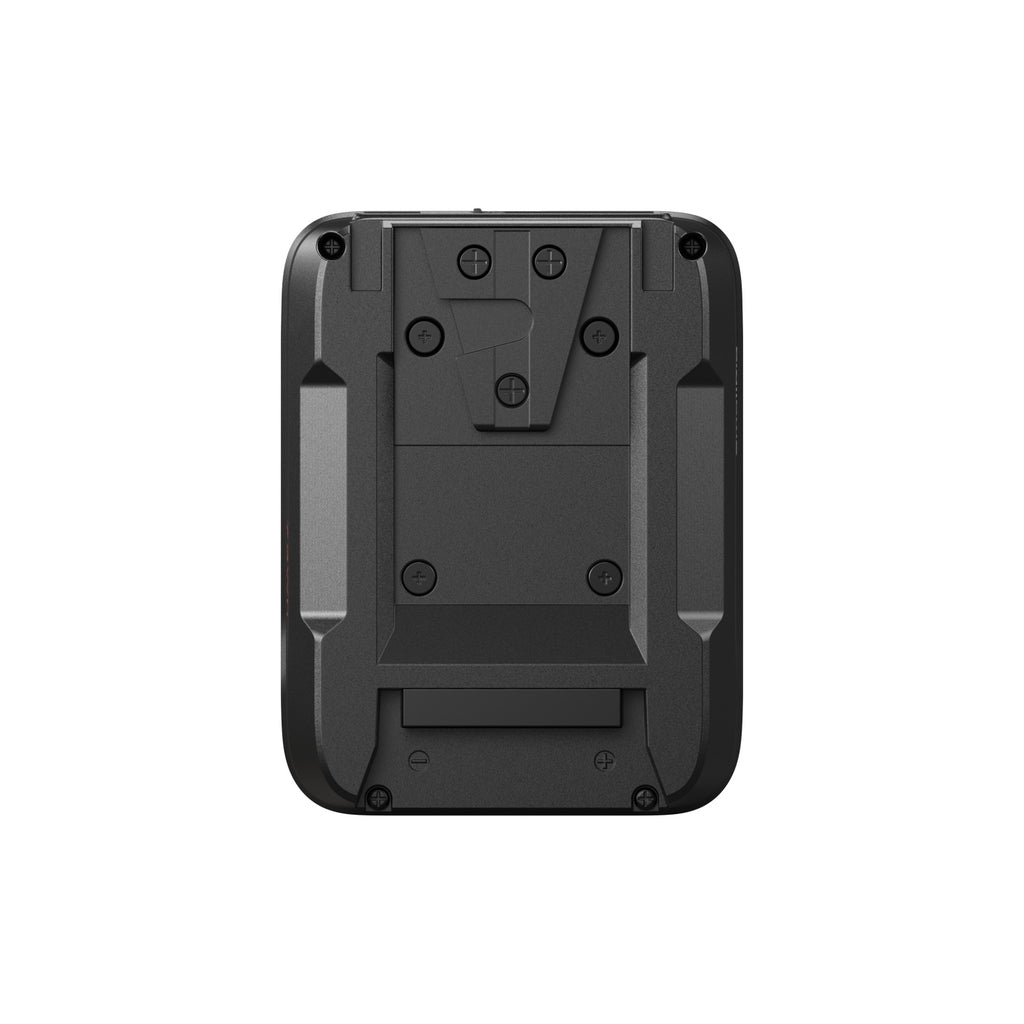

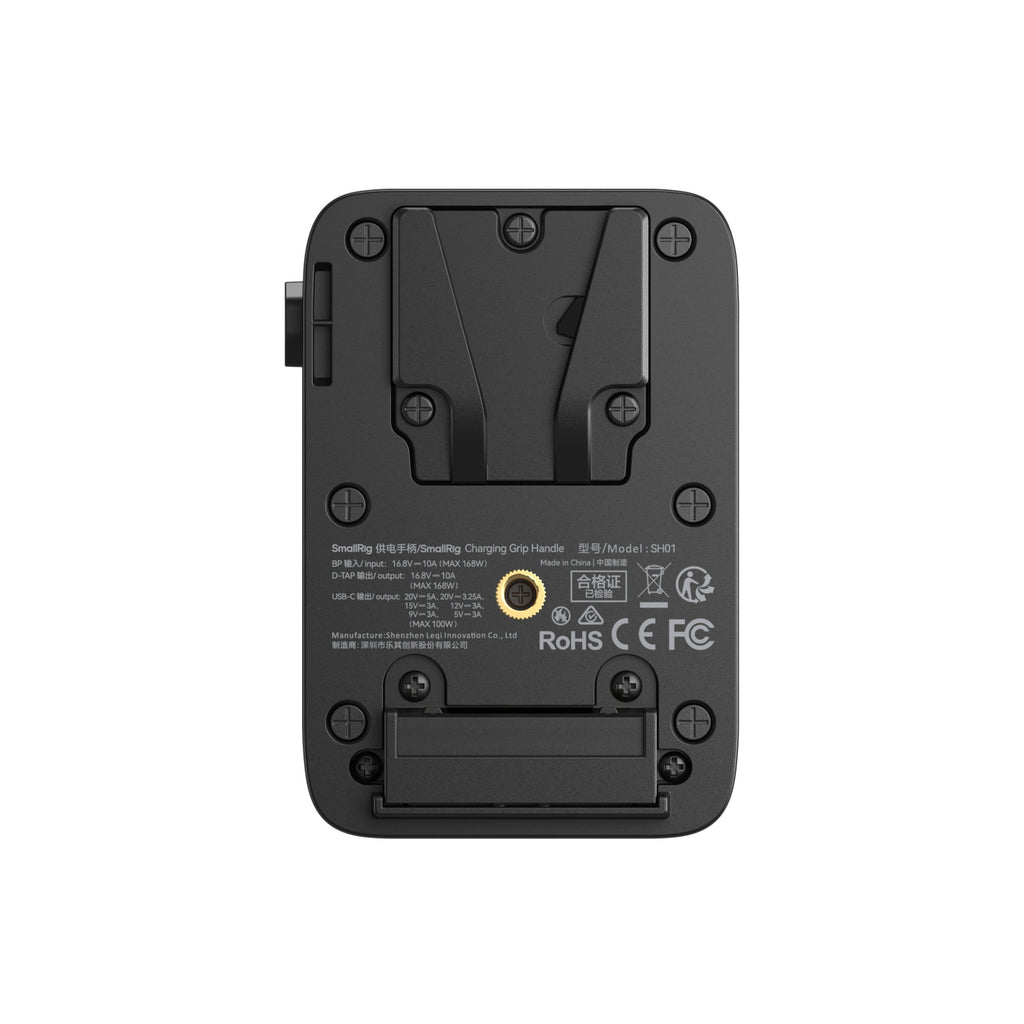

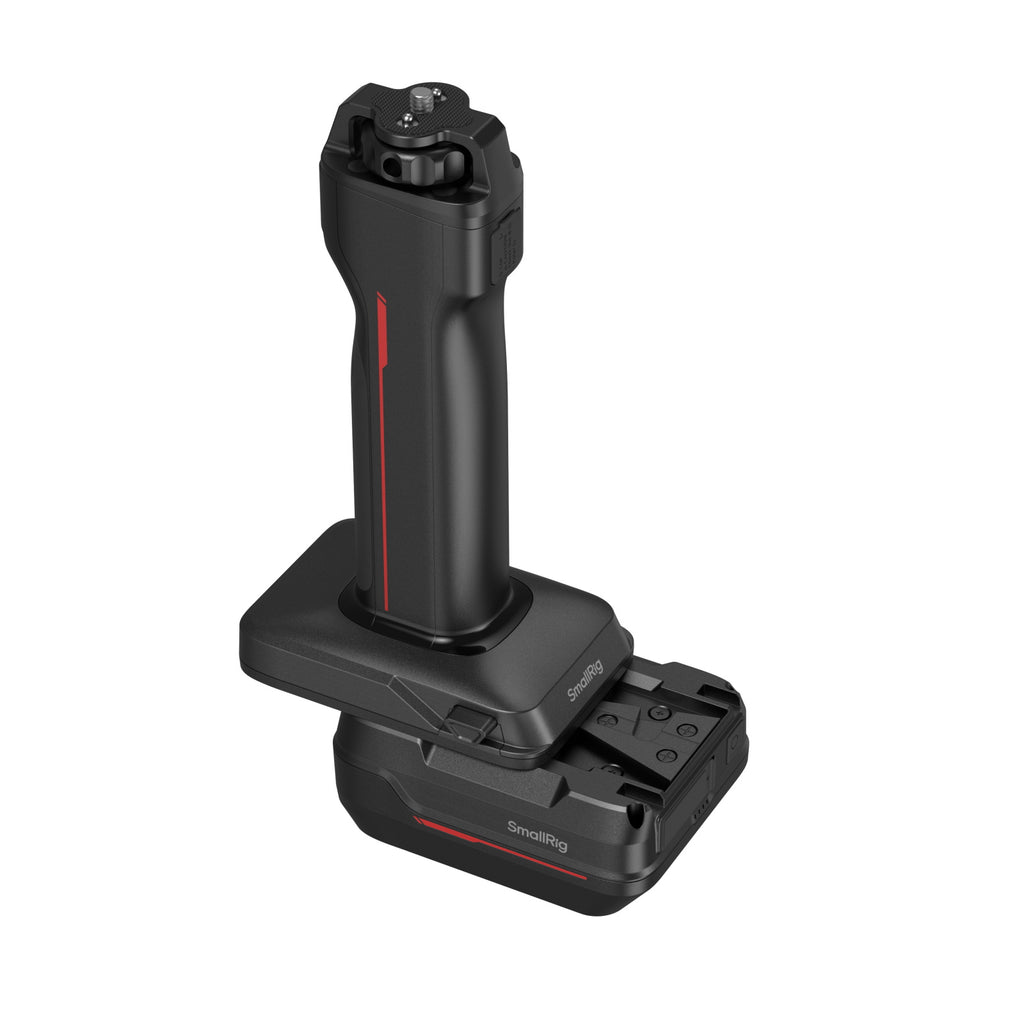

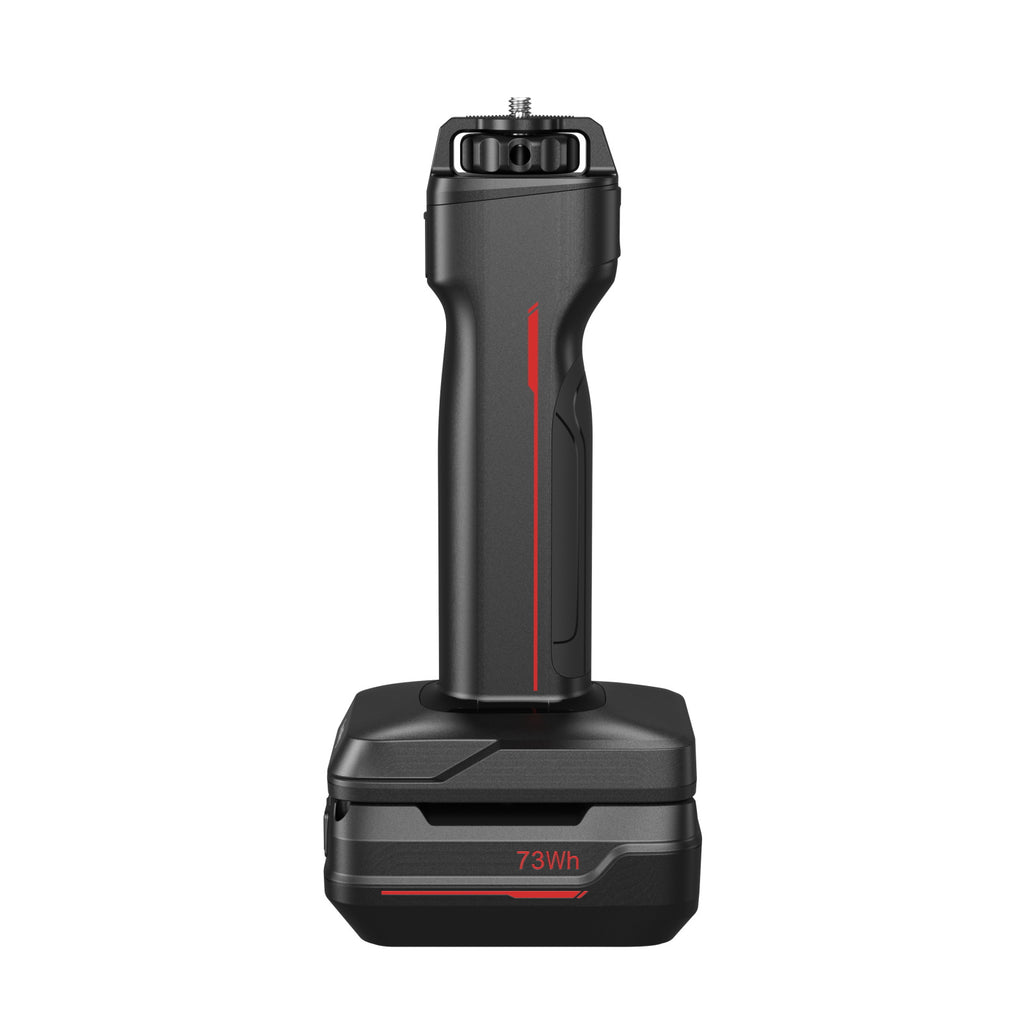

SmallRig SH73 Grip Handle Designed Powerbank 4767 features a split-type design, differentiating it from other power handles. Its V-mount battery base is universally compatible with standard V-mount batteries, enabling quick battery replacement for extended power supply.
This power handle features an internal conversion circuit that enables V-mount battery BP input to be converted into USB-C PD/DC output. With USB-C and D-TAP interfaces, it supports up to 100W USB-C PD output and up to 168W D-TAP to DC output, making it compatible with most portable video lights on the market.

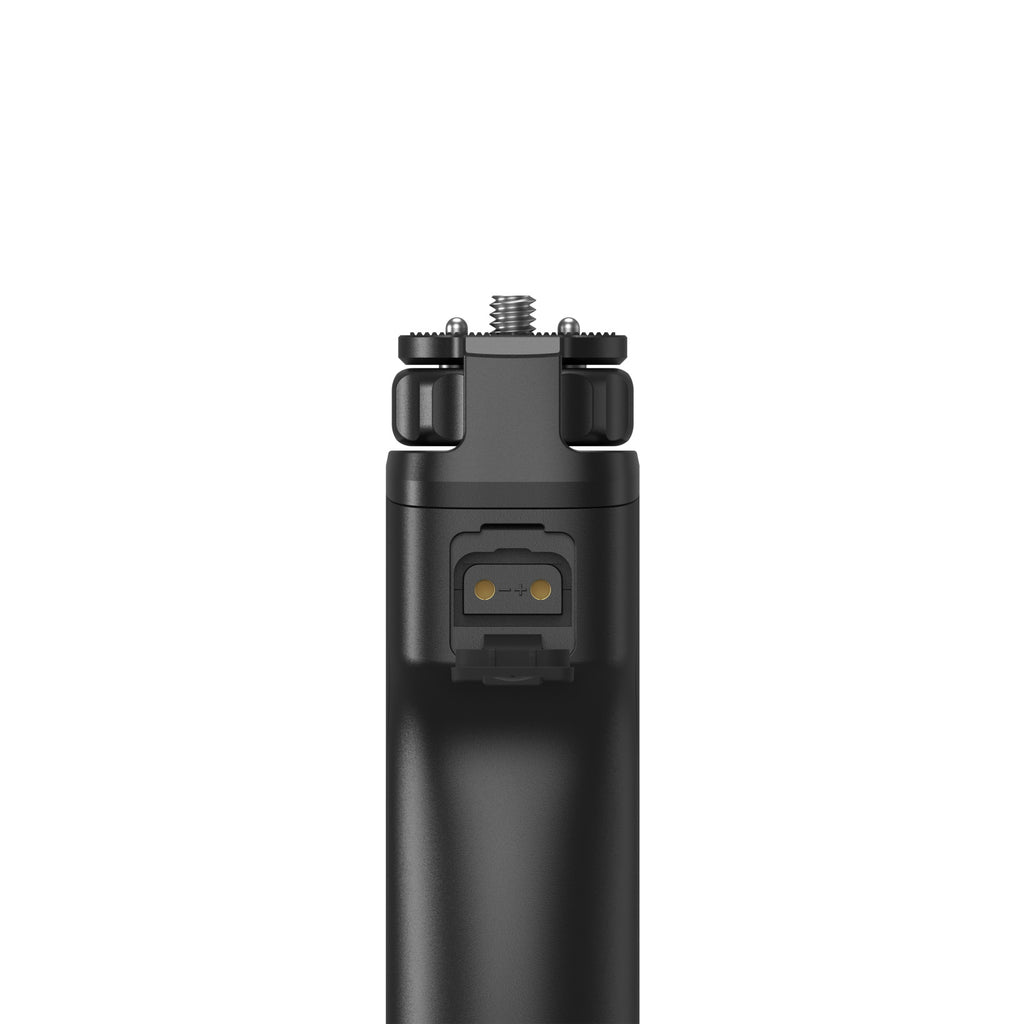

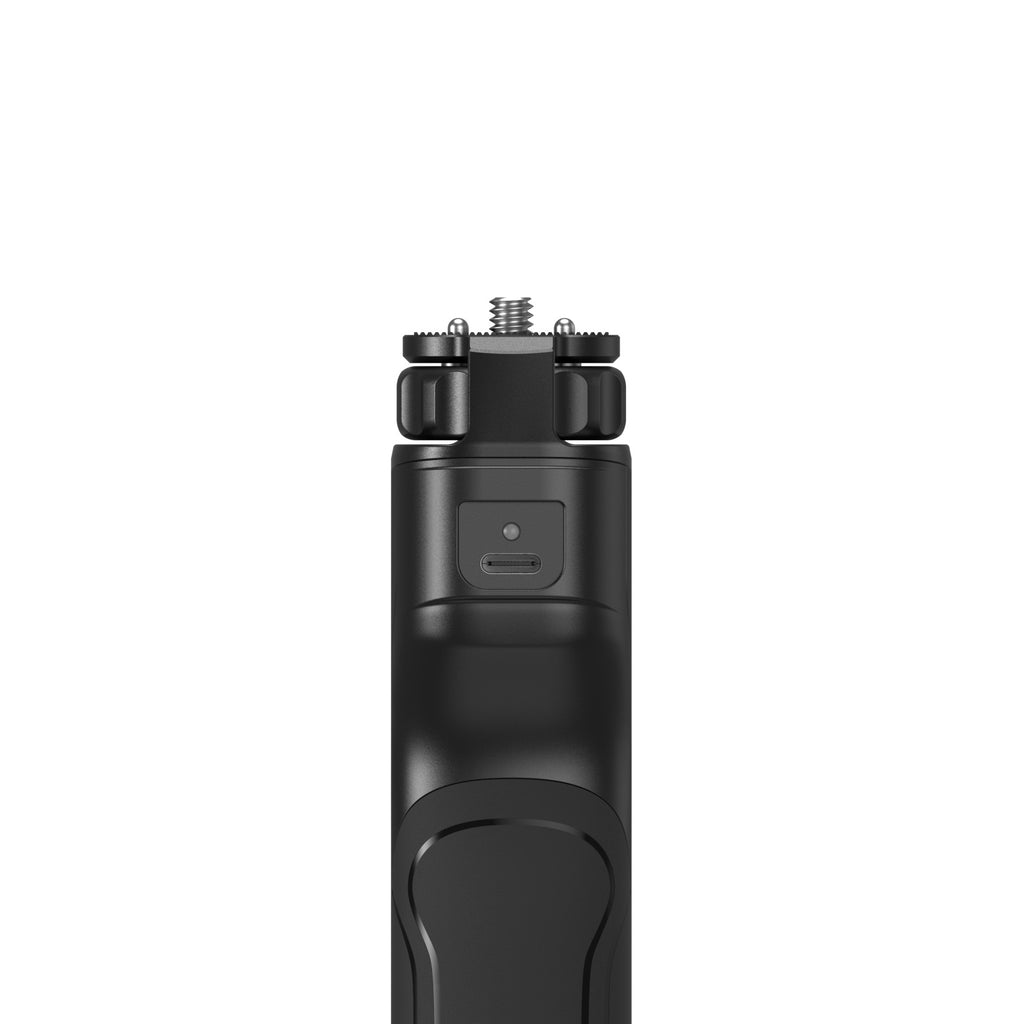

Additionally, the top of the handle is equipped with anti-twist 1/4"-20 screw with locating pins, allowing compatibility with video lights that feature standard 1/4"-20 locating holes. Its ergonomic design provides a comfortable grip and ensures even weight distribution.

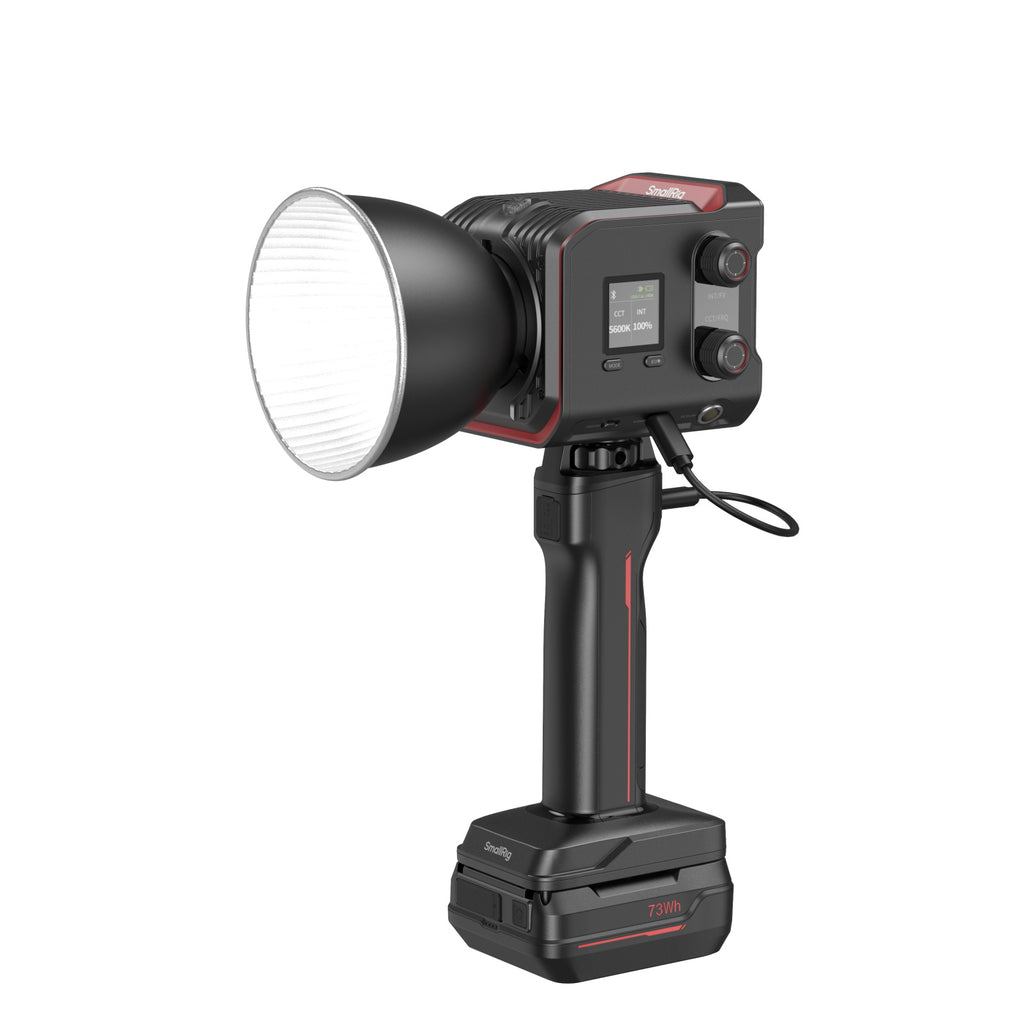

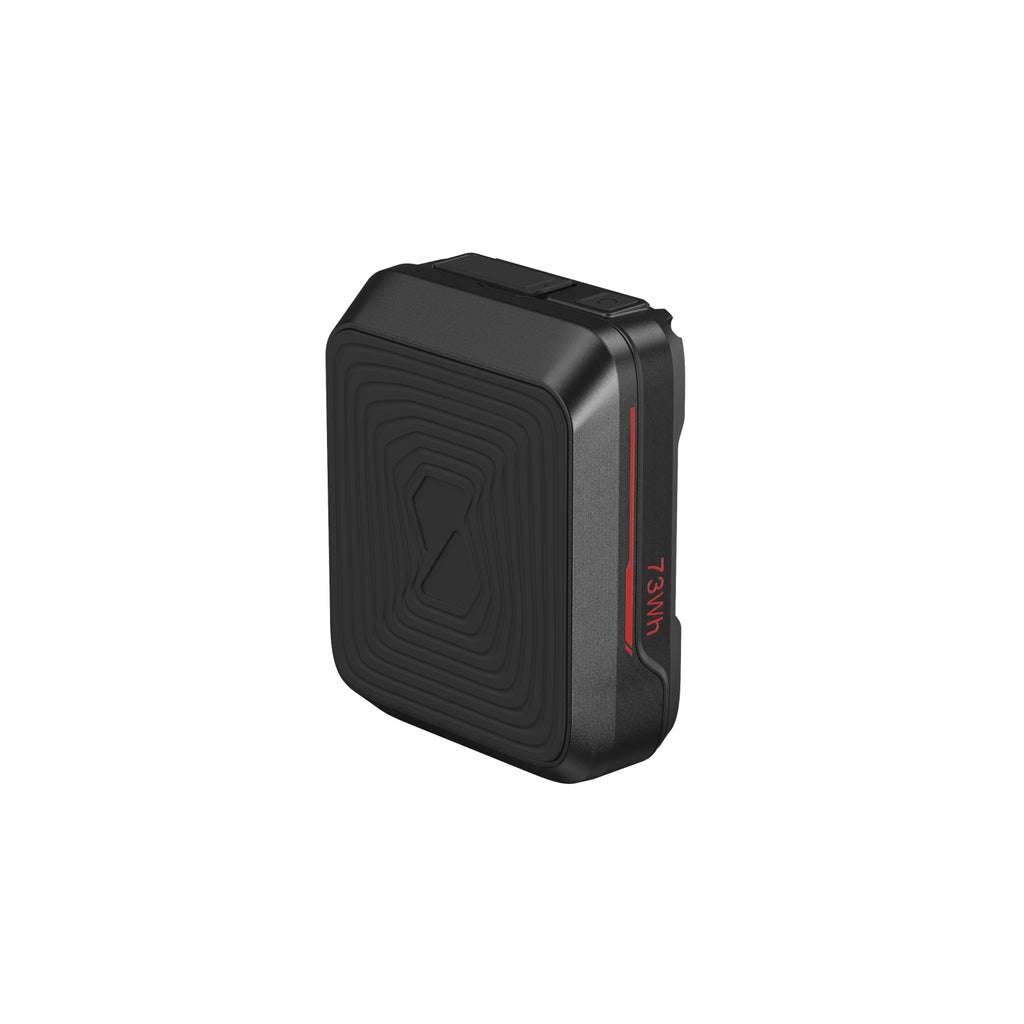

The handle also comes with a 73Wh battery module, which can support 45 minutes of 100W PD output for the RC 100B video light.
Usage Scenarios: Designed for handheld power supply for video lights, ideal for scenarios such as mobile video shooting (content creation, short videos, short films) and mobile photography (comic conventions, wedding photography, travel photography).
IMPORTANT
This product does not support charging while using.
SPECIFICATIONS

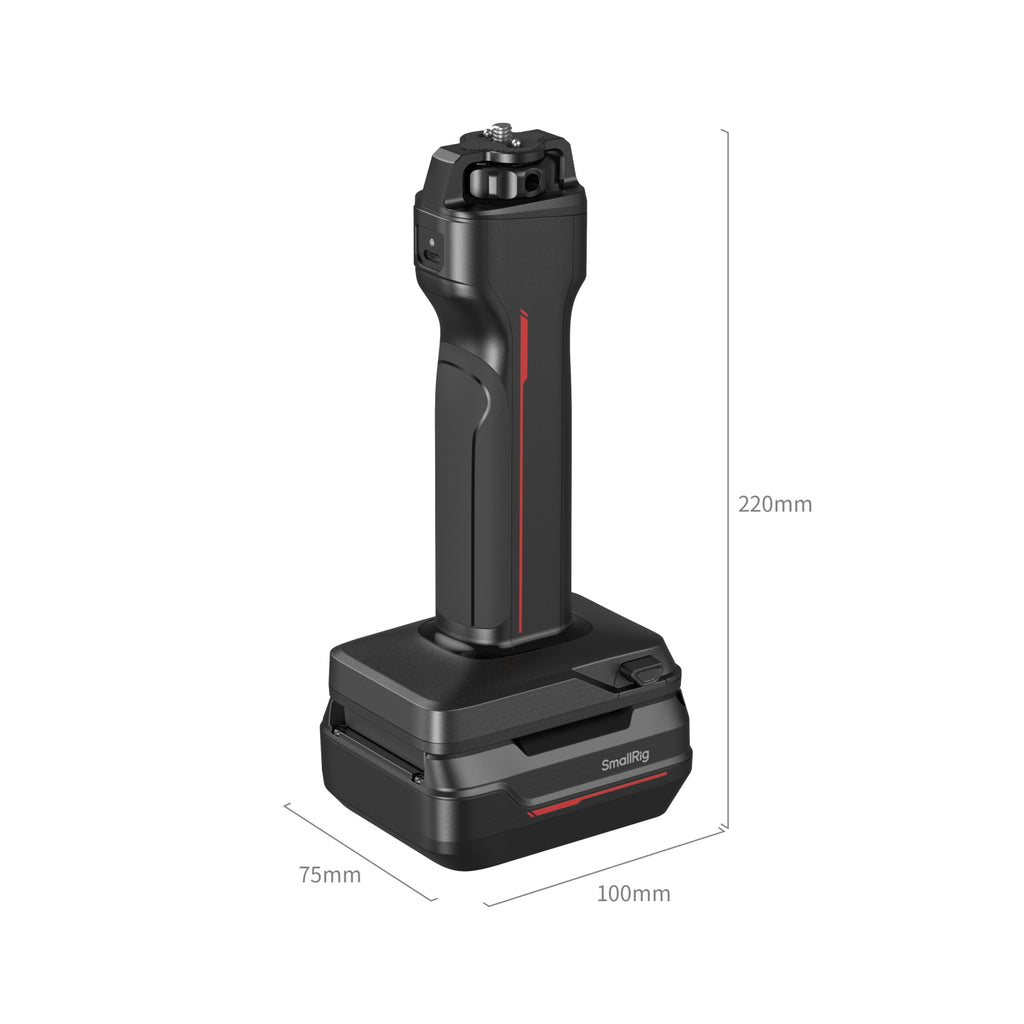

Product Dimensions: 230.0 x 102.0 x 75.0mm / 9.1 x 4.0 x 3.0in
Package Dimensions: 240.0 x 140.0 x 90.0mm / 9.4 x 5.5 x 3.5in
Product Weight: 720.0 ± 20.0g / 25.4 ± 0.7oz
Package Weight: 872.0 ± 40.0g / 30.8 ± 1.4oz
Material(s): PC+ABS, Silicone, Aluminum Alloy
D-TAP Output (Grip): 16.8V⎓10A (Max 168W)
USB-C Output (Grip): 20V⎓5A / 20V⎓3.25A / 15V⎓3A / 12V⎓3A / 9V⎓3A / 5V⎓3A (Max 100W)
BP Input (Battery): 16.8V⎓5A (Max 84W)
BP Output (Battery): 16.8V⎓10A (Max 168W)
USB-C Input / Output (Battery): 5V⎓3A / 9V⎓3A / 12V⎓3A / 15V⎓3A / 20V⎓2.25A
USB-A Input (Battery): 5V⎓2.4A / 9V⎓2A / 12V⎓1.5A
Total Power Output (Battery): 45W
Battery Capacity: 14.6V / 5000mAh / 73Wh
COMPATIBILITY
RC 100B COB LED Video Light (Standard Version) ID 4893RC 100B COB LED Video Light (Mobile Version) ID 4894RC 60B COB LED Video Light (with Power Bank Clamp Edition) ID 4376RC 60B COB LED Video Light (Lite Edition) ID 4518RC 60C RGB LED Video Light (with Power Bank Clamp Edition) ID 4810RC 60C RGB LED Video Light (Lite Edition) ID 4808
WHAT IS INCLUDED
1x SH73 Grip Handle Designed Powerbank
1x 20cm / 7.9in USB-C to USB-C PD Charging Cable
1x User Manual
