Description
SMALLRIG SUPPORT KIT FOR VERTICAL SHOOTING 6316
- Stepless Damping Adjustment: Allows quick one-handed tilt adjustment.
- Rotating Side Handle: Supports camera movement while maintaining a comfortable grip.
- Dual Locking Screws: Secure the mounting plate in place for stable vertical shooting with full card access.
- Quick-Slide Mounting: Both the side handle and monitor support feature a NATO clamp for fast installation and removal.
- Versatile Accessories: Includes NATO rails, cable clips, and more for expanded compatibility.

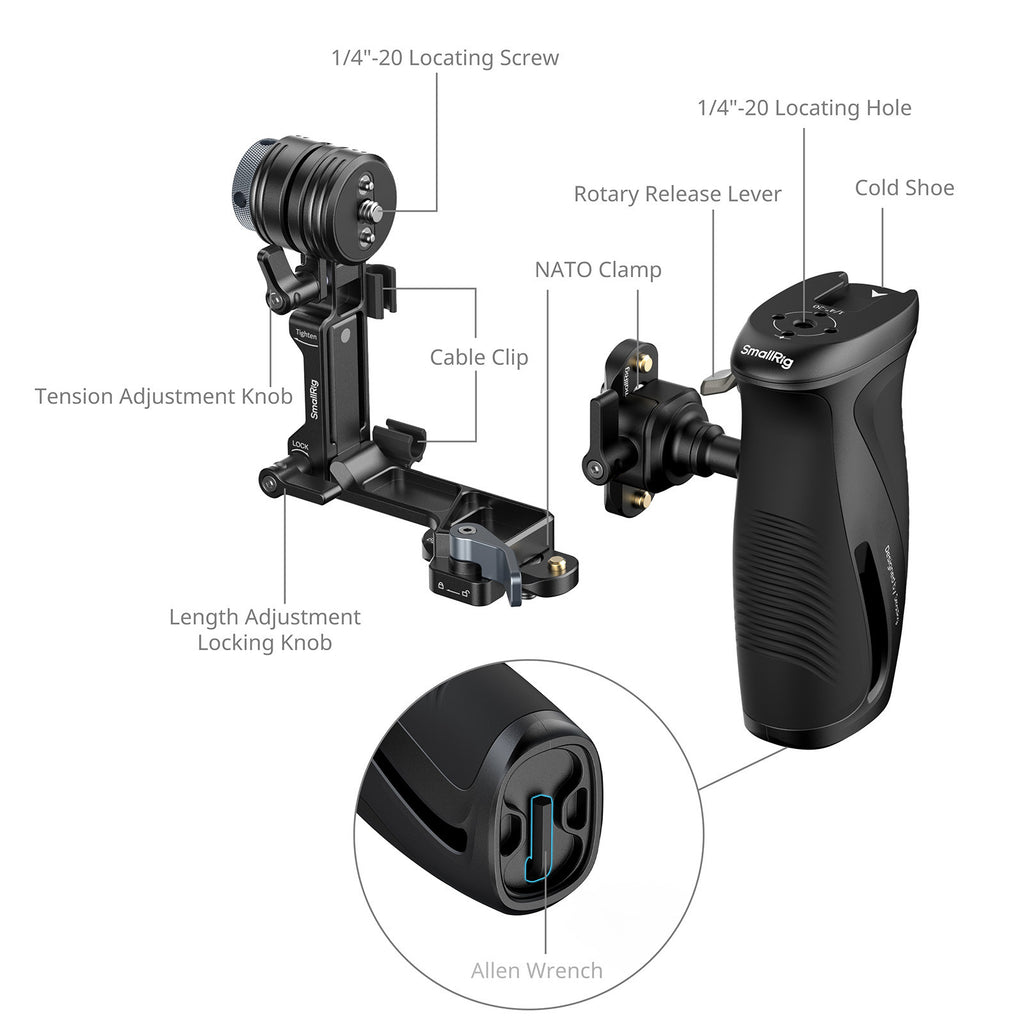

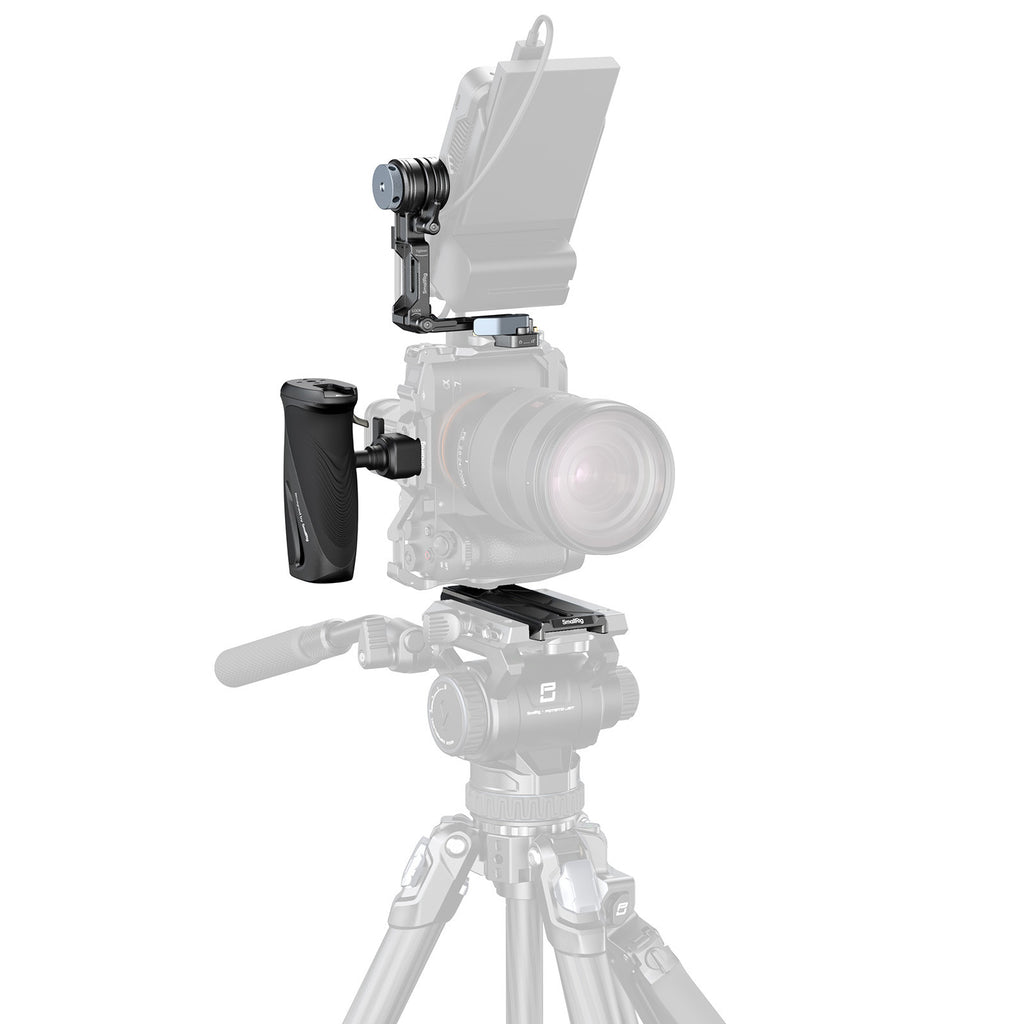

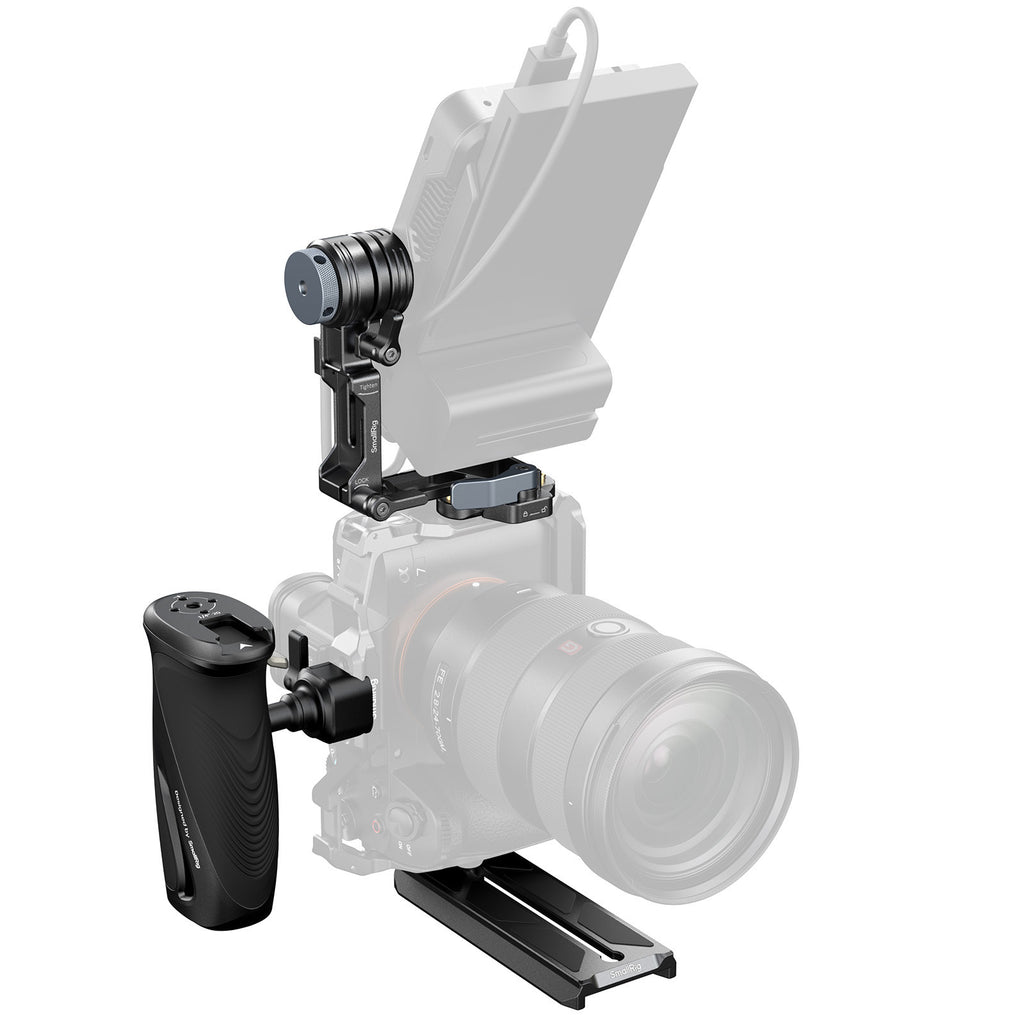

SmallRig Support Kit for Vertical Shooting 6316 is designed to address monitor mounting, handheld camera movement, and tripod installation needs during vertical shooting. The monitor is secured with a retractable 1/4"-20 locating screw for stable, anti-twist mounting. Once installed, it allows quick one-handed tilt adjustment for easier operation.
The side handle features an ergonomic grip design and a one-press rotating mechanism for a comfortable grip and smoother camera movement. The top includes a cold shoe mount and a 1/4"-20 locating hole for attaching accessories such as microphones and magic arms.

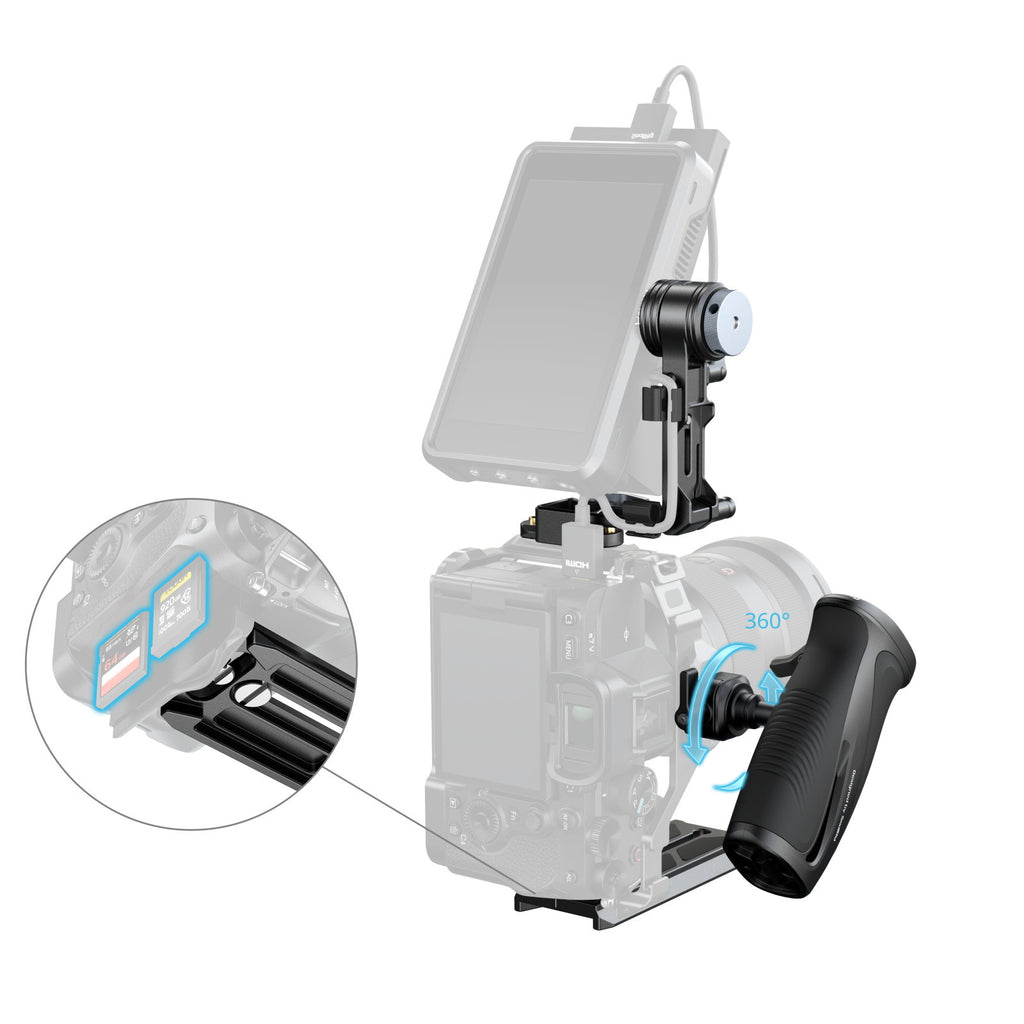

Both the side handle and monitor support use a NATO clamp for quick installation on accessories equipped with NATO rails. The included mounting plate can be secured with two 1/4"-20 screws for stable vertical shooting with full card access.
Two included cable clips help organize cables such as HDMI and dummy battery cables, keeping the setup tidy and helping prevent cable strain from pulling. The included NATO rails can be mounted to accessories with a 1/4"-20 threaded hole for broader compatibility.

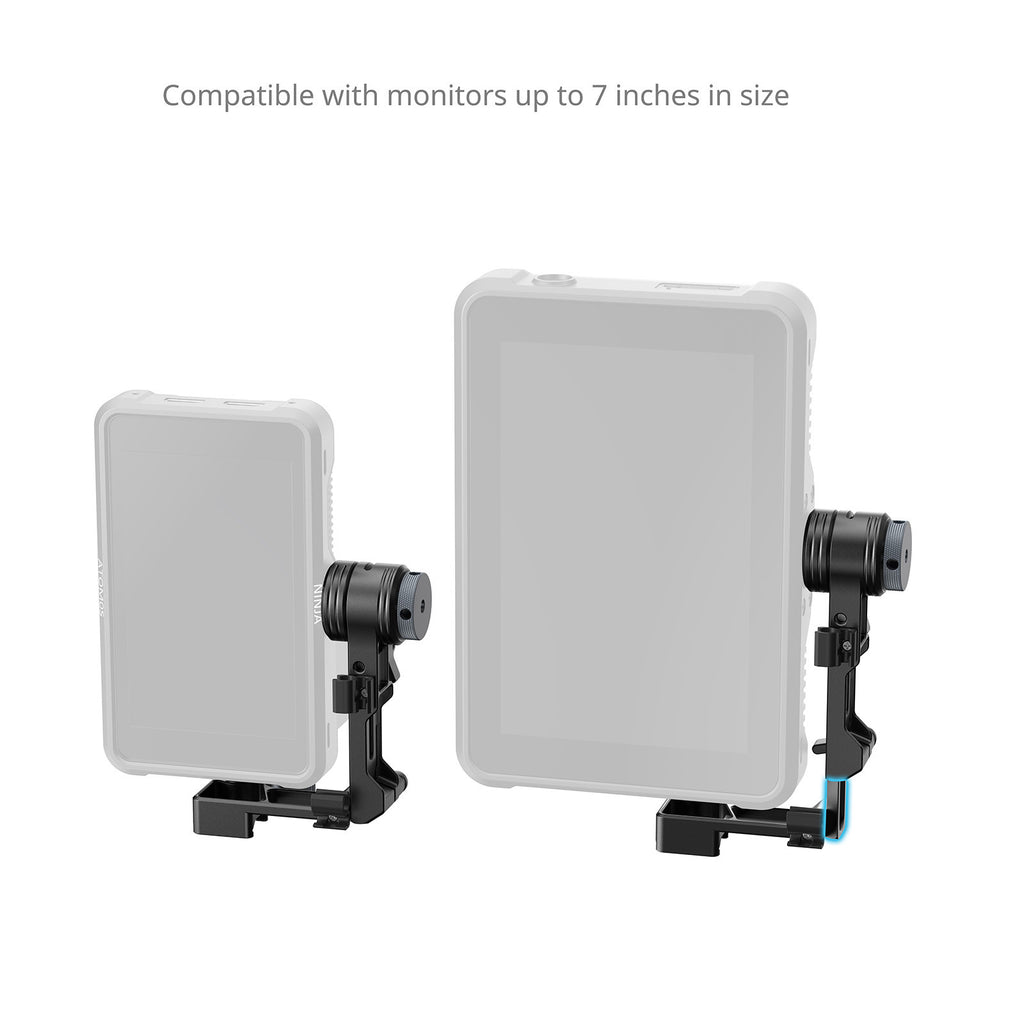

With adjustable height and damping, the monitor support is compatible with most monitors up to 7 inches on the market.
IMPORTANT
1. This kit must be used with a cage, preferably a SmallRig cage.
2. Before purchase, please confirm that your cage includes the required mounting interfaces for the best vertical shooting experience.
SPECIFICATIONS

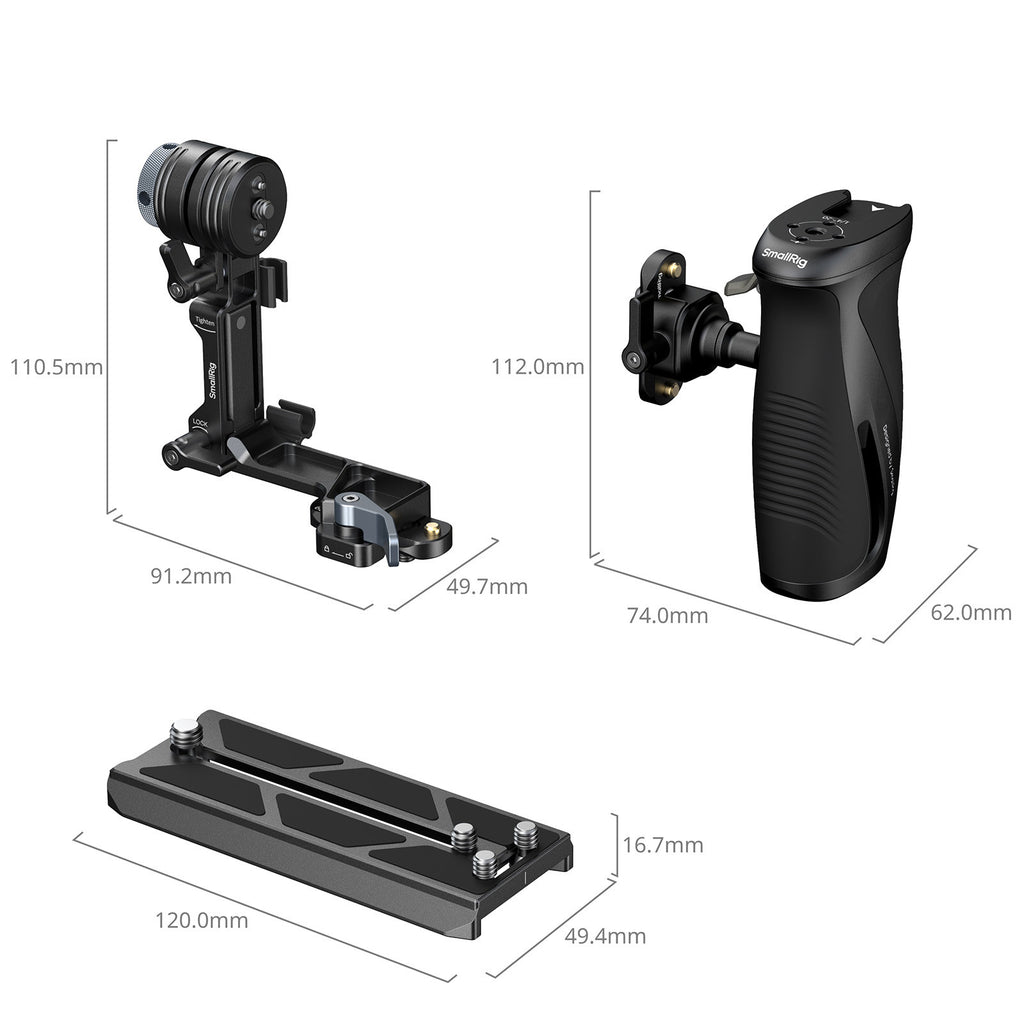

Product Dimensions: 110.5 × 91.2 × 49.7mm / 4.4 × 3.6 × 2.0in
Package Dimensions: 180.0 × 138.0 × 67.0mm / 7.1 × 5.4 × 2.6in
Product Weight: 566.0 ± 5.0g / 20.0 ± 0.2oz
Package Weight: 661.0 ± 5.0g / 23.3 ± 0.2oz
Material(s): Aluminum Alloy, Stainless Steel, Silicone

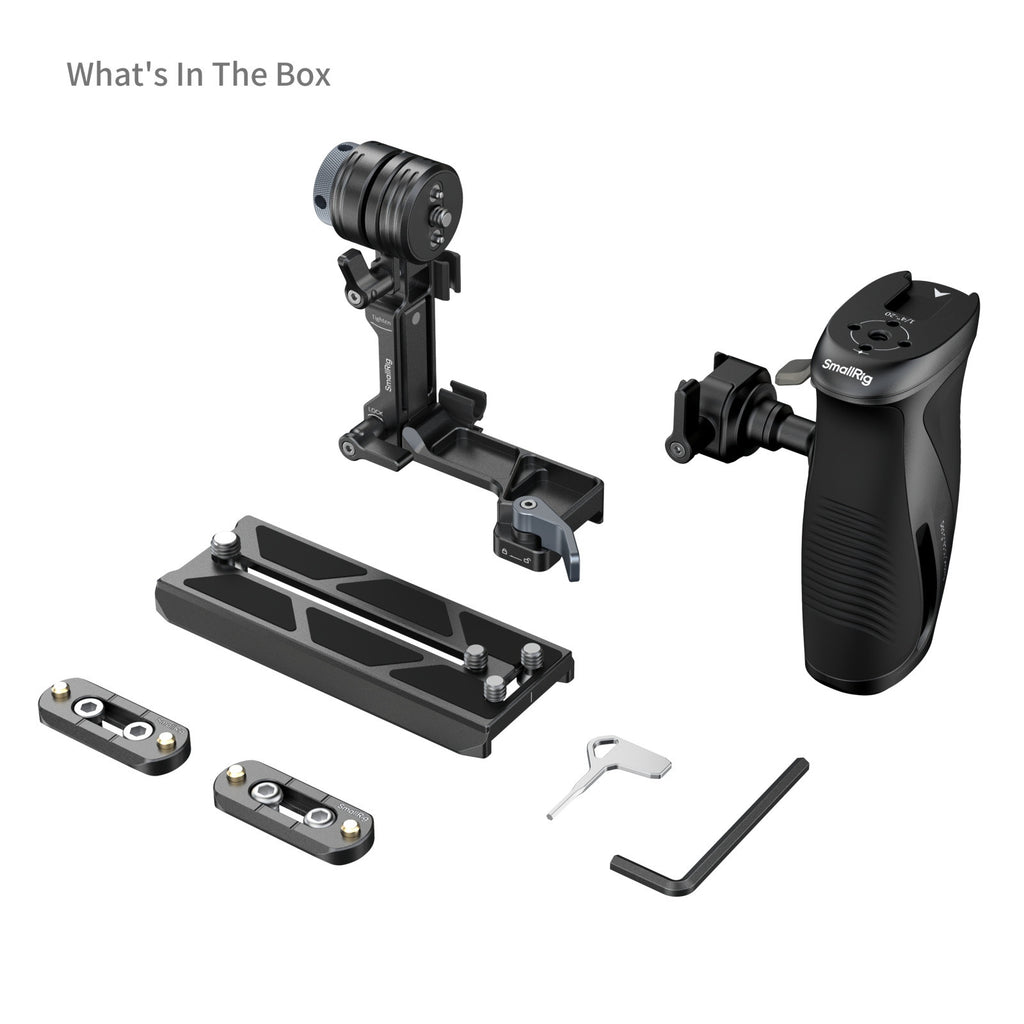

WHAT IS INCLUDED
1x Monitor Support
1x Side Handle
1x Mount Plate
2x NATO Rail
1x Allen Wrench
1x Dual-Head Wrench
1x User Manual
