Description
SMALLRIG TOP HANDLE FOR DJI FOCUS PRO LIDAR 5236
- Built-in Telescoping Module: Enables quick installation and adjustment of the LiDAR module for optimal positioning near the lens front, enhancing focus accuracy.
- Integrated Measuring Scale: Provides instant distance data between the LiDAR glass plane and the camera focal plane, streamlining the calibration process.
- Modular Design: Functions as a standard top handle when the LiDAR is not in use, enhancing versatility and cost efficiency.
- Multiple Mounting Options: Supports various accessories, offering creative flexibility across different shooting scenarios.

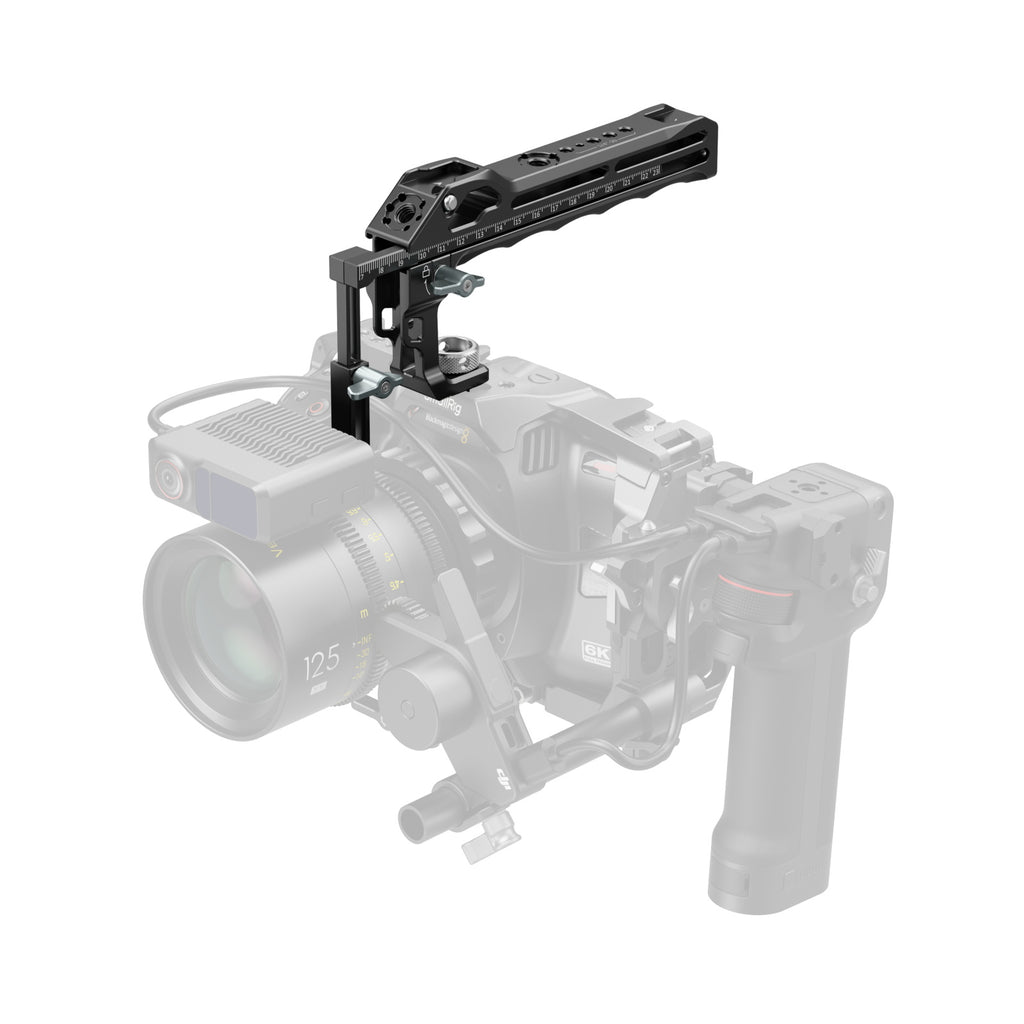

SmallRig Top Handle for DJI Focus Pro LiDAR 5236 is engineered to enhance the focusing experience with the DJI Focus Pro LiDAR. Its integrated telescoping rail system allows vertical and horizontal adjustments of the LiDAR module for precise positioning near the front of the lens, significantly reducing parallax and improving autofocus accuracy.

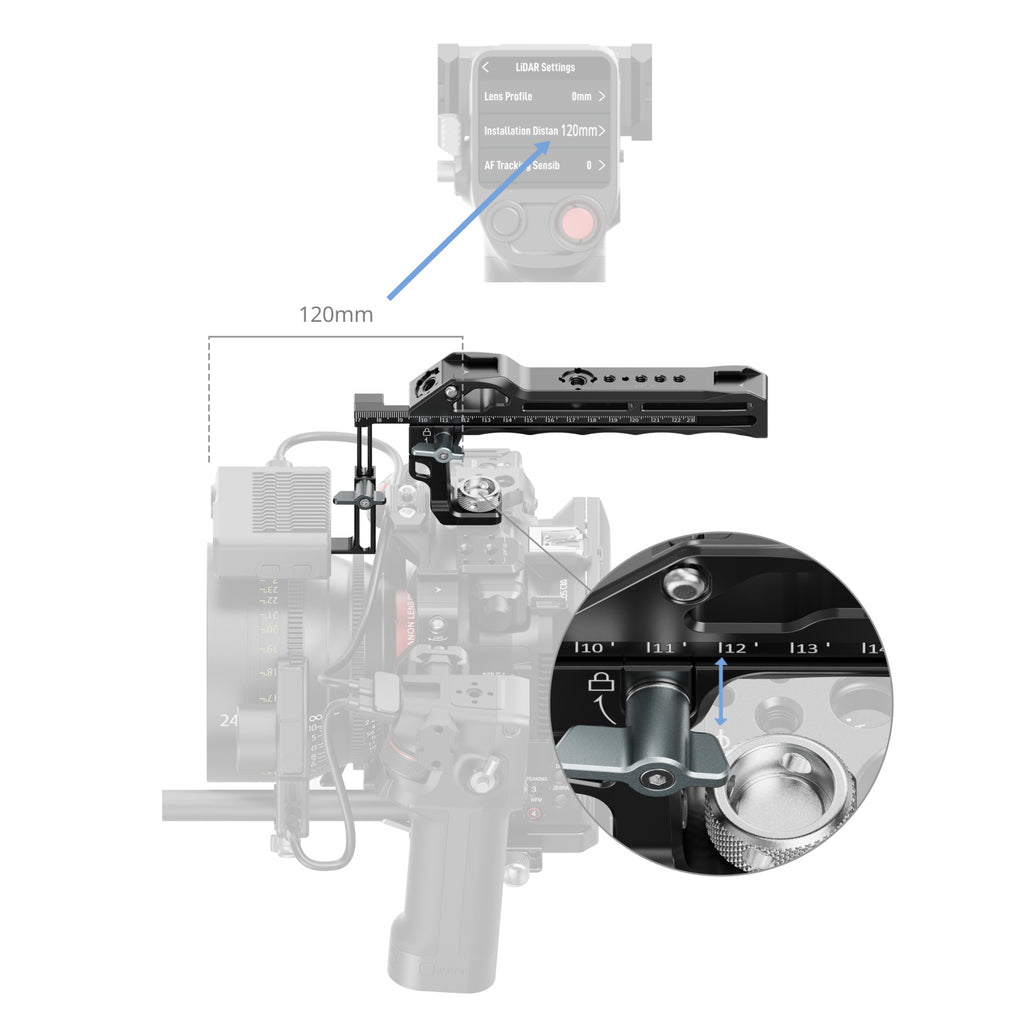

A built-in 23cm / 9.05in measuring scale provides direct distance measurements between the LiDAR glass plane and the camera's focal plane, streamlining calibration. The detachable bracket design offers flexible configurations for various shooting environments. When not in use with the DJI Focus Pro system, the handle serves as a conventional top handle, enhancing versatility and cost efficiency.

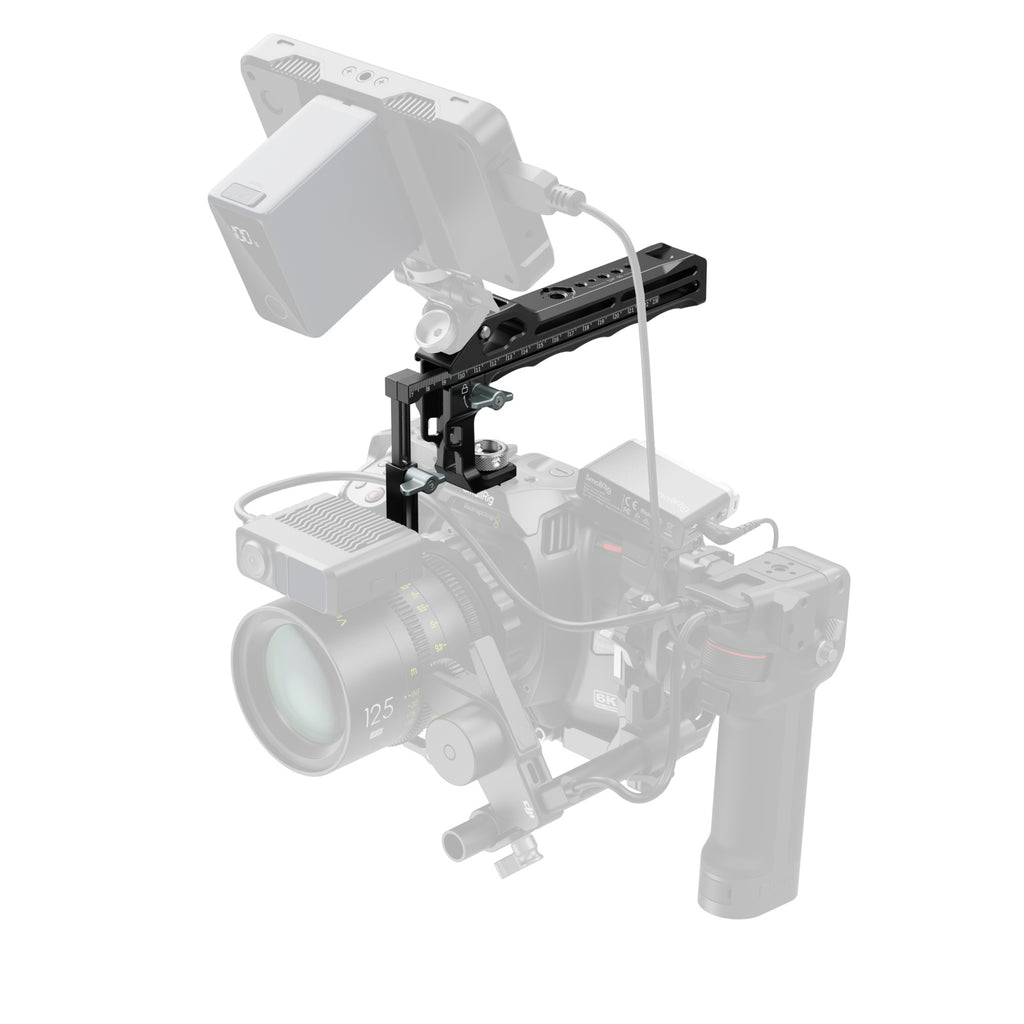

Ergonomically designed, the handle features a comfortable grip with embedded silicone for anti-slip and cold-resistant performance. It’s equipped with two cold shoe mounts on the front and two on the rear for simultaneous attachment of accessories such as microphones, video lights, or monitors. Front and top ARRI locating holes enable the attachment of monitor mounts (ID 2903B) for expanding monitors, while multiple 1/4"-20 threaded holes and locating holes on the top and right side are compatible with magic arms (ID 4194, 4900) for monitor mounting or remote controllers (ID 3902) for camera recording control.
SPECIFICATIONS
Product Dimensions: 204.4 x 91.6 x 37.7mm / 8.1 x 3.6 x 1.5in
Package Dimensions: 221.0 x 112.5 x 40.0mm / 8.7 x 4.4 x 1.6in
Product Weight: 220.0 ± 5.0g / 7.8 ± 0.2oz
Package Weight: 285.0 ± 5.0g / 10.0 ± 0.2oz
Material(s): Aluminum Alloy, Stainless Steel, Silicone
COMPATIBILITY
Compatible with all cages featuring ARRI locating holes on top
WHAT IS INCLUDED
1x Top Handle
1x Locking Knob
1x Washer
1x Allen Wrench
1x Mounting Bracket for DJI Focus Pro LiDAR
1x Operating Instruction
