Description
SMALLRIG TRIPLE-PROOF (1.8M / 5.9FT DROP-RESISTANT, IP54 WATERPROOF / DUSTPROOF) T99 V-MOUNT BATTERY 5864
- Airline-Safe Capacity: Delivers 14.54V and 99Wh to meet shooting power needs while remaining compliant with airline carry-on regulations.
- Triple-Proof Durability: Drop-resistant from up to 1.8m (5.9ft) and rated IP54 for water and dust resistance, making it suitable for demanding shooting environments.

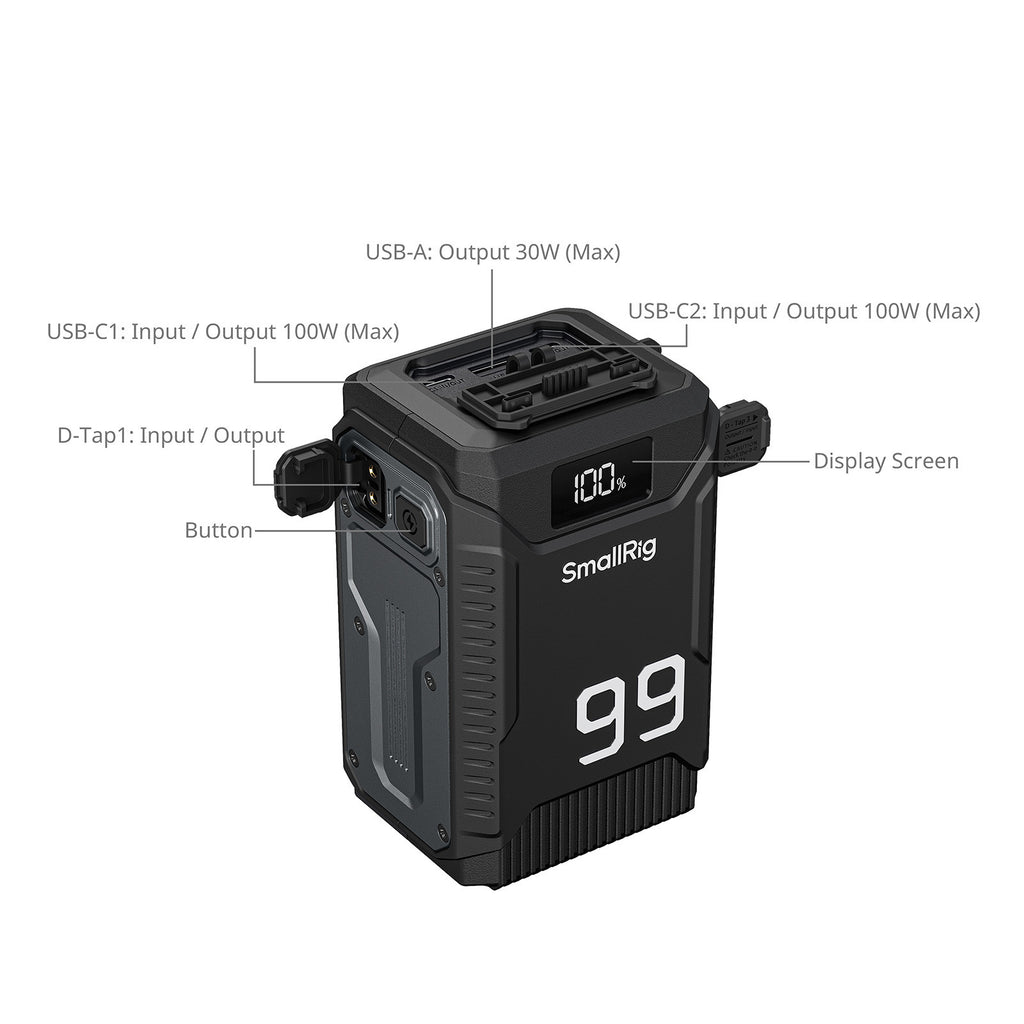

- Multi-Port Power Hub: Includes one BP port, three D-Tap ports, two USB-C ports, and one USB-A port, allowing simultaneous power delivery to multiple professional devices for a more efficient workflow.
- Dual USB-C Bidirectional Fast Charging: Both USB-C ports support PD 3.0 100W input and output, allowing the battery to be fully recharged in 2 hours while providing efficient power delivery to connected devices.
- Premium LG Battery Cells: Uses high-quality LG battery cells for long service life, high safety, and stable power delivery.
- Reliable Power Protection: A BMS smart chip and precision circuit design ensure safe, reliable power delivery.

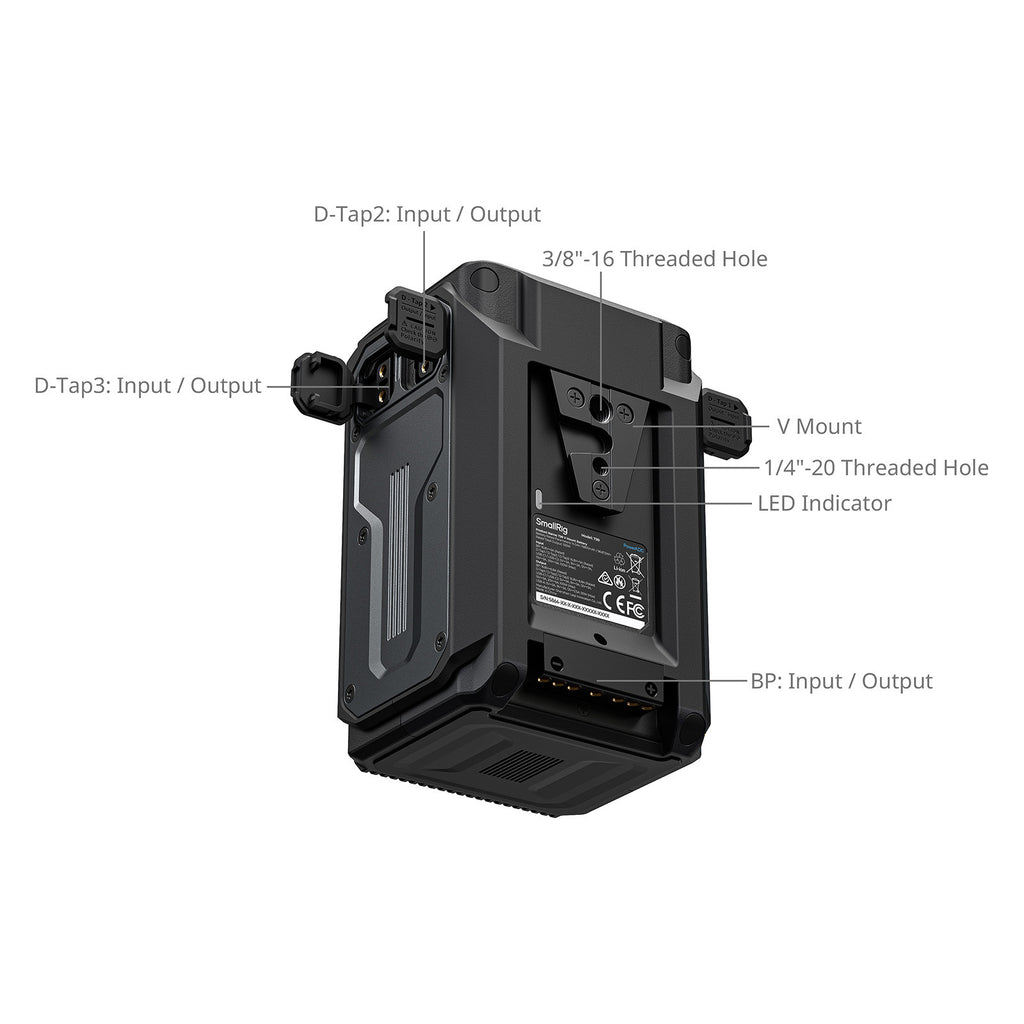

- Practical Design: Rear LED for low-light use; 1/4"-20 and 3/8"-16 threaded holes for flexible mounting.
SmallRig Triple-Proof (1.8m / 5.9ft Drop-Resistant, IP54 Waterproof / Dustproof) T99 V-Mount Battery 5864 is designed for demanding professional shooting. With 99Wh of capacity, it meets shooting power needs while remaining compliant with airline carry-on regulations.
The triple-proof body features a full-wrap TPU and metal construction, while an internal support structure secures the battery cells and circuit board, enhancing durability and safety. It is drop-resistant from up to 1.8m (5.9ft) and rated IP54 for water and dust resistance, ensuring reliable operation in harsh outdoor environments.
Power delivery is versatile and efficient. The battery features one BP port, three D-Tap ports, two USB-C ports, and one USB-A port, meeting the power demands of professional crews while simplifying on-set power setups and improving workflow efficiency. Both USB-C ports support 100W PD bidirectional fast charging. A composite cooling system using graphene and thermal grease supports a full recharge in 2 hours while maintaining efficient power delivery.
For safe and reliable operation, the battery uses high-quality LG battery cells, a BMS smart control chip, and precision circuitry to protect against overtemperature, overcurrent, overvoltage, short circuit, overcharge, and overdischarge.
Additional details include a rear light for easier installation and operation in low-light conditions, as well as 1/4"-20 and 3/8"-16 threaded holes for flexible mounting options.
Certifications: FCC, CE, ISED, RCM, KC, PSE
Button Functions:
Power On: Single press
Power Off: Press and hold for 2 seconds (during power-off, only USB-C, USB-A, and the screen are disabled; BP and D-Tap ports remain active)
Screen On/Off: Single press to turn off the screen when it is on; single press to turn on the screen when it is off
Port Info Switch: Double press to switch the displayed port information (voltage/power, temperature unit °C/°F)
LED Light Control: Triple press quickly when powered on to turn the LED light on or off
Device Info: Press eight times consecutively to view hardware version, firmware version, battery cycle count, health, and BMS parameters
Force Restart: Press and hold for 10 seconds to force restart the device
SPECIFICATIONS

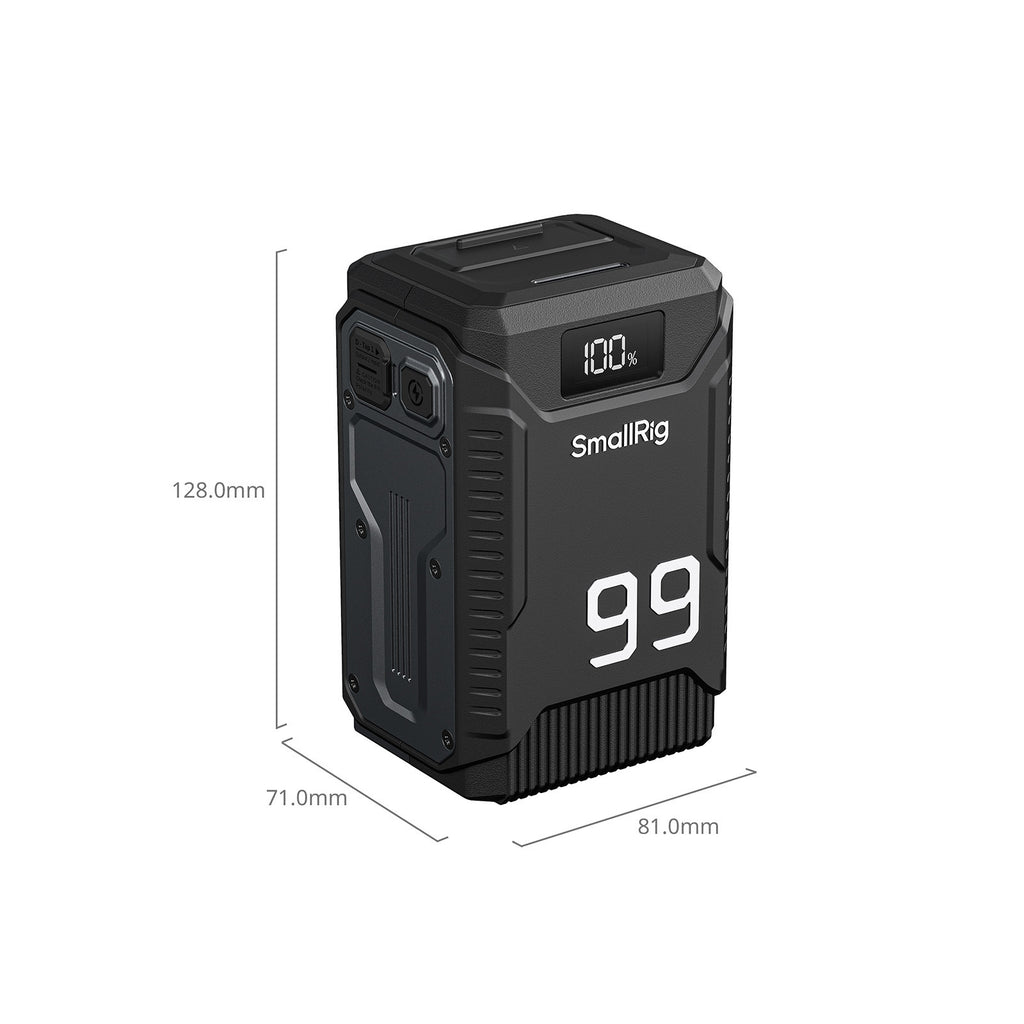

Product Dimensions: 128.0 × 81.0 × 71.0mm / 5.0 × 3.2 × 2.8in
Package Dimensions: 160.0 × 125.0 × 56.0mm / 6.3 × 4.9 × 2.2in
Product Weight: 862.0g ± 10.0g / 30.4oz ± 0.4oz
Package Weight: 1151.0g ± 10.0g / 40.6oz ± 0.4oz
Material(s): Aluminum Alloy, TPU, Silicone, PC
Battery Type: Lithium-ion Battery
Rated Battery Parameters: 14.54V / 6800mAh / 98.872Wh
Rated Total Output: 100W
Cell Capacity: 27200mAh (Cell: 3400mAh x 8)
Input:
USB-C1 / USB-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A; 100W (Max)
BP / D-Tap1 / D-Tap2 / D-Tap3: 16.8V⎓5A (Rated)
Output:
USB-C1 / USB-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A; 100W (Max)
USB-A: 5V⎓3A, 9V⎓3A, 12V⎓2.5A; 30W (Max)
BP / D-Tap1 / D-Tap2 / D-Tap3: 16.8V⎓6.8A (Rated)
Charging Protocols:
USB-C1 / USB-C2: PD3.0, QC2.0, QC3.0, AFC, DCP-1.5A, PPS, Apple 2.4A
USB-A: QC2.0, QC3.0, AFC, FCP, DCP-1.5A, Apple 2.4A
Cut-off Voltage: 11.2V
Charging Temperature: 0°C to 45°C / 32°F to 113°F
Discharging Temperature: -15°C to 60°C / 5°F to 140°F
Charging Ports: BP, D-Tap, USB-C
Drop Resistance Rating: 1.8m (5.9ft)
Ingress Protection Rating: IP54
COMPATIBILITY

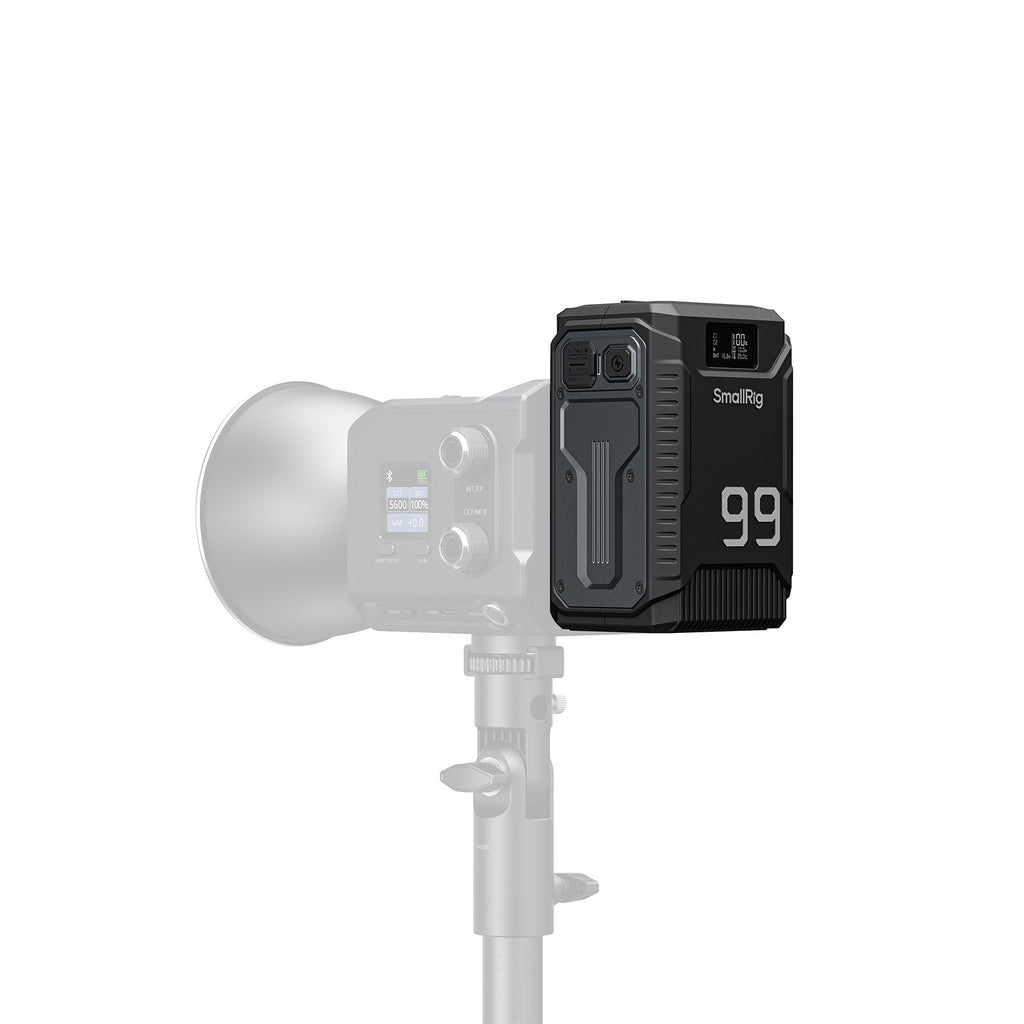

Mirrorless cameras, camcorders, cinema cameras, monitors, follow focuses, video transmitters, LED lights, smartphones, tablets, laptops, etc.

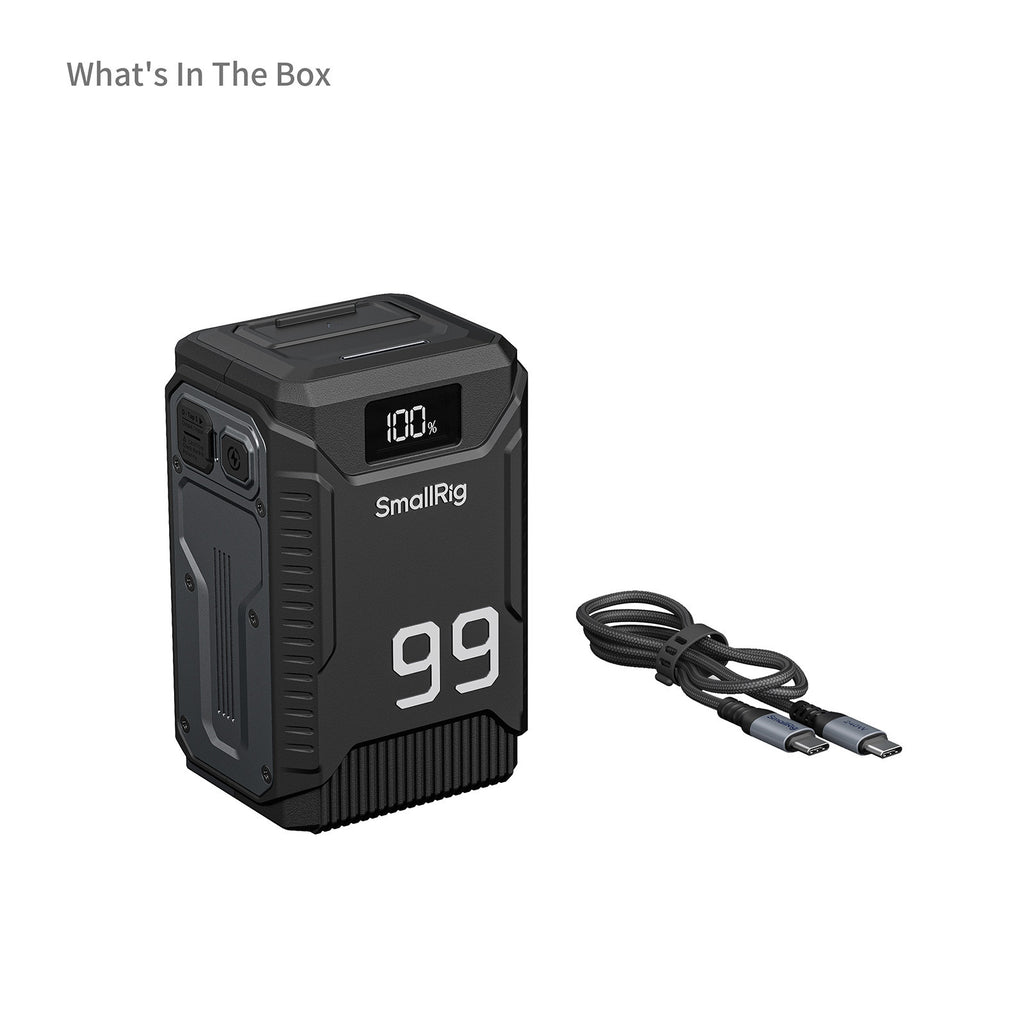

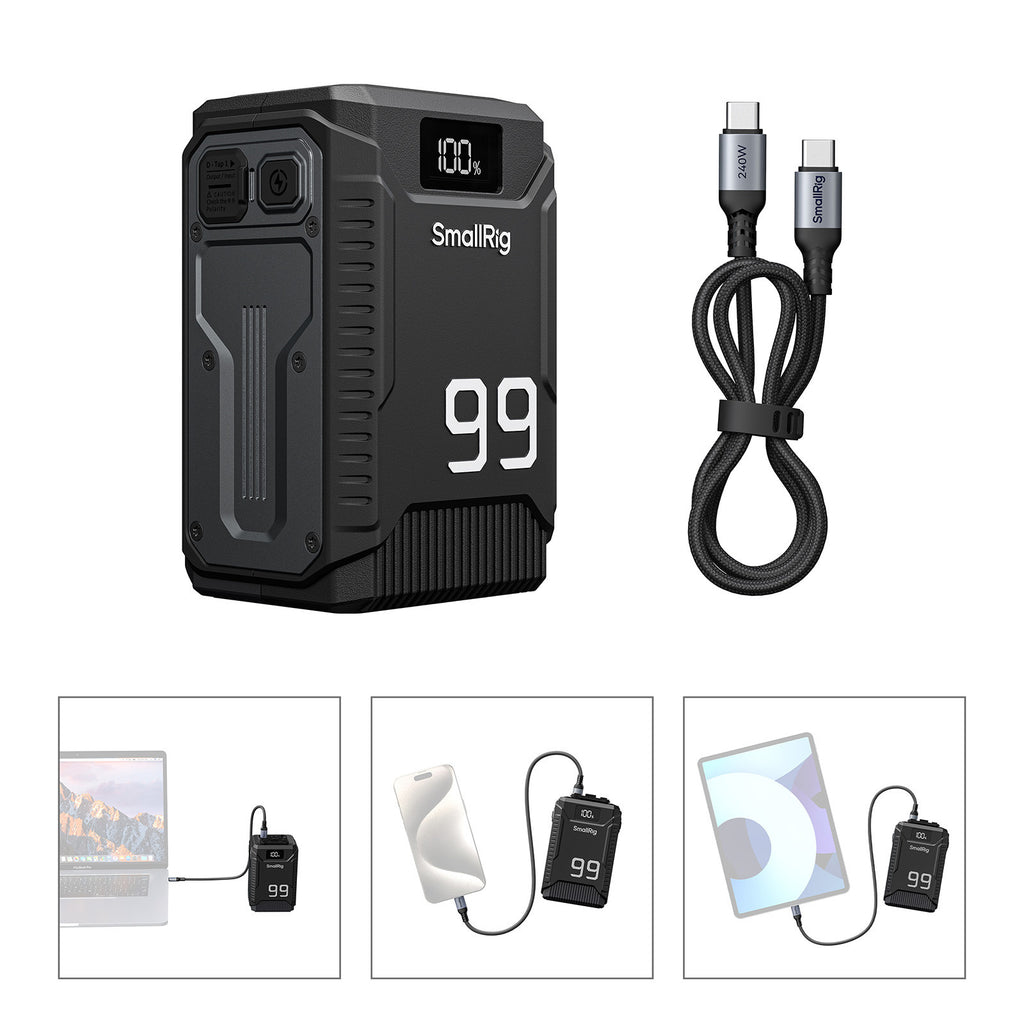

WHAT IS INCLUDED
1x T99 V Mount Battery
1x 240W USB-C Charging Cable
1x Quick Start Guide
1x User Manual
