Description
SMALLRIG TURBO CHARGING KIT FOR DMW-BLK22 CAMERA BATTERIES 5487
- Full Decoding Chip: Ensures full compatibility with Panasonic DMW-BLK22 batteries, preventing pop-up warnings while supporting in-camera power display and charging with original Panasonic chargers.
- Extended Battery Life: Includes two high-capacity batteries (1940mAh rated) for exceptional, long-lasting performance.
- Efficient Dual Charging: Dual-slot design allows for simultaneous charging of two batteries or single-battery charging, fully charging two batteries in approximately 2 hours for optimal efficiency.

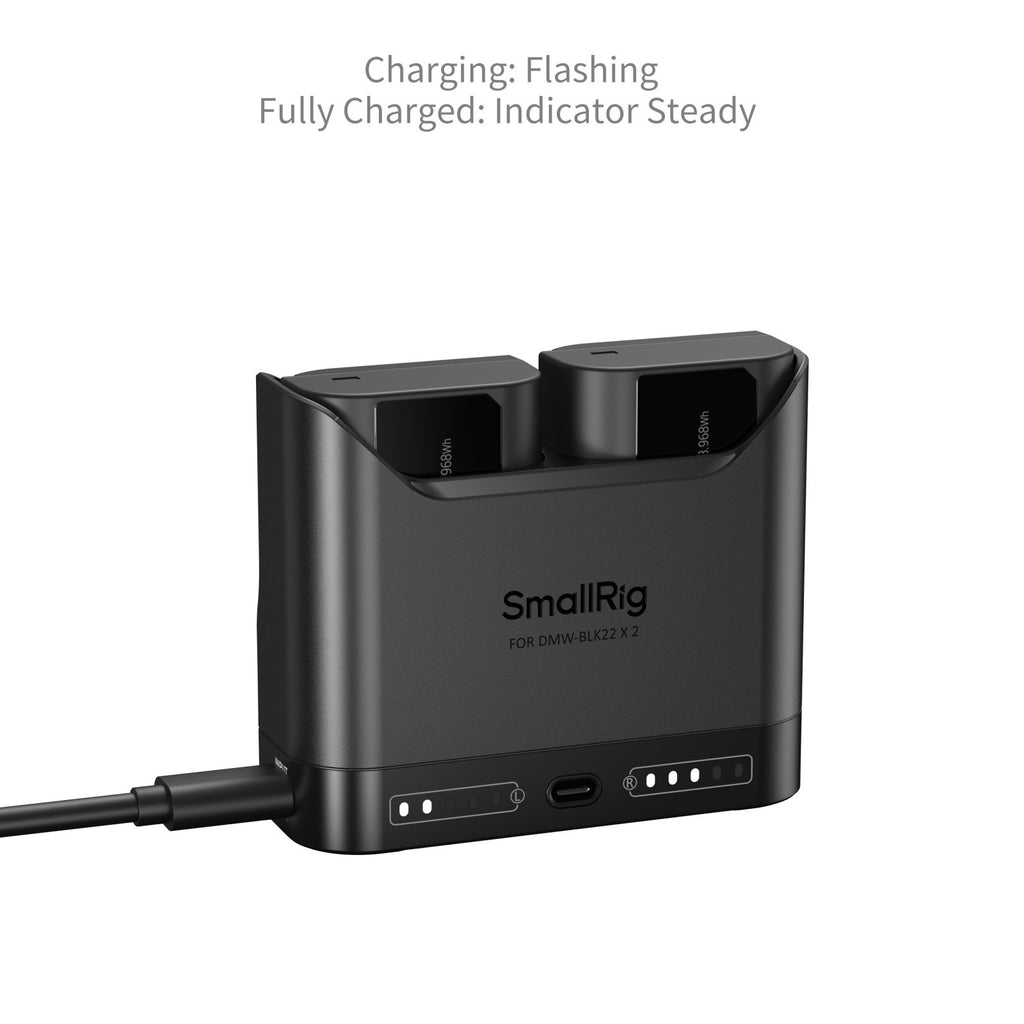

- Clear Power Indicators: Each charging channel features 5 LED lights that provide real-time battery level and charging status at a glance.

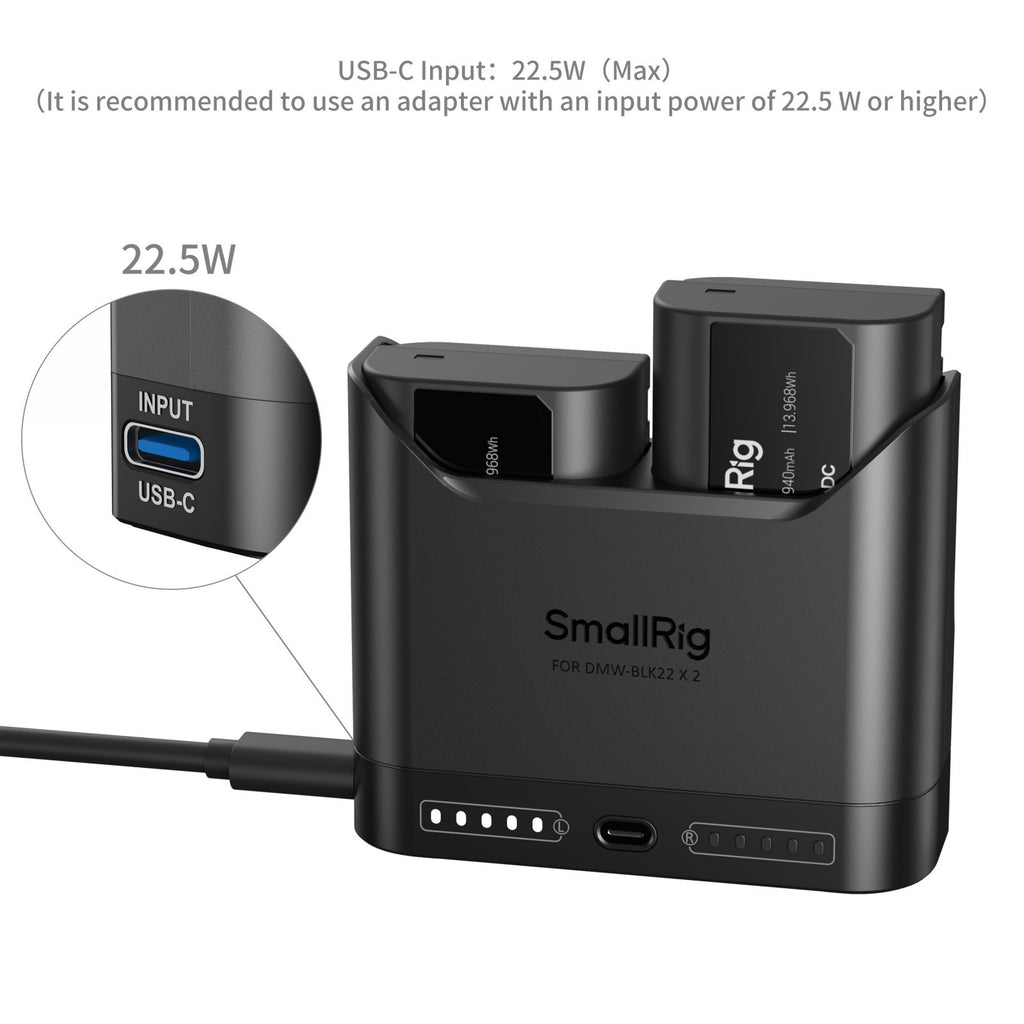

- Versatile Charging Options: Equipped with a USB-C fast-charging port (22.5W), compatible with wall adapters, car chargers, and power banks for convenient charging anywhere.
- Smart Safety Protection: Built-in over-temperature and over-voltage protections automatically slow down or halt charging when necessary to ensure battery safety and longevity.
SmallRig Turbo Charging Kit for DMW-BLK22 Camera Batteries 5487 includes two high-performance batteries and a dual-channel fast charger. Featuring a full decoding chip, this kit ensures full compatibility with Panasonic DMW-BLK22 batteries, eliminating pop-up warnings while supporting in-camera power display and original charger use.
Each battery delivers a true-rated output of 1940mAh, providing extended shooting time for demanding workflows. The charger’s dual-slot design allows for simultaneous charging of two batteries or single-battery charging, fully charging two batteries in approximately 2 hours for optimal efficiency.
Intelligent circuitry offers multiple safety protections, including over-temperature and over-voltage safeguards. It monitors temperature and voltage, automatically slowing down charging during overheating, cutting off power in case of overvoltage, and employing trickle charging near full capacity to preserve battery health.

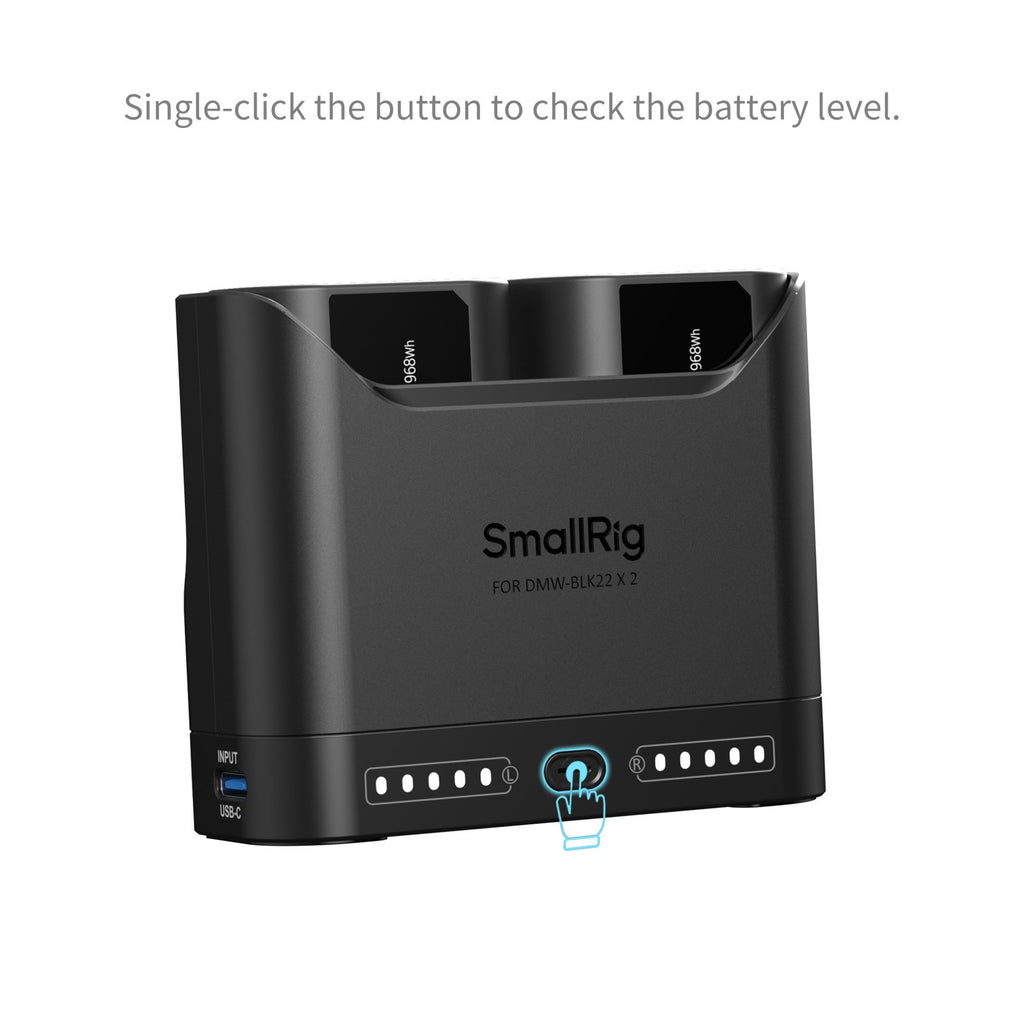

Each charging channel features five LED indicators that display power levels in 20% increments, even without external power. A red warning light activates when battery levels are critically low. Additionally, the charger incorporates a universal USB-C input port and comes with a fast-charging cable, making it compatible with wall adapters, car chargers, and power banks for versatile charging options.
Certifications: FCC, CE, RoHS, ISED
IMPORTANT
1. Recommended to use a power adapter with 22.5W or higher output.
2. When using a 5V / 2.4A adapter, the charger operates in slow-charge mode, prioritizing the charging of the battery in Channel 1 first. It automatically switches to Channel 2 once Channel 1 is fully charged.
SPECIFICATIONS

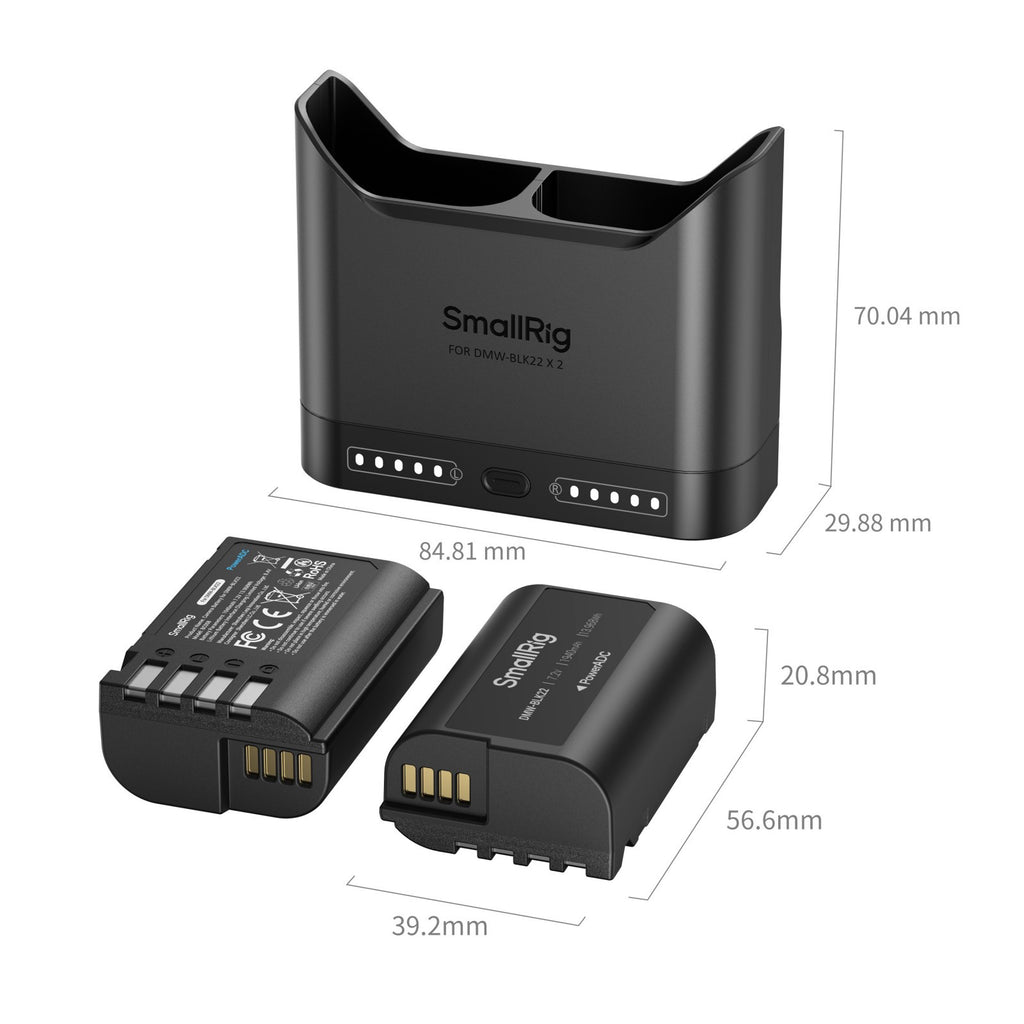

Product Dimensions: 84.8 x 70.0 x 29.9mm / 3.3 x 2.8 x 1.2in
Package Dimensions: 180.0 x 123.0 x 38.0mm / 7.1 x 4.8 x 1.5in
Product Weight: 223 ± 10g / 7.9 ± 0.4oz
Package Weight: 296 ± 10g / 10.4 ± 0.4oz
Charger Specifications:
Material(s): PC + ABS
USB-C Input: 5V / 2.4A, 9V / 2A, 12V / 1.75A, 15V / 1.5A; 22.5W (Max)
USB-C Protocol: PD3.0, QC2.0, QC3.0
Rated Output (Per Channel): 8.4V / 1A
Operating Temperature: 0°C to 45°C / 32°F to 113°F

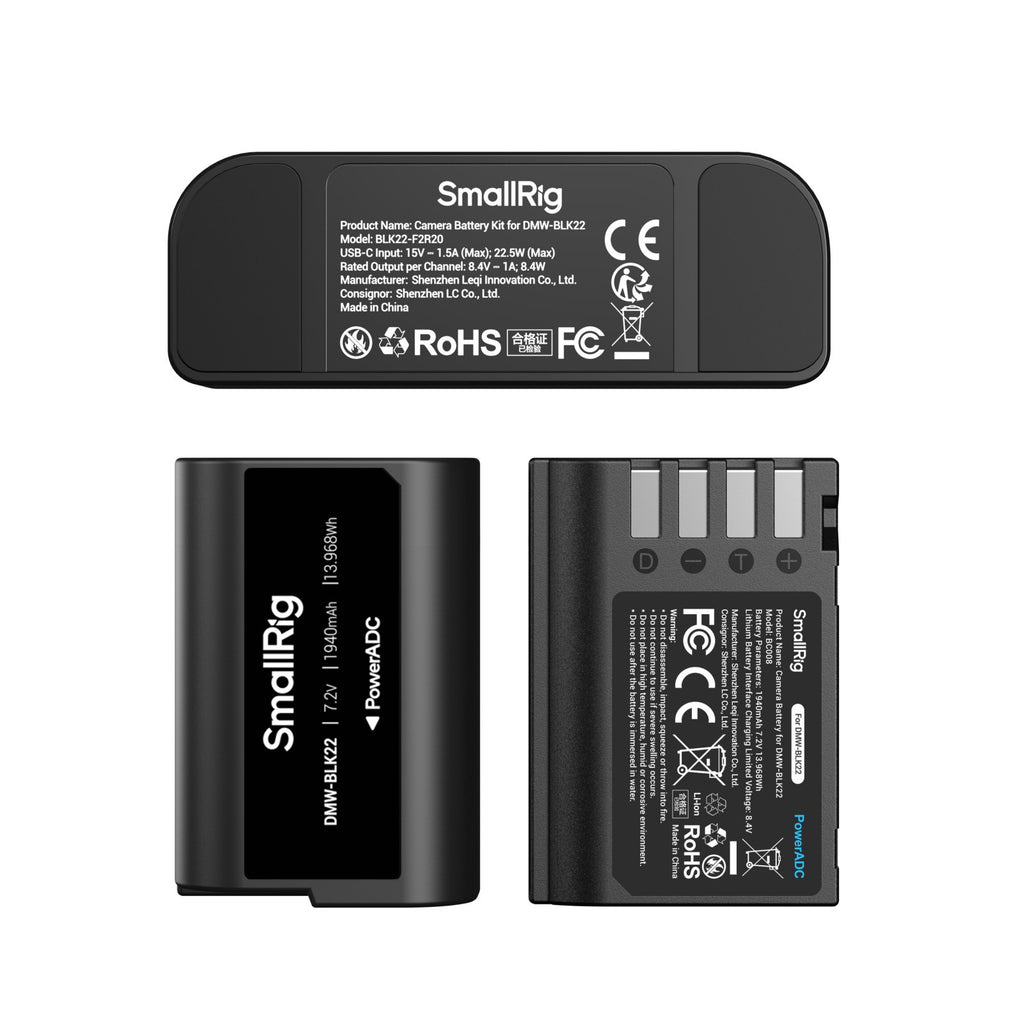

Battery Specifications:
Battery Type: Lithium-ion Battery
Nominal Voltage: 7.2V
Cell Capacity: 1940mAh
Rated Energy: 13.968Wh
Charging Limit Voltage (Li-ion Battery Interface): 8.4V
Charging Current (Li-ion Battery Interface): Standard Charge: 0.2C (408mA)
Fast Charge: 0.7C (1428mA)
Maximum Discharge Current: 4A
Discharge Cut-off Voltage: 5.0V
Charging Temperature: 0°C to 45°C / 32°F to 113°F
Discharging Temperature: -10°C to 60°C / 14°F to 140°F
Material(s): PC + ABS
COMPATIBILITY
Panasonic LUMIX GH7 / GH6 / GH5 II / S9 / G9 II / S5 IIX / S5 II / S5
WHAT IS INCLUDED
1x Camera Battery Charger for DMW-BLK22
2x Camera Battery for DMW-BLK22
2x Battery Cover
1x 60W USB-C to USB-C Cable (1m / 3.3ft)
