Description

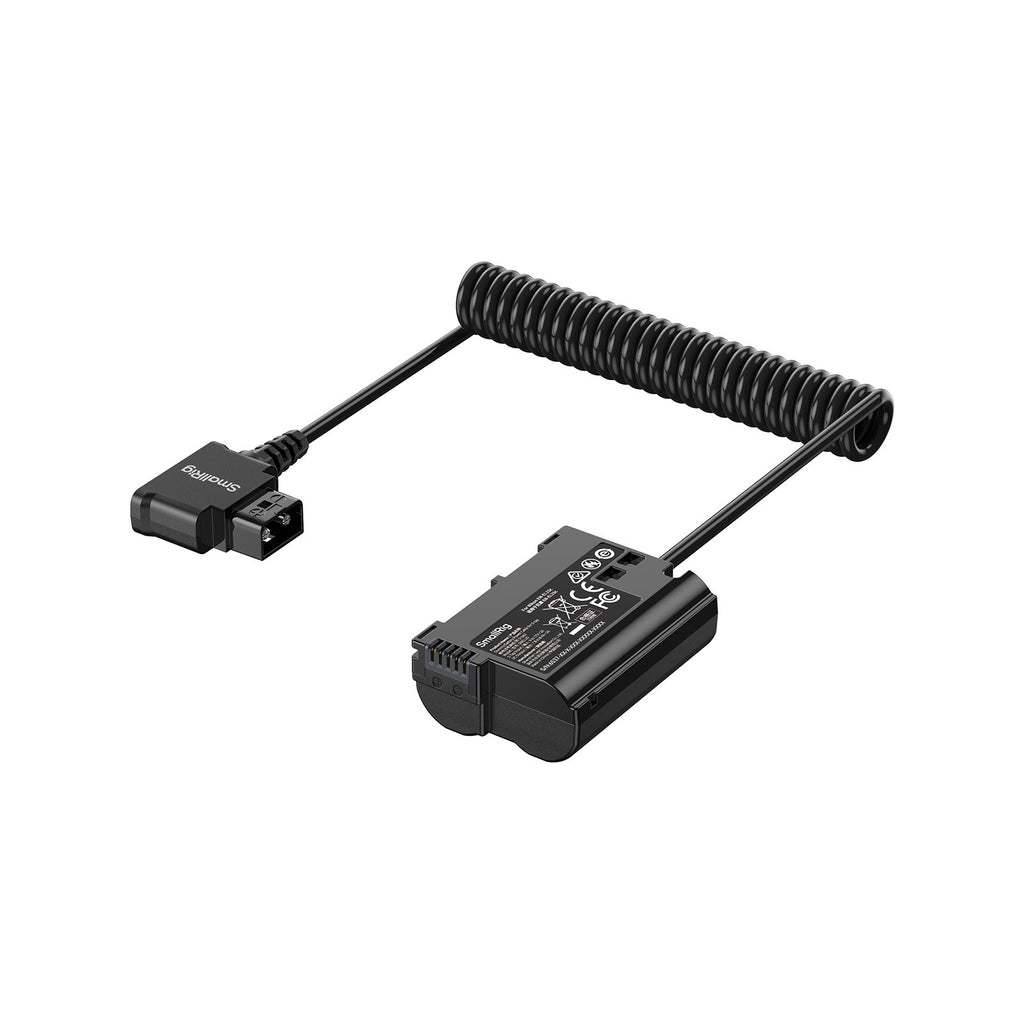

SMALLRIG DUMMY BATTERY POWER CABLE FOR D-TAP FOR NIKON EN-EL15C 6537
- Continuous Power for Efficient Shooting: Helps reduce the need for frequent battery changes, making it ideal for long video recording, livestreaming, and other extended shooting scenarios.
- Easy Installation: Features a simple design and convenient connection for quick setup without complicated adjustments.
- Smart Display Screen: The built-in display shows real-time input voltage and power status, with low-battery alerts and D-Tap reverse-connection warnings for easy status monitoring.
- Upgraded Smart Chip: Delivers seamless compatibility with cameras and no warning messages for safe, reliable use.

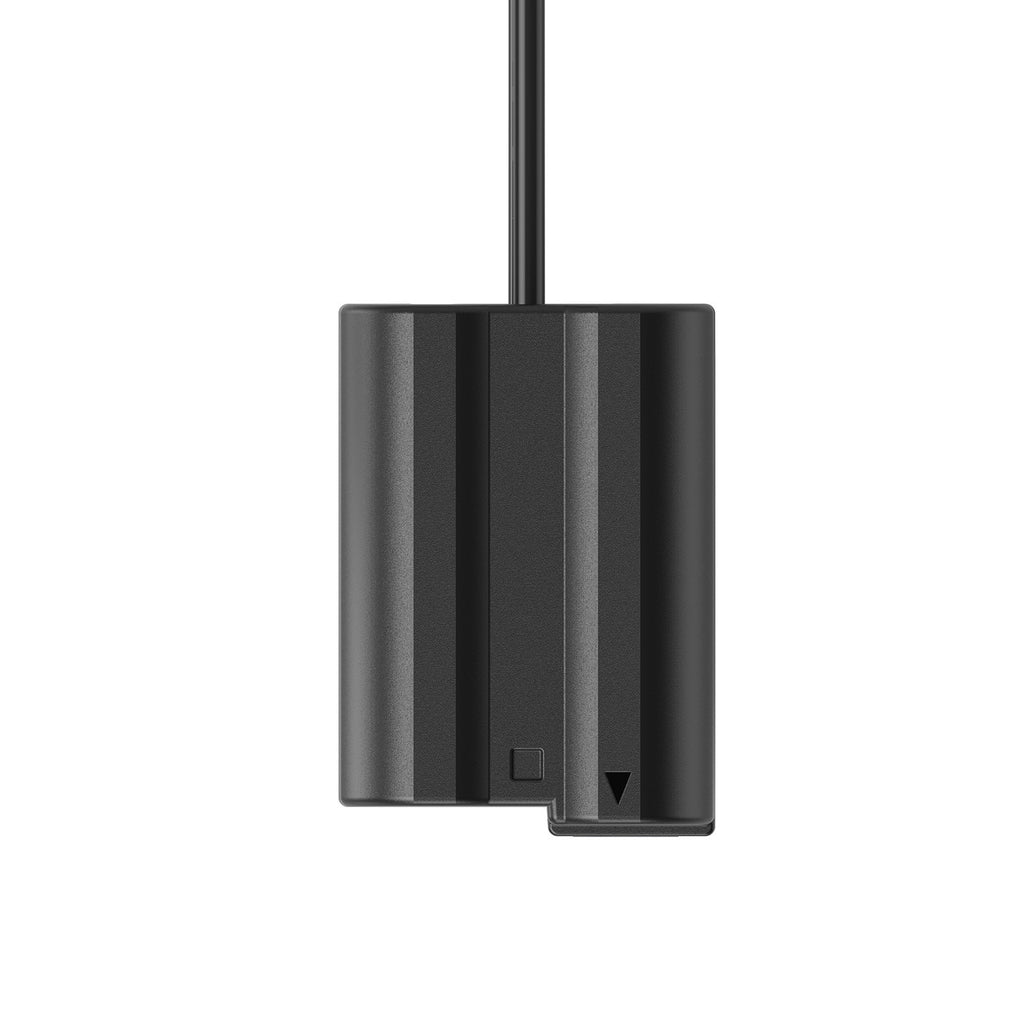

- Precise Fit: Designed to match the size of the original battery for smooth installation and removal without fit issues.
- Multiple Safety Protections: Includes overvoltage, overheat, overcharge, and short-circuit protection for safer use.
- Flame-Retardant Material: Built with flame-retardant ABS for safe and reliable use.

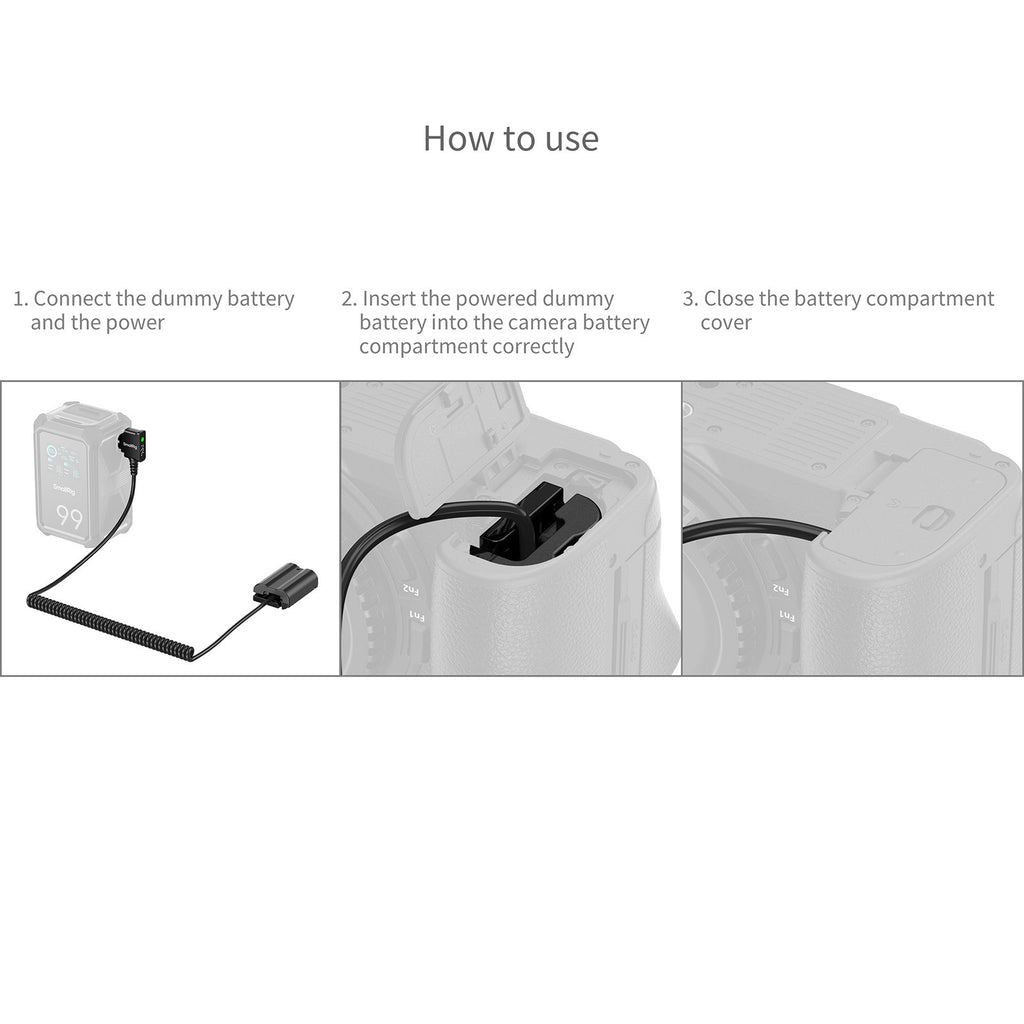

SmallRig Dummy Battery Power Cable for D-Tap for Nikon EN-EL15c 6537 is designed for long video recording, livestreaming, and other extended shooting scenarios, and is easy to install and use. By connecting to an external power source, such as a V-mount battery, through the D-Tap interface, it provides continuous power to the camera, reducing the need for frequent battery changes.

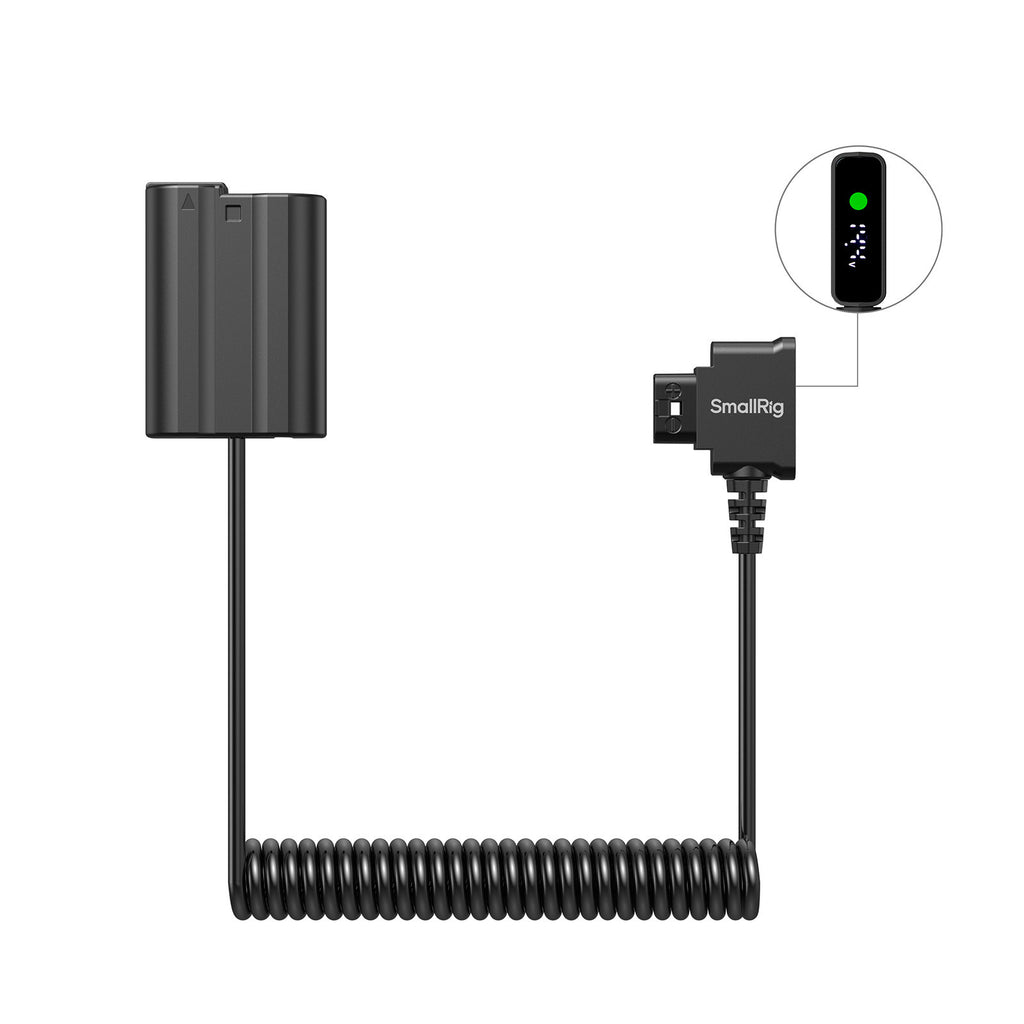

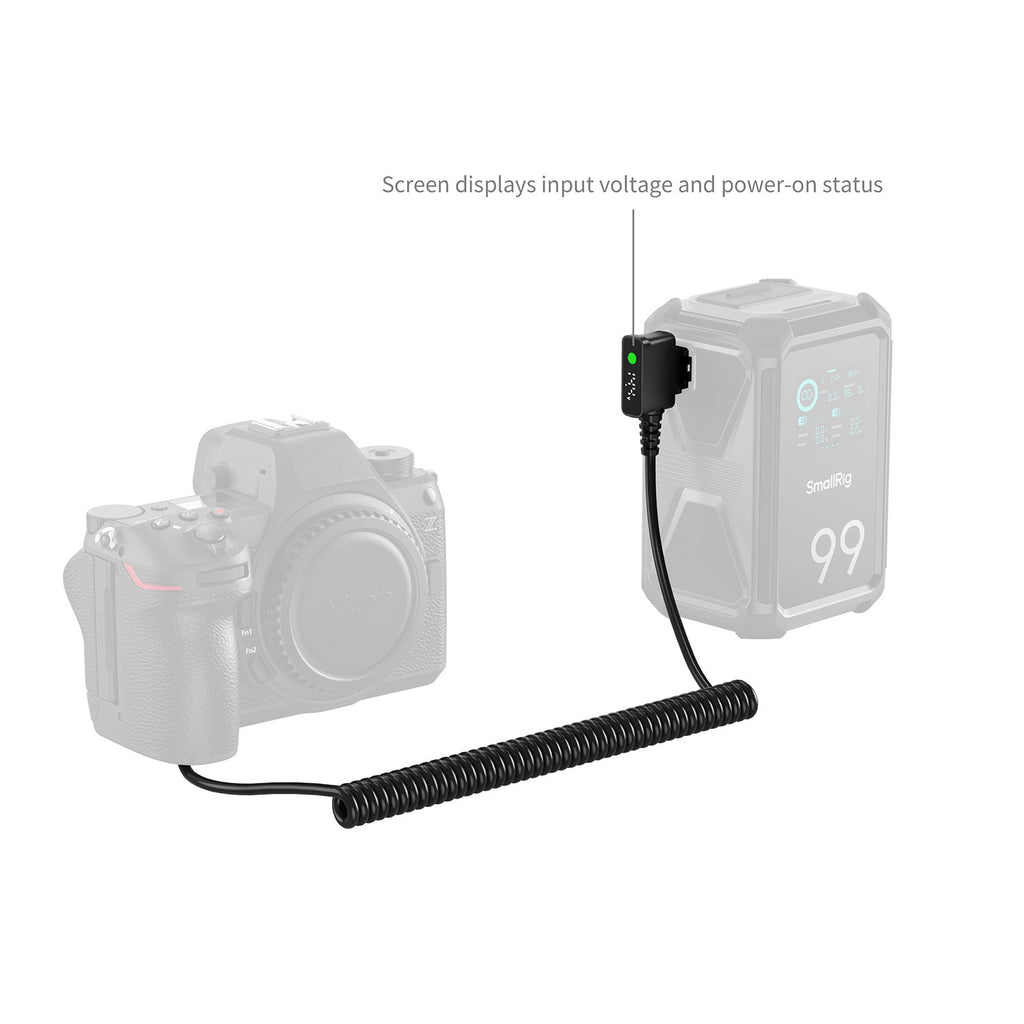

A built-in smart display screen shows input voltage and power status in real time. When the voltage is above 13.0V, the green indicator stays on to show sufficient power. When the voltage drops below 13.0V, the red indicator provides a low-power warning. If the D-Tap connector is inserted in reverse, no voltage will be displayed, and reverse-connection protection will be triggered. Reconnect the cable in the correct direction to restore normal operation.
Featuring an upgraded chip, it delivers seamless camera compatibility without warning messages. The dummy battery is molded to the dimensions of the original battery for smooth installation and removal. It also includes multiple safety protections, including overvoltage, overheat, overcharge, and short-circuit protection, and features a flame-retardant ABS housing for safe, reliable long-term use.

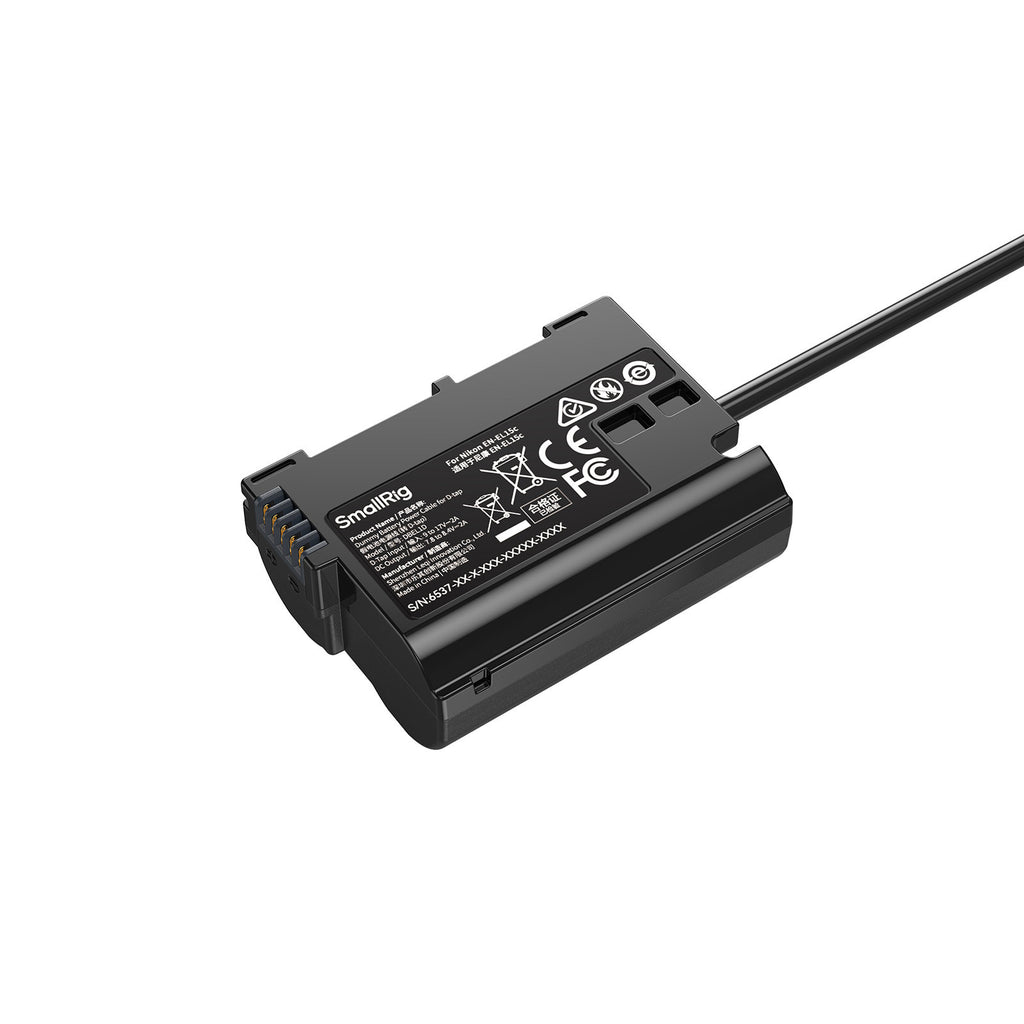

Certifications: FCC, CE, RoHS, ISED, RCM, Quality Inspection Report, and Structural Analysis Report
Display Status:
Indicator Status
Meaning
Solid green light with voltage displayed
Input voltage is above 13.0V, and the power level is sufficient.
Solid or flashing red light with voltage displayed
Input voltage is below 13.0V, and the power level is low.
Solid red light with no voltage displayed
The D-Tap input is connected in reverse, triggering reverse-connection protection. Reconnect it in the correct direction for normal use.
SPECIFICATIONS
Product Dimensions: 385.0 × 39.3 × 19.9mm / 15.2 × 1.5 × 0.8in
Package Dimensions: 140.0 × 100.5 × 30.5mm / 5.5 × 4.0 × 1.2in
Product Weight: 54.0 ± 5.0g / 1.9 ± 0.2oz
Package Weight: 98.2 ± 5.0g / 3.5 ± 0.2oz
Electrical Specifications:
Item
Specifications
Max Output Voltage
8.4V
Min Output Voltage
7.8V
Input Voltage
9.0V to 17.0V
Input Current
2.0A
Output Current
2.0A (Continuous)
Output Protection Current
4.5A to 5.5A
Operating Temperature
-20°C to 50°C / -4°F to 122°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Battery Housing Material
ABS
Input Specification

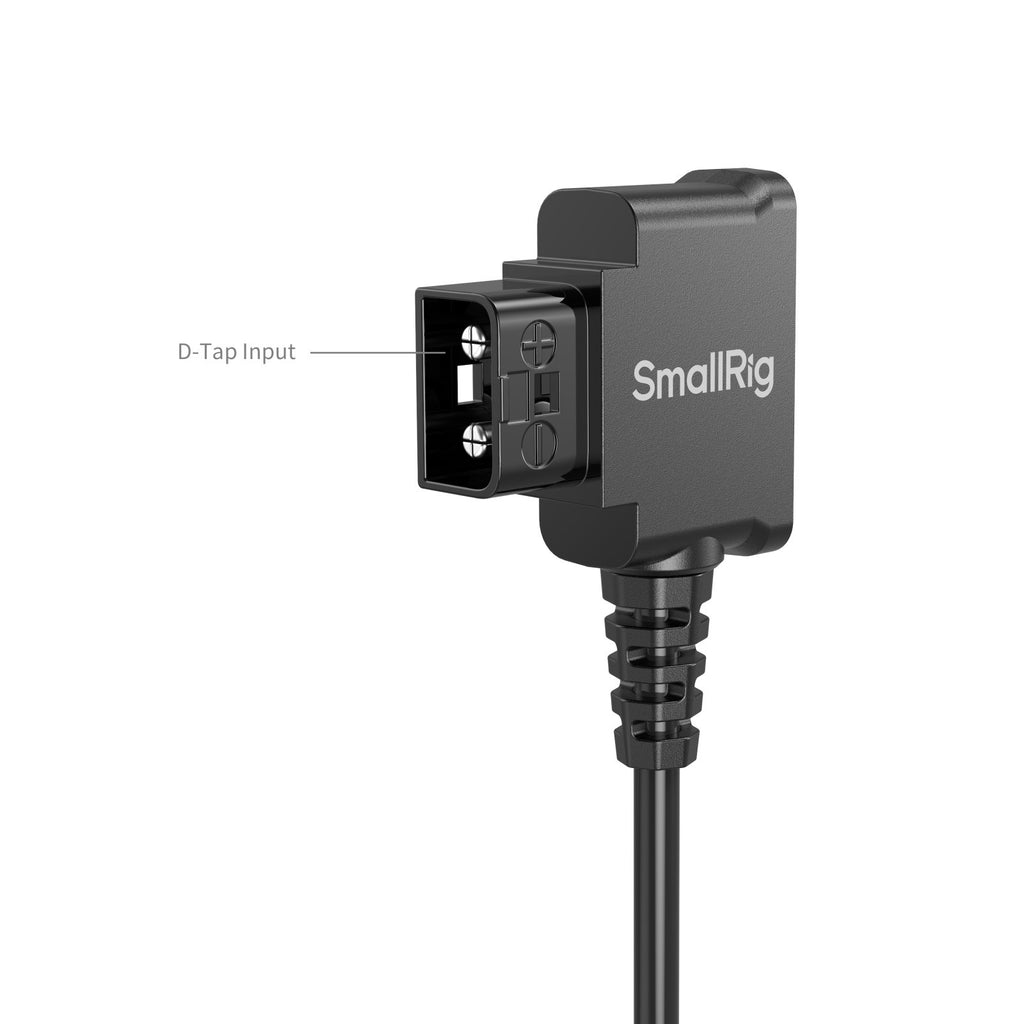

D-Tap male connector with a coiled cable extendable from 80.0cm to 100.0cm (31.5in to 39.4in)
COMPATIBILITY
Compatible with Nikon Z8, Zf, Z6III, Z7II, Z6II, Z5, D850, D780, D500, and D7500.
WHAT IS INCLUDED
1x D-Tap to EN-EL15c Dummy Battery Power Cable
1x User Manual
