Description

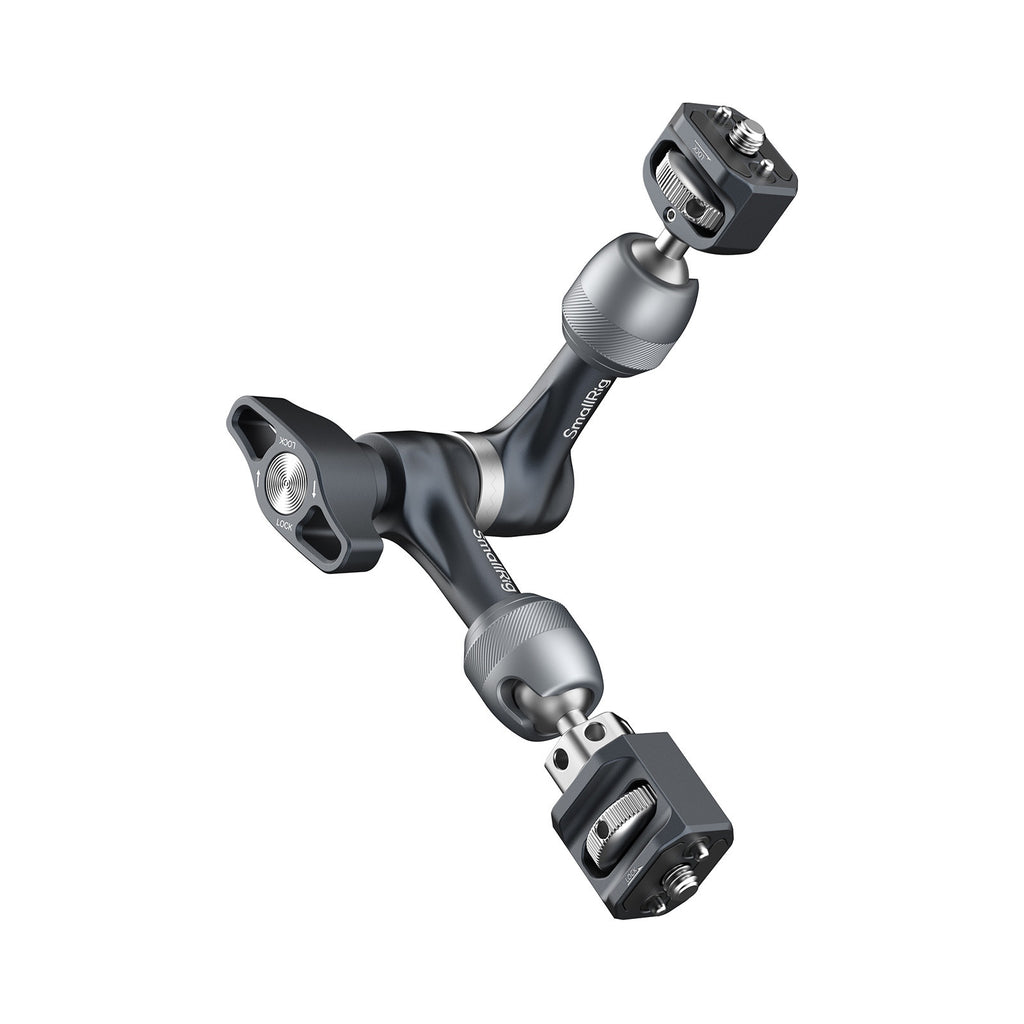

SMALLRIG MAGIC ARM SUPPORT WITH 1/4"-20 LOCATING SCREW 6317
- Allows quick and efficient one-handed adjustment.
- Supports most monitors up to 7.0 inches, with a maximum load capacity of 1.5kg (3.3lb).

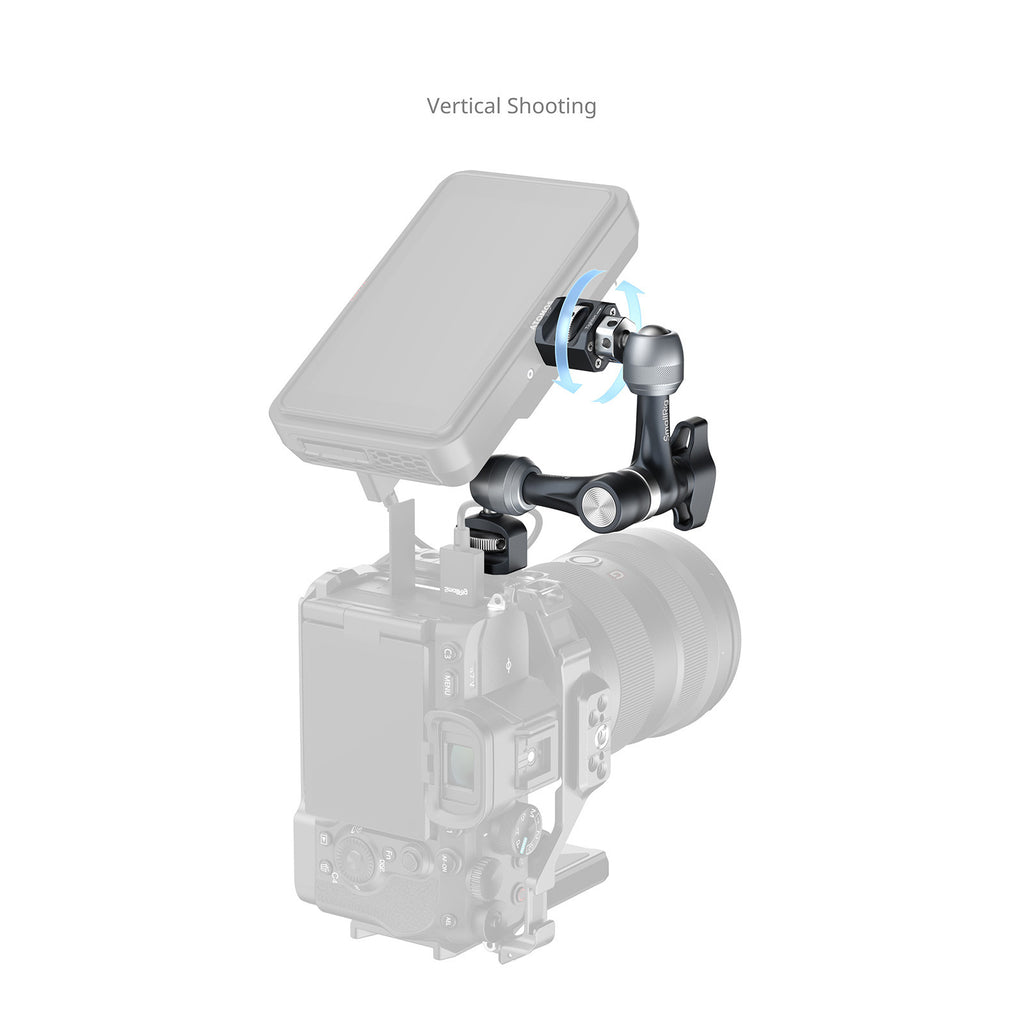

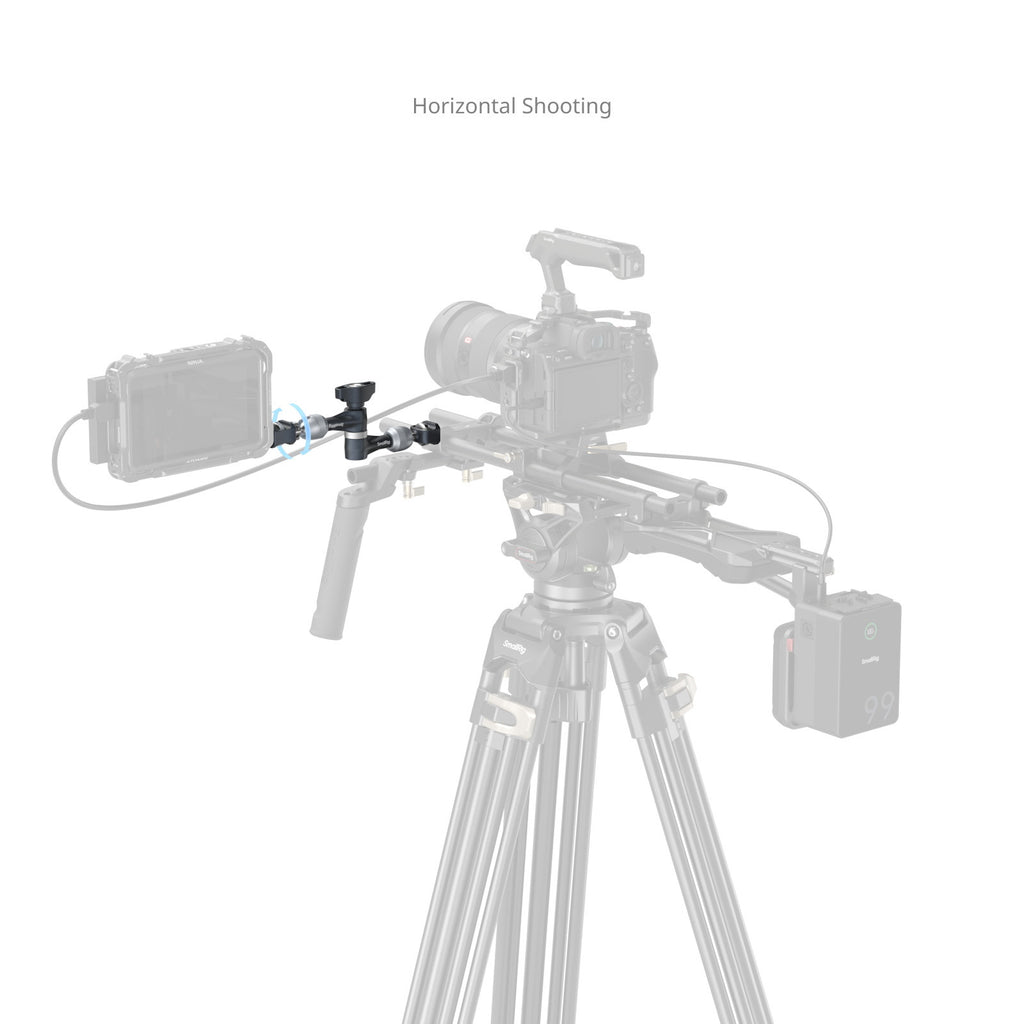

- Provides flexible positioning for a wide range of shooting angles.
- Features retractable locating pins on both ends for secure, anti-twist mounting.

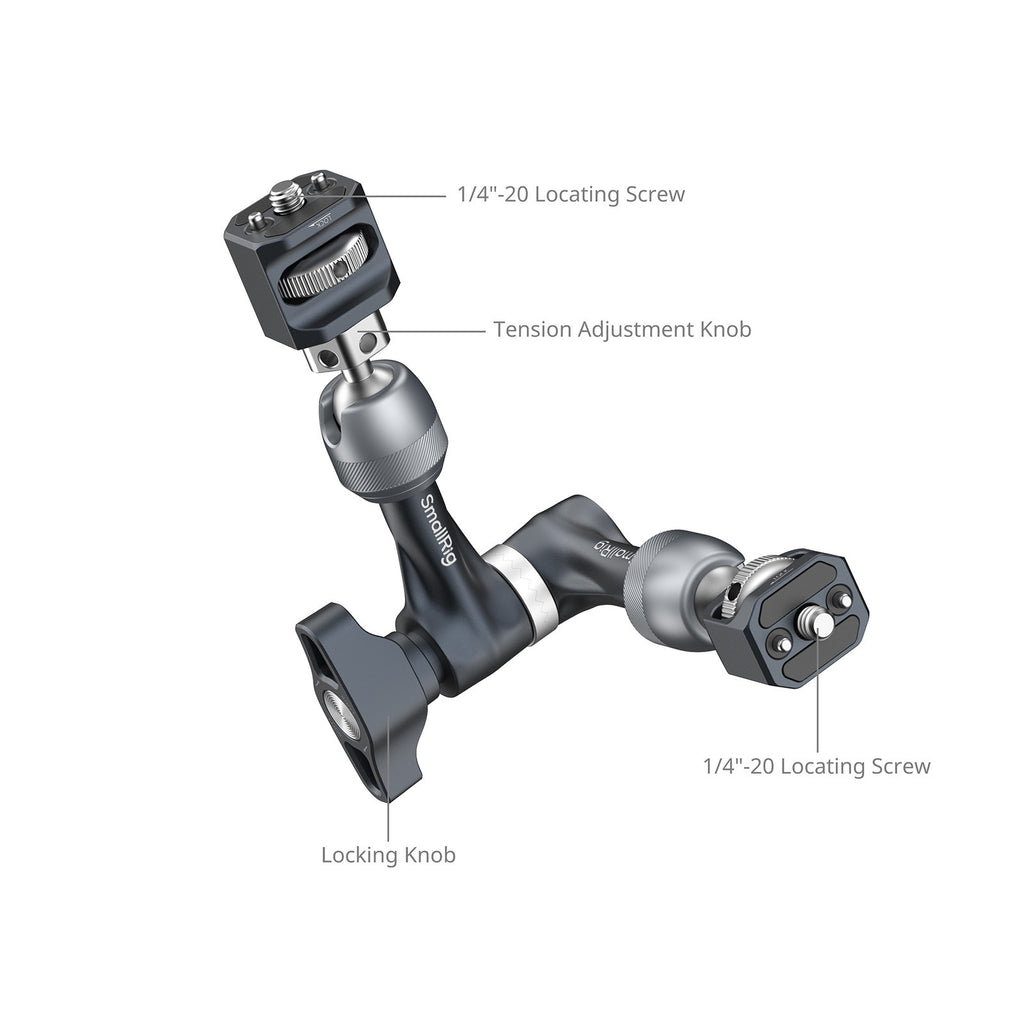

SmallRig Magic Arm Support with 1/4"-20 Locating Screw 6317 is designed to mount monitors and other accessories with a 1/4"-20 threaded hole or 1/4"-20 locating hole to a cage or other support accessory. Both ends feature retractable 1/4"-20 locating screws for secure, anti-twist mounting.
One end offers 360° stepless adjustment for quick one-handed angle adjustment. The joint adopts a stainless steel gear-locking mechanism and supports loads up to 1.5kg (3.3lb), making it suitable for most monitors up to 7.0 inches.
Notches near both ball heads provide a wider range of angle adjustment. The included Allen wrench can be used to tighten the screws or adjust the tension knob.
SPECIFICATIONS

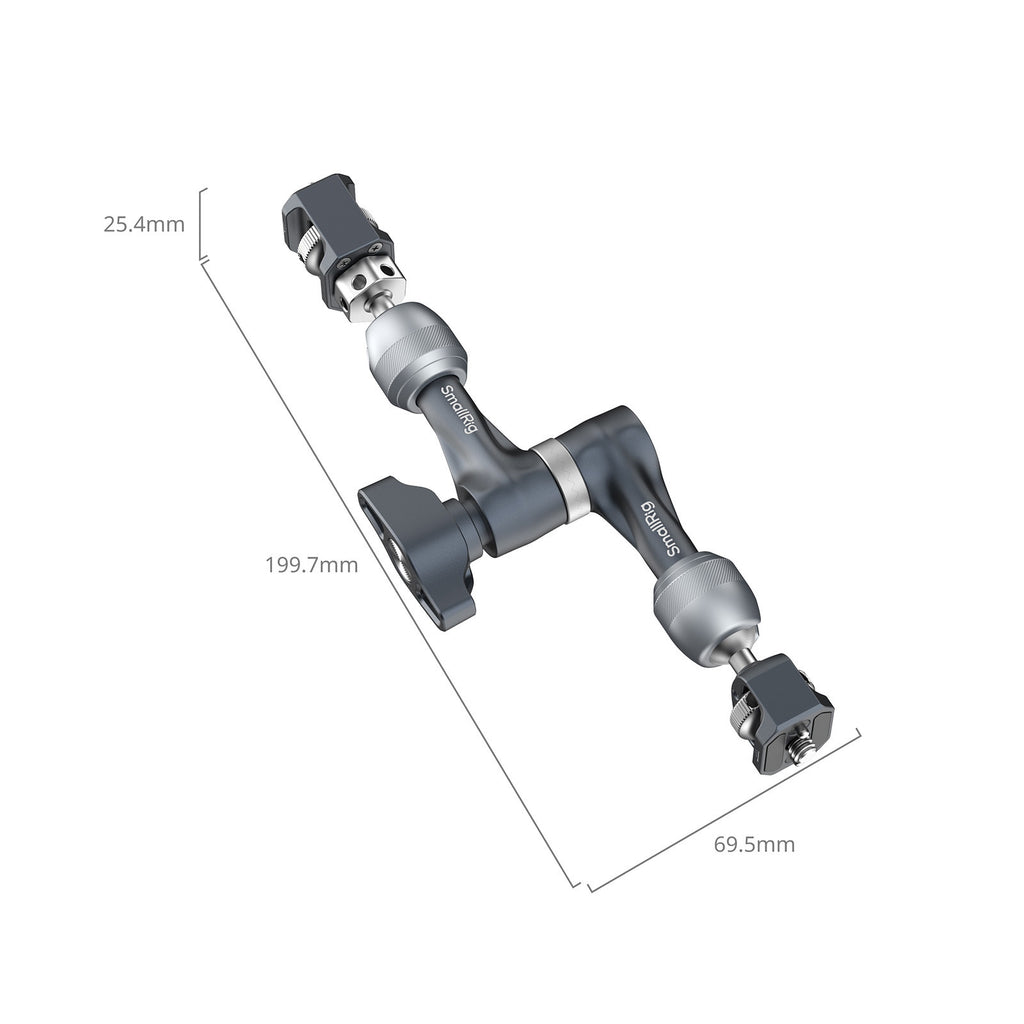

Product Dimensions: 199.7 × 69.5 × 25.4mm / 7.9 × 2.7 × 1.0in
Package Dimensions: 155.0 × 81.5 × 42.0mm / 6.1 × 3.2 × 1.7in
Product Weight: 235.0 ± 5.0g / 8.3 ± 0.2oz
Package Weight: 273.0 ± 5.0g / 9.6 ± 0.2oz
Material(s): Aluminum Alloy, Stainless Steel, Silicone
COMPATIBILITY
1. Accessories with a 1/4"-20 threaded hole
2. Accessories with a 1/4"-20 locating hole

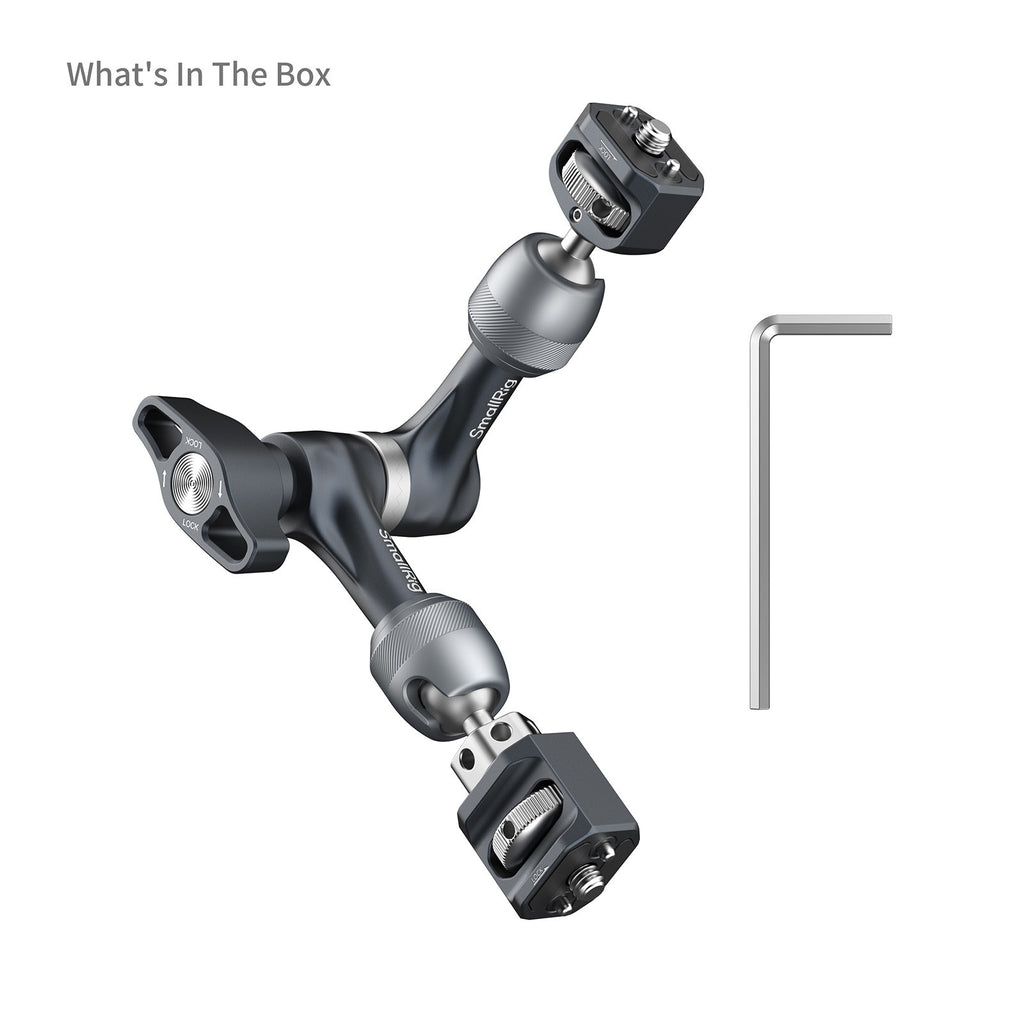

WHAT IS INCLUDED
1x Magic Arm Support
1x Allen Wrench
