Description
SMALLRIG WIRED TOUCHSCREEN DISPLAY ADAPTER FOR SMARTPHONES (BASIC EDITION) 6746
- Wired Plug-and-Play: Direct connection for instant setup.
- Touchscreen Reverse Control: Operate your phone (iPhone, HUAWEI, SAMSUNG, XIAOMI, VIVO, OPPO, etc.) directly from the touchscreen.

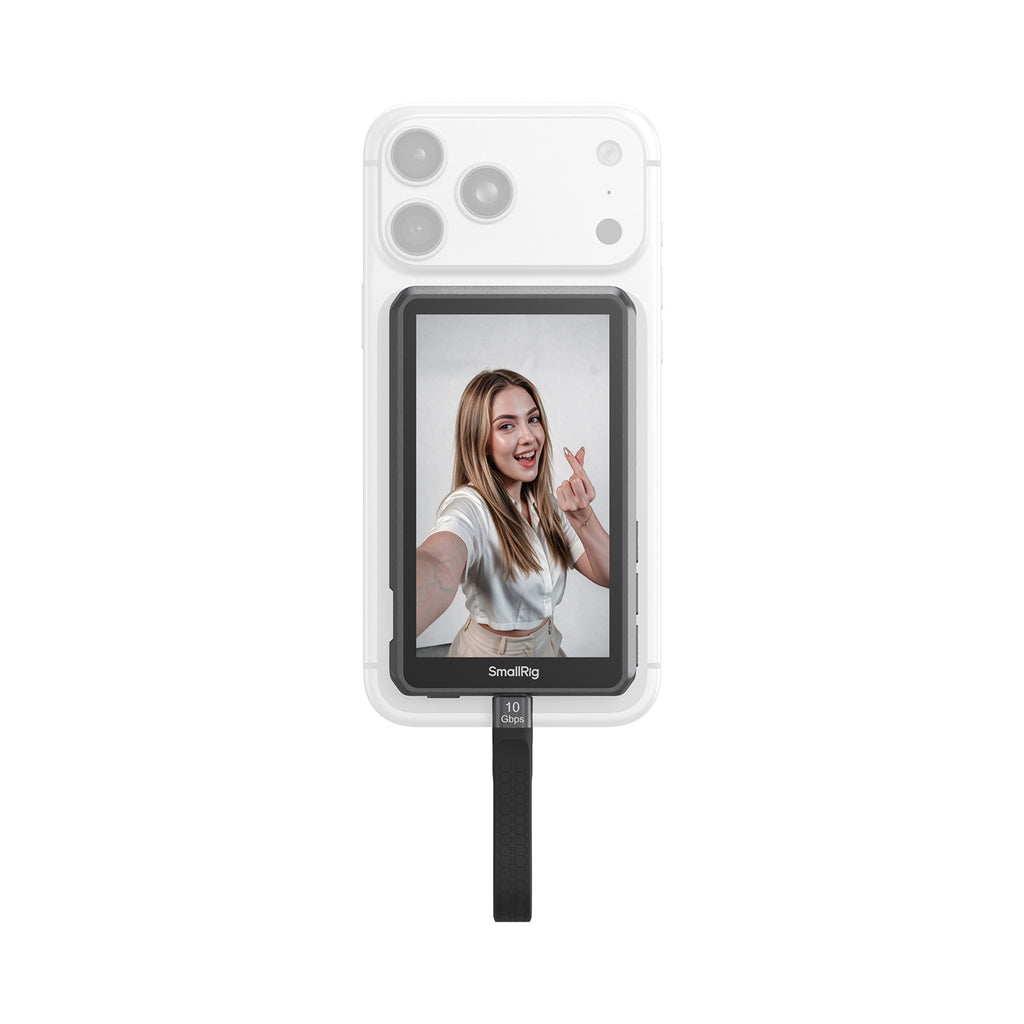

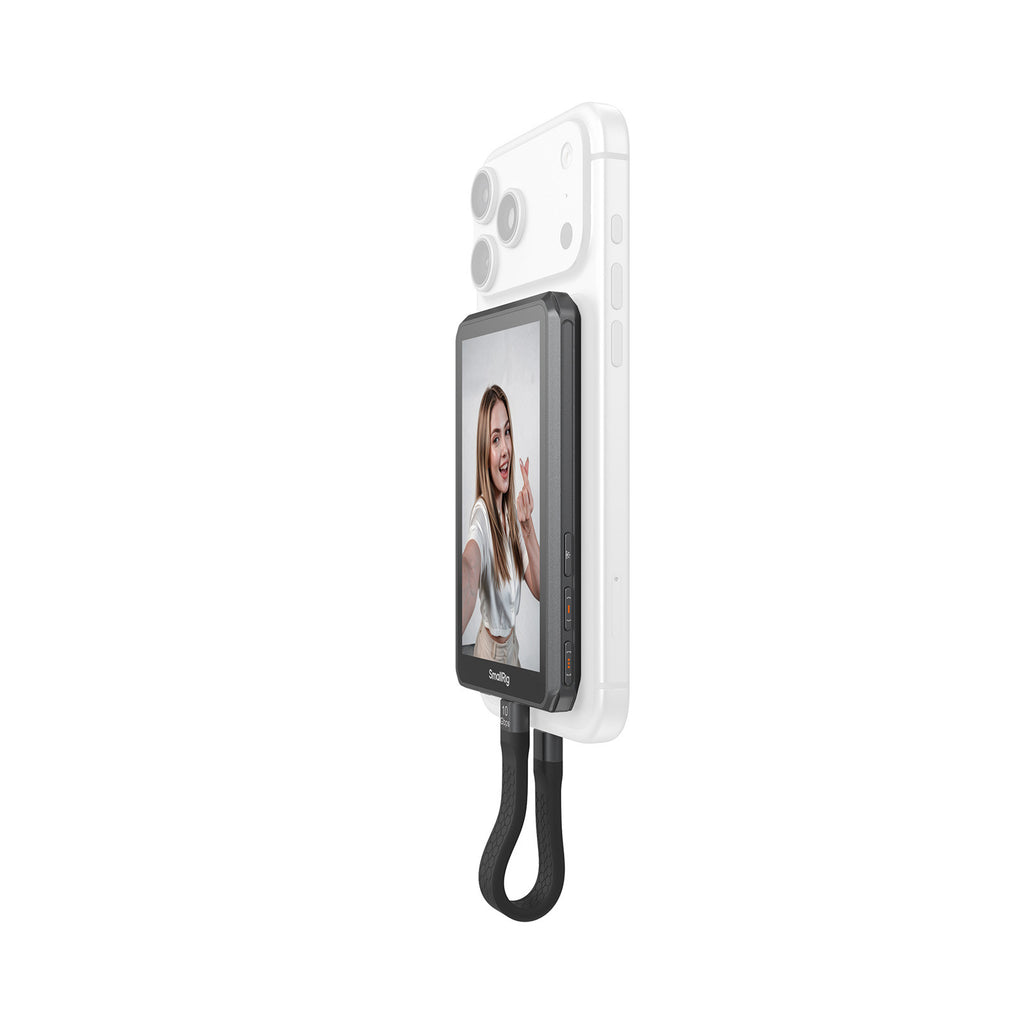

- Magnetic Mounting: Attaches magnetically for shooting and monitoring with your iPhone.
- 4K 120fps Monitoring: Supports high-resolution, high-frame-rate monitoring for iPhone 15 / 16 / 17 Pro / Pro Max series.
SmallRig Wired Touchscreen Display Adapter for Smartphones (Basic Edition) 6746 features a 4.02" capacitive touchscreen that enables both screen mirroring and direct control of your smartphone.

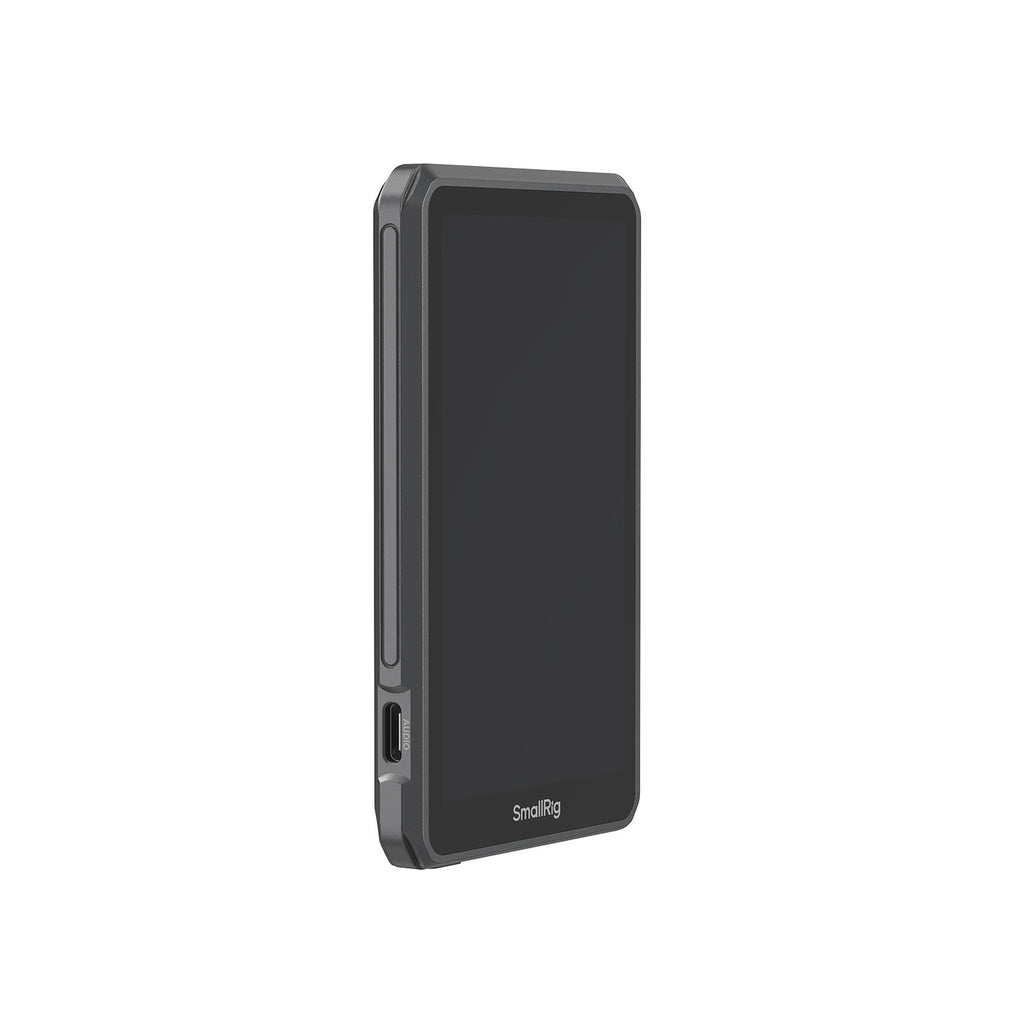

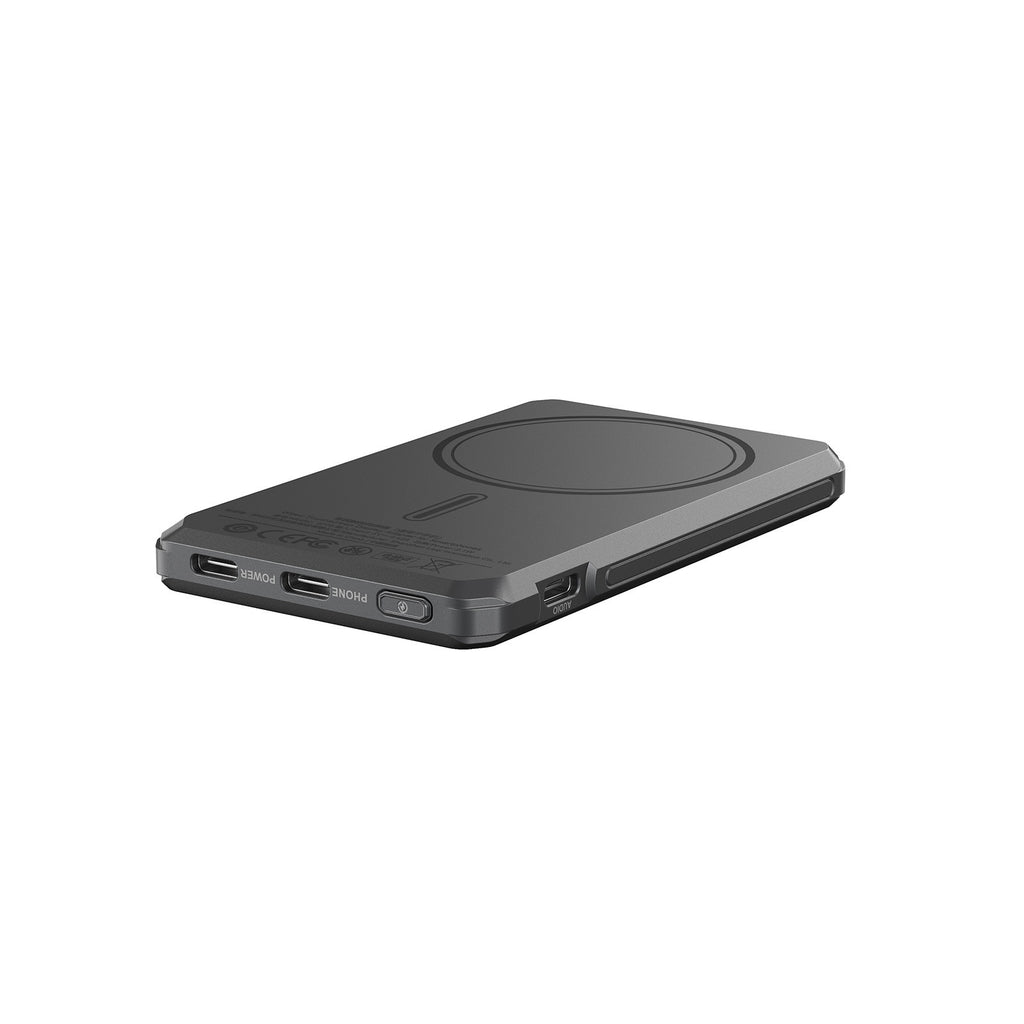

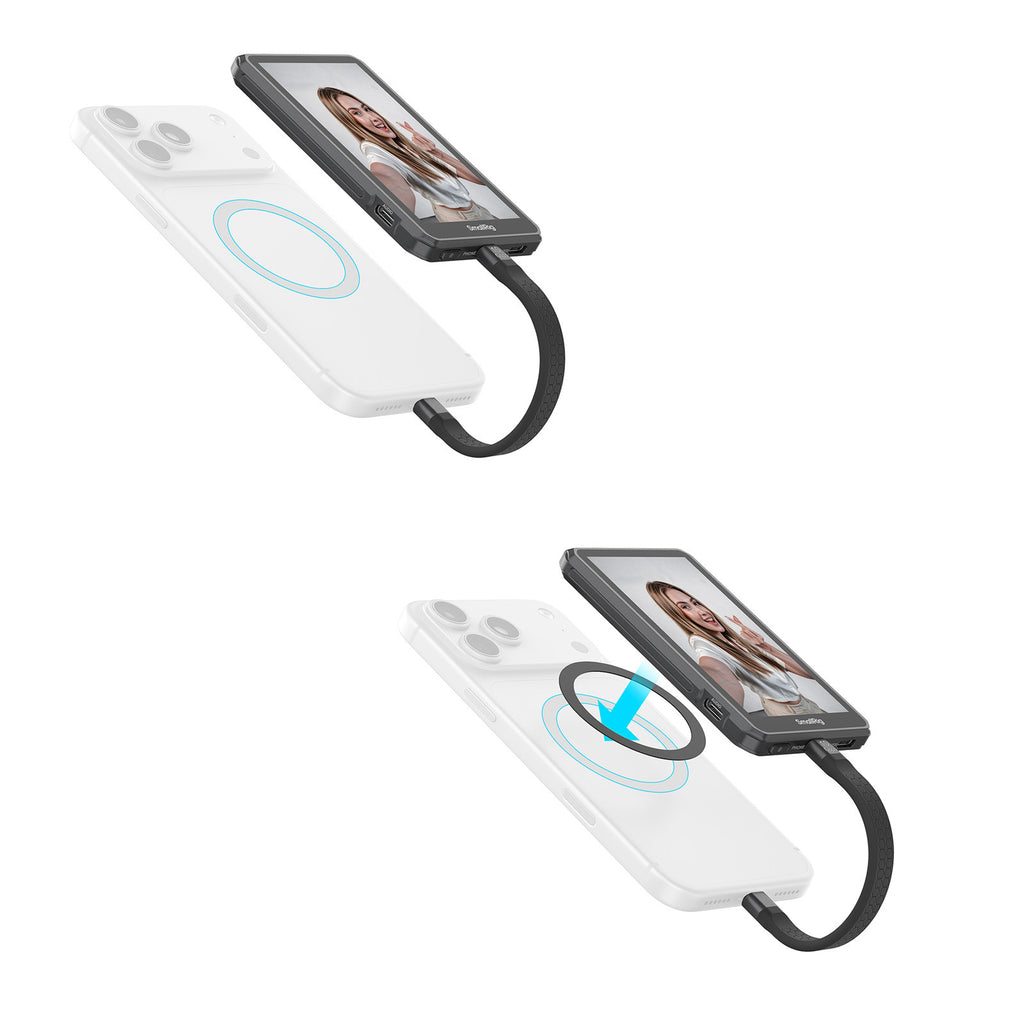

It features a PD port to charge your phone and can also be powered by the phone itself. A USB 2.0 port allows you to connect an external microphone receiver for audio recording. The magnetic design lets you attach it directly to an iPhone or to any phone / case fitted with the included magnetic ring.

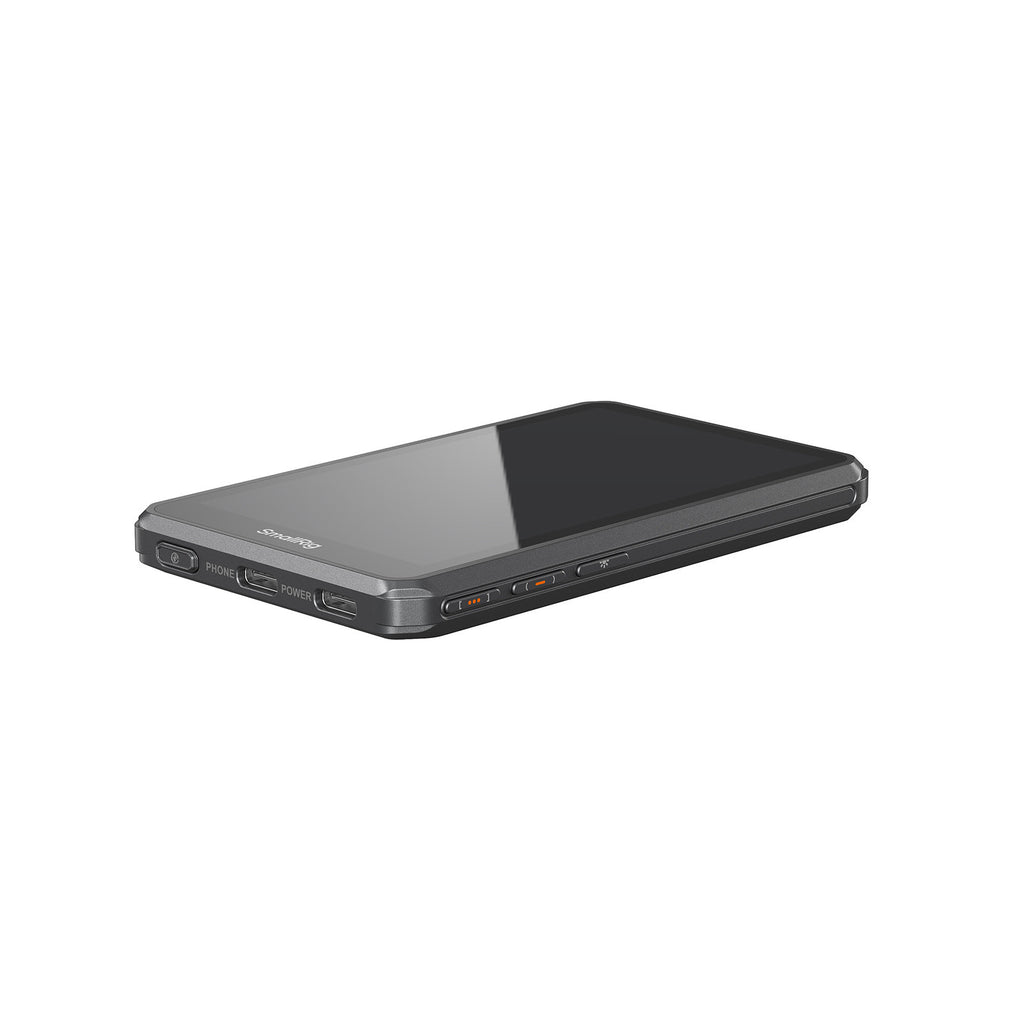

Four function buttons provide control over system sleep, screen brightness, image rotation, portrait mirroring, display modes, and reverse phone control, meeting the monitoring and operational needs of daily photography, videography, and live streaming.
IMPORTANT
1. Do not immerse the product in water or use it in humid environments.
2. For the best experience, use the buttons to select the correct touch mode for your phone before use.
3. Touch control features and user experience may vary depending on your phone's operating system.
SPECIFICATIONS
Voltage: 5V
Current: 420mA
Rated Power: 2.1W

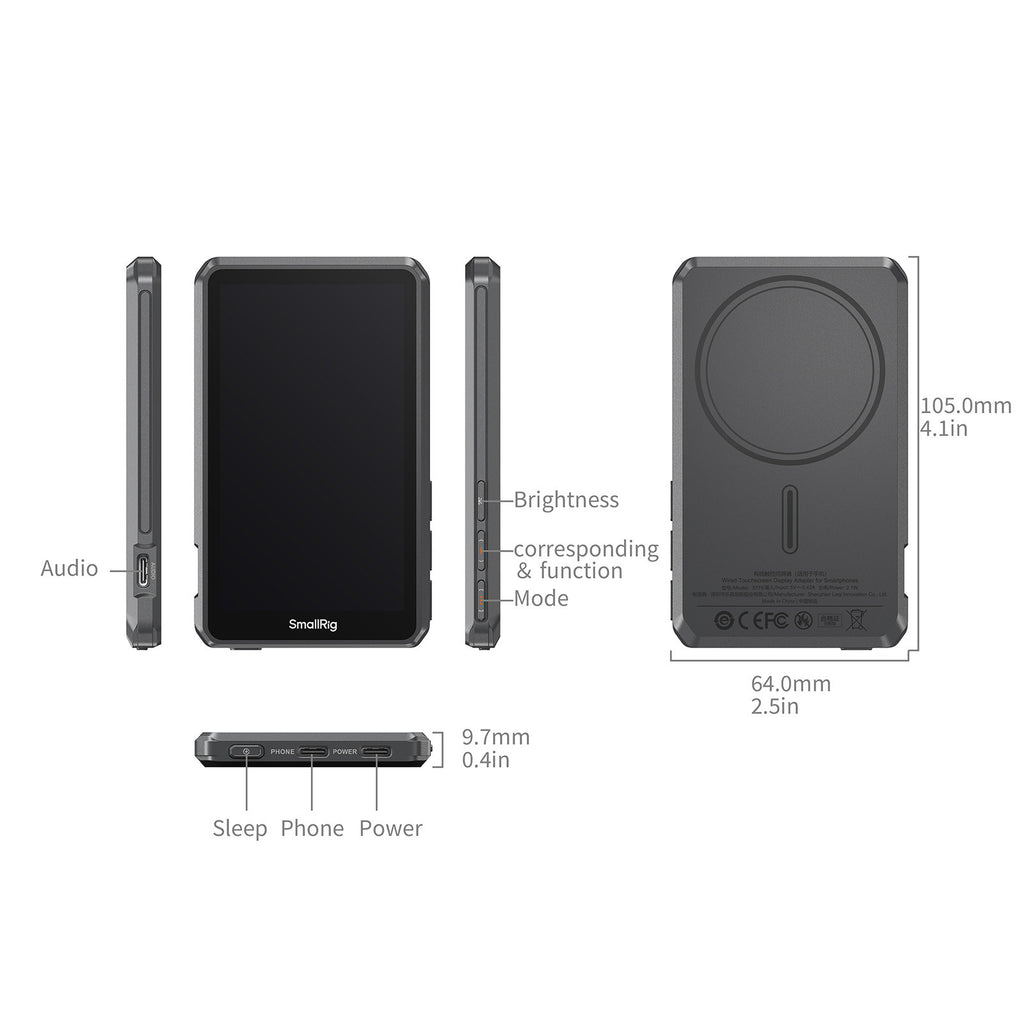

Product Dimensions: 105.0 × 64.0 × 9.7mm / 4.1 × 2.5 × 0.4in
Package Dimensions: 224 × 91 × 24mm / 8.8 × 3.6 × 0.9in
Product Weight: 105.7 ± 2.0g / 3.7 ± 0.1oz
Package Weight: 216.1 ± 5.0g / 7.6 ± 0.2oz
Material(s): Silicone, Aluminum Alloy
COMPATIBILITY
iPhone 15 / 16 / 17 Pro / Pro Max series
SAMSUNG S25 / 26 Ultra series
HUAWEI Mate 80 / 90 series; Pura 80 / 90 series
XIAOMI 15 / 17 series; VIVO X200 / X300 series; OPPO Find series

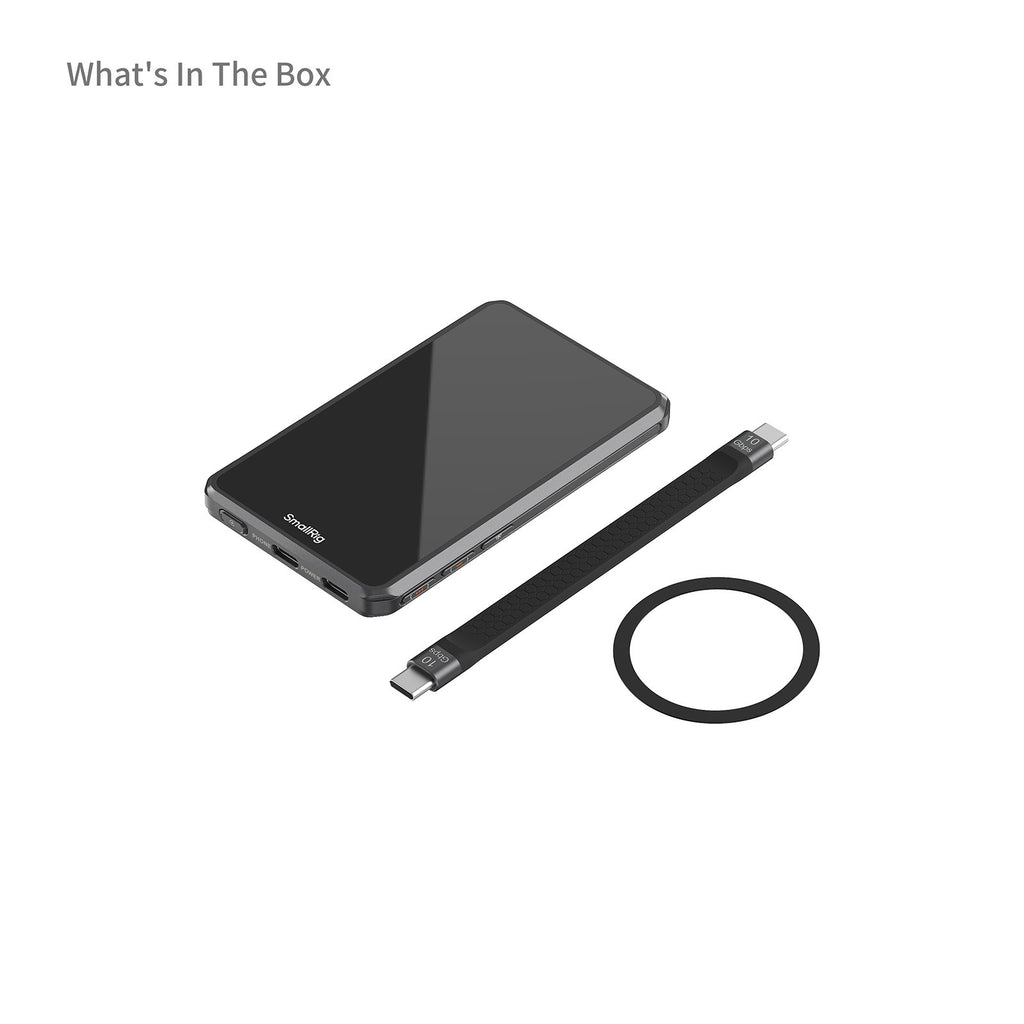

WHAT IS INCLUDED
1x SmallRig Wired Touchscreen Display Adapter for Smartphones
1x Magnetic Ring
1x Data Cable (10Gbps)
1x Product Manual
1x User Manual
1x Guarantee Card
