Description
SMALLRIG V-MOUNT BATTERY MOUNT PLATE KIT FOR 15MM LWS RODS 6117
- Quick 15mm Rod Mount: Attaches quickly to a 15mm dual rod system via a 15mm rod clamp, allowing a V-mount battery to be mounted for powering connected devices.
- Modular Screen Protection Support: Allows quick installation and flexible adjustment while helping protect the camera screen from bumps and impacts.
- Easy Cable Management: Includes cable clips and elastic hook-and-loop straps to help organize cables, keep the setup tidy, and reduce the risk of interruptions caused by cable snags or pulling.

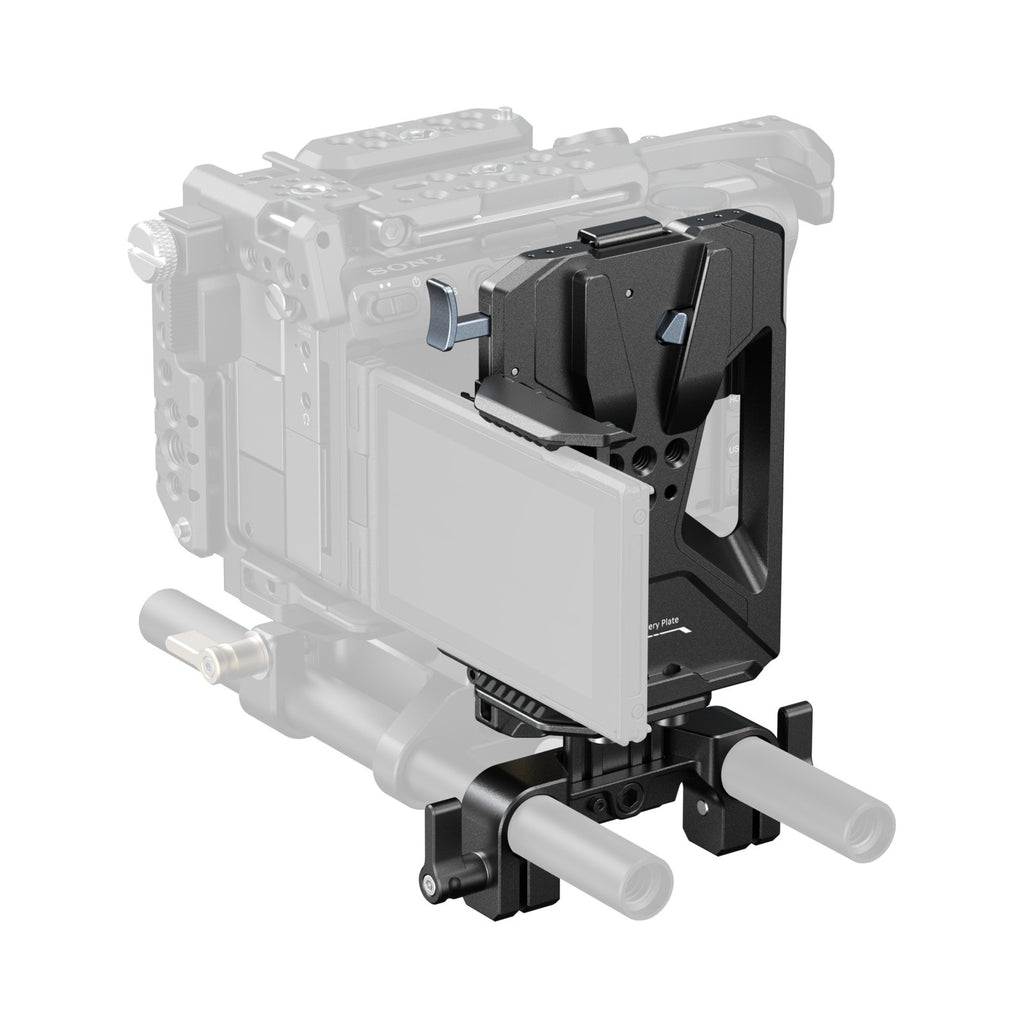

SmallRig V-Mount Battery Mount Plate Kit for 15mm LWS Rods 6117 is designed to make V-mount battery setup on 15mm dual rod systems more convenient and efficient. It attaches quickly to 15mm rods via the 15mm rod clamp, allowing a V-mount battery to be mounted for powering connected devices.

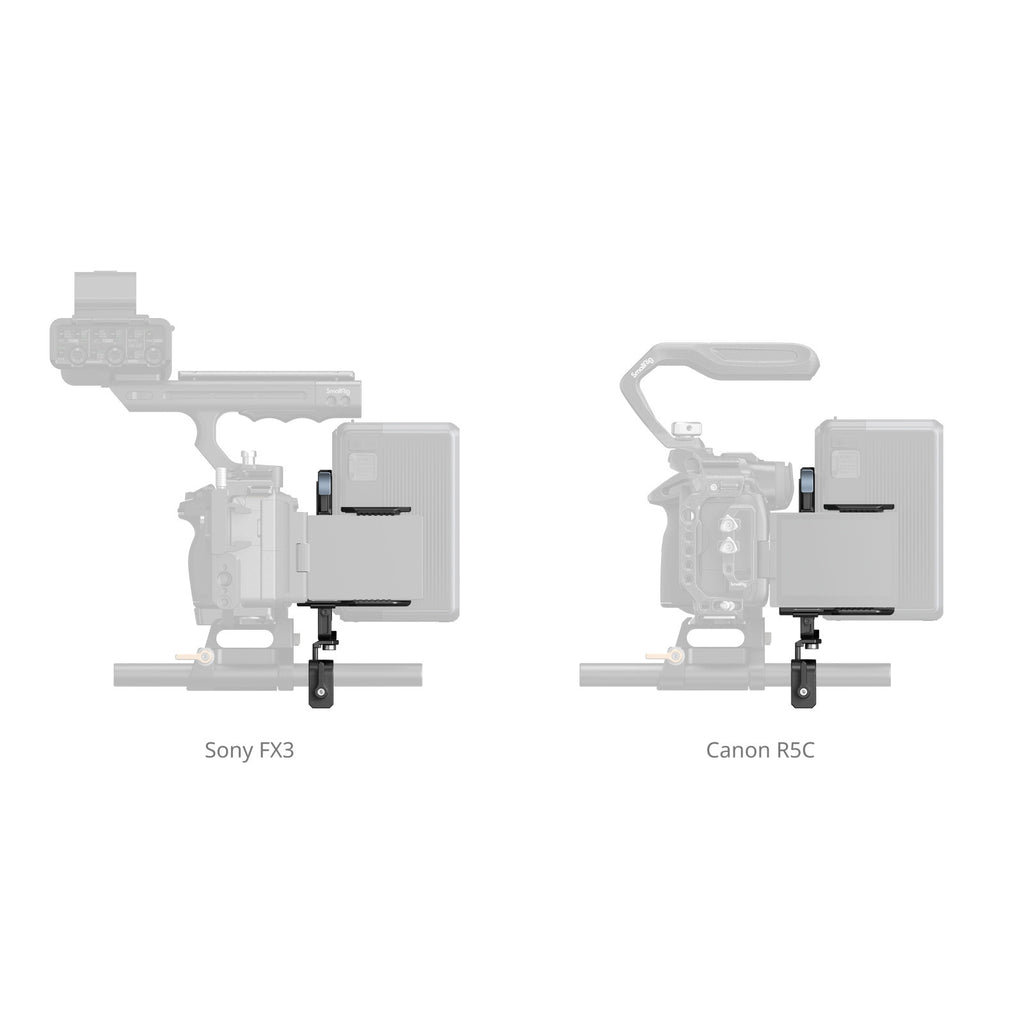

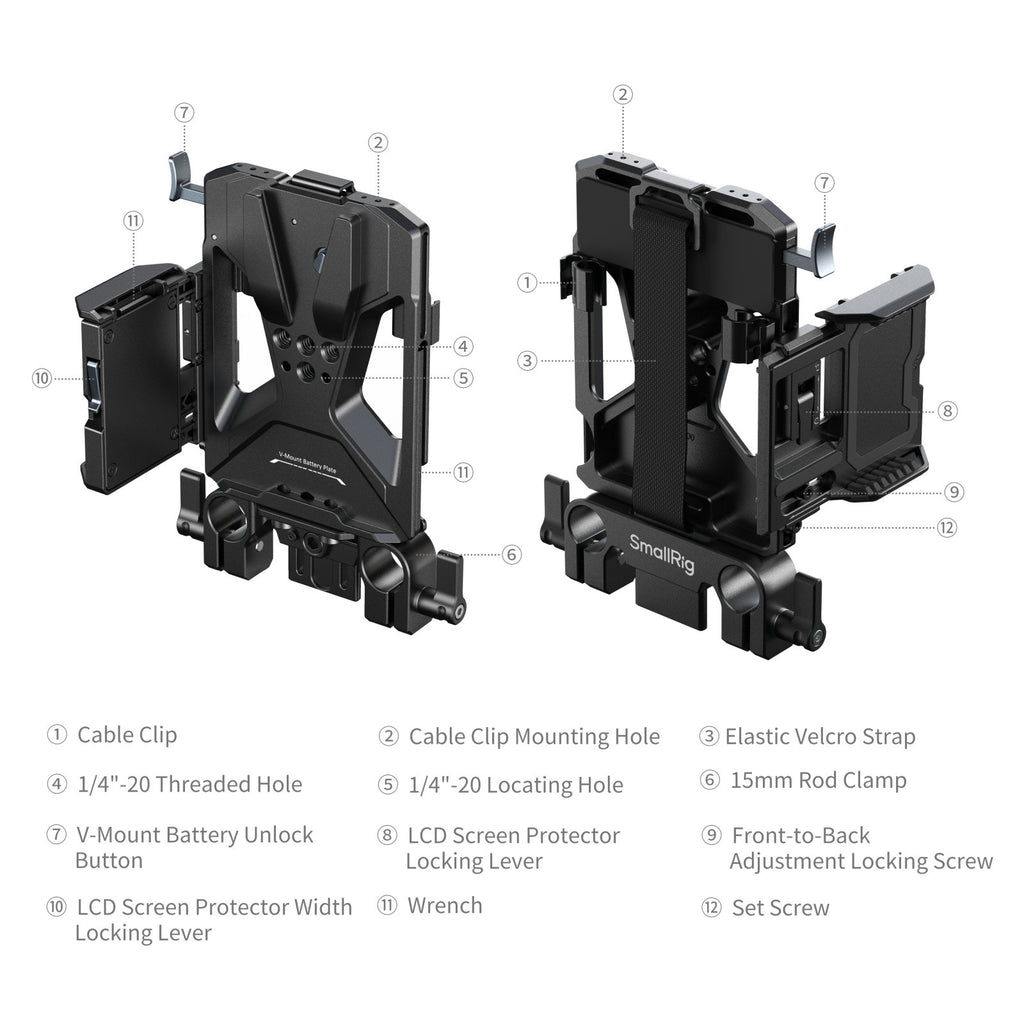

The LCD screen protection support features a modular design for quick, tool-free installation. It offers height and width adjustment, with front-to-back and left-to-right fine-tuning using the included wrench. This makes it compatible with most mirrorless cameras with flip-out screens while helping protect the screen from bumps and impacts.
A set screw at the bottom of the support slot helps retain the vertical position after the initial setup, reducing the need for repeated adjustment during future installation and improving workflow efficiency.

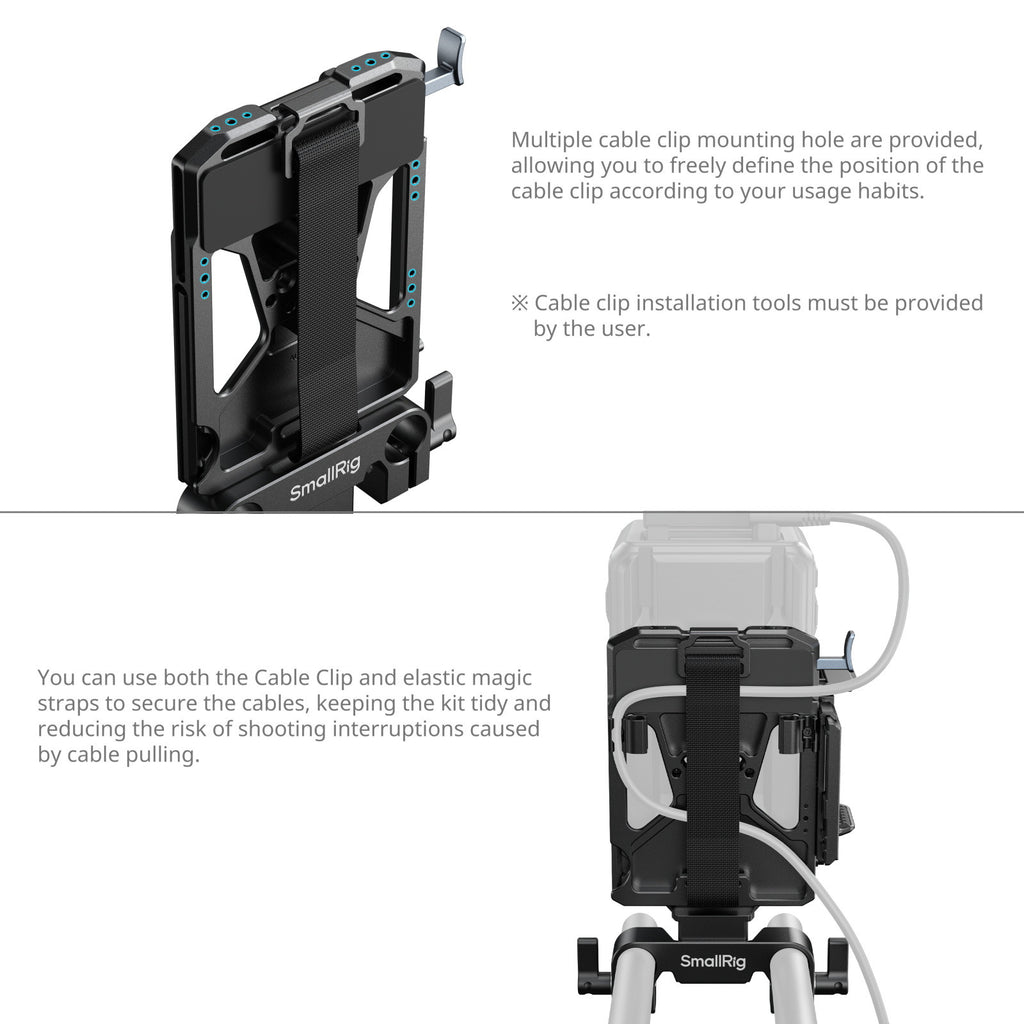

The height of the 15mm dual rod clamp is adjustable. When used with 15mm dual rod bases (ID 5365 and ID 5366), the LCD screen protection support remains fully adjustable and functional. Included cable clips and elastic hook-and-loop straps help secure and organize cables, keeping the setup tidy and reducing the risk of shooting interruptions caused by cable snags or pulling. The V-mount battery mount plate also features multiple mounting points for cable clamps, allowing flexible placement based on user preference.
Multiple 1/4"-20 threaded holes and 1/4"-20 locating holes are provided for mounting accessories such as magic arms (ID 3238B and ID 3873), allowing wireless video transmitters to be installed.
IMPORTANT
When the LCD screen protection support is used, the maximum compatible V-mount battery width is 80.0mm (3.1in). Known compatible SmallRig V-mount batteries include 3579B, 4871, 4872, 3580B, 4929, 4930, 4292, 4974, 4608, 4984, 3581B, and 4293.
SPECIFICATIONS
Product Dimensions: 141.8 × 107.4 × 74.0mm / 5.6 × 4.2 × 2.9in
Package Dimensions: 201.0 × 142.5 × 40.0mm / 7.9 × 5.6 × 1.6in
Product Weight: 215.0 ± 5.0g / 7.6 ± 0.2oz
Package Weight: 284.6 ± 5.0g / 10.0 ± 0.2oz
Material(s): Aluminum Alloy, PC + Glass Fiber, Stainless Steel, Silicone
COMPATIBILITY
Compatible with 15mm dual rod systems and V-mount accessories, such as V-mount batteries.

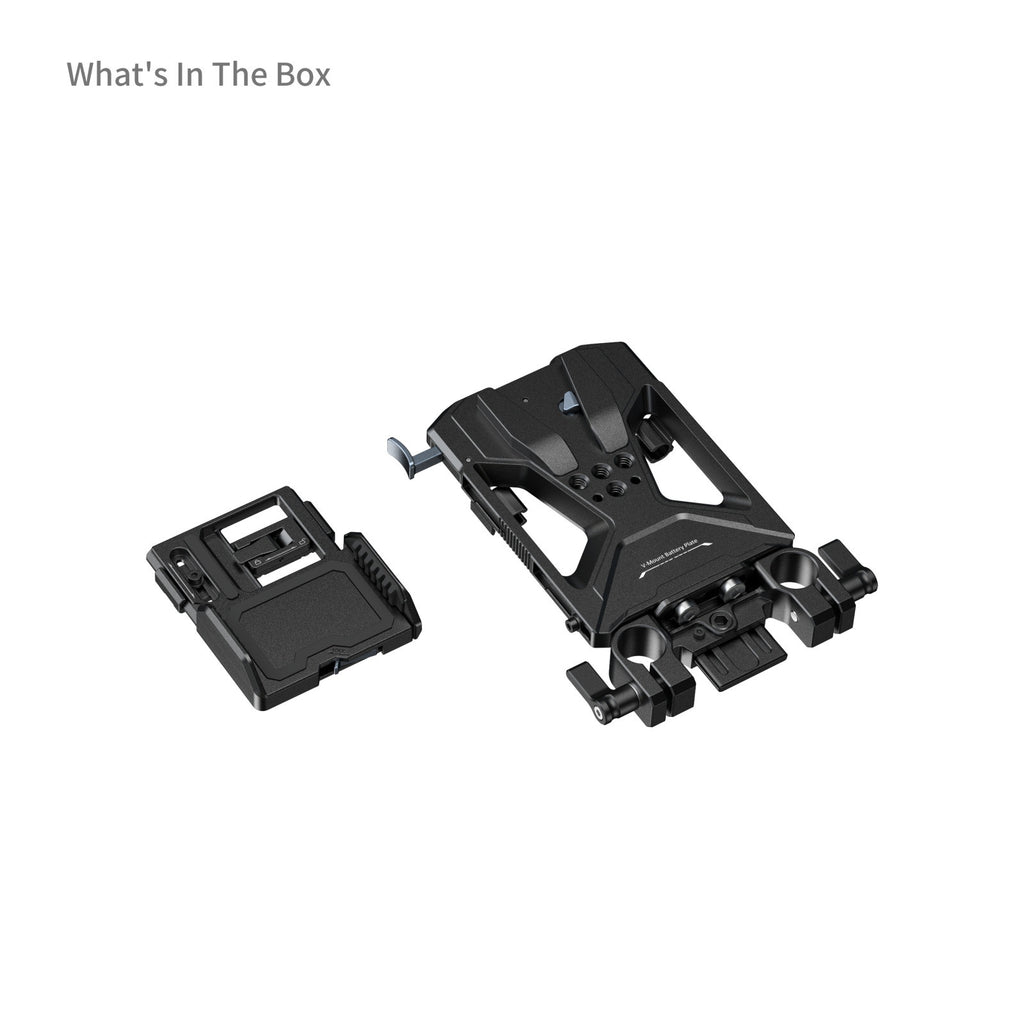

WHAT IS INCLUDED
1x V-Mount Battery Mount Plate
1x LCD Screen Protector
1x Operating Instructions
