SMALLRIG MINI MATTE BOX PRO 3680B
- Top and side flags effectively prevent flare from different angles.
- Supports dual 4 x 5.65" filter trays.

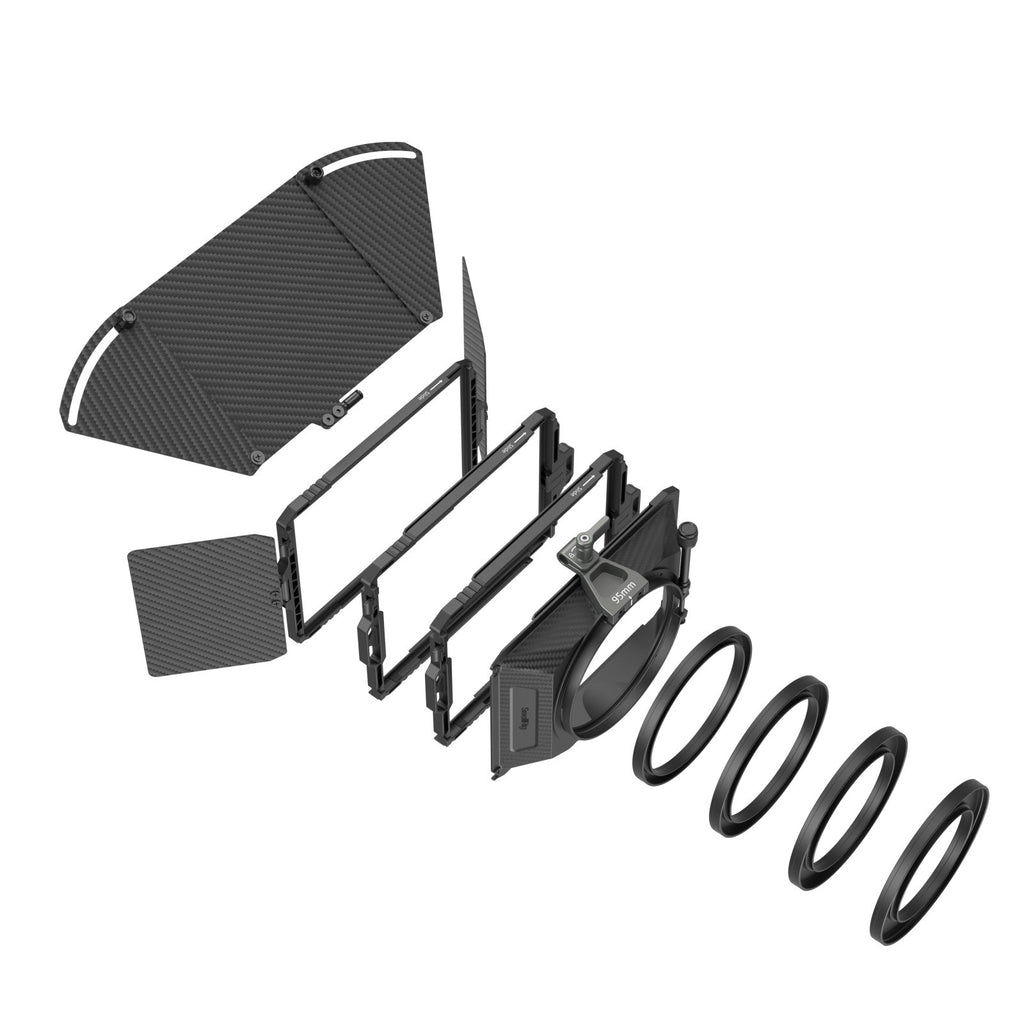

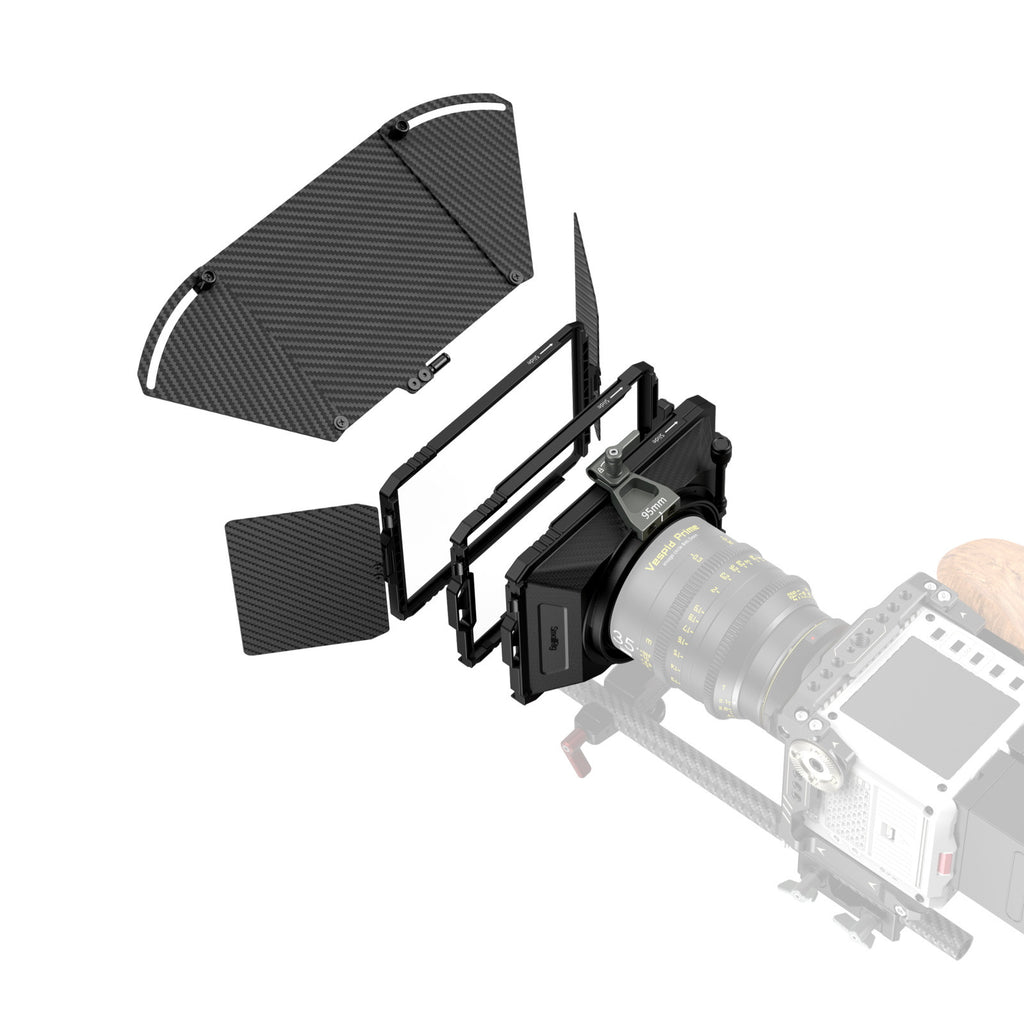

SmallRig mini Matte Box Pro 3680B is designed for video production with mirrorless cameras, effectively reducing flare and maintaining image quality by blocking stray light from sunlight and other sources. This matte box includes two 4 x 5.65" filter trays that can be quickly mounted via a NATO clamp and supports multiple filters stacked together.

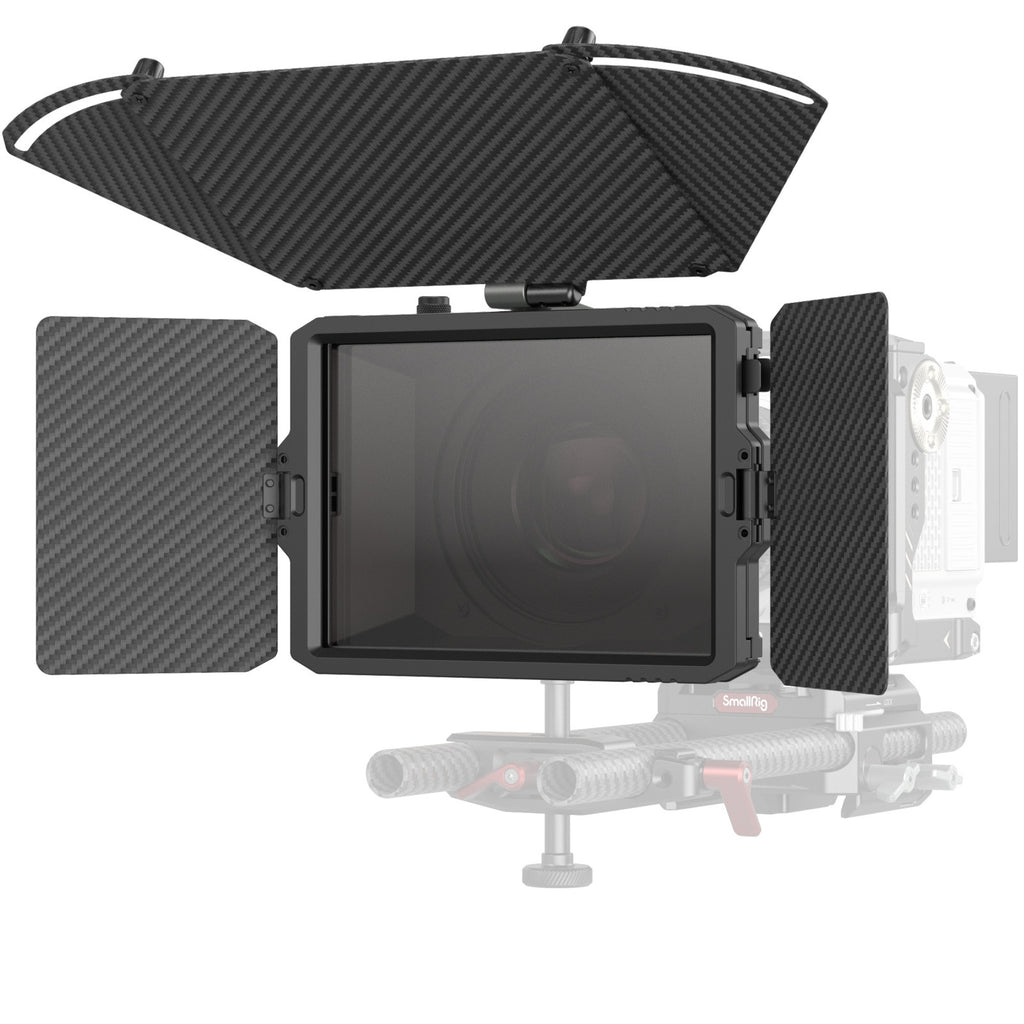

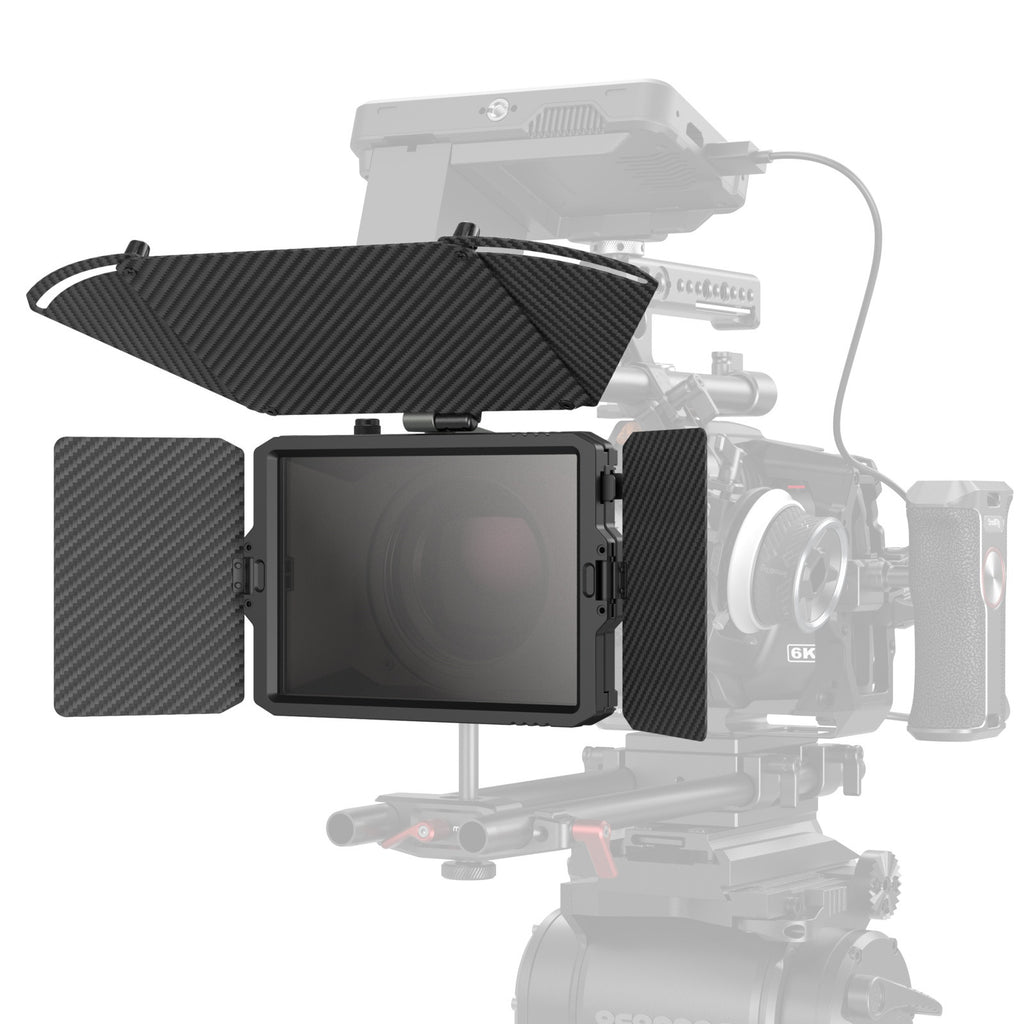

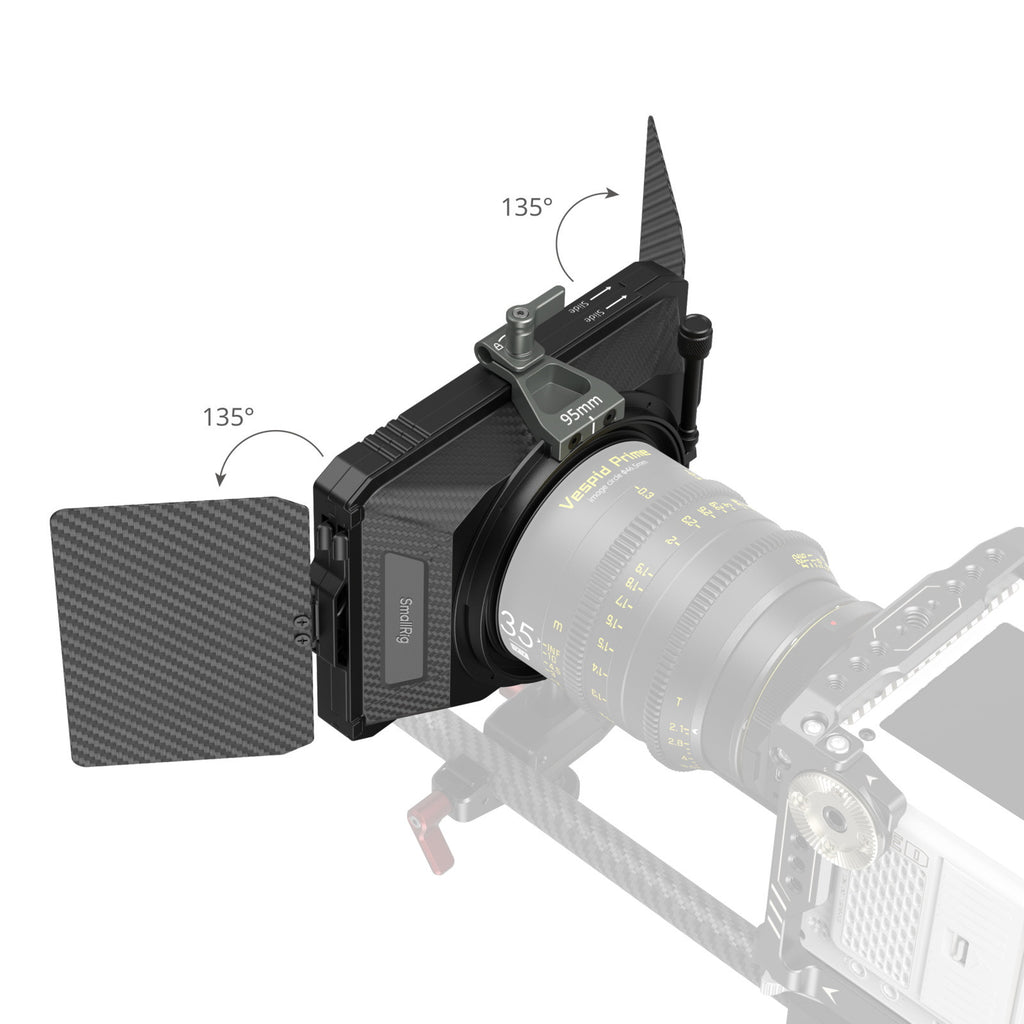

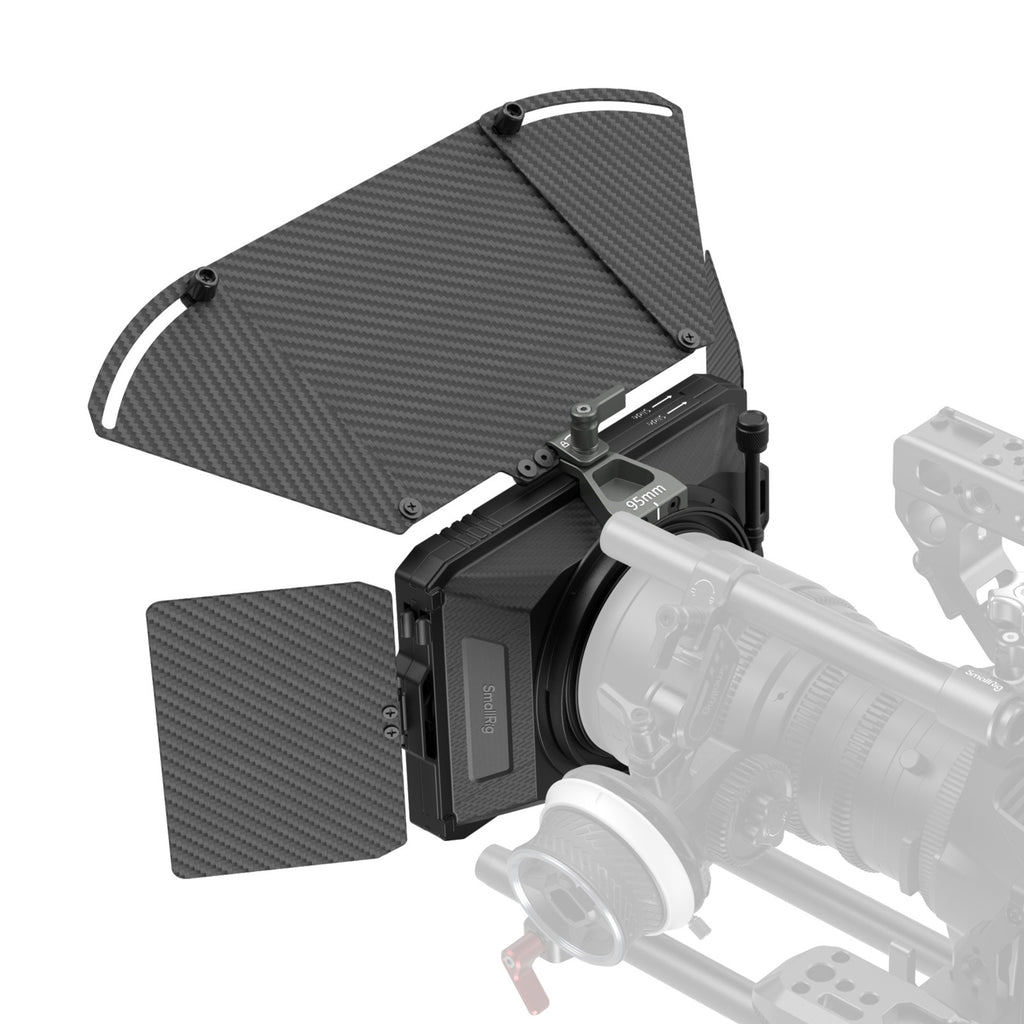

The top flag opens up to 180°, while the side wings extend up to 40° for an expanded blocking area. The side flag can be attached to either the matte box or the filter tray using a NATO clamp and also opens up to 180° to block stray light.

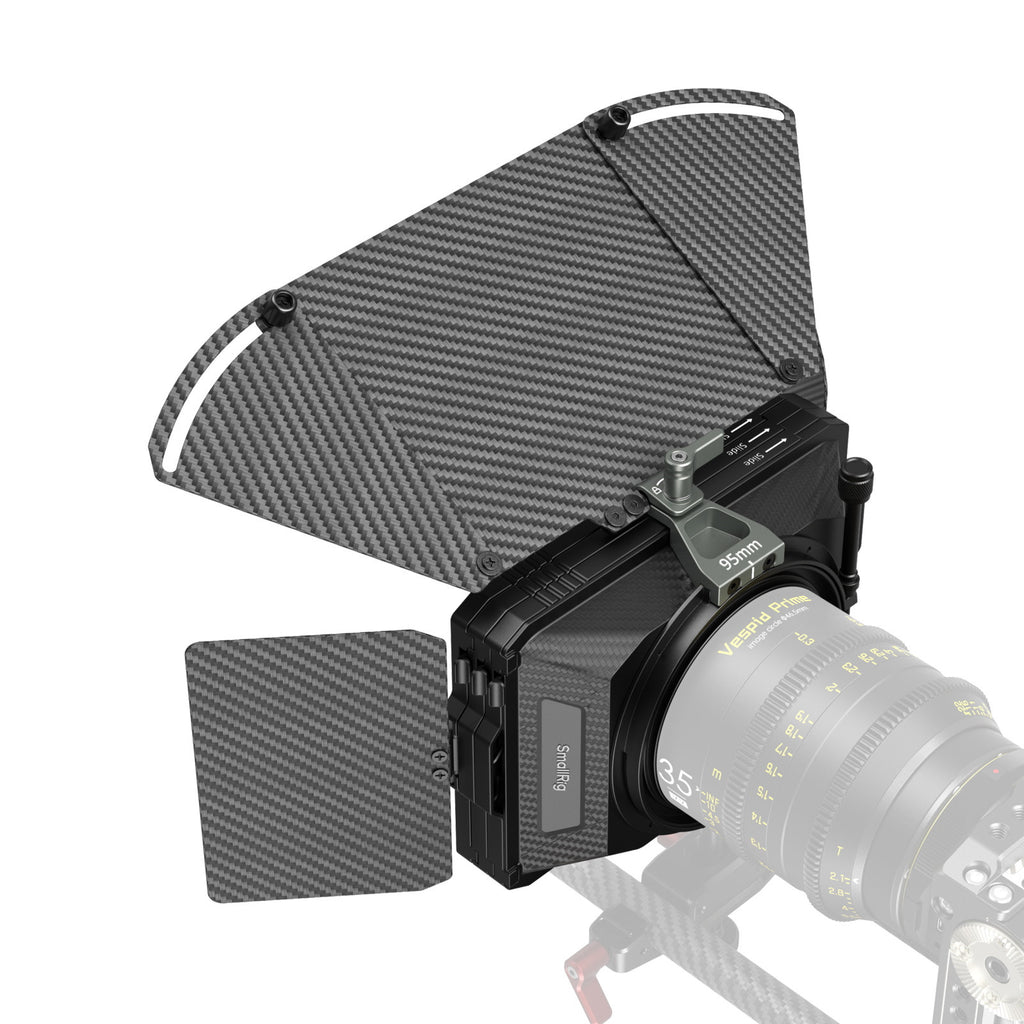

The package includes four adapter rings (Φ67-95mm, Φ72-95mm, Φ77-95mm, Φ82-95mm), allowing for direct mounting onto cinema lenses with a 95mm outer diameter or attachment to mirrorless camera lens filters (compatible with Φ67mm, Φ72mm, Φ77mm, and Φ82mm filter sizes). A carrying bag is also included for easy storage of the matte box and filter trays.
IMPORTANT
Top flag cannot fully close when using dual filter trays or a filter tray with a side flag.
SPECIFICATIONS

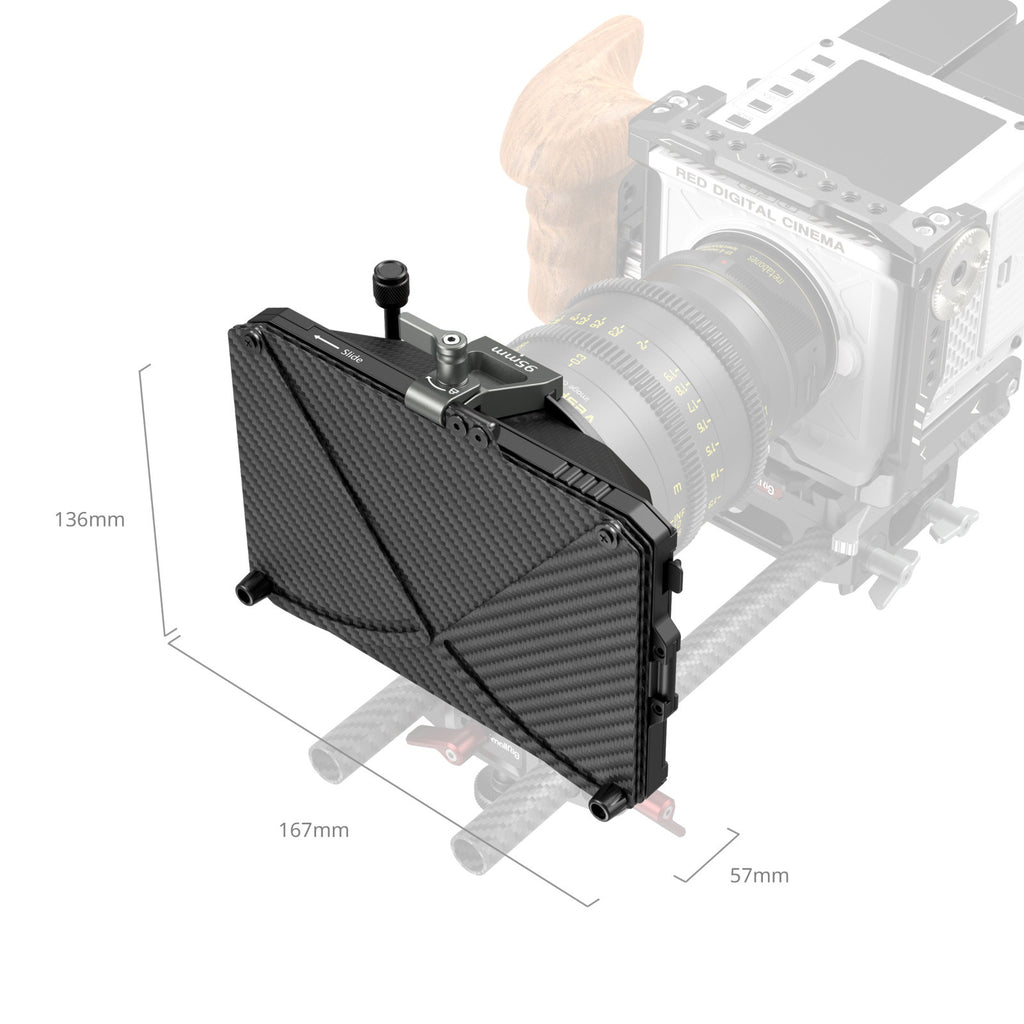

Product Dimensions: 167.0 x 137.0 x 54.0mm / 6.6 x 5.4 x 2.1in
Package Dimensions: 235.0 x 145.0 x 100.0mm / 9.3 x 5.7 x 3.9in
Net Weight: 368.0g ± 5.0g / 13.0 ± 0.2oz
Package Weight: 568.0g ± 5.0g / 20.0 ± 0.2oz
Material(s): PC, Fiberglass, Carbon Fiber
COMPATIBILITY
1. Cinema lenses with a 95mm outer diameter (incompatible with 95mm threaded mirrorless lenses)
2. Mirrorless lenses (filter sizes: Φ67, 72, 77, 82mm)
3. Circular filters (maximum outer diameter: <Φ92.5mm)
4. 4mm / 0.16in thick 4 x 5.65" square filters

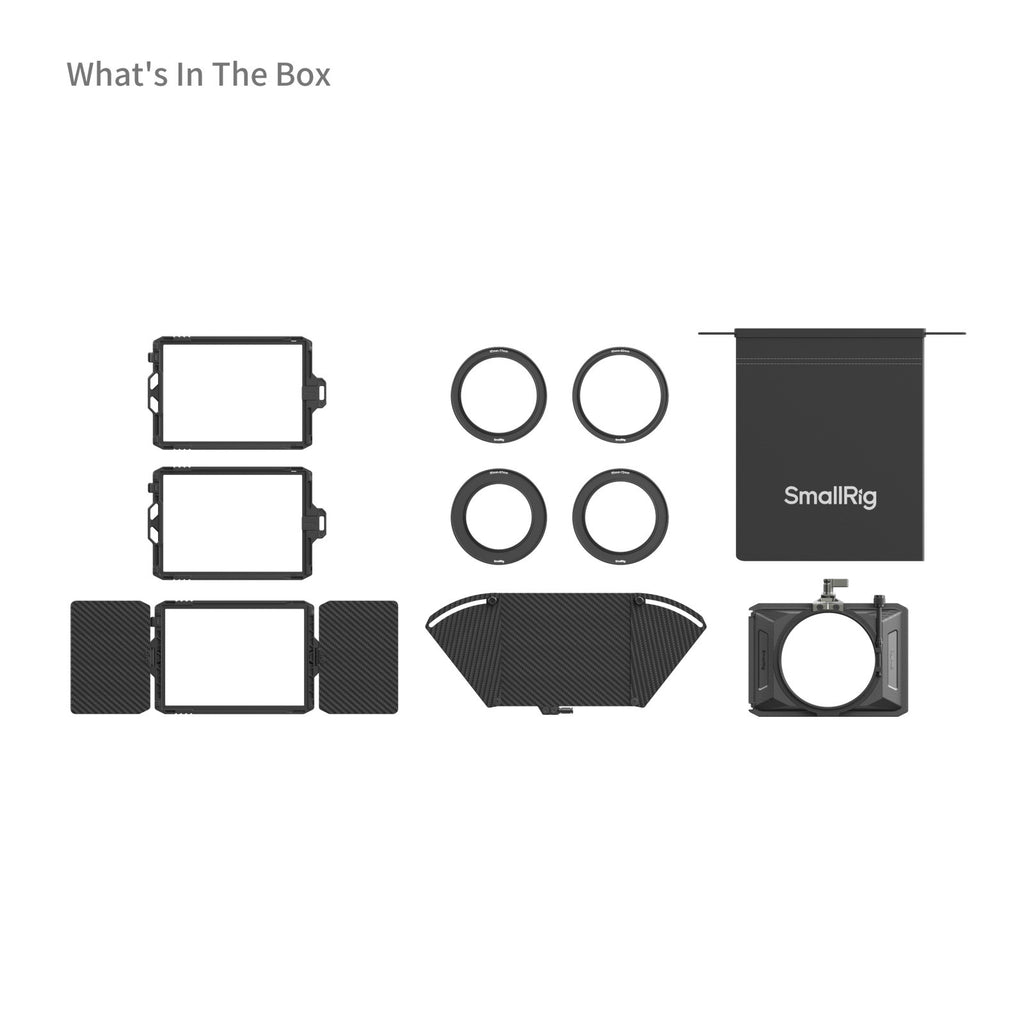

WHAT IS INCLUDED
1x mini Matte Box Pro
1x Side Flag
1x Top Flag
1x Φ67 / 72 / 77 / 82-95mm Adapter Ring
5x Filter Tray (4.65")
1x Storage Bag
1x Guarantee Card
1x Operating Instruction
